Drum Brake Shoes   EBC#     other#
070 x 16 Leleu xxxxx EBC000  Leleu70  Leleu70R
080 x 17 Yamaha xxx EBC501
080 x 18 Honda xxxx EBC301
080 x 18 Leleu xxxxx EBC322  EBC322G
080 x 20 Motobecane EBC876  EBC322M  27130
080 x 20 Suzuki xxxx EBC614
083 x 18 Atom xxxxx EBC000  Atom83
085 x 18 Jawa xxxxx  EBC804
090 x 18 Grimeca  x  EBC908  Grim90
090 x 18 Grimeca  x   EBC000  Grim90U
090 x 18 Grimeca  x   EBC931  Grim90V

090 x 20 Bernardi  x   EBC000  201071

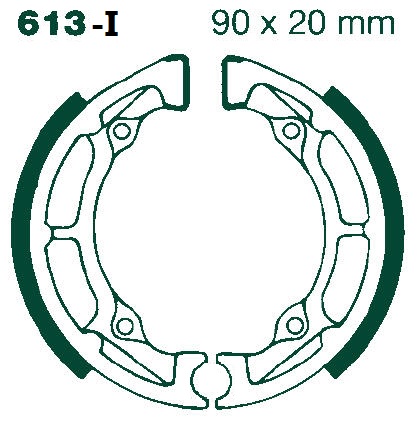

090 x 20 Indian xxxxEBC000  EBC613I
090 x 20 Jawa xxxx    EBC000  Jawa90

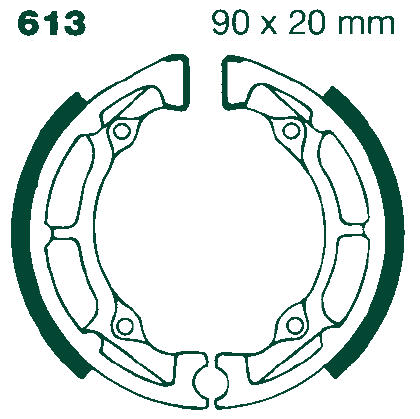

090 x 20 Suzuki xxx   EBC613

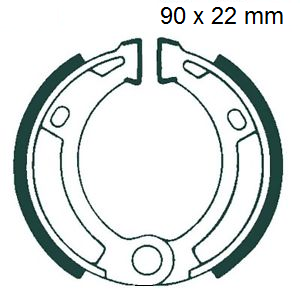

090 x 22 Trac xxxxx   EBC000  Trac90

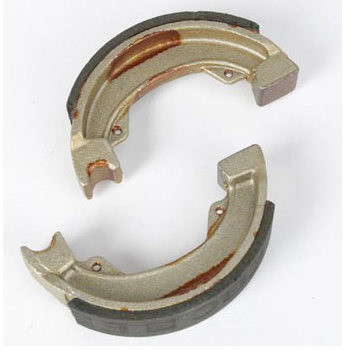

095 x 20 Honda xxx    EBC302
095 x 25 Honda xxx    EBC333

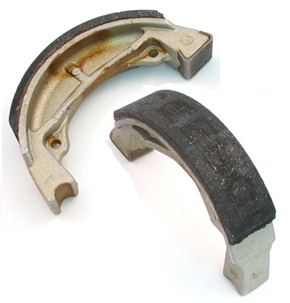

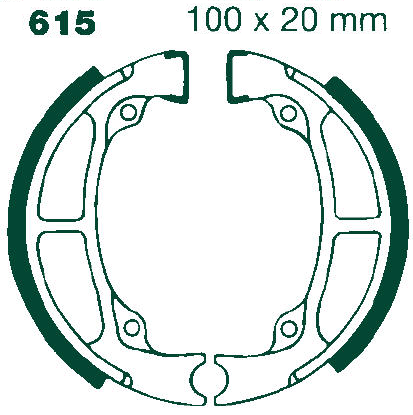

100 x 20 Indian xxxx  EBC615
100 x 25 Suzuki xxx   EBC601
105 x 20 Grimeca  x    EBC909  Grim105

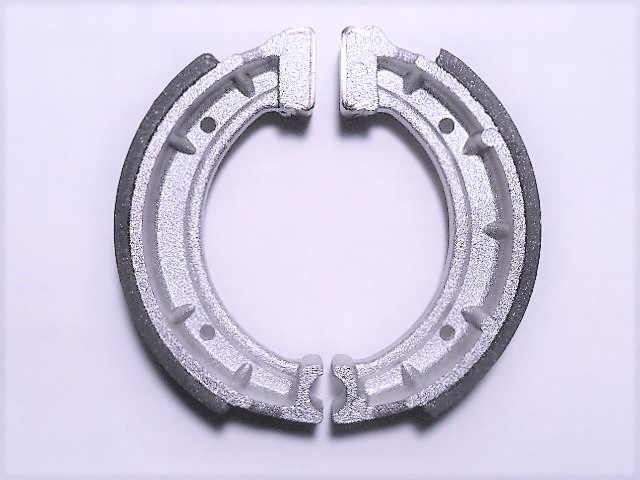

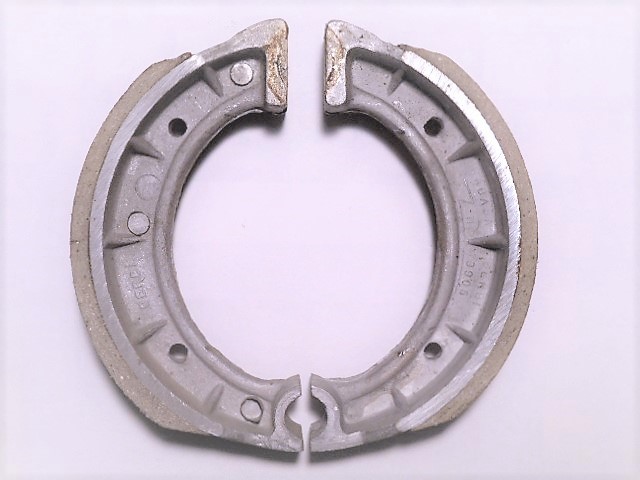

105 x 25 Derbi  xxxx   EBC880

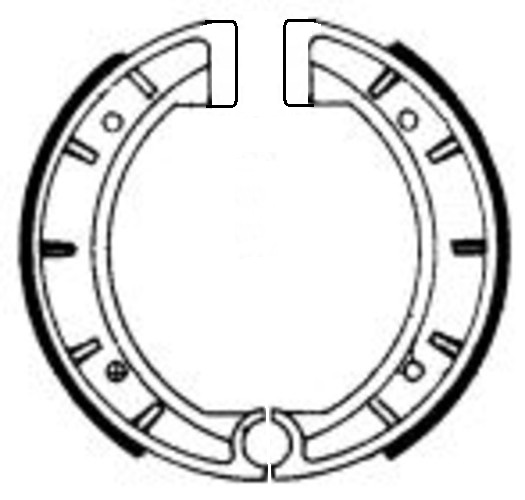

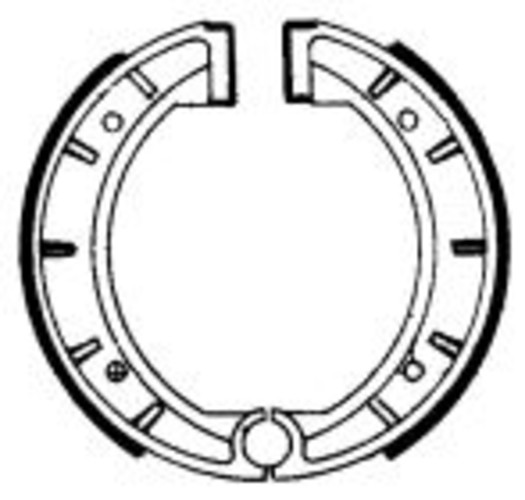

105 x 25 Derbi  xxxx   EBC808

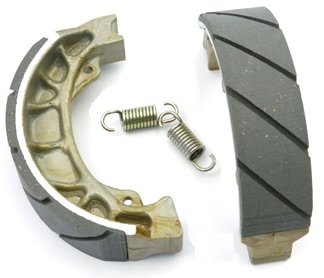

110 x 25 Honda xxx    EBC303

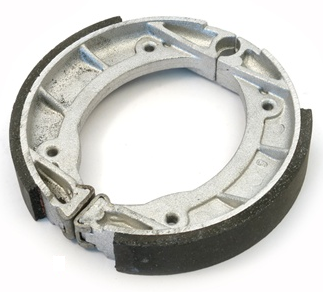

118 x 20 Grimeca  x    EBC926  Grim118
135 x 16 Vespa  xxxx  EBC907
Disk Brake Pads  xxx  EBC#    other#
’02-04 Tomos Grimeca

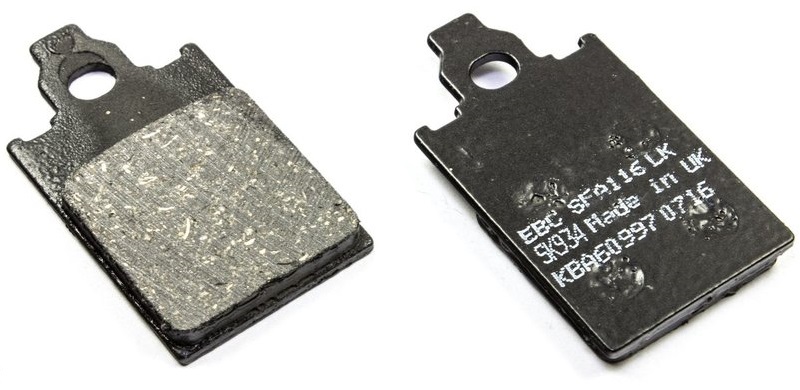

 SFA116  232842
’04-18 Tomos AJS xx

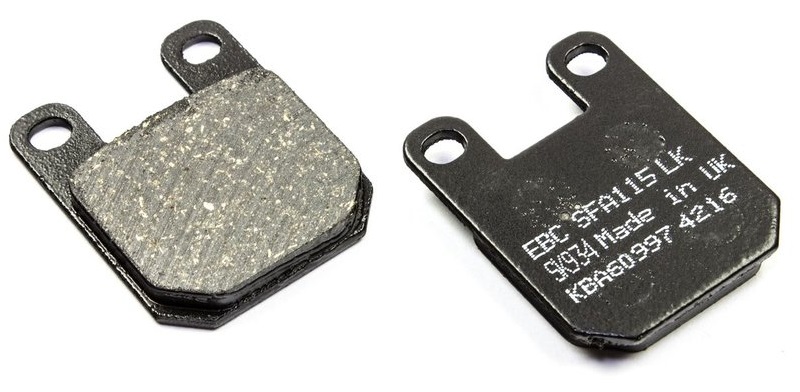

   SFA115  243604




Introduction

The meaning of "size"

Definition of size



Size: The size of a drum brake shoe is not it’s actual length and width. The size is the width, and the diameter of the imaginary circle which the arc is a part of, which is also the brake drum diameter. Notice that the actual length is a little less than the drum diameter. So a 90 x 20 mm brake shoe is actually about 84 mm long by 20 mm wide.

Brakes that have the same 1) drum diameter and 2) width, can still be different, because of these things: the pivot post can have different 3) positions, 4) thicknesses and 5) widths, the spreader shaft can have different 6) positions, 7) thicknesses and 8) widths, the spring holes can have different (9,10) positions and 11) widths. So the size is actually 11 numbers, not just two.

Name: Here we use a name instead of items 3 to 8, and a part number suffix instead of items 9 to 11. For example, 80 x 18 Honda is different from 80 x 18 Leleu, because the brake plate (items 1 to 8) is different. And 90 x 18 Grimeca #Grim90 is different from 90 x 18 Grimeca #Grim90U, because only the spring (items 9 to 11) is different.

Nationality: The brake name indicates the bike names it is used on. Leleu is French, so it is on European bikes. Grimeca is Italian, so it is also on European bikes, Honda is Japanese, so it is on Asian (Japan, Taiwan, Korea, China) bikes.

Types: There are four types of drum brake shoes used on mopeds:

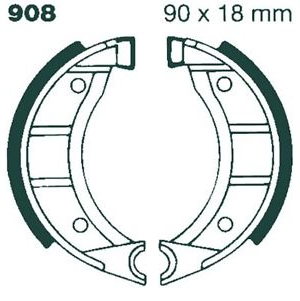

EBC 908 brake shoes1. Open type with coil springs: When the center of the wheel is small enough, the open type with coil springs is preferred because servicing is easier. To install, connect the springs and place the shoes in the shape of a taco. Then fold the taco into a flat tortilla. That stretches the springs without any tools. Then tap the shoes with the handle of a screwdriver until they snap into place. The advantage of this style is easy servicing.



EBC880 photoEBC8802. Hole type with coil springs: These brake shoes have a large hole in the pivot post end, and two small coil spring holes. They cannot be installed by “folding the taco into a tortilla”. But they also cannot separate from the pivot post. The advantage is slightly more safety.

When the center of the wheel is big and the brake drum is small, the U spring or V spring type is required. Otherwise the coil springs rub on the wheel center and make a violin sound.

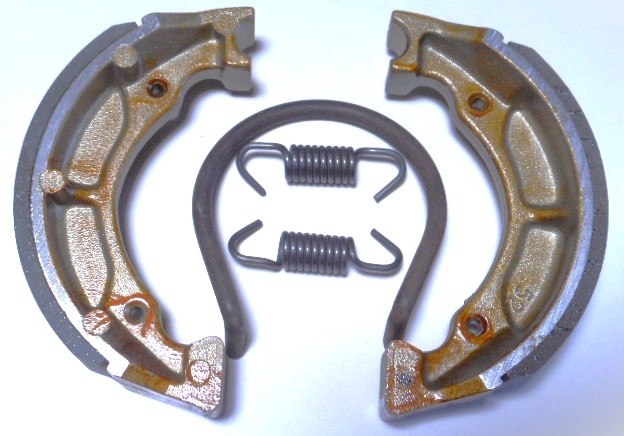

EBC 908D brake shoes3. Open type with U spring: The U spring goes inside the pivot post. The brake shoes and brake plate are the same as the hole type with coil springs. Only the spring is different, a single large U-spring instead of two small coils. For Grimeca 90 x 18, minor modifications to the coil spring brake shoes are required to fit a U-spring. See below. The advantage of this type is greater spring clearance and compatibility with type 1.

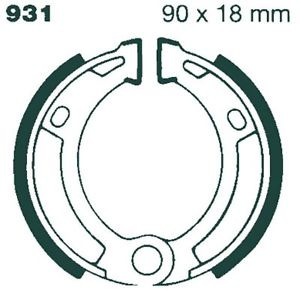

Grimeca V-SpringEBC9314. Hole type with V spring: The V spring goes outside the pivot post. These brake shoes have a large hole on the pivot end (not the smaller spring holes), and the V spring goes around the pivot post. So the pivot post has a rounded groove for the spring. The advantage of this type is slightly more reliability and safety.

But installing the spring is difficult and requires a special spreader tool. At left is that tool. It is made from a M6 x 30 screw, nut, washers, special lip-washer for centering, and a 12mm piston pin. The piston pin end and screw head are ground to fit the spring so it can’t slip off. Price $15












Brake Shoes



Listed in order of increasing size. The applications are US models unless noted.

Colors: F front or R rear wheel, engine in violet blue
spoke wheels in light gray. mag wheels in black
pedal mopeds in dark orange
non-pedal mopeds and motorcycles in black
scooters (with a “floor”) in dark aqua
off-road or dual-purpose bikes in olive




70 x 16  Leleu open type with coil springs

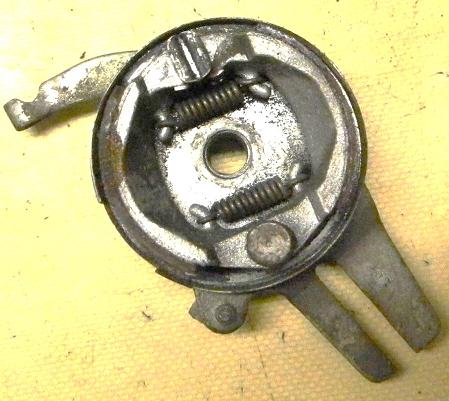

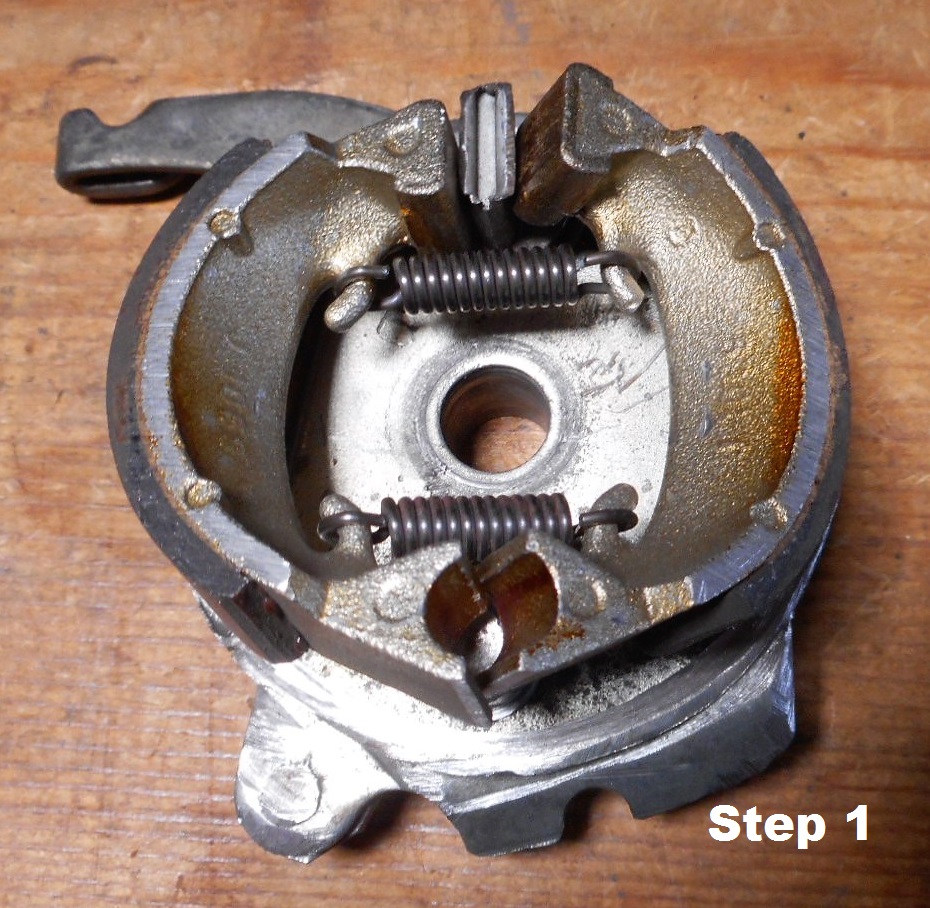

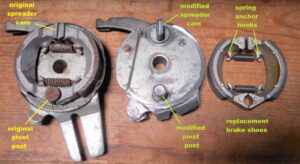

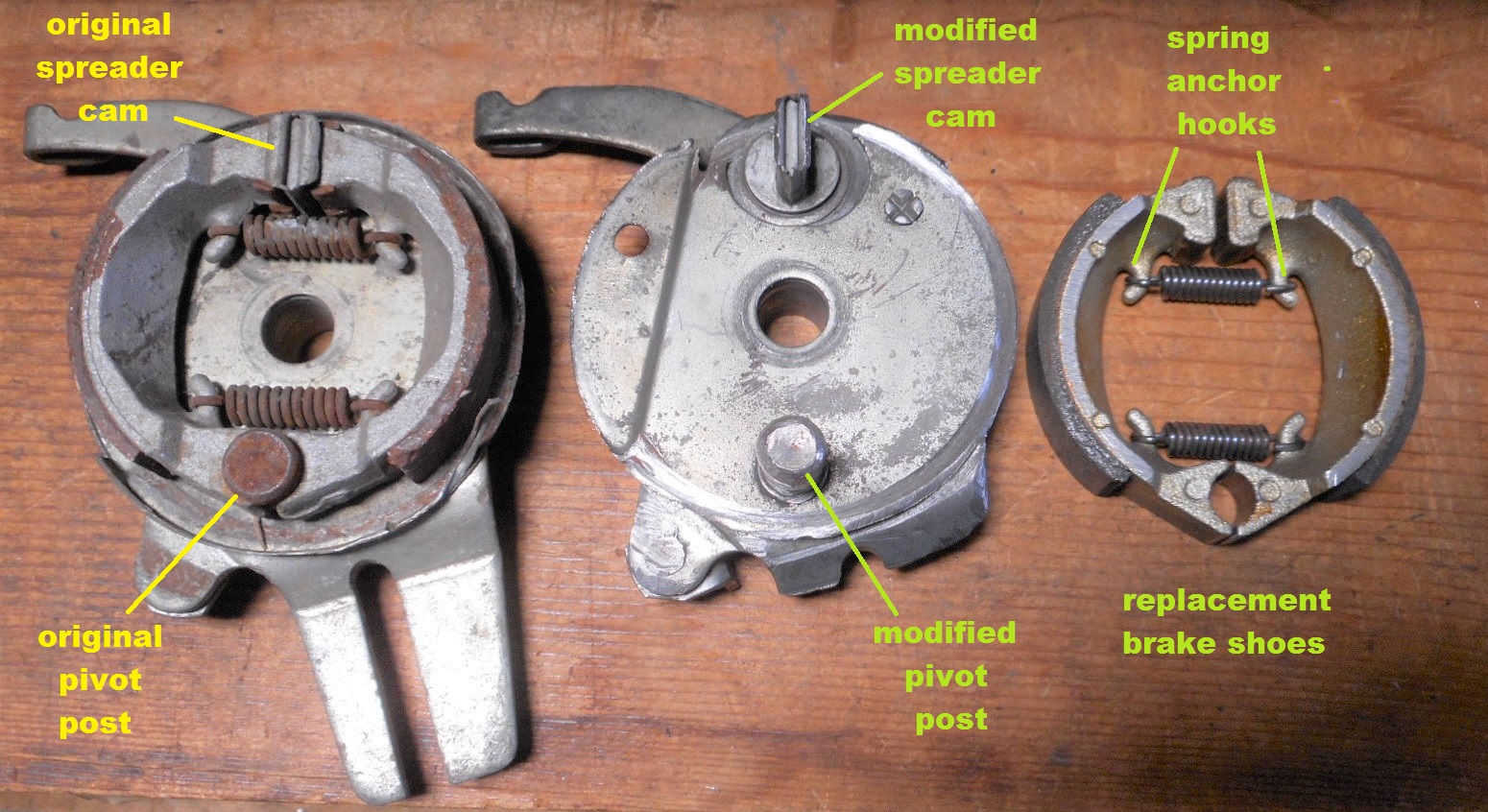

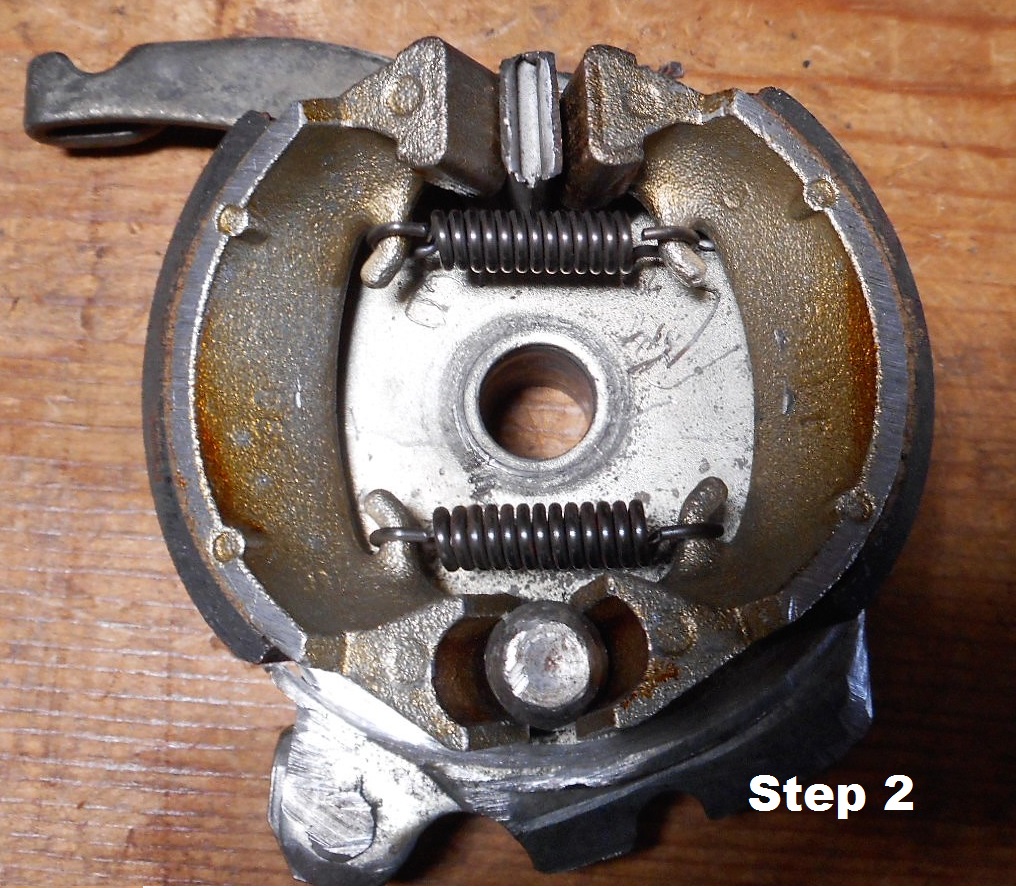

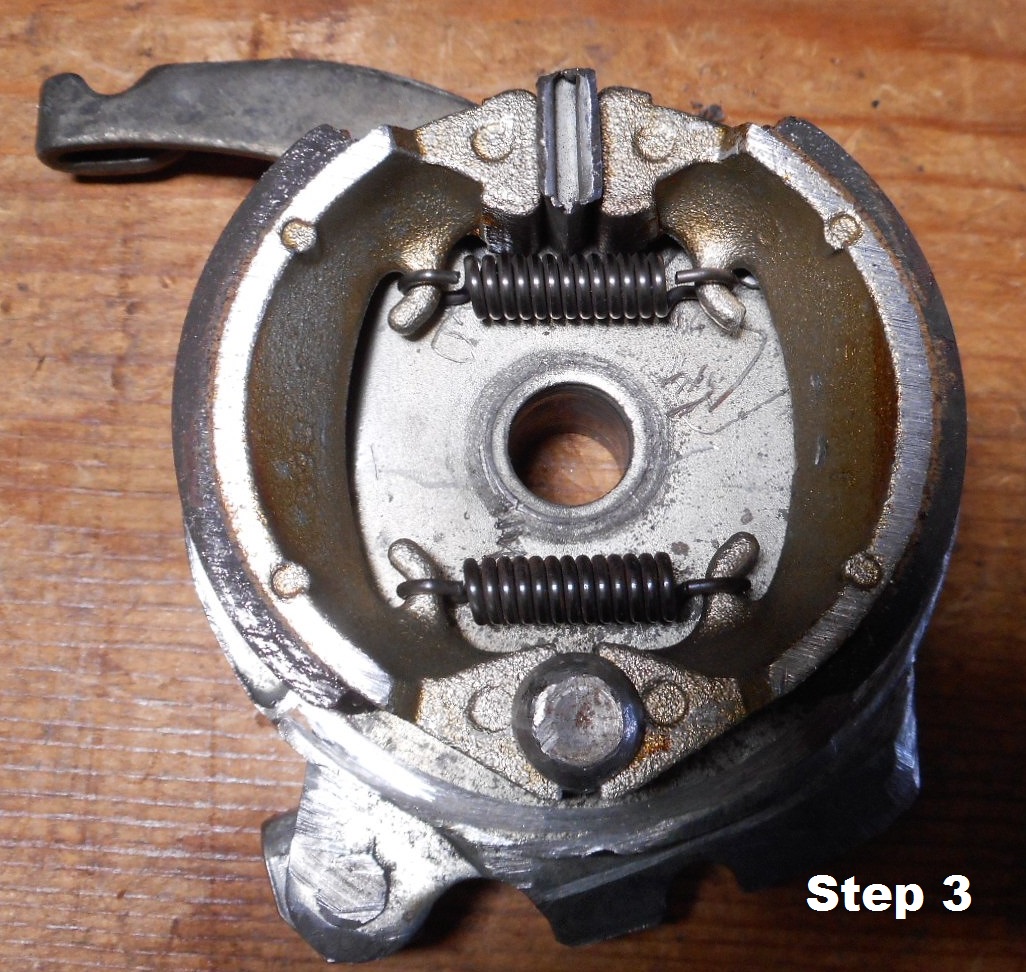

Leleu 70x16 brake shoes on Batavus R brake plate

Leleu 70 x 16

Leleu70













Leleu70r   replica brake shoe set, per wheel    $23

Leleu70   original brake shoe set, per wheel    $29

app   years      make    model   (version)                 wheels
   R
1974-1977 Batavus VA, HS50                     Leleu spoke
   R 1977-1980 Batavus Starflite                       Leleu spoke
F R 1977-1979 Motobecane Model 7                 Leleu spoke
   R 1980-1980 Peugeot 102                            Leleu spoke




80 x 17  Yamaha open type with U spring

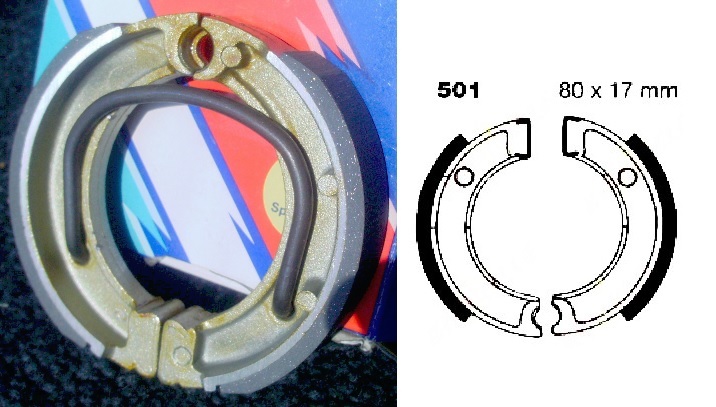

EBC 501 brake shoes

EBC 501

EBC501










EBC501  brake shoe set, per wheel     $20

app   years      make    model    (version)                 wheels
F R
1982-1982 Yamaha MJ50 Towny                 Yamaha steel
F R 1980-1987 Yamaha QT50 Yamahopper       Yamaha spoke
F    1983-1986 Yamaha CA50 Riva                    Yamaha steel
   1986-1987 Yamaha CE50 Riva                    Yamaha steel
   1988-1991 Yamaha CG50 Riva                   Yamaha steel
F    1987-1994 Yamaha SH50 Razz                   Yamaha steel
F    1998-1999 Yamaha SH50 Razz                   Yamaha steel
F R 1981-2009 Yamaha PW50                          Yamaha steel
F R 2012-2012 Yamaha PW50                          Yamaha steel






80 x 18  Honda hole type with V spring

By definition, this is a “V” spring because it goes around the outside of the pivot post. It looks like a “U” spring, but it’s too long to go inside. This same “V” spring might work as a “U” spring on bigger brake shoes.

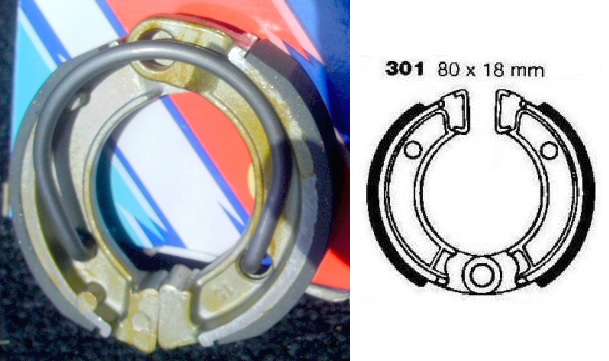

EBC 301 brake shoe

EBC 301

EBC301













EBC301   brake shoe set, per wheel    $20

app   years      make    model     (version)                wheels
F R 1978-1980 AMS Sierra 50, Tahoe 50            “Honda” spoke
F R 1977-1979 Angel AP48, BP48                      “Honda” spoke
F R 1978-1983 General 5-Star (model with small hubs)
F R 1978-1983 General 5-Star ST (model with small hubs)
F    1979-1981 Honda NA50 Express II               Honda spoke
F    1983-1987 Honda NB50 Aero                        Honda steel
   R 1977-1980 Honda NC50 Express                   Honda spoke
F    1977-1983 Honda NC50 Express                   Honda spoke
F R 1984-1984 Honda NN50 Gyro                        Honda steel
F R 1984-1987 Honda NQ50 Spree                       Honda steel
F    1981-1982 Honda NX50 Express Sr.               Honda spoke
F    1967-1968 Honda P50 (rear engine)              Honda spoke
F    1978-1981 Honda PA50 Hobbit                      Honda spoke
F R 1982-1983 Honda PA50 Hobbit                      Honda spoke
F R 1969-1970 Honda PC50 Lil Honda                  Honda spoke
F R 1975-1977 Honda PC50K1                             Honda spoke
F R 1985-1986 Honda TG50 Gyro                         Honda steel
F    1988-1993 Honda SA50 Elite                         Honda steel
F R 1988-1990 Honda SB50 Elite                         Honda steel
F    1987-1988 Honda SE50 Elite                         Honda steel
F R 2004-2012 Honda CRF50F
F R 2000-2003 Honda XR50R
F R 1980-1999 Honda Z50R
F R 1977-1978 Lazer Sport 50  orange               “Honda” spoke
F R 1977-1978 Lazer Sport 50 ST  blue              “Honda” spoke
F R 1977-1979 Speed Bird BP48, BP48S             “Honda” spoke
F R 2008-2011 Suzuki DR-Z 70
F R 2006-2009 Yamaha TT-R 50




80 x 18  Leleu open type with coil springs

EBC322 brakes are for European-made mopeds with Leleu French-made hubs and Leleu 80mm drum brakes.

EBC322 requires grinding. Without grinding the spring rubs and makes noise. The depth is made just deep enough so that the coils of the spring never touch the brake shoes. In the photo, right is before grinding, left is after.

EBC 322

EBC322













EBC322    brake shoe set, per wheel   $20
EBC322G
brake shoe set, per wheel   $25 (after grinding)

app   years      make    model    (version)        wheels    chains
F
1976-1977 Batavus (M48) VA (step-thru)      Leleu spoke 2
F    1977-1977 Batavus (M48) HS50 (top tank)    Leleu spoke 2
F    1977-1977 Batavus (M48) Mobat, Bronco      Leleu spoke 2
F    1978-1979 Batavus (M48) Starflite VA          Leleu spoke 2
F    1978-1979 Batavus (M48) Starflite HS          Leleu spoke 2
F R 1978-1980 Batavus (M56) Regency VA (model w/spokes) 1
F R 1978-1980 Batavus (M56) Regency HS (model w/spokes) 1
F R 1980-1984 Batavus (Peugeot) Mondial          Leleu spoke 2
   R 1978-1981 Honda PA50 Hobbit                    Leleu spoke 2
F R 1977-1979 JC Penney Pinto, Swinger, Swinger2   L spoke 2
F R 1977-1979 JC Penney Pinto2 (model with spoke wheels)  2
F R 1977-1980 Kreidler MP9 Flory                      Leleu spoke 2
F R 1978-1980 Kreidler MP19 Flory                Kreidler 5-star 2
F R 1996-2007 KTM 50SX Pro Junior
F R 1996-2007 KTM 50SXR Senior Adventure
F R 2004-2005 KTM 50SX Mini Adventure
F R 1978-1979 Motobecane 50 Mobylette (with Leleu brakes) 2
F R 1978-1979 Motobecane 50VLC Mobylette (Leleu brakes)  2
F R 1980-1980 Motobecane Moby (model with Leleu brakes)  2
F R 1980-1980 Motobecane Traveller (model w/Leleu brakes) 2
F R 1978-1980 Murray 8315, 8320                     Leleu spoke 2
F R 1978-1980 Murray 8415, 8420                     Leleu spoke 2
F R 1978-1980 Murray 8515, 8520                     SM2 10-ray 2
F R 1976-1983 Peugeot 103 LS – U1                  Leleu spoke 2
F R 1976-1983 Peugeot 103 L2 – U1,U2,U3         Leleu spoke 2
F R 1976-1983 Peugeot 103 LVS – U2,U3            Leleu spoke 2
F R 1978-1983 Peugeot 103 SP – U2,U3              Leleu spoke 2
F R 1979-1983 Peugeot 103 SPB – U2,U3        Peugeot 6-star 2
F R 1980-1983 Peugeot TSM – U2,U3                  Leleu spoke 2
F    1980-1980 Peugeot 102SP – U2,U3               Leleu spoke 2
F R 1974-1976 Puch Maxi S, Maxi N                     Leleu spoke 2
F R 1976-1976 Puch Maxi Nostalgic                     Leleu spoke 2
F R 1977-1977 Puch GN (Rigid), Maxi, Newport     Leleu spoke 2
F R 1978-1979 Puch Rigid, Maxi, Newport L          Leleu spoke 2
F R 1978-1979 Puch Maxi Luxe, Maxi II                Leleu spoke 2
F R 1978-1979 Puch Magnum XK                         Leleu spoke 2
F R 1980-1981 Puch Maxi, Maxi Luxe                   Leleu spoke 2
F R 1980-1981 Puch Newport II, Magnum II        Leleu spoke 2
F R 1979-1981 Puch Sport MkII                          Puch 5-star 2
F R 1980-1981 Puch Magnum LTD                       Puch 5-star 2
F R 1981-1983 Puch Series B                               Leleu spoke 2
F R 1982-1984 Puch Dart, Maxi Sport LS               Leleu spoke 2
F R 1983-1985 Puch Cobra                                  Leleu spoke 2
F R 1984-1985 Puch Austro-Daimler                     Puch 5-star 2
F R 1985-1986 Puch Austro-Daimler II                  Puch 5-star 2
F R 1985-1986 Puch Maxi Sport LS II                    Puch 5-star 2
F R 1985-1986 Puch Cobra II                               Puch 5-star 2
F R 1985-1986 Puch Cobra II                               Puch 5-star 2
F R 1978-1979 Sears Free Spirit 8081,8082,8083 red   Lspoke 2
F R 1976-1977 Sparta Foxi GT, Foxi Sport              Leleu spoke 2
F R 1977-1980 Sparta Buddy, Deluxe, Stingray      Leleu spoke 2
F R 1977-1980 Sparta Flying Dutchman KML40     Leleu spoke 2




80 x 20  Motobecane open type with coil springs

Most Motobecanes have these brake shoes, but some 1978-80 have Leleu brakes, MB# 16104 (EBC322). On those both shoes are the same, like most other drum brakes.

All pre-1978 and some 1978-80 Motobecanes have Motobecane brakes, MB# 21730 (EBC876). There is a left and a right shoe.

EBC 876 brake shoes

EBC 876

EBC876














27130  originals, per wheel  $33
EBC876 = AGPA M-198
      $28
EBC322M brakes, per wheel $25

EBC322M is made from a EBC322 by 1. slight grinding of the sides at the spreader end, 2. dremmeling on the inner side of the spreader spring hooks to make the spring stay farther away from the spreader cam, 3. reusing the original MB springs because they are thinner.

app   years      make    model    (version)               wheels   chains
F R
1976-1977 Motobecane 40TS, 40TL Mobylette        MB spoke 2
F R 1976-1977 Motobecane 50S, 50L Mobylette            MB spoke 2
F R 1976-1977 Motobecane 50V Mobylette                   MB spoke 2
F R 1978-1979 Motobecane 50 Mobylette (model with MB brakes) 2
F R 1978-1979 Motobecane 50VLC Mobylette (with MB brakes)    2
F
 R 1978-1979 Motobecane 50VLA Mobylette               MB 6-star 2
F R 1980-1980 Motobecane Moby (model w/MB brakes) MB spoke 2
F R 1980-1980 Motobecane Traveller (model w/MB brakes) MB sp 2
F R 1980-1980 Motobecane Le Moped                         MB 6-star 2




80 x 20  Suzuki open type with coil springs

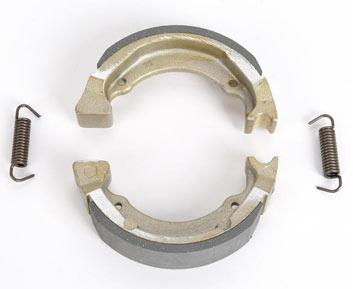

EBC 614 brake shoes

EBC 614

EBC614












EBC614   brake shoe set, per wheel       $20

app   years      make    model    (version)              wheels
F R
1980-1991 Suzuki FA50 Shuttle                Suzuki spoke
F R 1980-1981 Suzuki FS50                           Suzuki spoke






83 x 18  Atom open type with coil springs

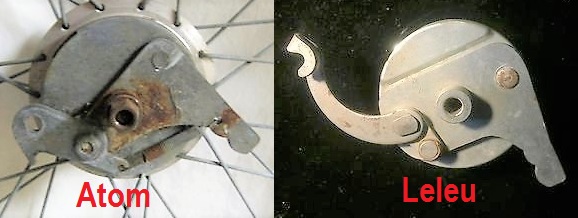

Solex 3800 brakes: Atom ’66-74, Leleu ’75-88















Atom83   brake shoe set, per wheel      N/A

app   years      make    model    (version)              wheels
   R 1955-1980 Schwinn Tandem (drum brake) Atom spoke 1
   R 1966-1974 Solex 3800 w/Atom rear hub    Atom spoke 1








85 x 20  Jawa open type with coil springs

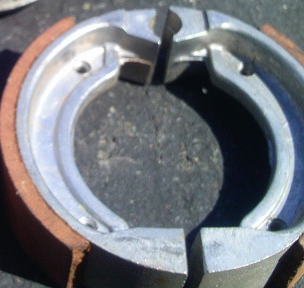

EBC 804 brake shoes

EBC 804















EBC804   brake shoe set, per wheel       $30

app   years      make    model    (version)       wheels   chains
F R
1976-1977 Jawa Babetta (20,25,30)          Jawa spoke 1
F R 1977-1985? Jawa X20, X25, X30               Jawa spoke 1

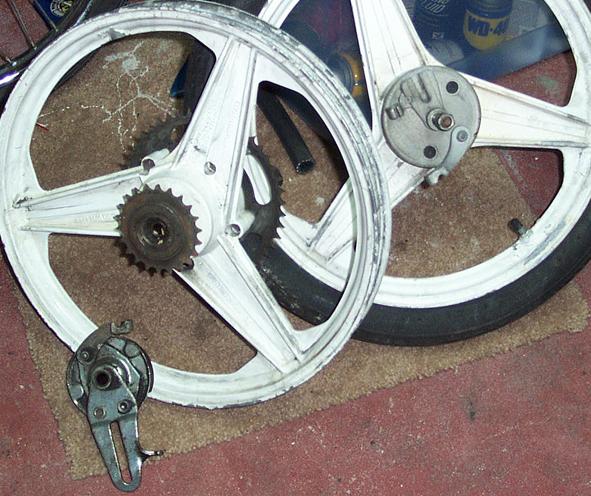

F R 1993-1996? Manet/Puch Korado (Euro)      Jawa spoke 2






90 x 18  Grimeca open type with coil springs

This Italian Grimeca 90×18 brake shoe has the most moped applications. It is on almost all Italian moped and mini-bike spoke wheels. It is also on German (Hercules), Austrian (KTM), Yugoslavian (Tomos), Mexican (Carabela), and American (AMF) moped spoke wheels. This Grimeca 90×18 brake shoe is second only to the French Leleu 80×18 brake shoe in total number of units.

Grimeca 90













Grim90 = EBC908   brake shoes, per wheel     $25

app   years      make    model   (version)    wheels   chains
F R
1977-1979 Baretta 22, 38, 44            Grimeca spoke 1
F R 1977-1979 Baretta Magnum               Grimeca spoke 1
F R 1981-1984 Batavus (Sachs) Gran Prix    Sachs 7-ray 1
F R 1977-1979 Benelli G2                        Grimeca spoke 2
F R 1977-1979 Bianchi Eagle 25,30          Grimeca spoke 1
F R 1977-1979 Bianchi Satellite               Grimeca spoke 1
F R 1977-1979 Bianchi Stardust              Grimeca spoke 1
F R 1977-1978 Carabela Motomatic         Grimeca spoke 1
F R 1976-1979 Cimatti City Bike              Grimeca spoke 1
F R 1976-1979 Cimatti Town Bike            Grimeca spoke 1
F R 1978-1979 Cimatti Gran Prix XL         Grimeca spoke 1
F R 1977-1978 Concord XKE                   Grimeca spoke 1
F R 1978-1979 Concord Invader             Grimeca spoke 1
F R 1978-1979 Concord Freedom            Grimeca spoke 1
F R 1978-1979 Concord Shadow              Grimeca spoke 1
F R 1978-1980 Cosmo Colt 1, Colt 3         Grimeca spoke 1
F R 1977-1979 Demm Smily, Scout          Grimeca spoke 1
F R 1974-1976 Garelli Eureka                  Grimeca spoke 1
F R 1977-1980 Garelli Sport                    Grimeca spoke 1
F R 1981-1985 Garelli Basic                    Grimeca spoke 1
F R 1977-1979 Garelli Gran Sport            Grimeca spoke 1
F R 1979-1985 Garelli Rally Sport             Grimeca spoke 1
F R 1978-1981 Garelli Super Sport XL       Grimeca spoke 1
F R 1977-1978 Garelli Gulpmatic              Grimeca spoke 1
F R 1978-1980 Garelli VIP Deluxe             Grimeca spoke 1
F R 1981-1984 Garelli Monza                  Grimeca spoke 1
F R 1977-1978 Gitane CL200, Confort      Grimeca spoke 1
F R 1977-1978 Gitane Sport                   Grimeca spoke 1
F R 1977-1978 Kynast Flying Dutchman (steel fenders) sp 2

more to follow…

F R 1980-1984 Sachs Prima G3                   Sachs 7-ray 1
F R 1977-1979 Snark Bianchi Standard      Grimeca spoke 1
F R 1977-1979 Snark Bianchi Deluxe         Grimeca spoke 1
F R 1977-1979 Snark Bianchi Satellite       Grimeca spoke 1



90 x 18  Grimeca open type with U spring

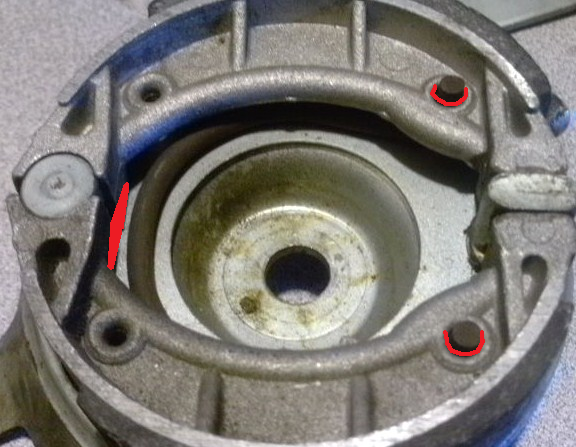

Grim90U brake shoes are the same as Grim90 except for the spring. The red places in the photo are what is different. Grinding and drilling are necessary to convert a Grim90 to a Grim90U.

Grim90U













Grim90U   brake shoe set, per wheel       $30 (drilled & ground)

app   years      make  (engine)  model  (version)   wheels  chains
   R
1978-1980 AMF (McCulloch) Roadmaster 110,115 Gr spoke 1
   R 1979-1980 AMF (McCulloch) Roadmaster 120,125 Gr spoke 1
   R 1980-1980 AMF (McCulloch) Roadmaster 130,131 Gr spoke 1
   R 1980-1984 AMF (Minarelli) Roadmaster 140,141 Grim spoke 1
F R 1978-1980 Batavus (M56) Regency VA (with mag wheels) 1
F R 1978-1980 Batavus (M56) Regency HS (with mag wheels) 1
F R 1981-1984 Batavus (Peugeot) Gran Prix     Grimeca 5-star 2
F R 1980-1985 Concord (Minarelli) Invader       Grimeca 5-star 1
F R 1980-1985 Concord (Minarelli) Freedom     Grimeca 5-star 1
F R 1980-1985 Concord (Minarelli) Shadow       Grimeca 5-star 1
F R 1979-1980 Cosmo (Minarelli) Amico                Grimeca-X 1
F R 1978-1980 Gadabout (Minarelli)                     Grimeca-X 1
F R 1978-1979 Garelli (1sp) Gran Sport LTD           Grimeca-X 1
F R 1979-1982 Garelli (1sp) Rally Sport LTD           Grimeca-X 1
F R 1979-1981 Garelli (1sp) Super Sport LTD          Grimeca-X 1
F R 1986-1986 Garelli (1sp vert) Monza GT            Grimeca-X 1
   R 1977-1979 JC Penney (Puch) Pinto 2 (w/mag wheels) Gr-X 2
F
 R 1985-1989 Motomarina Sebring, Raven         Grimeca mags
   R 1978-1979 Puch (2sp) Magnum MkII silver       Grimeca-X 2
   R 1977-1978 Puch (1sp) Sport                           Grimeca-X 2
   R 1978-1979 Puch (2sp) Sport MKII                    Grimeca-X 2
F    1977-1978 Puch (1sp) Sport (with steel F brake plate) G-X 2
F    1978-1979 Puch (2sp) Sport MkII (with steel F plate) Gr-X 2
F R 1975-1979 Sachs (504-1A) P1 Westlake      Grimeca spoke 2
F R 1975-1979 Sachs (504-1A) P1 Westlake            Grimeca-X 2
F
 R 1980-1984 Sachs (504-1D) Sundancer        Grimeca spoke 2
F R 1978-1979 Sachs (505-1A) M4 Balboa         Grimeca spoke 1
F R 1978-1979 Sachs (505-1A) M4 Balboa              Grimeca-X 1
F R 1980-1984 Sachs (505-1D) Suburban              Grimeca-X 1
F R 1980-1984 Sachs (505-1D) Seville                   Grimeca-X 1
F R 1980-1984 Sachs (505-1D) Prima                    Grimeca-X 1

  R 1978-1978 Sears (Puch) Free Spirit 8084 silver Grimeca-X 2
   R 1978-1978 Sears (Puch) Free Spirit 8085 silver Grimeca-X 2
   R 1978-1978 Sears (Puch) Free Spirit 8086 silver Grimeca-X 2
F R 1978-1980 Tomos (A3) Silver Bullet                 Grimeca-X 1
F R 1980-1985 Tomos (A3) Silver Bullet           Grimeca 5-star 1
F R 1982-1985 Trac (M56) Eagle (model w/mag wheels) Gri-X 1
F R 1982-1985 Trac (M56) Hawk (model w/mag wheels) Gri-X 1
F R 1986-1989 Trac (DK50) Image                        Grimeca-X 1
F R 1986-1989 Trac (DK50) Sprint                         Grimeca-X 1





Grimeca X-mags 16 inch Trac

Grimeca-X  1-chain

Puch crossed-ray "X-mag" 17" magnesium wheels aka "snowflake mags" made by Grimeca

Grimeca-X  2-chain



















Grimeca Brake Plates All Inventory Oct 2012

All Grimeca brake plates. See Wheel Parts.

Grimeca 90x18 Plates

Grimeca 90 plates



















There is no visible difference on the outside, between a V-spring brake plate and non-V-spring (U-spring or dual coil) brake plate, but inside there are three differences.  1) the cam shaft on a V-spring type has a retaining plate, while a coil spring type has no plate (to allow installation by “folding the taco into a tortilla”).  2) the pivot shaft on a V-spring type is longer and has a rounded groove for the V-spring.  3) the pivot shaft on a V-spring has no center groove for retention, while the coil spring and U-spring types have a center groove (for the center ridge on the shoes).

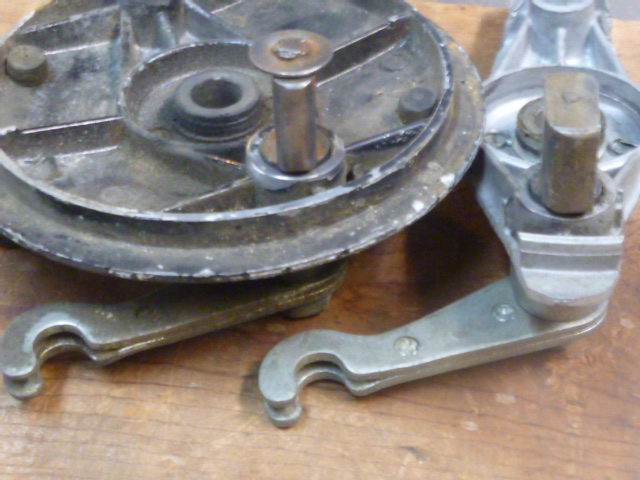

Left two are U-spring. The others are V-spring.

Left two are U-spring. The others are V-spring. See also Grimeca.










90 x 18  Grimeca hole type with V spring

Grimeca 90x18 V-spring

Grimeca 90×18

EBC931














Grim90V = EBC931
brake shoes, per wheel       $30

app   years      make  (engine)  model  (version)   wheels  chaina
F
1978-1980 AMF (McCulloch) Roadmaster 110,115 Gri spoke 1
F    1979-1980 AMF (McCulloch) Roadmaster 120,125 Gri spoke 1
F    1980-1980 AMF (McCulloch) Roadmaster 130,131 Gri spoke 1
F    1980-1984 AMF (Minarelli) Roadmaster 140,141 Grim spoke 1
F    1981-1984 Batavus (Sachs 505) Gran Prix       Sachs 7-ray 1
F    1977-1979 JC Penney (Puch) Pinto 2 (with mag wheels) GX 2
F R 1977-1979 KTM (Sachs 504) Foxi Deluxe       Grimeca spoke 2
F R 1977-1979 KTM (Sachs 504) Foxi Salsburg    Grimeca spoke 2
F R 1978-1979 KTM (Sachs 504) Foxi Baron              KTM 5-ray 2
F    1978-1979 Puch (2sp) Magnum MkII                 Grimeca-X 2
F    1978-1979 Puch (1sp) Sport (w/aluminum F brk plate)  G-X 2
F    1978-1979 Puch (2sp) Sport MkII (w/alum F brk plate)  G-X 2
F    1978-1978 Sears (Puch) Free Spirit 8084 silver   Grimeca-X 2
F    1978-1978 Sears (Puch) Free Spirit 8085 silver   Grimeca-X 2
F    1978-1978 Sears (Puch) Free Spirit 8086 silver   Grimeca-X 2
F R 1986-1991 Tomos (A3) Golden Bullet          Grimeca 5-star 1
F R 1986-1991 Tomos (A3k) Golden Bullet         Grimeca 5-star 1
F R 1986-1991 Tomos (A3) Golden Bullet TTLX  Grimeca 5-star 1
F R 1986-1991 Tomos (A3k) Golden Bullet TTLX Grimeca 5-star 1
F R 1992-1994 Tomos (A35) Bullet, Bullet TT          Tomos Web 1
F R 1992-1994 Tomos (A35k) Bullet, Bullet TT        Tomos Web 1
F R 1993-1994 Tomos (A35) Sprint, Targa             Tomos Web 1
F R 1993-1994 Tomos (A35k) Sprint, Targa           Tomos Web 1
F R 1982-1985 Trac (M56) Eagle, Hawk                   Grimeca-X 1
F R 1986-1988 Trac (DP50) Hawk, Sprint                 Grimeca-X 1
F R 1986-1988 Trac (DK50) Image                         Grimeca-X 1




90 x 20  Jawa open type with coil springs

Jawa 90mm brake shoes

Jawa 90×20

Jawa 90















Jawa90   brake shoe set, per wheel       $30

app   years      make    model    (version)          wheels
F R
1985-1990? Jawa 210?                        (mag wheels?)

These are the older Jawa spoke wheel brake shoes, with 5.0 mm thick lining instead of 2.5mm. That makes the diameter increase from 85 to 90mm, to fit “Italian standard 90mm” moped wheels.




90 x 20  Suzuki open type with coil springs

EBC 613 brake shoes

EBC 613

EBC613















EBC613   brake shoe set, per wheel       $22

app   years      make    model    (version)           wheels
F    1980-82 Sachs G4
F R
1978-08 Suzuki JR50 (all)
F R 2003-06 Kawasaki KDX50




90 x 20  Indian open type with coil springs

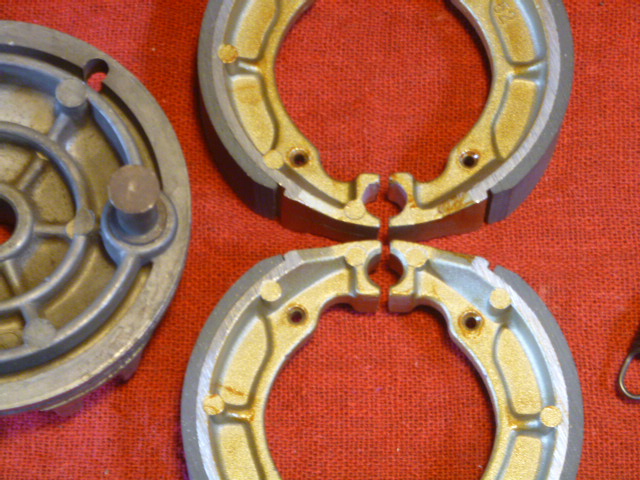

EBC613 for 8mm post ground for 9mm post on Indian

EBC613 for 8mm post ground to 9 for Indian

EBC613-I















EBC613-I   brake shoe set, per wheel       $30

These are EBC613 brakes with the pivot post half-hole widened from 8mm to 9mm, for the bigger Indian post.

app   years      make    model    (version)           wheels
F R 1978-1981 Indian AMI-50 Chief (model with spoke wheels)
F R 1978-1981 Springs are not included. The old ones must be reused.




90 x 20  Indian open type with U spring

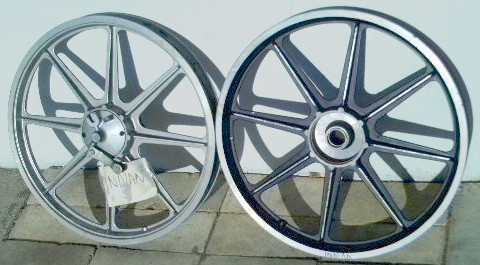

Sport Mag II wheels for Indian mopeds right side view

Sport Mag II 8-ray wheels
 use Indian 90×20 brakes
drilled out for U-spring

Indian 90mm Brakes















Indi90-U  brakes, per wheel   N/A  (plus U-spring)

app   years      make    model    (version)       wheels
F R
1979-1981 Indian AMI-50 Chief
 (w/SM2 8-ray wheels)

The modern aftermarket EBC613 spring holes do not have enough material and strength for a U-spring. The older Indian brake shoes have much more material around the spring holes.





90 x 20  Bernardi hole type with V spring

Manet 90x20 V-spring Bernardi Mozzi Motors wheels on Puch Korado

Bernardi 90 x 20















211071    aftermarket brake shoe set, per wheel    $25

Can use 90 x 18mm Grimeca “hole” style with “V” spring, or EBC931

app   years      make    model   (version)     wheels  chains
F R
1995-2000 Manet-Puch Korado       (Bernardi 3-ray) 2






90 x 22  Trac hole type with V spring

Trac 90 x 22 front brake

Trac 90 x 22

















Trac90    brake shoe set, per wheel    $30 (original)

Can use 90 x 18mm Grimeca “hole” with “V” spring, or EBC931
Can use 90 x 20mm Bernardi “hole” with “V” spring # 211071

app   years      make    model    (version)        wheels  chains
F R
1982-1985 Trac (M56) Clipper                   (Trac spoke) 1
F R 1982-1985 Trac (M56) Eagle (model with spoke wheels) 1
F R 1982-1985 Trac (M56) Hawk (model with spoke wheels) 1
F R 1985-1989 Trac (DP50) Clipper                 (Trac spoke) 1
F R 1985-1989 Trac (DK50) Escot                  (Trac spoke) 1



95 x 20  Honda open type with coil springs

EBC302 brake shoes

EBC 302

EBC302















EBC302   brake shoe set, per wheel     $20

app   years      make    model    (version)          wheels
   R
1981-1981 Honda NA50 Express II
   R 1981-1983 Honda NC50 Express
   R 1983-1987 Honda NB50 Aero
   R 1982-1983 Honda NU50 Urban Express
   R 1981-1982 Honda NX50 Express Senior
   R 1988-1993 Honda SA50 Elite
   R 1988-1997 Honda SE50 Elite
   R 1983-1984 Honda NH80 Aero
   R 2014-2014 Kymco 50i (4T – SE50BG)
   R 2013-2014 Kymco 110i (4T-SE22BD)

  R 1999-2012 Sym Fiddle 50



95 x 25  Honda open type with coil springs

EBC 333 brake shoes

EBC 333

EBC333















EBC333   brake shoe set, per wheel     $25

app   years      make    model    (version)          wheels
F R

2002-2011 Honda CHF50 Metropolitan
F R 2002-2011 Honda CHF50P Metropolitan II
F    2013-2014 Honda NCH50 Metropolitan
F R 2003-2014 Honda NPS50, NPS50S Ruckus
F    1982-1983 Honda NU50 Urban Express
F    1982-1983 Honda NU50M Urban Express
F R 1994-2001 Honda SA50 Elite SR, Elite SA
F R 1994-2001 Honda SA50P Elite S
   R 1985-2007 Honda CH80 Elite
   R 1985-1985 Honda NH80 Aero
F R 1983-1984 Honda CR60R
F R 2004-2014 Honda CRF70F
   R 1982-1982 Honda CR80R
F R 1983-1984 Honda CR80R
F    1985-1985 Honda CR80R
F R 1985-2003 Honda XR80R
F R 2004-2014 Honda CRF100F
F R 1985-2003 Honda XR100R
F R 2013-2014 Honda CRF110R




100 x 20  Indian open type with coil springs

EBC 615 brake shoes

EBC 615

EBC615















EBC615   brake shoes, per wheel   $25

app   years      make    model    (version)          wheela
F R
1979-1981 Indian AMI-50 Chief (w/Mira snowflake wheels)
F    1982-1985 Suzuki RM80

Many Indian mopeds with beautiful Taiwan-made Mira snowflake mags need these brake shoes, because the originals deteriorate and/or de-laminate. These EBC brakes look different, with different ribs than original, but they are an exact replacement.




100 x 25  Suzuki open type with coil springs

EBC 601

EBC601















EBC601   brake shoes, per wheel      $22

app   years      make    model    (version)          wheela
F R
1979-1983 Suzuki FZ50 Rascal

These are the same as EBC615, except the lining is wider.
Grind off 2.5 mm from each side to make a 615 from a 601.




105 x 20  Grimeca open type with coil springs

EBC909 brake shoes

EBC 909

EBC909







Grim105 = EBC909   brake shoes, per wheel    $20

app   years      make    model  (version)    wheels  chains
F R
1977-1980 Colombia (Solo) Mopet       (USA spoke) 2
                    340(20mph), 341(25mph), 342(30mph)
F R 1978-1980 Colombia (Solo) Open Road  (USA spoke) 2
F R 1980-1981 Colombia (Solo) Western Flyer (USA sp) 2
F R 1977-1980 Colombia (Sachs) Mopet       (USA spoke) 2
                    280(20mph), 281(25mph), 282(30mph)
F R 1977-1980 Colombia (Sachs) Open Road (USA spoke) 1
                   2220, 8220 (20mph), 2221, 8221 (25mph)
F R 1977-1979 Colombia (Sachs) Commuter (USA spoke) 1
F R 1979-1981 Colombia (Sachs) Imperial    (USA spoke) 1
F R 1980-1981 Colombia (Sachs) Medallion   (USA spoke) 1
                    2281(20mph), 2280(25mph), 2282(30mph)
F R 1980-1981 Colombia (Sachs) Western Flyer (USA sp) 1
F R 1982-1982 Eagle   (505/1D) Eagle III (Grimeca 7ray) 1
F    1977-1978 Garelli (2-speed) Gulpmatic (Grim. spoke) 1
F    1978-1980 Garelli (2-speed) VIP      (Grimeca spoke) 1
F R 1981-1986 Garelli (2-speed) VIP-N   (Grimeca spoke) 1
F R 1981-1983 Garelli (1-speed) Sport   (Grimeca spoke) 1
F R 1981-1983 Garelli (1-spd) Rally Sport (Grimeca spoke) 1
F R 1981-1983 Garelli (1-s) Super Sport XL (Grimeca spoke) 1
F R 1984-1986 Garelli (1-speed) Rally SL  (Grimeca spoke) 1
F R 1984-1985 Garelli (1-speed) SSXL   (Grimeca spoke) 1
F R 1984-1986 Garelli (1-speed) Basic   (Grimeca spoke) 1
F R 1983-1985 Garelli (1-spd) Monza GT  (Grimeca spoke) 1
F R 1980-1982 Sachs   (505/1D) Prima G3 (Grimeca 7ray) 1

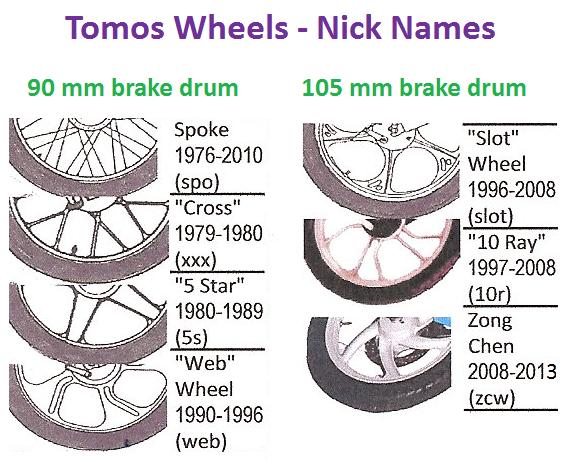

Tomos Wheel Styles

F R 1996-2007 Tomos (A35) Sprint, Targa (T Slot or 10ray)
F R 1996-2007 Tomos (A35k)Sprint,Targa (T Slot or 10ray) 1
F R 1996-2002 Tomos (A35) Targa LX   (T. Slot or 10ray) 1
F R 1996-2002 Tomos (A35k) Targa LX  (T. Slot or 10ray) 1
F R 2003-2006 Tomos (A35) Tomos, ST (T. Slot or 10ray) 1
F R 2003-2006 Tomos (A35k)Tomos, ST (T. Slot or 10ray) 1
F R 2003-2006 Tomos (A35) Tomos LX  (T. Slot or 10ray) 1
F R 2003-2006 Tomos (A35k) Tomos LX (T. Slot or 10ray) 1
F R 2007-2008 Tomos (A55) Sprint, ST, LX (T Slot or ZCW) 1
F R 2007-2008 Tomos (A55k) Sprint,ST,LX (T Slot or ZCW) 1
F R 2008-2013 Tomos (A55) Sprint, ST, LX  (Tomos ZCW) 1
F R 2008-2013 Tomos (A55k) Sprint, ST, LX (Tomos ZCW) 1
   R 2004-2012 Tomos (A55) Revival TS     (Tomos spoke) 1
   R 2004-2012 Tomos (A55k) Revival TS   (Tomos spoke) 1
   R 2005-2012 Tomos (A55) Streetmate   (Tomos spoke) 1
   R 2005-2012 Tomos (A55k) Streetmate  (Tomos spoke) 1
   R 2008-2013 Tomos (A55) Streetmate-R  (Tomos ZCW) 1
   R 2008-2013 Tomos (A55k) Streetmate-R (Tomos ZCW) 1
F    1978-1980 Vespa Grande 048           (Grimeca spoke)
F    1980-1985 Vespa Grande 068                (Grimeca-X)
F    1979-1985 Vespa Si  xxxxxxxxxxxxx  (Piaggio 4-ray)



105 x 25  Derbi open and hole types

EBC 880 brake shoes

EBC 880

EBC880

















EBC 880 “hole”style  brake shoe set, per wheel  N/A
Ferodo FSB808 “no hole” brake set, per wheel  $25

app   years      make    model    (version)       wheels
F R
1977-1985 Derbi Variant SL, TT       (Derbi spoke)
F R 1977-1985 Derbi Variant SLE          (Derbi 5-star)
F R 1979-1986 Derbi Laguna                (Derbi 5-star)
F R 1979-1987 Derbi C5, RD50             (Derbi spoke)
F R 1986-1989 Derbi Variant Sport       (Derbi 4-star)
F R 1987-1989 Derbi DS50 moped/scooter     (Derbi)



Derbi brake cams

Derbi brake plates can have two different cam thicknesses. Older models 1977-78 mostly had 10mm thick cams. Later models from about 1979-on had 8mm thick cams. These are shown at right.

The brake shoes for the 10mm cam did not have the steel plates on the cam end. So to make these replacement shoes fit on a 10mm cam either the steel plates must be removed from the brake shoes, or the 10mm cam ground thinner to 8mm.






110 x 25 Honda open type with coil springs

EBC 303 brake shoes

EBC 303

EBC303















EBC303   brake shoe set, per wheel       $25

app   years      make    model    (version)        wheels
F R
1981-1984 AMS Sierra 50  (spoke wheels w/big hubs)
F R 1981-1984 AMS Tahoe 50  (spoke wheels w/big hubs)
F R 1981-1985 General 5-Star (model with big hubs)
F R 1981-1985 General 5-Star ST (model with big hubs)
F R 2000-2005 Hero Puch Automatic           (spokes)
F R 2000-2005 Hero Puch Turbo Sport         (mags)
F    1990-1990 Honda NS50F
F R 1980-1983 Honda C70 Passport
F    1983-1985 Honda NH80 Aero
F    1985-2007 Honda CH80 Elite
F R 1984-1984 Honda CH125 Elite
   R 1984-1985 Honda CB125S
F R 1984-1984 Honda NH125 Aero
F R 1985-1987 Honda CH150 Elite, CH150D
F R 1988-1988 Honda ZB50
F R 1977-1982 Honda CT70 Trail 70
F R 1991-1994 Honda CT70 Trail 70
F R 1970-1973 Honda SL70 K1
F R 1974-1974 Honda XL70 (up to #103001)
F R 1978-1978 Honda XL75
F R 1971-1976 Honda XR75 K1/K2/76
F R 1991-1996 Honda EZ90 Cub
F R 1970-1974 Honda SL100 K1/K2/K3
F R 1974-1974 Honda XL100 (up to #1020001)
F R 1977-1978 Honda XL100
F R 1980-1986 Honda CT110
F R 1967-1974 Honda CL125S (single)
   R 2000-2001 Kymco Cobra 50 (2-stroke)
   R 2002-2003 Kymco Cobra Cross (2-stroke)
   R 2000-2005 Kymco ZX50 (2-stroke)
   R 2005-2012 Kymco Agility 50 (4-stroke)
   R 2005-2008 Kymco Vitality 50 (4-stroke)
   R 2009-2012 Kymco Sento 50 (4-stroke)
   R 2006-2011 Kymco Agility 125 (4-stroke)
   R 1999-2012 SYM Jet Euro 50 (2-stroke)
   R 2005-2014 SYM MiO 50 (4-stroke 30mph)
   R 2014-2014 SYM Jet 50 Evo (2-stroke 30mph)
F    1999-2012 SYM Fiddle 50 (with front drum brake)
   R 2008-2011 SYM Fiddle 50 (with front disk brake)
   R 2007-2012 SYM SYMply 50 (4-stroke)
   R 2009-2014 SYM SYMba 100 (4-stroke)
   R 2005-2008 Tomos (A55) Arrow (2-stroke 30mph)
   R 2005-2008 Tomos (A55 kick) Arrow (2T 30mph)
F R 1985-1989 Trac (DP50) Olympic (2-stroke 30mph)
F R 1984-1989 Trac (DK50) Liberty (2-stroke 30mph)
F R 1989-1990 Trac (DP50) Blitz  (2-stroke 30mph)
F R 1987-1990 Trac DH100 Super Hawk (4-stroke



118 x 20 Grimeca open type with coil springs

EBC 926 brake shoes

Grimeca 118 x 20

EBC926

















Grim118 = EBC926 brakes, per wheel  N/A  see treatland

app   years      make    model    (version)        wheels
F R
1978-1981 Safari Commando                (Grimeca-X)
   R 2001-2003 Tomos (A35) Revival      (Grimeca spoke)

  R 2001-2003 Tomos (A35k) Revival    (Grimeca spoke)




135 x 16 Vespa single shoe coil spring

EBC 907 brake shoe

EBC 907

EBC907

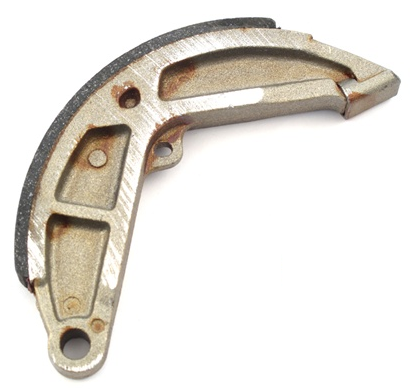

Piaggio 130240 = EBC 907 brake shoe, rear   $15

app   years      make    model    (version)        wheels
   R
1976-1986 Vespa Ciao C7N, C7E, C7V     (Piaggio spoke)
   R 1977-1980 Vespa Bravo EEV1T              (Piaggio spoke)
   R 1978-1980 Vespa Grande 048                (Piaggio spoke)
   R 1979-1980 Vespa Grande 048                    (Grimeca-X)
   R 1981-1984 Vespa Grande 068                    (Grimeca-X)
   R 1980-1986 Vespa Si SIV1T                    (Piaggio 4-star)
