1. Trac Parts 1982-86 with Laura M56 engine

Many Trac parts are offered elsewhere, by type:

Tires    see Tires and Tubes  2.25-16 Clipper, Eagle, Hawk

M56 engine   see Laura Engine  scroll down to Laura M56
xxx
Rings     see Pistons and Rings  scroll down to 40 x 1.5 FG
xxx
Piston     see Pistons and Rings  scroll down to 12 pin 18 upper
xxx Bearings, seals  see Bearings and Seals
xxx Keys, clips, nuts, shims see Engine Hardware

Encarwi carb   see Carburetors/Encarwi  scroll to Encarwi H12 (25, 30 mph)
Encarwi carb   see Carburetors/Encarwi  scroll to Encarwi H8 (20 mph)

Ignition   Spark plug   see Spark Plugs and Points  NGK B6HS
xxx Points   xxx     see Spark Plugs and Points scroll to M31
xxx Condenser       see Spark Plugs and Points scroll to M32

Bosch magneto     see Magnetos/Bosch scroll to 0212-010-004

Chain   see Chains  #415H (1/2 x 3/16″) 98 links for 17 and 39 tooth sprockets (25, 30 mph)
Chain   see Chains  #415H (1/2 x 3/16″) 97 links for 13 and 39 tooth sprockets (20 mph)

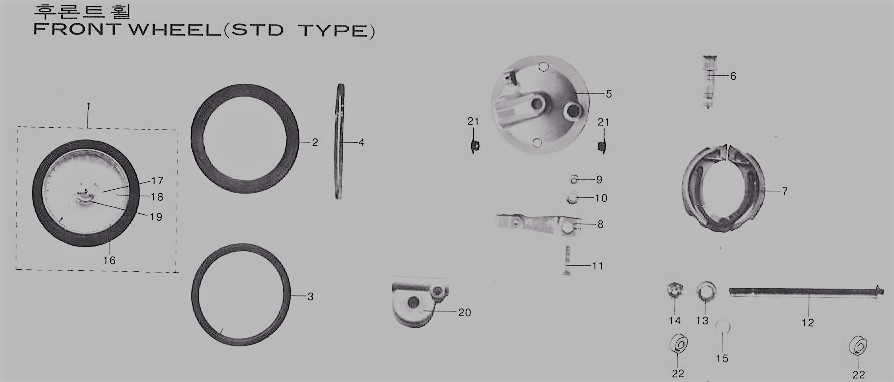

Spokes
25006  000 x 2.6 12g  front A inner  Olympic, Liberty
25007  000 x 2.6 12g  front B outer  Olympic, Liberty

25054  160 x 2.9 11g  rear  A inner  Olympic, Liberty
25055  160 x 2.9 11g  rear  B outer  Olympic, Liberty

25506  158 x 2.6 12g  front A inner  Clipper, Escot
25505  158 x 2.6 12g  front B outer Clipper, Escot

25578  159 x 2.6 12g  rear  A inner  Clipper, Escot
25577  159 x 2.6 12g  rear  B outer Clipper, Escot

35503  173 x 2.6 12g  front A inner  DH100
35504  173 x 2.6 12g  front B outer  DH100

35604  158 x 3.2 10g  rear  A inner  DH100
35605  158 x 3.2 10g  rear  B outer  DH100

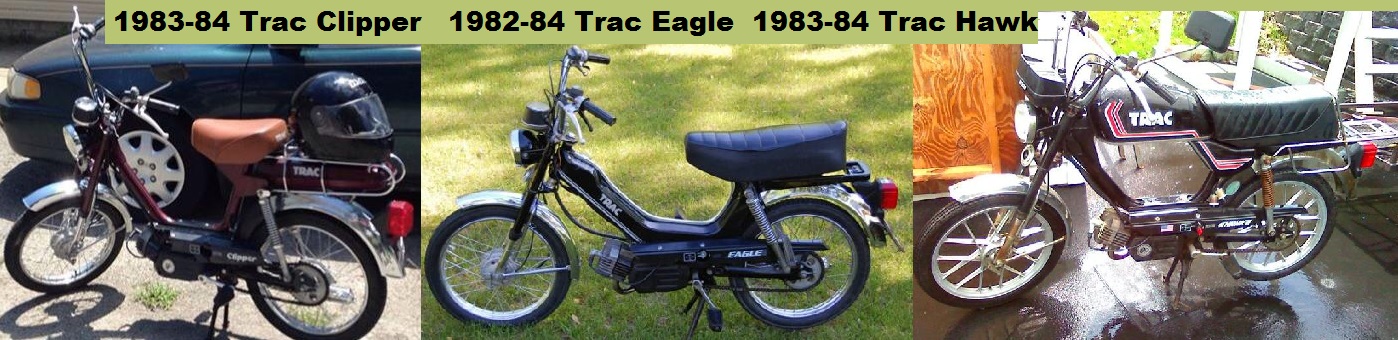

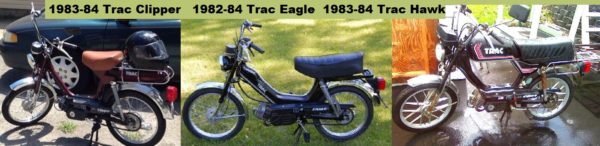

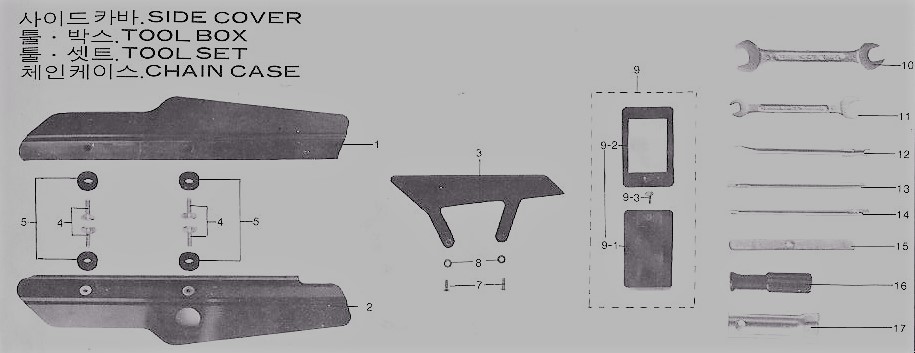

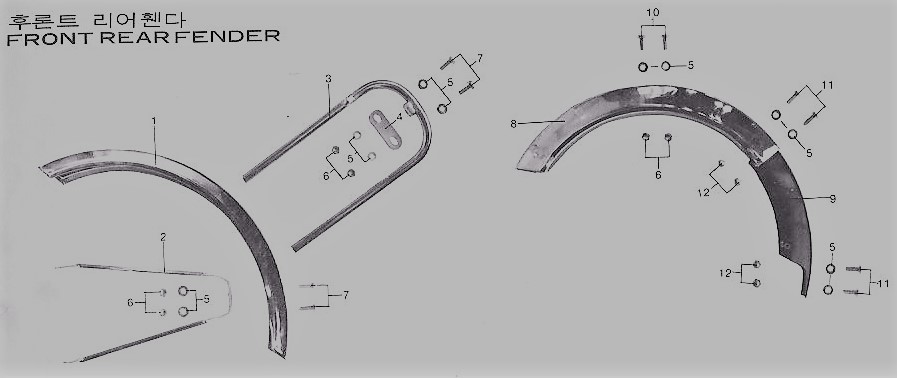

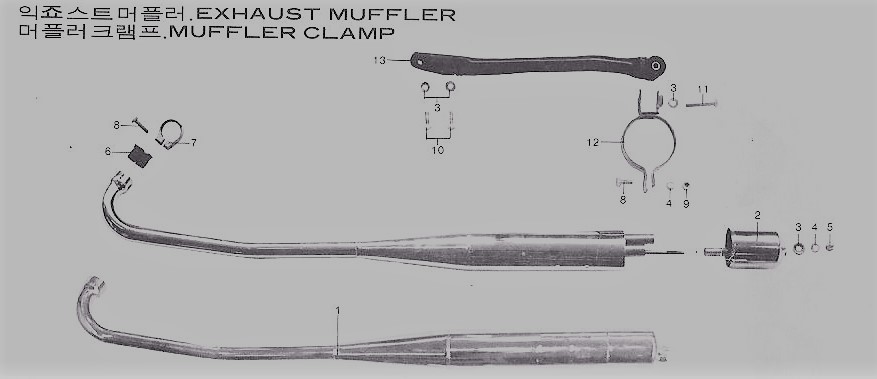

Three Trac models with M56 engine and Magura controls

Three Trac M56 models with Domino controls













Six models are combined here. Each has a quantity column with these header codes:

C = Clipper with Magura controls                                  c = Clipper with Domino controls
E = Eagle    with Magura controls
 e = Eagle   with Domino controls
H = Hawk   with Magura controls                                 h = Hawk  with Domino controls





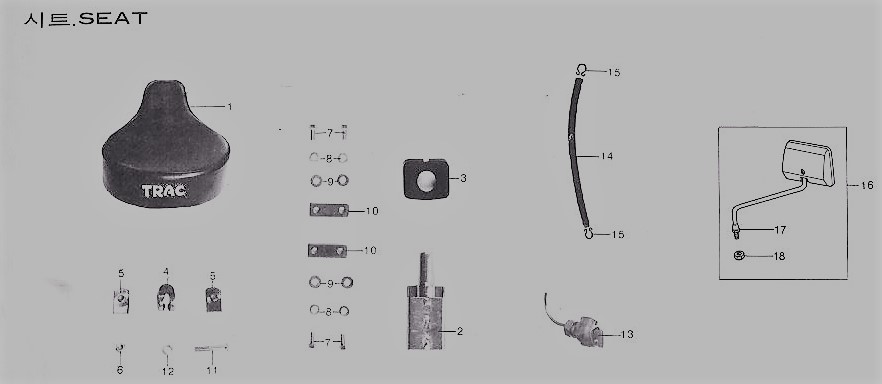

diag.#  Trac #  Daelim part # xx C c E e H h  price xxx description xxxx specs xxxx remarks

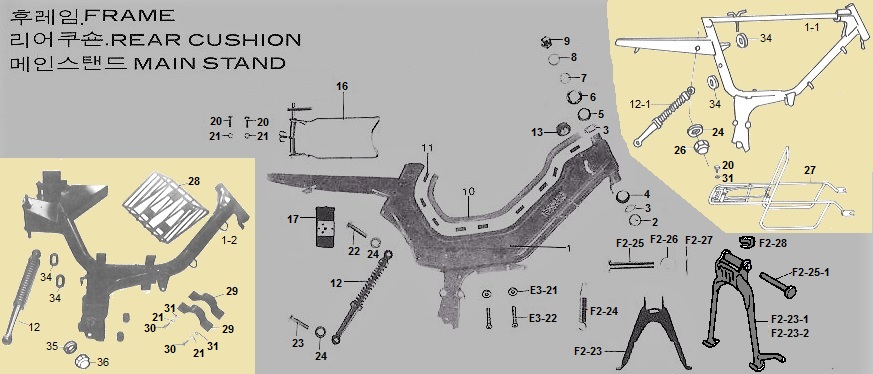

F1-01-1 00000 50100-M56-8950  0 0 1 1 0 0  none frame for Eagle stamped sheet metal with tank
F1-01-1 00000 50100-MT1-0000  0 0 0 0 1 1  none frame for Hawk welded tubes top-tank
F1-01-2 00000 50100-MT2-0000
1 1 0 0 0 0  none frame for Clipper welded tubes step-thru

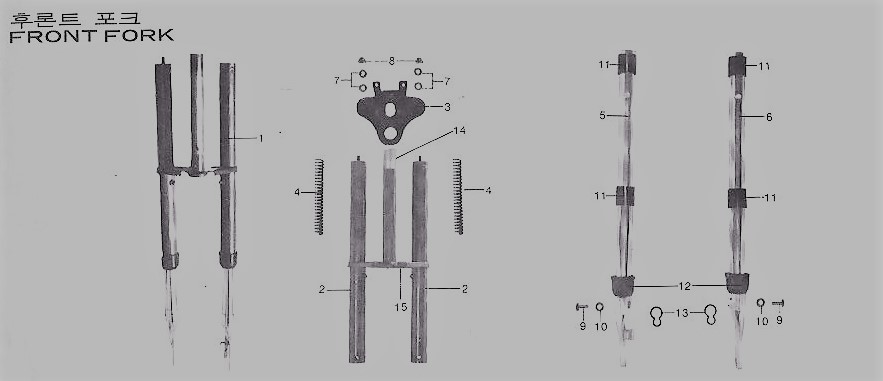

F1-02-1 20651 53212-M56-8900  1 1 1 1 1 1  $$$  steering race lower cone see steering scroll to 1″-24 Trac

F1-03-1 20648 96211-05000 XW  1 1 1 1 1 1  $$$  steering balls quantity 52  see steering 5/32″ 26 per race

F1-04-1 20650 50302-M56-8900  1 1 1 1 1 1  $$$  steering race lower cup see steering scroll to 1″-24 Trac
F1-05-1 20649 50301-M56-8900  1 1 1 1 1 1  $$$  steering race upper cup see steering scroll to 1″-24 Trac
F1-03-1 20648 96211-05000 XW  1 1 1 1 1 1  $$$  steering balls quantity 52  see steering 5/32″ 26 per race
F1-06-1 20647 53211-M56-8900  1 1 1 1 1 1  $$$  steering race upper cone see steering scroll to 1″-24 Trac
F1-07-1 20645 90503-M56-8900  1 1 1 1 1 1  $$$  steering washer xxxxxx see steering scroll to 1″-24 Trac
F1-08-1 20644 90304-M56-8900  1 1 1 1 1 1  $$$  steering lock nut xxxxx see steering scroll to 1″-24 Trac
F1-09-1 20646 90305-M56-8900  1 1 1 1 1 1  $$$  steering top nut xxxXx see steering scroll to 1″-24 Trac
F1-10-1 00000 50401-M56-8900  0 0 1 1 0 0  none frame molding
F1-11-1 00000 50402-M56-8900  0 0 9 9 0 0  none frame molding clip
F1-12-1 26530 52400-M56-8900  2 2 2 2 0 0  $45  rear shock Eagle and Clipper Ø10 x 310, Ø5.7 coil
F1-12-1 00000 52400-M56-8950  0 0 0 0 2 2  $40  rear shock for Hawk Ø10 x 320, Ø6.0 coil (heavier)

F1-13-1 21204 17620-M56-8900  1 1 1 1 0 0  $$$  gas cap Eagle and Clipper see gas caps 27mm qtr turn
F1-16-1 26533 84706-M56-8900  0 0 1 1 1 1  none carrier catch assy Eagle and Hawk
F1-20-1 01616 92000-06016 XW  2 2 2 2 4 4  50¢  hex bolt luggage rack M6 x 16
F1-21-1 06060 94111-06500 XW  2 2 2 2 2 2  25¢  spring washer Ø6.5
F1-22-1 00000 92000-10040 XW  0 0 2 2 0 0  $$1  hex bolt upper shock M10 x 40

F1-23-1 26531 92000-10036 XW  2 2 2 2 2 2  $$1  hex bolt lower shock M10 x 36
F1-24-1 05100 94101-10500 XW  6 6 6 6 6 6  35¢  plain washer Ø10.5
F1-26-1 20270 94201-10000 XW  2 2 0 0 2 2  $$6  hex cap nut M10-1.25
F1-27-1 84014 81200-MT1-0000  0 0 0 0 1 1
none luggage rack (extender) for ’84-85 Hawk
F1-28-1 00000 81311-MT2-0000  1 1 0 0 0 0  none front basket for 1983-84 Clipper
F1-29-1 00000 81312-MT2-0000  2 2 0 0 0 0  none leg shield bracket 1985 Clipper
F1-30-1 25614 92000-06025 XW  2 2 2 2 4 4  50¢  hex bolt M6 x 25
F1-31-1 05060 94101-06500 XW  4 4 0 0 0 0  25¢  plain washer Ø6.5

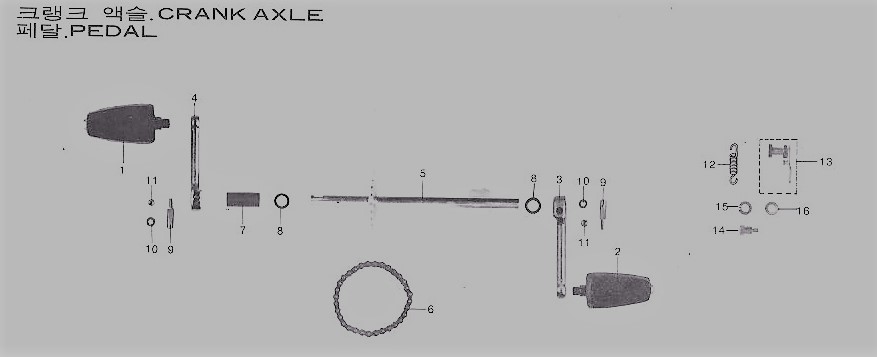

F1-32-1 00000 00000-M56-0000  2 2 2 2 2 2  none pedal shaft bushing 16 x 20?

F1-34-1 00000 83551-HD2-890?  2 2 0 0 2 2
none  fuel hose grommet Clipper, Hawk/Sprint

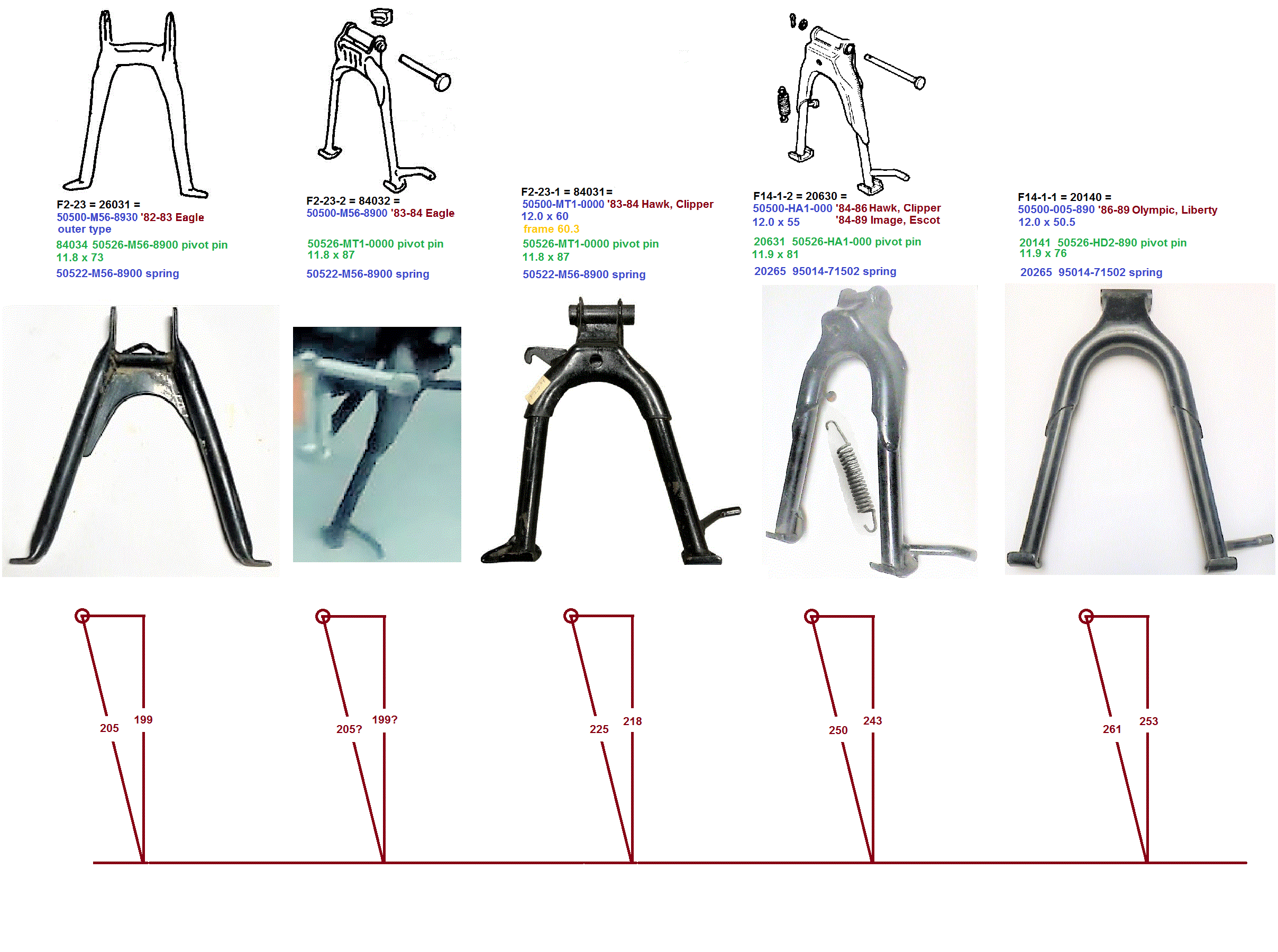

F2-23-1 84030 50500-M56-8900  0 0 1 1 0 0  $45  center stand ’82-83 Trac Eagle and ’76-80 Batavus
F2-23-1 84031 50500-MT1-0000  1 1 0 0 1 1  none center stand Clipper and Hawk
F2-23-2 84032 50500-M56-8930  0 0 1 1 0 0  none center stand ’84-86 Trac Eagle (upgrade for ’82-83)

F2-24-1 84033 50522-M56-8900  1 1 1 1 1 1  $12  center stand spring
F2-25-1 84034 50526-M56-8900  0 0 1 1 0 0  $10  stand pivot pipe short for ’82-83 Eagle Ø12 x 72
F2-25-1 84035 50526-MT1-0000  1 1 1 1 1 1  $$8  stand pivot pipe Clipper,Hawk,’84-86 Eagle Ø12 x 85

F2-26-1 20635 94101-12000 XW  1 1 1 1 1 1  $$1  plain washer M12
F2-27-1 84036 94201-30180 XW  1 1 1 1 1 1  50¢  split pin 3.0 x 18
F2-28-1 84037 50524-397-0000 x1 1 1 1 1 1  $14  center stand rubber bumper ’84-on (goes on stand)

E3-22-1 06050 94111-05000 XW  2 2 2 2 2 2  20¢  spring washer ignition coil mount M5
E3-21-1 82017 93500-05022 XW  2 2 2 2 2 2   70¢  pan phillips screw for coil mount M5 x 22

M1- 1-1 84015 8131?-MT2-0000  1 1 0 0 0 0  none leg shield blue for 1985 Clipper (not shown)
M1- 1-2 84016 8131?-MT2-0000  1 1 0 0 0 0  none leg shield wineberry ’85 Clipper (not shown)
M2-2-1 02616 95700-06016-05 x 2 2 0 0 0 0   70¢  flange hex bolt for leg shield  M6 x 16





diagram  Trac#  Daelim part # xx C c E e H h  price xxx description xxxx specs xxxx remarks

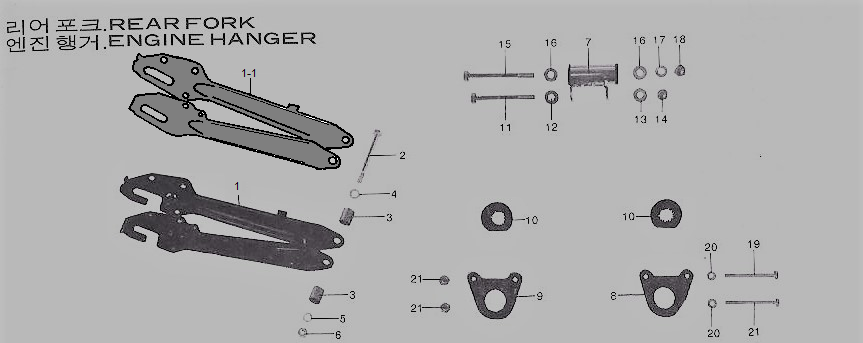

F2-01-1 86001 52100-M56-8900  0 0 1 1 1 1  $50  swing arm ’82-83 Eagle, ’83-86 mag wheel models threaded axles
F2-01-1 86002 52100-M56-8930  1 1 1 1 1 1  $50  swing arm for 1984-86 spoke wheel models with slide-out axles
F2-02-1 86003 90121-M56-8900  1 1 1 1 1 1  $$8  swing arm pivot bolt M10-1.25 x 108 plus spring anchor
F2-03-1 86004 50308-M56-8900  2 2 2 2 2 2  $12  swing arm bushing 10 x 22 x 29 long
F2-04-1 05100 94101-10000 x0x 1 1 1 1 1 1  25¢  plain washer M10
F2-05-1 06100 94111-10000 x0x 1 1 1 1 1 1  25¢  spring washer M10
F2-06-1 20234 94001-10000 x0x 1 1 1 1 1 1  40¢  hex nut M10-1.25
F2-07-1 84020 50230-M56-8900  1 1 1 1 1 1  $22-$15 front engine hanger
F2-08-1 84021 50312-M56-8900  1 1 1 1 1 1  $20  motor mount right
F2-09-1 84022 50313-M56-8900  1 1 1 1 1 1  $20  motor mount left
F2-10-1 84023 50314-M56-8900  2 2 2 2 2 2  none motor mount rubber
F2-11-1 84024 90131-M56-8900
1 1 1 1 1 1 1.50  hex bolt M6 x 95
F2-12-1 05060 94101-06000 x x01 1 1 1 1 1  25¢  plain washer M6
F2-13-1 06060 94111-06000 x x01 1 1 1 1 1  25¢  spring washer M6
F2-14-1 04060 94001-06000 xx 01 1 1 1 1 1  25¢  hex nut M6
F2-15-1 84025 92000-08085 x 0x1 1 1 1 1 1 01.50  hex bolt M8 x 85
F2-16-1 05080 94101-08000 x 0x2 2 2 2 2 2  25¢  plain washer M8
F2-17-1 06080 94111-08000 x 0x1 1 1 1 1 1  25¢  spring washer M8
F2-18-1 04080 94001-08000 x 0x1 1 1 1 1 1  25¢  hex nut M8
F2-19-1 84026 92000-06072 x 0x2 2 2 2 2 2 1.50  hex bolt M6 x 72
F2-20-1 05060 94101-06000 x 0x2 2 2 2 2 2  25¢  plain washer M6
F2-21-1 04060 94001-06000 x 0x2 2 2 2 2 2  25¢  hex nut M6
F2-22-1 00000 94104-M56-800 02 2 2 2 2 2   $$$  washer 10.5 x ?









#





















diagram#  Trac #  Daelim part # xxC c E e H h  price xxx description xxxx specs xxxx remarks

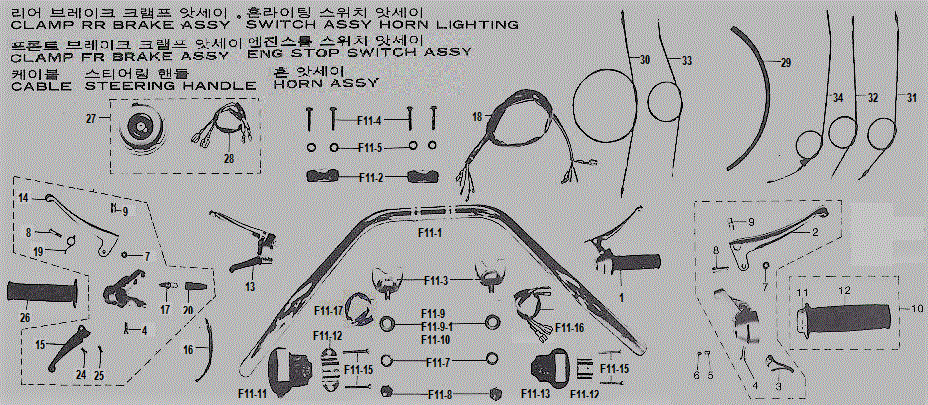

F11-01-1  00000 53100-M56-8900  1 1 1 1 1 1  none handlebar
F11-02-1  00000 53131-028-0000 x2 2 2 2 2 2  $10  handlebar clamp upper
F11-03-1  00000 53132-056-0001 x2 2 2 2 2 2  $10  handlebar clamp lower
F11-04-1  00000 92000-06028 x x  4 4 4 4 4 4  $$1  hex bolt M6 x 28
F11-05-1  00000 94101-06500 xx   4 4 4 4 4 4  25¢  plain washer Ø6.5
F11-07-1  00000 94111-10500 xx   2 2 2 2 2 2  40¢  spring washer Ø10.5
F11-08-1  00000 94001-10000 x x  2 2 2 2 2 2  $$1  hex nut M10-1.25
F11-09-1  00000 94101-10500 xx   2 2 2 2 2 2  40¢  plain washer Ø10.5
F11-09-1  00000 53134-M56-8900  2 2 2 2 2 2  $$4  upper rubber cushion ’84-86
F11-10-1  00000 53135-M56-8900  2 2 2 2 2 2  $$4  lower rubber cushion ’84-86
F11-11-1  00000 35300-M56-8950  1 0 1 0 1 0  $$$  light/horn switch plastic clamp-on x  see Switches CEV 8188
F11-12-1  00000 35301-M56-8950  1 0 1 0 1 0  $$$  light/horn switch clamp bracket xxx  see Switches CEV 8188
F11-13-1  00000 35150-M56-8950  1 0 1 0 1 0  $$$  engine stop switch plastic clamp-on  see Switches CEV 8189
F11-15-1  00000 93500-05000 x x  2 0 2 0 2 0  60¢  screw pan-head phillips M4 x 28
F11-16-1  00000 35155-M56-8950  1 0 1 0 1 0  $$$  engine stop switch cord (wires)

F11-17-1  00000 35305-M56-8950  1 0 1 0 1 0  $$$  light/horn switch cord (wires)
F12-01-1  84510 45464-M56-8950  1 0 1 0 1 0  $$$  right control front brk,throttle,choke  see Magura 0
F12-02-1  84511 45451-M56-8950  1 0 1 0 1 0  $$$  right brake lever aluminum xxxxxxxx see Magura 2
F12-03-1  84512 17921-M56-8950  1 0 1 0 1 0  $$$  choke thumb lever/trigger xxxxxxxxx see Magura 3
F12-04-1  84515 93500-06015 xx   2 0 2 0 2 0  $$$  screw pan slotted special M6 x 16 xx  see Magura 10
F12-05-1  84514 92700-M56-8950  2 0 2 0 2 0  $$2  choke cable pinch bolt 5.5 x 7
F12-07-1  23218 94001-05000 xx   2 0 2 0 2 0  $$$  brake lever pivot nut xxxxxxxxxxxxx  see Magura 7a
F12-08-1  84516 45452-M56-8950  2 0 2 0 2 0  $$$  brake lever pivot bolt xxxxxxxxxxxxx see Magura 6

F12-09-1  84517 45453-M56-8950  2 0 2 0 2 0  $$$  brake lever cable anchor xxxxxxxxx   see Magura 11
F12-13
-1  84550 45463-M56-8950  1 0 1 0 1 0  $$$  left control rear brake, start(clutch)   see Magura 0
F12-14-1  84551 45461-M56-8950  1 0 1 0 1 0  $$$  left brake lever aluminum xxxxxxxxx see Magura 1
F12-15-1  84552 17931-M56-8950  1 0 1 0 1 0  $$$  start lever black plastic xxxxxxxxxxx see Magura 16
F12-16-1  84558 35351-M56-8950  2 2 2 2 2 2  $$$  brake light switch cord (wires)
F12-17-1  84557 35350-M56-8950  2 2 2 2 2 2  $$$  brake light switch NC when installed see Switches CEV 9342
F12-19-1  84568 45466-M56-8950  1 0 1 0 1 0  $$$  left lever helper spring xxxxxxxxxxx  see Magura 8

F12-19-1  84569 45466-M56-8950  1 0 1 0 1 0  $$$  right lever helper spring xxxxxxxxxx  see Magura 9
F12-20-1  23229 35352-M56-8950  2 2 2 2 2 2   $$$ brake light switch rubber boot xxXx see Switches bottom
F12-24-1  84554 17932-M56-8950  1 0 1 0 1 0  $$$  start lever cable screw xxxxxxxxxxxx see Magura 17
F12-25-1  84555 17933-M56-8950  1 0 1 0 1 0  $$$  start lever pivot roll pin xxxxxxxxxxx see Magura 18
F12-26-1  84556 53166-M56-8950  1 0 1 0 1 0  $$$  left hand grip ribbed black xxxxxxxx  see Magura 14
F12-27-1  20525 38100-M56-8950  1 1 1 1 1 1  $$$  horn
F12-28-1  84560 38105-M56-8950  1 1 1 1 1 1  $$$  horn wires
F12-
29-1  84562 45470-M56-8900  1 1 1 1 1 1  $$5  cable cover (sleeve) 17 inch long black holds 3 cables
F12-30-1  84563 45460-M56-8950  1 0 1 0 1 0 Magura type xxxX   cable  Ø   C x E
F12-30-1  84563 45460-M56-8950  1 0 1 0 1 0 M56 Cables xxxx     ends mm inches
F12-30-1  84563 45460-M56-8950  1 0 1 0 1 0  $$$  rear brake cable  2  5  61.0 3.3 says nothing
F12-31-1  84566 17920-M56-8950  1 0 1 0 1 0  $12  choke cable xxx  1  5  38.8 4.7 says nothing
F12-32-1  84565 17910-M56-8950  1 0 1 0 1 0  $25  throttle cable xX 2  5  38.8 2.7 says nothing
F12-33-1  84567 17930-M56-8950  1 0 1 0 1 0  $$$  starter cable xxx 1  5  40.2 4.2 says nothing
F12-34-1  84564 45450-M56-8950  1 0 1 0 1 0  $25  front brake cable 2  5  39.1 3.3 says nothing

diagram  Trac#  Daelim part # xx C c E e H h  price xxx description xxxx specs xxxx remarks    1984-86 models

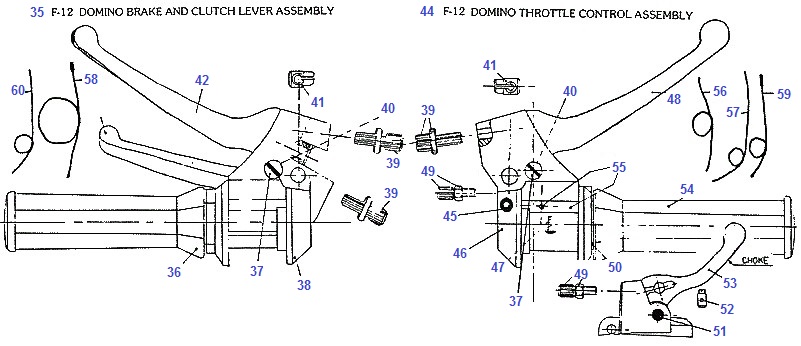

F12-35-1 23510 00000-000-0000  0 1 0 1 0 1  $$$  left control assy, rear brake, clutch(start) see Domino DB7K
F12-36-1 23226 00000-000-0000  0 1 0 1 0 1  $$$  left hand grip 22 i.d. octagon stylexxxxx  see Domino D22K
F12-37-1 23220 00000-000-0000  0 3 0 3 0 3  $$$  pivot screw M6 special type xxxxxxxxxxx see Domino D8
F12-38-1 23511 00000-000-0000  0 1 0 1 0 1  $$$  left control housing (perch) xxxxxxxxxxx see Domino D18K
F12-39-1 23224 00000-000-0000  0 2 0 2 0 2  $$$  cable adjuster slotted M6-1.0 xxxxxx see Cable parts A3b
F12-40-1 23225 00000-000-0000  0 3 0 3 0 3  $$$  pivot screw nut M6 flangexxxxxxxxxxxxx see Domino D7
F12-41-1 23223 00000-000-0000  0 3 0 3 0 3  $$$  cable anchor (holdfast) xxxxxxxxxxxxxx  see Domino D36
F12-42-1 23227 00000-000-0000  0 1 0 1 0 1  $$$  left brake lever black plasticxxxxxxxxxxx see Domino D20KL
F12-43-1 23512 00000-000-0000  0 1 0 1 0 1  $$$  left lower start lever black plasticxxxxxxx see Domino D19K
F12-44-1 84575 00000-000-0000  0 1 0 1 0 1  $$$  right control front brake, throttle, choke xsee Domino DA8K
F12-45-1 23221 00000-000-0000  0 2 0 2 0 2  $$$  clamp (wedge) bolt M6 xxxxxxxxxxxxxxx see Domino D16
F12-45-1 23222 00000-000-0000  0 2 0 2 0 2  $$$  wedge (cone) for clamp bolt xxxxxxxxxx  see Domino D15
F12-46-1 84576 00000-000-0000  0 1 0 1 0 1  $$$  right control (throttle) housing  xxxxxxxx see Domino D5L
F12-47-1 23214 00000-000-0000  0 1 0 1 0 1  $$$  special screw that holds twist tubexxxxxx see Domino D3
F12-48-1 23213 00000-000-0000  0 1 0 1 0 1  $$$  right brake lever black plasticxxxxxxxxxx see Domino D20KR
F12-49-1 23217 00000-000-0000  0 1 0 1 0 1  $$$  throttle cable adjuster M5-0.8 xxxxxx see Cable parts A1b
F12-50-1 84577 00000-000-0000  0 1 0 1 0 1  $$$  throttle helper spring 3-loop xxxxxxxxxxx see Domino D23
F12-51-1 84578 00000-000-0000  0 1 0 1 0 1  $$$  choke lever pivot rivet xxxxxxxxxxxxxxxx see Domino D37
F12-52-1 84579 00000-000-0000  0 1 0 1 0 1  $$$  choke cable pinch bolt (binding screw) see Cable parts P5
F12-53-1 84580 00000-000-0000  0 1 0 1 0 1  $$$  choke lever right thumb  xxxxxxxxxxxxxx see Domino D35
F12-54-1 23211 00000-000-0000  0 1 0 1 0 1  $$$  throttle twist tube metal bare (not shown) see Domino D6A
F12-54-1 23211 00000-000-0000  0 1 0 1 0 1  $$$  right grip 24 i.d. octagon style xxxxxxxxx  see Domino D21K
F12-55-1 23215 00000-000-0000  0 1 0 1 0 1  $$$  slider screw (cable pinch screw) xxxxxxxx see Domino D2L
F12-55-1 23216 00000-000-0000  0 1 0 1 0 1  $$$  throttle slider (sliding block) xxxxxxxxxxx see Domino D1
F12-56-1 84585 17910-M56-8960  0 1 0 1 0 1 Domino type x    cable  Ø   C x E
F12-56-1 84585 17910-M56-8960  0 1 0 1 0 1 M56 Cables x x   ends mm inches
F12-56-1 84585 17910-M56-8960  0 1 0 1 0 1  $12  throttle cable  1  5 38.9 2.4 says M56 896, pre-cut wire
F12-57-1 84586 17920-M56-8950  0 1 0 1 0 1  $12  choke cable x  1  5 38.8 4.7 says nothing, same as F12-31
F12-58– 84589s 45460-M56-895S  0 0 0 1 0 0  none rear brk cable 2  5 60.8 2.8 says M56 895S for Eagle
F12-58- 84589d 45460-M56-895D  0 0 0 1 0 0  none rear brk cable 2  5 61.1 3.3 says M56 895D for Eagle dlx
F12-58-1 84589 45460-MT1-895S  0 0 0 0 0 1  none rear brk cable 2  5 59.5 2.8 says MT1 895S for Hawk
F12-58-1 84589 45460-MT1-895D  0 0 0 0 0 1  none rear brk cable 2  5 59.5 3.3 says MT1 895D for Hawk dlx
F12-58-1 23517 45460-CL1-0000   0 1 0 0 0 0  none rear brk cable 2  6 58.8 3.6 says ESCOT xx for Clipper
MM  Trac rear brake cable Domino  0 1 0 1 0 1  $25  rear brk cable 2  5 61.0 3.6 says nothing, replaces 84589 xx
F12-59– 84588s 45450-M56-895S  0 0 0 1 0 0  none fr. brake cable 2  5 39.1 2.8 says M56 895S for Eagle
F12-59- 84588d 45450-M56-895D  0 0 0 1 0 0  none fr. brake cable 2  5 39.1 3.3 says M56 895D for Eagle dlx
F12-59-1 84588 45450-MT1-895S  0 0 0 0 0 1  none fr. brake cable 2  5 37.5 2.8 says MT1 895S for Hawk
F12-59-1 84588 45450-MT1-895D  0 0 0 0 0 1  none fr. brake cable 2  5 37.5 3.3 says MT1 895D for Hawk dlx
F12-59-1 23515 45450-CL1-0000   0 1 0 0 0 0  $25  fr. brake cable 2  6 37.1 3.6 says ESCOT xx for Clipper
MM Trac front brake cable Domino  0 1 0 1 0 1  $25  fr. brake cable 2  5 39.0 3.6 says nothing, replaces 84588 xx
F12-60-1 84587 17930-M56-8960  0 1 0 1 0 1  none starter cable x 2  5 40.6 2.9 says M56 896

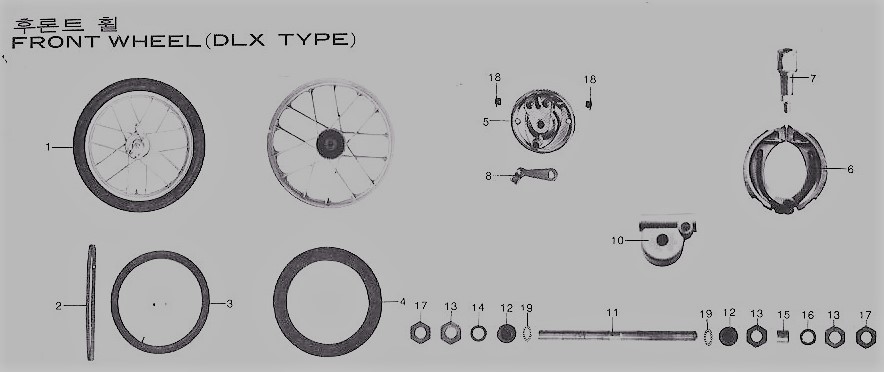

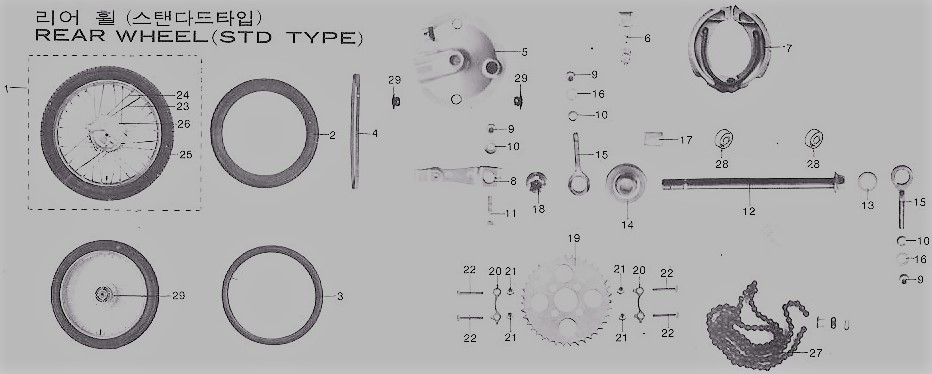

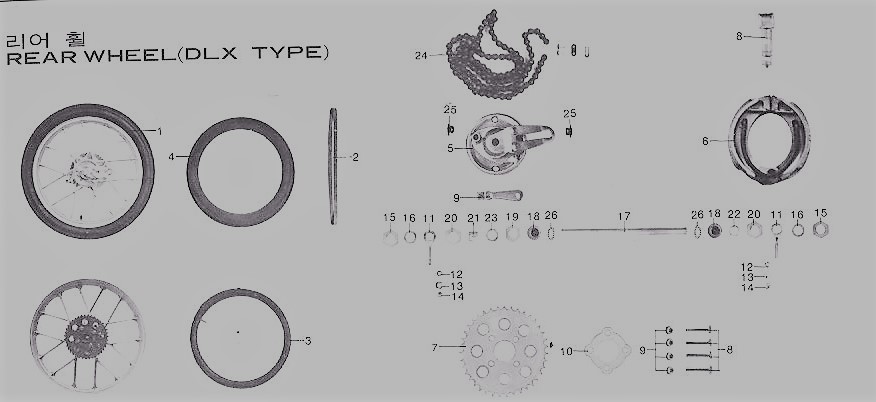

Clipper, Eagle, Hawk brake plates. S and D type

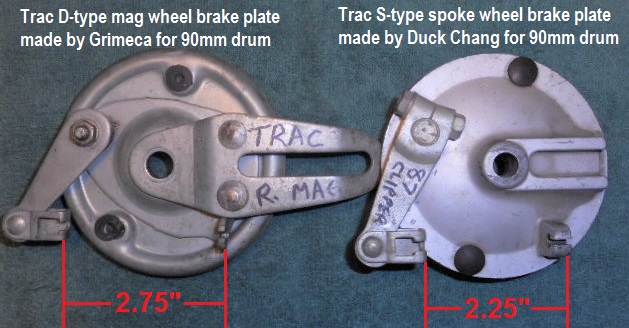

These 1985-86 Trac double-ended brake cables, for M56 engine models with Domino controls, came in two versions, D or S. The D-type inner wire was 0.5 inch longer than S-type, because the Grimeca brake on the aluminum (Deluxe type) wheels was different from the Duck Chang brake plate on the (Standard type) spoke wheels. See photo at right.

The 1985-86 (M56 engine) Eagle and Hawk with cable codes M56 and MT1, had incorrectly-made replacement brake cables, front and rear. The inner wire was 0.8 inch too short. In the listing the incorrect exposed lengths “E” are crossed out. Trac forgot to include the distance of the removable slotted adjuster 23224.

The 1984-86 (M56 engine) Clipper and 1984-89 (DMC engine) Escot, Sprint, Image with cable codes CL1 and HA1 had correctly-made replacement brake cables. The CL1 or HA1 inner wire was 0.3 inch longer than a M56-895D, or 0.8 inch longer than a M56-895S.

The 1984-89 (DMC engine) Liberty, Olympic, Blitz with cable codes HD2 had different brake cables with threaded rods at the wheel end.

Trac cables have been terribly confusing since the 1980’s. You can see why; 3 kinds of part numbers, 4 kinds of brake cables not mentioned in parts manuals, and 8 kinds of incorrectly made replacement brake cables. Finally the clouds have cleared and the sun shines again!

MM offers correctly made replacement cables. They work on both brake types D and S, thanks to the long lower cable adjuster and the upper slotted adjuster. For an S type (spoke wheel) the cable adjuster would be screwed 0.5 inch farther out than on a D type (mag wheel). That is no problem because there is plenty of adjustment range, like about 2 inches total.

















## x Trac #  Daelim part # xx C c E e H h  price xxx description xxxx specs xxxx remarks



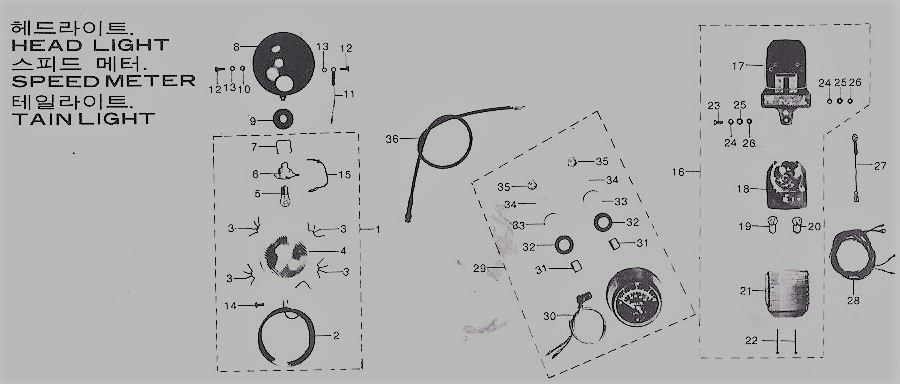

Trac SpeedometersSpeedometers:

Row 1: Trac DH100 console with turn, hi-beam and neutral light, 70mph speedo, no key switch $80

Row 2 left: Trac 1983-85 Hawk, no key switch, new $80

Row 3 left: Trac 1985-89 Olympic, Sprint, Clipper, Image, Liberty, Escot console, with key switch, (not available).

Row 3 right: Trac 1982-85 Eagle, Clipper, used $45




















2. Trac Parts 1984-90 with Daelim engine

Most Trac parts are in Parts, by type, like tires, spokes, rings, etc.

Tires    see Tires and Tubes
xxxxxxx 2.25-16 Clipper, Hawk, Sprint, Escot, Image
xxxxxxx 2.25-17 Olympic, Liberty, Blitz    2.75-10 Metro

Daelim engine   see
xxx
Rings     see Pistons and Rings  scroll down to 40 x 1.5 trapezoidal FG
xxx
Piston     see Pistons and Rings  scroll down to 12 pin 18 upper
xxxBearings, seals  see Bearings and Seals

xxx Keys, clips, nuts, shims see Engine Hardware

Mikuni carb   see Mikuni VM13 (under construction)

Ignition   Spark plug   see Spark Plugs and Points  NGK BR6HS
xxx CDI ignition (no points no condenser)

Chain   see Chains  #420H (1/2 x 1/4″)
xxxxxxx 96 links for 12 and 42 tooth sprockets on Clipper, Hawk, Sprint, Escot, Image
xxxxxxx 98? links for 12 and 42 tooth sprockets on Olympic, Liberty, Blitz



Four Trac DP50 models (1-speed pedal start)

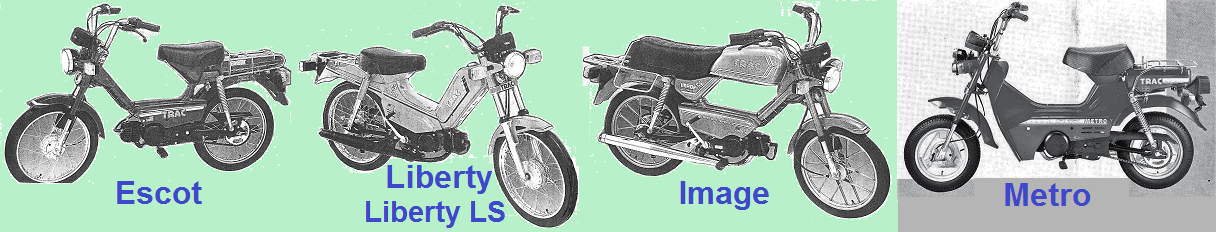

Five Trac DK50 models (2-speed kick start)











Nine models are combined here. Each has a quantity column, with these single-digit header codes:

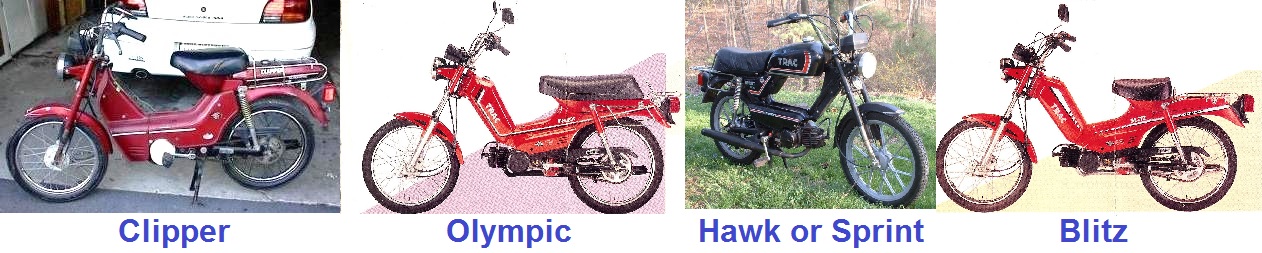

C = Clipper, O = Olympic,                       H = Hawk or Sprint,  B = Blitz     (Daelim DP50 pedal-start engine)
C = DPCL,x  O = DPOL,xxx                      H = DPHA        < Daelim 4-digit codes in parts manual

E = Escot,    L = Liberty, S = Liberty LS,   I = Image,               M = Metro      (Daelim DK50 kick-start engine)
E = DKES,    L = DKLI,x S =  DKLE,xxxxx  I = DKIM        < Daelim 4-digit codes in parts manual

DP50 (pedal) part quantities are black. DK50 (kick) part quantities are green. The Blitz and Metro models were not in the 1986 blue dealer notebook. For now there is no parts catalog for those 1988-90 late models. That is why Blitz and Metro part quantities are “?” and light gray.








diagram#  Trac #  Daelim part # x  L E I S O C H B M  description

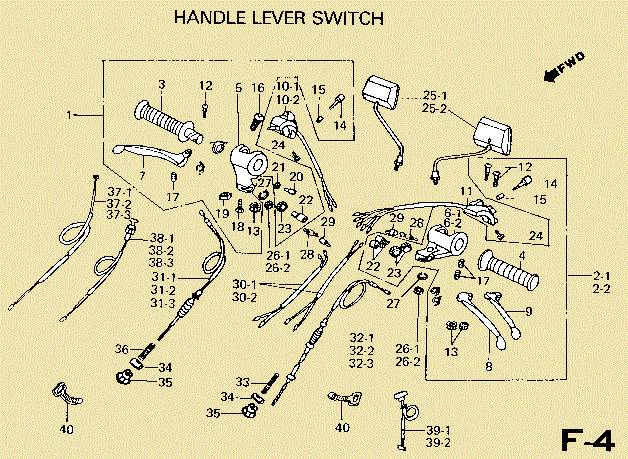

F4-01-1  23210 Domino 903.03 xX  1 1 1 1 1 1 1 1 1  right control (front brake and throttle) see Domino DA7K
F4-02-1  23010 Domino 904.04 xX  1 1 1 1 1 1 1 1 1  left control (rear brake only) DK50, late DP50 Dom. DB8K
F4-02-2  23510 Domino 908.06 xX  0 0 0 0 1 1 1 1 0  left control (rear brake, starter) early DP50 Domino DB7K

For Domino parts 3 to 30 see above. The diagram numbers are different there. The parts are the same.

diagram#  Trac #  Daelim part # x L E I S O C H B M price  description x  cable  Ø   C x E   for models   cable
diagram#  Trac#   Daelim part # x L E I S O C H B M price  description  x ends mm inches  for models    says


F4-31-1 23015 45450-HD2-890AM 1 0 0 1 1 0 0 1 ?  $27 front brake cable x 2  6 42.9 5.7 Lib, Olym, Bl K.C.C.
F4-31-2 23515 45450-CL1-000xxx 0 1 0 0 0 1 0 0 ?  $25 front brake cable x 2  6 37.1 3.6 Escot, Clipper ESCOT
F4-31-3 23516 45450-HA1-000AM 0 0 1 0 0 0 1 0 ?  $22 front brake cable x 2  6 35.5 4.1 Im, Hawk, Sp IMAGE
F4-32-1 23016 43450-HD2-890AM 1 0 0 1 1 0 0 1 ? none rear brake cable  2  6 46.5 15  Lib, Olym, Bl K.C.C.
F4-32-2 23517 45460-CL1-000xxx 0 1 0 0 0 1 0 0 ? none rear brake cable  2  6 58.8 3.6 Escot, Clipper ESCOT
F4-32-3 23518 45460-HA1-000AM 0 0 1 0 0 0 1 0 ? none rear brake cable  x 2  6 58?  4.1 Im, Hawk, Sp IMAGE
F4-37-1 23021 17910-HD2-890AM 1 0 0 1 1 0 0 1 ? none throttle cable xxx   1  5 40?  4.7 Lib, Olym, Bl K.C.C.
F4-37-2 23022 17910-HA1-000xX  0 1 1 0 0 0 0 0 ?  $22 throt cable+cover x1  5 37.8 4.7 Escot, Image HA1-CL1
F4-37-3 23519 17910-HA1-010xX  0 0 0 0 0 1 1 0 ? none throttle cable xxxx 1  5 37.8 4.7 Clip,Hawk,Sp HA1-CL1
F4-38-1 23023 17950-HD2-892AM 1 0 0 1 1 0 0 1 ?  $25 choke cable+knob  2  5 29.2 3.0 Lib, Olym, Bl K.C.C.
F4-38-2 23024 17950-HA1-000xxx 0 1 1 0 0 0 0 0 ? none c cable+knob+cov 2  5 29.2 3.0 Escot, Image HA1-CL1
F4-38-3 23520 17950-HA1-010xxx 0 0 0 0 0 1 1 0 ?  $25 choke cable+knob 2  5 29.2 3.0 Clip,Hawk,Sp HA1-CL1
F4-39-1 23521 17930-M56-896xX  0 0 0 0 0 1 1 0 0 none start cable xxxxxx 2  5 40.6 2.9 ’86 Clip,Hawk M56 896
F4-39-2 23522 17930-DKM-890AM 0 0 0 0 1 0 0 1 0 none start cable xxxxxx 2  5 42?  2.9 1986 Olympic K.C.C.

DK50 and DP50 choke: These 1984-90 Trac models with Daelim engines and Domino controls, have a Honda type push-pull choke knob, located to the lower left of the speedometer. Other 1985-86 Trac models with Laura M56 engines and Domino controls, listed above, have a right thumb lever for the choke. So when the engine changed, the choke cable changed from simple, single-ended, inexpensive and easy to get, to complicated, double-ended, expensive and hard to get.

Early DP50 start cable: The early Daelim DP50 engine models (mostly 1986) had a starting cable #39 and lever. Late DP50 models (most 1987 and all 1988-90) did not have a starting lever or cable. More on this later…




diagram#  Trac #  Daelim part # xx  L E I S O C H B M  price       description         specs         remarks


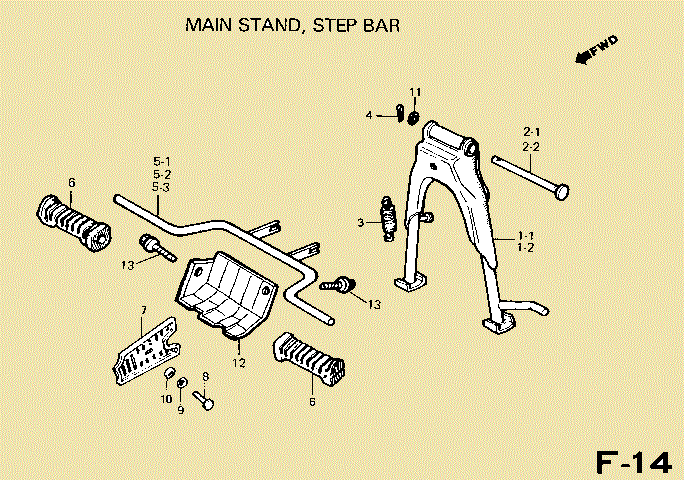

F14-01-1  20140 50500-005-890 xX  1 0 0 1 1 0 0 ? ?  $48 center stand for Liberty, Olympic
F14-01-2  20630 50500-HA1-000 xx  0 1 1 0 0 1 1 ? ?  $58 center stand Escot,Image,Clipper,Hawk/Sprint
F14-02-1  20141 50526-HD2-890AM  1 0 0 1 1 0 0 ? ?  $12  pivot pipe Ø12 x 75 for Liberty, Olympic
F14-02-2  20631 50526-HA1-000 xXx0 1 1 0 0 1 1 ? ?  $12  pivot pipe Ø12 x 81 Escot,Image,Clipper,Hawk/Sprint
F14-03-1  20265 95014-71502 xxxXx1 1 1 1 1 1 1 1 1  $10  center stand spring 115 mm
F14-04-1  25034 94201-30250-05xX 1 1 1 1 1 1 1 1 1  50¢  pivot pipe split pin 3.0 x 25
F14-05-1  20142 50610-HD2-890AMx1 0 0 0 0 0 0 0 ?  none step bar for Liberty
F14-05-2  20632 50610-HA1-890AM  0 1 1 0 0 0 0 0 ?  none step bar for Escot, Image
F14-05-3  20804 50610-HS1-890AxM0 0 0 1 0 0 0 0 ?  none step bar for Liberty LS
F14-06-1  20266 50661-001-890AXM2 2 2 2 0 0 0 0 2  none step bar rubber
F14-07-1  20633 40592-HA1-000 Xx 0 1 1 0 0 0 0 0 ?  none chain cover for Escot, Image
F14-08-1  20634 92000-06030-OD x 0 1 1 0 0 0 0 0 ?  50¢  hex bolt M6 x 30 Escot, Image
F14-09-1  06060 94111-06500 xxXx 0 1 1 0 0 0 0 0 ?  50¢  spring washer Ø6.5 Escot, Image
F14-10-1  05060 94101-06500 xxXx 0 1 1 0 0 0 0 0 ?  50¢  plain washer Ø6.5 Escot, Image
F14-11-1  20635 94101-12500 xxXX 0 1 1 0 0 1 1 ? ?  50¢  plain washer Ø12.5 Escot,Image,Clipper,Hawk/Sprint
F14-12-1  20805 50620-HS1-890 xX 0 0 0 1 0 0 0 0 0  none starter motor cover for Liberty LS
F14-13-1  00616 93481-06016-05 xx0 0 0 1 0 0 0 0 0  none shoulder bolt M6 x 16 for Liberty LS




diagram#  Trac #  Daelim part # xx  L E I S O C H B M  price       description         specs         remarks

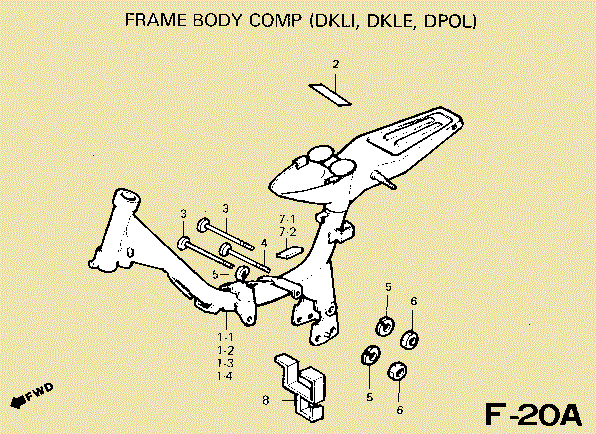

F20A-1-1  20150 50100-HD2-891AM  1 0 0 0 1 0 0 ? 0  none frame Olympic or Liberty (black)
F20A-1-2  20151 50100-HD2-891AM  1 0 0 0 1 0 0 ? 0  none frame Olympic or Liberty (red)
F20A-1-3  20810 50100-HS1-891AM  0 0 0 1 0 0 0 ? 0  none frame Liberty LS (electric start) (black)
F20A-1-4  20811 50100-HS1-891AM  0 0 0 1 0 0 0 ? 0  none frame Liberty LS (electric start) (red)








diagram#  Trac #  Daelim part # xx  L E I S O C H B M  price       description         specs         remarks

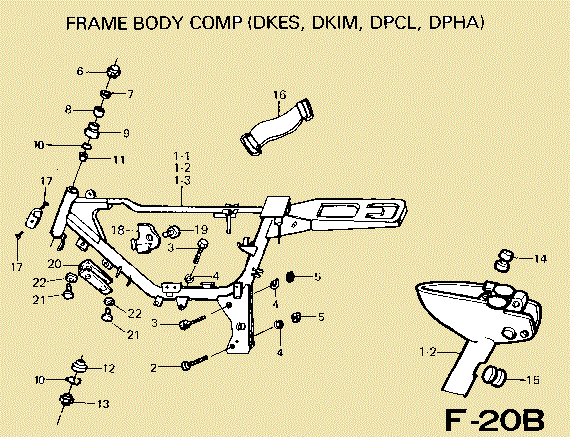

F20B-1-1  20640 50100-HA1-0100 x 0 0 1 0 0 0 1 0 ?  none frame for Hawk, Sprint or Image (black)
F20B-1-2  20641 50100-CL1-010   0 1 0 0 0 1 0 0 ?  none frame for Clipper or Escot (blue)

F20B-1-3  20642 50100-CL1-010   0 1 0 0 0 1 0 0 ?  none frame for Clipper or Escot (red)













Model codes

M56   1982-86 Eagle
MT1   1983-86 Hawk
MT2   1983-86 Clipper
CL1    1984-89 Escot,1986-89 Clipper
HA1   1986-86 Hawk, 1986-89 Sprint, 1984-89 Image
HD2   1986-89 Olympic, 1984-89 Liberty
HS1   1986-88 Liberty LS
????   1988-90 Blitz
????   1988-90 Metro

under construction …
