For identification see Odyssey Models
Regular Transmission Models
32/1-R 32kph (20mph) 11 x 53T Solo 254, thin exhaust
40/1-R 40kph (25mph) 14 x 53T Solo 255 engine
40/2-R 47kph (29mph) 15 x 50T Solo 255 engine
2-speed Transmission Models
32/1-2 32kph (20mph) 11 x 53T Solo 254, thin exhaust
40/1-2 40kph (25mph) 14 x 53T Solo 255 engine
40/2-2 47kph (29mph) 15 x 50T Solo 255 engine

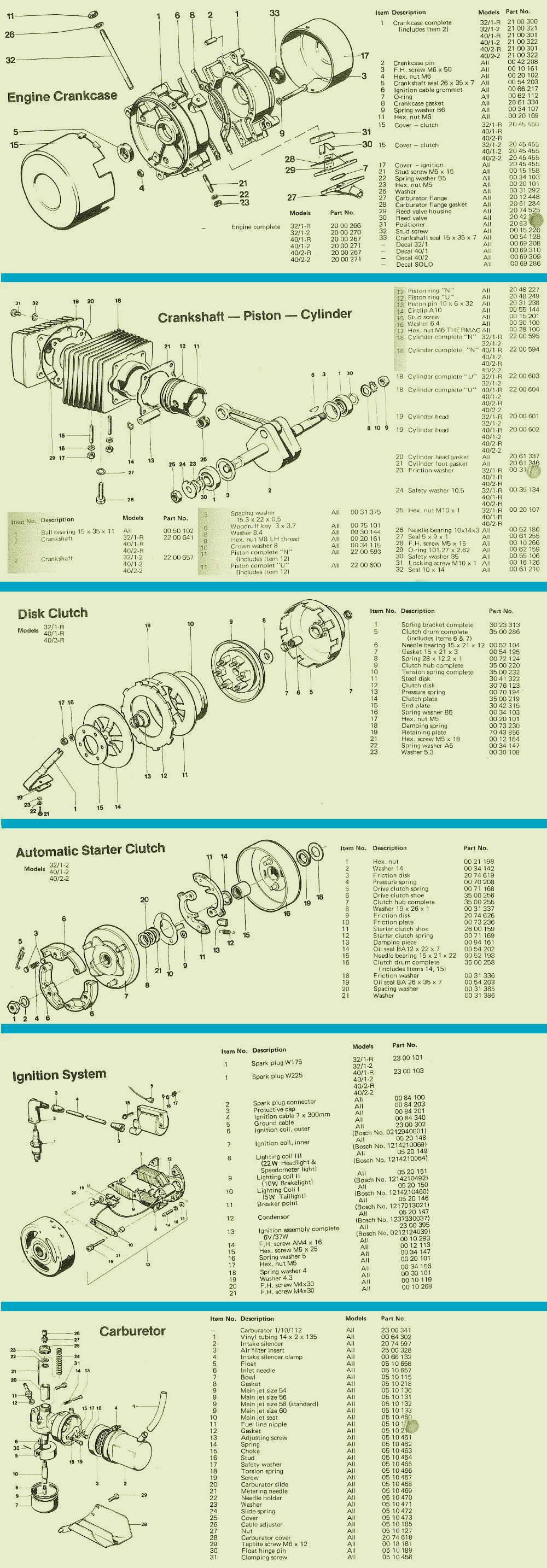

Odyssey Parts Manual
Odyssey Parts Manual, first edition, April 1977
xx qty R is Regular, 2 is 2-speed

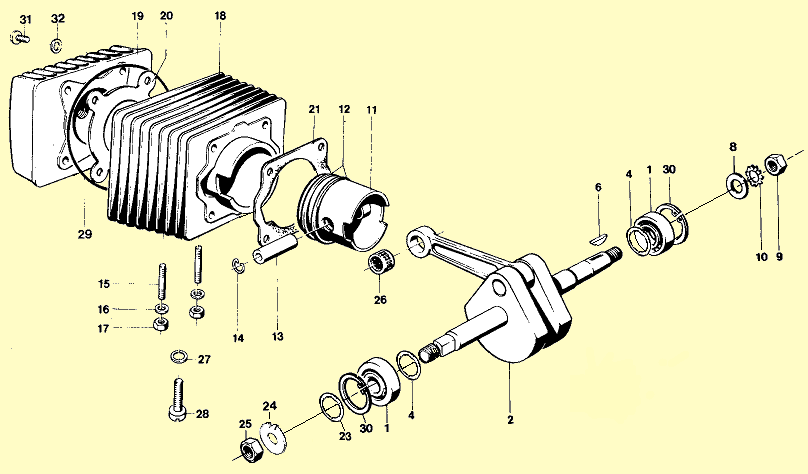

fig R2 Odyssey# price Crank and Cylinder Parts
01 22 00 50 102 $10.0 crank bearing 6202 C3
02 10 22 00 641 none disk clutch crankshaft
02 01 22 00 657 none shoe clutch crankshaft
04 22 00 31 375 $0.00 crank washer 15.3 x 22 x 0.5
06 11 00 75 101 $2.00 flywheel key M85 3 x 3.7
08 11 00 30 144 $0.00 flywheel washer 8.4 10
09 11 00 20 161 $4.00 flywheel nut M8 left M10-1.0 x 6 hex17
10 11 00 34 115 $0.00 star washer 8 10
11 11 22 00 593 $0.00 piston complete N
11 11 22 00 600 $0.00 piston complete U
12 22 20 48 227 $0.00 piston ring N
12 22 20 48 249 $0.00 piston ring U
13 11 20 31 238 $10.0 piston pin 10 x 32
14 22 00 55 144 $1.50 piston clip
15 22 00 15 201 $0.00 exhaust stud
16 22 00 30 100 $0.00 washer 6.4
17 22 00 28 100 $0.00 nut M6 thermac
18 11 22 00 595 none cylinder N for 32/1
18 11 22 00 594 $0.00 cylinder N
18 11 22 00 603 none cylinder U for 32/1
18 11 22 00 604 $0.00 cylinder U
19 11 20 00 601 none head for 32/1
19 11 20 00 602 $0.00 head
20 11 20 61 337 $0.00 head gasket
21 11 20 61 346 $9.00 base gasket
23 11 00 31 336 $0.00 “friction” washer 15 x 25.6 x 0.5
24 10 00 35 134 $9.00 disk clutch tab washer
25 10 00 20 107 $4.00 disk clutch nut M10-1.0×6
26 11 00 52 186 $0.00 needle bearing 10 x 14 x 13
27 11 00 61 255 $1.50 seal washer 5 x 9 x 1
28 11 00 10 266 $0.50 drain screw M5 x 15 (16) slot
29 11 00 62 159 $0.00 o-ring 101.3 x 2.6
30 22 00 55 106 none inner retaining ring 35
31 11 00 16 126 $0.00 fill plug M10-1.0
32 11 00 61 210 $0.00 seal washer 10×14
xx qty R is Regular, 2 is 2-speed

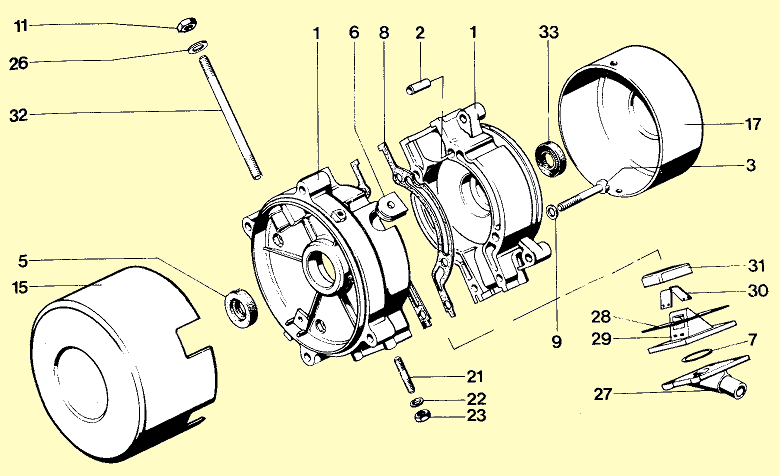

fig R2 Odyssey# price Crankcase Parts
01 10 21 00 300 none disk clutch crankcase for 32/1-R
01 01 21 00 321 none shoe clutch crankcase for 32/1-2
01 10 21 00 301 none disk clutch crankcase
01 01 21 00 322 none shoe clutch crankcase
02 11 00 42 208 $0.00 crankcase pin
03 66 00 10 161 $0.80 case screw M6 x 50 slot
05 11 00 54 203 $12.0 left crank seal 26 x 35 x 7
06 11 00 66 217 $0.00 wires grommet
07 11 00 62 112 $0.00 intake o-ring
08 11 20 61 334 none case gasket
09 66 00 34 107 $0.25 lock washer 6
11 44 00 20 169 $0.30 head nut M6
15 10 20 45 460 $0.00 clutch cover
15 01 00 45 455 $0.00 clutch cover
17 11 00 45 455 $0.00 magneto cover
21 44 00 15 158 $0.00 stud M5 x 15
22 44 00 34 103 $0.25 lock washer 5
23 44 00 20 101 $0.40 nut M5
26 44 00 31 292 $0.20 head washer M6
27 11 20 12 448 $0.00 intake manifold
28 11 20 61 284 $0.00 intake gasket
29 11 20 74 525 $0.00 reed housing
30 22 20 42 000 $0.00 reed petal
31 11 20 63 000 $0.00 reed petal holder
32 44 00 15 226 $0.00 cylinder stud
33 11 00 54 128 $7.00 right crank seal 15 x 35 x 7
xx qty R is Regular, 2 is 2-speed

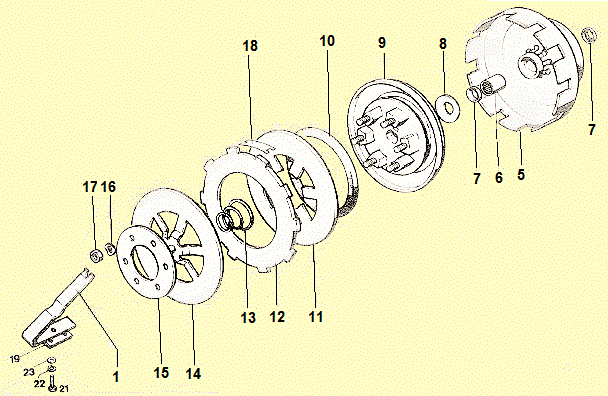

fig R2 Odyssey# Batavus# price Disk Clutch Regular Trans.
01 10 30 23 313 000000 $32.0 start lever
05 10 35 00 286 000000 none clutch drum complete
06 20 00 52 104 000000 none needle bearing HK1512 15 x 21 x 12
07 20 00 54 195 000000 $6.00 seal ring 15 x 21 x 3
08 10 00 72 124 480887 $8.00 saucer spring 28 x 12.2 x 1
09 10 35 00 220 480881 none alum. hub with steel saucer
09 10 35 00 220 480881 $35.0 steel saucer only
10 10 35 00 232 480886 $30,0 weight-spring ring
11 10 30 41 322 000000 $20.0 steel plate
12 10 30 76 123 480889 $32.0 friction plate
13 10 00 70 194 480883 $8.00 start spring
14 10 35 00 219 000000 $60.0 start plate
15 10 30 42 315 480890 $12.0 end plate
16 60 00 34 103 843500 $1.00 wave washer 5
17 60 00 20 101 827500 $0.40 nut M5
18 40 00 73 230 000000 $6.00 dampening leaf spring
19 10 70 43 856 000000 $12.0 start lever plate
21 20 00 12 164 000000 $1.00 screw M5 x 18 hex
22 20 00 34 147 000000 $0.25 lock washer 5
23 20 00 30 108 000000 $0.20 washer 5
Much of this clutch assembly is the same as the clutch on a Laura M48 engine used on Batavus mopeds. Those items that are the same have Batavus part numbers listed.
xx qty R is Regular, 2 is 2-speed

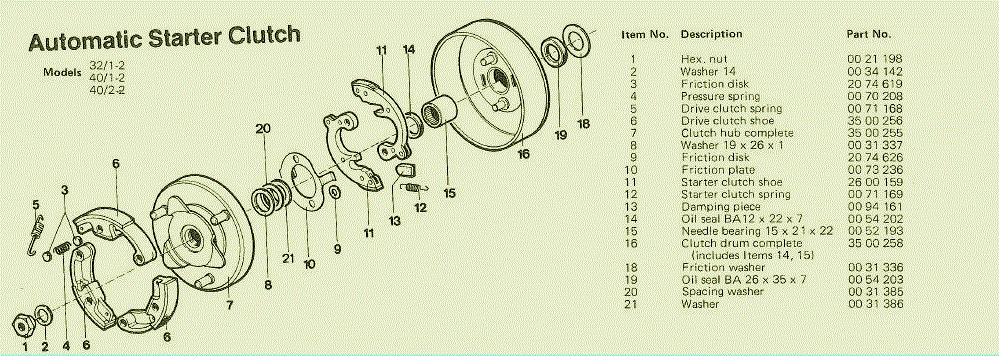

fig R2 Odyssey# price Shoe Clutch 2-speed Trans.
01 01 00 00 000 none x
02 01 00 00 000 none x
03 06 00 00 000 none x
04 03 00 00 000 none x
05 03 00 00 000 none x
06 03 00 00 000 none x
07 01 00 00 000 none x
08 01 00 00 000 none x
09 02 00 00 000 none x
10 01 00 00 000 none x
11 02 00 00 000 none x
12 02 00 00 000 none x
13 02 00 00 000 none x
14 01 00 54 202 none clutch seal 12 x 22 x 7
15 01 00 52 193 $13.0 needle bearing 15 x 21 x 22
16 01 35 00 258 none clutch drum complete
18 11 00 31 336 none “friction” washer 15 x 25.6 x 0.5
19 11 00 54 203 $12.0 left crank seal 26 x 35 x 7
20 01 00 31 385 none washer
21 01 00 31 386 none washer

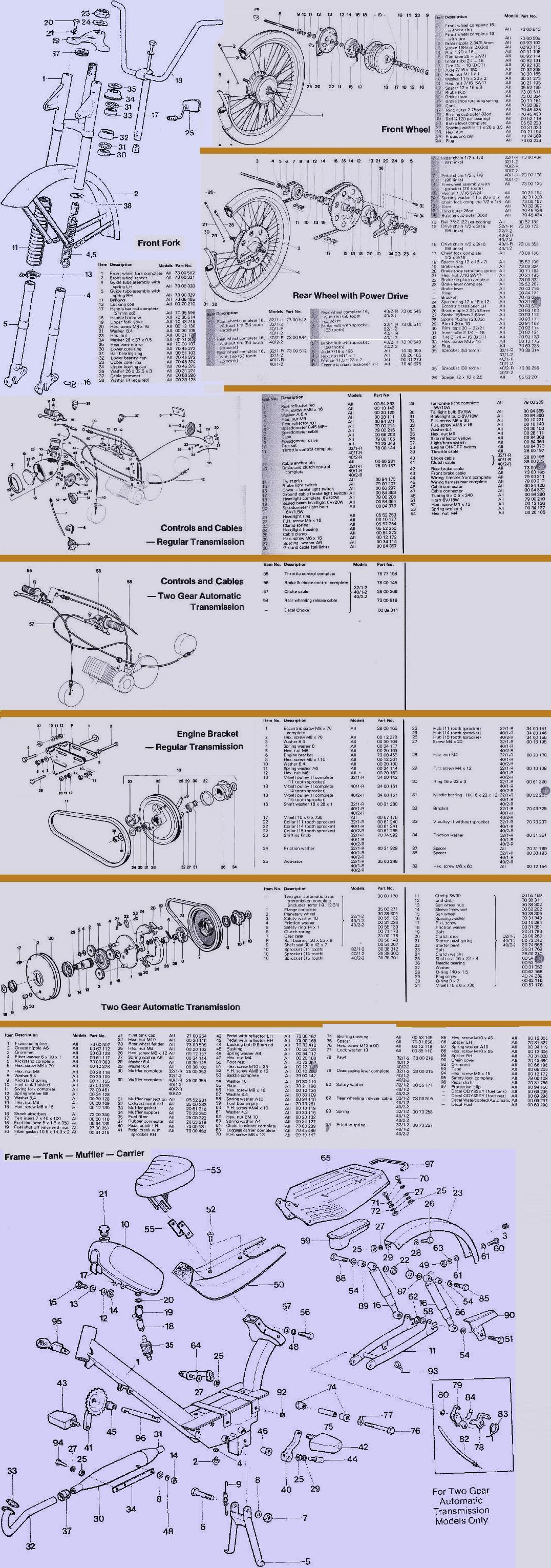

Odyssey Parts Manual, first edition, April 1977, non-engine section
