Jawa 207 Parts List
Sources: Below is a combined list made from the above seven manuals. MM notes or names are in aqua blue.
N/A means not available Link goes to that part’s By Type section $10 means on sale for $10
# qty part no. price description
– 207 17 005 N/A Engine complete (207.011 with 8.5 compression ratio)
– 207 17 105 N/A Engine complete (207.111 with 8.5 compression ratio)
– 207 17 302 N/A Engine complete with Bing carburetter
– 207 17 320 N/A Engine complete (207.300, 207.311 with 8.5 comp ratio)
– 000 00 000 N/A Engine complete (207.392, 207.394 with 9.2 comp ratio)
1. 1 28-1101 N/A Engine boxes cases complete
2. 1 28-1103 N/A Engine boxes with bushes

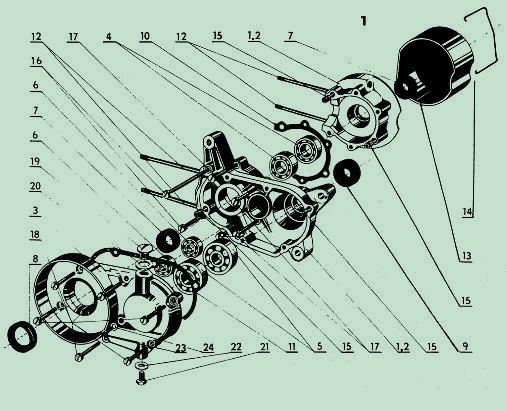

Jawa 207 Parts Diagram 1: Engine Cases and Bearings
3. 1 28-1131 N/A L.H. transmission cover
4. 2 43204 $6.00 Bearing 6203 open 17x40x12
5. 2 43006 $8.00 Bearing 6004 open 20x42x12
6. 2 43005 $6.00 Bearing 6001 open 12x28x8
7. 2 50112 $6.50 Crank seals 17x28x7
8. 1 50113 $7.50 Trans. seal 28x38x7
9. 1 50101 $7.50 Drive seal 20x30x7
10 1 28-1113 $7 crankcase gasket
11 1 28-1132 $10 transmission gasket
12 4 28-1112 Link Cylinder stud M6x114
13 1 28-1116 $25 Ignition magneto cover
14 1 28-1119 $15 Spring clip for cover
15 4 01-1115 $4 Centering bush 6.5×7.8×7.8
16 2 20211 Link Screw M6x45 pan slot
17 4 20209 Link Screw M6x35 pan slot
18 6 20208 Link Screw M6x25 pan slot
19 1 01-1114 $10 Screw M14-2.0×12 oil filler
20 1 01-1119 $3 Seal washer Ø14
21 1 20112 $4 Screw M8-1.25x12 oil drain
22 1 01-1123 $2 Seal washer Ø8.3 Ø15 x 2
23 1 20308 Link Screw M5-0.8x10 oil check
24 1 28-1141 Link Seal washer Ø5

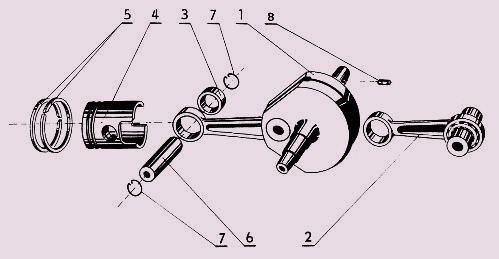

Jawa 207 Parts 2: Piston and Crankshaft
# qty part no. price description
1 1 28-1205 $120 crankshaft (with 2 & 3)
2 1 28-1201 $40 Con. rod with bottom bearing
3 1 28-1212 $20 piston pin bushing Ø14x16x12
4 1 28-1218 N/A Piston “B” std. 38.97 (for 39.02)
4 1 28-1218/1 Link Piston “B” 1st 39.23 (for 39.28)
4 1 28-1218/2 N/A Piston “B” 2nd 39.47 (for 39.52)
4 1 28-1218/3 N/A Piston “B” 3rd 39.73 (for 39.78)
4 1 28-1218/4 N/A Piston “B” 4th 39.97 (for 40.02)
5 2 28-1220 Link Piston ring std 39.02 x 2.0 GI
5 2 28-1220/1 Link Piston ring 1st 39.27 x 2.0 GI
5 2 28-1220/2 Link Piston ring 2nd 39.52 x 2.0 GI
5 2 28-1220/3 Link Piston ring 3rd 39.77 x 2.0 GI
6 1 28-1221 N/A Piston pin Ø14 x 32
7 2 05-1222 Link Lock ring piston clip for Ø14 pin
8 1 355-12-033 $6 Pin Ø4 x 6 (for ignition timing)
Jawa 207 piston
Jawa Pistons: Jawa 39mm cylinders, pistons and rings are slightly bigger than others. A Motobecane mid-size “E” cylinder is 38.99, while a Jawa “B” cylinder is 39.02 mm. Jawa pistons have “rounded M” and “circled S” logos stamped on top, the size code “B Y” (or “1B Y” or “2B Y” etc), and the arrow that points toward the exhaust side. Jawa pistons are classified in the manuals as A, B, or C by tiny (100 microns) size differences. The actual replacements are all “B”. To see the pistons for sale, with prices and more info, click the link in the price column to go to the Pistons section. Scroll down to Pistons with 14mm Pins, at the bottom of the list. To see the rings for sale, click the price link to go to the Rings section. Scroll down to 39mm rings, for standard rings, specifically “39.02 x 2.00 GI”.
Jawa 207 Parts Diagram 3: Cylinder and Head
# qty part no. price description
1 1 28-1303 N/A Cylinder head bare
2 1 28-1305 $15 Decomp body with 3+4
3 1 28-1308 N/A Washer trapped in body
4 1 50007 $6 O-ring 8od 4id (in body)
5 1 28-1314 $12 Decomp Valve
6 1 28-1315 $7 Decomp Support
7 1 28-1316 $5 Decomp Spring
8 1 28-1317 $3 Decomp Valve clamp
9 1 30018 $3 Split pin 1,6×10
10 1 50302 $5 O-ring 12od 8id (on head)
11 1 62106 Link Spark plug NGK B5HS
12 1 28-1400 $180 Cylinder w/matching piston
12 1 28-1400 $120 Cylinder new, but no piston
13 2 28-1408 $5 Stud M5 x 23 exhaust stud
14 2 28-1410 $3 Stud M5 x 27 intake stud
15 1 28-1006 $8 cylinder base gasket
16 4 25103 Link Nut M6 for head
17 4 27007 Link Plain washer 6,4
Jawa 207 Parts 4: Intake Pipe, Air Cover
# qty part no. price description
1 1 28-1511 $35 Suction Branch air cover
2 1 28-1514 $8 Piping air intake hose
3 1 28-1505 $30 Suction piping intake pipe
4 1 28-1504 $8 Sealing 30 x 5 carb gasket
5 2 20114 Link Screw M5x12 hex bolt
6 4 27401 Link Lock washer 5.1
7 2 21020 $3 Screw M4x25 countersunk slot
8 1 28-1008 $9 Insulator 32 x 5 heat block
9 2 25101 Link Nut M5
10 2 10006 $5 Sealing 32 x 5 intake gasket

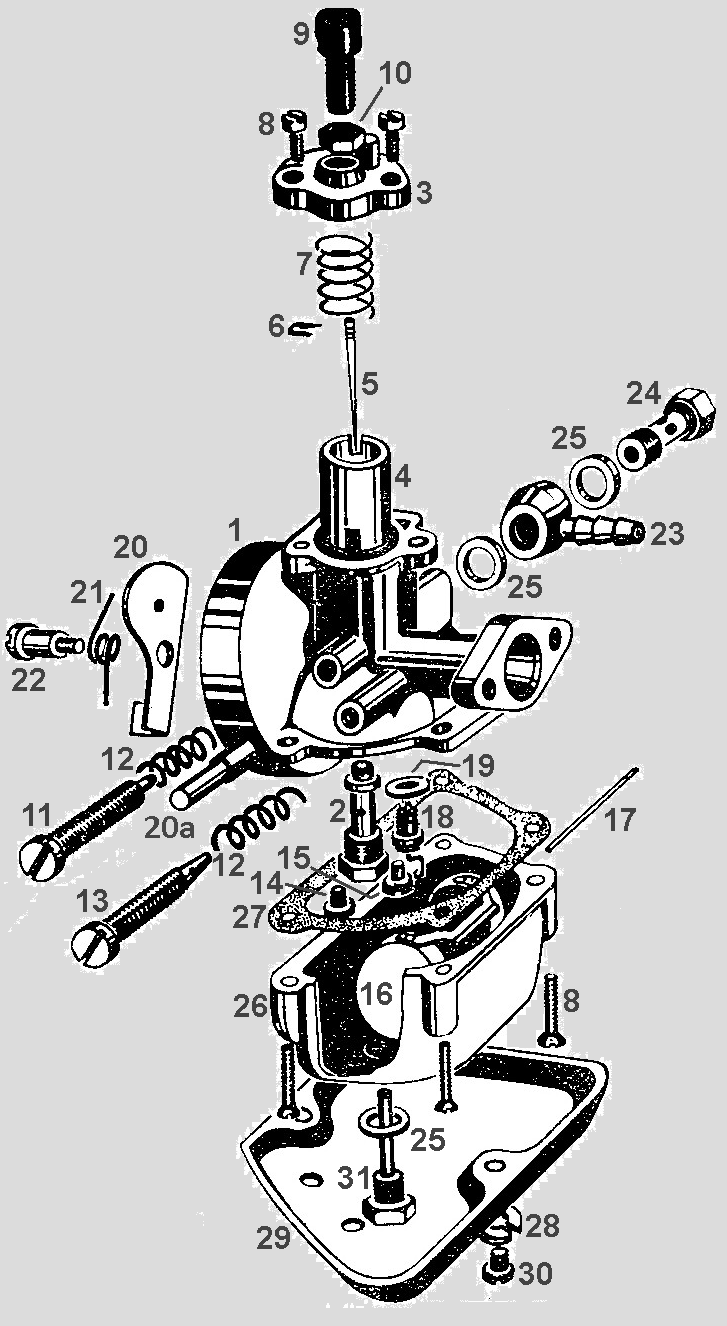

# qty part no. price description
– 1 2-66232 N/A Carburettor Jikov 2909 (Ø9 for 25mph)
– 1 2-66232 N/A Carburettor Jikov 2912 (Ø12 for 30mph)
1 1 2-65258 $70 Carburettor body Ø9 bare, no choke rod
2 1 2-3219 $15 Emulsion tube needle jet M9-1.0
3 1 2-65254 $18 Cover carb top cover with choke
4 1 2-21218 $10 Mover throttle slide Ø14 x 26
5 1 2-31155 $15 Mover needle jet needle Ø2.0 x 35
6 1 2-3350 $8 Lock jet needle clip and spring plate
7 1 2-4838 $6 Mover spring throttle spring Ø9.5 x 35
8 4 1-2455 $2 Screw M4-0.70 x 12 sunk-slot head
9 1 2-2434 $7 Cable guide adjuster M6-0.75
10 1 2-2516 $2 Nut adjuster thin nut M6-0.75
11 1 2-2358 $7 Mover stop screw (idle speed) M5-0.8
12 2 2-4825 $3 Spring Ø8 x 13 (for both idle screws)
13 1 2-2503 $5 Regulation screw (idle mixture) M5-0.8
14 1 1-3130/58 N/A Main jet 58 M6-1.0 for 2909 carb
14 1 1-3130/63 $15 Main jet 63 M6-1.0 for 2912 carb
15 1 2-3160/35 $20 Idle jet 35 M4-0.7 thread
16 1 2-65257 N/A Double float complete float
17 1 2-31159 N/A Suspension shaft float hinge pin
18 1 2-65253 $30 Float needle and seat M7 x 13.5
19 1 2-5213 $3 Sealing Ø5/2,5 fiber washer Ø2.5 x Ø5
20 1 2-2751 $12 Diaphragm choke plate
20a 1 2-xxxx N/A Choke rod with spring
21 1 2-4836 N/A Diaphragm spring choke spring
22 1 2-24145 $10 Diaphragm screw choke pivot screw
23 1 2-2491 $10 Branch fuel inlet banjo Ø6 hole Ø7 hose
24 1 1-2596 $10 Branch screw banjo bolt M6-1.0 hollow
25 3 1-5209 $2 Sealing Ø10/6,2 fiber washer Ø6.2 x Ø10
26 1 2-21221 $15 Float chamber float bowl bare
27 1 2-5312 N/A Sealing of float chamber float bowl gasket
28 2 1-4308 $0.25 Spring washer 4,1 M4 lock washer
29 1 2-2753 $7.00 Drip tray
30 2 1-4106 $0.50 Screw w/cylindrical head M4-0.7 x 8
31 1 2-65255 $3.00 Drain plug M6-1.0 x 8

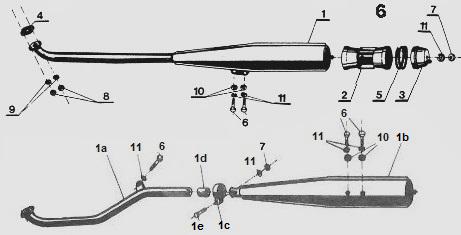

Jawa 207 Parts 6: Exhaust, above Welded, below Clamp-on
# qty part no. price description
– 1 207 01 100 N/A Exhaust welded complete
1 1 207 01 104 N/A Exhaust welded bare
1a 1 07-1604 N/A Front pipe (clamp on)
1b 1 228 01 042 N/A Rear pipe (clamp on)
1c 1 28-1641 N/A Clamp (clamp on)
1d 1 28-1649 $10 Gasket (clamp on)
1e 1 20122 Link Screw M6 x 14 (clamp on)
2 1 228 01 048 $30 Insert complete
3 1 228 01 054 $35 End piece complete
4 1 28-1007 $8 Exhaust flange gasket
5 1 28-1610 N/A Sealing Ø2 x 180 asbestos
6 2 20103 Link Screw M6 x 12
7 2 25103 Link Nut M6
8 2 25101 Link Nut M5
9 2 27401 Link Washer 5,1
10 2 27003 Link Washer 6,1
11 3 27402 Link Washer M6

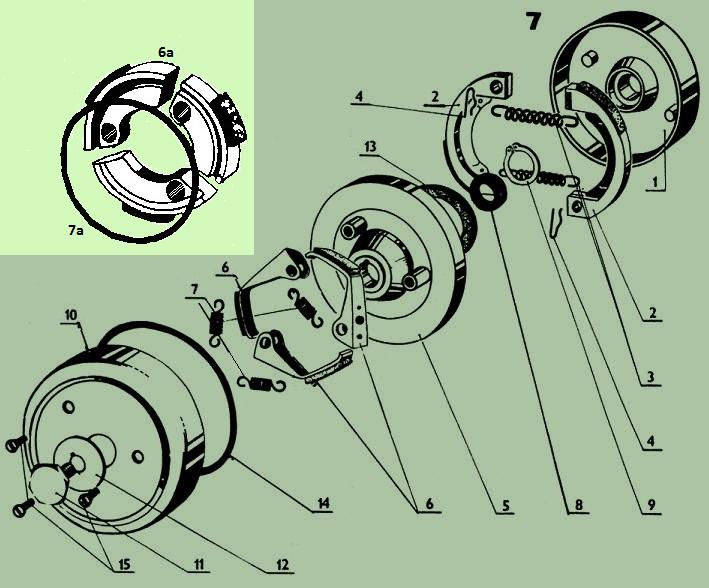

Jawa 207 Parts 7: Running Clutch and Starting Clutch
6a & 7a (ring spring) is in the 207.011 and 207.311 manuals
6 and 7 (3-spring) is in the 207.111 (1978) parts manual only
So they had the 3-spring running clutch shoes for one year only.
# qty part no. price description
1 1 00 28-2103 $48.0 running clutch drum
2 2 00 28-2128 $9.00 starting clutch jaw
3 2 00 28-2113 $7.00 starting clutch spring
4 2 00 28-2114 $2.00 starting clutch clip
5 1 00 28-2116 $42.0 starting clutch drum
6 3 228 21 046 $16.0 clutch jaw for 3-spring
6a 3 00 28-2127 $23.0 clutch jaw for ring-spring
7 3 228 21 049 $9.00 spring for 3-spring clutch
7a 1 00 28-2121 $13.0 spring for ring-spring clutch
8 1 000 50115 $6.00 sealing ring 15 x 24 x 7
9 1 000 50009 $2.00 external retaining ring 15
10 1 00 28-2138 $40.0 outer flywheel-plate
11 1 00 28-2132 $12.0 Screw M8 x 25 (thin 24 hex)
12 1 00 28-2133 $7.00 tab washer
13 1 00 28-2136 none felt ring
14 1 000 50305 $11.0 sealing ring Ø100 x 5
15 3 000 21007 $1.50 screw M5 x 10 sunk slot

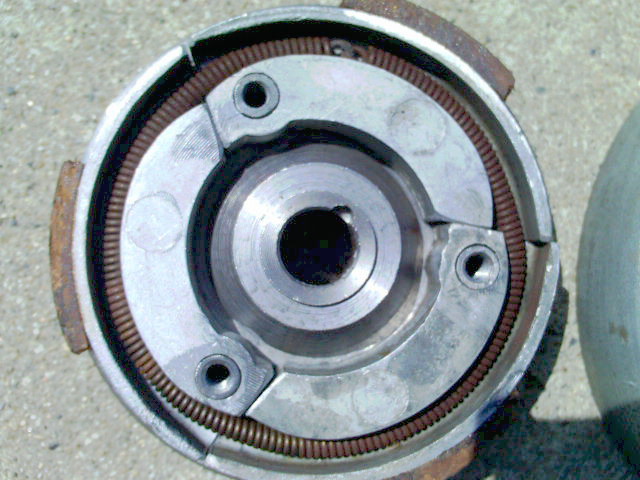

Jawa Running Clutch “ring spring” type

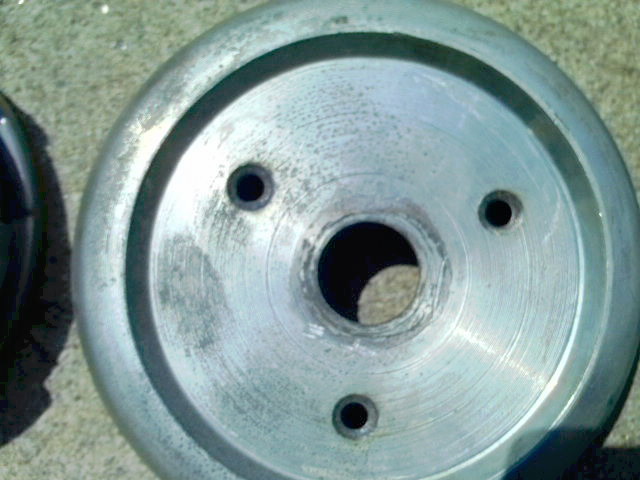

Jawa Flywheel/Drum

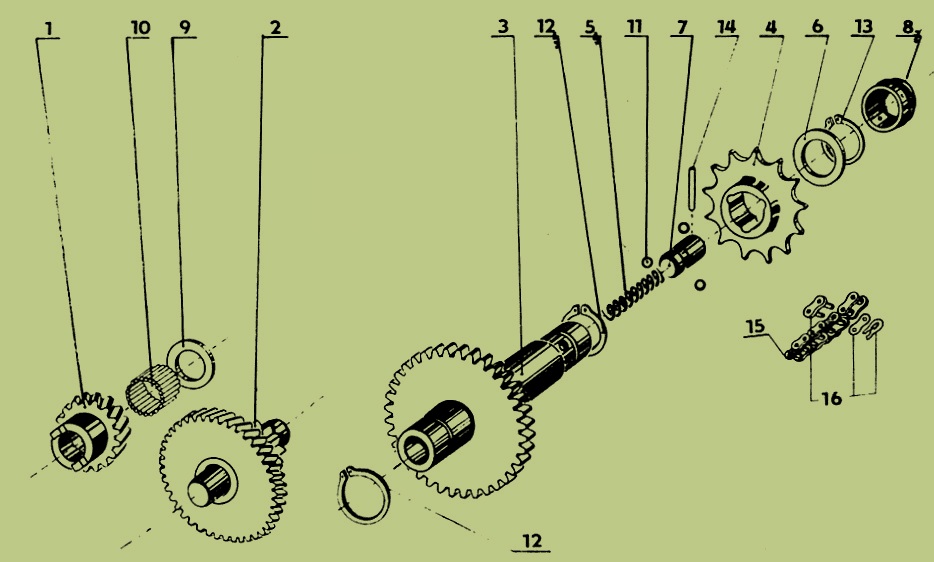

Jawa 207 Parts Diagram 8: Drive Shaft and Drive Gears
# qty part no. price description
1 1 28-2205 $45 Crankshaft Gear 20T
2 1 28-2209 N/A Shaft w/Gears 12/34T
3 1 28-2214 N/A Driveshaft w/Gear 36T
5 1 28-2221 $8 Engage spring
6 1 28-2222 $3 Engage washer
7 1 28-2225 $12 Engage shaft
8 1 28-2226 $5 Engage wheel knob
9 1 28-2206 $7 Crank washer 15 x 24 x 1.9
10 26 28-2207 $1 Loose needles Ø2×12
11 3 40003 Link Ball Ø5
12 1 34001 $3 Lock ring 19
13 1 34004 $3 Lock ring 18
14 1 33013 $2 Engage pin Ø3 x 26 (or 22)
15 1 45010 N/A Chain 97 links 086-1
16 1 45005 Link Master link 086-1 (MM #6c)
# qty part no. price description
4 1 08-???? N/A Sprocket 10 teeth (for 25km/h models, 208.450, 208.502, etc)
4 1 08-2220 N/A Sprocket 11 teeth (for 30km/h models, 207.011, 207.111, 207.377 etc)
4 1 28-2220 $25 Sprocket 12 teeth (for 40km/h models, 207.011, 207.111, 207.385, etc)
4 207-27-306 $25 Sprocket 13 teeth (for 50km/h models, 207.300, 207.311, etc
4 207-27-302 N/A Sprocket 14 teeth (for 50km/h models, 207.385, 207.392, etc)
Jawa Chain: The Jawa motor chain is not a standard 415 moped chain, although it has the same pitch and width. It has thicker pins, 4.4 instead of 4.1mm. More importantly, it has bigger rollers, 8.4 instead of 7.7mm. Because the Jawa sprockets are made for bigger rollers, they look similar to worn out standard sprockets. The valleys between the teeth are wider and deeper, making the tops of the teeth more pointed. So a 415H moped chain will work OK, but not great, on unworn Jawa sprockets. But if the Jawa sprockets are worn, the chain might skip and jump off.

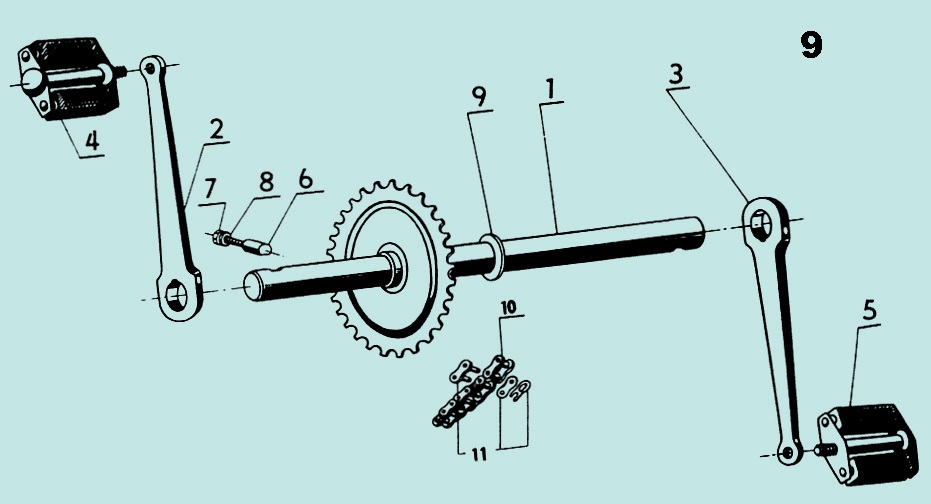

Jawa 207 Parts Diagram 9: Pedal Shaft and Pedals
Standard 9/16-20 thread pedals and 1/2 x 1/8 chain
# qty part no. price description
1 1 07-2254 $45 Pedal shaft welded
2 1 28-2260 Link Pedal arm 5.3″ straight left
3 1 28-2259 Link Pedal arm 5.3″ straight right
4 1 70090 Link Bicycle 9/16″ pedal left
5 1 70091 Link Bicycle 9/16″ pedal right
6 2 00000 Link Wedge pin 9.5 mm
7 1 25103 Link Nut M6 (comes with pin)
8 1 27007 Link Washer 6.4 (comes with pin)
9 1 28-2268 $3 Washer 17 x 36 x 1
10 1 45011 Link Bicycle 1/2 x 1/8 chain 86 link
11 1 45008 Link master link (comes with chain)

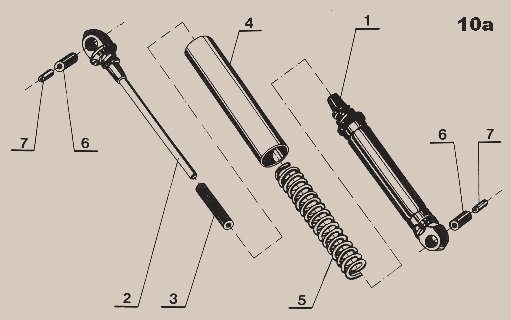

Jawa 207 Parts 10: Rear Shocks
# qty part no. price description
— 2 207 39 165 N/A Shock Ø8 Ø8 x 330 lite grey
— 2 207 39 170 N/A Shock, heavy duty chrome
1 2 207 35 101 N/A Bottom body black
2 2 207 35 109 N/A Top body with rod
3 2 207 35 112 N/A Rubber bottoming block
4 2 207 39 ??? N/A Chrome cover (207.111, 311)
4 2 207 39 166 N/A Light grey cover (207.011)
5 2 207 35 116 N/A Spring
6 4 200 35 008 N/A Rubber bushing
7 4 200 35 009 N/A Steel sleeve Ø8 x Ø12 x 25?

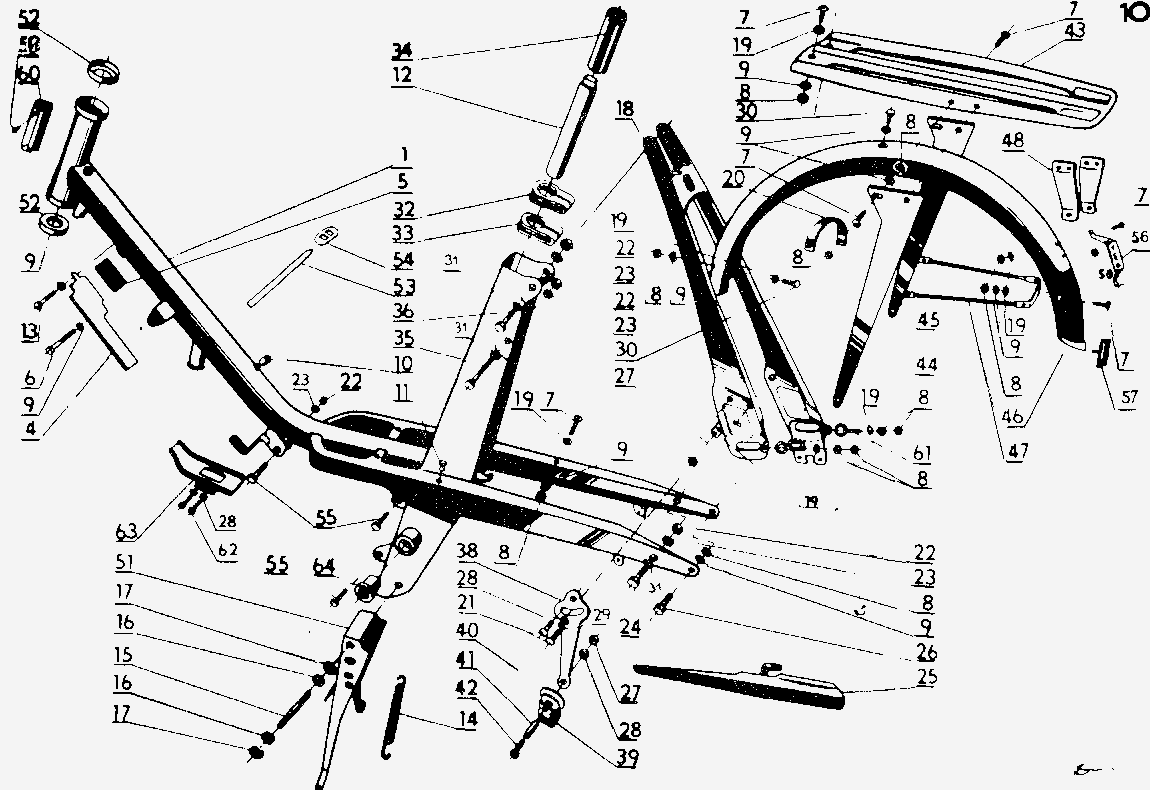

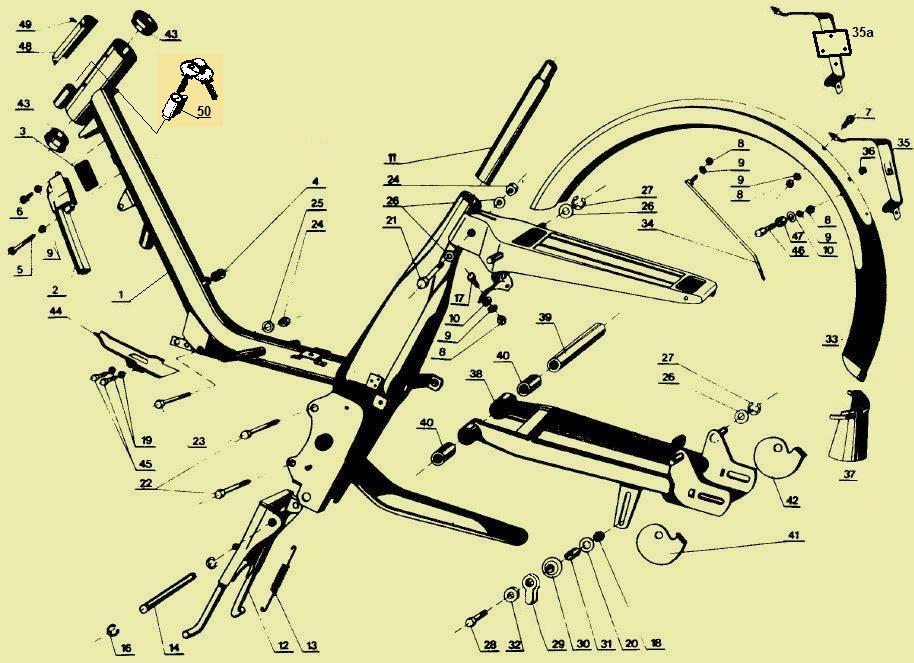

Jawa 207 Parts Diagram 10a: Swinging Fork Frame

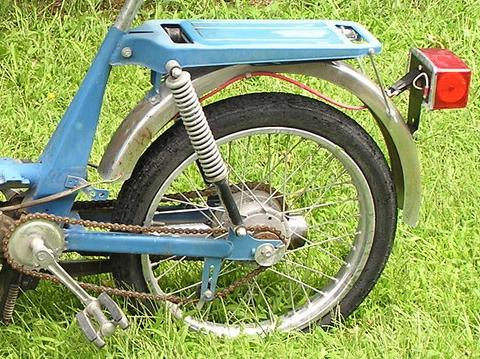

Jawa 207 swing arm
spiral chain adjusters.
Pedal shaft is swing arm pivot.
#b #a qty part no. price description
— — 207 39 306 N/A Frame welded bare (207.305)
— — 207 39 305 N/A Frame w/swing arm (207.305)
— — 207 31 100 N/A Frame welded bare (207.111)
— 1 1 207 30 101 N/A Frame w/swing arm (207.111)
4 2 1 28-3018 $15 Intake silencer aluminum
5 3 1 70105 N/A Air filter metal netting use foam
5 3 1 70105sub $2 Air filter foam type 1.2×1.6×0.4″
10 4 1 05-2127 $1 Rubber hose 5/16″ ID, 1″ long
6 5 1 20205 Link Screw M5x 40
13 6 1 20225 Link Screw M5 x 10
7 7 12 20308 Link Screw M5 x 10
8 8 20 25101 Link Nut M5
9 9 20 27401 Link Washer 5,1
19 10 8 27003 Link Washer 5,3 thick

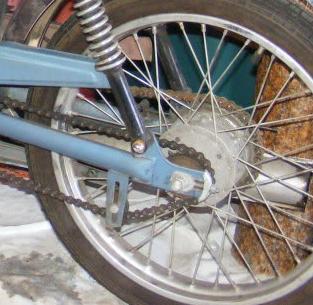

Jawa 28, 207 rigid
M5 eye-bolt adjusters

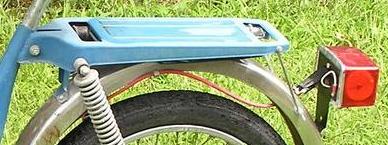

Jawa 207.311 “late”
M5 eye-bolt adjusters
with back plates
12 11 1 28-3028 $15 Seat tube Ø25.8 Ø22 x 220

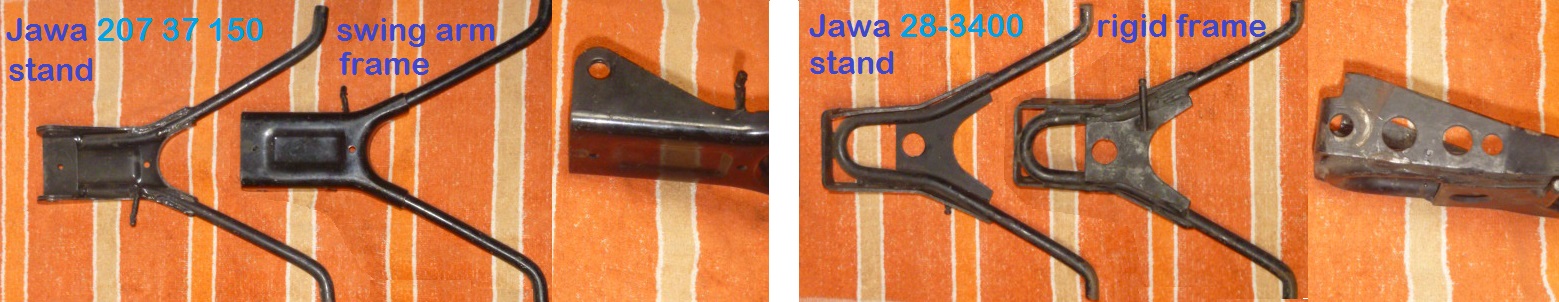

— 12 1 207 37 150 $65 Center stand swing arm type
14 13 1 28-3032 $7 Stand spring Ø15 x 95mm
— 14 1 207 30 120 N/A Stand pin Ø10 x 68mm
17 16 2 34201 $2 Ring 7 E–clip Ø7 for Ø10 pin
30 17 3 20114 Link Screw M5 x 12
27 18 4 25103 Link Nut M6
28 19 6 27402 Link Washer 6.1
29 20 2 27007 Link Washer 6.4
— 21 1 201 208 050 Link Screw M8 x 50 post clamp
35 22 2 20024 Link Screw M8 x 60 rear engine
55 23 1 21204 Link Screw M8 x 45 front engine
22 24 7 25104 Link Nut M8
23 25 7 27403 Link Washer 8.2

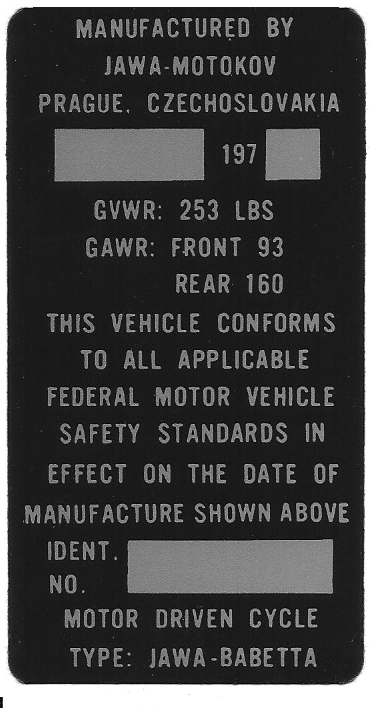

ID plate (1970’s USA)
— 26 6 210 120 084 Link Washer 8.4 upper shock washer
— 27 4 732 900 060 $2 Ring 6 E-clip Ø6 for Ø8 pin
— 28 1 203 206 030 Link Screw M6 x 30
39 29 1 28-3204 $10 Guide “U”-shaped metal
40 30 1 28-3205 $7 Roller original phenolic
41 31 1 28-3206 $7 Bushing 6.6 x 9 x 11
— 32 1 207 30 111 N/A Sleeve spacer for chain “line”
46 33 1 207 39 050 $30 used Rear fender light grey
— 34 2 207 30 115 N/A Rod rear fender brace

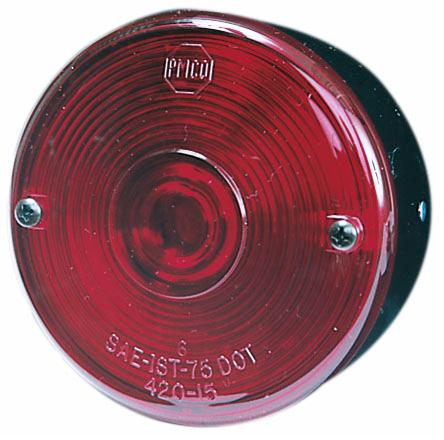

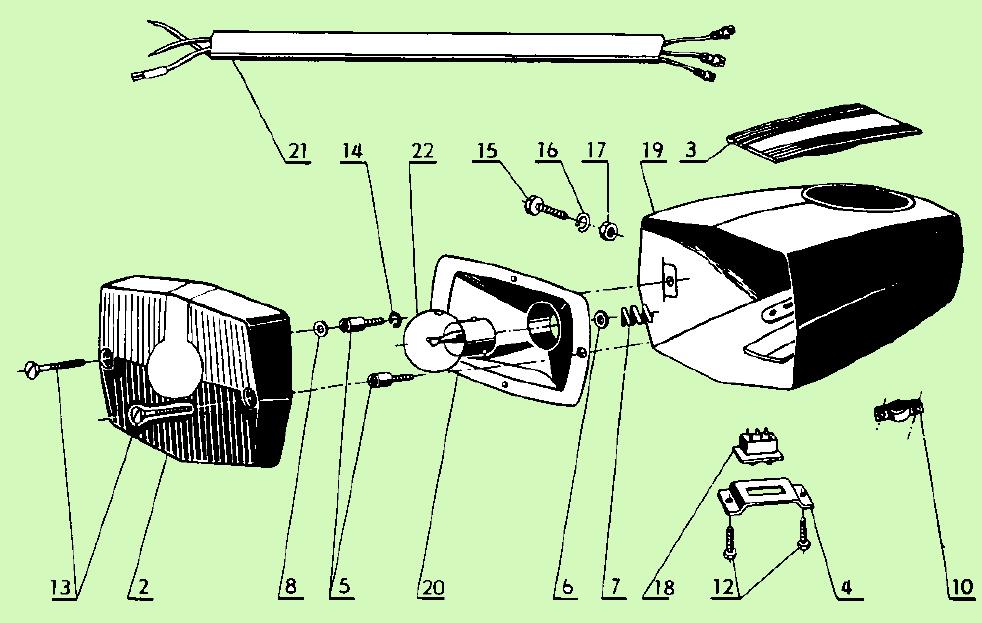

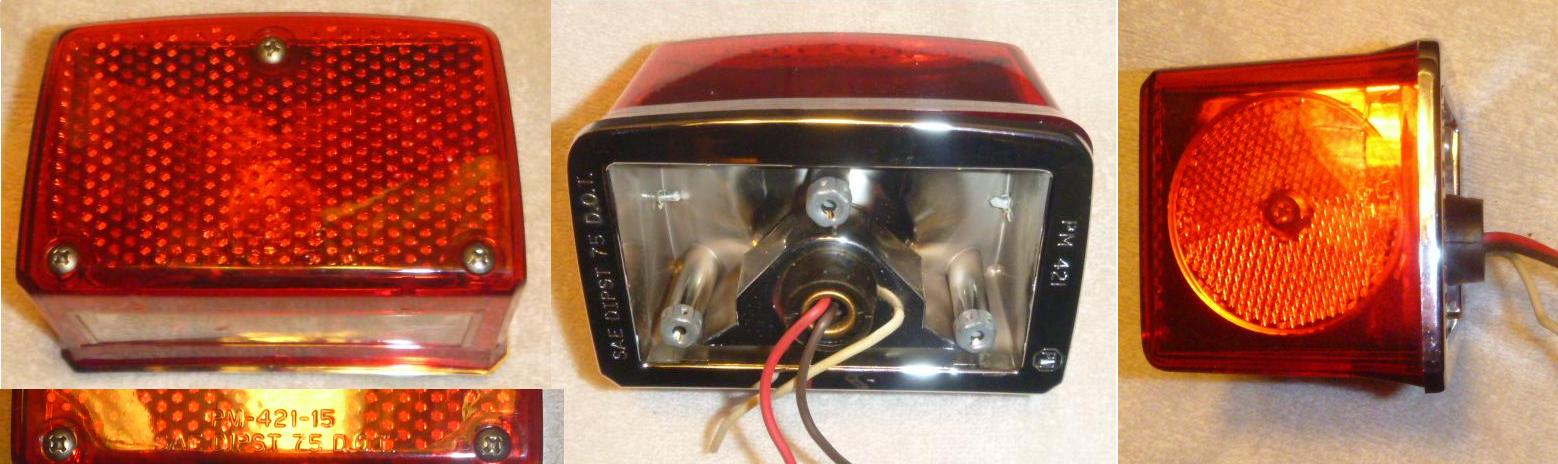

56 35 1 207 39 052 N/A Tail lamp bracket for round type
— 35a 1 207 39 171 N/A Tail lamp bracket for square type
50 36 1 50700 N/A Grommet for tail lamp wires
— 38 1 207 32 101 N/A Swing arm
— 39 1 207 30 110 N/A Swing arm pin
— 40 2 207 32 120 N/A Bushing swing arm bushing
— 41 1 207 56 191 $10 Chain adjuster LH spiral type
— 42 1 207 56 193 $12 Chain adjuster RH spiral type
52 43 2 359 31 011 N/A Cup steering bearing cups
63 44 1 28-0002 $5 Tranzimo protector
62 45 2 20103 Link Screw M6 x 12 tranzimo protector bolts
— 46 2 228 43 011 N/A Holder rear fender brace eye bolt
— 47 2 228 43 012 N/A Cup rear fender brace cup
60 48 1 70092 $15 Frame plate identification sticker
61 — 2 28-0003 $6 Adjuster eyelet type M5 (not shown)
— 50 549633011000 N/A Steering lock with keys
Left, Jawa 207 37 150, swing arm type stand, goes outside the frame
Right, Jawa 28-3400, rigid frame centerstand, goes inside the frame
Chains opposite: See below about how the Jawa pedal chain is on the left side of the bike. and so is not like most other mopeds and bicycles. Weird!
Motor chain is special: See above and in the link to Chains, how the Jawa moped chain has bigger rollers than all other mopeds. Weird!
Jawa 28 and 206 Parts 10b: Rigid Type Frames
This “b” section is for rigid frame only items.
Parts that are on both “rigid” and “swing arm”
frames are combined in the “a” section above.
# qty part no. price description
1 1 07-3001 N/A Frame
11 2 05-0023 N/A Support
15 1 28-3033 $8 Pin Ø10 x 88
16 2 27010 Link Washer 10.5
18 1 07-3037 N/A Rear support
20 1 07-3053 N/A Bracket
21 2 20330 Link Screw M6 x 14
24 2 20109 Link Screw M8 x 16
25 1 28-3060 $15 Chain cover
26 2 20148 Link Screw M5 x 16
32 1 28-3073 N/A Upper clamp
33 1 28-3074 N/A Lower clamp
34 1 28-3075 N/A Tube for seat
36 1 20015 Link Screw M8 x 65
38 1 28-3203 $4 Roller arm
42 1 21603 Link Screw M6 x 22
43 1 07-3301 N/A Luggage carrier
44 1 07-3305 N/A Support LH
45 1 07-3306 N/A Support RH
47 1 07-3353 N/A Fender bracket
48 2 07-3311 $7 Bracket
51 1 28-3400 $35 Center stand
53 2 01-6052 N/A Band
54 2 01-6053 N/A Lug
57 1 70095 N/A Reflecting glass
64 2 28-3036 N/A Bushing pedal shaft

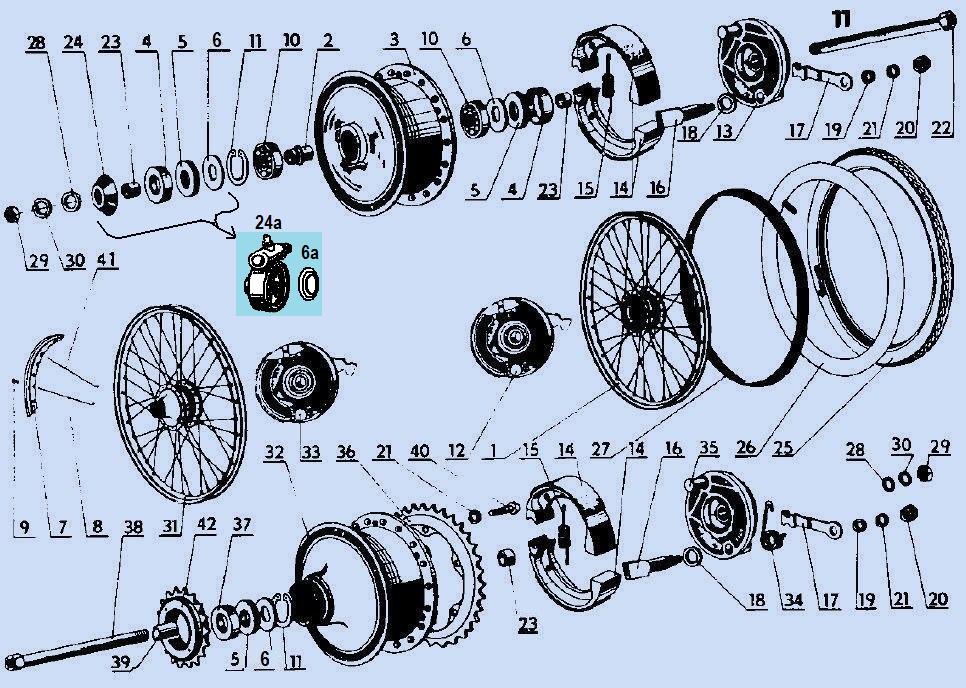

Jawa 207 Parts Diagram 11 Wheels
Not shown: the two rear bearings #10, rear center tube #2,
and the right rear bearing shields #6, #4 and felt seal #5.
# qty part no. price description
1 1 28-4003 N/A Front wheel
2 2 28-4004 $5 F/R Center spacer 16x42
3 1 28-4005 N/A Front wheel hub
4 4 28-4008 $5 Front shield Ø18/29×5
5 4 28-4009 $5 F/R Felt ring Ø17/27×7
6 4 28-4010 $5 F/R Shield 17.7 27.8 0.5
6a 0 28-4767 N/A Stepped washer/spacer
7 2 07-4019 N/A F/R Rim 1.5″ for 2.25-16
7 207 57 019 N/A F/R Rim 1.5″ DOT 2.25-16
8 36 07-4016 Link F/R Spoke inner 2.6x160
9 72 25001 Link F/R Spoke nut M3-0.50
10 4 43001 $6.00 F/R Bearing 6001-Z
11 2 34104 $4 F/R Inner-type circlip 28
12 1 28-4024 $50 used Front brake assy.
13 1 28-4026 N/A Front cover, no hole
13 207 57 018 $40 F cover, inspection hole
14 4 28-4027 $35 F/R Brake jaw Ø85 x 20
14 4 EBC 804 brakes see treatland.tv
15 4 28-4031 N/A F/R Brake spring 43mm
15 4 Grimeca $2 F/R Brake spring 39mm
16 2 28-4032 $15 F/R Brake cam
17 2 28-4033 $5 F/R Brake arm (lever)
18 2 28-4034 Link F/R Washer 10,2
19 2 27007 Link F/R Washer 6,4
20 2 25103 Link F/R Nut M6

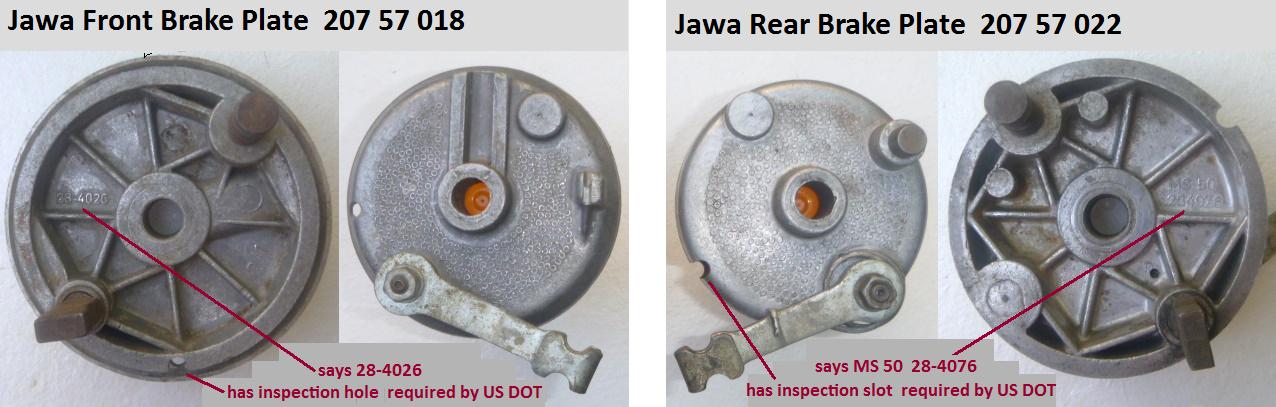

Jawa Brake Plates/Panels/Covers, both on right side
21 8 27402 Link Washer 6,1
22 1 28-4040 $7 Front axle Ø12 x 130
23 3 28-4041 $10 F/R Spacer Ø17 x 8
24 1 28-4042 N/A F. Ring for no speedo
24a 0 07-4755 $35 Speedometer driver
25 2 55032 Link F/R Tyre 2.25 – 16
26 2 55023 Link F/R Tube 2.25 – 16
27 2 55012 Link F/R Rim strip
28 3 27011 Link F/R Washer 13 plain
29 2 26101 $3 F/R Axle Nut M12-1.5
30 2 27405 Link F/R Lock washer 12,2
31 1 207 57 023 N/A Rear hub with rim
32 1 28-4070 N/A Rear wheel hub

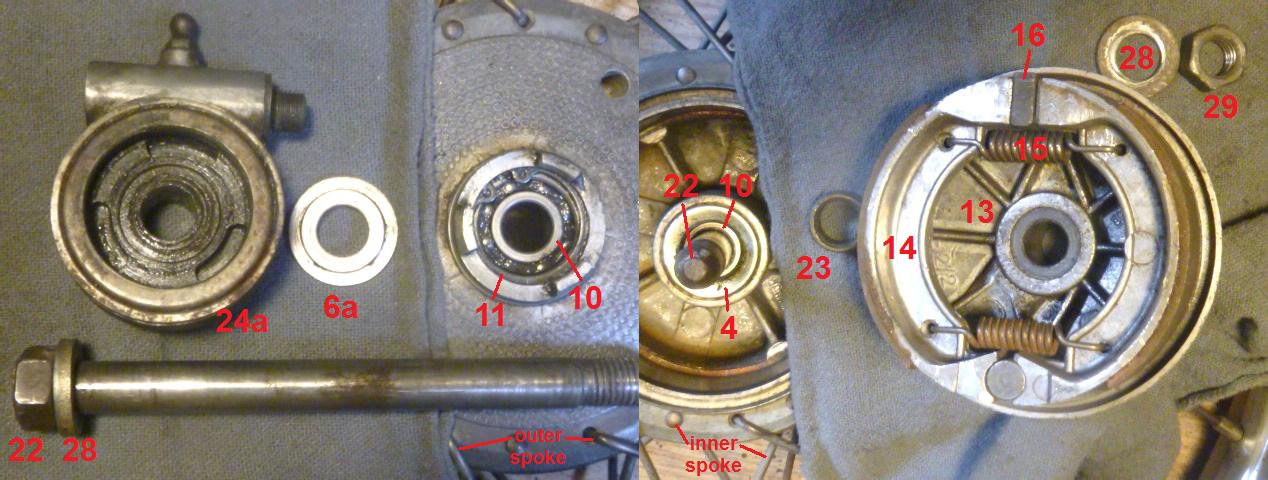

Jawa Front Wheel Parts
33 1 207 57 021 $55 used Rear brake assembly
34 1 28-4073 $7 Rear helper spring torsion type
35 1 28-4076 N/A R. brake cover bare, no insp. slot
35 1 207 57 022 $40 R. brk cover bare, inspection slot
36 1 07-4091 $40 Sprocket 35 teeth for 086 chain
37 1 228 56 020 $10 Rear shield Ø18/28 x 5
38 1 28-4095 $25 Rear axle Ø12 x 170
39 1 28-4097 $7 Rear outer spacer Ø17 x 35
40 1 21401 Link Screw M6 x 16
41 36 07-4021 Link F/R Spoke outer Ø2.6 x 160
42 1 70040 $35 L.H. freewheel M35-1.0 18 teeth

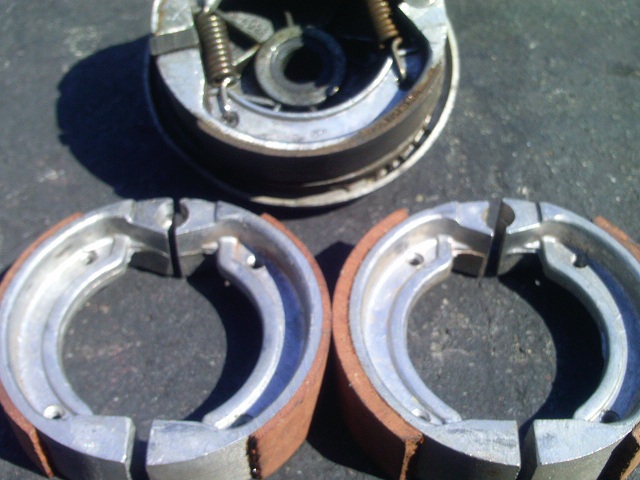

Jawa brake shoes
L, 2.5 lining for Ø85 drums
(on Jawa spoke wheels)
R, 5.0 lining for Ø90 drums
(on aluminum wheels)
Jawa Spokes: Jawa spokes for 16″ rims are all 160mm long (198mm for 19″ rims). There are two kinds, inner and outer. The outer ones go through the hub holes from inside to outside, and have a longer and sharper bent section. The inner ones go through the hub holes from outside to inside, and have a shorter bent section. Each wheel has 18 inner and 18 outer spokes, alternating, for a total of 36. It was an educated guess which part number was for which type. Inners were 07-4016 and outers were 07-4022, at least in this list. Nowhere else is this difference noted. It does not matter much, since either type of spoke will work, with some minor bending during tensioning/truing.
Jawa Freewheel
Jawa Brakes: Jawa brake shoes are not like any other western European or Asian brake shoe. Most are for a 85mm drum diameter. Some Jawa mopeds with aluminum “mag” wheels have 90mm drums. For those Jawa made the same brake shoes, but with thicker lining, 5mm instead of 2.5.
Jawa LH 18T Freewheels made by Velo, say what year they were made, here 1976, 77, 78.
Jawa Freewheel: The “free wheeling hub” with sprocket, for the pedal chain is on the left side of the bike. All other US mopeds, except Benelli, and virtually every bicycle, with a freewheel, has a pedal chain on the right side. A right side freewheel screws onto a hub and tightens clockwise, as the bike is pedaled. So the hub has a standard right hand thread. But a left side freewheel needs an opposite thread, so it tightens counter-clockwise, as the bike is pedaled. Jawa specifies the freewheel thread in the Model 28 Parts List. It is M35 x 1.0 L.H. (left hand). So Jawa freewheels and rear hubs are special.
Notice how the back side of a Jawa freewheel, lower right, looks like the front side of a conventional freewheel, top left, except for no removal slots. For many years Shaun mistakenly thought Jawa freewheels were conventional right hand thread ones that were missing the removal tool slots. It is not easy to tell the direction of such a fine thread. Tragically some of those special left hand freewheels got thrown away in the 1990’s along with a few Taiwan bicycle ones that were truly missing the removal slots.
Just a reminder, freewheels tighten by pedalling. No tool is needed to install one. But removal requires a special tool, which comes in different styles and sizes. If the bicycle or moped is pedaled hard, then the freewheel will become very tight and difficult to remove.

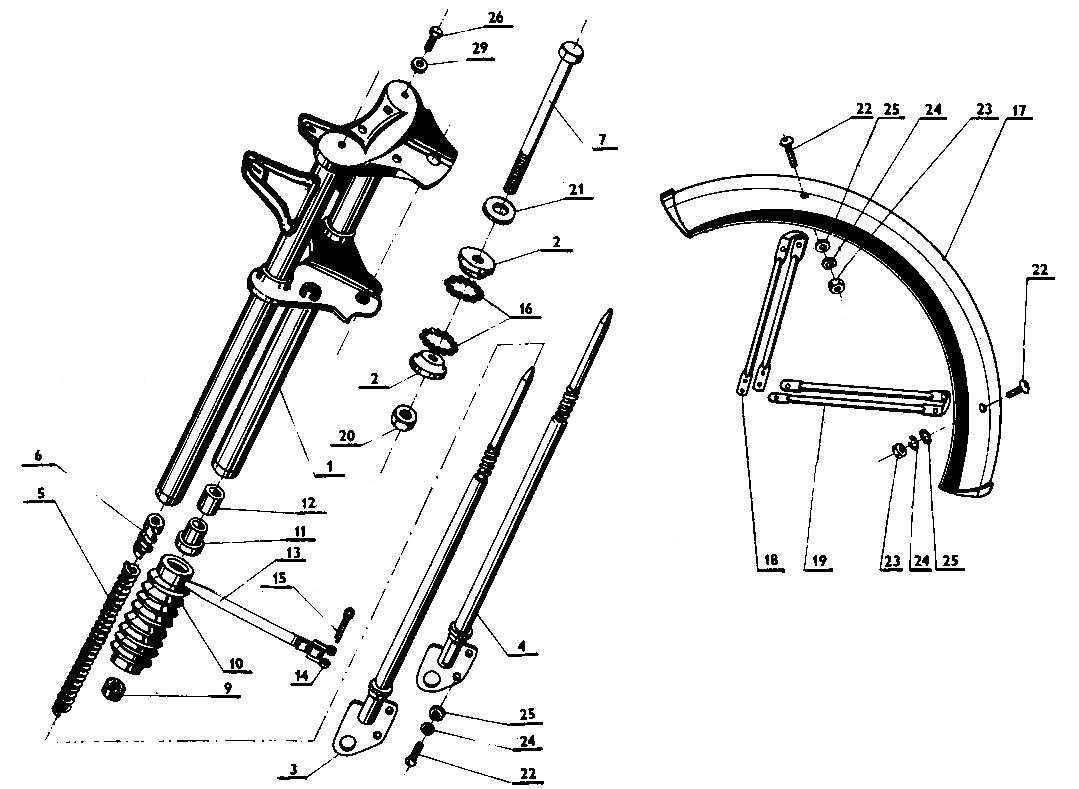

Jawa 207 Parts Diagram 12: Fork 1979 to 1983 (207.300 series)
# qty part no. price description
1 1 207 47 300 N/A Forks complete
2 2 207 41 336 N/A Ball race seat
3 1 207 41 321 N/A Slider L/H
4 1 207 41 331 N/A Slider R/H
5 2 228 41 007 N/A Spring
6 2 207 41 327 N/A Upper spring catch
7 1 207 41 337 N/A Head bolt M12
8 1 207 41 xxx N/A Headlight holder (Euro)
9 2 207 41 326 N/A Stop
10 2 207 41 335 N/A Bellows
11 2 207 41 315 N/A Bush
12 2 228 40 008 N/A Guide bush
13 2 220 00 007 N/A Strap
14 2 359 41 147 N/A Clip
15 2 xxxxxx N/A Split pin
16 42 40001 Link Ball 5mm
17 1 207 47 310 N/A Front mudguard
18 1 207 43 302 N/A Mudguard stay
19 1 207 43 003 N/A Mudguard stay
20 1 26101 Link Nut 12
21 1 27011 Link Washer 13
22 6 20308 Link Screw M5 x 10
23 4 25101 Link Nut M5
24 8 27401 Link Washer 5,1
25 8 27003 Link Washer 5,3
26 3 20330 Link Screw M6 x 14
27 1 25103 Link Nut M6
28 1 27402 Link Washer 6, 1
29 2 27007 Link Washer 6, 4

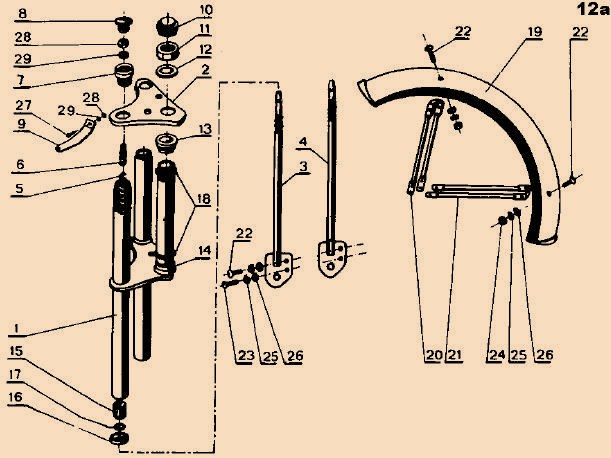

Jawa 207 Parts 12a: Fork 1970 to 1978 (28, 206, 207)
# qty part no. price description
1 1 28-5100 N/A Front suspension complete
2 1 28-5016 N/A Upper goggles
2 1 07-5713 N/A Upper goggles (for 207.011)
3 1 28-5022 N/A L.H. slide piece (for 19″ rim)
4 1 28-5023 N/A R.H. slide piece (for 19″ rim)
3 1 07-5030 N/A L.H. slide piece (for 16″ rim)
4 1 07-5024 N/A R.H. slide piece (for 16″ rim)
5 2 28-5032 N/A Spring
6 2 28-5033 N/A Upper spring catch
7 2 28-5034 N/A Nut
8 2 28-5037 N/A Plug
9 1 28-5047 N/A Headlight holder (Euro)
10 1 28-5012 N/A Nut
11 151-41-007 N/A Nut open
12 1 28-5013 N/A Washer 27
13 1 28-5018 N/A Plate
14 1 28-5018 N/A Plate
15 4 28-5113 N/A Guide bush
16 2 07-5115 N/A Sealing cup
17 2 50003 N/A Sealing o-ring 20 x 16
18 42 40001 Link Ball 5
19 1 07-5155 N/A Front mudguard (for 16″ rim)
20 1 07-5160 $12 Upper front mudguard strut (for 16″ rim)
21 1 07-5165 N/A Lower front mudguard strut (for 16″ rim)
22 6 20308 Link Screw M5 x 10
23 2 20309 Link Screw M5 x 12
24 4 25101 Link Nut M5
25 8 27401 Link Washer 5,1
26 8 27003 Link Washer 5,3
27 1 20330 Link Screw M6 x 14
28 3 25103 Link Nut M6
29 3 27402 Link Washer 6,1

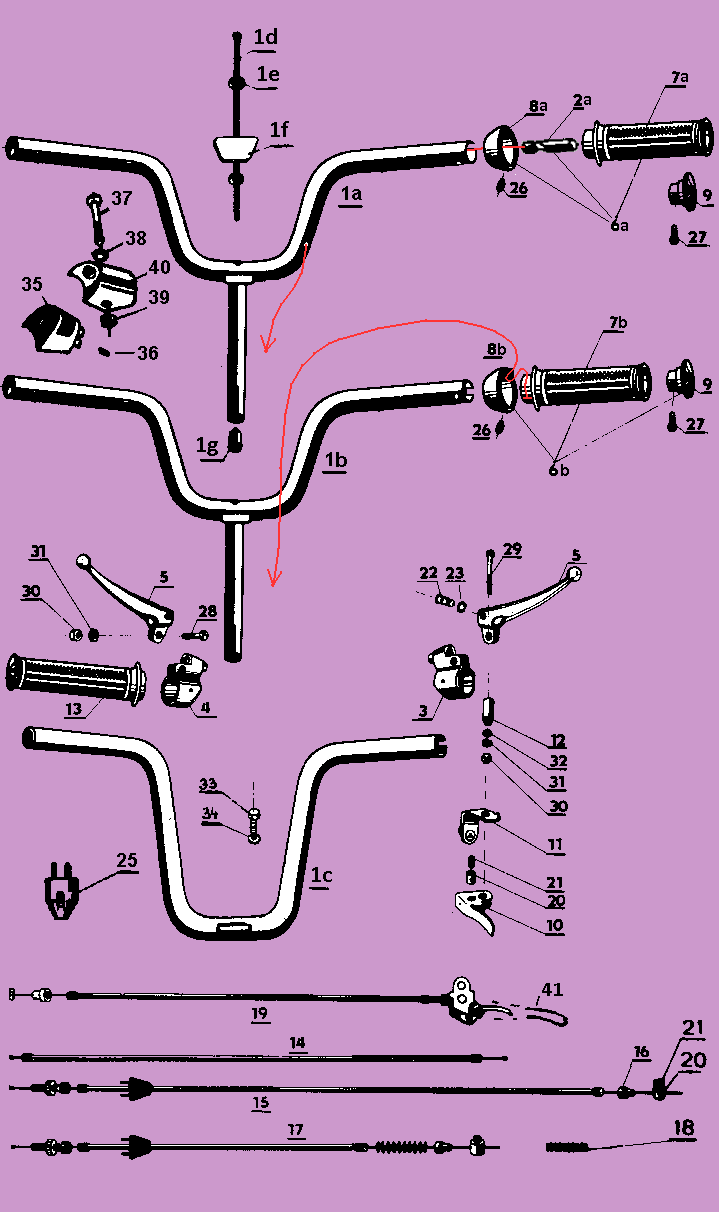

Jawa 207 Parts 13: Controls, Cables
1970-78 sliding-block type throttle: In the 207.011 parts list, the throttle was not sold complete, only separate. It had a spiral ridge inside the twist tube, a 5 inch slot in the handlebar, and a slider inside. The cable ran inside the handlebar.
1977-81 wrap-around throttle: In the 207.111 parts list, the throttle was sold only complete and not separate. It had no slider and only a 1/2 inch slot in the handlebar. The cable exited away from the bar.
# qty part no. price description
1a 1 207 47 028 $65 Handlebars for slide throttle (207.011)
1b 1 207 47 064 N/A Handlebars for wrap-around (207.111)
1c 1 207 47 316 N/A Handlebars bolt-on for wrap (207.300, 305)
1d 1 28-5213 N/A Spindle bolt M8 long (207.011, 111)
1e 1 27008 Link Washer 8,4 (207.011, 111)
1f 1 07-5216 N/A Handlebars cowl (207.011, 111)
1g 1 550 46 022 $5 Spindle taper cone (207.011, 111)
2a 1 353 46 112 $15 Catch throttle slide, early (207.011)
3 1 228 46 043 $22 R.H. lever holder
4 1 220 46 002 $25 L.H. lever holder was 20-5102
5 2 228 46 041 $25 Lever R or L, ball end, was 28-5227
6a 1 ??-????? N/A Throttle assembly slide type (207.011)
6b 1 36-5380 N/A Throttle assembly wrap type (207.111)
6b 1 236 46 005 N/A Throttle assembly late wrap (207.300, 305)
7a 1 353 46 101 $22 Twist tube with grip for slide (207.011)
7b 1 236 46 014 $22 Twist tube with grip for wrap (111,300,305)
8a 1 353 46 105 $15 Housing for slide throttle (207.011)
8b 1 236 46 015 N/A Housing for wrap throttle (111, 300, 305)
9 1 36-5388 $10 Plug throttle plug aluminum (207.011, 111)
9 1 236 46 013 N/A Plug throttle plug late type (207.300, 305)
10 1 228 46 012 $7 Lever lever, decompression
11 1 353 46 112 $10 Catch lever mount, decomp
12 1 228 46 053 N/A Spacer tube for decomp lever
13 1 28-5223 N/A L.H. rubber grip
14 to 21 Cables see below
25 1 70088 $25 Brake light switch
26 1 20602 Link Screw M6 x 5
27 1 21007 Link Screw M5 x 10
28 2 20229 Link Screw M5 x 20
29 2 20205 Link Screw M5 x 40
30 2 25101 Link Nut M5
31 2 27401 Link Washer 5,1
32 1 27003 Link Washer 5,3
33 4 203206025 Link Screw M6 x 25
34 4 27402 Link Washer 6.1
35a 1 220 65 000 N/A Light/horn switch body
35b 1 550 65 150 $30 Light/horn switch body (207.011, 111)
35 1 550 65 150 $30 says “353 65 140”
35c 1 220 65 013 N/A Light/horn switch body (207.300)
37 1 20316 Link Screw M3.5 x 28
38 1 27407 Link Washer
39 1 25110 Link Nut M3.5
40a 1 220 65 001 $15 Lt/horn switch cover grey with no label
40b 1 220 65 012 $15 Lt/horn switch cover chrome chrome label
40c 1 220 65 012 $15 Lt/horn switch cover chrome w/black label
41 1 51 120 N/A Decomp lever sleeve says “engine stop”

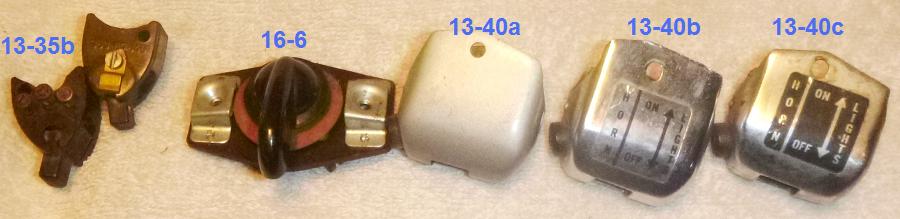

Jawa 207 Switches

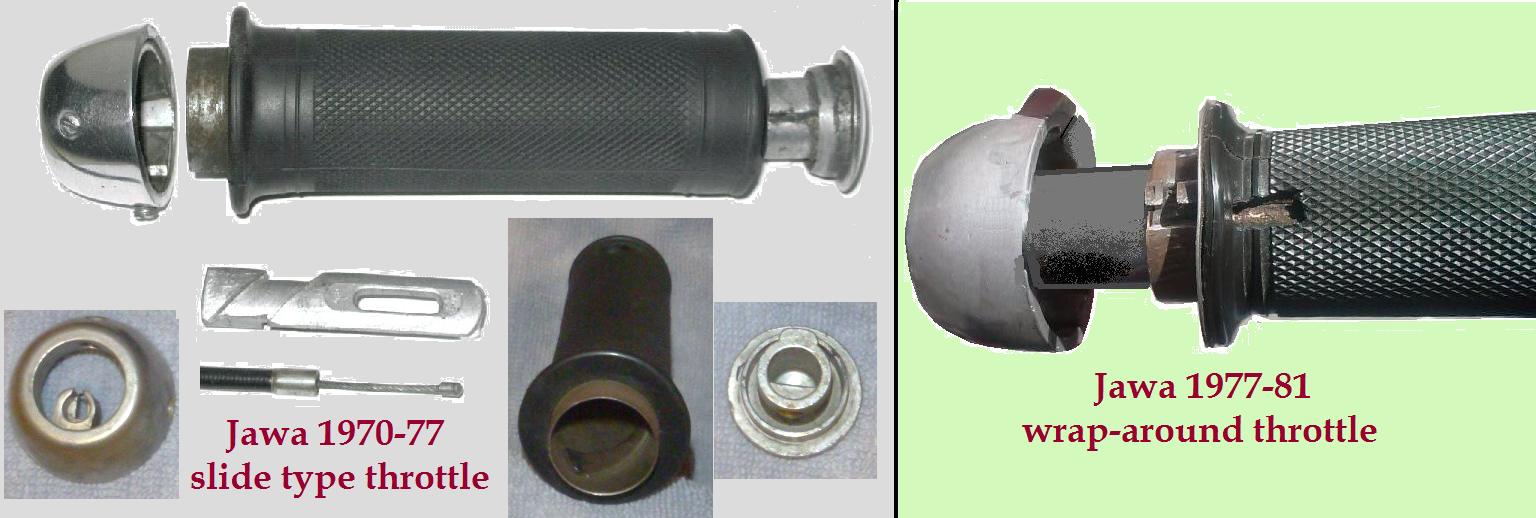

Jawa 207 slide type and wrap around throttles

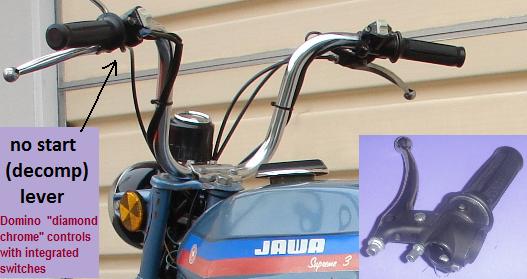

Jawa Supreme with Domino controls
Jawa Cables
Each cable was made in long or short versions. Long is for tall hi-rise handlebars like on the 207.311.
US models 1976-81 had Jawa controls. Those had inline brake light switches on the brake cables.
US models 1982-83 had Domino controls. Those had brake light switches on the controls, not the cables.
The 1982-83 top tank had low bars, short cables. The 1981-83 step thru had high bars, long cables.
Jawa 207 Cables
14. Throttle Cables
14a 1 28-5240 N/A short grey 2-end for slide (207.011)
14a 1 28-5240 N/A short black 2-end for slide substitute
14b 1 207 47 068 N/A short black 2-end for wrap (207.111)
14b 1 207 47 068 N/A short black 2-end for wrap substitute
14b 1 207 47 320 N/A long black 2-end for wrap (207.300)
14b 1 207 47 320 N/A long black 2-end for wrap substitute
14c 1 207 ?? ???? N/A long black 1-end Domino (207.3xx)
14c 1 207 ?? ???? N/A long black 1-end Domino substitute
15. Rear Brake Cables
15a 1 207 47 057 N/A short grey 1-end with gap w/switch (207.011)
15a 1 207 ?? ???? N/A short black 1-end with gap w/switch (207.111)
15b 1 28-5246 N/A short grey 1-end (no gap for switch) (207.0xx)
15c 1 207 47 325 N/A long black 1-end with gap for switch (207.300)
15c 1 207 ?? ???? N/A “bare” long black 1-end with gap substitute
15c 1 207 ?? ???? N/A “bare” short black 1-end with gap substitute
15d 1 28-5246 N/A “bare” long black 1-end (no gap) substitute
15d 1 28-5246 N/A “bare” short black 1-end (no gap) substitute
16 2 28-5271 $3 Cable stop step-ferrule Ø8-Ø4 x 9
17. Front Brake Cables
17a 1 207 47 047 N/A short grey 1-end with gap w/switch (207.011)
17a 1 207 ?? ???? N/A short black 1-end with gap w/switch (207.111)
17b 1 28-5255 N/A short grey 1-end (no gap for switch) (207.0xx)
17c 1 207 47 322 N/A long black 1-end with gap for switch (207.300)
17c 1 207 47 322 N/A “bare” long black 1-end with gap substitute
17c 1 207 47 322 N/A “bare” short black 1-end with gap substitute
17d 1 207 47 322 N/A “bare” long black 1-end (no gap) substitute
17c 1 207 47 322 N/A “bare” short black 1-end (no gap) substitute
18 1 28-5272 N/A Cable spring assist spring
19. Decomp. (Start) Cables
19a 1 228 46 050 $32 short grey 2-end w/lever (207.011) 34″ conduit
19a 1 228 ?? ???? N/A short black 2-end w/lever (207.111)
19b 1 228 46 056 N/A long black 1-end no lever (207.300)
19c 1 228 ?? ???? N/A “bare” long black 1-end substitute
19c 1 228 ?? ???? N/A “bare” short black 1-end substitute
20-23 Cable Ends
20 3 353 46 031 $7 Cable pinch bolt Ø8 with set-screw
21 3 550 46 031 $2 Cable pinch bolt M6-1.0 set-screw
20 3 353 46 031 $3 Cable pinch bolt substitute
22 2 228 46 011 N/A Brake cable upper end (adapter pin)
23 2 34404 N/A Brake upper end ring (adapter pin clip)
Jawa 207 Parts Diagram 14
# qty part no. price description
1 1 28-7107 $40 R.H. cowl side cover
2 1 28-7116 N/A L.H. cowl side cover
3 1 28-7122 $35 Upper cowl center cover
4 2 25104 Link Nut M8
5 8 20308 Link Screw M5 x 10
6 9 27003 Link Washer 5,3
7 1 25101 Link Nut M5
8 1 28-7205 N/A Tank welded
9 1 28-7218 N/A Cover felt
10 1 05-3340 Link Plug gas cap 40mm push-in
11 1 70-053 Link Discharge cock type 14 K
12 1 28-7218 Gasket Ø13 fiber washer
13 1 28-7227 N/A Hose fuel line (ID 1/4″)
14 2 28–???? N/A Label “Babetta”
14 2 28-7701 N/A Label “Jawa”
14 2 28–???? N/A Label “Transistor 40”
15 1 01-9999 N/A Seat complete
16 1 302620011 N/A Bolt special stud
17 1 420620007 N/A Socket of seat fitting
18 2 503200504 N/A Adapter 28
19 2 100620030 Washer 28

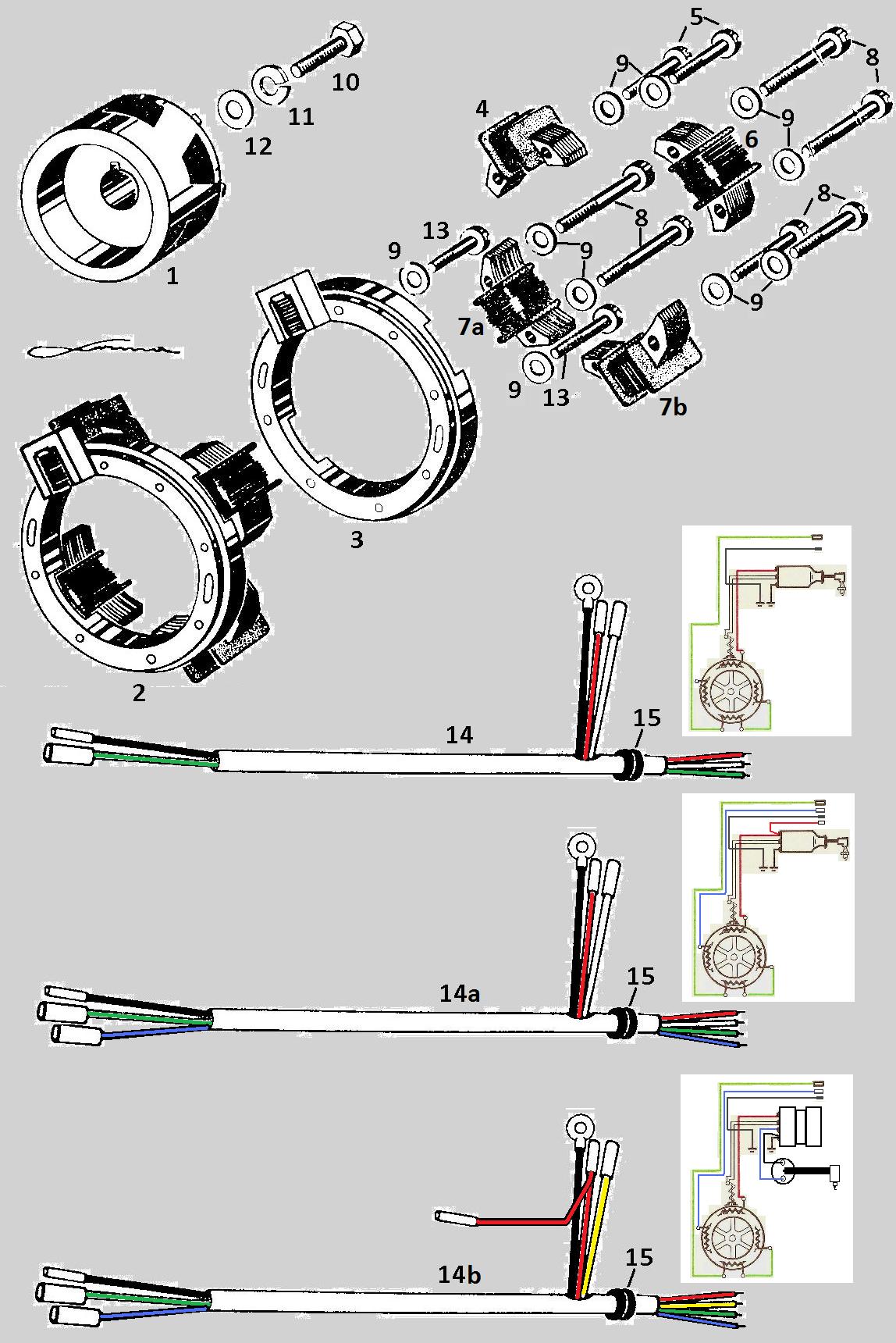

Jawa 207 Parts Diagram 15
# qty part no. price description
– 1 207-61-140 N/A Alternator assembly for
– 1 228-61-150 N/A Alternator assembly for 207.011
– 1 207-61-120 N/A Alternator assembly 207.111, 300
1 1 28-6002 $85 Rotor internal 6-pole magnet
2 1 28-6010 N/A Stator assembly early type
2 1 228-61-151 N/A Stator assembly for 207.011
2 1 228-61-121 N/A Stator complete 207.111, 300
3 1 28-6011 $30 Ring with pulse coil white wire for 207.011
3b 1 207-61-003 N/A Ring w/pulse coil yellow wire 207.111, 300
4 1 28-6020 N/A Ignition coil 207.011
4b 1 228-61-005 $35 Ignition coil 207.111, 300
5 2 20201 Link Screw M4 x 14
6 1 228-61-153 $30 Horn/Stop coil 207.011, 111, 300
7a 1 28-6027 $45 Lighting coil I
7a 1 228-61-027 $35 Lighting coil I 207.011, 111, 300
7a 1 207-61-142 N/A Lighting coil I
7b 2 28-6036 $60 Lighting coil II
7b 2 228-61-036 $40 Lighting coil II 207.011, 111, 300
7b 1 207-61-143 N/A Lighting coil II
8 6 20202 Link Screw M4 x 30
9 10 27400 Link Washer 4,1
10 1 20131 Link Screw M5 x 25 rotor bolt
11 1 27401 Link Washer 5,1
12 1 27003 Link Washer 5,3
13 2 20247 Link Screw M4 x 22
14 1 28-6226 N/A Alternator wiring (early)
14a 207-60-171 N/A Alternator wiring 207.011
14b 207-60-331 N/A Alternator wiring 207.111, 207.300
14c 207-60-152 N/A Alternator wiring
15 1 150-49-005 N/A Bushing grommet
Jawa Magneto Coils
Jawa 207 magnetos have four source coils (and one pulse coil). Two of them are combined in series to make one. So there are three independent generator outputs, ignition (coil 4b), lighting (coil 7a plus 7b), and horn or brake light (coil 6). The ignition never has anything to do with the lights. The brake light does not make the head light dim at all. So it is like three separate little generators, all in one place. More about Jawa electrical can be found in the Wiring Diagrams gallery. Scroll down to “J” Jawa.

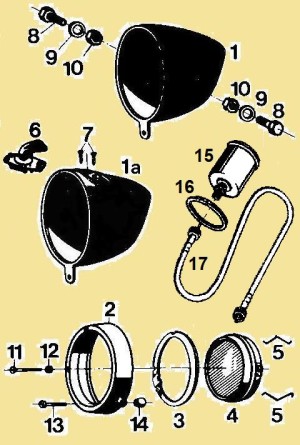

Jawa 207 ’76-80 Parts Diagram 16
# qty part no. price ’76-80 Headlight
1 1 207 47 060 N/A Headlight housing for no switch
1a 1 223 42 001 N/A Headlight housing for switch
2 1 70093 $35 Rim chrome bezel
3 1 207 47 048 $12 Ring adapter
4 1 70094 Link Sealed beam 6V 25W

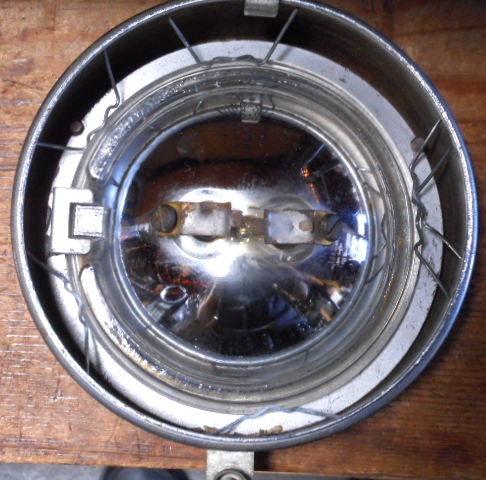

5 6 55033 $3 Spring clip 207 34 594
6 1 62042 $30 Ignition switch
7 2 21002 $2 Screw M4 x 8
8 2 20117 Link Screw M8 x 25
9 2 27008 Link Washer 8.4
10 2 25200 Link Nut M8
11 2 21030 Link Screw M4 x 16
12 2 25109 N/A Nut M4 special shape plastic
13 1 408 2870.13 $2 Screw M5 x 20 slot
14 1 408 1040.06 $3 Distance ring 9mm
15 1 14002 $50 Speedometer with clamp
16 1 555-40-010 $7 Rubber ring
17 1 07-4780 $18 Cable M10-1 caps, 2.2mm square ends
# qty part no. price description
– 1 443 311 199 101 N/A Headlight complete
2 1 443 958 111 217 N/A Cover
3 1 443 950 711 316 N/A Cover
4 1 443 954 221 002 N/A Adapter
5 2 443 952 121 003 N/A Screw w/inner thread
6 1 443 953 203 001 N/A Insulating washer
7 1 443 954 600 001 N/A Compression spring
8 2 443 952 001 003 N/A Lock washer
10 1 443 950 522 959 N/A Clip
Jawa 207 Parts 16a (Euro head light)
12 2 443 950 287 674 Link Screw M3 x 6
13 2 443 950 021 009 Link Screw M4 x l4
14 2 311 214 420 041 Link Washer 4,1
15 1 443 950 287 678 Link Screw M6 x l6
16 1 443 950 288 238 Link Washer 6,1
17 1 443 950 286 102 Link Nut M6
18 1 345 355 201 630 N/A Switch
19 1 443 958 113 002 N/A Bush
20 1 443 958 111 218 N/A Parabolic mirror
21 1 443 958 118 005 N/A Cable
22 1 228 60 129 Link Bulb 6V 15/15W
Jawa 207 Parts 17 Transistor Ignition
# qty part no. price description
1 1 30-6500 N/A Transimo
2 1 30-6514 N/A Transistor KD-602
3 2 20220 Link Screw M3 x 6
4 2 27406 Link Washer 3,1
5 1 30-6573 $4 N/A Cover
6 1 62038 N/A Protection cover rubber boot
7 1 28-6234 N/A Plug wire with spark plug cap
8 1 62039 N/A Cable terminal OKS-12 plug cap
9 2 01.1787 N/A Cable eyelet
10 1 01.1787 N/A Cable eyelet
11 1 28-6206 N/A Conductor #15 black
12 1 28-6223 N/A Conductor #58 yellow
13 1 62011 N/A Flat tube female blade connector
14 5 62012 $2 Cylindrical tube female bullet connector
15 5 30-6214 N/A Insulating tube Ø8 x 30mm
16 1 28-6227 N/A Insulating tube 0,5m

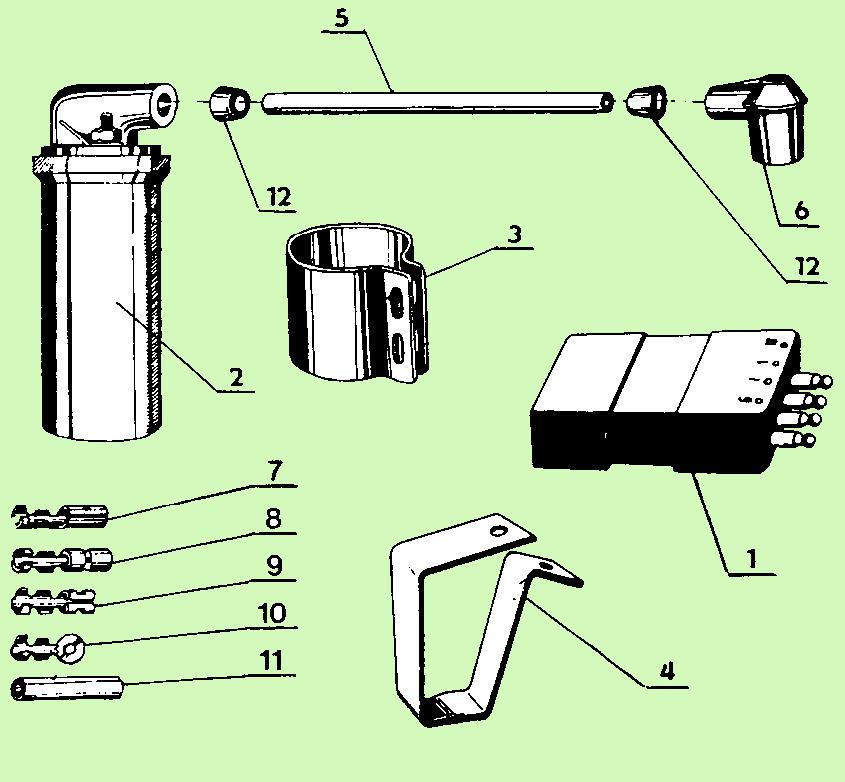

Jawa 207 Parts 17a Thyristor Ignition
# qty part no. price description
1 1 443 213 220 810 N/A Thyristor
2 1 443 212 210 800 N/A Coil
3 1 443 930 220 560 N/A Bracket
4 1 0000 207 66 001 N/A Bracket
5 1 0000 207 60 015 N/A Plug lead
6 1 371 511 341 000 N/A Plug cap
7 6 443 858 000 012 N/A Cable end
8 2 443 858 008 002 N/A Cable end
9 3 443 858 006 032 N/A Cable end
10 1 0000 359 60 122 N/A Cable end
11 6 0000 228 60 015 N/A Cable end
12 1 273 125 031 534 N/A Grommet
Jawa Service Bulletin Aug 1981

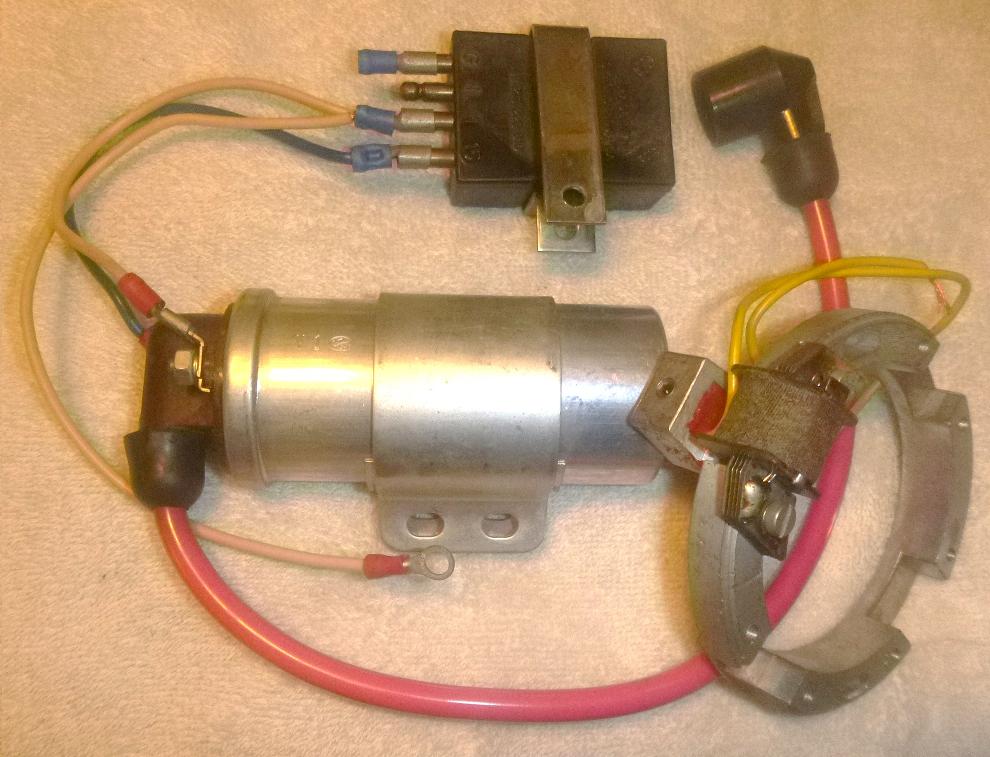

Jawa Ignition Upgrade Kit
In 1981 Jawa moped dealers across the US were sent this Service Bulletin #1. It says how to update pre-1978 (model 207.011) ignitions by replacing the old red Tranzimo unit, and the old stator ring with pulse coil, with the newer system, shown at right. The new system had been in use for two years on the 207.111 models, and was proven to be more reliable. Too bad MM does not have any more of those ignition upgrade kits.

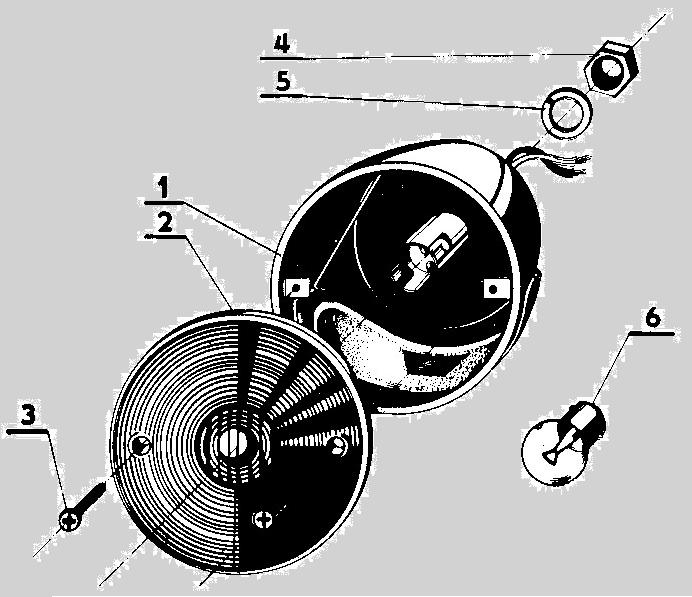

Jawa 207 Parts 18a Rear Lamp (’76-78)
Tail, stop, license lamp
PM420 (stud mount)
# qty part no. price description
– – 3296-061 N/A Tail Lamp PM420-15
1 1 3296-061 N/A Lamp housing
2 1 3296-061 Link Lens used
3 2 34544-001 $0.50 Screw
4 1 34213 $1.00 Nut 3/8-24 fine
5 1 34213 $0.50 Lock washer 3/8″
6 1 60507 Link Bulb 6V #1154
1976-80 tail lamps are made by PM

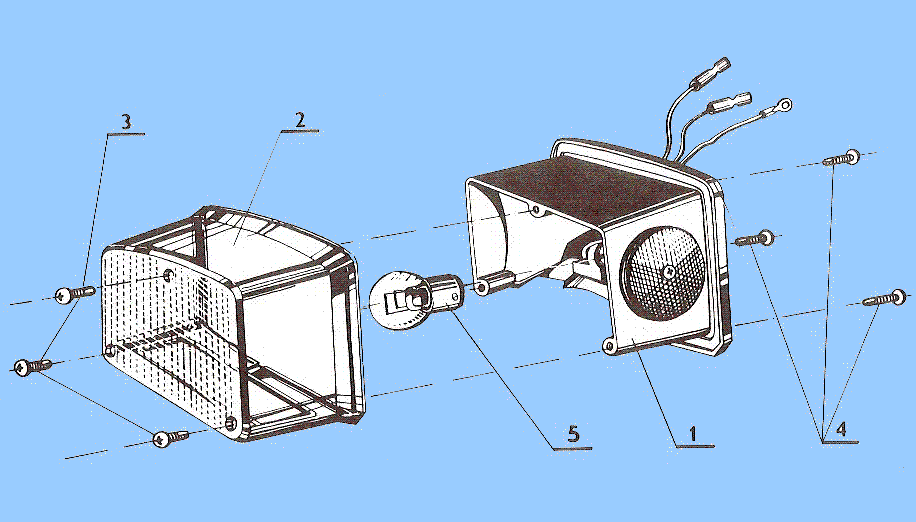

Jawa 207 Parts 18b Rear Lamp PM421 (’78-80)
# qty part no. price description
– 1 70106 Link Tail lamp PM421-15
1 1 70100 Link Lamp housing (body)
2 1 70101 Link Lens
3 2 70102 N/A Screw
4 3 70103 N/A Screw
5 1 60507 Link Bulb 6V 10/3W
Tail, stop, license lamp PM421

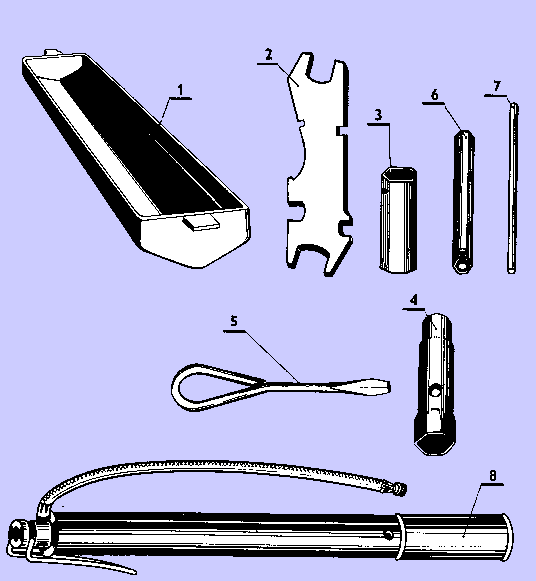

Jawa 207 Parts 20: Tool kit, all metal pump
says made in Czechoslovakia by Velamos
Parts Diagram 19 was Speedometer Parts. The speedometer and cable were merged with the headlight parts. The speedo driver and special stepped spacer were merged with the wheel parts.
# qty part no. price description
1 1 207 00 101 N/A tool tray
2 1 228 75 002 N/A universal wrench
3 1 200 75 012 $7 spark plug socket
4 1 220 75 009 $5 socket 13/17mm
5 549 900 006 700 $10 screwdriver
6 1 555 71 024 $8 socket 10mm
7 1 555 71 023 $4 handle rod
8 1 413 035 001 $25 air pump original with new hose
Tail, stop and license lamp PM421
Under rack are pump and tool tray
Jawa Hardware: Original screws (bolts), nuts, washers, from the parts sections above are listed again below. Above, they all have a link in the price column, that goes to the Parts by Type/Hardware page. Any metric nuts and bolts with the same dimensions will substitute for the Jawa originals, but some things, like screw heads, might look slightly different. Some of the original hardware items are still available, listed below, with photos.
Jawa Original Hardware List
20024 Screw M8x60 hex head
20103 Screw M6x12 hex head
20109 Screw M8x16 hex head
20112 Screw M8x12 hex head
20114 Screw M5x12 hex head
20122 Screw M6x14 hex head
20131 Screw M5x25 hex head
20148 Screw M5x16
20201 Screw M4x14 pan slot
20202 Screw M4x30 pan slot
20205 Screw M5x40 pan slot
20208 Screw M6x25 pan slot
20209 Screw M6x35 pan slot
20211 Screw M6x45 pan slot
20220 Screw M3x6 pan slot
20225 Screw M5x10 pan slot
20229 Screw M5x20 pan slot
20247 Screw M4x22 pan slot
20308 Screw M5x10 dome slot
20309 Screw M5x12 dome slot
20316 Screw M3.5×28
20330 Screw M6x14
20602 Screw M6x5 set screw
21002 Screw M4x8 sunk slot
21007 Screw M5x10 sunk slot
21020 Screw M4x25 sunk slot
21204 Screw M8x45 hex head
21401 Screw M6x16 hex head
21603 Screw M6x22 pan slot
25101 Nut M5-0.80 plain
25103 Nut M6-1.00 plain
25104 Nut M8-1.25 plain
25109 Nut M4-0.70 plain
25110 Nut M3.5-0.60 plain
26101 Nut M12-1.50 plain
27003 Washer 5,3 Ø5 thick
27003 Washer 6,1 Ø6 plain
27007 Washer 6,4 Ø6 plain
27008 Washer 8,4 Ø8 plain
27010 Washer 10,5 Ø10 plain
27011 Washer 13 Ø12 plain
27400 Lock washer 4,1 Ø4 split
27401 Lock washer 5,1 Ø5 split
27402 Lock washer M6 Ø6 split
27403 Lock washer 8,2 Ø8 split
27405 Lock washer 12,2 Ø12 split
27406 Lock washer 3,1 Ø3 split
27407 Lock washer
–
–
–
Where else to get Jawa moped parts
Jawashop.com has many things that MyronsMopeds.com does not, and visa versa.
http://www.jawashop.com/Jawa-50-type-207-Babetta
Eastern2Stroke.com also has many things.
http://eastern2stroke.com/bikes/Jawa_(Babetta)_moped/206,_207,_Transistor_40
Where else to get Jawa moped information
Jawamoped.hu has more useful information and photos. Translate from Hungarian.
http://jawamoped.hu/regi/babettahonlap/szereles/b207vaz.htm
