Covers

May 14, 2016

Contents:  Avanti Batavus  Derbi Motobecane

Contents:  Peugeot Puch  Sachs  Tomos  Vespa




Avanti (Garelli VIP remake)

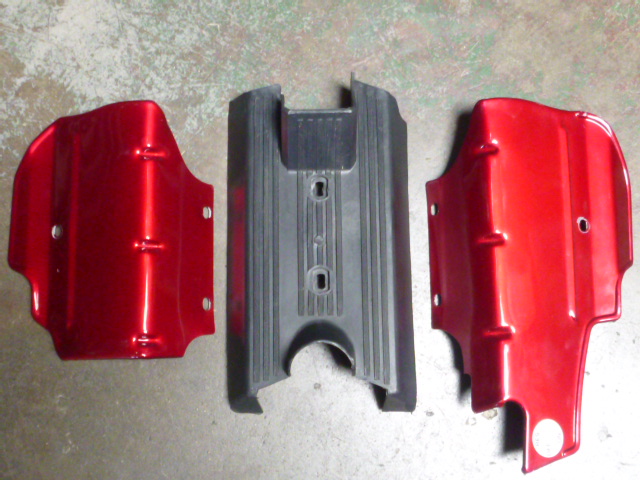

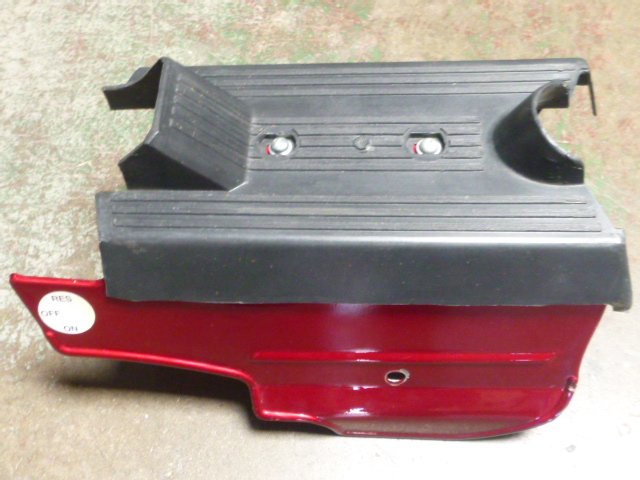

2001 Avanti Autopower

Avanti cover set:  none


















Batavus (Laura M48 engine)

Laura M48 magneto (right) and clutch (left) covers are the same.

Laura, Motobecane, Batavus, Badger, Solo, Angel, Speed Bird magneto covers all interchange, because they all have a 124 mm inner diameter. Here are some original examples:

Motobecane magneto cover

1970’s Motobecane

Batavus clutch cover

’70’s Batavus (Laura M48)

Laura engine cover

early 1970’s Laura M48

Angel

1970’s Angel (TYM)

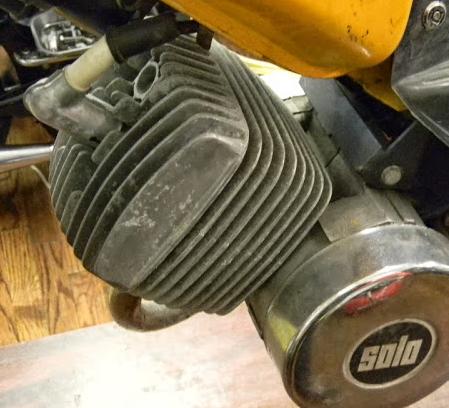

Solo type 254/255

Solo type 236/237

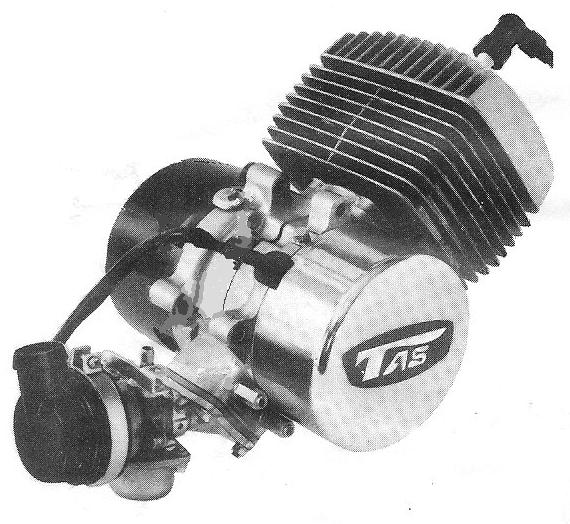

Tas BE-48 (Solo 236)

















Here are some examples with the 1980 Motobecane replacement covers installed. For Solo and Tas engines a piece of wire is required, wrapped around engine and the replacement cover tabs.

Replacement cover
installed on Solo

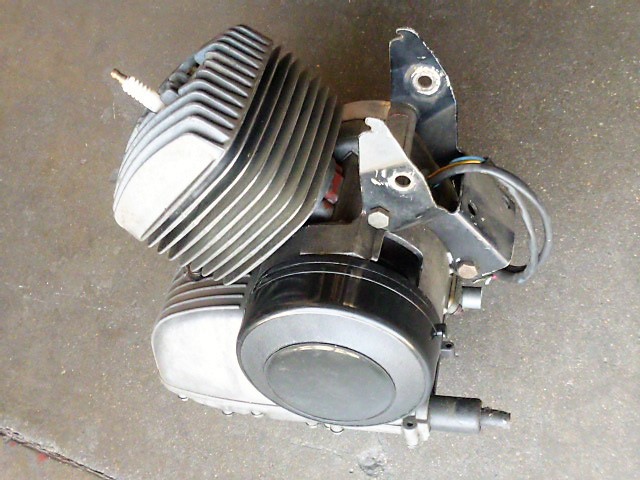

Batavus M48 with late Motobecane magneto cover

Replacement cover
installed on Batavus

















1980’s Motobecane engine cover
124mm ID, black, with tabs, price $18

Above, this one cover fits and replaces all of those covers above. It is exactly for a early 1980’s Motobecane. But it fits anything that takes a 124mm ID round cover.  It is deep enough for stock mopeds. But it is not deep enough for some Motobecane CDI magnetos, or any that are much taller than stock. It comes with two rubber clips to hold it onto the metal “ears” on the engine case.











Derbi Covers

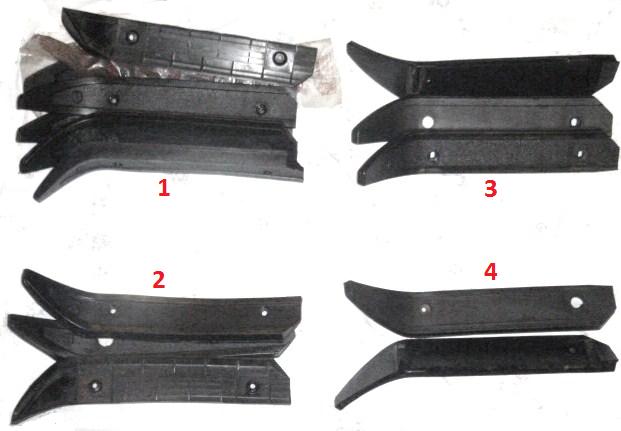

Part #  # ←pic#….Description Price      Applications
########### ### ################### #### #########################
000.821.5100 1 footrest right $25 1976-1979 Derbi SL, SLE
000.821.5500 2 footrest left $35 1976-1979 Derbi SL, SLE
000.821.5180 chaingaurd left grey N/A 1976-1979 Derbi SL

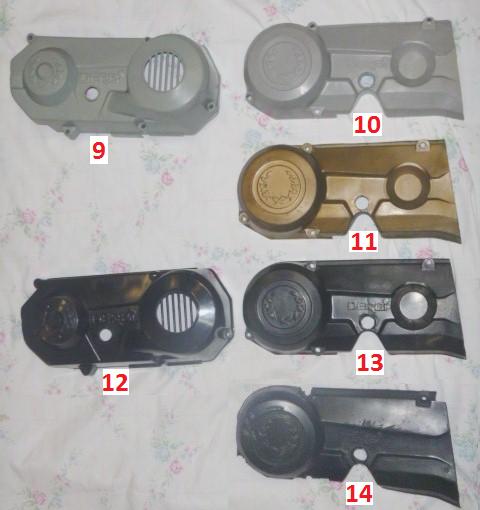

000.823.0150 9 engine cover right grey $80 1976-1979 Derbi SL
000.823.0200 10 engine cover left grey $70 1976-1979 Derbi SL
000.872.2220 chaingaurd right gold 1976-1979 Derbi SLE
000.871.5180 chaingaurd left gold 1976-1979 Derbi SLE
000.873.0150 engine cover right gold N/A 1976-1979 Derbi SLE
000.873.0200 11 engine cover left gold $50 1976-1979 Derbi SLE
000.851.5180 TT chaingaurd left black 1976-1986 Derbi TT
000.853.0150 12 engine cover right black $80 1976-1979 Derbi TT
000.853.0200 13 engine cover left black $60 1976-1979 Derbi TT
0A0.???.???? 14 engine cover L blk used $50 1984-1986 Derbi SL (no cavity)
original only 5 center cover (early non) N/A 1976-1979 Derbi SL, SLE, TT
000.821.8220 6 center cover (non reed) N/A 1976-1979 Derbi SL, SLE, TT
0A0.220.0561 7 center cover (reed) $90 1980-1986 Derbi SL, SLE, TT
000.871.5100 3 footrest right $35 1986-1989 Derbi Variant Sport
        continued … 1980-1986 Derbi SL, SLE
000.871.5500 4 footrest left $45 1986-1989 Derbi Variant Sport
        continued … 1980-1986 Derbi SL, SLE
0F0.221.0221 chaingaurd right N/A 1986-1989 Derbi Variant Sport
0F0.152.0181 chaingaurd left N/A 1986-1989 Derbi Variant Sport
000.853.0150 engine cover right N/A 1986-1989 Derbi Variant Sport
000.853.0200 engine cover left N/A 1986-1989 Derbi Variant Sport
0A0.182.0221 8 center cover N/A 1986-1989 Derbi Variant Sport

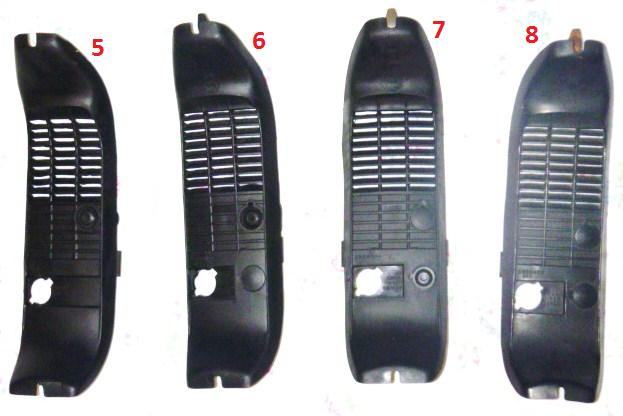

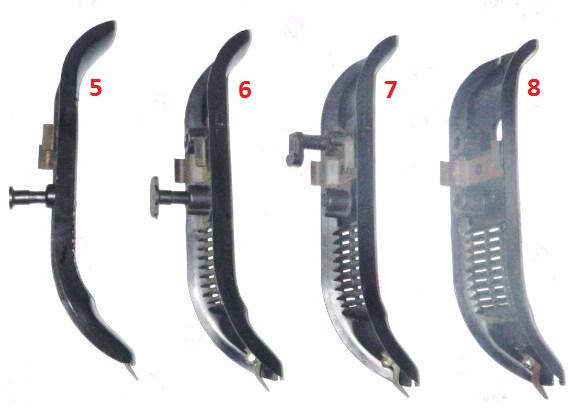

Derbi Center Panels: The center panel choke button is supposed to push the Delorto carburetor choke lever down, and later allow it to release back up after the bike is started and the throttle is momentarily maxed out. But it often does not work properly, and it is finicky. When it sticks, either on or off, you must wiggle or move the center panel to make it click, or else remove the panel and operate the lever directly. The main cause is an incorrect angle of the carburetor. Loosen the clamp and rotate one way or the other. The carb should be vertical, but the finicky panel might require it to be slightly tipped. Because of this difficulty, many Derbi owners have cut holes in, or removed and discarded their center panels. Derbi fixed the problem on the 1986-1989 models by using a choke cable and a right handlebar lever. No more reaching down and fussing.

Derbi Center Panel Choke Button Parts: There are three different “feet” that press onto the vertical plastic button shaft. Here are shown the correct ones, for reference purposes. Some are for sale but not yet listed. Also the steel tongue at the front is for sale but not shown here.




Motobecane

Motobecane 50, 50V (rear suspension)

Motobecane 50 covers

Motobecane 50 covers, pre-77 originals

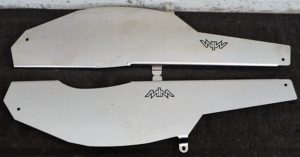

Motobecane 50 covers, MLM polished stainless

















22249 right MB50 chain guard cover white   $35-45
22251   left MB50 chain guard cover white   N/A
54318 right MB50 cover white w/gold stripe N/A
54319   left MB50 cover white w/gold stripe N/A
54302 right MB50 chain guard metallic red  N/A
54303   left MB50 chain guard metallic red  N/A
54304 right MB50 chain guard metallic blue $35-40
54305   left MB50 chain guard metallic blue N/A
00000 right MB50 chain guard misc used     $35-40
00000   left MB50 chain guard misc rough    N/A
MLM set of polished stainless (like chrome)  $80

Cover Screws (coarse thread not regular metric)
A 17424   $5  used original cover screw M5-0.9 x 12 with plastic washer
B 17424  N/A new original cover screw  M5-0.9 x 12 bare  use E,  F or G
B 00000   $6  new original cover screw  M6-0.9 x 12 bare

C 00000   $7  new replica cover screw   M5-0.9 x 12 bare
D 17425   $3  used belt cover screw xx  M5-0.9 x 10 with plastic washer
E 00000   $7  new original screw xxxx   M5-0.9 x 12 bare
F 00000   $6  new original screw xxxx   M5-0.9 x 10 bare
G 17425   $5  new belt cover screw xxx M5-0.9 x 10 bare
H 00000   $5  new original screw xxxx   M6-1.0 x 12 bare
00000   $2  new white plastic stepped washer ∅5
I  00000   $3  new white plastic stepped washer ∅6

J  00000   $3  new black plastic stepped washer ∅5
J00000   $3  new black plastic stepped washer ∅6

K 00000  50¢ new screw for re-thread M5-0.8 x 12 standard

1976-77 Motobecane 50L

1976-77 50L

1978-79 Motobecane 50V

1978-79 50V

1978-79 Motobecane 50VL

1978-79 50VL

1980 Motobecane Le Moped

1980 Le Moped

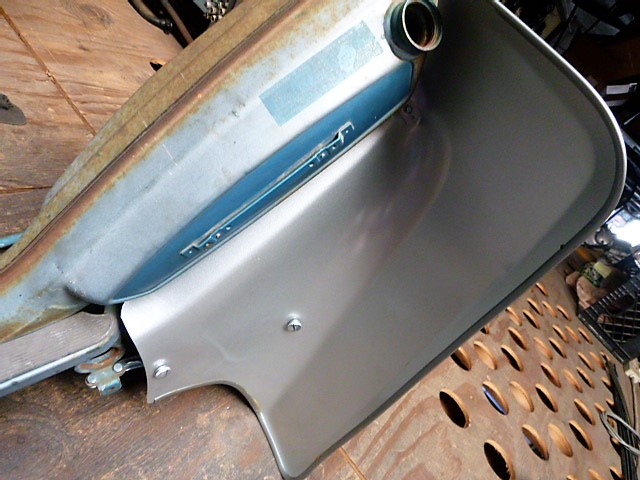

Motobecane 50 Leg Shields

MB 50 leg shields 1

MB 50 leg shields 2

MB 50 leg shields 3

MB leg shields 4

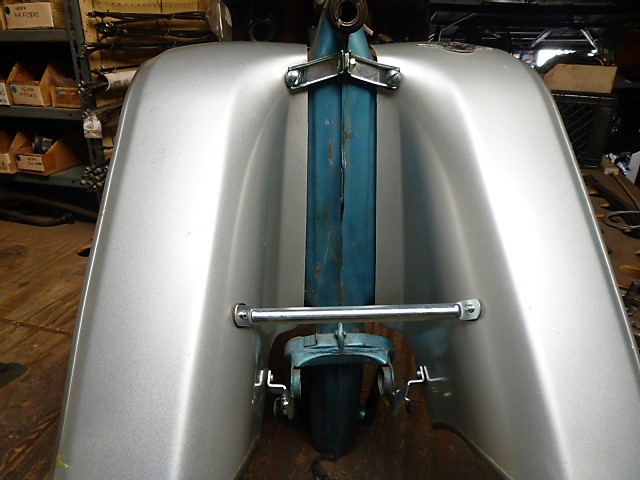

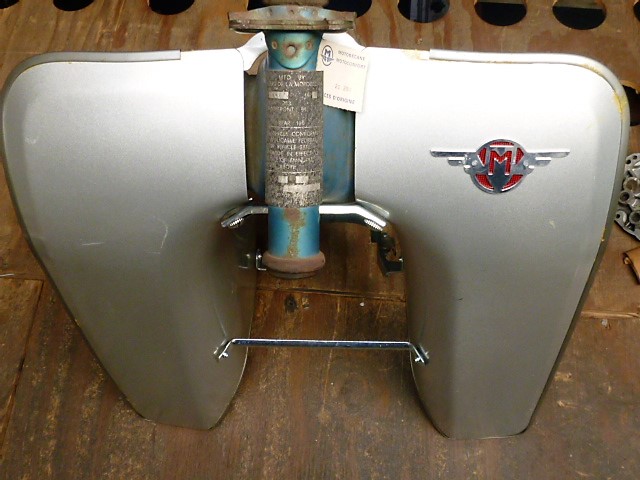

This is an original leg shield set #20250, and mounting bracket set #20290.
It is new but there are some minor scratches, from years of being kept on parts shelves.
These have all sold. Only the lower mount kit is available.

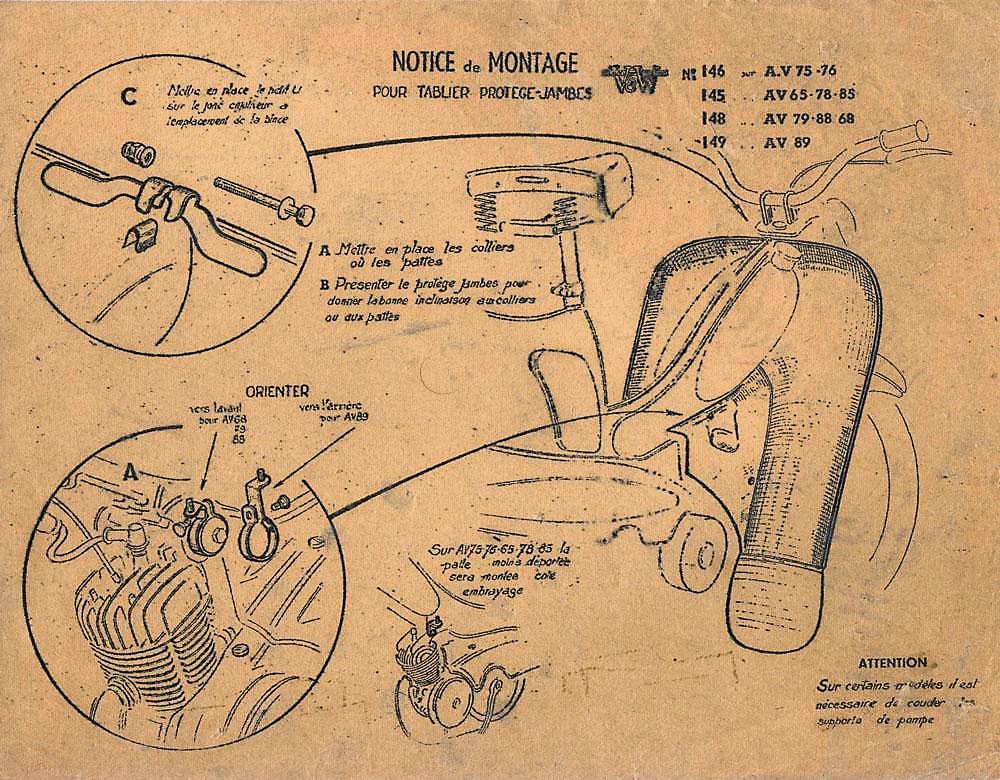

Here is a diagram of some 1950-60’s Motobecane leg shields. The mounts are different.




1974-76 Motobecane 40TS

1974-76 Motobecane 40TS

Motobecane 40 (no rear suspension)

Cover screws are a special thread M5-0.9, not regular M5-0.8.


Set of MB 40 side covers white new plain  $85

1

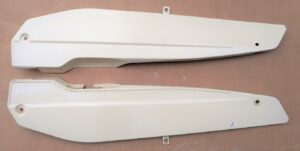

Set of MB 40 side covers off-white used  $70

cover screw 17424 M5-0.9 x 12 rusty  $5  rusty
cover screw generic M5-0.9 x 16 phillips $2
cover screw 17426 plastic stepped washer black $3

Motobecane magneto cover black    (see above)
Motobecane magneto cover gray used       $25- $30 without tabs








Peugeot

Peugeot 103, General and Taiwan clones

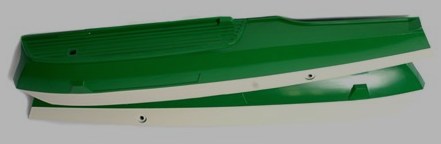

Peugeot 103 covers

Peugeot 103 original covers N/A

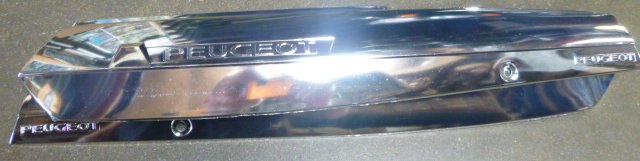

Peugeot 103 chrome covers N/A
These are the same as the type 2 black ones below.

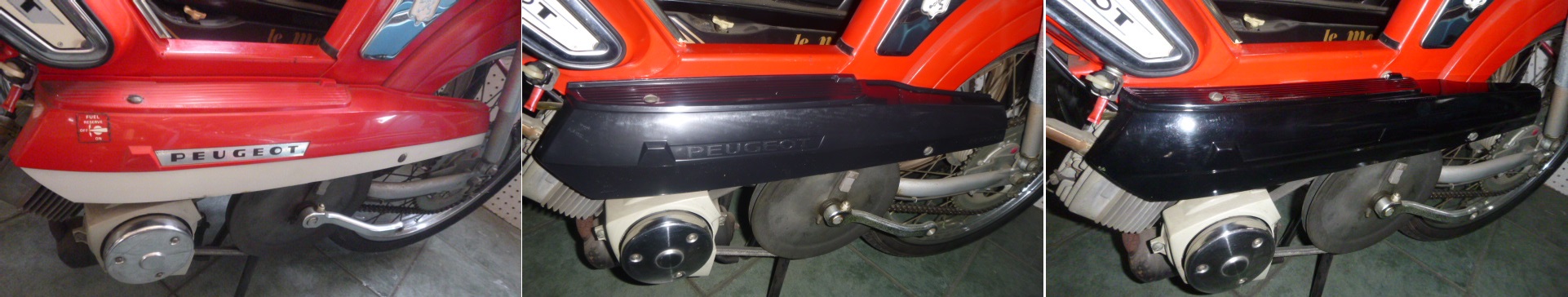

Peugeot 103 side covers,  1. original N/A2. repro plastic $48/set3. repro fiberglass $40/set
Type 2 fits well. It says PEUGEOT in raised letters. The new soft plastic has some scratches.

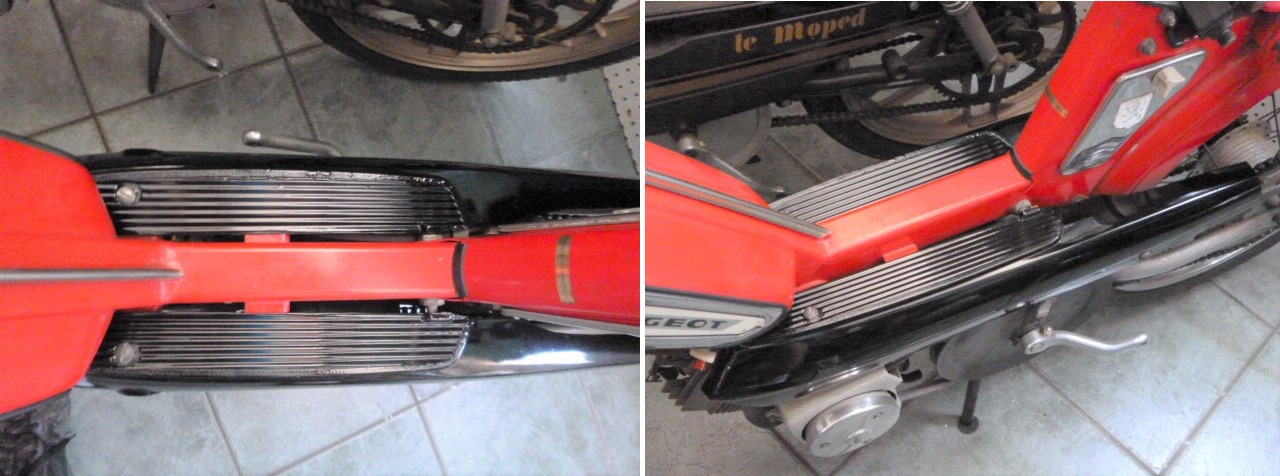

Type 3 requires rubber washers at front bolts. They have a small 1/4″ to 3/8″ gap at the frame.



Covers #3 have a 3/8″ gap where they are supposed to touch the frame.
Rubber risers go under the front screws. They make installation difficult.



All of these models take the same side covers:

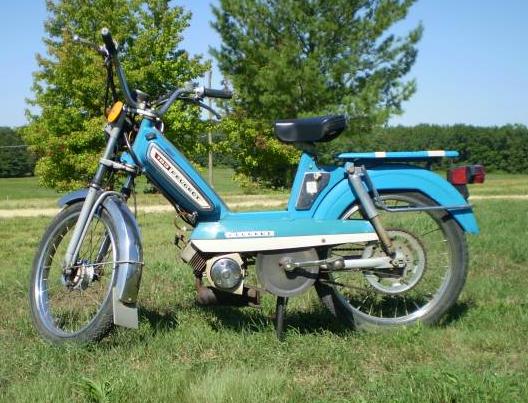

1976 Peugeot 103 LVS

1976 Peugeot 103 LVS

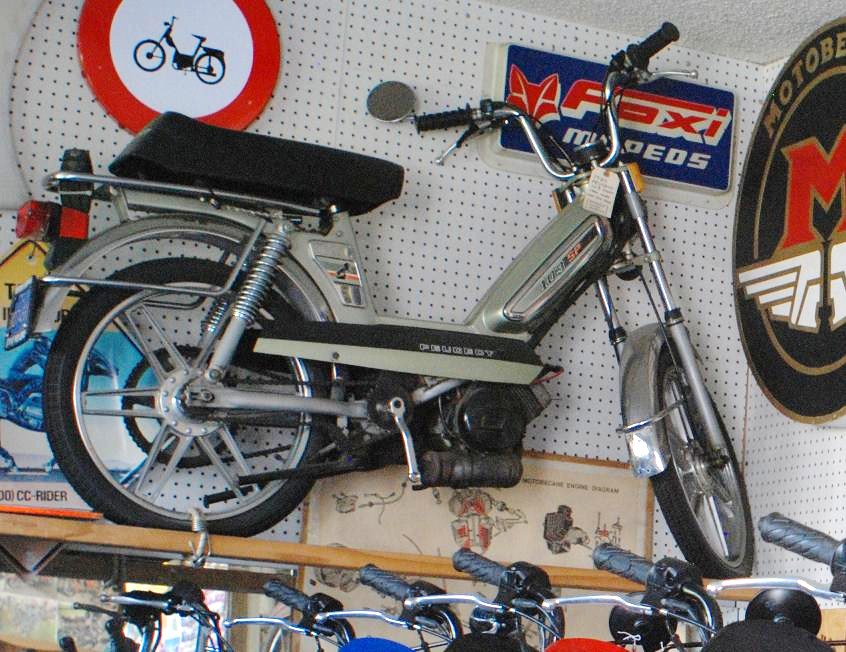

1980 Peugeot 103 SPB

1980 Peugeot 103 SPB

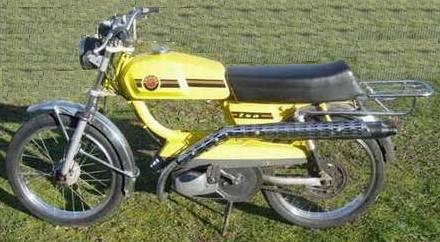

1975 Peugeot Sport

1975 Peugeot Sport
General copied this

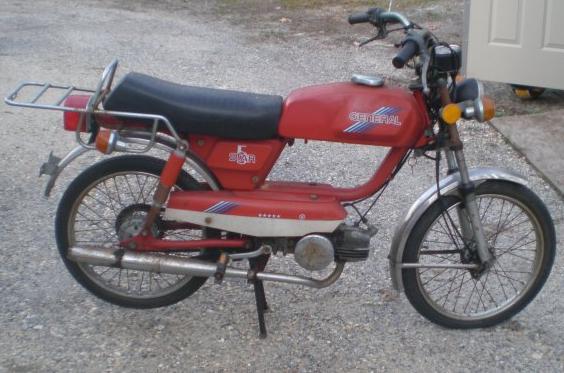

1981 General 5 Star

1981 General 5 Star
and many compatibles

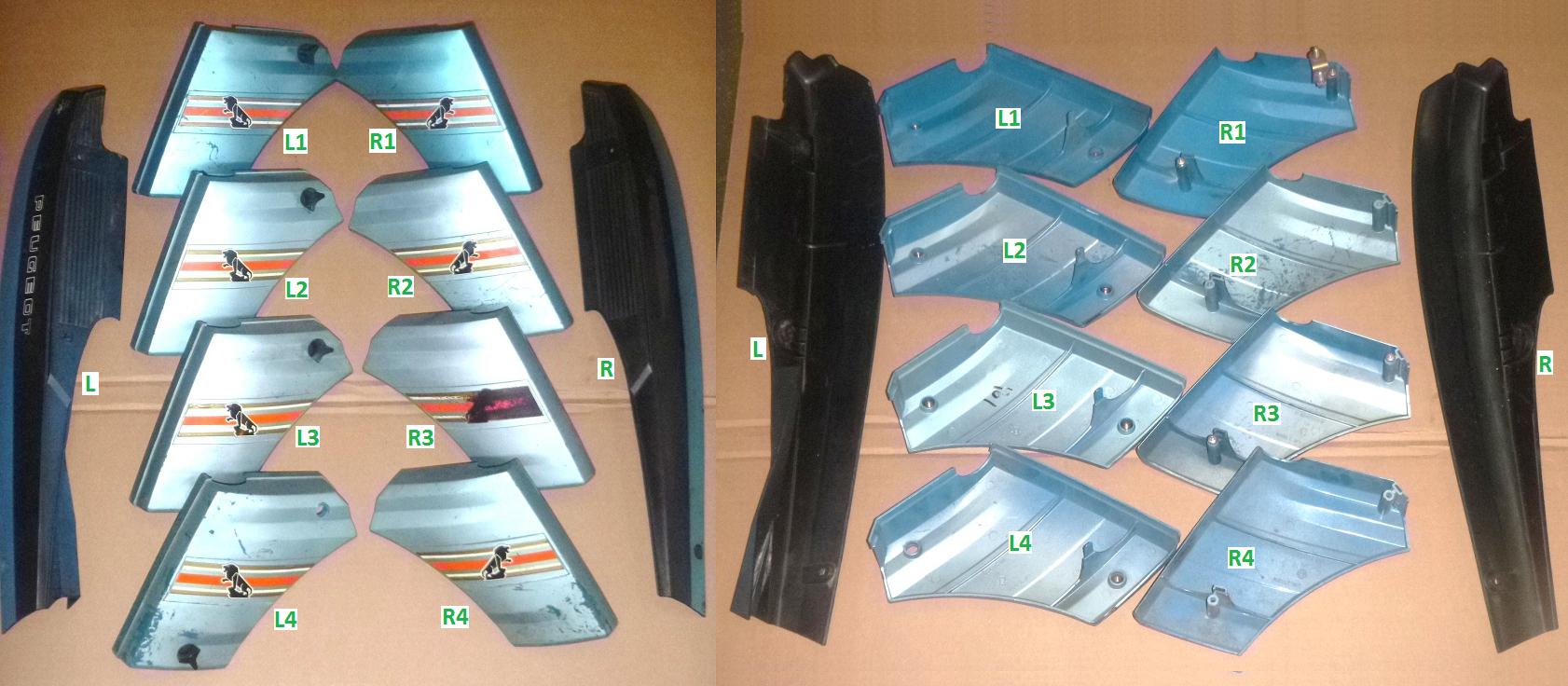

Peugeot 102 covers

Peugeot 102 covers

Peugeot 102

L    L side cover, used, blue              N/A
L1  L toolbox, used, blue                 $50
L2  L toolbox, used, bluish silver      $45
L3  L toolbox, used, bluish silver      $45
L4  L toolbox, used, blu-sil, 1 knob   $35
R    R side cover, new, blue              N/A
R1  R toolbox, used, blue, 1 bracket $35
R2  R tool. used blu-sil, no brackets $25
R3  R tool. used blu-sil, no brackets $20
R4  R tool. used blu-sil, no brackets $20



magneto cover Peugeot alum rough  $25




1. Maxi 1-speed covers generic

Puch

Puch Maxi, Newport, Sport

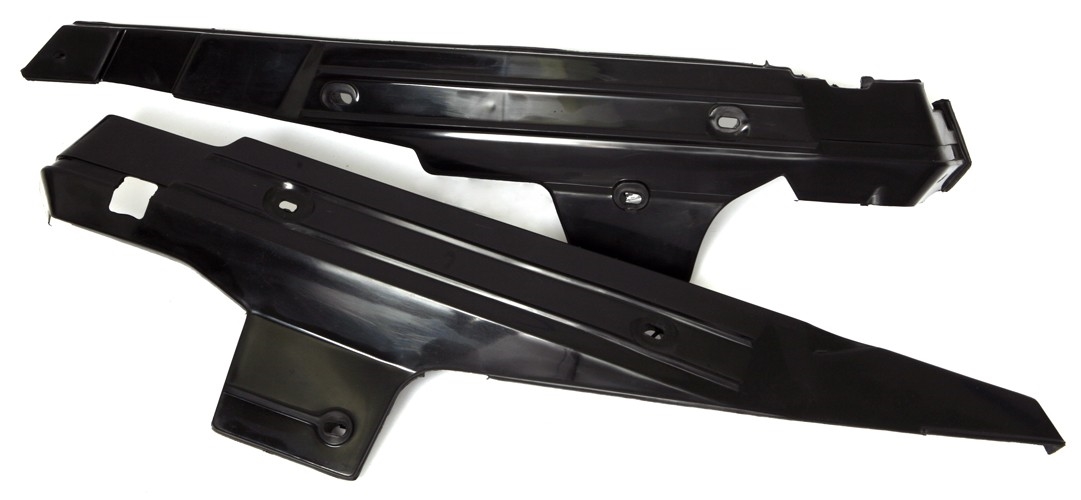

1 410200 side panel set Puch 1-speed black generic     $39

2 000000 side panel set Puch 1-sp used black orig xlnt N/A
2 000000 side panel set Puch 1-sp used black rough    $30

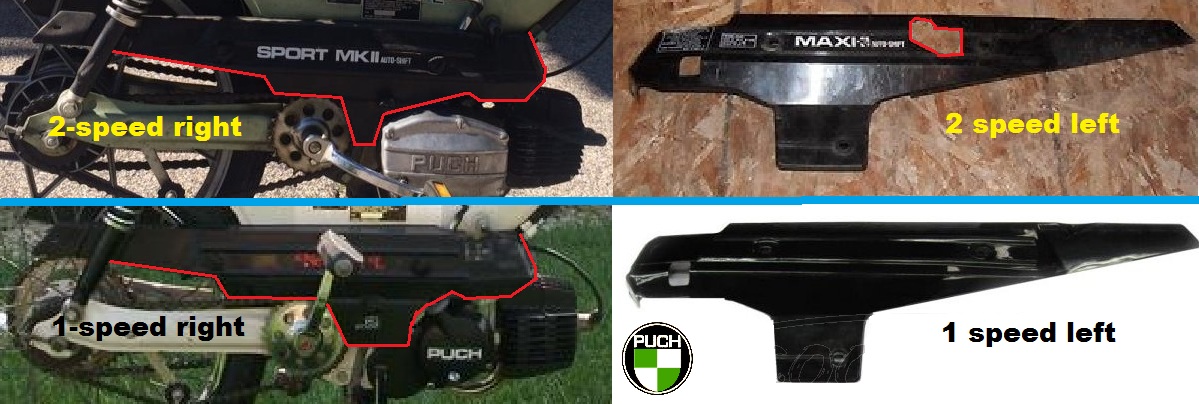

Puch Maxi 1 and 2 speed covers

3 000000 side panel set Puch 2-sp used black rough    $60

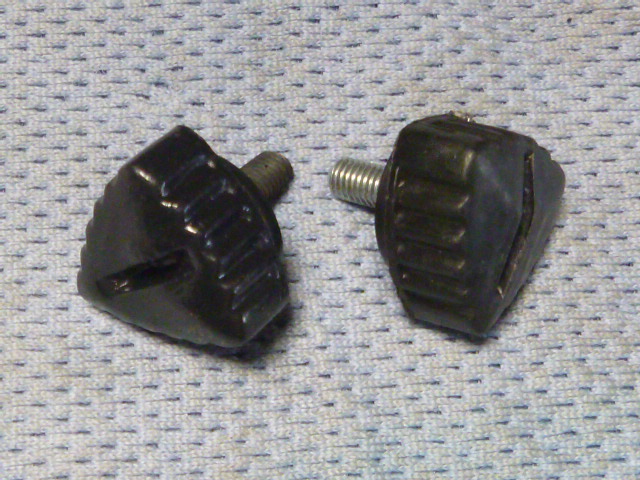

5 204900 screw M5 x 46 with black knob  replica new   $3
5
204900 screw M5 x 46 with black knob original used  $8
204900 screw M5 x 46 with gray knob original used  $12
5 000000 screw M5 x 45 phillips head substitute new   50¢

6 000000 left side panel Puch 1-sp used black rough   $30
6 000000 left side panel Puch 2-sp used black rough   $45
6 000000 left side panel Puch 1-sp used grey rough    $55

7 000000 right side panel Puch 2-sp used black rough $45
7 000000 right side panel Puch 1-sp used black rough $25

Puch Maxi side covers exploded view

Puch Maxi side covers exploded view

7 000000 right side panel Puch 1-sp used grey rough  $45

8 205100 screw M5 x 36 with black knob  replica new   $3
8
205100 screw M5 x 36 with black knob original used  $8
205100 screw M5 x 36 with gray knob original used  $12
8 000000 screw M5 x 35 phillips head substitute new   50¢

Right screws: 2 long and 1 short.   Left:  1 long and 2 short

1977 Puch Maxi

1977 Puch Maxi



All of the Maxi one speed models have the same covers: Maxi, Maxi Luxe, Maxi Sport, Sport, Newport. All of the Maxi two speed models have the same covers: Maxi II, Maxi Sport LS 2, Sport MkII, Newport II.



magneto cover Puch used            $20-$40






Puch Rigid cover set

Puch Rigid cover set, black

Puch Rigid, GN, Maxi N

Puch 1978 GN

1978 Puch Rigid

This is the no rear suspension model.

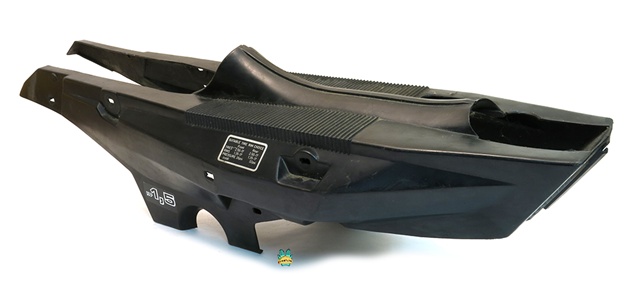

Puch Magnum side cover set

Puch Magnum, Sears, JC Penney side covers.

Puch Magnum, Sears Free Spirit, Murray, JC Penney

side panel set Puch Magnum used black original   N/A
right side panel Puch Magnum used black original N/A
left side panel  Puch Magnum used black original  N/A

side panel screw with knob aftermarket  M5x15    $3
side panel screw with knob original new  M5x15    $6
side panel screw with knob original used M5x15    $3

side panel screw wide slot head subst.     M5x15   50¢



15 mm cover screws
L aftermarket,  R original



1978 Magnum MkII

1978 Magnum

Sears Free Spirit

1978 Sears

1981 Murray

1981 Murray

1978 JC Penney














Sachs and Hercules

Sachs 504, 505 engines

Sachs 505 magneto cover Sachs 504 magneto cover

Left: 0244.067.100 magneto cover for Sachs 505
125.5 mm ID, chrome, good-used $22 or new $26

Right: 0244.167.100 magneto cover for Sachs 504
112.5 mm ID, chrome, new original $22



Hercules or Sachs mopeds

side covers (chain guards)      none available






Vespa (Piaggio)

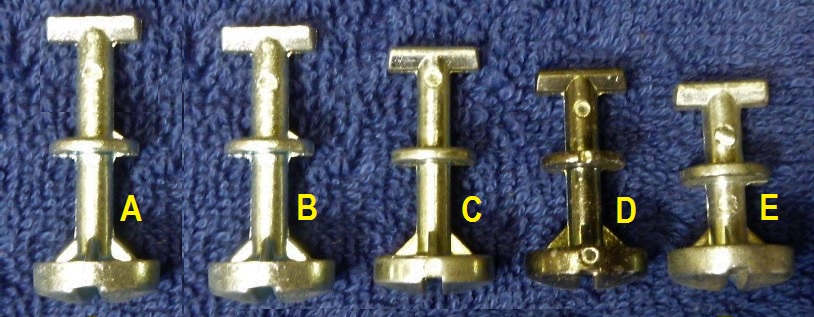

Cover Fasteners (Quarter-Turn Slot-Head)

A 132872 named  total
A 132872 length  length

A 185818  34.0   43mm $4.00
A 1979-85 Si rear and middle
A 1982-on Bravo (all)
A 1986-on Si (all)

132871 00mm 41mm $4.00
B 1977-80 Bravo rear
B 1978-83 Grande rear
B 1979-85 Si front

C 143615  27.5   37mm $4.00
C 1972-80 Ciao rear and middle
C 1980-on Ciao PX rear and middle

132872 00mm 33mm $4.00
D 1977-80 Bravo front (can use E, 2mm shorter)
D 1978-83 Grande front, center-front and center-rear

143614  23.5   31mm $7.00
E
1972-80 Ciao front (can use D, only 2mm longer)
E 1980-on Ciao PX front

122957 spring  34mm $3.00 same for all

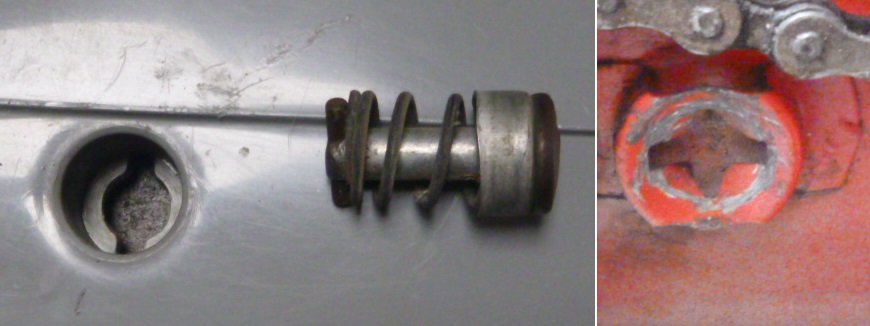

67-71 Ciao cover fasteners, different from 72-on
These can be purchased at UK Ebay.

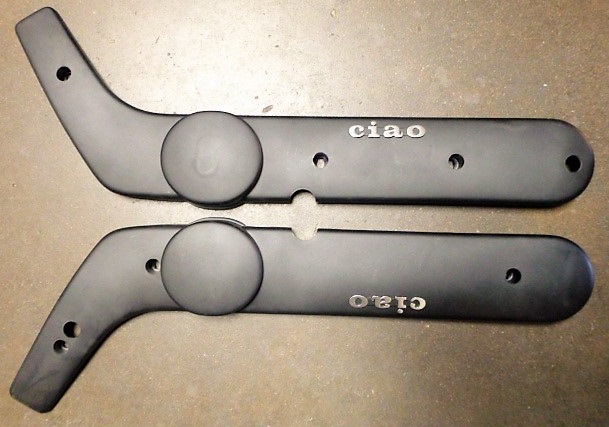

Vespa Ciao Side Covers

1990’s Piaggio Ciao side cover set black $64. Fits ’72-80+ Vespa Ciao.
Includes the chrome emblems but not the fasteners.
Fasteners are front D, middle C, rear C.

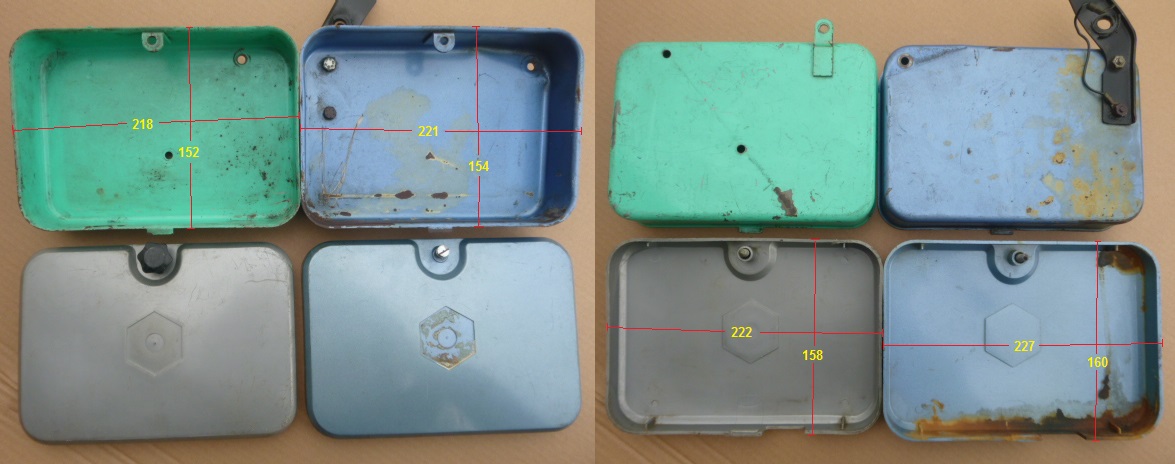

Battery Boxes and Covers

Battery boxes were on early 70’s Ciao (US models with brake light), and late 70’s to early 80’s Ciao, Bravo, and Grande “blinker” models (equipped with turn signals and different switches and equipment). These side box covers have been scarce since the late 1980’s. They often fall off, and nobody is reproducing them. If you know of a source please tell Shaun by email.

The larger size box 227 x 160 mm is on Grande. Price $10 per box without lid, good-used.

The smaller box 222 x 158 mm is on Ciao and Bravo. $12 per box without lid, good-used.

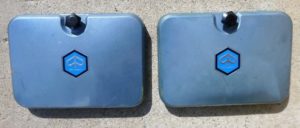

Vespa battery boxes and covers have two sizes.
A large cover will fit a small box, but not visa versa.

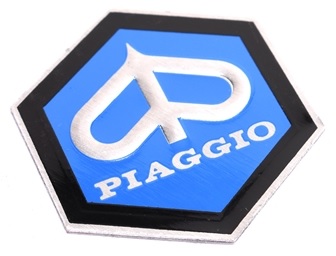

Piaggio box sticker
42 mm aluminum
price $6 each

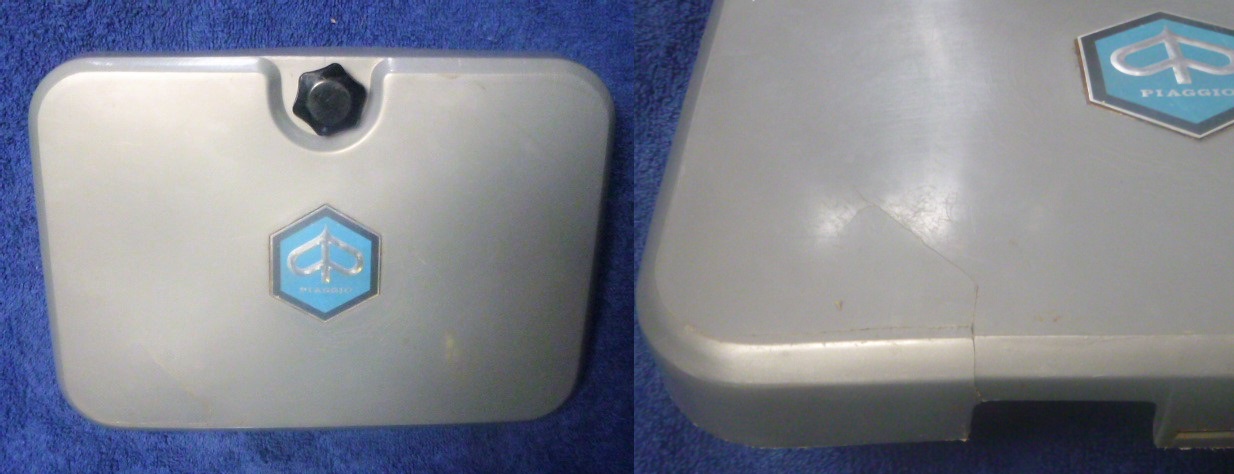

Vespa Ciao (small) side box cover set   N/A

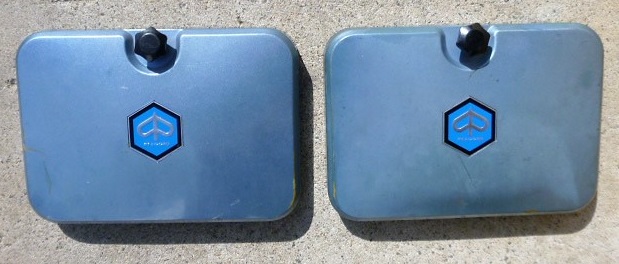

Vespa Grande (large) side box cover set  N/A
