Welcome. Most European-made mopeds have high quality C.E.V. electrical components, made in Italy since the 1920’s by Fratelli Pagani (Pagani Brothers). C.E.V. is a trade mark that stands for Costruzioni Elettromeccaniche Venegonesi. English translation: Constructions Electromechanical of the Venegonese people (from Venegono, Province of Varese, Northern Italy). CEV is now part of ZADI.

ZADI was founded in 1962 by Antonio Zavatti and Enrico Diacci, two former employees of Magneti Marelli. ZADI made all of Piaggio’s locks, and most 1960’s and later Italian motorcycle locks. In the 1997 ZADI purchased GKS (formerly Neiman, maker of fork locks) and other companies, forming ZADIGROUP. In 2001, ZADI purchased the electrical giant CEV, and has since become a world leader in manufacturing motorcycle and vehicle lock sets, lights, instruments, odometers, switches and electronic solutions, such as automatic parking systems.

Aprilia (Italy) made lights and switches for many 1960’s – 70’s Italian, and some non-Italian, motorcycles and mopeds. This greyhound logo appeared on a 1972 Ducati 750GT head light. This Aprilia, an electrical equipment maker, is possibly from the industrial town of Aprilia, near Rome. The famous Aprilia motorcycle make is completely different.

Merit Werke (Germany) made switches for German mopeds, and for Puch, Peugeot, and others. Merit Werke Gmbh began in 1966, in Germany then later moved to Malta, in the Mediterranean. They still make automotive switches and components, with the same MW logo, but with the name Merit Malta.

ULO (Germany) made tail lights, reflectors, and turn signals for German mopeds, Hercules (Sachs), Kreidler, Solo, Kynast, and tail lights for many non-German mopeds, Batavus, Sparta, Puch, Peugeot, Motobecane and Honda PA50. ULO was founded by Moritz Ullman in 1947 in Geislingen Germany. Ullman knew how to make molded glass products, like bicycle reflectors.

Luxor (France) made head lights for French mopeds, Peugeot and Motobecane. Luxor has been making quality bicycle lights for about a century. Before electric lamps were “invented” in the 1910’s, Luxor made carbide lamps. In Europe the Luxor Motobecane head light is square. USA-model Motobecanes have a 4.5″ round sealed beam housed in a Luxor ring and bucket.

HR (Slovenia) stands for Hidria Rotomatika, a division of Hidria. Tomos (mopeds), Iskra (moped magnetos), and AET (moped electronics) are also divisions of Hidria. Along with many automotive and industrial products, Hidria Rotomatika made high quality controls and switches for Volocci (electric) and Tomos mopeds, 1992 to 2007. The HR switches are nicknamed “blue button” in the Myrons Wiring Diagrams, because they are part of a sequence useful for identification: TOMOS SWITCHES: 1986-91 had only “black button” CEV, 1992-07 had mostly “blue button” HR, 2002-07 also had “yellow button” Domino, and 2008-13 had only “red button” TBS.

The Hidria Rotomatika controls are referred to here as “1992-2007 Tomos” controls. The only HR logo is on the right switch, barely visible. The “1992-07 Tomos” controls say “TOMOS” on each black plastic lever blade, but say nothing else.

Domino (Italy) is well known for making controls. Since the 1970’s in the US, and before that in Europe, Domino made controls for about 90% of all Italian mopeds, and for about 30% of all European mopeds. They are still going. In the 2000’s Domino also made switches, used on 2002-07 Tomos Revival, Arrow, Arrow-R and Streetmate.

TBS (India?) makes modern motorcycle and scooter controls. Their control levers, throttle, and both switch assemblies all have awesome quality and function and resist breaking. The TBS switches are nicknamed “red horn button” in the Myrons Wiring Diagrams. TBS controls (Domino compatible) are on 2008-13 Tomos mopeds, all models.

Peterson (USA) made tail lights, and head lights for 1970’s American-made mopeds, like AMF and Murray. Peterson began in 1945 making automotive tail lights. They still produce head lights, tail lights, and other automotive items in their huge Grandview, Missouri plant.

Niox (Germany) made head lights for many 1960’s German cars, such as Mercedes Benz, and motorcycles such as Zundapp and Hercules. On 1970’s US mopeds, a NIOX 4.5″ round head light in a ULO housing was original on 1978-81 Puch Magnum. NIOX square headlights were on 1984-86 Puch Maxi Sport LS, Maxi Sport LS II, Cobra, Cobra II, and Austro Daimler. ULO-housed NIOX round headlights were also on some German moped makes like Solo (Odyssey in US). Every other German, Austrian, or Dutch moped had a CEV headlight.

Saturnus (Slovenia) made lamps and reflectors for European cars from the 1950’s on. They began in 1921 making tin cans. Saturnus made lights for Tomos mopeds from 1988 to 2012. Their rectangular head light and rectangular signal light assemblies are similar to and interchangeble with CEV lights, but the individual parts are not. Unlike CEV, Saturnus lights lack the US DOT certification. So most USA version Tomos mopeds have CEV lights. Saturnus is now part of Hella (Slovenia).

Rinder head light

CEV head light

Rinder (Spain) made head lights for Derbi mopeds and motorcycles. Spain had high import taxes to encourage the use of domestic components. That’s why some Derbi parts are Spanish-made-under-license, like the Walker (VDO) speedometer and the Arbeo (Dellorto) carburetor. The Rinder square-hexagon moped head light would have been on the US models, but it did not have DOT approval. That’s why the Derbi Laguna fairing has the “incorrect” shaped CEV round head light. In Europe, the Sport Coppa motorcycle and the 1970’s -early 80’s Derbi Variant mopeds, all had the “correct” square-hexagon Rinder head lights. By the late 1980’s Rinder had a rounded rectangular headlight approved by US DOT, used on the Derbi Variant Sport and DS50.

Stanley (Japan) made head, tail, and turn lights for vintage Hondas. Koito (Japan) made headlights. Denso (Japan) made some Honda electrics. Kokusan (Japan) made electrics. Tatung made Taiwan moped speedometers.

The Czech moped, Jawa, has it’s own components.

Cable Parts

July 14, 2014

Contents:
1. Pinch Bolts (knarps)
2. Ends, Adapters, Misc
3. Adjusters (adjustable stops)
4. Ferrules (cable stops), End Caps
5. Bulk conduit (housing) and Wire
———- partition ———-
6. Cloth cable restoration

1. Pinch Bolts

P4-P10: Barrel Pinch Bolts (Knarps)

MM# price dia. len. max
MM# price dia. len. wire part# (length is without bolt)
oP4 $2.00 4.0 9.0 2.0 3548
oP5 $2.00 5.0 7.2 2.0 121-00416 for most throttles
P5a $2.00 5.5 7.5 2.0 3546 for many throttles
P6a $7.00 6.0 11 2.2 good used, MB original
P6b $7.00 6.0 8.0 2.2 good used, Peugeot original, use P6c
P6c $2.00 5.5 10 2.5
oP7 $2.00 7.0 9.0 2.5 3536
P7a $3.00 7.0 9.0 2.5 632876
P7b none 7.0 11 2.5 new, Vespa scooter original
P7c $8.00 7.0 13 2.5 good used, Peugeot original
oP8 $2.00 8.0 8.0 2.8 4906 with plain bolt (shreds easier)
P8a $4.50 8.0 8.0 2.8 49060R with bolt end rounded
P8b $5.00 8.0 13 2.5 620-28020
P8c $2.00 8.0 11 2.5 3538
P8d $2.00 8.0
P8e $3.00 8.0 12 4.0
P8f none 8.0 15 2.5 long enough for hand levers
P8g $5.00 8.0 15 2.5 long enough but no groove or lip
oP9 $4.00 9.0 9.5 3.0
P10 $5.00 9.5 16 2.5 620-28000

Rounded screws: Most pinch bolts have a regular screw end. But some have a domed or rounded end. Those hold better and don ‘t cut the braided wire. The rounded end folds the wire into a curve when the bolt is tightened.

Domed and regular 5mm pinch bolts with 8mm barrels

P8a rounded and P8

P20: Stepped Pinch Bolts

oP20 $3.00 Ø3.8 x Ø7.0 Peugeot decomp, chrome repro
P20a $4.50 Ø4.3 x Ø7.1 Barnett remake, must grind 4.3 to 3.8

P21-P22: Loop Pinch Bolts

P21 (left) and P22

P21 (left) and P22

P21 $12.06 pieces M7 11 hex good used, Vespa, for ∅11 arch
P22 $7.50 6 pieces M6 10 hex, 74-91 Tomos, for ∅10 hole

P25, P27: Flat-Sided-Hole Pinch Bolts

P27a 6 x 5, P27b 7 x 6, P25 9 x 7 H60 Grimeca

P27a $2.00 bicycle type Ø6 x 5, M5 thread
P27b $2.00 bicycle big, Ø7 x 6, M6 thread
oP25 $4.00 moped type Ø9 x 7, M6 thread, for Grimeca

P26: Clevis Clamp Pinch Bolts

P26 a,b,c

P26d heavy duty clevis clamp

P26a $17.0 original type for Hercules, AMF & KTM
P26b $10.0 clevis pinch bolt
P26c $4.00 clevis adapter
P26d $13.0 heavy duty for Hercules, AMF & KTM

2. Ends

E1: End Adapters

MM# price 0 part# 0 cable
E1a $2.00 25880 brake ∅6 to ∅8.7 x 8.5
E1b $6.00 Sachs start ∅3 to ∅4∅6 x 13
E1c $2.00 Barnett throt. ∅3 to ∅4.8 x 7.9
E1d $1.50 25349 throt. ∅3 to ∅6.0 x 7.0
E1e $1.50 ooooo throt. ∅3 to ∅5.9 x 4.6
E1e1 $2.00 ooooo brake ∅6 to ∅7.0 x 9.8
E1f $1.80 ooooo brake ∅6 to ∅8.0 x 8.3 side-slot
E1f1 $2.00 ooooo brake ∅6 to ∅8.0 x 10 side-slot
E1g $2.00 ooooo brake ∅5 to ∅8.0 x 10.3
E1g1 $2.00 ooooo brake ∅5 to ∅8.0 x 9.7
E1h $2.00 ooooo brake ∅6 to ∅8.0 x 9.0
E1i $2.00 ooooo brake ∅5 to ∅8.0 x 14.5
E1j $2.00 25063 throt. ∅3 to ∅4.0 x 7.4
E1k $2.00 25049 throt. ∅3 to ∅5.5 x 5.7
E1l $2.00 25062 throt. ∅3 to ∅5.7 x 5.9
E1m $2.00 23420 brake ∅6 to ∅9.0 x 9.0

E2: End Adapters (Anchor Pins)

These are also called holdfasts and socket bolts in some parts catalogs.

Adding a washer: For the ’70’s Domino smaller left lower lever for starting, a washer is added on the replacement, for centering the cable in the hollow lever. When the cable is centered in the lever, it performs the best and does not click or shift around.

E2-DA 00 $0.0 diam length years for lever family
E2-DA 00 $1.80 ∅9.4 09.3 ’02-07 Domino Tomos 221222
E2-DA 00 $0.00 ∅0.0 00.0 ’08-17 TBS Tomos (Domino clone)
E2-D14K $3.00 ∅8.9 12.9 80’s Domino
E2-D14a $8.00 ∅7.9 13.6 70’s Domino start lever
E2-D14b $4.00 ∅7.7 15.7 D14a substitute
E2-D14 x $4.00 ∅7.7 15.7 70’s Domino (or Magura)
E2-AP 00 $4.00 ∅7.8 15.0 70’s-80’s Magura (or Domino)
E2-LA 00 $4.50 ∅7.8 17.9 ’92-08 HR Tomos 227169
E2-D14p none ∅7.8 16.0 70’s Domino (or Magura) slotted pinch bolt

E3: Misc. Cable Items

E3a, E3b

E3c elbows

E3e oiler

E3a $1.00 threaded rod nut M6, some cables have a rod end
E3b $4.00 threaded rod barrel, for a threaded rod end
E3c $0.00 elbows (cable pipes) are listed in carburetor parts
E3d $1.00 soft metal crimp on end cap, covers wire ends
E3e $2.00 in line oiler with attached cap, for oiling the cable

E4: Bicycle Ends

Comparison of moped and bicycle cable ends.

E4a pear ∅3.9/6 x 9 use E5s
E4b barrel ∅7.0 x 7.0
E4c inline ∅4.0 x 5.0

These bicycle cable ends are listed here to show how much different they are from motorcycle cable ends. A bicycle gear cable 4mm end could be ground down to become a motorcycle throttle cable 3mm end. A bicycle brake cable road type interchanges with a motorcycle pear or mushroom type. A bicycle brake MTB type 7mm end fits loosely into a 8 or 9mm motorcycle brake lever, but functions OK.

E5: Solder Type Ends

End E5t
(two-piece)

Wires bent into an umbrella before soldering

MM# price diameter length hole
E5a $0.50 000 6.0 3.0 1.7
E5b $0.50 000 5.5 3.2 1.7
E5b $0.50 000 6.3 3.3 1.6 620-25162
E5c none O00 4.6 ball 1.7 620-24187
E5d $0.50 000 5.4 ball 1.7 620-24162
E5e $1.00 000 6.3 ball 1.7 620-24062
E5f $1.00 000 3.9 7.2 1.6 620-25063
E5g none 000 4.9 7.4 1.8 000-ooooo
E5h none 000 4.6 10.2 1.4 000-ooooo
E5i $1.00 000 6.0 7.0 1.3 620-25349
E5j $1.00 000 9.5 9.5 2.0 620-25580
E5k $1.50 000 3.0 5.0 1.8 wp70-1012 for carbs
E5l none 000 3.2 3.5 1.7 620-24762
E5m$0.50 3.1/5.2 7.8 2.0
E5n $0.50 3.8/6.0 6.6 2.7
E5p $0.50 4.0/6.3 10.1 2.0
E5q $0.50 3.9/6.3 11.5 2.3 620-26298
E5s none 3.3/5.6 8.1 1.6 620-26162
E5t $2.00 000 8.0 9.0 2.0 wp70-1003

3. Adjusters

A1-A13: Screw-in Adjusters

MM# price 0 thread 0 part# (with nuts unless noted)
A1a $6.00 M5-0.75 219625 for Dellorto elbow
A1b $4.00 M5-0.80 for Puch Bing elbow
A1c  $5.00 M5-0.90 023089 for Motobecane
A1d $2.00 M5-1.00 very coarse, for ?
A2a  $3.00 M6-1.00 hex no slot
A3a $3.00 M6-1.00 round no slot good used
A3b $5.50 M6-1.00 222592 round slotted orig 90’s Tomos blk
A3c $4.50 M6-1.00 021222 no slot w/star nut orig Motobecane
oA4 $5.00 M6-1.00 hex long used
A5a $4.00 M7-1.00 hex used
A5b $5.00 M7-1.00 round slotted
A6a $5.00 M8-1.25 round slotted
A6b $5.00 M8-1.25 hex slotted short
A10 $4.00 M6-0.75 00189 without nut for Motobecane carb
A11 $4.00 1/4 – 24 aluminum
A12 $7.50 M7-1.00 short for Motobecane decomp
A13 $5.00 M6-0.75 110437 for Dellorto, Bing, Gurtner, and Asian carbs

A1, A7: Adjuster nuts

MM# price 0 thread 0 part#
A1a $3.00 M5-0.75 219626 thin nut for Dellorto elbow
A7a $1.50 M5-0.80 thin nut
A7b $1.50 M6-1.00 thin nut
A7c $3.00 M6-0.75 169227 thin nut hex 7
A7d $2.50 M6-0.75 04172 thin nut hex 9 Motobecane
A7e $1.00 M6-1.00 21157 plastic star nut Motobecane

A8-A9: Non-screw-in Adjusters

oA8 $5.00 in-line, for joining two 5 or 6mm sleeves
A9a $9.00 Magura short, good used
A9b $6.50 Magura long, good used
A9c $5.00 Magura long remake, good used
A9d $9.00 Magura short w/elbow for Kreidler

4. Ferrules

F1-F5: Step Ferrules

MM# price od1 od2 id2 length part#
F1x $3.00 5.9 8.0 5.8 13.0 15581 for MB rear brake, use F1c
F1a $3.00 5.9 8.0 5.4 10.0 43678 for Peug front brk, use F1c
F1c $1.50 4.9 8.0 6.5 12.5 3514 zinc-plated steel, shiny
F2x $2.00 4.0 7.0 5.5 11.0 16944 for Motob. decomp, use F3
F3x $0.70 4.0 7.0 5.5 10.0 zinc-plated steel, photo $3/10
F3x $0.70 4.0 7.0 5.5 10.0 aluminum
F4a $1.00 4.0 7.0 6.0 12.0 aluminum
F4b $2.00 4.5 7.7 5.8 16.7 Barnett
F4c $2.00 5.3 6.8 6.2 19.0 Barnett
F5a $2.00 5.9 11.9 10.4 15.4 Barnett
F5b $0.00 0.0 0.0 0.0 00.0 miscellaneous
F5c $0.50 7.9 12.0 6.0 12.0 bicycle brake universal

The above step ferrules all fit loosely over the cable conduit. The end cap type ferrules below fit tight on the conduit, or are crimped on by special pliers. The end caps are supposed to fit tight, for several reasons: For strength and cable performance, to help keep out dirt and water (thus increasing lifetime), and for easier servicing. Unlike the step ferrules, which are necessary, the end cap ferrules are not necessary. Sometimes conduits need to be cut and the end cap ferrule needs to be left off. The conduit will still function good without end caps, as long as the adjuster or other stop piece hole, usually 2.5mm, is not too big. Without a 6mm OD end cap ferrule, a 5mm conduit will eventually slip through an improper stop piece hole, like 4mm instead of 2.5mm. But as long as the holes in the end pieces are the proper size, the cable does not need end cap ferrules.

F6: End Caps

MM# price i.d.
F6a $0.50 4.8 with flare, bicycle
F6a $1.00 4.5 with flare
F6b $0.50 4.8 no flare
F6b $0.50 5.1 no flare, Barnett
F6c $0.50 4.8 no flare, Barnett
F6d $0.50 4.0 no flare Shimano SIS
F6e $0.50 4.5 no flare, Sachs
F6f $0.50 5.0 620-20100 no flare, aluminum
F6g $1.00 5.0 with flare, chrome
F6h $1.00 5.1 with flare, used orig on Peugeot, MB
F6i $1.00 5.0 with flare, Puch
F6j $1.00 5.5 with flare
F6k $0.50 6.0 no flare, Barnett
F6m $0.50 5.5 620-20110 no flare, aluminum
F6n none 6.1 with flare, chrome
F6o $1.00 7.1 with flare, chrome, too big for mopeds

Here is a tapered punch being used to add a flare to a flareless end cap.

5. Bulk Items

B1-B6: Bulk Inner Wire

Sometimes very long cables are needed, for long bikes, or very tall handlebars, or for other things that use mechanical control cables. For 1.2mm and 1.6mm thick inner wires, up to 8 feet, it is better to use bicycle wires. beacuse they already have end(s) and cost less. The same quality 5mm conduit (housing) for bicycles costs much less than for motorcycles, and comes in colors. For thicker or longer cables, the bulk motorcycle wire and black conduit is the only choice.

top B5 7 x 7 braid, flexible bot. B3 1 x 19 braid, stiff

7 x 7 braid, flexible
1 x 9 braid, strong

B1 610-03080 ∅1.2 1×9 $0.80/ft stiff braid (throttle)
B1 610-03080 ∅1.2 1×9 $6.00/8.5 ft WTL w/carb end
B2 610-03090 ∅1.2 7×7 none soft braid (throttle)
B3 610-03100 ∅1.6 1×9 none stiff braid (brake)
B4 610-03110 ∅1.6 7×7 $1.00/ft soft braid (brake)
B4 610-03110 ∅1.6 7×7 $7.00/9.0 ft WRL w/pear end
B6 610-03120 ∅2.1 1×9 $1.30/ft stiff braid (brake)

B9-B18: Bulk Conduit

B13 black lined

B18 lt. grey lined

MM# 00 part# 0 OD x ID for
MM# 00 part# 0 OD x ID wire price /ft color
B9 610-03310 5.5 x 2.9 2.0 none /ft black
B10 610-03315 5.5 x 2.5 1.6 none /ft black, nylon-lined
B11 610-03320 6.0 x 3.3 2.5 $1.50/ft black
B12 610-03325 6.0 x 2.9 2.0 none /ft black, nylon-lined
B13 1460 0000 4.9 x 2.0 1.6 $0.60/ft black, nylon-lined
B14 1461 0000 4.9 x 2.0 1.6 $0.50/ft white, nylon-lined
B15 0000 0000 5.7 x 2.0 1.6 $0.50/ft brown lined, AMF ’80’s
B16 14427 000 4.8 x 2.0 1.6 $0.30/ft yellow
B17 14426 000 4.8 x 2.0 1.6 $0.30/ft blue
B18 14339 000 5.0 x 1.9 1.6 $0.80/ft light gray, nylon-lined

B20: Bulk Sleeve

B20 1508T32 big outer sleeve 11 x 13mm black PVC
holds three 5 mm cables $1.00/ft new and flexible

Find out more about the Cable Parts »

Other Controls

July 14, 2014

1. H.R. Controls

Below are the 1990’s Tomos controls, made by Hidria Rotomatika (HR). They contain HR-made integral switches, sold separately in Switches. HR controls are similar to ’80’s Domino black, but most of the parts do not interchange with Domino.

HR controls are on 1992 to early-2008 Tomos, specifically 1992-93 A35 Bullet, A35 Bullet TT, A35 Golden Bullet, A35 Golden Bullet TT, 1992-95 Colibri 1993 to early-08 Sprint, 1994-01 Targa, Targa LX, 1998-99 TT Classic, 2002-04 Tomos Tomos, Tomos LX, 2005 to early-08 ST, LX. They are also on Volocci electric mopeds.

part# price description
026561 $0.70 wedge bolt M6 x 16 allen
027222 $2.00 pivot bolt
030040 $1.00 nut for pivot bolt M6-flange
222617 $4.00 cone that digs into handle bar, use 223713
223700 $95.0 R assembly brake/throttle no grip
223701 $55.0 L assembly brake no grip
223702 $39.0 L housing brake only
223703 $40.0 R housing brake/throttle
223704 $24.0 lever L HR 92-07 Tomos black, they say TOMOS molded-in
223704 $18.0 lever L HR 92-07 Tomos black, replica, says TOMOS
223705 $26.0 lever R HR 92-07 Tomos black, plastic levers with round bumps
223705 $18.0 lever R HR 92-07 Tomos black, replica, with round bumps
223706 $20.0 throttle twist tube 92-08 Tomos
223707 N/A sliding block (not D1 or D1L) see mopedjunkyard.com
223707 N/A sliding block see also substitute pinch bolt
223708 $2.50 screw that holds throttle twist tube
223708 $2.50 pinch bolt for sliding block
223709 $13.0 throttle helper spring
223710 none brake helper spring Left
223711 none L grip black vinyl octagon with raised dome bumps
223712 $18.0 R grip black vinyl with dome bumps, used, last one
223713 $4.00 cone that digs into handle bar
227169 $4.50 brake cable holdfast/socket bolt longer than other kinds
227996 none brake helper spring right these break often but they still work good
229556 $5.00 adjuster slotted M6 there are also $2 ones not knurled not slotted
M5adj $2.00 adjuster M5 for throttle & choke

2. Ci.Te. Controls

Ci.Te. is an Italian moped lever used on 1960’s and early 1970’s Italian mopeds. They are similar to 1970’s Domino levers. You can see that in the side-by-side comparisons below. Domino blades have the D9 special stepped tube 6mm ID, that snaps into the 8mm pivot hole, to spread out the load over a large area. Ci.Te. levers are more primitive in that the blades rub on the pivot bolt in just two places, and so the pivot bolt gets cut by the sharp edge of the folded sheet metal. Domino levers also have assist springs, but Ci.Te. levers do not. Ci.Te. controls have no facility for mounting brake light switches. Ci.Te. lever blades do not have balls on the end. These last two things are required on USA mopeds. So therefore Ci.Te. levers are rare in the USA. Out of almost 1000 moped levers, new and used, mostly Magura and Domino, there was only one Ci.Te. lever blade. That is how rare they are in Southern California 1970’s -1990’s 20 moped shops leftover parts inventories plus 100’s of local mopeds turned into parts.

Ci.Te. levers on 1968 Lambretta Lambretino

Ci.Te. controls on 1968 Lambretta Lambretino

Ci.Te. right lever assy on 1970's Zanetti

Ci.Te. on ’65 Zanetti

Ci.Te. left and right controls. Right control with no lever $80

Ci.Te. and Domino left control comparison.
Both use M6-1.0 adjusters. Ci.Te. has 7mm brake cable hole. Domino has 8mm.

Ci.Te. and PV right control comparison.
Both have 9.5 x 7.1 x 10mm sliders. Ci.Te. has a thinner twist tube channel.

PV (left) and Ci. Te. (right) sliders.
Middle is a modified PV slider that fits Ci.Te. Price $20
Above is the cutting tool with the same diameter as the throttle twist tube.

3. OSL Controls

O.S.L. levers are heavy duty and high quality Italian controls, used on some mid to late 1980’s US model mopeds including Safari, Benvenuti, and Cosmo (Colt). They look like Domino, except for the kink in the middle of the lever. Myrons does not have any OSL controls or levers for sale. They were (almost) never on any mopeds sold in California. Out of a thousand moped levers at MM, this is the only OSL sample.

OSL left lever assy

OSL left lever assy top

OSL lever bottom

OSL left lever assy showing brake light switch plate inside lever

shows brake switch plate inside lever

4. P.V. Controls

P.V. is an Italian moped lever, used on Benelli, Guzzi, Intramotor Gloria, Testi, Rizzato and other Italian mopeds. None of the parts interchange with Domino. The lever blades are all black plastic, as are the throttle twist tubes. The housings are cast aluminum. The housings break easily when the bike falls over. Instead of a pivot bolt they have a press-in 6mm roll pin.

# Guzzi part# price description
00 4860.3390 $0.00 R control assembly with grip
00 4860.3290? $0.00 L control assembly with grip
00 4862.3290? $0.00 L control assembly no grip
01 0000.0000 $6.00 sliding block (different from Domino)
01 0000.0000 $0.00 width 9.5, height 7.1-7.8, length 10.0
02 0000.0000 $4.00 clamp tube ∅5.1 ∅9.0 x 7
03 0000.0000 $3.00 pinch screw substitute D2
04 0000.0000 $3.00 twist tube screw subst. D3
05 4860.5690 $22.0 R brake lever ∅8 hole
06 4860.5790 $22.0 L brake lever ∅8 hole hole
07 0000.0000 n.a. 0 pivot roll pin ∅5 x 14
07 0000.0000 $1.50 substitute screw w/lock nut M5x20
08 0000.0000 $1.50 clamp screw M5 x 22 slot
09 0000.0000 $7.00 throttle tube
10 0000.0000 n.a. 0 R housing
11 0000.0000 $35.0 L housing
12 0000.0000 $7.00 start anchor pin ∅7
13 0000.0000 $4.00 brake anchor pin ∅8
14 4860.5590 $34.0 start lever ∅7 hole
15 4860.3590 $0.00 R grip ribbed short
16 4860.3090 $0.00 L grip ribbed short

5. TS Controls

TS vintage Italian controls are uncommon. They appear to be Domino compatible.

TS throttle control

6. Derbi Controls

Derbi brake levers $21 each

Pre-1987 Derbi mopeds had their own brake levers, made by Derbi, and throttles and grips made by Ideale. From 1987-90 they had Domino Italian made controls.

Brake Levers

The brake lever mounts were welded to the handlebar. So there is no changing controls without changing handlebars or grinding off the original lever perches/housings. Changing handlebars is difficult because the original Derbi handlebars also do not interchange with the rest of the world, because they have special mounts welded onto them.

Pre-1980 had black plastic brake levers, and post-1980 had black metal ones. The aftermarket metal brake levers, made by Vmotoparts, replace both the 70’s plastic and the 80’s metal levers.

Decompression Lever

The original black plastic 1976-1986 Derbi Rabasa decomp levers are scarce or not available. However there is a pretty good substitute available. A late 1980’s Domino choke lever, like on the later 86-89 Derbi Variant Sport, can be modified to fit an earlier Derbi.

Derbi decomp levers top:
1, Domino choke original
2. Substitute for Derbi
3. Derbi decomp original

Decomp levers bottom:
Domino choke mods –
widen pivot hole to 6mm
round off upper “corners”

Substitute lever #2

Substitute lever pulled in

The substitute Derbi decomp lever can be ordered for $12 plus $5 for the modification.

Compared to a universal small clamp-on lever, the benefits of the Domino choke modified lever are:

1. No need to modify the original cable. (With a BMX bicycle lever, the sleeve stop hole is wider. The cable must be cut to insert a wider stop piece. But then the inner wire must be replaced to get the length lost by cutting back, and then a small 5 x 8mm pinch bolt soldered on properly. More difficult.)

2. No need to grind off the welded-on mount. No interference with the lights/horn switch.

3. Goes in the original position, looks proper. The word “choke” wipes off with carb spray solvent.

7. Universal Controls

These are the universal throttles and levers:

1. Magura throttle

2. Generic throttle control with grips

3. Generic brake levers

1. $20.0 #26-mag Magura universal throttle, no grips, uses a P5 pinch bolt cable end 5.5 x 8 mm
1. $20.0 #26-mag fits an installed throttle cable with 28 mm upper exposed length, as shown
2. $15.0 #26-0321 generic throttle w/hard plastic grips, uses a P5 pinch bolt cable end 5.5 x 8 mm
3. $18.0 #12106 pair of generic bicycle brake levers, uses a bicycle type ∅7 cable end

Magura Controls

July 14, 2014

updated 2020-05

Contents: 1. 70’s – 80’s Magura Parts
Contents: 2. Magura Moped Controls
Contents: 3. Service Information

Magura was founded in 1893 by inventor Gustav Magenwirth as a manufacturer of gasoline motors, hydraulic press pumps and water pressure devices. Since 1923 in Bad Urach, Germany, they have produced handlebars and handlebar controls for mopeds and motorcycles. They are an industry leader, and still produce handlebar controls for all major makes. Since the 1970s, the company has also made many products for the bicycle industry. The name Magura is from Magenwirth and Urach. The logo is from a rotary rack developed in 1930.

Left 80’s, right 70’s

Wrap-around and Slide-type: There are two main types, wrap around where the throttle cable wire wraps around and attaches to the twist tube, and slide type where the throttle cable attaches to a block that slides in a spiral slot in the twist tube.

70’s and 80’s: It is a subtle difference, but side by side you can see there are two different folded aluminum original Magura levers. The 1980’s “late” right lever, on the left, is longer and straighter than the 1970’s “early” left lever, on the right. When they are not side by side, it is really hard to notice.

1970’s -80’s Magura Parts

Price colors: dark green is good-used, green is new, N/A is not available
Abbreviations: TBCH is threaded brake cable hole, TBLSH is threaded brake light switch hole, AC is auto choke

Right assemblies with item #s and links to photos
R1 N/A 2b 3x 4 6 7 9 10s 13a 15a 70’s silver use R3
R1b  N/A 2b 3x 4 6 7 9 10s 13b 15a 70’s black use R3b
R1n $55.0 2b 0x 0 6 7 9 10s 13n nox 70’s silver, no twist tube, no BLSTH
R2 $85.0 2b 3a 4 6 7 9 10s 13c nox 70’s silver, AC (74-79 Tomos)
R2b N/A 2b 3a 4 6 7 9 10s 13d nox 70’s black, AC (78-79 Tomos) use R4R
R3 $74.0 2c 0x 4 6 7 9 10s 13e no   80’s silver
R3 $53.0 2c 0x 0 6 7 9 10s 13e no   80’s silver, minus twist tube
R3b $79.0 2c 0x 4 6 7 9 10s 13f 15z 80’s black
R3b $52.0 2c 0x 0 6 7 9 10s 13f no 80’s black, minus twist tube
R3r $67.0 2r 0x 4 6 7 9 10s 13r no   all black Agis replica
R4   N/A 2c 3a 4 6 7 9 10s 13g nox 80’s silver, AC (80-85 Tomos) use R4R
R4b N/A 2c 3a 4 6 7 9 10s 13h nox 80’s black, AC (84-85 Tomos) use R4R
R4r $75.0 2r 3a 4 6 7 9 10s 13s nox all black Agis replica, AC auto-choke
R5p N/A 2b 3x 4 6 7 9 10a 13p 15a 70’s silver TBCH (Peugeot)
R5q N/A 2c 3x 4 6 7 9 10a 13q 15a 80’s silver TBCH (Peugeot)
R6b $55.0 2b 0 4b 6 7 9 10s 13u nox 70’s black open-type wrap-around
R7 $65.0 2c 22-25 6 7 9 10s 21x no 80’s black slide-type (Puch Maxi Luxe)
R7c N/A 2e 22-25 6 7 9 10s 21x no 80s blk slide-type cast lever (Magnum)

Left assemblies with item #s and links to photos
L1 $42.0 1b 6 7 8 10s 12a 14 16 17 18 70’s silver
L1b $45.0 1b 6 7 8 10s 12b 14 16 17 18 70’s black
L2 $38.0 1b 6 7 8 10s 12c 14 00 00 00 70’s silver brake only (74-79 Tomos)
L2b $40.0 1b 6 7 8 10s 12d no 00 00 00 70’s black brake only (78-79 Tomos)
L3 $47.0 1c 6 7 8 10s 12e 14 16 17 18 80’s silver
L3b $40.0 1c 6 7 8 10s 12f 14 16 17 18 80’s black
L4 $39.0 1b 6 7 8 10s 12g 14 00 00 00 80’s silv brake only (80-85 Tomos)
L4b $39.0 1b 6 7 8 10s 12h 14 00 00 00 80’s blk brake only (84-85 Tomos)
L4p $32.0 1p 6 7 8 10s 12g 14 00 00 00 80’s park-brake only (Tomos trike)
L4r $29.0 1r 6 7 8 10s 12r no 00 00 00 all black Agis replica TBCH only
L5p N/A 1b 6 7 8 10a 12p 14 16 17 18 70’s silver TBCH (76-79 Peugeot)
L5q N/A 1c 6 7 8 10a 12q 14 16 17 18 80’s silver TBCH (80-83 Peugeot)
L6 N/A 1c 6 7 8 10s 12f no 16 17 18 80’s black (78-84 Puch Maxi Luxe)
L6e $40.0 1e 6 7 8 10s 12b no 16 17 18 70’s black (78-79 Puch Magnum)
L6c $48.0 1e 6 7 8 10s 12f no 16 17 18 80’s black (80-84 Puch Magnum)
L8 $24.0 no 0 0 0 10s 12z 14 16 17 18 start only (Sachs 505 foot brake)

All of these levers interchange and are 12mm wide at the pivot.
Original levers have a 6 mm top hole and a 5 mm bottom hole.
Some bottoms are the same as tops, others have a cable slot.
Flipping (using a right lever on the left side or visa versa):
Right and left interchange when flipped (bottom becomes top).
If the lever is flipped the pivot bolt must also be flipped, unless
the 5 hole is drilled to 6 and the 6/5 pivot bolt changed to 6/6.

1 Left levers:
1a $38.0 L lever folded alum. no ball
1ar $12.0 L lever folded steel generic no ball
1ar $00.0 needs 6/6 pivot bolt to work well
1b $25.0 L lever folded al. used straight
1bs $20.0 substitute: lever 2b upside down
1bs $00.0 for bolt 6a installed upside down
1bd $28.0 substitute: 2bd upside down + 6e
1bd $00.0 for bolt 6a installed right side up
1c $29.0 L lever folded alum. long
1cr $24.0 L lever folded alum. generic long
1d N/A L lever folded alum. black
1dr N/A L lever folded alum. generic black
1e $36.0 L lever cast aluminum
1er N/A L lever cast aluminum TCCD
1g $25.0 L lever folded aluminum Agis black
1gd $14.0 2g drilled to 6/6 (both holes 6mm)
1gd $00.0 needs 6/6 pivot bolt to work well
1p $26.0 L lever folded al. with parking brake
1p $00.0 mostly for three-wheel mopeds

2 Right levers:
2a $34.0 R lever folded alum. Magura no ball
2ar $12.0 R lever folded steel generic no ball
2b $20.0 R lever folded alum. Magura short
2bu $15.0 2b good used or straightened
2bd $22.0 2b drilled to both holes 6 mm
2c $20.0 R lever folded alum. Magura long
2cr N/A R lever folded alum. generic long
2d $32.0 R lever folded alum. Magura black
2dr N/A R lever folded alum. generic black
2e $25.0 R lever cast aluminum Magura
2er N/A R lever cast aluminum TCCD
2g $12.0 R lever folded aluminum Agis black
2gd $14.0 2g drilled to 6/6 (both holes 6mm)
2gd $00.0 needs 6/6 pivot bolt to work well

S Lever sets R and L: with item #s
Sg $26.0 lever set black 2gd 1gd 6b 6b 7d 7d
Sgb $30.0 lever set black 2gd 1gd 6c 6c 7c 7c
Sb $44.0 lever set short 2b 1bd re-use bolts
Sbb $38.0 lever set short 2b 2b flip left bolt

3 Lower right levers:
3x none right thumb lever original, locks-in off bar
3a $26.0 choke trigger and spring for early Tomos A3
3b none right thumb lever replacement, locks-in off bar

4 Twist tubes: with grip length
4 $32.0 twist tube 100 mm original white (cable loads from front)
4b $27.0 twist tube 100 mm original black (cable loads from front)
4c none twist tube 115 mm original black (cable loads from front)
4g none twist tube 100 mm #4 with ribbed grip #15 original
4r $25.0 twist tube 100 mm Agis black (cable loads from back)

For best performance, this should fit and be smooth
where the lever rubs at.

The 8b spring goes inside the hollow lever, so it fits either side.

5 to 11 Hardware
5 $1.50 friction plate to make throttle stick (leave off)
6a $4-$2 pivot bolt 6/5 orig slot dome M5 x 20 smooth ∅6 x 8.5
6b $1.20 pivot bolt 6/6 allen short M6 x 20 smooth ∅6 x 2.0
6c $3.00 pivot bolt 6/6 black phillips M5 x 25 smooth ∅6 x 11.5
6d $6.00 pivot bolt 6/6 6a with 6e M5 x 20 smooth ∅6 x 11.5
6e $4.50 adapter sleeve changes 6a to 6d ∅5 smooth ∅6 x 3.0
6f $0.70 pivot bolt 6/6 allen head M6 x 20 not smooth
6g $0.80 pivot bolt 6/6 phillips head M6 x 20 not smooth
7a $0.70 pivot nut M5 plastic-lock original light gray
7b $0.70 pivot nut M5 plastic-lock original black
7c $0.55 pivot nut M5 metal nylock
7d $0.90 pivot nut M6 metal nylock
7e $1.00 pivot nut M5 metal nylock black
8 $6.50 left return spring
8b $2.00 return spring R or L (not for solid cast levers)
9 $2.00 right return spring
10s $2.00 clamp screw M6x16 slot dome head
10a $0.70 clamp screw M6x16 allen head (Peugeot)
11 $4.00 socket bolt aka cable anchor/adapter

12 Left housings: with brake switch hole, unless noted
12a $15.0 left housing 70’s silver
12b $15.0 left housing 70’s black
12c $15.0 left housing 70’s silver no start lever (74-79 Tomos)
12d $17.0 left housing 70’s black no start lever (78-79 Tomos)
12e $22.0 left housing 80’s silver with mirror hole
12f $22.0 left housing 80’s black with mirror hole
12g $15.0 left housing 80’s silver no start lever (80-84 Tomos)
12h $15.0 left housing 80’s black no start lever (84-85 Tomos)
12n $10.0 left housing 70’s silver no brake light switch hole
12p $40.0 left housing 70’s silver with TBCH (76-79 Peugeot)
12q N/A left housing 80’s silver with TBCH (80-83 Peugeot)

1974-85 Tomos auto-choke
Thumb button activates choke by
allowing grip to twist in reverse.

13, 21 Right housings: with brake switch hole, unless noted
13a none right housing 70’s silver
13c $44.0 right housing used 70’s silver with choke slot (74-79 Tomos)
13e none right housing 80’s silver
13f $39.0 right housing 80’s black
13g $39.0 right housing used 80’s silver with choke slot (80-85 Tomos)
13h $39.0 right housing used 80’s black with choke slot
13n $35.0 right housing 70’s or 80’s silver no TBLSH (Euro version)
13p $54.0 right housing 70’s silver with TBCH (76-79 Peugeot)
13q $42.0 right housing used 80’s silver with TBCH (80-83 Peugeot)
21 $25.0 right housing black screw-slide-type (some 78-83 Puch)
21b $34.0 right housing used black slotted-slide-type (some 84-86 Puch)

14, 15 Grips:
14 $3.00 left grip 100 mm black ribbed original
14b $11.0 left grip 100 mm black waffle used
14c $6.00 left grip 115 mm black block original
15 $18.0 right grip 100 mm black ribbed original
15b $14.0 right grip 100 mm black waffle used
15c $9.00 right grip 115 mm black block original
20 $12.0 grip set 105 mm #14, 15 ribbed replica
20c $12.0 grip set 115 mm 14c, 15c block original

16 Left lower levers:
16 $14.0 start lever new black plastic with screw
16b $32.0 start lever aluminum long w/screw (Puch 2-spd)
17 $1.50 pinch screw 4mm
18 $3.00 pivot pin
18b $1.00 pivot pin substitute screw M4x20

Magura slider: left is worn, right is new

19-25 Other things:
19 $10.0 clamp-on metal lever substitute for trigger #3
22 $3.00 roll pin for twist tube 2.15 x 26 for 2.0 hole
23 $3.00 screw for sliding block (some 78-83 Puch)
24 $15.0 sliding block screw type (some 78-83 Puch)
24b N/A sliding block late no screw (all 84-86 Puch)
25 $28.0 twist tube Puch slide-type plastic

Magura Moped Controls

Sears Allstate right control

Sears Allstate left control

Magura “Open Wrap Around” silver controls are used on 1950’s and 1960’s Puch, Tomos, Sears Allstate, and many others. Some are cast aluminum levers, and some are folded sheet aluminum.

Most of these did not have threaded holes for brake light switches.

Ball-end levers began in the 1970’s, for safety.

Magura late open wrap around right control

Left black housing,
both start cable and
brake cable holes are
plain with bottoms

Magura “Open Wrap Around” black controls were on 1980’s Euro models, but not on US models.

Like the other Magura wrap around throttle controls, the twist tube has a groove that locks onto a tab in the housing. The two are locked together first, then slid onto the handlebar. Once on the handlebar they cannot become separated.

These have a plain hole with bottom, for the brake cable. Most do not have a hole for the a brake light switch.

Peugeot or Not Peugeot: There are two ways to stop the brake cables. The Peugeot way is to have 6mm threaded bottomless holes in the housings with 6mm adjusters stopping the cables. The non-Peugeot way is to have the housings stop the cables (or the inline Magura-type adjuster) with a slotted recess (hole with a bottom) instead of threads. You can convert to Peugeot style by drilling and tapping to M6-1.0 thread. But there is almost no adjustment range (because most of the hole is already too big, 7mm).

Magura wrap around throttle illustration

Magura right control
(with choke trigger)
plain with bottom
for no adjuster or
Magura type adjuster

Magura wrap around throttle threaded brake hole

Magura right control
(with choke trigger)
threaded M6-1.0 for
brake cable adjuster

Brake cable hole versions:
L, threaded bottomless hole (Peugeot)
R, plain hole with bottom (non-Peugeot)

Magura right housing
with brake switch hole,
brake cable hole is plain with bottom

Magura left control for
Tomos (no start lever),
no brake switch hole,
brake cable hole is
plain with bottom

Magura “Wrap Around” silver controls are used on 1970’s Batavus, Colombia, Flandria, Foxi, Flying Dutchman, Hercules, JC Penney, Kreidler, KTM, Kynast, Murray, Odyssey, Puch, Sachs, Sears, Sparta, 74-85 Tomos, and others. These US models all had threaded holes for brake light switches. Most Euro and Canada models did not have brake light switch holes.

The brake cable holes on both sides have two versions, M6 threaded bottomless (Peugeot style), or 7mm plain hole with bottom (non-Peugeot style).

These controls on US models all had ball-end levers except for Sears Free Spirit.

Magura-clone right control

Magura-clone left control
no start lever (Tomos type)

Magura-clone “Wrap Around” black controls are used on 1979-85 Tomos Silver Bullet. They are made in Yugoslavia to be Magura-compatible.

Magura-clone levers

The brake cable holes are 7mm plain with bottoms.

Magura late left control

Magura late right control
shown with no grip

Magura “Late Wrap Around” silver controls are used on 1980’s Colombia, Hercules, Murray, Puch, Sachs, 79-83 Trac, and others. The housings are thicker and less rounded. The left has a mirror hole. US models had threaded holes for brake light switches. But most Euro and Canada models did not have brake light switch holes. In these photos you cannot tell if there are brake switch holes or not.

The brake cable holes on both sides have two versions, M6 threaded bottomless (Peugeot style), or 7mm plain hole with bottom (non-Peugeot style).

Magura late right control

Magura late left control

Magura late right control
Tomos A3 choke button

Magura “Late Wrap Around” black controls are used on 80-83 Puch Maxi, 80-85 Sachs (Hercules) and others.

The brake cable holes are 7mm plain with bottoms.

Puch-Magura “Sliding Block” black, used on 78-86 Puch deluxe models.

Most of these are the early, common kind with a screw on the slider holding holding the cable wire. The cable wire itself has no upper end piece. It takes a “universal” or “single ended” throttle cable.

Some of these are the late, uncommon kind with no screw on the slider. Instead the cable wire has an upper end piece 3mm “inline barrel” soldered onto it. The cable is specific to that set-up, and is “double ended”.

The brake cable holes are 7mm plain with bottoms.

Puch Magura sliding block black controls

Magura slide throttle late (no screw on slider) and early (screw on slide)

Left: Slider with a pinch screw for Puch 1978-83
models Maxi Luxe, Newport, Sport, Magnum
(takes a single-ended throttle cable)
Right: Slider with no pinch bolt for Puch 1984-86
all models. Housing has a slot for cable.
(takes a double-ended throttle cable)

Service Information

The tongue and groove lock together, but only when they are off the handlebar.

Magura Wrap-Around Throttle

As mentioned above, the pieces snap together, but only when removed from the handlebar.

Twist tube: The throttle housing has a tongue that goes into a groove in the twist tube. The two pieces are first locked together while off the handlebar, and then slid on as a unit. Then the twist tube is kept from moving sideways.

Thumb trigger: Not all mopeds have this, but all the wrap-around housings have a provision for it. This is also called a choke lever or a decomp lever. The trigger has half-circle-shaped posts that slide into slots in the throttle housing, but only when off the handlebar, and in the “squeezed past max” position. Once on, the handlebar prevents it from detaching.

Tomos A3 auto choke thumb button: This button, when pushed in, lets the throttle cable go all the way slack for cold starting. When it is not pushed in, it allows the cable to stay a little taut for normal idling. Idle speed is adjusted by the tightness of the throttle cable, at the handlebar by the Magura type cable adjuster.

Installing a throttle cable on a Magura wrap around type throttle

Installing a throttle cable on a Magura wrap around throttle

Installing a throttle cable: With an original Magura twist tube, the cable installs from the outer side, just behind the grip. Turn the grip forward to the closed position. Locate where the cable end is. Peel the flange of the grip there back with your thumb, and hold it there. With the other hand, place the sideways barrel end of the throttle cable into the cavity. Lay the wire over the ridge, and wrap it around the curved guide. When pulled taut it should fall into it’s groove. The throttle should pull the wire and move free.

With a Magura-clone twist tube, the cable installs from the inner side. So the twist tube has to be removed. That means the whole throttle has to be removed from the handlebar. But the cable is more protected.

How to install the throttle cable:

Worn throttle cable groove: The curved cable guide groove can become worn in the middle. It can become so bad that the throttle feels like a hack saw and makes a ripping sound like a zipper. When that happens the cable will soon be cut through and break. The cause of the worn groove is lack of lubrication. Moped cables and controls need oil occasionally.

Worn Magura wrap-around throttle housing

Restoring a worn groove

The remedy is to re-cut the bottom of the curved guide. The best tool is a masonry hack saw blade. It has the exact width and round shape. The linear saw is moved in a curved motion. The bottom of the channel is visually checked every few strokes, to see what areas need more cutting.

Installing a Magura brake lever spring.

Lubrication: Lube the cables and controls with a drip oil, like 3-in-1 or Tri Flow or any high tech lubricant. Tri Flow is thin so it penetrates in and clings to metal, like WD40. But after awhile when most of the liquid drys up, it leaves behind microscopic Teflon particles embedded in the metal surface.

Making custom cables: Here are the distances of the exposed cable wires, for Magura wrap-around type moped controls.

Handlebars

July 14, 2014

updated 2021-12

1. Handlebar Specifications

2. Aftermarket Handlebars

3. Original Handlebars

1. Handlebar Specifications

Dimensions are width, height, rise, clamp length, control length, pullback.

Natural angle: Close your eyes, clench your hands in a fist, relax, and put both arms forward and down a little. That is the natural position of your hands. They form an angle, called θf, viewed from the front, and another angle, called θt, viewed from the top. Handlebars are all close to the average natural position of human hands.

Positioning: Clamp-on handlebars can rotate in the clamps. During installation the rider chooses the best clamping position, for comfort and control. Most handlebars (except Clubman) are positioned with the rising part going straight up when viewed from the side. A rider with short arms might prefer a more rearward position, while a rider with long arms might want a more forward position.

Flipping (inverting): Any clamp-on handlebar can be flipped over (inverted). But most will feel wrong and strain the wrists. Of the handlebars shown below, only the Clubman and Drag bars can be flipped over, and still feel right.

Dimensions: Six lengths can completely describe a handlebar, without the need for angles. Here the side-view angle θs, and the top-view angle θt, are calculated from the lengths R, H, P, L, W, and C.

tan(θt) = 2*P / (W-C)

sin(θf) = (R-H) / L

Measuring: When measuring the dimensions, the end points are at the centers of the tubes, not the edges. The handlebar is placed on a flat table. With the rises vertical, the rise and height are measured from the center of the bar, straight down to the table, with 1/2 of the bar width subtracted (-0.4 inch). With the rises horizontal, the pullback is measured similarly.

Height: Looking from the front, most handlebars, especially low ones, slant down slightly going outward, at an angle θf, because the height is less than the rise. On some handlebars, the height is greater than the rise, and θf is negative.

Pullback: Looking at most motorcycle bars from the top, the bars slant rearward, at an angle θt, because the pullback is greater than zero. When the pullback is zero, θt becomes zero. Cruiser bars are for comfort and have a large pullback, where the bar ends point more towards the back of the bike. Drag bars are for high powered acceleration, and have a small pullback for control and grip.

2D or 3D: When the pullback is zero, the handlebar is 2-dimensional and will lay completely flat. Otherwise, most 4-bend (non-Drag) bars are 3D and do not lay flat on a table. 2D handlebars are simpler to make, but don’t feel “right”, except maybe at one particular position. 3D handlebars are more complicated to make, but will feel “right” in a range of positions.

Width: Wider handlebars allow better control. Off road bikes have wider bars. Narrow bars have less control, but are more aerodynamic for better fuel economy or higher top speed, and can squeeze through smaller spaces, like in between stopped cars.

Rise: High rise handlebars are taller, and put the hands higher. This can position the rider’s torso in a more upright position, for helping with back pain. Higher bars allow better control when standing up, like when jumping or hitting pot holes. Low rise handlebars put the rider leaning more forward. That reduces wind drag for higher top speed or better fuel efficiency.

Control length: Motorcycle handlebars need about 3 inches more control length than bicycle handlebars. They have thumb-operated levers or buttons, in addition to the finger-operated hand levers. Motorcycles have a twist throttle and a hydraulic brake on the right that takes up space. For motorcycles the minimum control length is roughly 8 inches. For mopeds it is about 6 inches. For bicycles it is about 5 inches. Any handlebar that has extra control length, can be cut shorter, up to the minimum control length, to reduce it’s width.

Clamp length: The center straight area needs to be at least as long as the clamps. Motorcycles have wider handlebar clamps than mopeds. Here is a table of moped handlebar clamp spacings:

xxxxxxxxx xx inner outer
Tomos A55 xx 1.7″ xx 3.1″ only this fork has enough inner space for bicycle bars with a 1″ x 1.7″ center bulge
Puch Maxi xx 1.55 xx 3.2
Hercules xxxx 1.2 xxx 2.4
Peugeot 103 x 1.2 xxx 2.3
Cimatti xxxx none xxx 2.4
Motobecane x 1.5 xxx 2.7

Applications: Not all mopeds can accept clamp-on “universal” handlebars. Some mopeds have bolt-on handlebars, where there are plates welded to the bar that bolt to the fork. Some mopeds have stem-mounted handlebars, where there is a long neck that goes inside the fork, held by a wedge bolt.

Thickness: Most modern 7/8 handlebars are 0.875 inch = 22.2 mm.

Vintage metric handlebars, are 0.863 to 0.866 inch = 21.9 to 22.0 mm.

The dual standard can sometimes cause problems.

22.0 controls on 22.2 bars: Wedge type controls, such as Domino, for 22.0 bars cannot fit on 22.2 bars. Wedge type controls do not clamp, but instead press a cone into the bottom of the handlebar. 1960’s, 70’s and 80’s “vintage” Domino controls have a fixed size hole, 22.0 mm, for 21.9 bars.

22.2 controls on 22.0 bars: Original vintage handlebars 22.0, with 1970’s Magura clamp type controls, require a strip of aluminum can under the clamp, to hold solid onto the handlebar. Otherwise the throttle slips around the bar. 1990’s and 2000’s “modern” Domino wedge type controls have a 22.3 mm hole, that works fine on either modern 22.2 or vintage 22.0 bars.

2. Aftermarket Handlebars

width 26
height 8.5
rise 7.5
clamp length 4.0
control length 6.5
pull back 4.0

Stock Moped chrome $25 thickness 0.872″ (22.14)
Fits clamp type (22.6) controls and modern wedge type (22.3) controls.
Fits some vintage wedge type (22.0) controls, but some need sanding.

The width cannot be reduced by cutting
because the control length is already short, 6.5″.

width 30
height 2.0
rise 2.3
clamp length 5.0
control length 8.2
pull back 4.7

GP Touring chrome $25 thickness 0.869″ (22.07)
Fits clamp type controls and modern wedge type (22.3) controls.
Fits some vintage wedge type (22.0) controls,
but others require careful sanding of the high places.

For most mopeds that only need 6″ of control length, the ends
can be cut up to 2.0″, to reduce the width by ≈3.5″, from 30 to 26.5″.

width 29
height 3.0
rise 2.0
clamp length 4.2
control length 9.0
pull back 3.1

Superbike chrome $25 thickness 0.869″ (22.07)
Fits clamp type (22.6) controls and modern wedge type (22.3) controls.
Fits some vintage wedge type (22.0) controls,
but others require careful sanding of the high places.

Superbike black $25 thickness 0.890″ (22.6)
Only fits clamp type (22.6) controls.
With wedge type controls, the 22.6 mm bar does not fit into
the fixed-size hole (modern 22.3 or vintage 22.0 mm).
The black powder coating must be sanded off, to reduce the thickness.
But it is difficult to not scratch the exposed area.

For most mopeds that only need 6″ of control length, the ends can
be cut up to 3.0″, to reduce the width by ≈5″, from 29 to 24″.

width 29
height 5.0
rise 3.0
clamp length 4.8
control length 8.2
pull back 3.3

Daytona chrome $25 thickness 0.869″ (22.07 mm)
Fits clamp type (22.6) controls and modern wedge type (22.3) controls.
Fits some vintage wedge type (22.0) controls, but others need sanding.

Daytona black $25 thickness 0.885″ (22.5 mm)
Only fits clamp type (22.6) controls.
With wedge type controls, the 22.6 mm bar does not fit into
the fixed-size hole (modern 22.3 or vintage 22.0 mm).
The black powder coating must be sanded off, to reduce the thickness.
But it is difficult to not scratch the exposed area.

For most mopeds that only need 6″ of control length, the ends
can be cut up to 2.0″, to reduce the width by ≈3.5″, from 29 to 25.5″.

width 28
height 0
rise 0
clamp length 6.0
control length 9.5
pull back 2.6

Drag bars chrome $22 thickness 0.869″ (22.07)
hFits clamp type (22.6) controls and modern wedge type (22.3) controls.
hFits some vintage wedge type (22.0) controls, but others need sanding.

Drag bars black $22 thickness 0.885″ (22.5)
Only fits clamp type (22.6) controls.
With wedge type controls, the 22.6 mm bar does not fit into
the fixed-size hole (modern 22.3 or vintage 22.0 mm).
The black powder coating must be sanded off, to reduce the thickness.
But it is difficult to not scratch the exposed area.

For most mopeds that only need 6″ of control length, the ends
can be cut up to 3.5″, to reduce the width by 7″, from 28 to 21″.

width 28
height 0
rise 3.3
clamp length 5.5
control length 10
pull back 5.9

Clubman chrome N/A thickness 0.869″ (22.07)
Fits clamp type (22.6) controls and modern wedge type (22.3) controls.
Fits some vintage wedge type (22.0) controls, but others require sanding.

These bars are shown inverted, with the rises going upward.
In this position the bars are higher, but still at an angle that feels right.
Normally they are installed with the rises going down and forward.
That position is what racing bikes have, for reduced wind drag.

For most mopeds that only need 6″ of control length, the ends
can be cut up to 4″, to reduce the width by 8″, from 28 to 20″.

This has a 1 by 1.7″ center bulge.
Because of that, it only fits 08-17
Tomos or bikes with that fork.

width 20.3
height 5.0
rise 4.8
clamp length 3.5
control length 6.0
pull back 2.5

2009 Tomos Sprint
with Wald 3346 bars

Wald 3346 chrome $15
thickness 7/8″ 0.0876 (22.3)
Only fits clamp type (22.6) controls
and modern wedge type (22.3) controls.
This is the only 7/8″ handlebar offered
here that is truly 7/8 = 0.875 inch,
because it’s American made.

3. Original Handlebars

Most Original Equipment Manufacturer (OEM) handlebars are available in a range of conditions. All are straight, unless noted. Some are new, some good used, and some are pitted, peeling or scratched. Some have tiny scuffs from being jostled around in parts bins. They are priced accordingly. Photos of actual choices are available, by email.

Dual standards: Vintage European original bicycle and moped handlebars are 21.9 to 22.0 mm, to fit 22.0 controls. This metric standard lasted until the 1980’s. After the 80’s most European handlebars became 22.3 mm = 7/8 inch.

Cimatti

1975 Cimatti City Bike

Cimatti 3110
$20-$45 good used

thick 0.862 (21.9mm)
width 24
height 9.6
rise 9.3
pull back 6.5
clamp length 3.0
control length 6.2

These bars have a plate and a clamp. The clamp has the strength to hold the bar, while the plate keeps it in that one position. The clamp will still hold if the plate is cut off. Without the plate the bar position is adjustable. Curiously this Cimatti handlebar is made by Garelli. See the tilted G logo?

70’s Cimatti Chic

Cimatti 2940 bars with levers
$70 very good used

thick 0.862″ (21.9 mm)
width 23
height 9.5
rise 10.0
clamp length 3.5
pull back 7.3
control length 6.2

Garelli

’76 Garelli Eureka Flex

Garelli 1975-79 bars-with-stem
500.204.5100 $35 rusted (shown)

thick 0.862 (21.9 mm)
width 22.5
height 7.9 plus stem
rise 8.3 plus stem
clamp length —
control length 5.8
pull back 5.1

These bars are on 1975-79 Garelli mopeds. They can adjust up and down, by how far the stem is inserted.

1978 Super Sport XL

Garelli 1977-79 high bars-with-stem
none available

thick 0.862 (21.9 mm)
width 23?
height
rise
clamp length —
control length 5.8?
pull back

These bars are on 1977-78 Garelli Supersport XL and others.

’78 Garelli Super Sport LTD

Garelli 1978-79 bars-with-plate
none available

thick 0.862 (21.9 mm)
width 23,
height 11.1
rise 10.2
clamp length —
control length 5.7
pull back 3.6

These bars are on certain 1978-79 models. The bottom of the handlebar has a chrome steel plate that says Garelli. The chrome handlebar plate bolts to the painted fork top plate. The fork top plate is made of stamped sheet steel. For these bolt-on bars the fork top plate was made too thin, causing most to crack near the edges of the handlebar plate. Garelli soon realized this problem, and stopped making the bars-with-plate design in 1979.

1978 Garelli VIP

Garelli 1978-86 clamp-on bars
507643.5100 none available

thick 0.862 (21.9 mm)
width
height
rise
clamp length
control length
pull back

These bars are on most 1980-86 Garelli, US models, and 1978-79 VIP and LTD (mag wheel) deluxe models. For about one year in 1978-79 all three handlebar designs were on Garelli mopeds, handlebar-with-stem, handlebar-with-plate, and clamp-on handlebar. But by 1980, all models had the clamp-on handlebar design, with strengthened fork top plate that did not crack easily.

Gitane

1978 Gitane Confort

Gitane (Testi) bars-with-plate
052181 $40 good used (shown)

thickness ∼7/8″ 0.862″ 21.9 mm
width 23.5
height 5.4
rise 6.6
clamp length —
control length 6.2
pull back 6.5

The 1977-80 Gitane mopeds (US models, made by Testi) had this bolt-on handlebar.

Honda

1978 Honda PA50

Honda PA50
$50 (shown)

thick 0.862 (21.9 mm)
width 23.5
height 9.5
rise 8.3
clamp length 3.5
control length 6.0
pull back 3.0

These clamp-on bars have large holes for the electrical wires to go inside the handlebar. They have small holes for the little pins that hold the controls in a fixed position. They also have rubber-grommet covered holes for the throttle and choke or decomp cable. So altogether there are 7 holes.

Kreidler

Kreidler bars
355.0301 $45 good used

Kreidler bars

xxx thickness ∼7/8″ 0.862″ 21.9 mm
xxxxxxx width 24″
xxxxxx height 8.7
xxxxxxxx rise 8.8
xclamp length 3.2
control length 6.3
xxxx pull back 3.5

These clamp-on bars are on Kreidler Flory MP9 and MP19 mopeds. The handlebar has a short tab under the center, that fits into a slot in the fork top plate.

Motobecane

Motobecane clamp-on bars
21143 $20 – $40 used, straight

1977 Motobecane 50V

Motobecane 50V bars

xxx thickness ∼7/8″ 0.862″ 21.9 mm
xxxxxxx width 21.5
xxxxxx height 6.3
xxxxxxxx rise 6.2
xclamp length 3.5
control length 5.5
xxxx pull back 4.6

These bars are on 1975-1980 Motobecane mopeds, US models 7, 40, 50, 50V, Moby, Le Moped.

Peugeot

Peugeot 103 bars
56320 (not available)

1977 Peugeot 103 LVS

Peugeot 103LVS bars

xxx thickness ∼7/8″ 0.862″ 21.9 mm
xxxxxxx width
xxxxxx height
xxxxxxxx rise
xclamp length
control length
xxxx pull back

These bars are on Peugeot 103LS and 103LVS models. They are so scarce that no sample was available for a photo and measurement.

1980 Peugeot 103 SPB

Peugeot SP bars
52711 $70 new old stock

Peugeot 103SP bars

xxx thickness ∼7/8″ 0.862″ 21.9 mm
xxxxxxx width 22.3
xxxxxx height 7.5
xxxxxxxx rise 7.0
xclamp length 2.8
control length 6.5
xxxx pull back 4.2

These bars are on 102SP and 103SP models. They have thin wall tubing, for light weight, but they bend easily. So unbent originals are scarce.

Puch

Puch 1969-77 Maxi bars-with-stem
349..232..1000 $35 used, pitted

1977 Puch Maxi
bars-with-stem

Puch 1969-77 bars-with-stem

xxx thickness ∼7/8″ 0.862″ (21.9mm)
xxxxxxx width 23″
xxxxxx height  6.0 plus stem
xxxxxxxx rise  6.0 plus stem
xclamp length  —-
control length 5.5
xxxx pull back 2.8

These bars are on early Puch Maxi models, 1969 to 1977. The height is adjustable by the position of the stem.

1977 Puch Maxi
with clamp-on bars

Puch Maxi 1977-86 clamp-on bars
321..532..3011 see below for prices

Puch 1977-86 bars

xxx thickness ∼7/8″ 0.862″ (21.9mm)
xxxxxxx width 24.2″
xxxxxx height 8.8
xxxxxxxx rise 8.6
xclamp length 3.5
control length 6.0
xxxx pull back 4.3

These clamp-on bars are on 1978-79 Maxi Luxe, Newport, Maxi II, and 1980-86 Maxi, Maxi Luxe, Newport II.

Puch Maxi fork top plates
L for bars-with-stem $15 – $10
R for clamp-on bars $35 – $30

1. $25 straight, clean, but pitted
2. $25 straight, clean, but pitted
3. $25 straight, clean, but pitted
4. $10 straight, badly pitted
5. $20 straight, clean, pitted
6. $20 straight, clean, pitted
7. $10 straight, badly pitted
8. $15 straight, but pitted
9. $45 straight, nice, some pitting
10. $50 straight, almost no pitting
11. $60 straight, no pitting, like new
12. $25 straight, dark blue sparkle

1985 Puch Maxi,
with tall bars

Puch tall bars
321..432..3011 N/A used scratched

Puch tall bars

xxx thickness ∼7/8″ 0.866″ 22.0 mm
xxxxxxx width 25.7
xxxxxx height 10.6
xxxxxxxx rise 10.3
xclamp length 3.5
control length 6.0
xxxx pull back 4.1

These bars are the same as Maxi bars but taller. They are on 1977-78 Sport, Sport MkII, and 1984-86 Maxi, Maxi Sport LS, Maxi Sport LS 2. They are heavy because of thick wall tubing.

1980 Magnum II

Puch tall cross bars
321..832..3011 $25-$35 used pitted

Puch tall cross bars

xxx thickness ∼7/8″ 0.862″ (21.9mm)
xxxxxxx width 25.7
xxxxxx height 10.6
xxxxxxxx rise 10.3
xclamp length 3.5
control length 6.0
xxxx pull back 4.5

These bars are the same as tall bars, but have a curved crossbar. They are on 1979-86 Sport, Sport MkII and 1980 Magnum II.

1978 Magnum MkII

Puch Magnum cross bars
321..132.8012 N/A

Puch low cross bars

xxx thickness ∼7/8″ 0.862″ (21.9mm)
xxxxxxx width 25″
xxxxxx height 8.6
xxxxxxxx rise 8.4
xclamp length 3.5
control length 6.0
xxxx pull back 4.3

These bars are similar to Maxi bars, but shorter and with a curved crossbar. They are on 1978-79 Magnum XK, Magnum MkII.

Sparta

1980 Sparta Buddy

Sparta handlebars, 8 available, from
$20 scuffed or faded, to $60 like new

Sparta bars

xxx thickness ∼7/8″ 0.871″ (22.1mm)
xxxxxxx width 22.8
xxxxxx height 6.3
xxxxxxxx rise 7.3
xclamp length 3.5
control length 6.0
xxxx pull back 5.6

There are several mopeds with these handlebars: Sparta Foxi GT, Sparta Buddy, Sparta Lucky, Sparta Flying Dutchman, and others. These bars are the same as Batavus VA, Batavus Starflite, Batavus Regency bars, but with more pullback. They are made in Holland with high quality chrome that resists rusting.

Tomos

1979-86 Tomos controls
(made by Magura)

1986-91 Tomos controls
(made by Domino)

1992-08 Tomos controls
(made by HR)

< These Tomos controls do not have a post, so the handlebar does not need holes.

2001-07 Tomos controls
(made by Domino)

2008-13 Tomos controls
(made by TBS)

< These Tomos controls have a post that goes into a hole in the handlebar. When changing handlebars, holes have to be drilled. The holes have to be in a particular place to make the levers the same, and at the correct angle.

1979 Tomos Bullet

Tomos 1974-1979 bars with stem
209.178 $45 used (shown)

Tomos 1974-1979 bars-with-stem

xxx thickness ∼7/8″ 0.867″ (22.0mm)
xxxxxxx width 23.4
xxxxxx height 7.0
xxxxxxxx rise 6.8
xclamp length —-
control length 6.0
xxxx pull back 3.2

This stem type handlebar is what bicycles have. Older mopeds were more like bicycles. The stem can be positioned to make the bars higher or lower.

1979-1991 Tomos bars chrome
214810 $20 rusty, to $60 almost new

1987 Tomos Bullet

Tomos 1979-1991 bars

xxx thickness ∼7/8″ 0.867″ (22.0mm)
xxxxxxx width 24.3
xxxxxx height 7.6
xxxxxxxx rise 7.0
xclamp length 3.5
control length 6.5
xxxx pull back 3.8

1985 Golden Bullet

Tomos 1985-08 bars black
222888 N/A new (no holes)
222888 $13-$18 used

Tomos 1985-2008 bars

xxx thickness ∼7/8″ 0.0875″ (22.2mm)
xxxxxx width 24″
xxxxxx height 7.5
xxxxxxxx rise 7.9
xclamp length 4.0
control length 6.0
xxxx pull back 3.7

These bars do not have the holes for 2008-13 controls.

2010 Tomos ST

Tomos 2008-13 bars black
242199 N/A new (with holes)
242199 $12-$25 used

Tomos 2008-2013 bars

xxx thickness ∼7/8″ 0.0875″ (22.2mm)
xxxxxx width 24″
xxxxxx height 7.5
xxxxxxxx rise 7.9
xclamp length 4.0
control length 6.0
xxxx pull back 3.7

These bars have the holes for late-model Domino or TBS controls.

Tomos Streetmate bars chrome
236416 $30 used (with holes)

2005-12 Streetmate

Tomos Streetmate bars

xxx thickness ∼7/8″ 0.0872″ (22.2mm)
xxxxxx width 26.2″
xxxxxx height 4.2
xxxxxxxx rise 5.6
xclamp length 4.3
control length 7.7
xxxx pull back 5.7

These have holes for late Domino or TBS controls.

Tomos Revival bars chrome
242042 $40 (with holes)

2002-12 Tomos Revival

Tomos Revival bars

xxx thickness ∼7/8″ 0.0872″ (22.2mm)
xxxxxx width 25.0″
xxxxxx height 6.6
xxxxxxxx rise 8.1
xclamp length 4.3
control length 7.5
xxxx pull back 6.7

These have holes for late Domino or TBS controls.

Sprockets

July 14, 2014

updated 2022-08

A. Front sprockets

Engine sprockets are also listed with the engine parts.
Sprockets are new old stock originals unless noted.
Price: green is new, dark green is good used, low wear.

teeth price MMI# Minarelli# Minarelli 15 x 10 x 5
09T $12.0 4800 58.0220.0 1.0 hp V1 2.25-16
10T $20.0 4810 58.0221.0 1.5/2 V1 2.25-16
11T $15.0 4820 58.0222.0 2.0 hp V1 2.25-16
12T $30.0 4822 58.0203.0 1.5 hp C2 2.25-16
13T $25.0 4823 58.0204.0 2.0 hp C2 2.25-16
00T $2.00 4830 49.0641.0 washer ∅10 ∅22 x 0.8
00T $2.00 4840 49.0323.0 nut M10-1.25 x 6 hex17

teeth price Morini# Morini 15 x 12 flat sided
10T $17.0 23-2550 13.5 thick for M101
11T $15.0 23-2551 13.5 thick for M101
11T $15.0 23-2508 6.0 thick S5K, S5K2
13T none 23-2534 6.5 thick for M1
13T $15.0 23-2561 13.5 thick for M1 late
14T none 23-2552 13.5 thick for M1 late
teeth price Morini# Morini 15 x 12 flat sided
14T $15.0 23-2580 splined thick for S6?
12T $15.0 23-2506 tapered, keyed MO1, MO2
13T $15.0 23-2501 tapered, keyed MO1, MO2
00T $2.00 25-4002 washer ∅12 ∅20? x 1?
00T $10.0 13-1002 nut M12-1.25 x 6 hex17

teeth price Motobecane# Motobecane
11T $15-00 17352 for 40, 50 25mph, 50V 25, 30
12T none 0 18939 for model 40, 50 20mph
13T $00-00 20732 for model 40, 50 30mph

teeth price Puch# 00000 Puch
11T $00-00 000.050.1316 for 1.0 hp E50
13T $20-10 349.113.1132 for 1.0 hp E50
14T $20-10 349.113.1142 for 1.5 hp E50
15T none 0 349.113.1152 for 1.5 hp E50
16T $20-10 349.113.1162 for 1.5/2.0 E50
18T $20-10 349.113.1182 for 2.0 hp ZA50

Some original Puch sprockets still have the polyurethane covering,
but it will soon crack and fall off, because it has become brittle.

Tomos front for thin tire models, rear for Arrow/Racing
teeth price Tomos# ID looseness (mm)
18T none 000000 28.? 0.4? flat replica
18T $65.0 000000 27.8 0.0 flat modified, orig. center
24T none 236544 27.8 0.0 flat original for Arrow rear
25T $13.0 000000 28.3 0.5 flat replica chrome
26T $25.0 209078 27.8 0.0 flat original for thin rear tire
26T $13.0 000000 28.3 0.5 flat replica K Star
27T $13.0 000000 28.2 0.4 flat replica black
Tomos front for wide tire models
teeth price Tomos# ID looseness (mm)
26T $50.0 230788 28.0 0.2 dished original for wide rear tire
26T none 000000 28.? 0.4? dished replica
27T none 000000 28.? 0.4? dished replica

Tomos original sprockets made before 2008 said TOMOS and fit properly. The center splined hole fits tight and has no wiggle room. Most aftermarket sprockets, and ones made from 2008 on, do not fit properly. The center splined hole is bigger than it needs to be.

When the center hole is too big, the sprocket does not stay centered. Instead, it shifts back and forth every revolution. That make the chain pulsate, where it gets tighter and looser every revolution of the front sprocket. It feels like always being on a bumpy road. It leads to chain wear and sometimes damage to the driveshaft splines.

B. Rear sprockets

Sprockets in the same family have the same centering hole,
and the same bolt hole circle.

Families 1 to 12 sprockets are on the opposite side as the brake.
They are for mopeds and mini-cycles with a single drive chain.

1. Tomos lip x 60

Sprockets in this family are kept centered by the
lip that surrounds the small 17 mm center hole.

28.0 centering lip, 17 hole, 1-chain aluminum hub
60 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

22T 4 0 27-15 Tomos 209261 A3 SP ’75-91 Bullet 30mph

24T 4 0 $27.0 Tomos 213256 A3 GM ’76-91 Bullet 25mph

26T 4 0 none Tomos 211847 A3 SL ’76-89 Bullet 20mph

32T 4 0 $20.0 Tomos trike

2. Grimeca 36.5 x 62

36.5 centering hole diameter, 1-chain hub or wheel
62 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

31T 4 0 none Ward Riverside ’65-66 (Benelli)

2. Grimeca 38.0 x 60

38.0 centering hole diameter, 1-chain hub or wheel
60 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

22T 5 0 none generic black from treatland

24T 5 0 $25.0 Tomos 232880 good-used A35 Revival ’02
24T 5 0 none Grimeca steel hub 118 mm drum
24T 5 0 none Grimeca 3 Razze 16″ cast alum. wheels

37T 5 0 none Grimeca 3 Razze 16″ from treatland

3. Grimeca 39.5 x 62

39.5 centering hole diameter, 1-chain hub or wheel
62 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

22T 4 0 34-17 Tomos 217089 A3 SP ’77-86 Silver Bullet 30
22T 4 0 $17.0 good-used, low wear

24T 4 0 none Tomos 217093 A3 GM ’77-86 Silver Bullet 25

26T 4 0 none Tomos 000000 A3 SL ’77-86 Silver Bullet 20

27T 4 0 $24.0 Tomos 230187 A35 MC36

28T 4 0 $34.0 Malaguti H123/28 MO1 13/28T 30mph
28T 4 0 none Pacer 230 123/28 MO1 12/28T 25mph
32T 4 0 $25.0 good-used, low-wear

30T 4 0 none Motobecane H123/30 MO1 Sebring 17″

32T 4 0 $34.0 Malaguti H123/32 MO1 12/32T 25mph
32T 4 0 none Garelli 500451.4.227 Gar H1 30mph

33T 4 0 $24.0 generic black

34T 4 0 none Demm 4.7535.1560 Demm Smily

35T 4 0 none generic black

36T 4 0 none Garelli 503551.4.227 Gar H1 25mph

38T 4 0 $32.0 Gitane 71052144 Min V1 .
38T 4 0 $19.0 good-used, low-wear
38T 4 0 $24.0 generic black

40T 4 0 none Malaguti H123/40 MO1 12/40T 20mph
40T 4 0 none Pacer 230A H123/40 MO1 12/40 20mph

42T 4 0 $40.0 Cimatti 2670 Min V1 .
42T 4 0 none Garelli 503701.4.227 Gar H1 20mph

44T 4 0 $40.0 Motron 0050 Min V1 .
44T 4 0 none generic black

45T 4 0 $32.0 Benelli 71.33.38.00 Ben G2 G2
45T 4 0 $27.0 Fantic black plastic

4. Trac 40.0 x 62

40.0 centering hole diameter, 1-chain hub or wheel
62 bolt holes diameter, M8 bolts, 420 or 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

39T 4 0 $24.0 Trac 41201-M56-8930 used, M56 415 chain, spoke wheel

42T 4 0 $32.0 Trac 41201-CL1-000 for Daelim 420 chain, spoke wheel

5. Tomos 40.5 x 60

40.5 centering hole diameter, 1-chain hub
60 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

24T 5 0 none Tomos 243060 A35 MC50 Jr
24T 5 0 none 243060 modified see 42.5 x 60 4-hole

28T 5 0 none Tomos 243061 A35 MC50 Sr

6. Indian 42.0 x 62

42.0 centering hole diameter, 1-chain hub or wheel
62 bolt holes diameter, M8 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

28T 4 8 none Indian W213-28-50 Mira wheel

30T 4 8 $43.0 Indian W213-00-50 spoke wheel

40T 4 0 $34.0 unidentified

7. Grimeca 42.5 x 66

42.5 centering hole diameter, 1-chain hub or wheel
66 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅35 bearing

20T 4 0 $9.00 generic 633084 too small, must modify

22T 4 0 $20.0 generic for Tomos with non-Tomos wheels

28T 4 0 none Malaguti H123/28M Morini MO1 13/28T 30mph
28T 4 0 none Pacer 247 H23/28M Morini MO1 12/28T 25mph

30T 4 0 $30.0 Garelli 000966.4.234 Garelli G2,V2 Gulp, VIP
30T 4 8 none Bernardi H123/30B Morini MO1 .

32T 4 0 none Malaguti H123/32M Morini MO1 12/32T 25mph
32T 4 0 none Garelli 500601.4.299 Garelli H1 mags 30mph
32T 4 8 none Bernardi H123/30B Morini MO1 .

36T 4 0 none Garelli 506873.4.234 Garelli H1 mags 25mph
36T 4 8 none Bernardi H123/36B Morini MO1 .

39T 4 0 none Batavus H123/39M Regency M56 w/mags
39T 4 0 $38.0 Trac 41201-M56-8900 used, M56 w/mags #415
39T 4 0 $29.0 Trac 41201-M56-8900 Eagle M56 w/mags #420

40T 4 0 none Malaguti H123/40M Morini MO1 12/40T 20mph
40T 4 0 none Pacer 247A 23/40M Morini MO1 12/40T 20mph
40T 4 0 none Hercules 0890 222 000 Sachs 505 .
40T 4 8 none Bernardi H123/40B Morini MO1 .

42T 4 0 none Garelli 501501.4.234 Garelli H1 mags 20mph
42T 4 0 $29.0 Trac 41201-HA1-000 Daelim mags #420 M6 holes
42T 4 0 $29.0 Trac 41201-HA1-000 Daelim mags #420 M7 holes

44T 4 0 $30.0 Motron 0050B used Minarelli V1 w/mags

46T 4 0 none Hercules 0890 239 000 Sachs 505 .

50T 4 0 none Hercules 0890 223 000 Sachs 505 .
50T 4 0 none Hercules 0890 239 001 Sachs 505 .

8. Tomos 42.5 x 60

42.5 centering hole diameter, 1-chain hub or wheel
60 bolt holes diameter, M7 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅32 bearing

20T 4 0 $9.00 633084 aftermarket too small, must grind

22T 4 0 $27.0 Tomos 222586 A3, A35 ’86-06 2.25-16 30mph
22T 4 0 $00.0 Tomo A55 derestricted ’07-18 2.25-16 35mph
22T 4 0 $20.0 222586 aftermarket .

24T 4 0 $25.0 Tomos 227361 A3, A35 ’86-91 2.25-16 25mph
24T 4 0 $00.0 Tomos 227361 A3/A35 ’04-06 3.25-16 30mph
24T 4 0 $00.0 Tomo A55 derestricted ’06-13 3.25-16 35mph
24T 5+4 $29.0 243060 modified to replace 227361

28T 4 0 $10.0 Tomos 223119 A55 orig. ’07-18 2.25-16 30mph

31T 4 0 $14.0 Tomos 227863 A55 orig. ’06-13 3.25-16 30mph

9. General 44.0 x 62

44 centering hole diameter, 1-chain hub
62 bolt holes diameter, M8 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# ∅90 small hub models

40T 3 0 none General 2150-5482 for Sachs 505/1A

44T 3 0 none General 1150-5482 for Minarelli V1

50T 3 0 none General 2150-5483 for Sachs 505/1B

⇓ holes ⇓ price link part# ∅110 big hub models

40T 4 0 $32.0 General 1150-5482 for Sachs 505/1A

10. Grimeca 45.5 x 66

45.5 centering hole diameter, 1-chain hub or wheel
66 bolt holes diameter, M7 bolts, 420 chain
teeth dish
⇓ holes ⇓ price link part# engine models ∅35 bearing

42T 4 0 $28.0 Columbia 713-0227 used, worn Sachs 505 25/30mph

48T 4 0 $32.0 Columbia 713-0228 used, low-wear Sachs 505 20mph

Columbia sprockets do not have lightening holes.

11. Derbi 53.0 x 65

53.0 centering hole diameter, 1-chain hub or wheel
65 bolt holes diameter, M8 bolts, 415 chain
teeth dish
⇓ holes ⇓ price link part# engine models

30T 4 0 $38.0 Derbi 000.821.3030 Variant SL, SLE, TT

33T 4 0 none Derbi 0F0.131.0031 Variant Sport

42T 4 0 $36.0 Derbi 000.791.3030 C-5 Diablo, RD50

12. Trac 62.0 x 80

62.0 centering hole diameter, 1-chain hub or wheel
80 bolt holes diameter, M8 bolts, 420 chain
teeth dish
⇓ holes ⇓ price link part# engine models

44T 4 0 $30.0 unidentified, maybe Honda

Families 13 to 18 sprockets are on the same side as the brake.
The drum brake is in the center of the sprocket,
for 2-chain hubs with both motor and pedal chains.

13. Leleu 81 x 93

81 centering hole diameter, 2-chain aluminum hub
93 bolt holes diameter, M6 bolts, 415 chain
teeth pat dish price link part# engine models 70 brake drum

35T 4 10 none Motobecane 23043 model 7 30mph

39T 4 10 none Motobecane 54183 model 7 20, 25mph

42T 5p 10 none Peugeot 68855 black 102 U3 30mph

48T 6p 8 $39.0 Batavus 44.420 M48 VA, HS50, Starflite 20, 30

50T 6p 8 $25.0 Batavus 44.379 M48 VA, HS50, Starflite 25 mph
50T 6p 8 $12.0 good-used, low-wear

50T 5p 10 $30.0 Peugeot 64150 black 102 U2 25mph

14. Angel 92 x 112

92 centering hole diameter, 1-chain hub
112 bolt holes diameter, M6 bolts, 420 chain
teeth pat dish price link part# engine models 80 brake drum

40T 4 14 $26.0 Taiwan

44T 4 5.5 $25.0 Taiwan

50T 4 8.0 $25.0 Taiwan (Angel)

15. Grimeca 94 x 107

This sprocket family is for Grimeca 90 mm 2-chain hubs
with internal shield brake plates, instead of external.

94 centering hole diameter, 2-chain hub or wheel
107 bolt holes diameter, M6 bolts, 415 chain
teeth pat dish price link part# engine models 90 brake drum

38T 4d 0 none KTM Foxi 1210.060.000 Sachs 504 spoke wheel
38T 5 0 none KTM Foxi 0000.000.000 Sachs 504 mag wheel

40T 4d 0 none generic black from treatland
40T 4d 14 none Kynast Flying Dutchman Sachs 504 spoke whl

45T 4d 0 $55.0 Hercules 0890 215 000 Sachs 504 25, 30 mph
45T 4d 0 $35.0 good-used

50T 4d 0 none Hercules 0890 211 000 Sachs 504 20 mph
50T 4d 0 $28.0 good-used, low-wear

16. Leleu 94 x 104

94 centering hole diameter, 2-chain hub or wheel
104 bolt holes diameter, M6 bolts, 415 chain
teeth pat dish price link part# engine models 80 brake drum

36T 5p 12 none Peugeot 51608 103L2 U3=30mph
36T 5p6p 12 $25.0 good-used, not worn
36T 6p 12 none Sparta 055029 Sachs 504 25/30mph
36T 6p 7.5 $16.0 generic black
36T 6p 12 $40.0 Kreidler 265.02.11 MP-9, MP19 Flory 30/25

38T 6p 7.5 $24.0 generic chrome

39T 5p 12 none Batavus 44.521 M56 Regency w/spoke wheel

40T 5p 12 $35.0 Peugeot 40947 103L2 U2=25mph
40T 5p6p 12 $25.0 generic vintage
40T 6p 7.5 none Puch 349.141.0401 Puch ZA50 spoke wheels
40T 6p 7.5 $20.0 generic light grey
40T 6p 7.5 $24.0 generic chrome
40T 6p 7.5 $15.0 generic used

44T 6p 10 $45.0 Motobecane 20090 ’74-80 40, 50 25/30
44T 6p 10 $30.0 good-used, low wear
44T 6p 12 $35.0 Kreidler 000.00.00 MP-9, MP19 Flory 20mph

45T 6p 7.5 none Puch 349.141.0451 Puch E50 spoke wheels
45T 6p 7.5 $30.0 good-used low wear
45T 6p 7.5 $15.0 good-used

48T 5p 12 $35.0 Peugeot 48795 103LS U1, 103L2 U1 20mph
48T 5p6p 12 $25.0 generic vintage, tight fit, needs grinding
48T 5p6p 12 $25.0 generic vintage
48T 6p 10 $30.0 Motobecane 53873 ’76-78 40, 50 20mph
48T 6p 12 none Sparta 055029 Sachs 504 20mph models

52T 5p 12 $38.0 Peugeot 51608 103LVS U2, U3 103SP U3
52T 5p6p 12 $16.0 generic black

54T 6p 10 $45.0 Motobecane 20093 ’74-80 50V 25/30
54T 6p 10 $30.0 good-used, low wear

56T 5p 12 $35.0 Peugeot 54443 103SP U2=25mph
56T 5p 12 none good-used, low wear

59T 5p 12 none Peugeot 61443 black 103SPR U2, U3

17. Grimeca 98 x 115

98 centering hole diameter, 2-chain hub or wheel
115 bolt holes diameter, M6 bolts, 415 chain
teeth pat dish price link part# engine models 90 brake drum

40T 4 7.5 $35.0 Puch 349.141.7401 ZA50 snowflake wheels

42T 5 7.5 none generic replacement from treatland

45T 4 7.5 $35.0 Puch 349.141.7451 E50 snowflake wheels
45T 4 7.5 $20.0 good-used, low wear
45T 5 7.5 none Puch Korado 5-hole E50 from treatland

51T 5 7.5 none Puch Korado 5-hole E50 from treatland

18. Columbia 115 x 125

115 centering hole diameter, 2-chain hub or wheel
125? bolt holes diameter, M6 bolts, 415 chain
teeth pat dish price link part# engine models 105 brake drum

42T 4 7.5 none Columbia 713-0244 Sachs 25/30mph

48T 4 7.5 none Columbia 713-0245 Sachs 20 mph

57T 4 7.5 none Columbia 713-0246 Solo 20/25/30

C. Sprocket Parts

Part# colors: Italian (MMI), Tomos, Taiwan, Puch .

# holes price holes bolt 0 Locking Plates .
# holes price c-c pattern part# .
21 2-M8 $4.00 43.8 ∅62 x 4 1150-5481 Gen/Trac 110/90
00 0-M0 $0.00 for 4. 40 x 62, 6. 42 x 62, 9. 44 x 62 (4-hole)
22 2-M6 $5.50 81.3 ∅115×4 349.141.7181 Puch 90 mag
00 0-M0 $0.00 for 17. 98 x 115 “snowflake mag” 2-chain
31 3-M8 $5.00 53.7 ∅62 x 3 1150-5478 General 90 hub
00 0-M0 $0.00 for 9. 44 x 62 (3-hole)
41 4-M7 $4.50 42.4 ∅60 x 4 222583 Tomos 105/90 hub/mag
00 0-M0 $0.00 for 5. 40.5 x 60, 8. 42.5 x 60
42 4-M7 $4.00 43.8 ∅62 x 4 H122 Italian/Tomos 90 hub
00 0-M0 $0.00 for 1. lip x 62, 3. 39.5 x 62
43 4-M7 $5.00 46.7 ∅66 x 4 H122M Italian 105/90 hub/mag
00 0-M0 $0.00 for 7. 42.5 x 66, 10. 46.5 x 66

hex head price 00 part000# chains Sprocket Bolts .
mm size price 00 part# 00000 type drum type .
M6 x 16 /00 $0.80 000000000000 2 alloy 70/80 hub
M6 x 20 /00 $1.00 000000000000 2 steel 90 hub
M7 x 18 /00 $1.00 H124 0000000 1 steel 90 hub
M7 x 20 /00 $0.80 H124alt
M7 x 22 /00 $1.70 025208 H124T 1 alloy 90 hub
M7 x 25 /00 $0.80 026304 00000 1 alloy105 hub/mag
M7 x 30 /00 $0.80 025210 H124M 1 alloy 90 mag
M7 x 35 /00 $1.00 026305 00000 1 alloy105 wide hub
M8 x 35/34 $0.60 611-08034 00o 1 alloy 90 hub
M8 x 40/43 $0.60 611-08043 00o 1 alloy110 hub

mm size hex price part# Sprocket Nuts .
M6 x 5 hex10 $0.30 000000 regular
M7 x 6 hex11 $0.60 000000 regular
M7 x 7 hex11 $1.20 H124A tall nut
M8 x 7 hex13 $0.80 000000 regular

D. Sprocket Info

How to tell the chain pitch by measuring the sprocket

1. The teeth are counted. That gives n.

2. A round tapered tool like a punch or chopstick is placed in the sprocket tooth valley, and slid back and forth until it matches the half circle at the bottom of the valley. The tapered tool is measured where it matched the sprocket tooth valley. That gives dr.

3. If the tooth count n is an even number, the sprocket minumum diameter is measured directly with a caliper. If the tooth count n is an odd number, the sprocket minimum diameter is estimated. That gives dm.

4. Chain pitch is then calculated. pitch = (dr+dm)*sin(180/n)

How to calculate the holes diameter

When the hole count n is an odd number, the holes diameter d cannot be measured directly. d must be calculated from the measured hole spacing s.

d = s/sin(180/n)

How to tell if the teeth are worn

The valleys in between the teeth are U shaped. On a new sprocket both sides of the U are the same. As the sprocket wears, the side of the U that the chain pulls on becomes worn were the roller contacts it.

Trac Sprockets and Chains

82-84 M56 17T Eagle, Hawk Grimeca mag 16
41201-M56-8900 sprocket 42.5 x 62 39T 4-M7
40530-M56-8900 chain #415 98L

82-84 M56 17T Clipper, Eagle, Hawk spoke wheel 16
41201-M56-8930 sprocket 40.0 x 62 39T 4-M8
40530-M56-8900 chain #415 98L

84-89 Daelim 12T Hawk, Image Grimeca mag 16
41201-HA1-000 sprocket 42.5 x 66 42T 4-M6x25
40530-HA1-000 chain #420 96L
40531-005-890 master link

84-89 Daelim 12T Clipper, Escot spoke wheel 16
41201-CL1-000 sprocket 40.0 x 62 42T 4-M8
40530-HA1-000 chain #420 96L
40531-005-890 master link

84-89 Daelim 12T Liberty, Olympic spoke big hub 17
41201-005-890 sprocket 00.0 x 00 44T 4-M8x35
40530-005-890 chain #420 00L
40531-005-890 master link

40.0 x 62 42T 4-M8 41201-CL1-8930? #420 spoke wheel
chain #420

Chains

July 14, 2014

updated 2020-06

Contents: 1. Chain Sizes
Contents: 2. Moped Chains
Contents: 3. Master Links
Contents: 4. Chain Service Topics
Contents: 5. Myrons Chain List
Contents: 6. Moped Chain History

1. Chain Sizes

Pitch is the distance from one link to another. Pitch matters the most. The pitch, in eighths of an inch, is the first digit of the motorcycle chain size.

Roller Width (Wr) is the distance between the insides of the chain inner plates.

Named width is the minimum width of chain, and the maximum width of sprocket. The named width, in eighths of an inch, is the second and third digit in the motorcycle chain size.

Roller Diameter (Dr) is the third thing that matters for fitting a given sprocket.

Any replacement chain must have the same pitch and roller diameter (Dr). The roller width (Wr) should be the same but can be a little more. The roller width is correct for the sprocket width when the chain can move side-to-side on the sprocket, but only a little bit. So the sprocket width needs to be a little less than the roller width.

410, 410H 4/8 x 1.0/ pitch roller 0 Dr 0 Dp 0 Wr 0 sprocket
410, 410H 4/8 x 1.0/ pitch x width 0 Dr 0 Dp 0 range width Cycle chains
410, 410H 4/8 x 1.0/8 1/2 x 1/8″0 7.95 3.58 3.2-3.5 2.6-2.9 bicycles (without derailleur)
415, 415H 4/8 x 1.5/8 1/2 x 3/16″ 7.95 3.58 4.8-5.3 4.2-4.5 most mopeds, motorcycles
420, 420H 4/8 x 2.0/8 1/2 x 1/4″0 7.95 3.97 6.3-6.5 5.7-6.0 some mopeds, motorcycles
425, 425H 4/8 x 2.5/8 1/2 x 5/16″ 7.95 3.97 7.9-7.9 7.2-7.6 motorcycles
428, 428H 4/8 x 2.5/8 1/2 x 5/16″ 8.51 4.76 7.9-7.9 7.2-7.6 motorcycles
520, 520H 5/8 x 2.0/8 5/8 x 1/4″0 10.2 5.08 6.3-6.3 5.7-6.0 motorcycles
525, 525H 5/8 x 2.5/8 5/8 x 5/16″ 10.2 5.08 7.9-7.9 7.2-7.6 motorcycles
530, 530H 5/8 x 3.0/8 5/8 x 3/8″0 10.2 5.08 9.5-9.5 8.7-9.1 motorcycles
630, 630H 6/8 x 3.0/8 3/4 x 3/8″0 11.9 0.00 9.5-9.5 8.7-9.1 motorcycles

43, 000 4/8 x 1/ pitch roller 0 Dr 0 Dp 00 Wr 0 sprocket American Standards Association
43, 000 4/8 x 1/ pitch x width 0 Dr 0 Dp 0 range width ASA chains obsolete 1928-1966
43, 000 4/8 x 1/8 1/2 x 1/8″0 7.95 3.58 3.2-3.5 2.6-2.9 bicycles (without derailleur)
42, 42H 4/8 x 3/16 1/2 x 3/16″ 7.95 3.58 4.6-5.0 3.9-4.3 heavy duty bicycles

25, 25H 2/8 x 1/8 x 1/8 roller 0 Dr 0 Dp 00 Wr 0 sprocket American National Standards Institute
25, 25H 2/8 x 1/8 pitch x width 0 Dr 0 Dp 0 range width ANSI chains 1969-on
25, 25H 2/8 x 1/8 0= 1/4 x 1/8 0 3.30 2.31 0.0-0.0 0.0-0.0 5=bushed scooters, cam chains
35, 35H 3/8 x 3/16 = 3/8 x 3/16 5.08 3.18 0.0-0.0 0.0-0.0 5=bushed scooters, mini-bikes
41, 000 4/8 x 1/4 0= 1/2 x 1/4 0 7.77 3.58 0.0-0.0 0.0-0.0 1=roller light gates, mini-bikes
40, 000 4/8 x 5/16 = 1/2 x 5/16 7.92 3.97 0.0-0.0 0.0-0.0 0=roller std industrial
50, 000 5/8 x 3/8 0= 5/8 x 3/8 0 10.2 0.00 0.0-0.0 0.0-0.0 0=roller std industrial
60, 000 6/8 x 1/2 0= 3/4 x 1/2 0 11.9 0.00 0.0-0.0 0.0-0.0 0=roller std industrial

04B = 000 pitch x width 0 Dr 0 Dp 0 Wr 0 sprocket International Standards Organization
04B = 000 pitch x width Dr 0 Dp range 0 width 0 I.W 0 OW ISO chains
04B = 0000 M6 x 2.8 0 4.00 1.85 2.8-0.0 0.0-0.0 0.00 0.00 roller scooters, cam chains
04C 00= 25 1/4 x 1/8 0 3.33 2.31 3.2-0.0 0.0-0.0 0.00 0.00 bushed scooters, cam chains
04MA 0= 25H 1/4 x 1/8 0 0.00 2.31 3.2-0.0 0.0-0.0 0.00 0.00 bushed scooters, cam chains
05B = 0000 M8 x 3.0 0 5.00 2.31 3.0-0.0 0.0-0.0 0.00 0.00 roller scooters, mini-bikes
06C 00= 35 3/8 x 3/16 5.08 3.59 4.9-0.0 0.0-0.0 0.00 0.00 bushed scooters, mini-bikes
06B = 0000 3/8 x 7/32 6.35 3.28 5.7-0.0 0.0-0.0 0.00 0.00 roller scooters
082 00= 00 1/2 x 3/32 7.75 0.00 2.5-0.0 0.0-0.0 0.00 0.00 roller multi-speed bicycles
081 0= 410 1/2 x 1/8 0 7.75 3.66 3.2-3.5 0.0-0.0 0.00 0.00 roller single speed bicycles
084 0≈ 415 1/2 x 3/16 7.75 4.07 4.9-0.0 0.0-0.0 0.00 0.00 roller mopeds
086 = 0000 1/2 x 3/16 8.43 0.00 5.0-0.0 0.0-0.0 0.00 0.00 roller Jawa, bigger rollers
085 00= 41 1/2 x 1/4 0 7.77 3.59 6.3-0.0 0.0-0.0 0.00 0.00 roller parking lot gates
08B 0≈ 428 1/2 x 5/16 8.51 4.47 8.0-0.0 0.0-0.0 0.00 0.00 roller motorcycles
08MC = 428H 1/2 x 5/16 0.00 4.47 8.0-0.0 0.0-0.0 0.00 0.00 roller motorcycles

T8F = 000 pitch x width Dr 0 Dp 0 Wr 00 sprocket I.W 0 OW Other chains
T8F = 0000 M8 x 3/16 4.7? 3.25 4.8-0.0 0.0-0.0 0.00 0.00 roller scooters, pocket bikes

Chain replacement: When there is nothing else close to the chain except the sprocket teeth, the three blue dimensions, pitch, width, and roller diameter are all that matter for replacing an entire chain (and the number of links). These are related to the places that touch the sprocket. If the 3 blue items on the replacement chain are the same, it will fit the same sprockets.

The exceptions are when there are other things close to the chain. On some Chinese bicycle engines with a 415 chain, the engine case is very close to the chain. A 415H replacement chain is wider, scrapes the side of the engine causing damage and breakage. On vintage Motobecane mopeds there are rubber bands on the front sprocket that interfere with a 415H, preventing it from sitting all the way into the valleys. When those are in place a 415H does not mesh well. It sounds and feels terrible. Once the rubber bands are removed a 415H replaces a 415 perfectly. See Chain Service below.

Link replacement: For replacing a master link or one or more individual links, more things matter: inner width, pin length and pin diameter. On modern chains these 3 red items are standardized. But for vintage 1970’s and 80’s chains they were not. Often several different chains interchange (fit the same sprocket), but have different pin diameters, pin lengths, and plate thicknesses. So while the entire chain interchanges, the individual links do not. For example, a vintage Puch master link would not fit a vintage Garelli chain (because the pin is too thick). But an entire Puch chain would replace an entire Garelli chain.

Measuring: Chains for mopeds, motorized bicycles, gas or electric scooters, mini-ATVs, go-karts, mini-cars, and mini-bikes are not on most application charts. For these oddball vehicles you have to determine the chain size by measurement with a digital calipers, and counting how many link pins.

Metric and Inch Some Chinese made scooters and pocket bikes have 04B chains (6 mm pitch) instead of 25 (6.35 = 1/4″). Some have T8F or 05B chains (8 mm pitch) instead of 35 (9.53 = 3/8″). Metric chains look the same but don’t interchange with inch chains.

H versions: The H (heavy duty) versions fit the same sprocket but have thicker wider plates and thicker longer pins. So a 415 master link won’t fit a 415H chain (because the pins are too short), and a 415H master link won’t fit a 415 chain (because the pins are too thick).

2. Moped Chains

size 0 Dp x I.W color links price part# item# master Dp x OW says modern replacements ½” pitch
O042 3.58 x 6.9 black 96L $20.0 TYC-96 xx 0 2d 3.58 x 7.2 TYC 42 xsome bike motors, Peugeot 102
O042 3.58 x 6.9 black 100L none TYC-100 x 0 2d 3.58 x 7.2 TYC 42 xsome bike motors, Peugeot 102
O041 3.58 x 8.9 black 90L $20.0 41-90 xxxx 3a 3.58 x 9.2 MAX 41 industrial American mini-bikes
O041 3.58 x 8.9 black 98L $20.0 41-98 xxxx 3a 3.58 x 9.2 MAX 41 industrial, American mini-bikes
O041 3.58 x 8.9 black 240L $45.0 41-240 xxx 3a 3.58 x 9.2 MAX 41 industrial, parking lot gates
415H 3.93 x 8.0 black 90L $18.0 415H-90 22 3e 3.93 x 8.5 KMC xEuro mopeds, most pre-08 Tomos
415H 3.93 x 8.0 black 91L $21.0 415H-91 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 92L $18.0 415H-92 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 93L $21.0 415H-93 22 3e 3.93 x 8.5 KMC xEuro mopeds, most 08-on Tomos
415H 3.93 x 8.0 black 94L $18.0 415H-94 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 95L $21.0 415H-95 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 96L $18.0 415H-96 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 97L $21.0 415H-97 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 98L $15.0 415H-98 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 99L $18.0 415H-99 22 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 100L $20.0 415H-100 2 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 101L $23.0 415H-101 2 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 102L $20.0 415H-102 2 3e 3.93 x 8.5 KMC x European mopeds
415H 3.93 x 8.0 black 103L $23.0 415H-103 2 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 104L $20.0 415H-104 2 3e 3.93 x 8.5 KMC x European mopeds
415H 3.93 x 8.0 black 105L $23.0 415H-105 2 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 106L $20.0 415H-106 2 3e 3.93 x 8.5 KMC x European mopeds
415H 3.93 x 8.0 black 107L $23.0 415H-107 2 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 chro. 98L $20.0 16096-98 23 3e 3.93 x 8.5 KMC x European mopeds
415H 3.93 x 8.0 chro. 110L $25.0 16096-110 0 3e 3.93 x 8.5 KMC xEuropean mopeds
415H 3.93 x 8.0 black 110L N/A.0 340360 A xx 3e 3.93 x 8.5 RK x European mopeds
415H 3.93 x 8.0 black 122L N/A.0 491200 xx 0 3e 3.93 x 8.5 CIC x European mopeds
O420 3.93 x 9.4 black 84L $18.0 RK 420 x 25 4b 3.93 x 9.8 RK x Asian mopeds
O420 3.93 x 9.4 black 100L $20.0 420-100 4b 3.93 x 9.8 plain xAsian mopeds
O420 3.93 x 9.4 black 120L $25.0 420-120 4b 3.93 x 9.8 plain xAsian mopeds
428H 4.45×12.0 black 120L $27.0 RK428H xx 0o 4.45×12.5 RK xx small motorcycles

size Dpin x I.W color links price name/photo master Dp x OW says vintage originals ½” pitch
O415 3.87 x 8.0 black 102L N/A.0 Iris xxxxxx 3b 3.87 x 8.4 Iris xxxx Derbi 1970’s original NOS
O415 3.87 x 8.0 copp. 106L $65.0 Iris race 24 3b 3.87 x 8.4 Iris xxxx Derbi 1980’s racing chain
O415 3.87 x 8.4 black 90L $35.0 Regina 415 3c 3.87 x 8.7 Reg. 415 Tomos 1980’s original NOS
O415 3.93 x 7.5 black 88L $40.0 Sedis xxxxx 3d 3.93 x 7.9 Sedis xx Peugeot 1970’s original NOS
O415 4.05 x 7.7 black 92L $35.0 Wcirc92 xx 4e 4.05 x 7.9 Wippermann Tomos 1970’s, others
O415 4.05 x 7.7 black 98L $40.0 Wcirc98 x 4e 4.05 x 7.9 Wippermann Tomos 1970’s, others
O415 4.05 x 7.7 black 100L $40.0 Wcirc100 x 4e 4.05 x 7.9 Wippermann Flying Dutchman, others
O415 4.05 x 7.9 black 77L $25.0 RegExtra x 5a 4.05 8.2-8.6 Reg Extra Italian 1970’s (has half link)
O415 4.05 x 8.2 black 90L $28.0 Regina x 5b 4.05 8.7-9.0 Regina xx Tomos 1970’s
O415 4.05 x 9.0 black 95L N/A.0 RegHD xx 5c 4.05 9.2-9.4 Reg Extra Italian 1970’s (has half link)
O415 4.05 x 9.0 black 100L $65.0 Union xxx 5c 4.05 9.2-9.4 Union x Puch 1970’s original NOS
O415 4.14 x 9.2 nickel 96L $45.0 ČZ xxxxxx 6a 4.14 x 9.6 ČZ xxxx Tomos 1990’s original NOS

3. Master Links

# type x Dpin x OW size price 1/4″ pitch
1a master 2.29 x 5.0 ANSI 25 $3.00 #25

# type x Dpin x OW size price 3/8″ pitch
1b master 3.57 x 7.7 ANSI 35 $3.00 #35
1c ½ link 3.57 x 7.7 ANSI 35 $3.00 #35
1d master 3.57 x 7.7 ANSI 35-2 $4.00 #35 double row

# type x Dpin x OW size price 1/2″ pitch
1e master 3.57 x 5.0 1/2″ x 3/32″ $1.50 10 speed bicycle thin
2a master 3.57 x 5.8 410 clipless $1.00 flex to unlock
2b master 3.57 x 5.8 410(ASA 43) $2.00 #410 bicycle clip type
2d master 3.57 x 7.2 ASA 42 $6.00 Peugeot 102
2e ½ link 3.57 x 7.6 ASA 42H $3.00
3a master 3.57 x 9.2 ANSI 41 $3.00
3b master 3.87 x 8.3 415 Iris xxx $7.00 Motobecane, Derbi original
3c master 3.87 x 8.7 415 Regina x N/A Tomos 80’s
3d master 3.93 x 7.9 415 Sedis xx $5.00 Peugeot 103 original
3e master 3.93 x 8.5 415H xxxxx $3.00 2004-later Tomos original
3e master 3.93 x 8.5 415H chrome N/A fits 1990-later
3e ½ link 3.93 x 8.5 415H xxxxxx $3.00 fits 1990-later
4a master 3.96 x 8.8-9.2 415 Reg. $8.00 h.d Regina Extra
4b master 3.93 x 9.8 420 xxxxxxxx $3.00 wider than 415 or 415H
4b ½ link 3.93 x 9.8 420 xxxxxxxx $5.00 thinner than 420H or 40
4d master 3.93 x 11.1 ANSI 40 xxx $5.00 40 also fits 420H
4e master 4.05 x 7.9 415 W circled $5.00 70s -80s Tomos original
5a master 4.05 x 8.2-8.6 415 Reg. $5.00 Italian “Regina Extra”
5b master 4.05 x 8.7-9.0 415 plain $5.00 original chain
5c master 4.05 x 9.2-9.4 415 Union $8.00 Puch, Regina Extra HD
5d master 4.14 x 8.4 415 plain xxx $2.00 Indian some say TYC 415
5e master 4.14 x 8.4 415 plain xxx $10.0 bag of 10
6a master 4.14 x 9.4 415 W circled $6.00 late 1980’s Tomos
6a master 4.14 x 9.6 415 “ČZ” xxxx N/A late 90’s-early 00’s Tomos
6c master 4.42 x 9.2 Jawa xxxxxxx $4.00 Jawa – thicker pin & roller
6d master 4.43 x 11.4 428H xxxxx $5.00 small motorcycles
O

At left is Myrons Mopeds master link cabinet, full of master links and half links from 20 other moped shops that closed in the late 1980’s in Southern California. Each of the drawers contains about 10 to 100 links. Each link was measured carefully and/or put through this gauntlet of Go/NoGo gauges, which are the actual master links and corresponding inner links contained in each drawer. From left to right, the order is smallest pitch first, smallest pin first (for that pitch), and the smallest inner width first (for that pitch and pin). Inner width for a master link is the space between the inside of the outer plates, which is slightly greater than the inner width for the chain, as in the chart below.

Notice that there are no “international” master links, like 04B (6mm) or 05B (8mm). These chains did not appear in California until the late 1990’s with the stand-up scooters, pocket bikes, and electric bikes and scooters, mostly from China.

4. Chain Service

How to install and remove master links.

Motobecane: 1970’s-1980’s Motobecane Mobylette 40, 50, or 50V mopeds, the front sprocket behind the large pulley has some rubber rings that interfere with modern 415H chains. Fortunately the two 1 1/4 inch rubber rings, one on each side of the sprocket, can be removed with something like a curved dental pick. This issue of a chain not meshing because of (unnecessary) rubber noise dampener rings contacting the outer plates instead of the sprocket contacting the rollers, also occurs on Peugeot, but not as much.

Motobecane front sprockets with rubber rings.
Left, the original IRIS chain, meshes correct.
Right, modern 415H, with taller plates,
rides up too high and does not mesh.

Motobecane front sprockets without rubbers.
Left, the original IRIS still meshes good.
Right, the 415H meshes good now.
The end roller is cut away to see the fit.

Peugeot 103: Sometimes the newer “H” rated chains do not fit until after the bike is rode for a few minutes. The two rubber rings on either side of the original sprocket interfere with the larger outer plates on the 415H chain, causing the chain to run higher and not mesh well. After riding awhile the chain noise gets less, as the rubbers get squished and interfere less. Still, it is better to remove the pulley, and remove the rubber rings, shown at right, to have a smooth running chain.

Peugeot 102 front sprocket with original rubber rings. 415H chain does not mesh.

Peugeot 102/103 front sprocket with original rubber rings. 415H chain does not mesh.

Peugeot 102 front sprocket with rubber rings removed.

Peugeot 102/103 front sprocket with rubber rings removed. 415H wraps around fully.

Peugeot 102: This is the only US-model moped that uses a 42 chain, same sprocket as a 415 (1/2 x 3/16), but lighter duty (thinner pins, thinner and smaller plates). Sedis made both 415 chain for Peugeot 103, and 42 chain for the lighter weight Peugeot 102. Old Sedis chains are often cracked. Then they break/throw the chain. No fun. To use a modern 415H chain, the two rubber rings on either side of the sprocket must be removed, or it won’t mesh properly. See photos at right.

Motorized Bicycles: 415 – Only Kind: Certain modern motorized bicycle gas engine kits use a 415 chain that passes very close to the engine case on both sides. These do not have enough room for the wider-on-the-outside 415H. They require a 415.

Motorized Bicycles: 415 and 410 Mixed: Certain modern motorized bicycle gas engine kits have a wide engine sprocket for 3/16 and a thin rear sprocket for a 1/8 chain. A 415 or 415H chain works but would be expected to have less retention (it would come off easier).

Motorized Bicycles: Long Chain Runs: Motorized bicycles with long chain runs need chain guides and/or chain tensioners, or else the chain comes off when it slaps going over bumps, or when the frame or wheel flexes, or when the engine mounts shift/slip. The kits don’t usually come with any.

American Made Minibikes: There were many different manufacturers of minibikes back in the 60’s and 70’s but most of them used either a 35, 40, 0r 41 chain. Number 35 was used on most all 4-5-6 inch wheel minibikes while 41 was used on larger minicycles such as Rupp Roadster II and Speedway. Number 41 chain will not run on a number 40 sprocket. Number 40 chain will run on a number 41 sprocket but it will be wider than needed.

Fun Karts and Minibikes: Many chains have the chain size stamped directly on the chain links. #35, 40, 41 and 420 chain are used in the Fun Kart and Mini Bike industry. An 11 or 12 tooth clutch sprocket usually indicates the use of #35 chain. 10 tooth clutch sprockets usually indicate the use of #40, 41 or 420 chain.

More about ANSI chains: http://chain-guide.com/applications/1-1-1-ansi-roller-chains.html

More about sprockets: http://www.gizmology.net/sprockets.htm

More about International chains: http://www.renold.com/Support/ChainInformationCentre/Chain_Standards.asp

Why all of this madness about chains? All through the 1970’s and 1980’s when you needed a master link for your moped, you had to get it from a dealer that sold that kind, or else you had to bring in your chain and hope they could find one that fit. If you had a Motobecane and you needed a master link, you could not get one from a Puch dealer, even if you showed them your chain. Their master links had thicker pins. For decades, owners have been frustrated when they bought a #415 master link for their chain, and it did not fit. That’s because there are 18 or so different 415-compatible chains. By the 1990’s no moped shop sold master links, instead they made you buy a whole chain. Thankfully, there is much better standardization in this century, in moped chains. But there are still a lot of older moped chains and substitutes that are all different. So it’s still not possible to tell (guess) what master link a customers moped needs over the phone. Some things never change…

5. Myrons Chain List

Scan up and down the chart looking for similarities. Notice how the pitch P, and roller width W, and roller diameter D, can be the same for many different chains. Too bad the pin diameter A can vary with the maker. Ouch. A pin too big won’t fit. A pin too small will fit, but will be loose. The only way to get the correct master link is by knowing the pitch P, roller width W, roller diameter D, inner width W+2*T, and pin diameter A.

#########	#####	###################################	#######	#########################
Wire Gauges		MYRONS COMPLETE CHAIN SIZE CHART		made from many charts combined
BS10=3.25mm		by Shaun Strahm Feb 2013
US10=3.57			Chain	ANSI ISO std JIS std BS
BS 9= 3.66	ISO=	International Organization of Standardization	#######	#########################
US 9= 3.97	ANSI	American National Standards Institute	bush	B29.1 ISO 1395 JIS B1801
BS 8= 4.06	ASA	American Standard Association (old name)	roller	B29.1 ISO 606 JIS B1801
US 8= 4.37	BS =	British Standard or “Metric Chain”	heavy use	B29.1 ISO 3512
BS 7= 4.47	JIS =	Japanese Industrial Standards	bicycle	ISO 9633 JIS D9417 BS 228
US 7= 4.76	JCAS	Japan Chain Association Standards	motorcycle	ISO 10190 JCAS 1 BS 6715
BS 6= 4.88	DIN=	Deutsches Institut für Normung	#######	#########################
US 6= 5.16				ISO 606 (DIN 8187) is European
				ANSI B29.1 (DIN 8188) = American
########	####	################################	#######	#########################
		(dimensions in millimeters) calcd	master link
Chain		A# chain roller roller pin plate inner pin	max min	quotes = directly measured
Size		or pitch width diam diam thick width length	pin inner	? = estimate or guess
P x W	ISO#	JIS# P W D A T W+2T R	dia width	Std Source Application/Notes
########	####	################################	#######	#########################
CHAIN SIZE		# pitch width roller pin plate inner outer	master link	S M A L L E R C H A I N S :
3/16x 3/32	03C	15 4.76 2.38 4.00 1.85 0.60 3.78 6.80		ISO hzpt.com industrial
M5 x 2.5	03B	5.00 2.50 3.20 1.49 0.60 3.70 7.40		BS/DIN beijingthc.com
M6 x 2.8	04B	6.00 2.80 4.00 1.85 0.60 4.00 7.40		BS/DIN beijingthc.com
M6 x 2.8	04B	6.00 2.80 4.00 1.85 0.60 4.00 6.80		BS hzpt.com industrial
M6 x 2.8	04B	6.00 2.80 4.00 1.83 0.61 4.02 6.30		BS Allied-Locke industrial
1/4 x 1/8	04C	25 6.35 3.18 3.30 2.30 0.75 4.68 7.60		ANSI hzpt.com (bush, not roller)
1/4 x 1/8	04C	25 6.35 3.18 3.30 2.29 0.76 4.70 7.92		ANSI Diamond (bush, not roller)
1/4 x 1/8	04C	25 6.35 3.18 3.30 2.28 0.76 4.74 8.64		ANSI docstoc.com (bush, not roller)
1/4 x 1/8	04C	25 6.35 3.18 3.30 2.30 0.75 4.68 8.60		ANSI chainsprocketpulley.com
1/4 x 1/8	04C	25 6.35 3.28 3.25 2.27 0.80 4.60 7.95		ANSI “25” direct measure
1/4 x 1/8	04MA	25H 6.35 3.18 3.30 2.30 1.00 5.18 8.90		ANSI mdmetric.com (bush)
1/4 x 1/8	04MA	25H 6.35 3.18 3.30 2.30 1.00 5.18 9.00		ANSI hzpt.com (bush, not roller)
1/4 x 1/8	04MA	25H 6.35 3.22 3.25 1.99 1.00 5.22 8.95		ANSI “DID 25SH”
1/4 x 1/8	04MA	25H 6.35 3.28 3.25 2.0? 1.00 5.18 8.95		ANSI “25H” (PC50 cam chain 42L)
M7.8 x 4.7	05MA	219 7.77 4.68 4.59 3.00 1.20 7.08 11.5		JCAS mdmetric.com (bush)
M8 x 3.0	05B	8.00 3.00 5.00 2.31 0.80 4.60 8.20		BS hzpt.com industrial
M8 x 3.0	05B	8.00 3.00 5.00 2.31 0.75 4.50 8.2?		BS/DIN beijingthc.com
M8 x 3.0	05B	8.00 3.2 5.00 2.3 0.75 4.7 8.2?		BS/DIN ocm.co.jp industrial
M8 x 4.7	05T	8.00 4.70 4.73 3.05 1.25 7.20 11.0		ISO hzpt.com industrial
M8.5 x 4.8	05MC	270H 8.50 4.75 5.00 3.28 1.80 8.35 13.3		JCAS mdmetrics.com (bush)
3/8 x 5/32		old 9.53 4.00 6.28 3.23 1.25 6.50 10.9		“W” circled (roller) Tomos A3
3/8 x 5/32		old 9.53 4.05 6.35 3.2? 1.30 6.65 10.6		“Regina Extra” (roller) Tomos A3
3/8 x 3/16	06C	35 9.53 4.76 5.08 3.58 1.27 7.30 11.8	3.57×7.7	ANSI Diamond (bush, not roller)
3/8 x 3/16	06C	35 9.53 4.76 5.06 3.56 1.30 7.36 11.7	3.57×7.7	ANSI “ANSI 35” (bush, not roller)
3/8 x 3/16	06C	35 9.53 4.76 5.08 3.58 1.27 7.30 12.7	3.57×7.7	ANSI docstoc.com (bush, not roller)
3/8 x 3/16	06C	35 9.53 4.85 5.10 3.6? 1.35 7.55 11.9	3.57×7.7	ANSI “Regina ASA 35” (bush)
3/8 x 3/16	06C	35 9.53 4.99 4.99 3.6? 1.10 7.19 11.7	3.57×7.7	ANSI “KMC 35” (bush) Tomos A35/55
3/8 x 7/32	06B	9.53 5.72 6.35 3.28 1.32 8.36 13.4		BS/DIN ocm.co.jp industrial
3/8 x 7/32	06B	9.53 5.72 6.35 3.28 1.30 8.32 13.2		BS hzpt.com industrial
3/8 x 7/32	06B	9.53 5.72 6.35 3.28 1.27 8.26 12.5		BS/DIN beijingthc.com
3/8 x 7/32	06BH	9.53 5.72 6.35 3.28 1.50 8.72 14.0		ISO hzpt.com industrial
3/8 x 1/4		9.53 6.35		obsolete ?
3/8 x 5/16		9.53 7.94 5.03 3.6? ?.?? 13.5? 15.5		(bush, not roller)
3/8 x 3/8	06MA	T3F 9.53 9.50 6.00 4.50 1.80 ??.? 18.6		(China only) (bush)
########	####	################################	#######	#########################
CHAIN SIZE		# pitch width roller pin plate inner outer	master link	B I C Y C L E C H A I N S :
1/2×11/128		12.7 2.2? 7.75 3.6? 0.7? 3.6? 5.5	special	ISO wikipedia bicycle 11sp Camp
1/2×11/128		12.7 2.2? 7.75 3.6? 0.8? 3.8? 5.9	special	ISO wikipedia bicycle 10sp Camp
1/2×11/128		12.7 2.2? 7.75 3.6? 0.8? 3.8? 6.2	special	ISO KMC X10 bicycle 10 speed
1/2×11/128		12.7 2.2? 7.75 3.6? 0.9? 4.0? 6.6	special	ISO KMC Z9000 bicycle 9 speed
1/2 x 3/32		12.7 2.4? 7.75 3.58 0.9? 4.2? 7.1	special	ISO KMC Z72 bicycle 7-8 spd
1/2 x 3/32		12.7 2.4? 7.75 3.58 1.0? 4.4? 7.3	special	ISO KMC Z50 bicycle 6-7 spd
1/2 x 3/32		12.7 2.5? 7.75 3.58 1.0? 4.5? 7.8	none	ISO KMC Z30 bicycle 5-6 spd
1/2 x 3/32	082	12.7 2.40 7.75 3.63 1.0? 4.4? 8.1	none	BS/DIN THC 47 beijingthc.com
1/2 x 3/32		12.7 2.45 7.70 3.57 1.00 4.45 7.5	none	ISO “Sedisport” bicycle 5-6 spd
1/2 x 3/32		12.7 2.55 7.71 3.58 1.00 4.55 7.9	none	ISO “W.S. 7-6” bicycle 5-6 spd
1/2 x 1/8	081	12.7 3.30 7.75 3.66 1.10 5.50 10.2	3.57×5.8	BS/DIN hangzhou bicycle 1-spd
1/2 x 1/8		43 12.7 3.40 7.75 3.63 1.02 5.40 9.4	3.57×5.8	ANSI THC 42 beijingthc.com
1/2 x 1/8		410 12.7 3.45 7.71 3.57 1.00 5.45 8.8	3.57×5.8	ISO “TAVA Taiwan” bicycle 1sp
1/2 x 1/8		old 12.7 3.46 7.74 3.57 0.95 5.36 9.2	3.57×5.8	ISO “U” Union-Styria bicycle
1/2 x 1/8		410 12.7 3.50 7.68 3.59 1.00 5.50 8.8	3.57×5.8	ISO “KMC Z” bicycle 1-spd
########	####	################################	#######	#########################
CHAIN SIZE		# pitch width roller pin plate inner outer	master link	M O P E D C H A I N S :
1/2 x 3/16		42 12.7 4.80 7.77 3.63 1.02 6.84 10.8	3.57×7.2	ANSI OCM chain S Series
1/2 x 3/16		42 12.7 4.95 7.75 3.58 1.02 6.95 10.6	3.57×7.2	BS “TYC 82D” freight bicycle
1/2 x 3/16		42 12.7 5.00 7.74 3.57 1.02 7.00 11.1	3.57×7.2	old “Sedis France” Peugeot 102
1/2 x 3/16		42H 12.7 5.00 7.72 3.58 1.27 7.54 12.?	3.57×8.0	ANSI “42 USA”
1/2 x 3/16		old 12.7 5.02 7.72 3.87 2.00 9.02 14.5		“Regina Extra” h. duty Italian
1/2 x 3/16		old 12.7 5.04 7.68 3.88 1.50 8.04 13.2	3.87×8.2	“IRIS” Derbi, Motobecane
1/2 x 3/16		415 12.7 5.02 7.72 3.89 1.70 8.42 13.8		“Regina 415” Tomos A3
1/2 x 3/16		415 12.7 5.04 7.75 3.92 1.25 7.54 11.7	3.92×7.9	“Sedis France” Peu 103, Batavus
1/2 x 3/16		415 12.7 5.03 7.71 3.95 1.25 7.53 11.8	3.92×7.9	“unmarked” round rivets
1/2 x 3/16		415 12.7 5.05 7.73 3.96 1.25 7.55 12.2	3.92×7.9	“Sedis France” round rivets
1/2 x 3/16		415 12.7 4.88 7.75 3.96 1.30 7.48 12.5	3.92×7.9	ISO ZHC chain moped
1/2 x 3/16		415H 12.7 4.99 7.69 3.92 1.50 7.99 13.1	3.92×8.5	JCAS “KMC K415H” bmx freestyle
1/2 x 3/16		415H 12.7 5.00 7.67 3.93 1.50 8.00 13.1	3.92×8.5	JCAS “C I C” Tomos A35 mid 00’s
1/2 x 3/16		415H 12.7 4.92 7.71 3.93 1.50 7.92 13.2	3.92×8.5	JCAS “RK 415H” moped/freestyle
1/2 x 3/16		415H 12.7 4.95 7.68 3.93 1.50 7.95 13.3	3.92×8.5	JCAS “415H” brownish color
1/2 x 3/16		415H 12.7 4.88 7.75 3.96 1.50 7.88 12.8	3.92×8.5	JCAS ZHC chain moped
1/2 x 3/16		old 12.7 5.00 7.73 4.05 1.30 7.60 12.2	4.05×8.2	“W” circled Tomos A3 original
1/2 x 3/16		old 12.7 5.05 7.73 4.04 1.40 7.85 12.9	4.05×8.2	“Regina Extra” Italian mopeds
1/2 x 3/16		old 12.7 5.33 7.69 4.07 1.82 8.97 14.7	4.05×9.2	“Regina (underlined)” Italian
1/2 x 3/16	084	12.7 4.88 7.75 4.09 1.80 8.48 14.8	4.05×9.2	BS hangzhou industrial
1/2 x 3/16		old 12.7 5.00 7.75 4.05 2.00 9.00 14.3	4.05×9.2	“Styria” Union Puch original
1/2 x 3/16		old 12.7 4.92 7.72 4.14 1.43 7.78 12.1	4.13×8.3	“unmarked” industrial
1/2 x 3/16		old 12.7 5.11 7.72 4.14 1.90 8.91 14.5	4.13 x 9.4	“Regina (underlined)” Italian
1/2 x 3/16		old 12.7 5.35 7.68 4.14 1.90 9.15 14.5	4.14×9.6	“ČZ” silver Tomos A35 late 90’s
1/2 x 3/16		old 12.7 4.88 7.75 4.18 1.50 7.88 12.8	4.14×8.3	chainsprocketpulley.com
1/2 x 3/16		old 12.7 5.0? 8.4? 4.43 1.4? 7.8? 14.?	4.43×9.2	“unmarked” unknown
1/2 x 3/16 086		Jawa 12.7 5.0? 8.43 4.43 1.82 8.6? 14.?	4.43×9.2	“unmarked” Jawa original
1/2 x 1/4	085	41 12.7 6.25 7.75 3.58 1.25 8.85 13.7	3.57×9.2	BS hzpt.com light duty
1/2 x 1/4		41 12.7 6.45 7.70 3.57 1.25 8.85 13.3	3.57×9.2	ANSI “MAX 41” light duty
1/2 x 1/4		41 12.7 6.35 7.75 3.58 1.27 8.89 13.0	3.57×9.2	ANSI Diamond light duty
1/2 x 1/4	08MA	420 12.7 6.35 7.75 3.96 1.50 9.35 14.5	3.92×9.7	ISO ZHC chain motorcycle
1/2 x 1/4	08MA	420 12.7 6.35 7.72 3.95 1.50 9.35 14.8	3.92×9.7	JCAS “EK 420” Asian mopeds
1/2 x 1/4	08MA	420 12.7 6.35 7.74 3.93 1.50 9.35 14.7	3.92×9.7	JCAS “DID 420” Asian mopeds
1/2 x 1/4	08MA	420H 12.7 6.35 7.75 3.96 1.80 10.0 15.7	3.92×11.0	ISO ZHC chain motorcycle
1/2 x 1/4		420H 12.7 6.35 7.70 3.96 2.00 10.4 17.3	3.92×11.0	JCAS EK chain motorcycle
########	####	################################	#######	#########################
CHAIN SIZE		# pitch width roller pin plate inner outer	master link	L A R G E R C H A I N S :
1/2 x 5/16	08A	12.7 7.85 7.95 3.96 1.50 10.9 16.6		BS hzpt.com industrial
1/2 x 5/16		40 12.7 7.94 7.94 3.96 1.52 11.0 16.0		ANSI Diamond industrial
1/2 x 5/16		40 12.7 7.9? 7.9? 3.92 1.5? 11.? 15.?		ANSI “Japan 40” industrial
1/2 x 5/16	08B	12.7 7.85 8.51 4.45 1.62 11.1 16.7		BS/DIN ocm.co.jp industrial
1/2 x 5/16		428 12.7 7.97 8.43 4.45 1.50 11.0 16.4		JCAS “DMC 428” motorcycle
1/2 x 5/16	08MC	428H 12.7 7.75 8.51 4.45 2.03 11.8 18.3		ISO ZHC chain motorcycle
1/2 x 5/16	08MC	428H 12.7 7.94 8.51 4.50 2.00 12.0 19.6		JCAS EK chain motorcycle
5/8 x 1/4	10MA	15.9 6.25 10.2 2.40 11.1 18.9		ISO mdmetric.com
5/8 x 1/4		520 15.9 6.35 10.2 5.24 2.00 10.4 18.6		JCAS EK chain motorcycle
5/8 x 1/4		520 15.9 6.35 10.2 5.08 2.00 10.4 17.7		JCAS ZHC chain motorcycle
5/8 x 1/4		520H 15.9 6.35 10.2 5.24 2.42 11.2 18.9		JCAS ZHC chain motorcycle
5/8 x 1/4		520H 15.9 6.35 10.2 5.24 2.20 10.8 19.5		JCAS EK chain motorcycle
5/8 x 5/16		525 15.9 7.94 10.2 5.08 2.03 12.0 18.7		JCAS ZHC chain motorcycle
5/8 x 5/16		525H 15.9 7.94 10.2 5.24 2.42 12.8 20.4		JCAS ZHC chain motorcycle
5/8 x 3/8	10A	15.9 9.40 10.2 5.08 2.03 13.5 20.7		BS hzpt.com industrial
5/8 x 3/8	10MB	15.9 9.40 10.2 2.00 13.4 20.9		ISO mdmetric.com
5/8 x 3/8		50 15.9 9.53 10.2 5.08 2.03 13.6 20.1		ANSI Diamond industrial
5/8 x 3/8		530 15.9 9.53 10.2 5.08 2.00 13.5 20.9		JCAS ZHC chain motorcycle
5/8 x 3/8		530H 15.9 9.53 10.2 5.08 2.42 14.3 21.9		JCAS ZHC chain motorcycle
5/8 x 3/8		530H 15.9 9.53 10.2 5.38 2.40 14.3 23.0		JCAS EK chain motorcycle
5/8 x 3/8		532 15.9 9.53 11.1		JCAS (bigger roller)
5/8 x 3/8	10B	15.9 9.65 10.2 5.08		BS Morse industrial
5/8 x 3/8	12MA	19.1 9.40 11.9 2.40 14.2 25.9		ISO mdmetric.com
3/4 x 3/8		630 19.1 9.53 11.9 5.95 3.20 15.9 25.2		JCAS EK chain motorcycle
3/4 x 3/8		632 19.1 9.53 12.7		JCAS (bigger roller)
3/4 x 7/16	12B	19.1 11.7 12.1 5.72		BS Morse industrial
3/4 x 1/2		60 19.1 12.7 11.9 5.94 2.39 17.5 25.1		ANSI Diamond industrial

6. Moped Chain History

Vintage Moped Chains: Vintage bikes often have obsolete chains, or they specify the size in an obsolete way. Vintage equipment used the inch size, pitch x width. Modern motorcycles all use chain model numbers, like 428, 520, 630. The above chart shows that connection. In mopeds, there are 18 different chains, all size 415, or 1/2 x 3/16. They have different pin diameters and inner widths. In modern mopeds there are about 3 or 4.

Moped Chain History: When a shop installs a new chain, they throw the leftover pieces in a box. As the years go by, layers of chains accumulate, with the oldest ones at the bottom, as long as no one mixes up the pile. That’s one way to “date” chains. At Myrons, certain boxes of parts have been untouched since about 1985 to 1995. Only one little scrap of modern 415H chain was in that material, from those years. Not even 415H master links were in that time zone. This little scrap is what Shaun believes to be the earliest example of a 415H chain. Shown below on the Motobecane sprockets, it’s gold and says “Taiwan”. Taiwan bicycle products and machinery blossomed in the 1980’s. China made components came out about 15 years later.

Italian Chain History: At least five different Regina chains are original on 1970’s and 80’s Italian made mopeds, two that say “Regina Extra” and three that say “Regina” underlined. See their pictures above. They all have different master links! Craziness!

pin x width plates name closest master link next closest

3.96 x 9.0 2.0 Regina Extra 4a. reg1 (3.96 x 9.2-9.5) 420H (3.93 x 9.8)

3.89 x 8.4 1.7 Regina 415 3e. 415H (3.93 x 8.5)

4.05 x 7.9 1.4 Regina Extra 5a. reg2 (4.05 x 8.2-8.6) 415H (3.93 x 8.5)

4.05 x 9.0 1.8 Regina (underline) 5c. puch (4.05 x 9.2-9.4) 420H (3.93 x 9.8)

4.14 x 8.9 1.9 Regina (underline) 6a. tom1 (4.14 x 9.4-9.6)

Tomos Chain History: At least seven different Tomos chains have been used over the years.

Italy 1970’s 3.89 x 8.4

Germany late 1970’s 4.05 x 7.9

Germany 1980’s 4.14 x 9.4

ČZ chain Slovenia? late 1990’s 4.14 x 9.6

CIC 415H Taiwan? mid 2000’s 3.93 x 8.5

415H China? late 2000’s 3.93 x 8.5

Germany 2013-on 4.14 x 9.6

Above, seven Tomos chains take three different master links. The pins range from 3.89 to 4.14mm thick. The inner width ranges from 7.9 to 9.6mm. “Inner width” means measured between the inside walls of the outer plates. A wider inner link will not fit inside a narrow outer link.

First the “Regina underlined” (3.89 x 8.4) on early A3, and Wippermann (4.05 x 7.9) also on early A3, then Wippermann (4.14 x 9.4) on late A3, then ČZ (4.14 x 9.6) on A35, then CIC 415H on late A35, and now plain 415H (3.93 x 8.5) on A55 models. The chains got thicker and wider and taller on the outside, as the decades progressed. The pins got thicker, and then thinner, and now thick again: 3.89 ->4.05 -> 4.14 -> 4.14 -> 3.93 ->3.93 ->4.14. Same thing with inner width: 8.4 -> 7.9 -> 9.4 -> 9.6 -> 8.5 ->8.5 ->9.6. Perhaps this is why Tomos stopped selling master links…

Pedal Parts

July 14, 2014

Contents: 1 Pedals 2 Pedal Cranks (Arms) 3 Pedal Pins 4 Pedal Shafts

Contents: 5 Pedal Freewheels 6 Pedal Chains 7 Pedal Chain Tensioners

Contents: 8 Pedal Shaft Bushings

1 P E D A L S

These are new pedal sets, right and left, size 9/16″. The thread is 9/16 – 20. They fit all mopeds except Motobecane, Peugeot, and Derbi, and other French or Spanish-made mopeds, such as the Spanish-made Puch Magnum.

41201 plastic $9

41124 classic $18

41559 platform $15

Union block type $23

400000 block $18

67302 folding $25

14a French thread $15

14b French thread $20

Four kinds of moped pedal threads

Pedal threads: Most bicycle pedals have either 1/2-20 or 9/16-20 threads. But some vintage bicycles use “French thread” pedals, which is metric 14 – 1.25. The 14.0 mm thread is slightly smaller than 9/16″ (14.3 mm), but bigger than 1/2″ (12.7mm).

14mm pedals screw into 9/16 cranks all the way but fit loosely. Then later they break off or strip out easier.

9/16 pedals screw into 14mm cranks so tight they stop half way. Then later they break off or strip out easier.

2 P E D A L C R A N K S

Left and Right: With shoes it’s easy to tell if they’re on the wrong feet. But with moped cranks it is not. A left crank and pedal looks and functions the same as a right. So it is possible for a moped to have both left pedals and cranks, or both right, or the right on the left side and the left on the right side. Then when, say the left side pedal is missing, it might actually need a right, or visa versa.

Righty Tighty: This rule says “Viewed from above the bolt head, turning to the right, clockwise, is tightening”. Almost all bolts and nuts obey this rule because they are right hand thread. But left hand threads are opposite. They obey the opposite rule, “Lefty Tighty”.

How to tell: It is sometimes not easy to tell if a pedal or a crank is left or right. Most modern bicycle pedals are stamped L or R. Most modern reproduction cranks are also stamped L or R. Most vintage European right cranks are stamped D (droit, destra, desno, derecho) or R (recht, right). Some vintage European left cranks are not marked, and some are stamped S (sinestra) or G (gauche) or L (levo, left).

Another way to tell is by viewing the threads directly. When a right thread bolt is held with the tail facing up, each thread slopes upward going from left to right. When a left thread bolt is viewed the same way, the threads slope in the opposite direction. With crank threads, right thread goes inward clockwise, left thread goes outward clockwise. You have to follow the first thread around in a circle with your eyes.

How not to strip threads: Know which way to turn, and use lubricant. Know how it should feel. Know how tight it should be. And know how to use taps or dies or thread files to “clean up” damaged threads, before they fail completely.

Pedal Crank Arms for Sale

All of these have a 16mm pedal shaft hole
Lengths are in inches, green price is new, dark green price is used

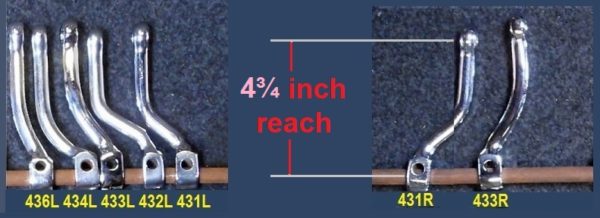

# reach length offset style pin thread L/R price original on description markings
431L 4¾ 5¾ 1.50 2   9.0 9/16-20 L none  Minarelli left (Sinistra) says S
431R 4¾ 5¾ 1.50 2 9.0 9/16-20 R none  Minarelli right (Destra) says D
432L 4¾ 5¾ 1.75 2   9.0 9/16-20 L $25.0 short high-offset left (Sinistra) S
433L 4¾ 5¾ 1.00 3 note 9/16-20 L $19.0 Minarelli or Morini replica left L
433R 4¾ 5¾ 1.00 3 note 9/16-20 R $23.0 Minarelli or Morini replica right R
434L 4¾ 5¾ 1.25 3   9.5 9/16-20 L none Morini MO1, MO2 left S use 502L
434R 4¾ 5¾ 1.25 3 9.5 9/16-20 R none Morini MO1, MO2 right D use 502R
435R 4¾ 5¾ 0.75 5   9.0 9/16-20 R none Minarelli V1 right (Destra) says D
436L 4¾ 5¾ 0.85 6   9.0 9/16-20 L 20-30 Vespa Ciao left (Sinistra) says S
433 = 433L & 433R 2 9.0 9/16-20 set $36.0 beautiful chrome shorty repro set
433 = 433L & 433R 2 note 9/16-20 set $35.0 shiny black shorty repro set
note: The 433 pedal arms require a 9mm pin and grinding of the shaft hole 1 mm bigger.
On these the grinding has been performed and is included in the price.

434L, 434R Morini MO1 MO2

Shown here are the 3-style vintage Italian original pedal cranks on Italian (mostly) mopeds with Morini MO1, MO2, M1 engines. These cranks need to be the 3 style, that “goes outward right away”, because the engine sticks out close to the pedal shaft.

Besides clearing the engine when the crank is horizontal, sometimes this style crank is needed to clear the covers above the engine, when the crank is vertical.

# reach length offset style pin thread L/R price original on description markings
501R 5 6 1.25 2 9.5 9/16-20 R $15.00 Batavus M48 right (Recht) says R
501L 5 6 1.25 2   9.5 9/16-20 L $28.00 Batavus M48 left (Links) says L
502R 5 6 1.25 3 9.5 9/16-20 R none Sachs 505 replica right (Recht) R
502L 5 6 1.50 3   9.5 9/16-20 L $20.0 Sachs 505 replica left (Links) L
503R 5 6 0.75 5 9.5 9/16-20 R N/A Cimatti (Minarelli) right (Recht) R
503L 5 6 0.75 5   9.5 9/16-20 L $20.00 Cimatti (Minarelli) left (Links) L
504R 5 5¾ 0.00 7 9.5 9/16-20 R $25.0 Trac M56 straight rough says R
504L 5 5¾ 0.00 7   9.5 9/16-20 L $25.0 Trac M56 straight rough says L
505R 5 5¾ 0.00 7 9.5 9/16-20 R N/A Batavus M56 straight smooth R
505L 5 5¾ 0.00 7   9.5 9/16-20 L $17.0 Batavus M56 straight smooth L
502 = 502L & 502R 3 note 9/16-20 set $33.00 3-style chrome rough-back set
note: 502 arms require a 9.0 pin with the flat part ground 1 mm lower. Price $7 each.

503R 1976-78 Cimatti

502 comparison

Left , comparison of 603L and 604R Garelli originals with 502L and 502R replacement arms, 3/4″ shorter.

Garelli Gulp

502 set on Garelli Gulp

Garelli Gulp requires pedal arms that go outward early, with a high offset. Here is the #502 pedal arm set that fits but the arms are one inch shorter.

These 502 pedal arms have 9.5 mm pin holes, but the holes are 1 mm closer to the pedal shaft, so they need 9.0 pins ground 1 mm thinner on the flat side.

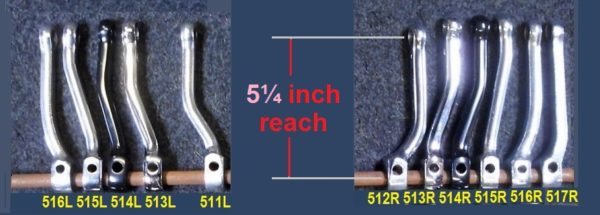

# reach length offset style pin thread L/R price original on description markings
510R 5¼ 6½ 1.50 2 9.5 9/16-20 R $21.00 replacement chrome right says R
510L 5¼ 6½ 1.50 2   9.5 9/16-20 L $19.00 replacement chrome left says L
511R 5¼ 6¼ 1.25 2 9.5 9/16-20 R N/A Sparta Foxi right (Recht)  says   R
511L 5¼ 6¼ 1.25 2   9.5 9/16-20 L $25.00 Sparta Foxi left (Links) says       L
512R 5¼ 6¼ 1.25 3 9.5 9/16-20 R $25.00 Hercules-Sachs 505 (Recht) R
512L 5¼ 6¼ 1.25 3   9.5 9/16-20 L   N/A Hercules-Sachs 505 left (Links) L
513R 5¼ 6¼ 0.75 4 9.0 9/16-20 R $19.00 Tomos A35, A55, chrome repro R
513L 5¼ 6¼ 0.75 4 9.0 9/16-20 L $19.00 Tomos A35, A55, chrome repro L
514R 5¼ 6¼ 0.75 4 9.5 9/16-20 R $17.00 Tomos A35, A55, black replica R
514L 5¼ 6¼ 0.75 4   9.5 9/16-20 L $17.00 Tomos A35, A55, black replica L
515R 5¼ 6 1.00 5   9.0 14-1.25 R    N/A Peugeot 102 right (Droite) says D
515L 5¼ 6 1.25 5   9.0 14-1.25 L $15-20 Peugeot 102 left (Gauche) says G
516R 5¼ 6 0.85 6 9.0 9/16-20 R $12-18 Vespa Grande, Si right (Destra) D
516L 5¼ 6 0.75 6   9.0 9/16-20 L $20-30 Vespa Grande, Si lf. says nothing
517R 5¼ 6 0.50 6 9.5 9/16-20 R    N/A pre-1987 Tomos A3 (Desno) D
517L 5¼ 6 0.50 6   9.5 9/16-20 L N/A pre-1987 Tomos A3 left (Levo) L
518R 5¼ 6 0.00 7 9.5 9/16-20 R $20.00 1970-95 Jawa rt. (Pravo) says P
518L 5¼ 6 0.00 7   9.5 9/16-20 L $20.00 1970-95 Jawa left (Vlavo) says L
513 = 513L & 513R 4 9.0 9/16-20 set $35.0 Tomos repro beautiful chrome set
514 = 514L & 514R 4 9.0 9/16-20 set $33.00 Tomos repro black coated set
Note: 513 and 514 arms have 9.5 mm pin holes but require 9.0 mm wedge pins.

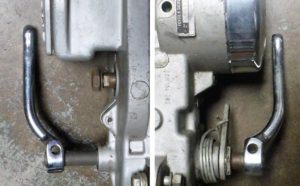

512L, 512R Hercules with 505

518R, 518L ’70-95 Jawa

Shown here are the M3-style vintage German original pedal cranks on Hercules mopeds with Sachs 505 engine, such as the US-model “Sachs Balboa”. On a Taiwan moped with a Sachs 505 engine, such as “General 5-Star ST”, the pedal cranks are Taiwan made compatibles, that look different but have about the same dimensions and same style.

These “go outward right away”, not to clear the engine, but to clear the covers above the engine, when the crank is vertical.

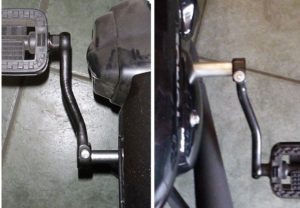

514L, 514R 1986-later Tomos

517R Tomos A3

Shown here are the 4-style modern Slovenian original pedal cranks on 1986 and later Tomos mopeds, from late A3 to A35 and A55 engine models. Here the 2009 Tomos A55 engine pedal shaft is much longer than it needs to be, by 3/4″ on the left, and 1 3/4″ on the right, as you can see.

Back in the day, moped engines (and people) were thinner. The early 1974-79 early A3 pedal cranks did not have or need much offset, as shown at right.

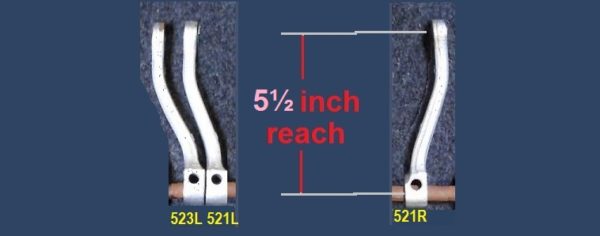

# reach length offset style pin thread L/R price original on description markings
521R 5½ 6½ 1.00 4   9.0 14-1.25 R 22-15 Motobecane right (Droit) D 40
521L 5½ 6½ 1.00 4   9.0 14-1.25 L $45.0 Motobecane left (Gauche) G 40
522R 5½ 6½ 1.00 4 9.0  9/16-20 R 32-25 Motobecane rt. re-threaded D 40
522L 5½ 6½ 1.00 4   9.0  9/16-20 L 55-45 Motobecane lf. re-threaded G 40
523L 5½ 6½ 1.25 4   9.0 14-1.25 L $50.0 MB left, 1/4″ extra offset G 40
524L 5½ 6½ 0.00 7   9.5  9/16-20 L $15.0 unidentified vintage European L
521 = 521L & 521R 4   9.0 14-1.25 set $60.0 Motobecane original-thread set
522 = 522L & 522R 4 9.0  9/16-20 set $90.0 Motobecane orig. re-threaded set

521L bent inward

521L, 521R Motobecane

Shown here are the 4-style vintage French original pedal cranks on Motobecane Mobylette mopeds 1972-1980+. On variator models, like 50V, the engine swings back as the bike speeds up. The clutch wheel often scrapes against the left pedal crank. On non-variator (Dimoby) models, like 50 or 40, the engine does not swing back as the bike speeds up (but it does swing to keep the belt tight). On those models there is also 3/8 inch more space between the clutch wheel and the pedal crank. So they “never” scrape.

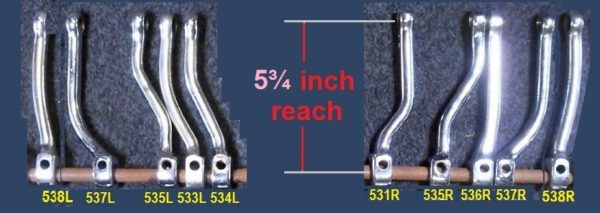

# reach length offset style pin thread L/R price original on description markings
531R 5¾ 6¾ 1.25 2   9.0 14-1.25 R $12-20 Peugeot 103 right (Droit)   V.P. D
532R 5¾ 6¾ 1.25 2 9.0 9/16-20 R $22-30 Peugeot 103 rt re-threaded V.P. D
533R 5¾ 6¾ 1.50 4 9.5 9/16-20 R N/A Columbia-Solo rt. (Recht) says R
533L 5¾ 6¾ 1.50 4   9.5 9/16-20 L N/A Col.-Solo lf. (Links) says nothing
534L 5¾ 6¾ 1.25 5   9.0 14-1.25 L $20-30 Peugeot 103 left says nothing
535L 5¾ 6¾ 1.50 2   9.0 14-1.25 L N/A French replica left (Gauche) G
535R 5¾ 6¾ 1.50 2   9.0 14-1.25 R N/A French replica right (Droite)   D
536R 5¾ 6¾ 0.75 6 9.0 9/16-20 R $24.00 pre-77 Garelli w/groove right D
536L 5½ 6½ 1.50 6   9.0 9/16-20 L N/A pre-77 Gar w/groove says nothing
537R 5½ 6½ 1.50 3 9.5 9/16-20 R N/A Avanti (Garelli remake) rt. says R
537L 5¾ 6½ 1.50 3   9.5 9/16-20 L   N/A Avanti (Garelli remake) lf. says L
538R 5¾ 6½ 0.80 6 9.5 9/16-20 R N/A Kreidler MP9 right (Recht) says R
538L 5¾ 6½ 0.80 6   9.5 9/16-20 L $18.0 Kreidler MP9 left (Links) says L
539R 5¾ 6¾ 1.25 3 9.0 9/16-20 R $22.00 Garelli Gulp rt. (Desdra) says D
531 = 534L & 531R 2&5 9.0 14-1.25 set $40.00 Peugeot 103 orig. 2 & 5-style set

531R 76-83 Peugeot 103

Here is a 2-style vintage French right crank, on 1975-83 Peugeot 103 mopeds. The right arm has sharper bends than left, because the right cover is closer to the pedal arm. The left is a 5-style, with a more gentle bend.

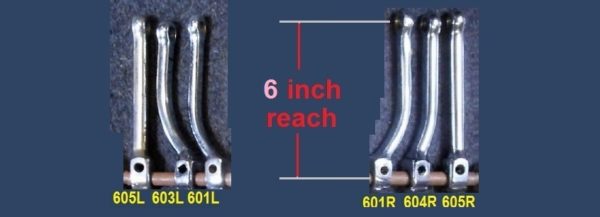

# reach length offset style pin thread L/R price original on description markings
601R 6 7 1.25 3   9.0 14-1.25 R $29     Derbi Variant right (Derecho) D
601R 6 7 1.25 3   9.0  9/16-20 R $16     Derbi Variant right re-threaded D
601L 6 7    1.25 3   9.0 14-1.25 L $15-22 Derbi Variant left says nothing
603L 5¾ 6¾ 1.25 3   9.0 9/16-20 L N/A Garelli left (Sinistra) says nothing
604R 6 6¾ 0.75 6 9.0 9/16-20 R $18-23 Garelli right (Destra) says D
605R 6 6¾ 0.00 7 9.5 9/16-20 R $17-22 KTM Foxi right (Recht) says R
605L 6 6¾ 0.00 7   9.5 9/16-20 L $15-20 KTM Foxi left (Links) says L

603R ’78-83 Garelli VIP

603L ’78-83 Garelli VIP

Here are vintage Italian 6-style right and 3-style left crank arms for 1977-83 Garelli Gulp, VIP, and maybe Monza. The left has more offset than the right. It needs the 3 style that “goes outward right away” because the left side of the engine sticks out near the pedal shaft.

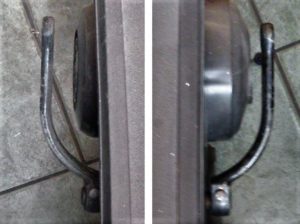

606L, 606R Derbi Variant Sport

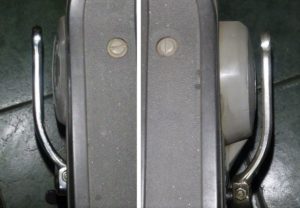

601L, 601R Derbi Variant

Shown at left are L3-style vintage Spanish crank arms for 1975-1986 Derbi Variant.

Shown at right are higher offset 3-style Spanish arms for 1986-89 Derbi Variant Sport.

Like Tomos and Garelli the later engines were wider.

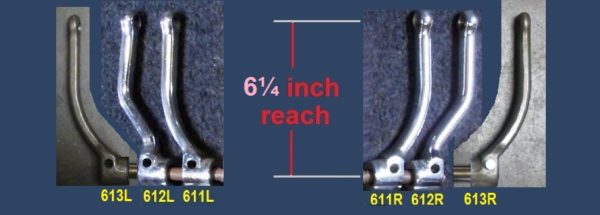

# reach length offset style pin thread L/R price original on description markings
611R 6¼ 7½ 1.50 0 9.5 9/16-20 R $20-35 Puch 2-spd right (Recht) says R
611L 6¼ 7½ 1.50 0   9.5 9/16-20  L N/A   Puch 2-s left (Links) says nothing
612R 6¼ 7½ 1.30 1 9.5 9/16-20 R $20-25 Puch Maxi right (Recht) says R
612L 6¼ 7½ 1.30 1   9.5 9/16-20  L $20-30 Puch Maxi lf. (Links) says nothing
613R 6¼ 7½ 2.00 0 9.5 9/16-20  R $12.0 Puch Maxi replica raw-gray says R
613L 6¼ 7½ 2.00 0   9.5 9/16-20  L $17.0 Puch Maxi replica raw-gray says L
613 = 613L & 613R 0 9.5 9/16-20 set $28.0 Puch replica gray un-plated set
614R 6¼ 7½ 2.00 0 9.5 9/16-20  R $13-00 Puch Maxi replica chrome says R
614L 6¼ 7½ 2.00 0   9.5 9/16-20  L $18-00 Puch Maxi replica chrome says L
614 = 614L & 614R 0 9.5 9/16-20 set $33-00 Puch replica beautiful chrome set

no. reach length offset style pin thread L/R price original on description markings
621L 6½ 7¼ 0.00 7 9.5 9/16-20 L $7-$10 1970’s 10-speed bicycle left

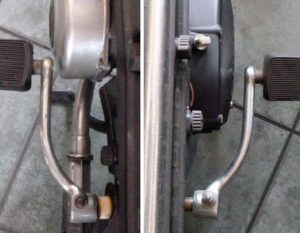

611L, 611R 1978-86 Puch

614 Puch replica cranks

Shown here are the 0-style vintage Austrian cranks on 1978-86 Puch Maxi and Magnum models. There are also 1-style Puch cranks, on 1968-78 Puch Maxi. Those are the same dimensions except the bend is more sharp.

Puch threads
are intentionally
made weaker

What were they thinking? Pedal cranks for Puch mopeds have about 1/3 of the threads removed by machining. This makes them get stripped easier. The only plausible explanation is Puch was thinking about safety. When a rider forgets where the pedals are, and leans over in a turn, one pedal can hit the ground. If it hits hard enough it can cause a crash. Puch pedals are designed to break away, rather than causing a crash.

Pedal Crank Selection:

Offset: Ideally the pedal arms should have enough offset to not hit anything, even after being bent inward a little, yet not have too much offset. Too much offset causes the pedals to hit the ground sooner when leaned over, and to stick out more when parking or storing, and to hit the riders feet more when backing up.

Length: Longer pedal arms provide more leverage. For mopeds the pedals are mainly used for starting the engine, rather than pedaling. So if the engine turns over easily then long pedal arms are not needed. Longer arms hit the ground sooner when leaned over. And when not pedaling, one foot is more forward and the other is more back. So shorter arms are better, in many ways. But for pedaling, longer arms are better, especially for riders with long legs.

Style: Some engines or bikes need cranks that “go outward right away” because something is sticking out near the pedal shaft. This is the style 3 above. Sachs 505, Morini MO1, MO2 and Garelli VIP engines are some common examples.

Pedal Crank Service:

Straightening a crank.
The bend forms about
1-2″ inch below the tool.
Here it is held high up.

VAR pedal arm bender.
This has straightened
500 bent arms, saving
customers $10,000

Straightening: 1. With a special tool like the one shown, and two people, a bent pedal crank can be straightened in one minute without any removal. The second person has to pull on the bike the opposite way, by standing hard on the opposite pedal. 2. Without that tool, the pedal only is removed and a long pipe that fits closely over the crank is used to apply torque. 3. For more stubborn cranks, the crank is removed and placed in a large bench vise. Again the pipe is placed over the crank at the right place, and torque is applied. Moped cranks require 100 to maybe 600 foot-pounds of torque to bend. This is done without heating.

Re-threading a crank

Re-threading: Often just the first few threads become messed up. Bicycle shops have pedal taps, size 9/16-20 Right and Left, that can repair partially-stripped threads on moped cranks. Hardware stores do not have those taps, instead they have 9/16-18, more coarse. So pedal taps are a bicycle-industry-only item.

Repairing pedal crank threads is done by starting the tap from the good side, which is the back. Sometimes crank removal is required, and sometimes it is optional. Cutting fluid, or at least oil, is applied. The tap is moved back and forth as it is screwed in (like 4 steps forward and 3 steps back), until it goes all the way through.

Rethreading a M14-1.25 crank to 9/16-20 (from 14.0 to 14.3mm) is more difficult. The plated steel is hard and tough. It takes longer and requires more force. The crank arm and tap get hot by the end of the 10-20 minute process.

Pin removal

3 P E D A L P I N S

Pedal Crank pins

These round pins have a flat wedge that fits tight against a slot in the shaft. They are pressed or hammered in and out. In the bicycle industry they are known as cotter pins. Here they are called crank pins or wedge pins.

pedal pin 9.5 mm $2,
pedal pin 9.0 mm $2 each.
special 9.0 x 6.5 $7 each. The flat is 1mm lower.

Right: regular 9mm pin
Left: same but thinner

One Up One Down: This rule says that if one crank pin points up, then the other should point down. This makes the left and right crank arms parallel at 12 o’clock and 6 o’clock. When the pins are both up, the arms are at 12 o’clock and 5 o’clock, lopsided and awkward.

Special pins: The 502 aftermarket pedal arms require special wedge pins. The regular pin shown on the right is 9.0 x 7.2 thick. After grinding it becomes the special pin on the left, which is 9.0 x 6.5 thick, or 1.3 mm thinner. These pins are required for the 502R and 502L aftermarket pedal arms. Price $8 each

4 P E D A L S H A F T S

Some mopeds with external pedal shafts, and separate pedal and motor chains, have one of the crank arms permanently attached to the shaft and sprocket. With those, to get a new sprocket-side arm you have to replace the shaft-with-arm.

Some mopeds with external pedal shafts, and separate pedal and motor chains, have no crank arms permanently attached to the shaft and sprocket. With those the sprocket-side arm can be replaced.

5 F R E E W H E E L S

Some mopeds have one drive chain and some have two. Two-chain mopeds, with both a motor chain and a pedal chain, have freewheels, like most bicycles. The freewheel is the rear pedal sprocket that spins free and goes “click click click” in the reverse direction, but locks up solid in the forward direction. The freewheel allows the pedals to be stationary even when the rear wheel is moving forward. The moped brands with right-side freewheels are Puch, Peugeot, Motobecane, Batavus, Sparta (Foxi), Hercules (Sachs), Piaggio (Vespa), Honda (PA50), Kreidler, KTM (Foxi), Kynast, Flandria. There are two brands with left-side backward freewheels, Jawa and Benelli. All of the other moped brands do not have external freewheels, but instead have a freewheel mechanism inside the engine unit.

The freewheel screws on and tightens with pedaling. Once it is tight, a special tool is required to remove it. The tool fits into slots in the freewheel center. Some low-end modern single-speed bicycle freewheels do not have removal slots. Those cheap kinds can be removed by destroying the freewheel. To remove a freewheel destructively without a removal tool, the freewheel is first disassembled, where all the little balls and clickers fall out, and then the inner hub is unscrewed in a bench vise or with a pipe wrench.

Most freewheels go on the right side of the bike and thus have right-hand thread, but Jawa and Benelli ones go on the left side of the bike and have left-hand thread.

16a generic 16T
by Dicta
made in Taiwan

16b MB 16T #60483
by The Best Wheel
made in France

16c Hercules 16T
by Esjot
made in Germany

16d Sparta 16T
by Atom
made in France

16h Motobecane 16T
by Atom, #16057
made in France

18b Motobecane 18T
by The Best Wheel
#15244 French thread

18d left hand Jawa 18T
by Velo, says date 76-78
made in Czechoslovakia

18e generic 18T
by Sunlite

20a Motobecane 20T
by The Best Wheel
#14298 made in France

20c Kynast 20T
by Esjot
made in Germany

20e generic 20T
by Sunlite

23a Puch 23T
by Atom-Maillard
made in France

Original and Replacement Freewheels

no. freewheel make country bike make part # teeth thread price original on

16a Dicta xxxxxxxx Taiwan xxx replacement 0000 16T 1.375″- 24 $12

16b The Best Wheel France xxxMotobecane 60483 16T 1.375″- 24 $25 Solex

16c Esjot xxxxxxx Germany Hercules 9000300401 16T 1.375″- 24 $30 Sachs Westlake (P1)

16d Atom xxxxxxxx France xxx Sparta 00. 055051 16T 1.375″- 24 $25 Sparta Foxi
16d Atom xxxxxxx France xxx Peugeot xxx39026 16T 1.375″- 24 $25 Peugeot (optional)
16d Atom xxxxxxxx France xxx Motobecane 16057 16T 1.375″-.24 $25 Motobecane 7

16e Ocean xxxxxxx Italy xxxxx Piaggio 000114531 16T 1.375″- 24 $25 Piaggio Ciao, Si early

18a Atom xxxxxxxx France xxx Peugeot 00017550 18T 1.375″- 24 N/A Peugeot 102, 103
18a Atom xxxxxxxx France xxx Batavus 00049020 18T 1.375″- 24 $30 1976-77 Batavus VA

18b The Best Wheel France xxxMotobecane 15244 18T M34.7-1.0 $50  70’s MB with MB hubs
18b J Moyne xxxxX France xxxMotobecane 15244 18T M34.7-1.0 $50  Wards Riverside (AV88)
18b The Best Wheel France xxxMotobecane 15244 18T M34.7-1.0 $50  50’s-60’s Motobecane

18c Ocean .xxxxxxx Italy .xxxx Piaggio 00 103631 18T 1.375″- 24 $25 Piaggio Bravo, Grande

18d Velo xxxxx Czechoslovakia Jawa xxxx070040 18T M35 -1 LH $35 1970-83 Jawa 28, 207

18e Sunlite xxxxxxx China x.xxxreplacement 0000 18T 1.375″- 24 $15

18f The Best Wheel France x.xxxreplacement 0000 18T M32 – 1.0 $13 unknown application

20a The Best Wheel France xxxMotobecane 14298 20T 1.375″- 24. N/A 70’s MB with Leleu hubs
20a The Best Wheel France xxxMotobecane 14298 20T 1.375″- 24. $20 1978-81 MB with mags

20b Atom xxxxxxx France xxx Batavus 00049019 20T 1.375″- 24 $30 Batavus HS50,Starflite
20b Atom xxxxxxx France xxx Peugeot 00000586 20T 1.375″- 24 $30 Peugeot (optional)

20c Esjot xxxxxxxx Germany x Kynast 00000586 20T 1.375″- 24 $22 Flying Dutchman

20e Sunlite xxxxxx China xxx xreplacement 0000 20T 1.375″- 24 $16

23a Atom .xxxxxxx France xxx Puch 3492410230 23T 1.375″- 24 $20-$30 Puch (all models)

Freewheel threads: Like with pedal threads there is a common size and an uncommon size slightly smaller.

The common size is 1.375″ – 24, which equals 34.92 – 1.06 mm. Most modern bicycles worldwide have this ISO (International Standards Organization) standard freewheel thread type.

The uncommon size is M34.7 – 1.00, which equals 34.70 – 1.00 mm. This “French” thread type is on vintage bicycles from France, Belgium, Spain or Switzerland, and on Motobecane mopeds with Motobecane-made hubs.

So the French freewheels are slightly smaller than the rest of the world, 34.7 instead of 34.9. That small amount does not matter as long as the bike is pedaled gently. But it does matter when the pedals are pushed very hard. Then the loose fitting threads on the wheel hub can strip out, a disaster.

It is difficult to tell which thread type a hub has, by measuring the thread tops with a calipers. The 34.92 thread hubs measure 34.65 to 34.7. The 34.70 hubs measure 34.55 to 34.6. On some hubs the tops of the threads are worn down and measure less. So a standard thread might seem like a French thread type. Because of this, it is better to put away the calipers and use “feel”.

When the freewheel and hub have the same thread type, the freewheel screws on easy, yet has no looseness. Looseness is felt with fingertips pulling and pushing the freewheel center side to side. When a 34.92 freewheel is on a 34.7 hub, the center of the freewheel can move 0.22 mm. Here is a video of that. That looseness or “wiggle” is felt. The same is true for any threaded thing. When a bolt fits a nut, it screws on easy and yet does not wiggle.

All of the freewheels in Myrons Mopeds inventory were measured by feel. For each bike model listed above, a sample rear wheel with original freewheel was measured directly by feel. The freewheel was removed. It’s threads were checked by screwing onto both a French and a standard hub. The wheel threads were checked by screwing on both a French and a standard freewheel.

Gauntlet of test wheels: MB 40, Batavus M48, Peugeot 103, Model 7 hub, MB 50, MB 50, MB 50VLA.
Not shown, Puch wheels and hubs, Sparta, Peugeot 102 hub, Kreidler, Sachs, KTM, Kynast, others.

Result: None of the hubs or freewheels had French thread, except Motobecanes with Motobecane-made hubs. Wow!

1970’s Puch & Motobecane 80mm hubs
L, Leleu-made Puch hub, standard thread
R, Motobecane-made hub, French thread

These are actual Motobecane rear wheels from Myrons inventory. All except one came from Los Angeles area bikes.

model xx rim x hub xx freewheel xxx teeth thread
40XXxxX thin MB xx none xxxxxxxx 18T French
40XXxxX thin   MB xx none xxxxxxxx 18T French
50XXxxX wide MB xx none xxxxxxxx 18T   French
50XXxxX wide MB xx none xxxxxxxx 18T   French
50XXxxX wide MB xx The Best Wheel 18T   French
Model 7X 16″ Leleu x none xxxx x xx xxx standard
50VXxxX wide Leleu x none xxxx x xx xxx standard
50VXxxX wide Leleu x The Best Wheel 20T standard
50VXXxx wide Leleu x The Best Wheel 20T standard
50VLAxx mag silver x The Best Wheel 20T standard
LeMoped mag gold xx none xxxxx xx xxx standard
LeMoped mag gold xx The Best Wheel 20T standard

Result: All Leleu-made hubs have standard freewheel thread 1.375″-24, even those for Motobecane. All Motobecane-made hubs have French thread M34.7-1.0. All Motobecane-made “6-star” mag wheels have standard thread, but it is tapered and begins with French thread, so that either type of freewheel can be used.

1975 Motobecane 50S
with MB-made hubs

1978 Motobecane 50V
with Leleu-made hubs

How to tell: The best way to tell if a 1970’s Motobecane moped rear hub is Motobecane-made (and therefore French thread) is visually. There is an prominent M logo on the freewheel side. There is no step on the freewheel side, instead it slopes gradually. The flanges go farther out from the spoke holes. So from 100 feet away, viewed from the side, the Motobecane-made hubs appear larger than Leleu-made hubs.

Summary

All two-chain rear hubs or wheels, on mopeds from the 1970’s and 80’s, have standard freewheel threads, except Motobecane-made hubs on 1950’s -60’s and some 1970’s Motobecane mopeds.

A standard thread freewheel fits a French thread hub and works fine when pedaled normally. Only when a strong athletic person pedals very hard, the hub threads can strip off, requiring wheel or hub replacement.

Motobecane 100mm hubs
are also French thread

1950’s – 60’s Motobecane: Many models, maybe all, had French freewheel threads M34.7-1.0. In the 1960’s the parts manuals specified the thread. One example, shown at right, is for Motobecane AV88 and Motoconfort AU88. It lists the 18-tooth 15244 freewheel as having M34.7-100 thread.

The French freewheel thread cover up: It is very odd that, after 1976-77, Motobecane had two different freewheel threads, but they hid that fact. Instead they made the teeth different, 15244 (French thread) was 18 teeth, and the newer 14298 (standard thread) was 20 teeth. The Motobecane America parts manuals list both freewheels without explanation. There does not seem to be anything about freewheels in the Parts or Service Bulletins. The physical freewheels do not say the thread. The actual parts labels do not say the thread either. As a result, this cover-up has caused confusion and mystery for 39 years (1978-2017).

6 P E D A L C H A I N S

7 P E D A L C H A I N T E N S I O N E R S

8 P E D A L S H A F T B U S H I N G S

16.0 x 20.0 x 19.9 no lip $2.50 Tomos 200166, special bronze

16.2 x 20.1 x 19.0 w/ lip $5.00 Puch 349.142.0051, white plastic, for Maxi

16.2 x 21.0 x 15.9 w/ lip $5.00 Vespa 102875, black plastic, for Ciao

16.1 x 21.2 x 16.5 w/ lip $6.00 Batavus? , black plastic

16.1 x 21.3 x 18.7 w/ lip $5.00 Buzzetti 0168, black plastic, for Puch Magnum

16.2 x 25.6 x 15.5 w/ lip $5.00 Vespa 141737, black plastic, for Bravo, Grande, Si

freewheel teeth thread price applications
16 tooth 1.375-24 thread $15 Sparta Foxi

Spokes

July 14, 2014

1. Spoke Length
2. Quick Info
3. Spoke List
—— partition ——
4. Spoke Nipples
5. Spoke Threads
6. Length Calculation
7. Calculated Lengths

1. Spoke Length

Length can vary by 1 or 2 mm depending on the definition.
Spokes from the bicycle industry use Inner Edge Length.
Spokes from the moped industry use Center Line Length.
Spokes measured directly usually use Total Length.

Here we use Center Line Length. So a spoke that we say is 144 mm long, is 143 mm long from a bicycle spoke supplier, or 145 mm long from simple measurement.

2. Quick Info

Replacement spokes can be up to 2 mm longer or shorter, as long as the original spoke was not already long or short.

Inner or Outer: Spokes can go inside the hub flange or outside. On original moped wheels they alternate inner and outer. Inner spokes are longer because they have less than 90° bend. Outer spokes are shorter because they have more than 90° bend. Here we use the 90 degree equivalent for the named length. See illustration.

Spoke thickness goes by several wire gauge families. Scroll down to Spoke Threads and Gauges for details.

Spoke threads: Most spokes have rolled threads, where the thread tops are raised higher than the spoke. Some spokes have cut threads, where the thread tops are lower than the spoke.

Thread pitch: Here the meaning of “thread” is the width of one thread, in mm. So ten 0.60 threads is 6 mm length.

ID Marks: For each spoke thickness (gauge) there can be several thread pitches. For many that means the ID mark on the spoke must match the ID mark on the nipple. ID marks include (A) (R) Italy, ( ) UK/Asia, (∴) USA, (Б) Swiss, (♣) (U) Germany, (C) (B) (*) (+) or (Я) France. Scroll down to Spoke Threads and Gauges for details.

Spoke head logos (ID marks). See more here

2. Spoke List

Spoke length (from center line) is from direct measurement. Over 90% of the listed applications have been verified by calculation. Scroll down to Length Calculation to see the good agreement between actual and calculated lengths.

rim xx qty xx length xxxxx thread price 0000 nipple
x↓ cross ↓ drum ↓ thickness ↓ /each /set mark ↓ type OEM#

AMF Roadmaster .
16F 3x 36 090 173 2.6 12G 0.45 $2.00 $00 (∴) 26i
16R 3x 36 090 173 2.6 12G 0.45 $2.00 $00 (∴) 26i

Angel and Speed Bird (TYM)
17F 2x 32 080 179 2.6 12G 0.45 $2.00 $00 (∪) 26b or( )
17R 2x 32 080 179 2.6 12G 0.45 $2.00 $00 (∪) 26b or( )

Batavus VA, HS50, Starflite, Bronco, Mobat
16F 2x 28 080 169 2.6-0.0 0.50 $1.90 $43 (♣) 26q or(U) 40210
16R 2x 36 070 165 3.0-0.0 0.60 $2.20 $45 (♣) 30d left 40173
16R 2x 36 070 168 3.0-0.0 0.60 $3.00 $00 (♣) 30d right 40172

Batavus Regency
16F 2x 28 080 169 2.6-0.0 0.50 $2.00 $43 (♣) 26q or(U) 40210
16R 3x 36 080 173 3.0-0.0 0.60 $3.00 $00 (♣) 30d 40221

Cimatti City Bike, Town Bike
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25d or(R) 25e
16R 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25d or(R) 25e
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Colombia (1-chain), Open Road, Mopet (2 chain)
17F 3x 36 105 185 2.6 12G 0.45 none $00 (O) 26f
17R 3x 36 105 185 2.6 12G 0.45 none $00 (O) 26f
substitute 000 185 3.2-0.0 0.65 $1.50 $00 ( ) 32a

Derbi 83-86 Variant SL (only 15° bend almost straight)
16F 2x 36 105 157 2.9-0.0 0.60 $3.00 $00 (M) 29c 0A01220061
16R 2x 36 105 157 2.9-0.0 0.60 $3.00 $00 (M) 29c 0A01220061

Derbi 76-83 Variant SL, TT (only 15° bend spoke)
17F 2x 36 105 168 2.9-0.0 0.60 $3.00 $00 (E) 29c 0006513502
17R 2x 36 105 168 2.9-0.0 0.60 $3.00 $00 (E) 29c 0006513502

Derbi 78-87 C5 Diablo, RD50 (only 15° bend spoke)
21F 2x 36 105 217 2.9-0.0 0.60 none $00 (E) 29c 0007912060
18R 2x 36 105 179 2.9-0.0 0.60 none $00 (E) 29c 0006512061

Flandria Bermuda (with thin steel rims)
17F 3x 36 090 188 2.5-0.0 0.55 $2.00 $00 (Б) 25a DT zinc
17R 3x 36 090 192 2.5-0.0 0.55 $2.50 $00 (Б) 25a right DT zinc
17R 3x 36 090 188 2.5-0.0 0.55 $2.00 $00 (Б) 25a left DT zinc

Flandria Bermuda (with deep aluminum rims)
17F 3x 36 090 186 2.5-0.0 0.55 none $00 (Б) 25a DT stainless
17R 3x 36 090 190 2.5-0.0 0.55 $2.50 $00 (Б) 25a right DT ss
17R 3x 36 090 186 2.5-0.0 0.55 none $00 (Б) 25a left DT ss
substitute 000 187 2.5-0.0 0.55 $2.00 $00 (Б) 25a DT stainless

Garelli 75-77 Eureka Flex, Sport, Gran Sport
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (R) 25e 00093201
16R 3x 36 090 174 2.5-0.0 0.65 $2.00 $00 (R) 25e 500601
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Garelli 77-78 Sport HD
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (R) 25e 00093201
16R 3x 36 090 174 3.0-0.0 0.65 $3.00 $00 (R) 30g 50685100
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b011
substitute 000 174 3.0 17J 0.60 $1.80 $45 (C) 30e 21195

Garelli 77-80 Sport, Rally Sport, Super Sport
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (R) 25e 00093201
16R 3x 36 090 174 2.5-0.0 0.65 $2.00 $00 (R) 25e 50060100
17F 3x 36 090 187 2.5-0.0 0.65 $2.00 $00 (R) 25e 50320300
17R 3x 36 090 187 2.5-0.0 0.65 $2.00 $00 (R) 25e 50320300
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Garelli 80-82 Sport, Rally Sport, Super Sport, 83-84 Monza GT
16F 3x 36 105 168 3.0-0.0 0.60 $3.50 $00 (A) 30c 09324219
16R 3x 36 105 168 3.0-0.0 0.60 $3.50 $00 (A) 30c 09324219

Garelli 75-78 Gulpmatic
16F 3x 36 105 173 2.5-0.0 0.65 $2.00 $00 (R) 25e 5031510000
16R 3x 36 090 174 2.5-0.0 0.65 $2.00 $00 (R) 25e 50060100

Garelli 78-80 VIP
16F 3x 36 105 173 2.5-0.0 0.65 $2.00 $00 (R) 25e 5031510000
16R 3x 36 090 174 3.0-0.0 0.65 $3.00 $00 (R) 30g 50685100
17F 3x 36 105 187 2.5-0.0 0.65 $2.00 $00 (R) 25e 50320300
17R 3x 36 090 188 3.0-0.0 0.65 $3.00 $00 (R) 30g 50320400 011
substitute 000 174 3.0 17J 0.60 $1.80 $45 (C) 30e 21195

Garelli 81-86 VIP-N
17F 3x 36 105 187 2.5-0.0 0.65 $2.00 $00 (R) 25e 50320300
17R 3x 36 105

General, Lazer 77-85, small hubs, a is inner, b is outer
17Fa 2 32 080 177 2.6 12G 0.45 $2.00 $00 ( ) 26c 11505073
17Fb 2 32 080 177 2.6 12G 0.45 $2.50 $00 ( ) 26c 11505074
17Ra 2 32 080 171 2.6 12G 0.45 $2.00 $00 ( ) 26c 11505469
17Rb 2 32 080 171 2.6 12G 0.45 $2.50 $00 ( ) 26c 11505470

General, AMS 77-85 with big hubs, a is inner, b is outer
17Fa 2 32 110 171 2.6 12G 0.45 $2.00 $00 ( ) 26c 21505469
17Fb 2 32 110 171 2.6 12G 0.45 $3.00 $00 ( ) 26c 21505470
17Ra 2 32 110 162 3.2 10G 0.65 $3.00 $00 ( ) 32c 21515469
17Rb 2 32 110 162 3.2 10G 0.65 $3.00 $00 ( ) 32c 21515470

rim xx qty xx length xxxxx thread price 0000 nipple
x↓ cross ↓ drum ↓ thickness ↓ /each /set mark ↓ type OEM#

Generic or Unknown Application
substitute 000 090 2.0 14G 0.45 $1.50 $00 ( ) 20a
substitute 000 116 3.2 10G 0.65 $2.00 $00 ( ) 32b
substitute 000 126 3.5 09G 0.65 $2.00 $00 ( ) 35b
substitute 000 127 3.2 10G 0.65 $2.00 $00 ( ) 32a
substitute 000 135 3.2 10G 0.65 $2.00 $00 ( ) 32a
substitute 000 143 2.0 14G 0.45 $0.80 $15 ( ) 20b needs washer
substitute 000 144 2.6 12G 0.45 $1.80 $35 (O) 26c (143)
substitute 000 145 3.2 10G 0.65 $2.50 $00 (B) 32b
substitute 000 148 2.9 11G 0.55 $3.00 $00 ( ) 29b outer
substitute 000 148 2.9 11G 0.55 $2.80 $00 ( ) 29b inner
substitute 000 152 3.5-3.2 0.65 $2.50 $00 ( ) 32a
substitute 000 153 3.5 09G 0.65 $2.50 $00 ( ) 32a inner
substitute 000 153 3.5 09G 0.65 $2.00 $00 ( ) 32a outer
substitute 000 155 2.4-2.2 0.45 $1.90 $45 (Я) 22b
substitute 000 155 3.2 10G 0.65 $3.00 $00 ( ) 32a
substitute 000 159 4.0 08G 0.80 $2.50 $00 ( ) 40a
substitute 000 160 3.2 10G 0.65 $2.50 $00 ( ) 32a
substitute 000 166 4.0 08G 0.80 $2.00 $00 ( ) 40a
substitute 000 167 3.2 10G 0.65 $2.30 $00 ( ) 32c outer
substitute 000 173 3.2 10G 0.65 $2.00 $45 ( ) 32a
substitute 000 176 3.2 10G 0.65 $3.00 $00 ( ) 32a
substitute 000 177 3.5 09G 0.65 $2.50 $00 (jw)32a or( )
substitute 000 180 2.5-0.0 0.65 $2.00 $00 (A) 25b
substitute 000 182 4.0-3.5 0.65 $3.00 $00 ( ) 35a inner
substitute 000 182 4.0-3.5 0.65 $3.00 $00 ( ) 35a outer
substitute 000 186 3.0-0.0 0.60 $2.00 $00 (Δ) 30f
substitute 000 188 3.5 09G 0.65 $2.50 $00 ( ) 35b stainless
substitute 000 191 2.6 12G 0.45 $1.90 $43 ( ) 26h
substitute 000 192 3.0 00G 0.65 $2.50 $00 (♣) 30g only 1 avail.
substitute 000 192 3.2 10G 0.65 $1.80 $28 ( ) 32a
substitute 000 195 2.6 12G 0.45 $2.00 $00 ( ) 26c only 1 avail.
substitute 000 195 3.2 10G 0.65 $2.00 $41 ( ) 32a
substitute 000 200 2.6 12G 0.45 $2.00 $00 (Δ) 26e
substitute 000 212 3.5 09G 0.65 $2.00 $00 ( ) 35b only 1 avail.
substitute 000 220 2.3 13G 0.45 $2.50 $00 ( ) 23c
substitute 000 224 2.3 13G 0.45 none $00 ( ) 23c
substitute 000 245 3.2 10G 0.65 $2.50 $00 ( ) 32a only 1 avail.
substitute 000 263 2.6 12G 0.45 $1.50 $00 ( ) 26
substitute 000 270 2.6 12G 0.45 $1.50 $00 ( ) 26
substitute 000 296 2.0-1.7 0.45 $1.50 $00 ( ) 17a only 3 avail.

Gitane 76-80 Confort, Sport (Italian moped with French spokes)
16F 2x 36 090 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b
16R 2x 36 090 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Harley Davidson 1965 M50 (to # 65M-9595)
18F 3x 36 090 198? 2.5-0.0 0.65 none $00 (A) or(R) 43040-65
18R 3x 36 090 198? 2.5-0.0 0.65 none $00 (A) or(R) 43040-65

Harley Davidson 1965 M50 (after 65M-9595)
18F 2x 36 090 188? 2.5-0.0 0.65 none $00 (A) or(R) 43041-65
18R 2x 36 090 188? 2.5-0.0 0.65 none $00 (A) or(R) 43041-65
substitute 000 188 2.5-0.0 0.55 $2.50 $54 (Б) 25a

Harley Davidson 1966 M50, MS50, ’67-70 M65, MS65, MLS65
17F 2x 36 090 166? 2.5-0.0 0.65 none $00 (A) or(R) 43100-66
17R 2x 36 090 166? 2.5-0.0 0.65 none $00 (A) or(R) 43100-66

Harley Davidson 71-72 MS65, MLS65
17F 2x 36 090 166? 3.0-0.0 0.00 none $00 (A) or(R) 43040-71P
17R 2x 36 090 166? 3.0-0.0 0.00 none $00 (A) or(R) 43040-71P

Harley Davidson 1972 MLS65 (16″ rear)
17F 2x 36 090 166? 3.0-0.0 0.00 none $00 (A) or(R) 43040-71P
16R 2x 36 090 152? 3.0-0.0 0.00 none $00 (A) or(R) 43049-62PA

Hercules 76-83 sheet-frame 504 (2-chain, bigger L rear hub flange)
17F 3x 36 090 190 2.3 13G 0.45 $3.00 191 (♣) 23b 24111070
17R 3x 36 090 190 2.3 13G 0.45 $3.00 191 (♣) 23b 24111070 right
17R 3x 36 090 188 2.3 13G 0.45 $2.50 187 (U) 23a 24111110 left

Hercules 76-83 tube-frame with 505 (1-chain)
17F 3x 36 090 186 2.3 13G 0.45 $3.00 187 (U) 23a 24111110
17R 3x 36 090 186 2.3 13G 0.45 $3.00 187 (U) 23a 24111110

Honda 1970’s CB200 a is inner, b is outer
18Fa 0 36 000 201 3.5-3.2 0.65 $1.50 $00 ( ) 32b good-used
18Fb 0 36 000 201 3.5-3.2 0.65 $1.50 $00 ( ) 32b good-used

Honda 69-77 PC50 a is inner, b is outer
19Fa 2 36 080 202 2.3 13G 0.45 none $00 ( ) 00x 97142.112451
19Fb 2 36 080 202 2.3 13G 0.45 none $00 ( ) 00x 97241.112441
19Ra 2 36 080 198 2.6 12G 0.45 none $00 ( ) 00x 97197.212351
19Rb 2 36 080 198 2.6 12G 0.45 none $00 ( ) 00x 97324.212341

Honda 1977 NC50 Express a is inner, b is outer
14F 2 28 080 143.5 2.3 13G .45 none $00 ( ) 23d 42606.147.305
14Ra 2 28 080 143.5 2.3 13G .45 none $00 ( ) 23d 42606.147.305
14Rb 2 28 080 143.0 2.3 13G .45 none $00 ( ) 23d 42607.147.305
substitute 000 144 2.6 12G 0.45 $1.80 $35 ( ) 26 (143)

Honda 78-79 NC50, 79 NA50 a is inner, b is outer
14F 2 28 080 143.5 2.3 13G .45 none $00 ( ) 23d 42606.147.315
14Ra 2 28 080 143.5 2.6-2.3 0.45 none $00 ( ) 23d 42606.147.315
14Rb 2 28 080 143.0 2.6-2.3 0.45 none $00 ( ) 23d 42607.147.325
substitute 000 144 2.6 12G 0.45 $1.80 $35 ( ) 26 (143)

Honda 1980 NC50, NA50 a is inner, b is outer
14F 2 28 080 143.5 2.6-2.3 0.45 none $00 ( ) 23d 42607.147.325
14Ra 2 28 080 143.5 2.6-2.3 0.45 none $00 ( ) 23d 42607.147.325
14Rb 2 28 080 143.5 2.6-2.3 0.45 none $00 ( ) 97081.22127.B0
substitute 000 144 2.6 12G 0.45 $1.80 $35 ( ) 26 (143)

Honda 81-83 NC50, 81 NA50 a is inner, b is outer
14F 2 28 080 143.5 2.6-2.3 0.45 none $00 ( ) 23d 42606.147.315
14Ra 2 28 095 141.0 2.6-2.3 0.45 none $00 ( ) 23d 42606.191.325
14Rb 2 28 095 140.5 2.6-2.3 0.45 none $00 ( ) 23d 97081.22121.B0

Honda 82-83 NU 50 a is inner, b is outer
16F 2 32 095 163.5 2.9-2.6 0.45 $0.00 $00 ( ) 26j 97192.32167.F0
14Ra 2 28 095 138.0 2.9-2.6 0.45 $4.20 $00 ( ) 26j 97108.32118.F0
14Rb 2 28 095 138.0 2.9-2.6 0.45 $4.20 $00 ( ) 26j 97164.32116.F0

Honda 1978 PA50 Hobbit a is inner, b is outer
17Fa 3 36 080 187.5 2.3 13G .45 none $00 ( ) 23d 97087.11215.10
17Fb 3 36 080 187.0 2.3 13G .45 none $00 ( ) 23d 97088.11214.10
17Ra 2 36 080 159.5 2.6 12G .45 $3.80 $00 ( ) 26j 97064.21158.10
17Rb 2 36 080 159.0 2.6 12G .45 $3.80 $00 ( ) 26j 97060.21158.10
substitute 000 187 2.6-0.0 0.50 $2.00 $00 ( ) 26l 24003010
substitute 000 160 2.6-0.0 0.50 $1.50 $40 (♣) 26n

Honda 79-83 PA50 Hobbit a is inner, b is outer
17Fa 3 36 080 186.0 2.3 13G .45 none $00 ( ) 23d 97187.11212.10
17Fb 3 36 080 185.5 2.3 13G .45 none $00 ( ) 23d 97088.11211.10
17Ra 2 36 080 157.5 2.6 12G .45 none $00 ( ) 26j 97060.21154.10
17Rb 2 36 080 157.0 2.6 12G .45 none $00 ( ) 26j 97065.21154.10
substitute 000 187 2.6-0.0 0.50 $2.00 $00 ( ) 26l
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Indian 78-81 AMI-50 4-stroke a is inner, b is outer
17Fa 2 32 090 176 2.9 11G 0.55 $2.50 $00 ( ) 29a W141-00-50
17Fb 2 32 090 176 2.9 11G 0.55 none $00 ( ) 29a W142-00-50
17Ra 2 32 090 176 2.9 11G 0.55 $2.50 $00 ( ) 29a W141-00-50
17Rb 2 32 090 176 2.9 11G 0.55 none $00 ( ) 29a W142-00-50
substitute 000 177 2.6 12G 0.45 $2.50 $00 ( ) 26c

rim xx qty xxlength xxxxx thread price 0000 nipple
x↓ cross ↓ drum ↓ thickness ↓ /each /set mark ↓ type OEM#

Italian spokes for other wheels not listed
14 2x 28 090 142 2.5-0.0 0.65 $2.00 $00 (A)or(R) odd
16 2x 36 105 151 2.5-0.0 0.65 $2.50 $00 (A)or(R) odd
16 2x 36 090 155 2.2-0.0 0.45 $2.50 $00 (A) 22a thin
16 2x 36 090 173 2.2-0.0 0.45 $2.50 $00 (A) 22a thin, only 1
16 3x 36 090 174 3.0-0.0 0.60 $3.00 $00 (A) 30c for dimpled
16 3x 36 090 176 2.5-0.0 0.65 $2.00 $00 (A)or(R) for flat rim
17 3x 36 090 188 3.0-0.0 0.60 $3.00 $00 (A) 30a for dimpled

Jawa 73-82 207 Babetta
16F 2x 36 085 160 2.6-0.0 0.50 $2.00 $00 ( ) 26k 074016 inner
16F 2x 36 085 160 2.6-0.0 0.50 $2.50 $00 ( ) 26k 074022 outer
16R 2x 36 085 160 2.6-0.0 0.50 $2.00 $00 ( ) 26k 074016 inner
16R 2x 36 085 160 2.6-0.0 0.50 $2.50 $00 ( ) 26k 074022 outer

Kreidler 77-80 MP9, MP19 Flory
17F 3x 36 080 189 2.3-0.0 0.45 none $00 (♣) 23b 26501020 chrome
17R 3x 36 080 190 3.0-2.6 0.50 $4.00 $00 (♣) 26n 26511020 only 1
substitute 000 191 2.6 12G 0.45 $1.90 $43 ( ) 26h

Kynast 77-80 Flying Dutchman (bigger left rear hub flange)
17F 2x 36 090 170 2.6-0.0 0.50 none $00 (♣) 26p
17R 2x 36 090 169 2.6-0.0 0.50 $2.00 168 (♣) 26p right
17R 2x 36 090 163 2.6-0.0 0.50 $2.00 $00 (♣) 26p left
substitute 000 169 2.6-0.0 0.50 $1.90 $43 (♣) 26q or(U)

KTM 74-80 Automatik, Foxi Deluxe (bigger left rear hub flange)
17F 3x 36 090 188 2.5-0.0 0.55 $2.50 $54 (Б) 25a1210071
17R 3x 36 090 192 2.5-0.0 0.55 $3.00 $72 (Б) 25a 1010071 right
17R 3x 36 090 188 2.5-0.0 0.55 $2.50 $54 (Б) 25a 1210071 left

Malaguti 77-80 Commuter
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25b H46A
16R 3x 36 090 171 2.5-0.0 0.65 $3.50 $00 (A) 25b H46
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Motobecane 78-79 Model 7
16F 2x 28 070 173 2.4-2.2 0.55 $2.00 172 (C) 22b 19755
16R 2x 36 070 157 3.0 17J 0.60 none 157 (C) 30e 23041

Motobecane 40, 40T, Traveler
17F 1x 36 080 154 3.0 17J 0.60 $2.50 150 (C) 30e 53582 hi hub011
17F 2x 36 080 174 3.0 17J 0.60 $1.80 173 (C) 30e 21195 lo hub
17R 2x 36 080 174 3.0 17J 0.60 $1.80 $45 (C) 30e 21195 “173”

Motobecane 50, 50V, Moby
17F 2x 36 080 168 3.0 17J 0.60 $2.00 $45 (C) 30e 19625 hi hub “166”
17R 2x 36 080 174 3.0 17J 0.60 $1.80 $45 (C) 30e 21195 “173”

Negrini Gazelle, MX Sport
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25b H46A
16R 3x 36 090 171 2.5-0.0 0.65 $3.50 $00 (A) 25b H46
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

NVT Easy Rider, Scorpion
17F 3x 36 090 188 2.5-0.0 0.65 none $00 (A) 25b H46D
17R 3x 36 090 188 2.5-0.0 0.65 none $00 (A) 25b H46D
substitute 000 188 2.5-0.0 0.55 $2.50 $54 (Б) 25a

Odyssey (Solo)
16F 2x 36 090 153 2.6-0.0 0.50 none $00 (♣) 26p
16R 2x 36 090 153 2.6-0.0 0.50 none $00 (♣) 26p

Pacer P1, Sport, Super Sport
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25d H46A
16R 3x 36 090 171 2.5-0.0 0.65 $3.50 $00 (A) 25d H46
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Peugeot 102
17F 1x 28 080 165 2.4 15J 0.55 $1.50 $36 (C)(*)(+) 24a 51492
17R 1x 28 070 172 2.7-2.4 0.55 $2.50 $00 (C) (B) 24a 47143

Peugeot 103
17F 1x 28 080 165 2.4 15J 0.55 $1.50 $36 (C)(*)(+) 24a 51492
17R 1x 28 080 167 2.7-2.4 0.55 $1.90 $42 (B) 24a 52951

Puch 76-80 Maxi GN (hard tail, thin rims)
17F 2x 36 080 190 2.6-0.0 0.50 $2.50 $00 ( ) 26m
17R 3x 36 080 193 2.6-0.0 0.50 $2.50 $00 ( ) 26m

Puch 70-79 Maxi, Newport, 85-86 Maxi (thin rims)
17F 2x 36 080 190 2.6-0.0 0.50 $2.50 $00 ( ) 26m
17R 3x 36 080 191 2.6-0.0 0.50 $2.00 $00 ( ) 26m 54003010

Puch 78-80 Maxi Luxe, Newport, Newport II, Maxi II (wide rims)
Puch ’80 Maxi (wide rims)
17F 3x 36 080 187 2.6-0.0 0.50 $2.00 $00 ( ) 26l 24003010
17R 3x 36 080 188 2.6-0.0 0.50 $1.50 $36 ( ) 26l

Puch 1978 Maxi Luxe (wide rim),’78-80 Magnum XK
17F 3x 36 080 187 2.5-0.0 0.55 $2.00 $00 (Б) 25a DT stainless
17R 3x 36 080 187 2.5-0.0 0.55 $2.00 $00 (Б) 25a DT stainless

rim xx qty xx length xxxxx thread price 0000 nipple
x↓ cross ↓ drum ↓ thickness ↓ /each /set mark ↓ type OEM#

Safari 76-78 Super, Super Extra, Cobra ’78-80, 300MT ’91-92
16F 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25d H46A
16R 2x 36 090 156 2.5-0.0 0.65 $2.80 $00 (A) 25d H46A
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Safari 78-90 300MT, 400MT ’78
16F 3x 36 090 171 2.5-0.0 0.65 $3.50 $00 (A) 25d H46
16R 3x 36 090 171 2.5-0.0 0.65 $3.50 $00 (A) 25d H46

Sears 1978 Free Spirit (thin rim)
17F 3x 36 080 188 2.6-0.0 0.50 $1.50 $36 ( ) 26l
17R 3x 36 080 188 2.6-0.0 0.50 $1.50 $36 ( ) 26l

Sears 54-68 Allstate Mo-Ped
19F 2x 36 090 204  2.5-0.0 0.50 none $00 ( ) 26l left
19F 2x 36 090 196  2.5-0.0 0.50 none $00 ( ) 26l right
19R 2x 36 090 204  2.5-0.0 0.50 none $00 ( ) 26l left
19R 2x 36 090 196 2.5-0.0 0.50 none $00 ( ) 26l right

Solex 46-55 45, 330
23F 2x 36 000 277 2.4 15J 0.55 none
23R 2x 36 000 277 2.4 15J 0.55 none

Solex 55-58 660, 1010
21F 2x 32 000 252 2.4 15J 0.55 none
21R 2x 32 000 252 2.4 15J 0.55 none

Solex 58-63 1400, 1700, 2200
19F 2x 28 000 225 2.4 15J 0.55 none $00 (C) 24a
19R 2x 28 000 225 2.4 15J 0.55 none $00 (C) 24a
substitute black 225 2.6 12G 0.45 $1.70 $00 ( ) 23c

Solex 64-65? 3300 Atom hubs, ∅70 rear
19F 2x 28 000 225 2.4 15J 0.55 none $00 (C) 24a
19R 2x 28 070 210 2.4 15J 0.55 none $00 (C) 24a
substitute 000 211 2.3 13G 0.45 $1.20 $28 ( ) 23c

Solex 65?-74 3300, 3800 Atom hubs, ∅83 rear
19F 2x 28 000 225 2.4 15J 0.55 none $00 (C) 24a
19R 2x 28 083 210 2.4 15J 0.55 none $00 (C) 24a
substitute 000 211 2.3 13G 0.45 $1.20 $28 ( ) 23c

Solex 75-86 3800, 4600 Leleu hubs, ∅80 rear
19F 1x 28 000 220 2.4 15J 0.55 $3.00 218 (+)(*) 24a 61358
19R 1x 28 080 190 2.4 15J 0.55 $3.00 $00 (C) 24a 61359
substitute 000 220 2.3 13G 0.45 $2.50 $00 ( ) 23c

Solex 75-79 4600 V2, 4600 V3 Motobecane
19F 1x 28 000 220 2.4 15J 0.55 $3.00 218 (+)(*) 24a 61358
19R 1x 28 080 190 2.7-2.4 0.55 $3.00 $00 (C) 24a 61359
substitute 000 220 2.3 13G 0.45 $2.50 $00 ( ) 23c

Solex 71-82 5000, Pli-Solex (folder)
16F 1x 28 000 179 2.4 15J 0.55 none  $00 (*) 24a 61799
16R 1x 28 080 152 2.4 15J 0.55 none  $00 (*) 24a 61798
16R 1x 28 080 152 2.7-2.4 0.55 none  $00 (*) 24a (7027300 on)
substitute 000 152 2.7-0.0 0.55 $2.50 $00 (A) 27a

Sparta 76-80 Foxi GT, Buddy, Lucky, Flying Dutchman
16F 2x 36 080 160 2.3-0.0 0.45 $1.00 $27 (♣)or(U) 055005
16R 2x 36 080 160 2.6-0.0 0.50 $1.50 $40 (♣) 26n 055506
16R 2x 36 080 160 3.0-2.6 0.50 $2.00 $54 (♣) 26n upgrade

Suzuki 81-90 FA50 Shuttle
14F 2x 28 080 144 2.6 12G 0.45 none $00 ( ) 55320-02202 set#
14R 2x 28 080 144 2.6 12G 0.45 none $00 ( ) 55320-02202 set#
substitute 000 144 2.6 12G 0.45 $1.80 $35 ( ) 26 (143)

Tomos 74-78 Automatic A3
16F 2x 36 090 155 2.5-0.0 0.65 $2.50 $00 (A) 25c 207079
16R 2x 36 090 155 2.5-0.0 0.65 $2.50 $00 (A) 25c 207079
substitute 000 156 2.7-2.4 0.55 $1.70 $45 (∗) 24a,24b

Tomos 78-83 Bullet (A3)
16F 2x 36 090 154 2.7-0.0 0.55 $3.00 $00 (A) 27a 213534
16R 2x 36 090 154 2.7-0.0 0.55 $3.00 $00 (A) 27a 213534

Tomos 84-91 Bullet (A3)
16F 2x 36 090 152 2.7-0.0 0.55 $2.50 $00 (A) 27a 21913500
16R 2x 36 090 152 2.7-0.0 0.55 $2.50 $00 (A) 27a 219135

Tomos 02-03 Revival (A35) R is right, L is left
17F 1x 36 000 182 3.0-0.0 0.60 $3.00 180 (A) 30c 232798 R
17F 1x 36 000 182 3.0-0.0 0.60 $3.00 180 (A) 30c 232798 L inner
17F 1x 36 000 178 3.0-0.0 0.60 none 176 (A) 30c 226799 L outer
16R 1x 36 118 167 3.0-0.0 0.60 none 160 (A) 30c 232814 L
16R 1x 36 118 150 3.0-0.0 0.60 $3.00 149 (A) 30c 232733 R
substitute 000 167 3.2 10G 0.65 $2.30 $00 ( ) 32c outer

Tomos 04-13 Revival TS (A55), Streetmate
17F 2x 36 000 178 3.0-0.0 0.60 none 176 (A) 30a 243170
16R 2x 36 105 148 3.0-0.0 0.60 none 145 (A) 30c 233147
substitute 000 148 2.9 11G 0.55 $3.00 $00 ( ) 29b outer
substitute 000 177 3.5 09G 0.65 $2.50 $00 (jw)32a or( )

Trac 82-90 Clipper, Eagle, Hawk, Escot, Sprint
16Fa 2 32 090 159 2.6 12G 0.45 none 158 (∴) 26d 25506
16Fb 2 32 090 159 2.6 12G 0.45 none 158 (∴) 26d 25505
16Ra 2 32 090 160 2.6 12G 0.45 $2.00 $44 (∴) 26d 25578
16Rb 2 32 090 160 2.6 12G 0.45 $2.50 $54 (∴) 26d 25577

Trac 84-90 Olympic, Liberty a is inner, b is outer
17Fa 2 36 110 160 2.6 12G 0.45 none $00 (  ) 26d 25006
17Fb 2 36 110 160 2.6 12G 0.45 none $00 (  ) 26d 25007
17Ra 2 36 110 160 2.9 11G 0.55 $2.00 $00 (  ) 29b 25054
17Rb 2 36 110 160 2.9 11G 0.55 $2.50 $00 (  ) 29b 25055

Trac 87-88 DH100 Superhawk a is inner, b is outer
17Fa 2 36 110 174 2.6 12G 0.45 $2.00 $00 (∴) 26d 35503
17Fb 2 36 110 174 2.6 12G 0.45 $2.00 $00 (∴) 26d 35504
17Ra 2 36 110 159 3.2 10G 0.60 none $00 (∴) 32c 35604
17Rb 2 36 110 159 3.2 10G 0.60 none $00 (∴) 32c 35605
substitute 000 160 3.2 10G 0.65 $2.50 $00 ( ) 32a

Vespa 74-80 Ciao C7N, C7E, C7V
17F 2x 28 090 182 2.5-0.0 0.65 $2.00 $00 (A) 25b 142826 nut#101830
17R 2x 36 135 160 3.0-0.0 0.60 none $00 (A) 30c 114501 ’90s zinc
substitute 000 160 3.2 10G 0.65 $2.50 $00 ( ) 32a

Vespa 77-80 Bravo EEV
16F 2x 28 090 167 2.5-0.0 0.65 none $00 (R) 25b 136111, nut#
16R 2x 36 135 145 3.0-0.0 0.60 none $00 (A) 30b 114223, nut#114216
substitute 000 145 3.2 10G 0.65 $2.50 $00 (B) 32b
substitute 000 167 2.7-2.4 0.55 $1.90 $42 (B) 24a 52951

Vespa 78-80 Grande 048
17F 2x 36 105 160 3.0-0.0 0.60 none $00 (A) 30bG68609 painted silver
16R 2x 36 135 145 3.0-0.0 0.60 none $00 (A) 30b 114223, nut#114216
substitute 000 145 3.2 10G 0.65 $2.50 $00 (B) 32b
substitute 000 160 3.2 10G 0.65 $2.50 $00 () 32a

Yamaha 79-80 QT50 Yamahopper
14F 2x 28 080 144 2.6 12G 0.45 none $00 ( ) 3L5.251.0400 set#
14R 2x 28 080 144 2.6 12G 0.45 none $00 ( ) 3L5.251.0400 set#
substitute 000 144 2.6 12G 0.45 $1.80 $35 ( ) 26 (143)

Yamaha 80-90 QT50, MJ50 ’82
14F 2x 28 080 144 2.9-2.6 0.45 none $00 ( ) 3L5.251.0401 set#
14R 2x 28 080 144 2.9-2.6 0.45 none $00 ( ) 3L5.251.0401 set#
substitute 000 144 2.6 12G 0.45 $1.80 $35 ( ) 26 (143)

Find out more about the Spokes »

Brakes

July 14, 2014

updated 2022-07

Definition of size

Size: The size of a drum brake shoe is not it’s actual length and width. The size is the width, and the diameter of the imaginary circle which the arc is a part of, which is also the brake drum diameter. Notice that the actual length is a little less than the drum diameter. So a 90 x 20 mm brake shoe is actually about 84 mm long by 20 mm wide.

Brakes that have the same drum diameter and width, can still be different, because of these things: the pivot post can have different positions, thicknesses and widths, the spreader shaft can have different positions, thicknesses and widths, the spring holes can have different positions and widths. So the size is actually several numbers, not just two.

Brake Shoes listed by Size

Each set is for one wheel. Links are to photos.

MM# 00 price alt# drum x width nickname
===========================
070161 $28.0 Leleu70r 70 x 16 Leleu70 replica .

080171 $20.0 EBC501 080 x 17 Yamaha-80 .

080181 $21.0 EBC301 080 x 18 Honda-80 .

080182 $25.0 Leleu80 80 x 18 Leleu-80 (EBC322g) note 1

080183 $20.0 BC322 80 x 18 Leleu-80PA

080201 none 27130 00 80 x 20 Motobecane .
080201 none EBC876 80 x 20 replica AGPA M-198 x note 2
080201 none EBC322m80 x 18 EBC322 after grinding note 3

080202 $20.0 EBC614 80 x 20 Suzuki-80 = 54400-02820

083181 none Atom83 83 x 18 Atom-83 .

085181 $30.0 EBC804 85 x 18 Jawa-85 .

090181 $25.0 EBC908 090 x 18 Grimeca-90 note 4

090182 $27.0 Grim90U 90 x 18 Grimeca-90U note 5

090183 $30.0 EBC931 090 x 18 Grimeca-90V note 6

090201 $30.0 Jawa90 90 x 20 Jawa-90 note 7

090202 $25.0 EBC613 090 x 20 Suzuki-90 .

090203 $35.0 Indi90 90 x 20 Indian-90 note 8

090204 none Indi90U 90 x 20 Indian-90U note 9

090205 $25.0 Bern90V 90 x 20 Bernardi-90V = 201071
090205 $30.0 EBC931 090 x 18 substitute Grimeca-90V .

090221 $30.0 Trac90V 90 x 22 Trac-90V .
090221 $30.0 EBC931 090 x 18 substitute Grimeca-90V .

095201 $20.0 EBC302 95 x 20 Honda-95 .

095251 $25.0 EBC333 95 x 25 Honda-95b .

100201 $29.0 EBC615 100 x 20 Indian-100 note 10
100201 none EBC601g 100 x 20 substitute, see note 11

100251 $22.0 EBC601 100 x 25 Suzuki-100 = 54400-02860

105201 $20.0 EBC909 105 x 20 Grimeca-105 .

105251 $32.0 Derb105 105 x 25 Derbi-105-early note 12

105252 none EBC880 105 x 25 Derbi-105-hole note 13
105251 $25.0 FSB808 105 x 25 Derbi-105-open note 13

110251 $25.0 EBC303 110 x 25 Honda-110 .

118201 none EBC926 118 x 20 Grimeca-118 .

135161 $15.0 EBC907 135 x 16 Vespa-135 = 130240

disk116 $20.0 SFA116 ’02-04 Tomos Grimeca = 232842

disk115 $22.0 SFA115 ’04-18 Tomos AJS xxxx = 243604

Note 1. EBC322 requires grinding. Without grinding the spring rubs and makes noise. The depth is made just deep enough so that the coils of the spring never touch the brake shoes. In the photo, right is before grinding, left is after.

Note 2. All pre-1978 and some 1978-80 Motobecanes have Motobecane brakes, MB# 21730 (EBC876). There is a left and a right shoe. Most Motobecanes have these brake shoes, but some 1978-80 have Leleu brakes, MB# 16104 (EBC322). On those both shoes are the same, like most other drum brakes.

Note 3. EBC322m is made from a EBC322 by 1. slight grinding of the sides at the spreader end, 2. dremmeling on the inner side of the spreader spring hooks to make the spring stay farther away from the spreader cam, 3. reusing the original MB springs because they are thinner.

Note 4. The Grimeca 90×18 brake shoe has the most moped applications. It is on almost all Italian moped and mini-bike spoke wheels. It is also on German (Hercules), Austrian (KTM), Yugoslavian (Tomos), Mexican (Carabela), and American (AMF) moped spoke wheels. The Italian made Grimeca 90×18 brake shoe is second only to the French made Leleu 80×18 brake shoe in total number of units.

Note 5. Grimeca-U brake shoes are the same as Grimeca except for the spring. The red places in the photo are what is different. Grinding and drilling are necessary to convert Grimeca type shoes to Grimeca-U type.

Note 6. There is no visible difference on the outside, between a V-spring brake plate and non-V-spring (U-spring or dual coil) brake plate, but inside there are three differences. 1) the cam shaft on a V-spring type has a retaining plate, while a coil spring type has no plate (to allow installation by “folding the taco into a tortilla”). 2) the pivot shaft on a V-spring type is longer and has a rounded groove for the V-spring. 3) the pivot shaft on a V-spring has no center groove for retention, while the coil spring and U-spring types have a center groove (for the center ridge on the shoes). In this photo the left 2 are U-spring and the rest are V-spring.

Note 7. These are the older Jawa spoke wheel brake shoes, with 5.0 mm thick lining instead of 2.5mm. That makes the diameter increase from 85 to 90mm, to fit “Italian standard 90mm” moped wheels.

Note 8. These are EBC613 brakes with the pivot post half-hole widened from 8mm to 9mm, for the bigger Indian post, and with thinner Indian coil springs.

Note 9. The modern aftermarket EBC613 spring holes do not have enough material and strength for a U-spring. The older Indian brake shoes have much more material around the spring holes. So EBC613 cannot safely be drilled out to accept a U-spring. That’s why Indian90U replacements are unavailable.

Note 10. Many Indian mopeds with beautiful Taiwan-made Mira snowflake mags need these brake shoes, because the originals deteriorate and/or de-laminate. These EBC brakes look different, with different ribs than original, but they are an exact replacement.

Note 11. EBC601 is the same as EBC615, except the lining is wider. Grind off 2.5 mm from each side to make a 615 from a 601.

Note 12. Derbi brake plates can have two different cam thicknesses. Older models 1977-78 mostly had 10mm thick cams and 105251 brake shoes. Later models from about 1979-on had 8mm thick cams and 105252 brake shoes. See photo. 105252 shoes have steel plates on the cam end, but 105251 do not. To make 105252 shoes fit on an early 10mm cam either the steel plates must be removed from the brake shoes, or the 10mm cam ground thinner to 8mm.

Note 13. Derbi 105252 brake shoes (for 8mm cam) are made in two versions that interchange. Derbi-105-open type shoes have half-circle pivot ends, while Derbi-105-hole shoes have full circle pivot ends.

Brake Shoes listed by Application

Below, look up the MM# for your application.
Applications are USA models, unless noted.
Above, see price, photos and notes for that MM#.

Colors: F front or R rear wheel, engine, spoke wheels, mag wheels
pedal mopeds, non-pedal mopeds and motorcycles
scooters (with a “floor”), off-road or dual-purpose

brakes 00 chains
MM# 00 F R ⇓ years make (engine) models 000000 wheels
============================================
090183 F 1 1978-80 AMF Roadmaster 110 to 131 Grimeca spoke
090182 R 1 1978-80 AMF Roadmaster 110 to 131 Grimeca spoke
090183 F 1 1980-84 AMF (Min. V1) Roadmaster 140,141 Gri. spoke
090182 R 1 1980-84 AMF (Min. V1) Roadmaster 140,141 Gri. spoke
080181 F R 1 1978-80 AMS (Sachs 505) Sierra 50, Tahoe 50 ∅80 hubs
110251 F R 1 1981-84 AMS (Sachs 505) Sierra 50, Tahoe 50 ∅110 hubs
080181 F R 2 1977-79 Angel AP48, BP48 PC50 spoke
090181 F R 1 1977-79 Baretta (Minarelli V1) 22, 38, 44 Grimeca spoke
090181 F R 1 1977-79 Baretta (Minarelli V1) Magnum Grimeca spoke
070161 R 2 1974-77 Batavus (M48) VA, HS50 Leleu spoke
070161 R 2 1977-80 Batavus (M48) Starflite Leleu spoke
080182 F 2 1976-77 Batavus (M48) VA (step-thru) Leleu spoke
080182 F 2 1977-77 Batavus (M48) HS50 (top tank) Leleu spoke
080182 F 2 1977-77 Batavus (M48) Mobat, Bronco    Leleu spoke
080182 F 2 1978-79 Batavus (M48) Starflite VA Leleu spoke
080182 F 2 1978-79 Batavus (M48) Starflite HS Leleu spoke
080182 F R 1 1978-80 Batavus (M56) Regency VA Leleu spoke
080182 F R 1 1978-80 Batavus (M56) Regency HS    Leleu spoke
080182 F R 2 1980-84 Batavus (Peugeot) Mondial    Leleu spoke
105201 F R 1 1981-84 Batavus (Sachs 505) Gran Prix Grimeca 7-ray
090182 F R 1 1978-80 Batavus (M56) Regency VA Grimeca-X
090182 F R 1 1978-80 Batavus (M56) Regency HS Grimeca-X
090182 F R 2 1981-84 Batavus (Peugeot) Gran Prix Grimeca 5-star
090181 F R 1 1977-79 Benelli G2 Grimeca spoke
090181 F R 1 1977-79 Bianchi Eagle 25,30 Grimeca spoke
090181 F R 1 1977-79 Bianchi Satellite Grimeca spoke
090181 F R 1 1977-79 Bianchi Stardust Grimeca spoke
090181 F R 1 1977-78 Carabela Motomatic Grimeca spoke
090181 F R 1 1976-79 Cimatti City Bike Grimeca spoke
090181 F R 1 1976-79 Cimatti Town Bike Grimeca spoke
090181 F R 1 1978-79 Cimatti Gran Prix XL Grimeca spoke
105201 F R 2 1977-80 Colombia (Solo) Mopet USA spoke
105201 F R 2 1978-80 Colombia (Solo) Open Road USA spoke
105201 F R 2 1980-81 Colombia (Solo) Western Flyer USA sp
105201 F R 2 1977-80 Colombia (Sachs) Mopet USA spoke
105201 F R 1 1977-80 Colombia (Sachs) Open Road USA spoke
105201 F R 1 1977-79 Colombia (Sachs) Commuter  USA spoke
105201 F R 1 1979-81 Colombia (Sachs) Imperial USA spoke
105201 F R 1 1980-81 Colombia (Sachs) Medallion USA spoke
105201 F R 1 1980-81 Colombia (Sachs) Western Flyer USA sp
090181 F R 1 1977-78 Concord (Min. V1) XKE Grimeca spoke
090182 F R 1 1980-85 Concord (Min. V1) Invader Grimeca 5-star
090182 F R 1 1980-85 Concord (Min. V1) Freedom Grimeca 5-star
090182 F R 1 1980-85 Concord (Min. V1) Shadow Grimeca 5-star
090182 F R 1 1979-80 Cosmo (Min. V1) Amico Grimeca-X
090181 F R 1 1978-79 Concord Invader Grimeca spoke
090181 F R 1 1978-79 Concord Freedom Grimeca spoke
090181 F R 1 1978-79 Concord Shadow Grimeca spoke
090181 F R 1 1978-80 Cosmo Colt 1, Colt 3 Grimeca spoke
080182 F 1 1978-80 Cuyler Runaround Taiwan-Leleu
090182 R 1 1978-80 Cuyler Runaround   Taiwan-Grim-U
105251 F R 1 1977-79 Derbi Variant SL, TT (10mm cam) D spoke
105251 F R 1 1977-79 Derbi Variant SLE (10mm cam) Der 5-star
105252 F R 1 1979-85 Derbi Variant SL, TT (8mm cam) D spoke
105252 F R 1 1979-85 Derbi Variant SLE (8mm cam) Der 5-star
105252 F R 1 1979-86 Derbi Laguna Derbi 5-star
105252 F R 1 1979-87 Derbi C5, RD50 Derbi spoke
105252 F R 1 1986-89 Derbi Variant Sport Derbi 4-star
105251 F R 1 1987-89 Derbi DS50 moped/scooter Derbi
090181 F R 1 1977-79 Demm Smily, Scout Grimeca spoke
105201 F R 1 1982-82 Eagle (505/1D) Eagle III Grimeca 7-ray
090182 F R 1 1978-80 Gadabout (Minarelli V1) Grimeca-X
090181 F R 1 1974-76 Garelli (H1) Eureka Grimeca spoke
090181 F R 1 1977-80 Garelli (H1) Sport     Grimeca spoke
090181 F R 1 1981-85 Garelli (H1) Basic     Grimeca spoke
090181 F R 1 1977-79 Garelli (H1) Gran Sport Grimeca spoke
090181 F R 1 1979-85 Garelli (H1) Rally Sport    Grimeca spoke
090181 F R 1 1978-81 Garelli (H1) Super Sport XL Grimeca spoke
105201 F 1 1977-78 Garelli (G2) Gulpmatic Grimeca spoke
090181 F R 1 1977-78 Garelli (G2) Gulpmatic Grimeca spoke
105201 F 1 1978-80 Garelli (V2) VIP Deluxe Grimeca spoke
090181 F R 1 1978-80 Garelli (V2) VIP Deluxe Grimeca spoke
090181 F R 1 1981-84 Garelli (M1) Monza     Grimeca spoke
105201 F R 1 1981-86 Garelli (V2) VIP-N   Grimeca spoke
105201 F R 1 1981-83 Garelli (H1) Sport Grimeca spoke
105201 F R 1 1981-83 Garelli (H1) Rally Sport Grimeca spoke
105201 F R 1 1981-83 Garelli (H1) Super Sport XL Grimeca spoke
105201 F R 1 1984-86 Garelli (H1) Rally SL Grimeca spoke
105201 F R 1 1984-85 Garelli (H1) SSXL    Grimeca spoke
105201 F R 1 1984-86 Garelli (H1) Basic    Grimeca spoke
105201 F R 1 1983-85 Garelli (M1) Monza GT   Grimeca spoke
090182 F R 1 1986-86 Garelli (M1) Monza GT    Grimeca-X
090182 F R 1 1978-79 Garelli (H1) Gran Sport LTD Grimeca-X
090182 F R 1 1979-82 Garelli (1sp) Rally Sport LTD Grimeca-X
090182 F R 1 1979-81 Garelli (1sp) Super Sport LTD Grimeca-X
080181 F R 1 1978-85 General (Min. V1) 5-Star ∅80 hubs
080181 F R 1 1978-85 General (Min. V1) 5-Star ST ∅80 hubs
110251 F R 1 1981-85 General (Sachs) 5-Star ∅110 hubs
110251 F R 1 1981-85 General (Sachs) 5-Star ST ∅110 hubs
090181 F R 1 1977-78 Gitane (Min. V1) CL200, Confort Gr spoke
090181 F R 1 1977-78 Gitane (Min. V1) Sport Grimeca spoke
110251 F R 1 2000-05 Hero Puch Automatic spoke wheels
110251 F R 1 2000-05 Hero Puch Turbo Sport mag wheels
080181 F 0 1977-83 Honda NC50 Express Honda spoke
080181 R 0 1977-80 Honda NC50 Express    Honda spoke
095201 R 0 1981-83 Honda NC50 Express
095251 F 0 1982-83 Honda NU50 Urban Express
095251 F 0 1982-83 Honda NU50M Urban Express
095201 R 0 1982-83 Honda NU50 Urban Express
080181 F 0 1979-81 Honda NA50 Express II    Honda spoke
095201 R 0 1981-81 Honda NA50 Express II
080181 F 0 1981-82 Honda NX50 Express Sr. Honda spoke
095201 R 0 1981-82 Honda NX50 Express Sr.
080181 F 0 1983-87 Honda NB50 Aero       Honda steel
095201 R 0 1983-87 Honda NB50 Aero Honda steel
080181 F R 0 1984-84 Honda NN50 Gyro     Honda steel
080181 F R 0 1984-87 Honda NQ50 Spree    Honda steel
080181 F 1 1967-68 Honda P50 (rear engine) Honda spoke
080181 F 2 1978-81 Honda PA50 Hobbit Honda spoke
080183 R 2 1978-81 Honda PA50 Hobbit Leleu spoke
080181 F R 2 1982-83 Honda PA50 Hobbit Honda spoke
080181 F R 2 1969-70 Honda PC50 Lil Honda Honda spoke
080181 F R 2 1975-77 Honda PC50K1 Honda spoke
095201 R 0 1983-84 Honda NH80 Aero    Honda steel
095251    R 0 1985-85 Honda NH80 Aero    Honda steel
080181 F R 0 1985-86 Honda TG50 Gyro    Honda steel
080181 F 0 1988-93 Honda SA50 Elite       Honda steel
095201 R 0 1988-93 Honda SA50 Elite Honda steel
095251 F R 0 1994-01 Honda SA50 Elite SR, Elite SA
095251 F R 0 1994-01 Honda SA50P Elite S
095251 R 0 1985-07 Honda CH80 Elite
080181 F R 0 1988-90 Honda SB50 Elite    Honda steel
080181 F 0 1987-88 Honda SE50 Elite       Honda steel
095201 R 0 1988-97 Honda SE50 Elite    Honda steel
095251 F R 0 2002-11 Honda CHF50 Metropolitan
095251 F R 0 2002-11 Honda CHF50P Metropolitan II
095251 F 0 2013-14 Honda NCH50 Metropolitan
095251 F R 0 2003-14 Honda NPS50, NPS50S Ruckus
110251 F 1 1990-90 Honda NS50F
110251 F R 1 1980-83 Honda C70 Passport
110251 F 0 1983-85 Honda NH80 Aero
110251 F 0 1985-07 Honda CH80 Elite
110251 F R 0 1984-84 Honda CH125 Elite
110251 R 1 1984-85 Honda CB125S
110251 F R 0 1984-84 Honda NH125 Aero
110251 F R 0 1985-87 Honda CH150 Elite, CH150D
080181 F R 1 2004-12 Honda CRF50F
080181 F R 1 2000-03 Honda XR50R
080181 F R 1 1980-99 Honda Z50R
110251 F R 1 1988-88 Honda ZB50
095251 F R 1 1983-84 Honda CR60R
110251 F R 1 1977-82 Honda CT70 Trail 70
110251 F R 1 1991-94 Honda CT70 Trail 70
110251 F R 1 1970-73 Honda SL70 K1
110251 F R 1 1974-74 Honda XL70 (up to #103001)
095251 F R 1 2004-14 Honda CRF70F
110251 F R 1 1978-78 Honda XL75
110251 F R 1 1971-76 Honda XR75 K1/K2/76
095251 R 1 1982-82 Honda CR80R
095251 F R 1 1983-84 Honda CR80R
095251 F 1 1985-85 Honda CR80R
095251 F R 1 1985-03 Honda XR80R
110251 F R 1 1991-96 Honda EZ90 Cub
095251 F R 1 2004-14 Honda CRF100F
095251 F R 1 1985-03 Honda XR100R
095251 F R 1 2013-14 Honda CRF110R
110251 F R 1 1970-74 Honda SL100 K1/K2/K3
110251 F R 1 1974-74 Honda XL100 (up to #1020001)
110251 F R 1 1977-78 Honda XL100
110251 F R 1 1980-86 Honda CT110
110251 F R 1 1967-74 Honda CL125S (single)
090203 F R 1 1978-81 Indian AMI-50 Chief spoke wheels
090204 F R 1 1978-81 Indian AMI-50 Chief Sport Mag II
100201 F R 1 1979-81 Indian AMI-50 Chief Mira snowflake
085201 F R 2 1976-77 Jawa Babetta (20,25,30)     Jawa spoke
085201 F R 2 1978-80 Jawa X20, X25, X30 Jawa spoke
090201 F R 2 1985-90? Jawa 210?    mag wheels?
080182 F R 2 1977-79 JC Penney Pinto, Swinger, Swinger 2 L sp
080182 F R 2 1977-79 JC Penney Pinto 2 (spoke whls) Leleu spoke
090182 R 2 1977-79 JC Penney Pinto 2 (w/mags) Grimeca-X
090183 F 2 1977-79 JC Penney Pinto 2 (w/ mags) Grimeca-X
090202 F R 1 2003-06 Kawasaki KDX50
080182 F R 2 1977-80 Kreidler MP9 Flory Leleu spoke
080182 F R 2 1978-80 Kreidler MP19 Flory   Kreidler 5-star
090182 F R 2 1977-79 KTM (Sachs 504) Foxi Deluxe Grimeca spoke
090182 F R 2 1977-79 KTM (Sachs 504) Foxi Salsburg Grimeca spoke
090182 F R 2 1978-79 KTM (Sachs 504) Foxi Baron   KTM 5-ray
080182 F R 1 1996-07 KTM 50SX Pro Junior
080182 F R 1 1996-07 KTM 50SXR Senior Adventure
080182 F R 1 2004-05 KTM 50SX Mini Adventure
110251 R 1 2000-01 Kymco Cobra 50 (2-stroke)
110251 R 1 2002-03 Kymco Cobra Cross (2-stroke)
110251 R 1 2000-05 Kymco ZX50 (2-stroke)
110251 R 1 2005-12 Kymco Agility 50 (4-stroke)
110251 R 1 2005-08 Kymco Vitality 50 (4-stroke)
110251 R 1 2009-12 Kymco Sento 50 (4-stroke)
110251 R 1 2006-11 Kymco Agility 125 (4-stroke)
095201 R 0 2014-14 Kymco 50i (4T – SE50BG)
095201 R 0 2013-14 Kymco 110i (4T-SE22BD)
090181 F R 2 1977-78 Kynast Flying Dutchman (steel fenders) Gr sp
080181 F R 1 1977-78 Lazer Sport 50 orange    “Honda” spoke
080181 F R 1 1977-78 Lazer Sport 50 ST blue      “Honda” spoke
085201 F R 2 1993-6?.Manet-Puch Korado (Euro)      Jawa spoke
090205 F R 2 1995-00 Manet-Puch Korado    Bernardi 3-ray
070161 F R 2 1977-79 Motobecane Model 7 Leleu spoke
080182 F R 2 1978-79 Motobecane 50 Leleu spoke
080182 F R 2 1978-79 Motobecane 50VLC Leleu spoke
080182 F R 2 1980-80 Motobecane Moby, Traveller Leleu spoke
080182 F R 2 1980-80 Motobecane Traveller Leleu spoke
080201 F R 2 1976-77 Motobecane 40TS, 40TL MB spoke
080201 F R 2 1976-77 Motobecane 50S, 50L, 50V MB spoke
080201 F R 2 1978-79 Motobecane 50VLC    MB spoke
080201 F R 2 1978-79 Motobecane 50VLA    MB 6-star
080201 F R 2 1980-80 Motobecane Moby, Traveller MB spoke
080201 F R 2 1980-80 Motobecane Le Moped MB 6-star
090181 F R 2 1977-79 Moto Guzzi Robin Grimeca spoke
090182 F R 1 1985-89 Motomarina Sebring, Raven Grimeca mags
090181 F R 1 1978-80 Motron Sprint, Medalist, Fairway Gri. spoke
090182 F R 1 1978-80 Motron Classic,Medalist,Fairway Gri. mags
080182 F R 2 1978-80 Murray 8315, 8320   Leleu spoke
080182 F R 2 1978-80 Murray 8415, 8420   Leleu spoke
080182 F R 2 1978-80 Murray 8515, 8520   SM2 10-ray
070161 R 2 1980-80 Peugeot 102 Leleu spoke
080182 F R 2 1976-83 Peugeot 103 LS – U1 Leleu spoke
080182 F R 2 1976-83 Peugeot 103 L2 – U1,U2,U3     Leleu spoke
080182 F R 2 1976-83 Peugeot 103 LVS – U2,U3   Leleu spoke
080182 F R 2 1978-83 Peugeot 103 SP – U2,U3 Leleu spoke
080182 F R 2 1979-83 Peugeot 103 SPB – U2,U3 Peugeot 6-star
080182 F R 2 1980-83 Peugeot TSM – U2,U3 Leleu spoke
080182 F 2 1980-80 Peugeot 102SP – U2,U3   Leleu spoke
080182 F R 2 1974-76 Puch Maxi S, Maxi N Leleu spoke
080182 F R 2 1976-76 Puch Maxi Nostalgic Leleu spoke
080182 F R 2 1977-77 Puch GN (Rigid), Maxi, Newport Leleu spoke
080182 F R 2 1978-79 Puch Rigid, Maxi, Newport L Leleu spoke
080182 F R 2 1978-79 Puch Maxi Luxe, Maxi II    Leleu spoke
080182 F R 2 1978-79 Puch Magnum XK Leleu spoke
080182 F R 2 1980-81 Puch Maxi, Maxi Luxe       Leleu spoke
080182 F R 2 1980-81 Puch Newport II, Magnum II Leleu spoke
080182 F R 2 1979-81 Puch Sport MkII Puch 5-star
080182 F R 2 1980-81 Puch Magnum LTD Puch 5-star
080182 F R 2 1981-83 Puch Series B       Leleu spoke
080182 F R 2 1982-84 Puch Dart, Maxi Sport LS Leleu spoke
080182 F R 2 1983-85 Puch Cobra Leleu spoke
080182 F R 2 1984-85 Puch Austro-Daimler Puch 5-star
080182 F R 2 1985-86 Puch Austro-Daimler II Puch 5-star
080182 F R 2 1985-86 Puch Maxi Sport LS II Puch 5-star
080182 F R 2 1985-86 Puch Cobra II   Puch 5-star
080182 F R 2 1985-86 Puch Cobra II   Puch 5-star
090182 R 2 1978-79 Puch (2sp) Magnum MkII silver Grimeca-X
090182 R 2 1977-78 Puch (1sp) Sport    Grimeca-X
090182 R 2 1978-79 Puch (2sp) Sport MKII Grimeca-X
090182 F 2 1977-78 Puch (1sp) Sport (with steel F brake plate) G-X
090182 F 2 1978-79 Puch (2sp) Sport MkII (with steel F plate) Gr-X
090183 F 2 1978-79 Puch (2sp) Magnum MkII   Grimeca-X
090183 F 2 1978-79 Puch (1sp) Sport (w/alum F brk plate)  Grim-X
090183 F 2 1978-79 Puch (2sp) Sport MkII (w/al F brk plate) G-X
090182 F R 2 1975-79 Sachs (504-1A) P1 Westlake     Grimeca spoke
090182 F R 2 1975-79 Sachs (504-1A) P1 Westlake     Grimeca-X
090182 F R 2 1980-84 Sachs (504-1D) Sundancer Grimeca spoke
090182 F R 1 1978-79 Sachs (505-1A) M4 Balboa     Grimeca spoke
090182 F R 1 1978-79 Sachs (505-1A) M4 Balboa Grimeca-X
090182 F R 1 1980-84 Sachs (505-1D) Suburban      Grimeca-X
090182 F R 1 1980-84 Sachs (505-1D) Seville      Grimeca-X
090182 F R 1 1980-84 Sachs (505-1D) Prima   Grimeca-X
105201 F R 1 1980-84 Sachs (505-1D) Prima G3 Grimeca 7-ray
090202 F 1 1980-82 Sachs G4 (Taiwan)    Taiwan spoke
110251 R 1 1980-82 Sachs G4 (Taiwan)    “Honda” spoke
118201 F R 1 1978-81 Safari Commando    (Grimeca-X)
083181 R 1 1955-80 Schwinn Tandem (drum brake) Atom spoke
080182 F R 1 1978-78 Sears (Puch) Free Spirit (red or blue) L spoke
090183 F    2 1978-78 Sears (Puch) Free Spirit Deluxe (silver) G-X
090182 R 2 1978-78 Sears (Puch) Free Spirit Deluxe (silver) Gr-X
090181 F R 1 1977-79 Snark Bianchi Standard    Grimeca spoke
090181 F R 1 1977-79 Snark Bianchi Deluxe     Grimeca spoke
090181 F R 1 1977-79 Snark Bianchi Satellite     Grimeca spoke
083181 R 1 1966-74 Solex 3800 w/Atom rear hub Atom spoke
080181 R 1 1975-88 Solex 3800 w/Leleu rear hub Leleu spoke
080182 F R 2 1976-77 Sparta Foxi GT, Foxi Sport Leleu spoke
080182 F R 2 1977-80 Sparta Buddy, Deluxe, Stingray Leleu spoke
080182 F R 2 1977-80 Sparta Flying Dutchman KML40 Leleu spoke
080181 F R 2 1977-79 Speed Bird BP48, BP48S “Honda” spoke
080202 F R 0 1980-91 Suzuki FA50 Shuttle Suzuki spoke
080202 F R 0 1980-81 Suzuki FS50 Suzuki spoke
100251 F R 0 1979-83 Suzuki FZ50 Rascal
090202 F R 1 1978-08 Suzuki JR50 (all)
080181 F R 1 2008-11 Suzuki DR-Z 70
100201 F 1 1982-85 Suzuki RM80
110251 F 0 1999-12 SYM Fiddle 50 (with front drum brake)
095201 R 0 1999-12 SYM Fiddle 50 (with front drum brake)
110251 R 0 2008-11 SYM Fiddle 50 (with front disk brake)
110251 R 0 1999-12 SYM Jet Euro 50 (2-stroke)
110251 R 0 2005-14 SYM MiO 50 (4-stroke 30mph)
110251 R 0 2014-14 SYM Jet 50 Evo (2-stroke 30mph)
110251 R 0 2007-12 SYM SYMply 50 (4-stroke)
110251   R 1 2009-14 SYM SYMba 100 (4-stroke)
090181 F R 1 1974-86 Tomos (A3) Bullet Tomos spoke
090181 F R 1 1987-91 Tomos (A3) Bullet (some) Tomos spoke
090182 F R 1 1987-91 Tomos (A3) Bullet (some)   Tomos spoke
090182 F R 1 1978-80 Tomos (A3) Silver Bullet Grimeca-X
090182 F R 1 1980-85 Tomos (A3) Silver Bullet Grimeca 5-star
090183 F R 1 1986-91 Tomos (A3) Golden Bullet Grimeca 5-star
090183 F R 1 1986-91 Tomos (A3) Golden Bullet TTLX Grim 5-star
090183 F R 1 1992-95 Tomos (A35) Bullet, Bullet TT Tomos Web
090183 F R 1 1993-95 Tomos (A35) Sprint, Targa Tomos Web
105201 F R 1 1996-07 Tomos (A35) Sprint, Targa   T Slot or 10ray
105201 F R 1 1996-02 Tomos (A35) Targa LX   T Slot or 10ray
105201 F R 1 2003-06 Tomos (A35) Tomos, ST, LX T Slot or 10ray
105201 F R 1 2007-13 Tomos (A55) Sprint, ST, LX   T Slot or ZCW
disk115 F 1 2004-12 Tomos (A55) Revival TS Tomos spoke
105201 R 1 2004-12 Tomos (A55) Revival TS Tomos spoke
disk115 F 1 2005-12 Tomos (A55) Streetmate Tomos spoke
105201 R 1 2005-12 Tomos (A55) Streetmate Tomos spoke
disk115 F 1 2008-13 Tomos (A55) Streetmate-R Tomos ZCW
105201 R 1 2008-13 Tomos (A55) Streetmate-R Tomos ZCW
disk115 F 1 2005-08 Tomos (A55) Arrow, Arrow-R
110251 R 1 2005-08 Tomos (A55) Arrow, Arrow-R
disk116 F 1 2002-04 Tomos (A35) Revival    Grimeca spoke
118201 R 1 2002-04 Tomos (A35) Revival Grimeca spoke
090221 F R 1 1982-85 Trac (M56) Clipper, Eagle Trac spoke
090221 F R 1 1982-85 Trac (M56) Hawk Trac spoke
090221 F R 1 1985-89 Trac (DP50) Clipper     Trac spoke
090221 F R 1 1985-89 Trac (DK50) Escot Trac spoke
090183 F R 1 1982-85 Trac (M56) Eagle, Hawk Grimeca-X
090183 F R 1 1986-88 Trac (DP50) Hawk, Sprint Grimeca-X
090183 F R 1 1986-89 Trac (DK50) Image, Sprint Grimeca-X
110251 F R 1 1985-89 Trac (DP50) Olympic Trac 110 spoke
110251 F R 1 1984-89 Trac (DK50) Liberty   Trac 110 spoke
110251 F R 1 1989-90 Trac (DP50) Blitz   Trac 110 spoke
110251 F R 1 1987-90 Trac DH100 Super Hawk Trac 110 spoke
135161 R 1 1976-86 Vespa Ciao C7N, C7E, C7V Piaggio spoke
135161 R 1 1977-80 Vespa Bravo EEV1T    Piaggio spoke
135161 R 1 1978-80 Vespa Grande 048 Piaggio spoke
135161 R 1 1979-80 Vespa Grande 048 Grimeca-X
135161 R 1 1981-84 Vespa Grande 068   Grimeca-X
135161 R 1 1980-86 Vespa Si SIV1T    Piaggio 4-star
105201 F 1 1978-80 Vespa Grande 048    Grimeca spoke
105201 F 1 1980-85 Vespa Grande 068 Grimeca-X
105201 F 1 1979-85 Vespa Si xxxxxxxxxxxxx Piaggio 4-ray
080171 F R 0 1982-82 Yamaha MJ50 Towny Yamaha steel
080171 F R 0 1980-87 Yamaha QT50 Yamahopper Yamaha spoke
080171 F 0 1983-86 Yamaha CA50 Riva Yamaha steel
080171 F   0 1986-87 Yamaha CE50 Riva Yamaha steel
080171 F   0 1988-91 Yamaha CG50 Riva   Yamaha steel
080171 F 0 1987-94 Yamaha SH50 Razz Yamaha steel
080171 F   0 1998-99 Yamaha SH50 Razz Yamaha steel
080171 F R 0 1981-09 Yamaha PW50 Yamaha steel
080171 F R 0 2012-12 Yamaha PW50       Yamaha steel
080181 F R 1 2006-09 Yamaha TT-R 50

Brake Shoes Info

Types: There are four types of drum brake shoes used on mopeds:

1. Open type with coil springs: When the center of the wheel is small enough, the open type with coil springs is preferred because servicing is easier. To install, connect the springs and place the shoes in the shape of a taco. Then fold the taco into a flat tortilla. That stretches the springs without any tools. Then tap the shoes with the handle of a screwdriver until they snap into place. The advantage of this style is easy servicing.

2. Hole type with coil springs: These brake shoes have a large hole in the pivot post end, and two small coil spring holes. They cannot be installed by “folding the taco into a tortilla”. But they also cannot separate from the pivot post. The advantage is slightly more safety.

When the center of the wheel is big and the brake drum is small, the U spring or V spring type is required. Otherwise the coil springs rub on the wheel center and make a violin sound.

3. Open type with U spring: The U spring goes inside the pivot post. The brake shoes and brake plate are the same as the hole type with coil springs. Only the spring is different, a single large U-spring instead of two small coils. For Grimeca 90 x 18, minor modifications to the coil spring brake shoes are required to fit a U-spring. See below. The advantage of this type is greater spring clearance and compatibility with type 1.

4. Hole type with V spring: The V spring goes outside the pivot post. These brake shoes have a large hole on the pivot end (not the smaller spring holes), and the V spring goes around the pivot post. So the pivot post has a rounded groove for the spring. The advantage of this type is slightly more reliability and safety.

But installing the spring is difficult and requires a special spreader tool. At left is that tool. It is made from a M6 x 30 screw, nut, washers, special lip-washer for centering, and a 12mm piston pin. The piston pin end and screw head are ground to fit the spring so it can’t slip off. Price $15

Installing Leleu 70mm replacement brake shoes

The replacements have thinner and weaker spring anchor hooks. They can break off during installation when the spring has to be stretched to go over the hook. To prevent breaking the spring hooks, there are two things on the brake plate that need to be ground. One is the top lip on the pivot post. It needs to be reduced in diameter, but with some lip remaining for retention. The top edge needs to be rounded. That helps to not overstretch the spring. Two is the top lip on the spreader cam. It too needs to be reduced, but with some lip remaining for retention.

Once those areas are ground, the shoes can be installed with just fingers and no tools. Do not use prying tools. Only fingers are needed.

Contents: 1. Pinch Bolts (knarps) 2. Ends, Adapters, Misc 3. Adjusters (adjustable stops) 4. Ferrules (cable stops), End Caps 5. Bulk conduit (housing) and Wire ———- partition ———- 6. Cloth cable restoration

1. Pinch Bolts

P4-P10: Barrel Pinch Bolts (Knarps)

P20: Stepped Pinch Bolts

P21-P22: Loop Pinch Bolts

P25, P27: Flat-Sided-Hole Pinch Bolts

P26: Clevis Clamp Pinch Bolts

2. Ends

E1: End Adapters

E2: End Adapters (Anchor Pins)

E3: Misc. Cable Items

E4: Bicycle Ends

E5: Solder Type Ends

3. Adjusters

A1-A13: Screw-in Adjusters

A1, A7: Adjuster nuts

A8-A9: Non-screw-in Adjusters

4. Ferrules

F1-F5: Step Ferrules

F6: End Caps

5. Bulk Items

B1-B6: Bulk Inner Wire

B9-B18: Bulk Conduit

B20: Bulk Sleeve

Contents:

Tomos 1991-2007 1. H.R.

Italian Controls 2. Ci.Te. 3. OSL 4. P.V. 5. TS

Spanish Controls 6. Derbi

Generic Controls 7. Mini-bike

1. H.R. Controls

2. Ci.Te. Controls

3. OSL Controls

4. P.V. Controls

5. TS Controls

6. Derbi Controls

Brake Levers

Decompression Lever

7. Universal Controls

Contents: 1. 70’s – 80’s Magura Parts Contents: 2. Magura Moped Controls Contents: 3. Service Information

1970’s -80’s Magura Parts

Magura Moped Controls

Service Information

Magura Wrap-Around Throttle

Contents:

1. Handlebar Specifications

2. Aftermarket Handlebars

3. Original Handlebars

1. Handlebar Specifications

2. Aftermarket Handlebars

3. Original Handlebars

Cimatti

Garelli

Gitane

Honda

Kreidler

Kreidler bars

Motobecane

Motobecane 50V bars

Peugeot

Peugeot 103LVS bars

Peugeot 103SP bars

Puch

Puch 1969-77 bars-with-stem

Puch 1977-86 bars

Puch tall bars

Puch tall cross bars

Puch low cross bars

Sparta

Sparta bars

Tomos

Tomos 1974-1979 bars-with-stem

Tomos 1979-1991 bars

Tomos 1985-2008 bars

Tomos 2008-2013 bars

Tomos Streetmate bars

Tomos Revival bars

Contents:

A. Front sprockets

B. Rear sprockets

C. Sprocket Parts

Contents:
1. Pinch Bolts (knarps)
2. Ends, Adapters, Misc
3. Adjusters (adjustable stops)
4. Ferrules (cable stops), End Caps
5. Bulk conduit (housing) and Wire
———- partition ———-
6. Cloth cable restoration

Contents: 1. 70’s – 80’s Magura Parts
Contents: 2. Magura Moped Controls
Contents: 3. Service Information

Contents: 1. Chain Sizes
Contents: 2. Moped Chains
Contents: 3. Master Links
Contents: 4. Chain Service Topics
Contents: 5. Myrons Chain List
Contents: 6. Moped Chain History

1. Spoke Length
2. Quick Info
3. Spoke List
—— partition ——
4. Spoke Nipples
5. Spoke Threads
6. Length Calculation
7. Calculated Lengths
