A3 Petcock

July 14, 2022

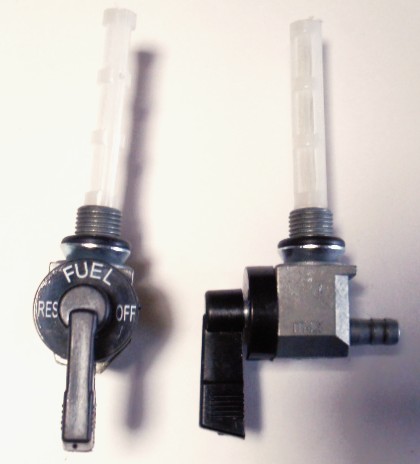

A3. 10x1 male spigot back

A3 10×1 spigot back
01z2291092  $15
←reserve on↓ off→
 made in Italy by OMG

Cutting the Motobecane left side cover to make room for an OMG replacement petcock

Links to photos of examples:
71-73 Broncco Diablo original
1977 Malaguti Commuter original
1977 Malanca Roxi original
1978 Maico original
1978 Malaguti Commuter original
1978 Baretta 38 (and 22) original
1978 Baretta Magnum (top tank)
1978 Motobimm original
1978 Yankee Peddler original
1979 Cosmo Colt original
1979 Motobecane 50V original
1977 MB 50V orig made by Quiet
1980 Cosmo Colt 3 original
1985 Safari 300MT Turbo replacement
1987 Motomarina Raven (monotube)



A3 or A4 for Motobecane: 1970’s sheet-frame Motobecanes use a A3 type vertical valve, but not in a vertical orientation. Instead it is almost horizontal, at about 70 degrees from vertical. So a spigot-back valve fuel hose goes down, not back. An A4 10 x 1 spigot-left is a better replacement choice. With A3 the fuel hose goes down first, and then slightly uphill before it curves down into the Gurtner carburetor. With A4 the fuel hose goes forward first, and then slightly down hill before curving down to the carb. The A4 allows the fuel hose to be empty when the tank is empty. The A3 with a U-shape hose routing would trap some liquid, just like under a sink drain. Then the bike would have to be leaned to the right to empty the fuel hose completely.

Side cover grinding: With all replacement petcocks the Motobecane 50 or 40 left side cover must be modified. The front side of the petcock slot must be have about 1/8″ (3 mm) cut off.  See the above photo.





A2 Petcock

July 14, 2022

A2. 10x1 male spigot down

A2 10×1 spigot down
01z2231010  $15
←reserve on↓ off→
 made in Italy by OMG

A2b 10×1 down
red handle  none
←res  on↓ off→

Links to photos of examples:

1965-66 Harley Davidson M50 replacement
1977 Pacer Deluxe (P14) original
1977 Negrini Harvard replacement
1977 Cimatti City Bike (when adapter is missing)
1978 Cimatti City Bike (with no 10-12 adapter)
1978 Motron original (extender on tank)
1978 Concord XKE original
1980 Peugeot 103 LVS replacement
1978 Motobecane Model 7 original
1978 Motobecane Model 7 with A2b



This valve fits hundreds of mopeds and mini-cycles. It fits any tank with a 10×1 threaded hole, and with nothing below or near the valve that would interfere.

Motobecane 7 rear tanks have a side wall that is very close to the petcock threaded hole. Modern petcocks are too wide to screw in unless they are first disassembled. Once the handle, face cover, nut, spring and shaft-plate are carefully removed, the bare valve body is small enough to screw into the tank. Then the pieces must be put back in the same order and orientation as they came out.

Cimatti rear tanks have a 10×1 threaded hole, but there is a nearby “wall” that prevents a 10×1 male valve from screwing in, unless the whole gas tank is removed. That requires rear wheel and rear fender removal. To make gas valve installation easy, Cimatti added a screw-in 10-to-12 adaptor piece, and used a 12×1 female type gas valve, with a turnbuckle type nut. Only the nut turns, and the “wall” does not matter. So it is much better to reuse the 10-to-12 adaptor, and use a 12×1 spigot right or down valve instead.



A1 Petcock

July 14, 2022

A1. 8x1 male spigot L or R push-pull

A1 8×1 push pull
01z2225169  $15
in is on, out is off
Italy-made by OMG

Links to photos of examples:

1960 Wards Riverside original
1965 Motobecane AV79 original











— More Parts Menu — Select:

July 10, 2022

Speedometer parts

Fork locks and keys

Reflectors













— Tomos Service Menu — Select:

July 10, 2022

’92-08 Throttle Fix

Clutch Service

Electrical Service

Oil Injection













A55 Trans Oil Leak

A55 Pedal Teeth

Assembly

Maintenance













Performance

A55 Restrictor

A55 Tuning .pdf















Taiwan Moped Locks and Keys

July 7, 2022

Taiwan-made mopeds have steering locks. They lock the fork in the turned position. Some also have an electrical switch that disconnects the battery. Like the rest of the bike the fork lock is the same as on some Japan-made motorcycles or mopeds. The locks have a key number stamped next to the keyhole. Missing keys can be ordered by the key number on the lock.



Contents:  8 Key Families

1. 00 000,00000 243-250 Indian gas key
2.  00 0 241,242,352-358 Indian gas key
3. 0,0 0000,000000-0459 General gas key “groove left”
3. 0,00 000,007540-7546 Indian “groove left”
4. 0,0 0000,000000-0719 Lazer gas key “groove right”
4. 0,00 000,005540-5546 Indian “groove right”
5. 7650-7659, 7750-7759 General “thin groove left”
6. 7660-7669, 7760-7769 General “thin groove right”
7. 7670-7679, 7770-7779 General “flat left”
8. 7680-7689, 7780-7789 General “flat right”





1. 243-250 Indian gas key

blank  $4.00 BN7

0000  original  copy
243    none    $13.0 .
244    $16.0   $13.0 .
245    none    none  .
246    none    none  .
247    none    none  .
248    none    none  .
249    none    none  .
250    $16.0   $13.0 .







2. 241-242, 352-358 Indian gas key

blank  none  M12

0000  original  copy
241    none    $13.0 can make
242    $16.0  $13.0 can make
352    none    none  .
353    none    $13.0 can make
354    none    none  .
355    none    none  .
356    none    none  .
357    none    none  .
358    none    $13.0  ready made



3. 459 General pop-up gas lid “groove left”
    7540-7546 Indian fork lock key

Reversible with groove on the left. F141-10-50 key B



blank  $5.00 YH38 Yamaha

0000  original  copy
0459  none    $10.0 .
7540  none    $14.0 .
7541  none    none  .
7542  none    none  .
7543  none    none  .
7544  none    $14.0 .
7545  none    none  .
7546  none    none  .



4. 719 Lazer pop-up gas lid “groove right”
    5540-5546 Indian fork lock key

Reversible with groove on the right. F141-10-50 key B



blank  $5.00 HD57 Honda

0000  original  copy
0719  $12.0    $10.0
0719  $15.0    with Lazer black handle
5540  none    none  .
5541  none    none  .
5542  none    none  .
5543  none    $13.0 .
5544  none    none  .
5545  $16.0   $13.0 .
5546  none    none  .



5. 7650-7659 and 7750-7759 “thin groove upper left”

blank  $4.00  CO63
This blank is too wide to enter the lock until after copying.
The blade is longer, but becomes the same after copying.

0000  original  copy   = 0000  original  copy
7650  none    none  = 7750  none    none  .
7651  $15.0   $13.0 = 7751  none    none  .
7652  none    none  = 7752  none    none  .
7653  $15.0   $13.0 = 7753  none    none  .
7654  none    $13.0 = 7754  none    none  .
7655  none    none  = 7755  none    $13.0 .
7656  none    none  = 7756  none    none  .
7657  none    none  = 7759  none    none  .
7658  none    none  = 7758  none    none  .
7659  none    none  = 7759  none    none  .



6. 7660-7669 and 7760-7769 “thin groove upper right”



blank  $3.00 XL7

0000  original  copy   = 0000  original  copy
7660  none    none  = 7760  none    $14.0 .
7661  none    $14.0 = 7761  none    none  .
7662  none    none  = 7762  none    none  .
7663  none    none  = 7763  none    none  .
7664  none    none  = 7764  none    none  .
7665  none    $14.0 = 7765  none    none  .
7666  none    none  = 7766  none    none  .
7667  none    none  = 7769  none    none  .
7668  none    none  = 7768  none    none  .
7669  none    none  = 7769  none    none  .



7. 7670-7679 and 7770-7779 General “flat left”

Flat side has teeth on the left, when the key is pointing up.

blank  none  .

0000  original  copy   = 0000  original  copy
7670  none    none  = 7770  none    none  .
7671  none    none  = 7771  none    none  .
7672  none    none  = 7772  none    none  .
7673  none    none  = 7773  none    none  .
7674  none    none  ≠ 7774  $17.0   none  .
7675  none    none  = 7775  none    none  .
7676  none    none  = 7776  none    none  .
7677  none    none  = 7779  none    none  .
7678  none    none  = 7778  $17.0   none  .
7679  none    none  = 7779  none    none  .



8. 7680-7689 and 7780-7789 General “flat right”

Flat side has teeth on the right, when the key is pointing up.

blank  $9.00 WTP1 modified
The blade is shorter, but becomes the same after modification.
The stop surfaces are lowered by careful filing off 1.0-1.5 mm.

0000  original  copy   = 0000  original  copy
7680  none    none  = 7780  none    none  .
7681  $19.0   $17.0 = 7781  none    none  .
7682  none    none  = 7782  none    none  .
7683  none    $17.0 ≠ 7783  none    $17.0 .
7684  none    none  = 7784  none    none  .
7685  none    $17.0 = 7785  none    $17.0 .
7686  none    none  = 7786  none    none  .
7687  none    none  = 7787  none    none  .
7688  none    none  = 7788  none    none  .
7689  none    none  = 7789  none    $17.0 .





— More Choices Menu — Select:

July 4, 2022

USA and California LAWS:

CA Vehicle Codes   CA Environmental   

US Safety Laws      US Environmental   



RIDING and MAPS:

Traffic Lights    Safety   Body Language

Anaheim Streets     Nature Walks



LIBRARY:

Encyclopedia       1100-Name Index

Moped Books     1981 Buyers Guide



MORE:

Links    Shop Tour   A few more bikes

Myrons Artwork   M.A.A. Intro Flyer









— Rides Menu — Select:

July 4, 2022

2003 Rides 01-06        2004 Rides 07-18



2005 Rides 19-31        2006 Rides 32-43



2008 Rides 56-67        2009 Rides 68-75



2010 Rides 76-81        2011 Rides 82-90



2012 Rides 91-97        2013 Rides 98-101







Pedal Shafts, Freewheels and Chain Tensioners

July 4, 2022







1  P E D A L   S H A F T S

Some mopeds with external pedal shafts, and separate pedal and motor chains, have one of the crank arms permanently attached to the shaft and sprocket. With those, to get a new sprocket-side arm you have to replace the shaft-with-arm.

Some mopeds with external pedal shafts, and separate pedal and motor chains, have no crank arms permanently attached to the shaft and sprocket. With those the sprocket-side arm can be replaced.

More on this parts topic, later…







2  F R E E W H E E L S

Some mopeds have one drive chain and some have two. Two-chain mopeds, with both a motor chain and a pedal chain, have freewheels, like most bicycles. The freewheel is the rear pedal sprocket that spins free and goes “click click click” in the reverse direction, but locks up solid in the forward direction. The freewheel allows the pedals to be stationary even when the rear wheel is moving forward. The moped brands with right-side freewheels are Puch, Peugeot, Motobecane, Batavus, Sparta (Foxi), Hercules (Sachs), Piaggio (Vespa), Honda (PA50), Kreidler, KTM (Foxi), Kynast, Flandria. There are two brands with left-side backward freewheels, Jawa and Benelli. All of the other moped brands do not have external freewheels, but instead have a freewheel mechanism inside the engine unit.

The freewheel screws on and tightens with pedaling. Once it is tight, a special tool is required to remove it. The tool fits into slots in the freewheel center. Some low-end modern single-speed bicycle freewheels do not have removal slots. Those cheap kinds can be removed by destroying the freewheel. To remove a freewheel destructively without a removal tool, the freewheel is first disassembled, where all the little balls and clickers fall out, and then the inner hub is unscrewed in a bench vise or with a pipe wrench.

Most freewheels go on the right side of the bike and thus have right-hand thread, but Jawa and Benelli ones go on the left side of the bike and have left-hand thread.



16a generic 16T
by Sunlite
made in Taiwan

16b MB 16T #60483
by The Best Wheel
made in France

16c Hercules 16T
by Esjot
made in Germany

16d Sparta 16T
by Atom
made in France

16h Motobecane 16T
by Atom, #16057
made in France

















18b Motobecane 18T
by The Best Wheel
#15244 French thread

18d left hand Jawa 18T
by Velo, says date 76-78
made in Czechoslovakia

18e generic 18T
by Sunlite

















20a Motobecane 20T
by The Best Wheel
#14298 made in France

20c Kynast 20T
by Esjot
made in Germany

20e generic 20T
by Sunlite

23a Puch 23T
by Atom-Maillard
made in France



















Original and Replacement Freewheels

no. freewheel make  country     bike make  part #  teeth    thread    price   original on

16a Sunlite xxxxxxx Taiwan xxx replacement  0000  16T  1.375″- 24  $15

16b The Best Wheel France xxxMotobecane 60483  16T  1.375″- 24  $25  Solex

16c Esjot  xxxxxxx Germany Hercules 9000300401 16T  1.375″- 24  N/A  Sachs Westlake (P1)

16d Atom xxxxxxxx France xxx Sparta 00. 055051  16T  1.375″- 24  $25  Sparta Foxi
16d Atom   xxxxxxx France xxx Peugeot xxx39026  16T  1.375″- 24  $25  Peugeot (optional)
16d Atom xxxxxxxx France xxx Motobecane 16057  16T  1.375″-.24  $25  Motobecane 7

16e Ocean xxxxxxx Italy xxxxx Piaggio 000114531  16T  1.375″- 24  $25  Piaggio Ciao, Si early

18a Atom xxxxxxxx France xxx Peugeot 00017550  18T  1.375″- 24  N/A  Peugeot 102, 103
18a Atom xxxxxxxx France xxx Batavus 00049020  18T  1.375″- 24  $30  1976-77 Batavus VA

18b The Best Wheel France xxxMotobecane 15244  18T  M34.7-1.0  $45  70’s MB with MB hubs
18b J Moyne xxxxX France xxxMotobecane 15244  18T  M34.7-1.0  $50  Wards Riverside (AV88)
18b The Best Wheel France xxxMotobecane 15244  18T  M34.7-1.0  $50  50’s-60’s Motobecane

18c Ocean .xxxxxxx Italy .xxxx Piaggio 00 103631  18T  1.375″- 24  $25  Piaggio Bravo, Grande

18d Velo xxxxx Czechoslovakia  Jawa  xxxx070040  18T  M35 -1 LH   $35  1970-83 Jawa 28, 207

18e Sunlite xxxxxxx China x.xxxreplacement  0000 18T  1.375″- 24  $15

18f The Best Wheel France x.xxxreplacement  0000 18T  M32 – 1.0  $13  unknown application

20a Atom   xxxxxxx France xxxMotobecane 14298  20T  M34.7-1.0. $25  70’s MB with Leleu hubs
20a The Best Wheel France xxxMotobecane 14298  20T  1.375″- 24. $20  1978-81 MB with mags

20b Atom   xxxxxxx France xxx Batavus 00049019  20T  1.375″- 24  $30  Batavus HS50,Starflite
20b Atom   xxxxxxx France xxx Peugeot 00000586  20T  1.375″- 24  $30  Peugeot (optional)

20c Esjot  xxxxxxxx Germany x Kynast  00000586   20T  1.375″- 24  $22  Flying Dutchman

20e Sunlite  xxxxxx China xxx xreplacement  0000  20T  1.375″- 24  $16

22a Atom  .xxxxxxx France  Honda 41210-148-000 22T  1.375″- 24  none Honda PA50

23a Atom  .xxxxxxx France xxx Puch  3492410230  23T  1.375″- 24  $20-$30 Puch (all models)

Freewheel threads: Like with pedal threads there is a common size and an uncommon size slightly smaller.

The common size is 1.375″ – 24, which equals 34.92 – 1.06 mm. Most modern bicycles worldwide have this ISO (International Standards Organization) standard freewheel thread type.

The uncommon size is M34.7 – 1.00, which equals 34.70 – 1.00 mm. This “French” thread type is on vintage bicycles from France, Belgium, Spain or Switzerland, and on Motobecane mopeds with Motobecane-made hubs.

So the French freewheels are slightly smaller than the rest of the world, 34.7 instead of 34.9. That small amount does not matter as long as the bike is pedaled gently. But it does matter when the pedals are pushed very hard. Then the loose fitting threads on the wheel hub can strip out, a disaster.

It is difficult to tell which thread type a hub has, by measuring the thread tops with a calipers. The 34.92 thread hubs measure 34.65 to 34.7. The 34.70 hubs measure 34.55 to 34.6. On some hubs the tops of the threads are worn down and measure less. So a standard thread might seem like a French thread type. Because of this, it is better to put away the calipers and use “feel”.

When the freewheel and hub have the same thread type, the freewheel screws on easy, yet has no looseness. Looseness is felt with fingertips pulling and pushing the freewheel center side to side. When a 34.92 freewheel is on a 34.7 hub, the center of the freewheel can move 0.22 mm.  Here is a video of that. That looseness or “wiggle” is felt. The same is true for any threaded thing. When a bolt fits a nut, it screws on easy and yet does not wiggle.

All of the freewheels in Myrons Mopeds inventory were measured by feel. For each bike model listed above, a sample rear wheel with original freewheel was measured directly by feel. The freewheel was removed. It’s threads were checked by screwing onto both a French and a standard hub. The wheel threads were checked by screwing on both a French and a standard freewheel.

Gauntlet of test wheels: MB 40, Batavus M48, Peugeot 103, Model 7 hub, MB 50, MB 50, MB 50VLA.
Not shown, Puch wheels and hubs, Sparta, Peugeot 102 hub, Kreidler, Sachs, KTM, Kynast, others.

Result: None of the hubs or freewheels had French thread, except Motobecanes with Motobecane-made hubs. Wow!

1970’s Puch & Motobecane 80mm hubs
L, Leleu-made Puch hub, standard thread
R, Motobecane-made hub, French thread

These are actual Motobecane rear wheels from Myrons inventory. All except one came from Los Angeles area bikes.

model xx rim x hub xx freewheel xxx teeth  thread
40XXxxX thin   MB xx  none xxxxxxxx 18T   French
40XXxxX thin   MB xx  none xxxxxxxx 18T   French
50XXxxX wide  MB xx  none xxxxxxxx 18T   French
50XXxxX wide  MB xx  none xxxxxxxx 18T   French
50XXxxX wide  MB xx The Best Wheel 18T   French
Model 7X 16″  Leleu x  none xxxx x xx xxx  standard
50VXxxX wide Leleu x  none xxxx x xx xxx  standard
50VXxxX wide Leleu x The Best Wheel 20T  standard
50VXXxx wide Leleu x The Best Wheel 20T  standard
50VLAxx mag  silver x The Best Wheel 20T  standard
LeMoped mag  gold xx  none xxxxx xx xxx  standard
LeMoped mag  gold xx The Best Wheel 20T  standard

Result: All Leleu-made hubs have standard freewheel thread 1.375″-24, even those for Motobecane. All Motobecane-made hubs have French thread M34.7-1.0. All Motobecane-made “6-star” mag wheels have standard thread, but it is tapered and begins with French thread, so that either type of freewheel can be used.

1975 Motobecane 50S
with MB-made hubs

1978 Motobecane 50V
with Leleu-made hubs



How to tell: The best way to tell if a 1970’s Motobecane moped rear hub is Motobecane-made (and therefore French thread) is visually. There is an prominent M logo on the freewheel side. There is no step on the freewheel side, instead it slopes gradually. The flanges go farther out from the spoke holes. So from 100 feet away, viewed from the side, the Motobecane-made hubs appear larger than Leleu-made hubs.



Summary

All two-chain rear hubs or wheels, on mopeds from the 1970’s and 80’s, have standard freewheel threads, except Motobecane-made hubs on 1950’s -60’s and some 1970’s Motobecane mopeds.

A standard thread freewheel fits a French thread hub and works fine when pedaled normally. Only when a strong athletic person pedals very hard, the hub threads can strip off, requiring wheel or hub replacement.



Motobecane 100mm hubs
are also French thread

1950’s – 60’s Motobecane: Many models, maybe all, had French freewheel threads M34.7-1.0. In the 1960’s the parts manuals specified the thread. One example, shown at right, is for Motobecane AV88 and Motoconfort AU88. It lists the 18-tooth 15244 freewheel as having M34.7-100 thread.

The French freewheel thread cover up: It is very odd that, after 1976-77, Motobecane had two different freewheel threads, but they hid that fact. Instead they made the teeth different, 15244 (French thread) was 18 teeth, and the newer 14298 (standard thread) was 20 teeth. The Motobecane America parts manuals list both freewheels without explanation. There does not seem to be anything about freewheels in the Parts or Service Bulletins. The physical freewheels do not say the thread. The actual parts labels do not say the thread either. As a result, this cover-up has caused confusion and mystery for 39 years (1978-2017).



3  P E D A L   C H A I N S





4  P E D A L   C H A I N   T E N S I O N E R S



Honda PA50

fig qty  price    Honda#
06  2  none  40234-148-000 pedal shaft bushing
09  1  $10.0 40535-197-600 pedal chain #410 80 link
10  1  none  40540-148-670 tensioner assy
11  2  $6.00 40541-148-010 roller wheel
27  1  $1.50 90581-831-650 washer 6 x 18
28  1  $0.60 92101-06012    hex bolt 6 x 12









5  P E D A L   S H A F T   B U S H I N G S

16.0 x 20.0 x 19.9 no lip  $2.50 Tomos 200166, special bronze

16.2 x 20.1 x 19.0 w/ lip  $5.00 Puch 349.142.0051, white plastic, for Maxi

16.2 x 21.0 x 15.9 w/ lip  $5.00 Vespa 102875, black plastic, for Ciao

16.1 x 21.2 x 16.5 w/ lip  $6.00 Batavus? , black plastic

16.1 x 21.3 x 18.7 w/ lip  $5.00 Buzzetti 0168, black plastic, for Puch Magnum

16.2 x 25.6 x 15.5 w/ lip  $5.00 Vespa 141737, black plastic, for Bravo, Grande, Si

Columbia Parts

July 3, 2022

 Columbia mopeds are divided into model families that share the same parts. To use the parts list you have to know what model family 1,2,3,4,5,6 your bike is in. See Columbia Models.



family engine hubs chains frame years  models
  1  is  Sachs 1-chain  1  sheet ’76-78 2220-A
  2  is  Sachs 1-chain  1  sheet ’78-80 2220-B
  3  is  Sachs 2-chain  1  sheet ’78-80 2220-C,   ’88-93 280
  4  is  Solo · 2-chain  2  tube   ’79-80 2240/50, ’88-93 340
  5  is  Sachs 2-chain  1  tube   ’79-80 2260/70 
  6  is  Sachs 2-chain  1  top-tank  ’80 2280 

1,2 and 3 are all model 2220, but with different equipment.

Colors:
Qty.    black is on all, grey is on some, white is on none
Part# Columbia original, outsourced original, replacement
Part# 0 (zero crossed out) means unknown digit
Price  bright green is new, dark green is good-used





Engine Group

000 gasoline   85-95 octane pump gas pre-mixed
000 gasoline   with 2-stroke oil 50:1 or 2.5 oz/gal

Engine Solo 255 on family 4. 2240/50+340
with Columbia-made exhaust and pulley-clutch

    Columbia#  price  Engine see Solo Engine .
ooo SL255-20 none  SOLO 255 engine (20mph)
ooo SL255-25 none  SOLO 255 engine (25mph)
ooo SL255-30 none  SOLO 255 engine (30mph)
ooo 250-0372 none  exhaust pipe 22 mm id
Solo 2300103 $5.00 spark plug NGK BR6HS
    Columbia#  price  Carburetor see Bing-Solo .
Solo 2300341 none  BING 1/10/112  ∅10 clamp-16
Solo 0510132 $10.0 jet #58 M3.5 thread
Solo 0510657 $15.0 float needle slotted, rubber tip
    Columbia#  price  Magneto see Bosch Magnetos .
Solo 2300395 $0.00 BOSCH Ø90 → 0212-124-039
Solo 2300395 $0.00 stator 5-wire blue=ign. others=lights
0283-107000 $16.0 points M19
0965-091000 $12.0 condenser M36 ∅18 x 31 solder type



Engine Sachs 505/1A on 1. 2200-A, 2. 2200-B,
3. 2200-C + 280, 5. 2260/70, 6. 2280 (20/25)

    Columbia#  price  Engine  see Sachs 505 .
00  SA505-1A none  SACHS 505/1A engine ’76-93
00  751-0219 none  ex. head pipe left 20 id (20 & 25)
00  751-0290 none  ex. head pipe left 26 id (30mph)
0998-004001 $5.00 spark plug NGK BR6HS
    Columbia#  price  Carburetor  see Bing-Sachs .
0281-124005 none  BING 85/12/101  ∅12 clamp-20
0281-125000 $60.0 float and needle solid, metal tip
0281-124005 none  BING 85/12/101A  ∅12 clamp-20
0281-125000 $65.0 float and needle slotted, rubber tip
0281-125000 $15.0 float needle slotted, rubber tip
0961-151032 $8.00 jet #52 M4 thread
0261-143000 $15.0 cable pipe (elbow) short
0261-143100 $12.0 cable pipe (elbow) long
    Columbia#  price  Magneto  see Bosch Magnetos .
0212-124040 none  BOSCH Ø90 ← 0212-124-040
0283-130000 none  stator 5-wire blue=ign. others=lights
0283-107000 $16.0 points M19
0965-091000 $12.0 condenser M36 ∅18 x 31 solder type



Engine Sachs 505/1D on family 6. 2280 (30mph)

    Columbia#  price  Engine  see Sachs 505 .
00  SA505-1D none  SACHS 505/1D engine ’80-93
00  751-0290 none  ex. head pipe left 26 id (30mph)
0998-004001 $5.00 spark plug NGK BR6HS
    Columbia#  price  Carburetor  see Bing-Sachs .
0281-124015 none  BING 85/12/104A  ∅12 clamp-20
0961-151035 $8.00 jet #58 M4 thread
0261-143100 $12.0 cable pipe (elbow) long
    Columbia#  price  Magneto  same as 505/1A above



Pulley-Clutch Solo:  4. 2240/2250 and 340

# qty Columbia# price  description
1    1 712-0302 16–10 start lever plate
2    3 732-0367 $5.00 start plate clip
3    1 00-06879 65–25 start plate
4    1 732-0349 none   start spring ∅1.18 ∅0.90 x 0.73″
4    1 732-0349 $16.0 substitute ∅1.18 ∅0.90 x 0.80″
5    1 00-06881 $14.0 spring plate
6    5 748-0265 $9-$6 centrifugal weight
6    1 748-0265 $37.0 weight-spring assembly .
7    5 732-0348 none   extension spring  ∅xx x 29 mm
8    1 00-06885 none   pulley-hub bare
8    1 00-06884 $80.0 pulley-hub assy 8,9,10 20mph
8    1 00-06883 none   pulley-hub assy 8,9,10 25mph
8    1 00-06882 $105  pulley-hub assy 8,9,10 30mph
9    1 741-0224 none   needle bearing ∅1.125 ∅1.375 x 0.37″
9    1 741-0224 $27.0 needle bearing TR0414P520518
10  1 748-0268 none   flange bushing 20mph 1.05″  .59
10  1 748-0267 none   flange bushing 25mph 0.99?
10  1 748-0266 none   flange bushing 30mph 0.92″  .46
11  1 732-0350 none   variator spring ∅1.38 ∅0.94 x 1.00″
12  1 748-0262 $15.0 pulley half inner
13  1 731-0472 none   engage knob
14  2 712-2203 $0.00 =24 insert nut M4
15  1 732-0365 none   leaf spring
16  1 710-2202 $0.70 slot screw M4 x 12
17  2 00-54219 $7.50 =26 pulley seal 16 x 24 x 5
18  1 735-0194 none   rubber sleeve
19  1 713-0248 none   sprocket 415 11T
20  1 736-0290 $2.00 flat washer .64-1.00-.067 = 16-25-1.7
21  1 710-2203 $1.00 screw M4 x 20 sunk
22  1 732-0364 none   spring plate
23  1 756-0321 $24.0 pulley 7.5″ bare
23  1 717-0389 $49.0 pulley 7.5″ complete
25  2 741-0282 $18.0 needle bearing HK1612 ∅16 ∅22 x 14
27  1 736-0309 $0.00 tab washer
28  1 736-0187 $2.00 flat washer .64-1.00-.06 = 16-25-1.5
29  1 754-0235 $19.0 V-belt 0.50 x 35″
30  5 715-0142 $0.00 roll pin ∅0.125 x 0.50″
31  1 736-0308 $0.00 domed washer .43-.90-.03 = 10-23-0.75
32  1 712-2200 $4.00 clutch nut thin M10-1.00 x 6 hex17
33  2 736-0931 $0.20 washer ∅5
34  2 736-0722 $0.25 lock washer #10 ∅5
35  2 710-2200 $0.80 hex bolt M5 x 18
36  1 751-0250 $16.0 start lever



Colombia pulleys
outboard side view

Colombia pulleys
inboard side view

732-0350 substitute





















Fork Group

Fork ’76-78: 1. 2200-A

# qty Columbia# price  description
01  1 00-06845 none  handlebar short for (1)
01  1 00-06895 none   handlebar medium for (2)
02  4 710-0299 $1.00 handlebar bolt ¼-28 x 1″
03  1 741-0218 none  steering bearing set
03  1 741-0218 $15.0 steering bearing set Wald 4080
04  1 745-0167 none  mirror bar-end type
05  1 00-06852 $0.00 fork assy
06  2 730-0114 $0.00 reflector 2″ with hole ’76?
06  2 730-0114 $14.0 reflector metal with #10-32 post ’76-77
07  2 710-0302 $0.00 reflector screw for hole type
08  2 732-0340 $0.00 fork spring
09  4 731-0400 $0.00 fork bushing nylon
10  1 00-06827 $40.0 fork leg left 1.00″(25.4od)
10  1 00-06828 $40.0 fork leg right 1.00″(25.4od)
11  1 00-06838 $34.0 fender with braces, painted used
12  2 731-0401 $14.0 fork boot good-used
13  2 710-0289 $0.50 fender bolt ¼-20 x ½”
14  2 710-0258 $0.50 fender bolt ¼-20 x 5/8″
16  4 712-0287 $0.30 nut ¼-20
17  1 745-0171 none  speedo driver VDO ½” left 1-finger
18  1 745-0170 none  speedo cable grey VDO 650 mm
18  1 745-0170 $22.0 speedo cable black VDO 700
21  1 725-0532 at link headlight assy CEV 2139 bullet
22  1 745-0169 $0.00 speedometer VDO ∅48 40mph, M10
23  2 000-0000 $0.60 headlight bolt M6 x 20 comes with hl
24  2 736-0250 $2.00 steering washer 1.o x 1.75 x 0.1″
25  4 736-0329 $0.20 lock washer ¼”
26  2 741-0219 $0.50 steel ball ¼”
27  1 00-06858 $13.0 handlebar clamp plate used rusted

Columbia handlebars were first short 06845 on family 1, then medium 06895 on families 2,3,4,5 and then tall 06938 on family 6. The handlebar height and width affects the cable lengths. The cables were first short on family 1, and then 2 inches longer after that on families 2,3,4,5,6.



Fork ’78-93: 2. 2200-B, 3. 2200-C + 280,
4. 2240/50+340, 5. 2260/70, 6. 2280

# qty Columbia# price  description
01  1 00-06895 $34.0 handlebar medium for (2,3,4,5)
01  1 00-06938 none  handlebar tall for family (6)
02  8 736-0329 $0.20 =23 lock washer ¼”
03  4 710-0747 $1.00 clamp bolt ¼-28 x 1¼”
04  1 726-0186 $0.00 plug for top nut
05  1 712-0304 none  top nut 1″-24 slanted top
05  1 712-0304 $5.00 top nut 1″-24 Wald #220
06  1 745-0167 $19.0 mirror clamp-on type
07  1 00-06891 $0.00 fork assy
09  1 741-0286 $8.00 adjustable cone
10  2 741-0287 $5.00 bearing retainer #52
11  2 730-0114 $14.0 reflector plastic with #10-32 post
12  2 741-0284 $6.00 frame cup Wald #410 33-34mm
13  1 741-0283 $8.00 fork cone (crown race)
14  2 732-0340 $0.00 fork spring
15  4 731-0400 $0.00 =18 fork bushing nylon
16  1 00-06827 $40.0 fork leg left 1.00″(25.4od)
17  1 00-06838 $34.0 fender with braces, painted
17  1 00-06841 none  fender with braces, stainless
19  2 731-0401 $14.0 fork boot good-used
20  3 710-0289 $0.50 =29, bolt ¼-20 x ½”
21  4 710-0258 $0.50 =36 bolt ¼-20 x 5/8″
22  4 712-0107 $0.30 =27,42 nut ¼-20
24  1 745-0171 none  speedo driver VDO ½” left 1-finger
25  1 00-06828 $40.0 fork leg right 1.00″(25.4od)
26  1 745-0170 none  speedo cable black VDO 650 mm
26  1 745-0170 $22.0 speedo cable black VDO 700
28  1 725-0539 $27.0 horn 6VAC 18w
30  1 725-0590 none  sealed beam headlight 6V 18w
30  1 725-0590 $32.0 headlight with replaceable bulb #1129
31  2 710-0725 $0.00 bezel screw ST#8 x 1″
32  1 731-0426 none  headlight bezel Peterson
34  1 731-0424 none  headlight housing for speedo
34  1 731-0468 $25.0 headlight housing for no speedo
35  1 745-0169 none  speedometer VDO ∅48 40mph, M10
39  2 741-0219 $0.50 steel ball ¼”
40  1 00-06858 $13.0 handlebar clamp plate used rusted
41  2 736-0329 $0.20 headlight lock washer ¼”





Frame Group

Sheet Frame Sachs: 1. 2200-A,
2. 2200-B, 3. 2200-C and 280

# qty Columbia# price  description
01  1 757-0280 none  solo seat front-spring ’76-78
01  1 757-0293 none  solo seat rear-spr. Messinger ’78-93
01  1 757-0293 $23.0 solo seat 10.5 x 10.5″ cruiser bicycle
02  1 00-06849 none  side cover left (no petcock hole)
03  2 710-0289 $0.50 bolt ¼-20 x ½”
04  1 00-06840 $0.00 luggage rack-carrier
05  1 710-0593 $1.50 seat post bolt 5/16 -24 x 2¼”
06  1 00-06843 none  rear fender painted
06  1 00-06843 none  rear fender stainless
07  1 725-0533 at link tail light ’76-78 ULO 250-2
07  1 725-0533 at link tail light ’78-93 ULO 248-2
08  1 710-0597 $0.00 upper bolt ’76-78 ¼-20 x 1¼”
08  1 710-0597 $0.00 upper bolt ’78-93 ¼-20 x 1″
08  1 710-0258 $0.00 lower bolt ’76-93 ¼-20 x 5/8″
09  1 736-0175 $0.00 =51 lock washer 0.27 id
10  1 712-0287 $0.30 =27,52 nut ¼-20
11  2 710-0459 $0.00 upper shock bolt 3/8-24 x 1½”
12  6 736-0105 $0.00 =16,19 washer 0.4″ id
13  2 745-0168 $0.00 shock absorber
14  2 00-06847 $0.00 chain adjuster
15  2 710-0668 $0.00 rear axle ½-20 x 6½”
17  2 712-0214 $0.00 lower shock nut 3/8-24
18  1 00-06831 $0.00 swing arm
20  1 710-0411 $0.00 swing arm bolt 3/8-16 x 4″
22  6 712-0267 $0.50 =24,33,43 nut 5/16-18
23  5 736-0119 $0.30 =34,42 lock washer 5/16
25  1 00-06859 $0.00 exhaust mount-bracket
26  1 751-0213 $0.00 tail pipe (muffler)
28  1 736-0329 $0.30 muffler clamp lock washer ¼”
29  1 751-0219 $0.00 header pipe left 20 id (20 & 25)
29  1 751-0219 $0.00 muffler clamp, sold with header
300251-113105 $8.00 header clamp assy
31  1 00-06835 none  center stand silver
32  2 710-0597 $0.50 =50 bolt ¼-20 x 1″
35  1 738-0138 $0.00 shoulder bolt 0.44od x 0.47″
36  1 738-0378 $0.00 shoulder spacer 0.44 x 3.3
37  1 710-0189 $1.00 eng. mount bolt 5/16-18 x 3″
38  1 732-0146 $0.00 center stand spring 0.75 x 4.32″
39  2 710-0378 $1.00 eng. mount bolt 5/16-18 x 2½”
40  1 751-0115 $1.00 gas hose 3/16 id x 5/16 od x 6″
41  1 751-0220 $15.0 gas valve A18 12×1 right
44  1 750-0347 $0.00 swingarm spacer tube 0.38id 0.62od x 2.8″
45  2 748-0141 $0.00 swingarm bushing nylon 0.63 od w/lip
46  1 712-0375 $0.70 swingarm lock nut 3/8-16
47  1 712-0214 $0.80 brake anchor lock nut 3/8-24
48  1 710-0152 $0.80 brake anchor bolt 3/8-24 x 1″
49  1 710-0459 $1.00 lower shock bolt 3/8-24 x 1½”
54  1 726-0165 $0.00 wires clamp
55  1 731-0307 $0.00 snap-on plug
56  1 751-0214 $0.00 pedal cranks set
57  1 724-0156 $18.0 pedal set classic
58  1 00-06825 none  sheet frame step-thru Sachs
59  1 745-0166 $10.0 gas cap ∅30 1/4-turn chrome
60  1 757-0281 $18.0 seat post ∅36.3 x ∅22.2
61  4 710-0286 $1.50 cover screw ¼-20 x ½” wide-slot
62  1 00-06848 $38.0 side cover right
63  1 736-0264 $0.00 washer 0.33 id 0.63 od
64  1 712-0213 $0.70 seat clamp nut 5/16-24
65  1 725-0539 $27.0 horn 6VAC 18w
65  1 725-0539 $00.0 76-78 near engine, 78-93 behind headlight



Gas Valve for sheet frame is located on the left front, close to the decompression valve and start cable. The original had the hose spigot on the right, heading toward the carburetor. Although right is prefered, the replacement gas valve can have the hose spigot going down or left. Shown above is a “12×1 spigot down” replacement petcock, on a yellow Columbia.

Colombia Commuter 12x1 spigot down

Colombia (sheet frame)
replacement gas valve

Colombia Commuter 12x1 spigot down

Colombia (sheet frame)
replacement petcock



















Tube Frame Solo: 4. 2240/50 and 340

# qty Columbia# price  description
01  1 757-0293 none  solo seat rear-spring Messinger
01  1 757-0293  solo seat 10.5 x 10.5″ cruiser bicycle
01  1 757-0287 none  long seat with 2 or 3 styles
02  2 710-0289 $0.50 bolt ¼-20 x ½”
03  1 00-06840 $0.00 luggage rack-carrier
04  1 7
05  1 00-06910 none  shock upper with mount hole
06  1 732-0368 none  spring 0.88od x 5.65″
07  1 731-0400 none  bushing 1.10od
08  1 731-0474 none  rubber boot
09  1 00-06922 none  shock lower with mount hole
10  1
11  1
12  1
13  1
16  1 725-0533 at link tail light ’78-93 ULO 248-2
59  1 724-0156 $18.0 pedal set classic
59  1 724-0156 $25.0 pedal set solid type
67  1 00-06835 $45.0 center stand silver
83  1 745-0174 $25.0 gas cap ∅30 push-in original
83  1 745-0174 $12.0 gas cap ∅30 push-in generic
86  1 751-0115 $1.50 gas hose clear 3/16 x 5/16 x 13″
88  1 751-0248 $15.0 gas valve A17 12×1 spigot-left
89  1 00-06863 none  tube frame step-thru Solo
91  1 751-0252 $0.00 gas tank air vent

Gas tank vent: When adding gas, press the vent button under the seat to let air escape. Otherwise, air will prevent gas from filling the back half of the U-shaped tank. The vent has a light spring that automatically allows air to go in as gasoline goes out.

Gas tank: Tube frame tanks must mix the gas and oil in a gas can, because the tank is too long and thin for the oil to get to the back part and dissolve evenly.

Gas Valve is a vertical type valve used in a nearly horizontal position. It is located on the left rear, near the left pedal. Here it is shown (broken) on a black Columbia. The handle lever gets kicked and broken easily. Care must be taken to not kick it when stepping through the frame.

Colombia (tube frame) 12x1 spigot left mounted sideways

Colombia (tube frame)
original gas valve

Colombia (tube frame) with 12x1 spigot left mounted sideways close up

Colombia (tube frame)
original gas valve
12×1 spigot L sideways



















Tube Frame Sachs: 5. 2260/2270

# qty Columbia# price  description
01  1 757-0293 none  solo seat rear-spring Messinger
01  1 757-0293 $23.0 solo seat 10.5 x 10.5″ cruiser bicycle
01  1 757-0294 none  solo seat rear-spring tan Messinger
02  1
03  1
04  1
05  1
06  1 00-06910 none  shock upper with mount hole
07  1 732-0368 none  spring 0.88od x 5.65″
08  1 731-0400 none  bushing 1.10od
09  1 731-0474 none  rubber boot
10  1 00-06922 none  shock lower with mount hole
11  1
12  1
13  1
14  1
17  1 725-0533 at link tail light ’78-93 ULO 248-2
64  1 745-0174 $12.0 gas cap ∅30 push-in
65  1 00-06865 none  tube frame step-thru Sachs
67  1 724-0156 $18.0 pedal set classic
67  1 724-0156 $25.0 pedal set solid type
76  1 745-0115 $1.00 gas hose clear 3/16 x 5/16 x 6″
77  1 751-0220 $15.0 gas valve A18 12×1 right use A17
77  1 751-0248 $15.0 gas valve A17 12×1 spigot-left
83  1 745-0174 $25.0 gas cap ∅30 push-in original
83  1 745-0174 $12.0 gas cap ∅30 push-in generic

Gas tank: See notes above about the tube frame tank, gas valve, and air vent.



Tube Frame Top Tank: 6. 2280

# qty Columbia# price  description
01  1 745-0171 none  gas cap screw-on internal thread
02  1 751-0280 none  gas tank plastic ∅55 bottlecap thread
03  1 757-0292 none  seat latch
04  1 710-0776
05  2 736-0270 none  Belleville washer .265id .75od x.062
03  1
04  1
05  1
06  1
07  1 757-0287 none  long seat top tank
08  1 00-06910 none  shock upper with mount hole
09  1 732-0368A1 no. spring 0.88od x 5.65″ stiffer
10  1 731-0400 none  bushing 1.10od
11  1 731-0474 none  rubber boot
12  1 00-06922 none  shock lower with mount hole
13  1 00-06932 none  seat support
14  1
15  1
23  1 725-0533 at link tail light ’78-93 ULO 248-2
24  1 710-0106 $1.50 bolt ¼-20 x 1½” inside tail light
54  1 00-06835 none  center stand silver
66  1 00-06934 none  tube frame top-tank Sachs
73  1 724-0156 $18.0 pedal set classic
77  1 745-0115 $2.00 gas hose clear 3/16 x 5/16 x 26″
79  1 751-0220 $15.0 gas valve A18 12×1 right
80  1 771-0709 $0.00 gas valve adapter M12x1





Wheels Group

Wheels 1-chain 1. 2200-A, 2. 2200-B
steel 1-chain hubs made in Italy by Grimeca

 #  F  R  Columbia# price  description
01  1  0   734-0772 none  front wheel
02  0  1   734-0773 none  rear wheel
03  1  1   734-0774 $36.0 tire 2.25-17
04  1  1   734-0772 $11.0 tube 2.25-17
05  1  1   734-0776 $2.00 rim band
06  1  1 842182000 none  rim only 1.40×17 36-hole
07 36 36  755-0220 $2.50 spoke 185 x 2.6, 0.45 thread
08  2  2 737002010 $2.00 brake spring H64KS
09  1  1 737001010 $20.0 brake shoe set 105 x 20 Grimeca
10  1  1 737008010 $3.00 cable adjuster
12  2  2   711-0241 $7.00 spacer ∅0.51 ∅0.82 x 0.5″
13  2  0   736-0272 $1.50 washer ∅0.51 ∅1.00 x 0.60
14  1  0   710-0506 $10.0 front axle hex bolt 1/2″-20 x 5.5″
15  0  1   710-0668 none  rear axle bolt 1/2″-20 x 6.5″
15  0  1   710-0668 $10.0 rear axle bolt 1/2″-13 x 6.5″ w/nut
17  1  1 737017010 $4.00 pinch bolt assy H60
18  1  1 737010010 $0.80 cam nut H104 M6 x 6
19  3  3 737006010 $0.50 cam washer H10 M6 thin
20  1  1 737003010 $10.0 brake arm H59 Grimeca
21  1  1 737008010 $15.0 cam shaft H63K
22  1  0 737034000 none  front brake plate ½” with spacer
23  1  1 755001084 $10.0 sealed bearing 1/2″ x 35 x 11 #6202-8
24  1  0 740000031 $17.0 front center tube ∅13 ∅20 x 39
25  1  0 736022000 none  front hub bare    Grimeca HD steel 105
26  1  0   745-0171 none  speedo driver VDO ½” left 1-finger
27  0  1   713-0227 at link sprocket 420 x 42T 25/30
27  0  1   713-0228 at link sprocket 420 x 48T 20mph
28  0  1 720225600 none  sprocket lock plate
29  1  1   712-0285 $5.00 axle nut ½” – 20
30  0  4 722213659 $1.00 sprocket bolt M7 x 25
32  0  1 737009010 $27.0 rear brake plate ½” with spacer
33  0  2   00-06847 none  chain adjuster ½”
34  0  1 740000009 $0.00 rear center tube ∅13 ∅20 x ?
35  0  1 735034000 none  rear hub 1-chain Grimeca HD steel 105
36  0  1   713-0217 $30.0 chain 420 x 106L including master
36  0  1   713-0229 $30.0 chain 420 x 110L including master

Chain link counts specified here include the master link. The link counts in the Columbia parts catalogs do not include the master link.

1-chain hub sprockets for 420 or 420H chain are 5.5 mm thick, thicker than most mopeds.

Wheels with Italy-made steel 1-chain hubs



Some models in family 2, such as this ’79 Imperial, came with an Italy-made steel 1-chain hub on the rear, and a USA-made 2-chain type aluminum hub on the front. So they were sometimes substituting parts.



Wheels 2-chain: 3. 2200-C + 280,
4. 2240/50 + 340, 5. 2260/70, 6. 2280
aluminum 2-chain hubs made in USA by Columbia

The rear brake and sprocket are both on the left. The hub center is small 28mm stepping to 24mm in the center. The step retains the lip-less sealed bearings, and so no adapter sleeves are needed.

 #  F  R  Columbia# price  description
01  1  1  734.0958 none  front cast hub assy USA
02  1  0  750.0429 $17.0 front center spacer ∅13 ∅16 x 60.6
04  1  0  745.0171 none  speedo driver VDO ½” left 1-finger
05  1  0  736.0192 $1.80 washer H113M 2mm
06  2  0  736.0327 none  safety washer ∅12 with hook-tab
07  1  0  710.2204 none  front axle M12-1.5 x 150
08  0  1  710.2205 none  rear axle  M12-1.5 x 170
09  0  2  00.06847 none  chain adjuster ∅12 USA
09  0  2  00.06847 $15.0 chain adjuster ∅12 Italy, ∅11 filed
10  0  2  750.0277 $15.0 spacer ∅13 ∅17 x 11
11  2  2  741.0290 $6.00 bearing 6001Z ∅12 ∅28 x 8
12  0  1  750.0430 $23.0 rear center spacer ∅13 ∅16 x 80.6
13  0  1  734.1013 none  rear cast hub assy USA
14  0  1  713.0244 none  sprocket 415 42T ∅115 sheet/tube 25/30
14  0  1  713.0245 none  sprocket 415 48T ∅115 sheet/tube 20mph
14  0  1  713.0246 none  sprocket 415 57T ∅115 Solo tube
15  0  2  00.06921 none  sprocket lock plate
16  0  4  710.2201 $1.00 sprocket bolt H61 M6x20
17  2  2  732.0361 $8.00 brake spring USA original
18  1  1  761.0173 $20.0 brake shoe set w/springs 105 x 20
19  1  1  711.0692 $16.0 brake cam = H63K
20  0  1  00.06913 none  rear brake plate bare ∅12 USA
20  0  1  00.06913 $27.0 rear brake plate bare ∅12 =Grande front
21  1  1  00.06917 none  brake arm Columbia 2-hole
23  1  1  736.0329 $0.60 cam washer H10
24  1  1  712.2003 $0.30 cam nut M6 H104
25  1  1  712.2204 $4.00 axle nut M12-1.5
27  2  1  750.0436 $17.0 spacer ∅12 ∅20 x 16
28  1  00.06913 $25.0 front brake plate ∅12 USA
30  1  1  734-0774 $36.0 tire 2.25-17
31  1  1  734-0775 $11.0 tube 2.25-17
32  1  1  734-0955 none  rim only 1.40-17 36-hole
33  1  1  734-0776 $2.00 rim rubber band
34 36 36 755-0220 $2.50 spoke 185 ∅2.6, 0.45 thread
36  0  1  713-0200 $22.0 chain 415-106L Sachs sheet 25/30
36  0  1  713-0253 $22.0 chain 415-110L Sachs sheet 20mph
36  0  1  713-0253 $22.0 chain 415-110L Sachs tube 25/30
36  0  1  713-0249 $22.0 chain 415-114L Sachs sheet 20mph
36  0  1  713-0242 $22.0 chain 415-98L  Solo  tube  20mph
37  0  1  713-0247 $15.0 freewheel sprocket 410 x 18T Solo



Chain link counts specified here include the master link. The link counts in the Columbia parts catalogs do not include the master link.

2-chain hub sprockets for 415 or 415H chain are 4.3 mm thick, and have a 115mm center hole, bigger than any other moped sprocket. That is because of the oversize 105mm drum brake that goes inside the sprocket. Having the brake and sprocket on the same side allows the opposite side to have a screw-on freewheel sprocket for a pedal chain.

Brakes made in USA by Columbia are compatible with Grimeca brakes made in Italy. The cast aluminum Italian-made Grimeca brake shoes on the early 1976-78 sheet-metal-frame Columbias, directly replace the stamped steel American-made brakes on the monotube-frame and late 1978-80 sheet-frame Columbias. The USA made brake plates, cam shafts, lever arms, are also each interchangable with Grimeca items, but the axles are different 12.0 mm on the American-made hub, and 12.7 mm (1/2 inch) on the Italian-made Grimeca hub.

Columbia Brakes

top is American, Ø12 axle
bottom is Italian, 1/2″ axle

Columbia Brakes Swapped

brake shoes swapped



















Controls Group

Columbia brake cable types

L. USA 2-chain-hub brake, 2-end S-hook cable.
R. Italian 1-chain-hub brake, takes 1-end cable.

Controls for Sachs: 1. 2200-A, 2. 2200-B
3. 2200-C280, 5. 2260/2270, 6. 2280

# qty Columbia# price  description
01  1 746-0284 at link right control Magura wrap-around
02  2 746-0286 $4.00 brake cable anchor pin
03  1 270.5103 $8.00 choke thumb lever
04  1 746-0287 $2.00 choke cable pinch bolt


05  1 753-0237 $20.0 throttle cable 36.8 x 4.5 2-ended
05  1 753-0237 $00.0 for short cable pipe, most ’76-79


05  1 753-023L $20.0 throttle cable 36.8 x 5.0 2-ended
05  1 753-023L $00.0 for long cable pipe, most ’79-93
07  1 746-0285 at link left control Magura w/start lever
09  1 746-0288 $2.00 left grip
10  2 000.5581 $15.0 brake light switch
11  1 270-1037 $22.0 front (right) brake lever


12  1 746-0289 none front brake cable 36.9+ 1-end (1, 2)
12  1 746-0289 $10.0 front brake cable 34.0 x 5+ 1-end


13  1 753-0200 $23.0 start cable 34(+3) x 4+ 1-end
14  2 737-0080 $3.00 brake cable adjuster w/nut


15  1 725-0344 none  front brake 38.9″ 2-end S-hook (3,5,6)
15  1 725-0344 $15.0 front brake 33.7 x 5.2+ 1-end w/pinch bolt


16  1 746-0290 none  rear brake cable 62.8+ 1-end (1, 2)
16  1 746-0290 $12.0 rear brake cable 60 x 6+ 1-end




17  1 725-0345 none  rear  brake 64.8″ 2-end S-hook (3,5,6)
17  1 725-0345 $15.0 rear brake 59.1 x 5.7+ 1-end w/pinch bolt


19  1 753-0200 $13.0 choke cable 37.4 x 1.6+ 1-end
20  1 210-1037 $22.0 rear (left) brake lever good-used
21  1 013-1Z32 $13.0 start lever with pinch screw



Sachs engine Columbia: On Columbia with Sachs engine, the throttle cable carburetor end passes through a M6-0.75 thread adjuster on the Bing carb elbow, so the adjuster is not trapped on the cable, and is sold separately. The carb elbow, aka curved pipe, can be either short or long. So there are two different throttle cables, short or long. The difference is 1/2 inch of exposed inner wire.



Controls for Solo: 4. 2240/2250 and 340

# qty Columbia# price  description
01  1 746-0284 at link right control Magura wrap-around
02  2 746-0286 $4.00 brake cable anchor pin
03  1 270.5103 $8.00 choke thumb lever
04  1 746-0287 $2.00 choke cable pinch bolt


05  1 746-0347 $23.0 throttle cable 42.0-3.2 2-end
05  1 746-0347 $20.0 throttle cable 42.0-3.2 2-end


06  1 746-0348 $20.0 choke   cable 42.0-2.0 2-end
07  2 000.5581 $15.0 brake light switch NOWI
08  1 746-0285 at link left control Magura w/start lever


10  1 725-0345 none  rear brake 64.8″ 2-end S-hook
10  1 725-0345 $15.0 rear brake 59.1 x 5.9+ 1-end w/pinch bolt
11  1 746-0288 $2.00 left grip Magura ribbed
12  1 013-1Z32 $13.0 start lever with pinch screw
13  1 210-1037 $22.0 rear (left) brake lever good-used


14  1 725-0344 none  front brake 38.9″ 2-end S-hook
14  1 725-0344 $15.0 front brake 33.7 x 5.2+ 1-end w/pinch bolt


15  1 746-0346 $10.0 start cable 37.0 x 5.5+ 1-end
16  1 270-1037 $22.0 front (right) brake lever

Solo engine Columbia: On Colombia with Solo engine, the throttle cable carburetor end passes through the a M6-0.75 thread adjuster on the top of the carburetor. So the adjuster is not part of the cable, unlike Puch, and like on the Colombia with Sachs engine.





Electrical Group

Electrical: 1. 2200, 2. 2200-mid (most)

# qty Columbia# price  description
01  1 725-0536 at link R switch CEV 8177 engine stop
02  1 725-0537 at link L switch CEV 8040 light/horn
03  1 725-0532 at link headlight assy CEV 2139 bullet
04  1 725-0541 $0.00 tail light ground wire
05  1 725-0533 at link tail light ’76-78 ULO 250
05  1 725-0533 at link tail light ’78-93 ULO 248
06  2 725-0538 $15.0 brake light switch CEV 9343 good-used
06  2 725-0538 $9.00 brake light switch Domino 2218.20.04
07  1 725-0539 $27.0 horn 6VAC 18w near engine
08  1 725-0540 none  wire harness ’76-78 low horn
09  1 725-0522 $0.00 terminal block
10  1 725-0590 none  headlight bulb sealed beam 6V 18w
10  1 725-0590 $32.0 headlight replaceable bulb 6V 21w
11  1 725-0534 $2.00 tail  light  bulb   6V 5w  #63
12  1 725-0535 $2.00 brake light bulb 6V 10w #81

Horn was first located on the right side of the engine in ’76-78, because of CEV round bullet headlight. During 1978 the headlight changed to Peterson rectangular. That allowed the horn to be behind the headlight because there was more room. The horn wires changed in the wiring harness, and also the switches.







Electrical: 2. 2200-mid (some), 3. 2200-late+280,
4. 2240/2250 and 340, 5. 2260/2270, 6. 2280

# qty Columbia# price  description
01  1 725-0637 none  wire harness ’78-93 high horn
02  1 725-0598 $0.00 terminal block
03  1 725-0599 at link R switch Merit 342 engine stop
04  1 725-0539 $27.0 horn 6VAC 18w behind headlight
05  1 725-0600 at link L switch Merit 343 light/horn
06  1 725-0591 none  headlight assy Peterson rectangular
06  1 725-0592 none  headlight assy Peterson, w/speedo
07  1 725-0541 $0.00 headlight ground wire
08  1 725-0533 at link tail light ’78-93 ULO 248
09  2 725-0538 $15.0 brake light switch CEV 9343 good-used
09  2 725-0538 $9.00 brake light switch Domino 2218.20.04
10  1 725-0590 none  headlight bulb sealed beam 6V 18w
10  1 725-0590 $32.0 headlight replaceable bulb 6V 21w
11  1 725-0534 $2.00 tail  light  bulb   6V 5w  #63
12  1 725-0535 $2.00 brake light bulb 6V 10w #81



Electrical: Columbia lights are completely separate from the ignition. Never will the engine die when the brakes are applied or when the brake light wires are loose, like on many other mopeds. Each of the lights has it’s own generator wire, so they are independent of each other. The 6V 22W AC yellow wire powers the head light, speedo light and horn, the 6V 10W AC green (and green/black) powers the brake light, and the 6V 5W grey wire powers the tail light. Those three lighting source coils, plus a fourth ignition source coil (perhaps 20 volts but not officially rated), comprise the “Bosch 6V 22-5/10” magneto-generator.

Columbia wiring has an
internal ignition ground

Columbia wires close up

Columbia wires
(some disconnected)
