Franco Morini Identification 1968 to 2005





 1968-72



1-speed

1968-72? Morini S5K  1-speed automatic
47.7cc (38.0 x 42.0), 6.5 comp. ratio, backward kick
2.2hp 50kph, 14/12 carb or 1.4hp 40kph, 14/9 carb
piston 38.0 x 12-22.0-16.5 M3A14 23-0101 G0027
rings 38.0 x 2.5 GN

1972-86? Morini S5K2  1-speed automatic
47.7cc (38.0 x 42.0), 6.5 comp. ratio, forward kick
2.2hp 50kph, 14/12 carb or 1.4hp 40kph, 14/9 carb
piston 38.0 x 12-22.0-16.5 M3A14 23-0101 G0027
rings 38.0 x 2.5 GN

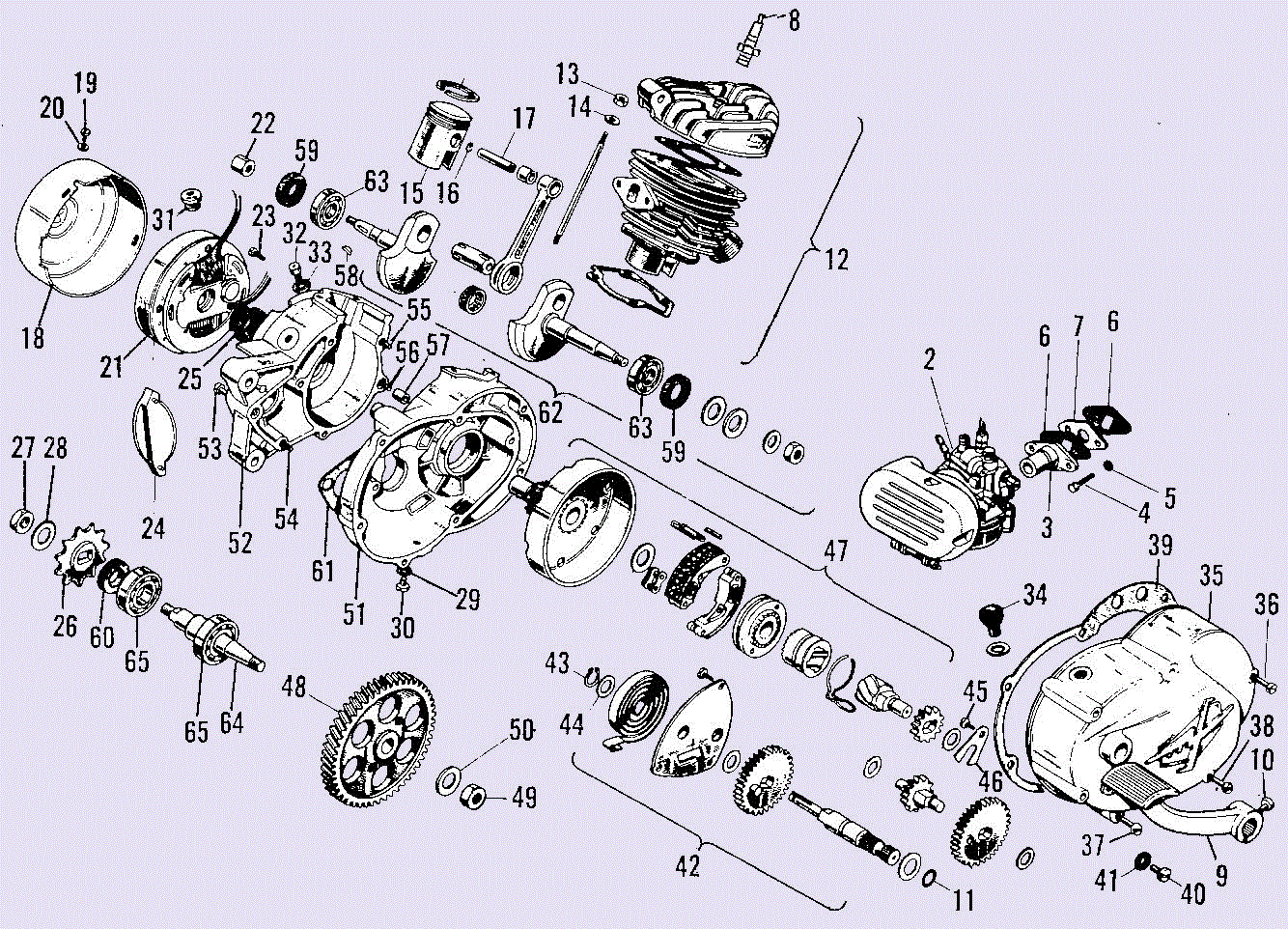

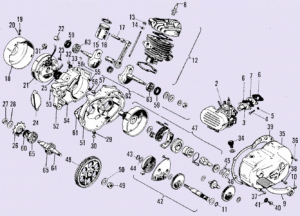

1968 S5K and 1972 S5K2. See Morini S5

1970? Morini S5K

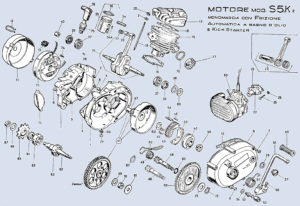

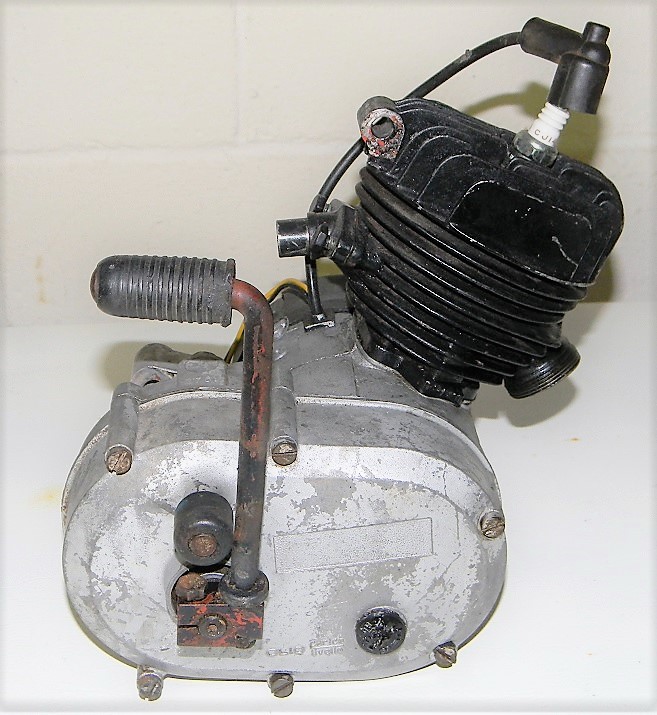

1975? Morini S5K2

















3-speed





4-speed

New: Left engine cover shaped with lines and angles. Right cover is still rounded.

New 50cc bore and stroke: In 1969 Morini increased the 4M series cylinder bore from 38.0 to 39.0 mm, and decreased the stroke from 42.0 to 41.8 mm. This increased the displacement from 47.7 to 49.9 cc. At the same time the rings got thinner, from 2.5 to 2.0 or 1.5 mm.

1972-75? Morini 4MP
49.9cc (39.0 x 41.8) 4-speed manual-clutch foot-shift kick-start
?? hp, ?? km/h, Dellorto SHA 14/12 carb,
Dansi MSL111 magneto
piston 39.0 x 12-22.0-16.5? 4MPA14 23-0107 G0026A
rings 39.0 x 2L and 39.0 x 1.5 GN

1972-75? Morini 4MP/S Turbo
49.9cc (39.0 x 41.8) 4-speed manual-clutch foot-shift kick-start
5 hp, ?? km/h, Dellorto UA19S carb,
Dansi ASL111 magneto
piston 39.0 x 12-22.0-16.5? 4MPA14 23-0107 G0026A
rings 39.0 x 2L and 39.0 x 1.5 GN

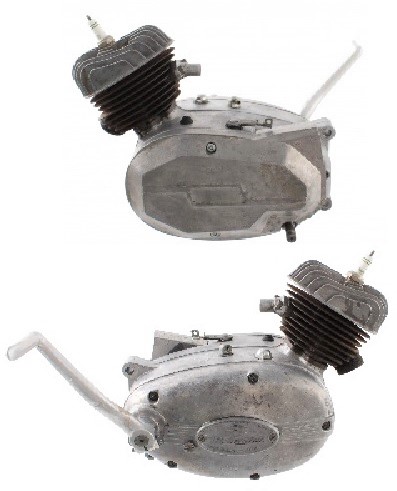

1972 Morini 4MP

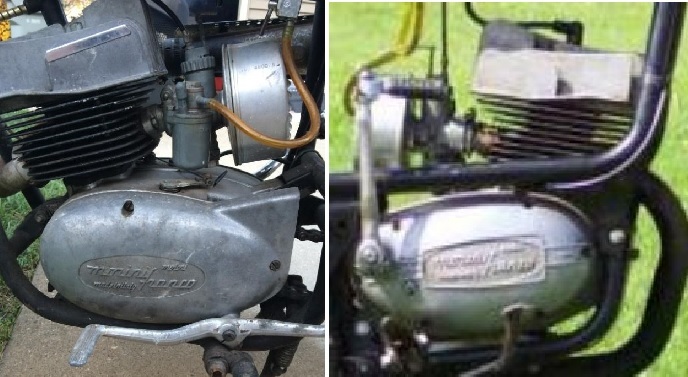

1968-71 Morini 101 (100 cc)
98.2? cc (50.0 x 50.0?) 4-speed manual-clutch foot-shift kick-start
?? hp, ?? km/h, Dellorto UB22 S2 carb,
Dansi ASL233S magneto 6V 30w
piston 50.0 x 14-??-??  23-3509
rings 50.0 x 2.5L and 50.0 x 2.5 GN

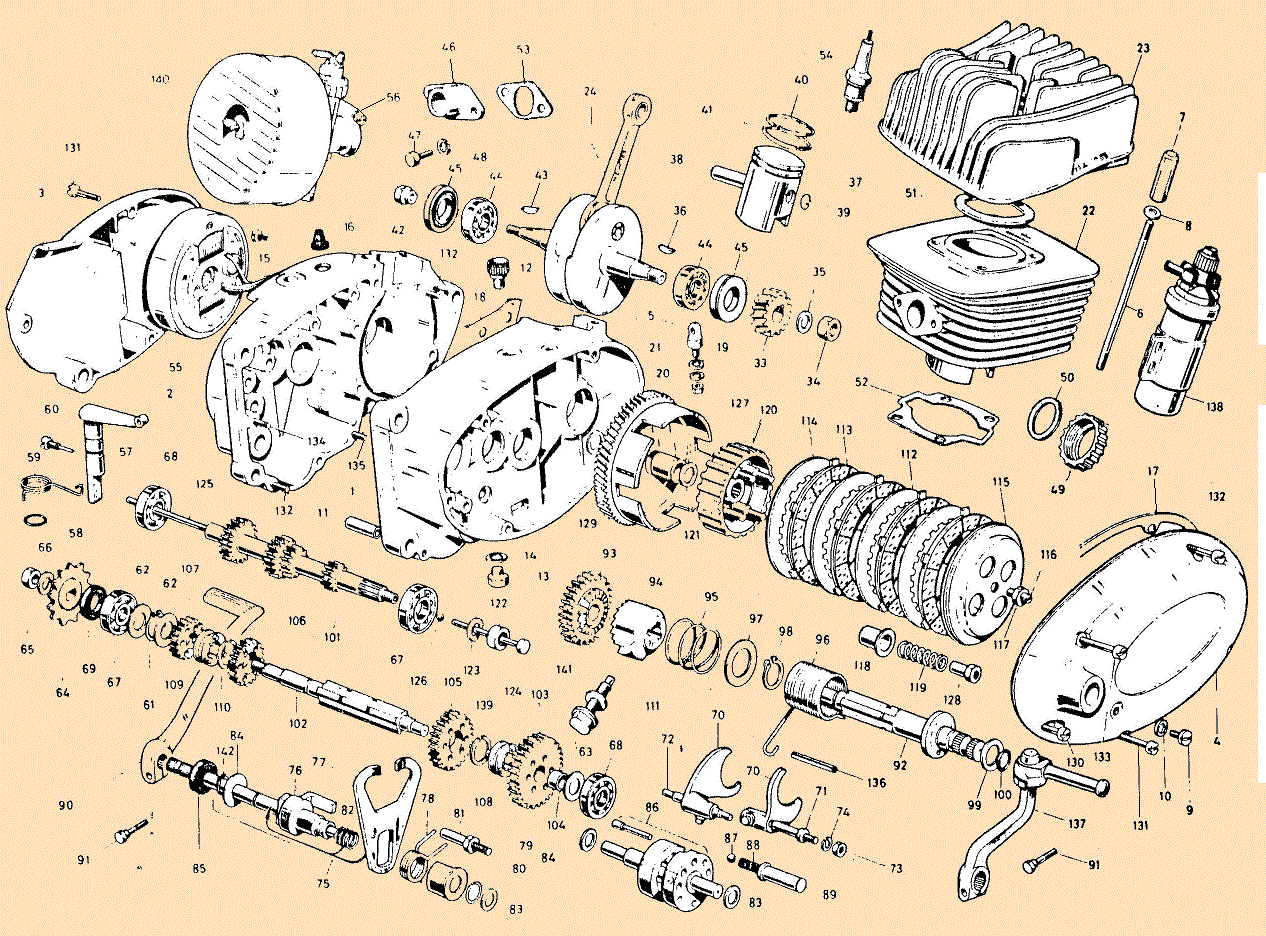

1968 Morini 101 Parts Catalog (late #s)
See full catalog at cjoint.com

1969 Morini 101









 1972-75



1-speed

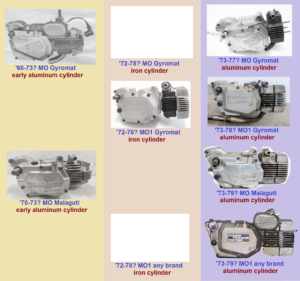

’68-73? Morini MO   Gyromat 1-speed automatic
’70-73? Morini MO   Malaguti 1-speed automatic
’70-73? Morini MO/K Gyrokick 1-spd automatic
early aluminum cylinder, Dellorto SHA 14/12 carb,
piston 40.0 x 12-16-17 .
rings 40.0 x 1.5 GI

’72-78? Morini MO   Gyromat  1-speed automatic
’72-78? Morini MO1 Gyromat  1-speed automatic
’72-78? Morini MO1 any brand 1-speed automatic
’72-78? Morini MO1/K Gyrokick 1-spd automatic
all iron cylinder, Dellorto SHA 14/12 carb,
piston 40.4 x 12-19-17 .
rings 40.4 x 1.5 GI

’73-77? Morini MO   Gyromat  1-speed automatic
’73-78? Morini MO1 Gyromat  1-speed automatic
’73-79? Morini MO   Malaguti  1-speed automatic
’73-79? Morini MO1 any brand 1-speed automatic
’73-78? Morini MO1/K Gyrokick 1-spd automatic
aluminum cylinder, Dellorto SHA 14/12 carb,
piston 40.4 x 12-16-17 .
rings 40.4 x 1.5 GI


1968-79 Morini MO, MO1 family. See Morini MO .

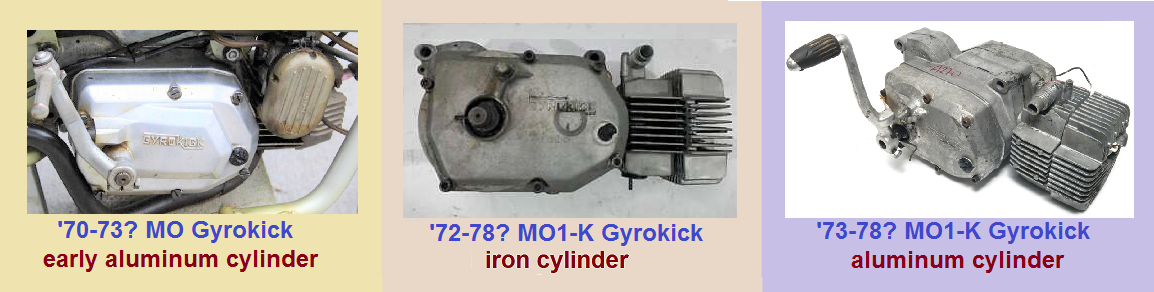

1970-78? Morini MO1-K family. See Morini MO .





2-speed

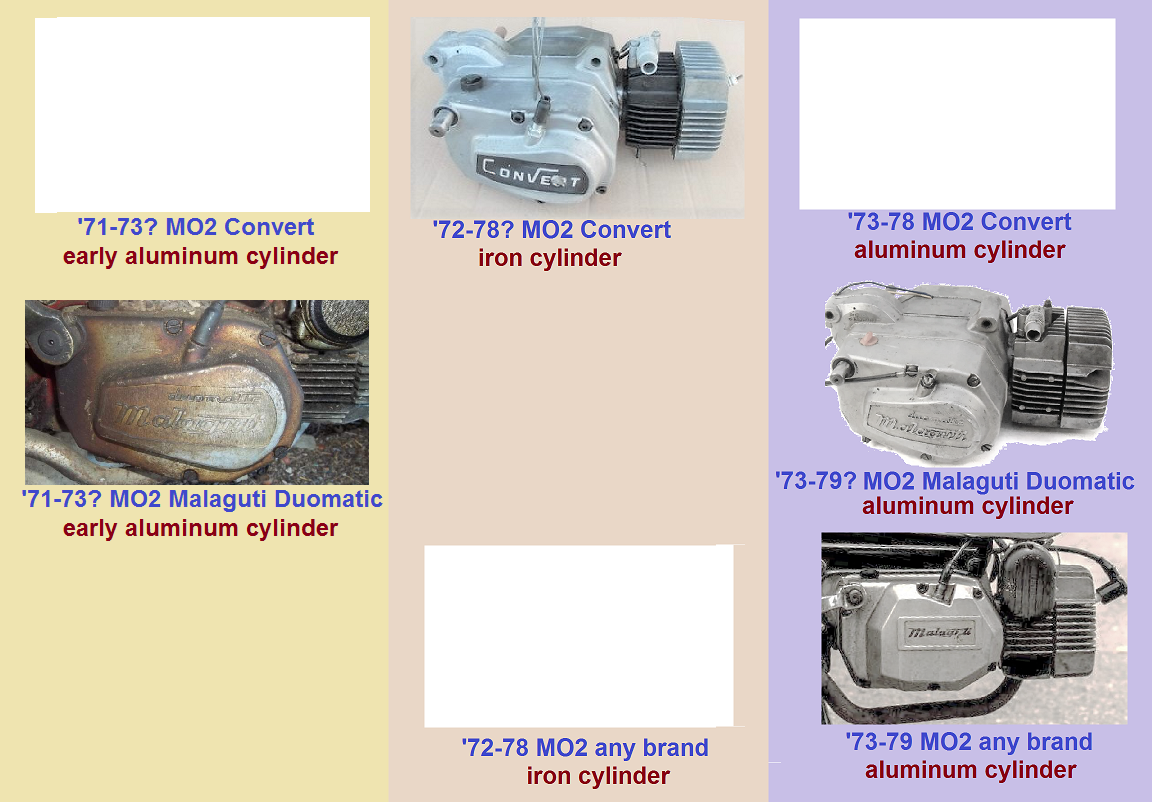

’71-73? Morini MO2 Convert   2-speed automatic
’71-73? MO2 Malaguti Duomatic 2-speed automatic
early aluminum cylinder, Dellorto SHA 14/12 carb,
piston 40.0 x 12-16-17 .
rings 40.0 x 1.5 GI

’72-78? Morini MO2 Convert   2-speed automatic
’72-78? Morini MO2 any brand 2-speed automatic
all iron cylinder, Dellorto SHA 14/12 carb,
piston 40.4 x 12-19-17 .
rings 40.4 x 1.5 GI

’73-78? Morini MO2 Convert   2-speed automatic
’73-79? MO2 Malaguti Duomatic 2-speed automatic
’73-79? Morini MO2 any brand 2-speed automatic
aluminum cylinder, Dellorto SHA 14/12 carb,
piston 40.4 x 12-16-17 .
rings 40.4 x 1.5 GI


1971-79 Morini MO2 family. See Morini MO



4-speed







5-speed

1971-75? Morini 125
123.6 cc (54.0 x 54.0) 5-speed manual foot-shift kick-start
12 hp, Dellorto VHB 25 carb, Dansi magneto 29-0027
piston 54.0 x 16-??-?? 23-0121
rings 54.0 x 2.5L and 54.0 x 2.5 GN

1971-75? Morini 125/S
123.6 cc (54.0 x 54.0) 5-speed manual foot-shift kick-start
15 hp, Dellorto VHB 27 carb, Dansi magneto 29-0027
piston 54.0 x 16-??-?? 23-0121
rings 54.0 x 2.5L and 54.0 x 2.5 GN

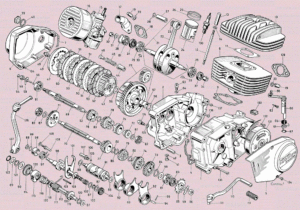

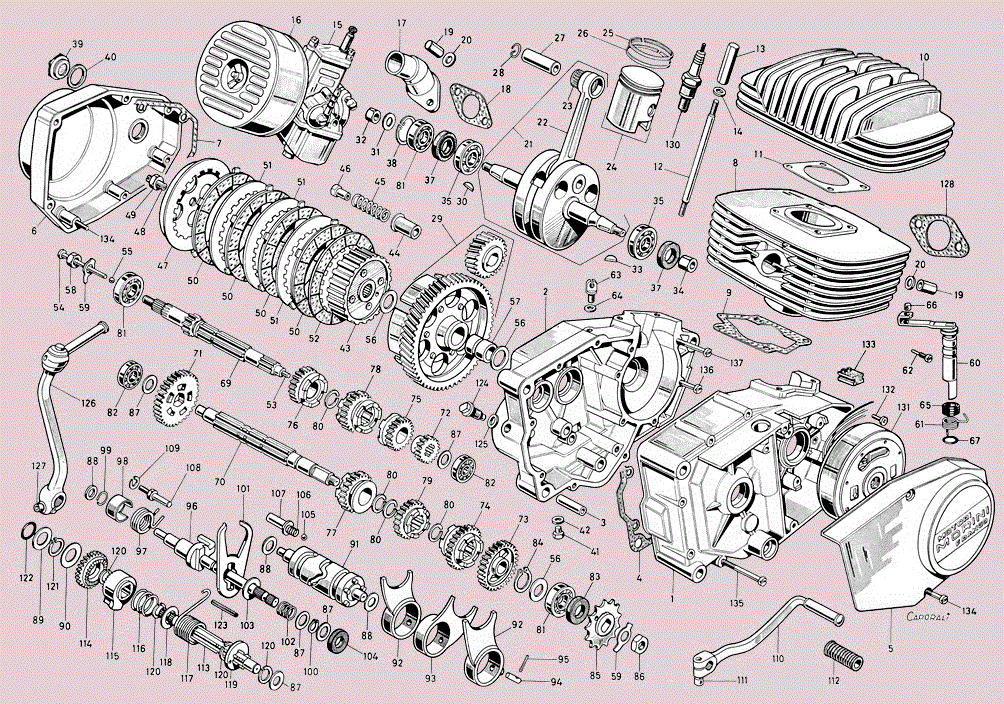

1972 Morini 125 Instruction Booklet and Parts Catalog
See full catalog and article on mondo50cc.forumfree.it .











 1976-79





1-speed

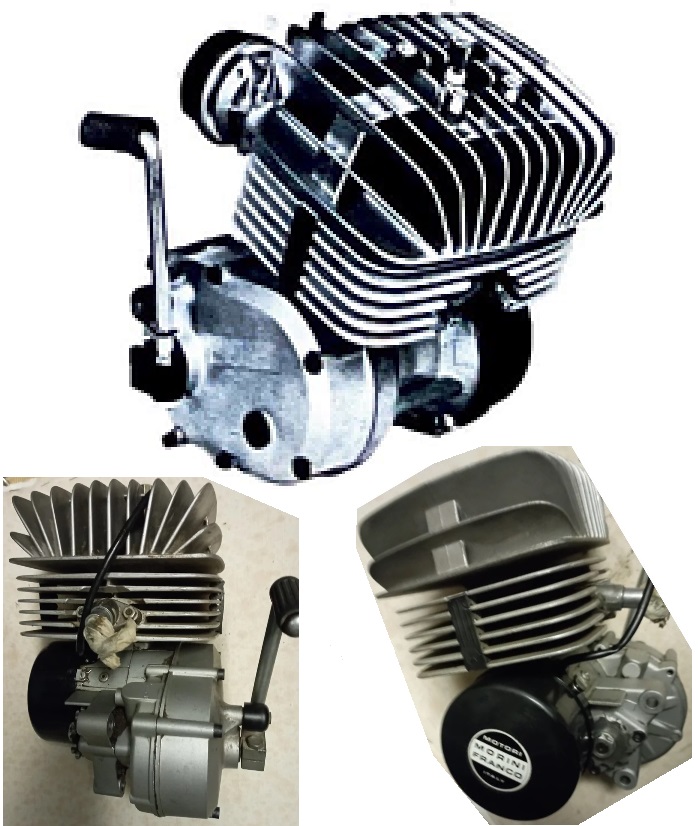

1978-80? Morini S5R  1-speed automatic kick-start
49.6cc (39.0 x 41.5), 9.0 comp ratio, forward kick
5.0 hp, Dellorto SHB 19/19 carb, Bosch 0212 005 021 magneto
piston 39.0 x 12-22-17 23-0133 G0036S
rings 39.0 x 2L and 39.0 x 1.5 GN



4-speed

Rounded becomes Angular: The rounded engine cases and covers became straight lines and flat surfaces. No more curves.

1976-80? Morini 4M Turbo
49.9cc (39.0 x 41.8) 4-speed manual-clutch foot-shift kick-start
?? hp, ?? km/h, Dellorto SHA14/12 carb, Dansi  magneto 29-0007
piston 39.0 x 12-22.0-16.5? 4MPA14 23-0107 G0026A
rings 39.0 x 2L and 39.0 x 1.5 GN

1976-80? Morini 4M/R Radial
49.9cc (39.0 x 41.8) 4-speed manual-clutch foot-shift kick-start
?? hp, ?? km/h, Dellorto SHA14/12 carb, Dansi  magneto 29-0007
piston 39.0 x 12-22.0-16.5? 4MPA14 23-0107 G0026A
rings 39.0 x 2L and 39.0 x 1.5 GN

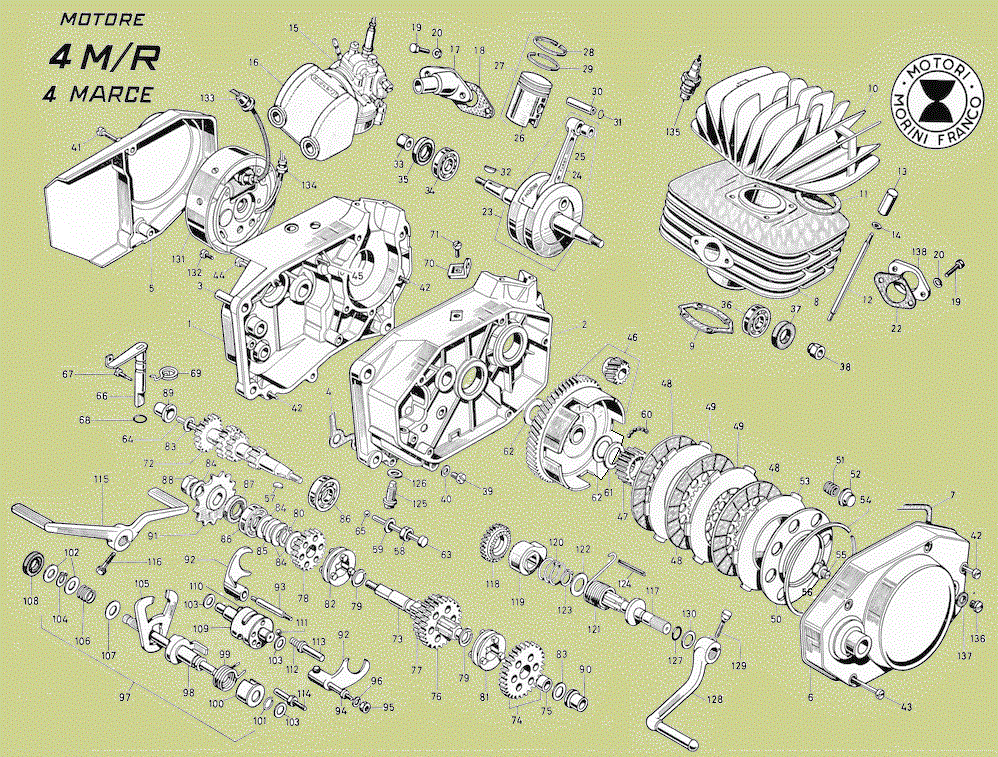

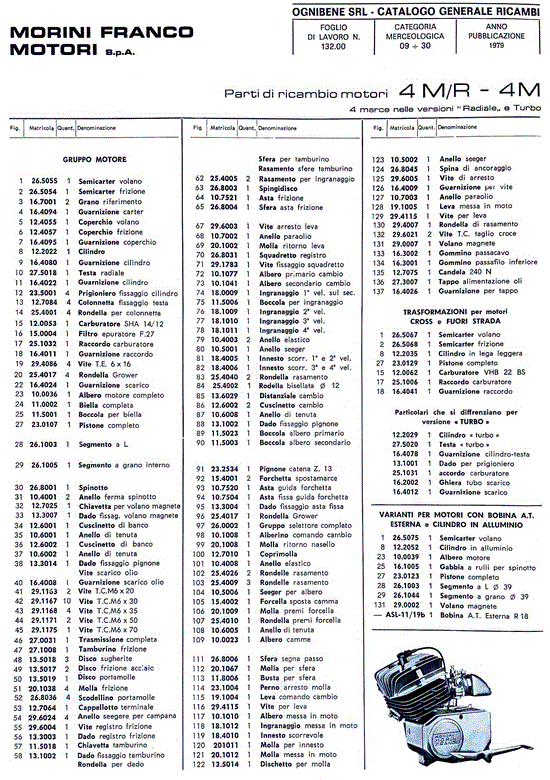

1976? Morini 4M/R and 4M Parts Catalog

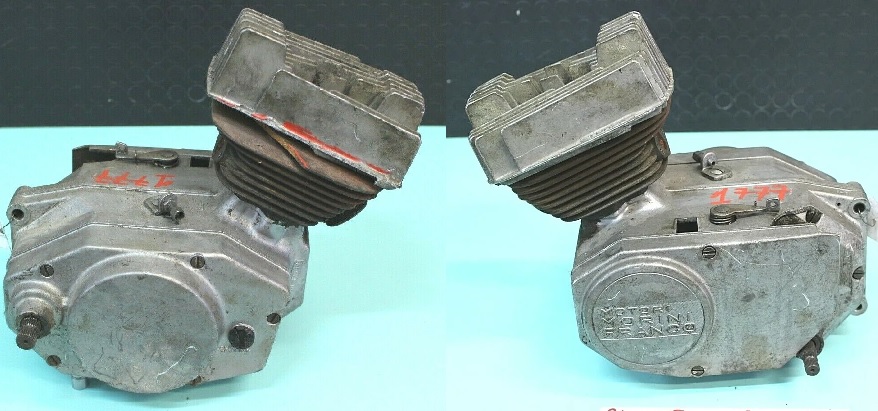

1977? Morini 4M Turbo





1978-82? Morini 4M/R UC4
49.9cc (39.0 x 41.8) 4-speed manual-clutch foot-shift kick-start
?? hp, ?? km/h, Dellorto SHA14/12 carb, Dansi  magneto 29-0002
piston 39.0 x 12-22-17 000000 23-0133 G0036S
rings 39.0 x 2L and 39.0 x 1.5 GN

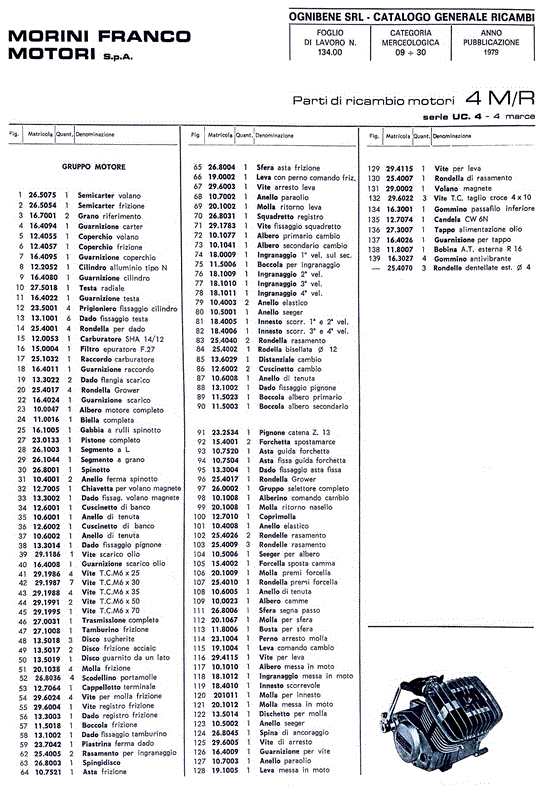

1978? Morini 4M/R UC4 Parts Catalog





5-speed

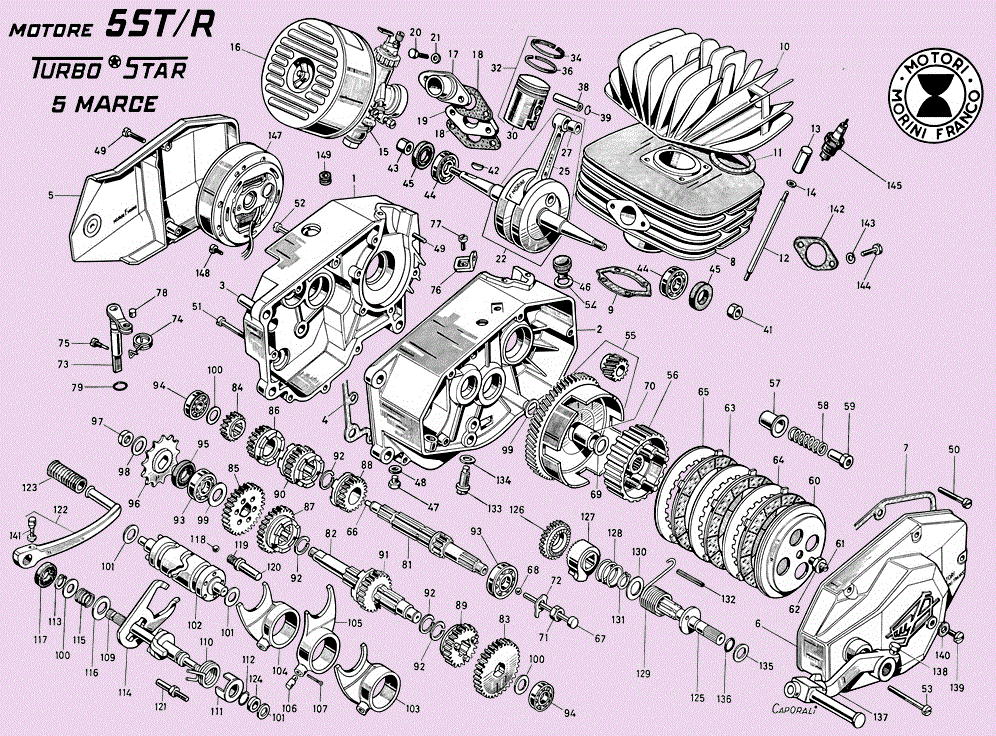

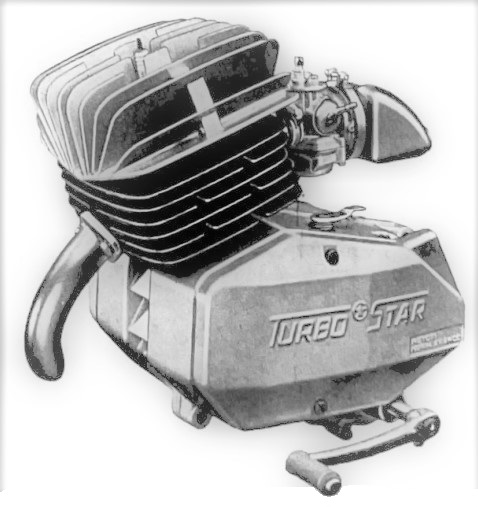

1976-80? Morini 5ST/R Turbo Star, 5-speed foot-shift kick-start

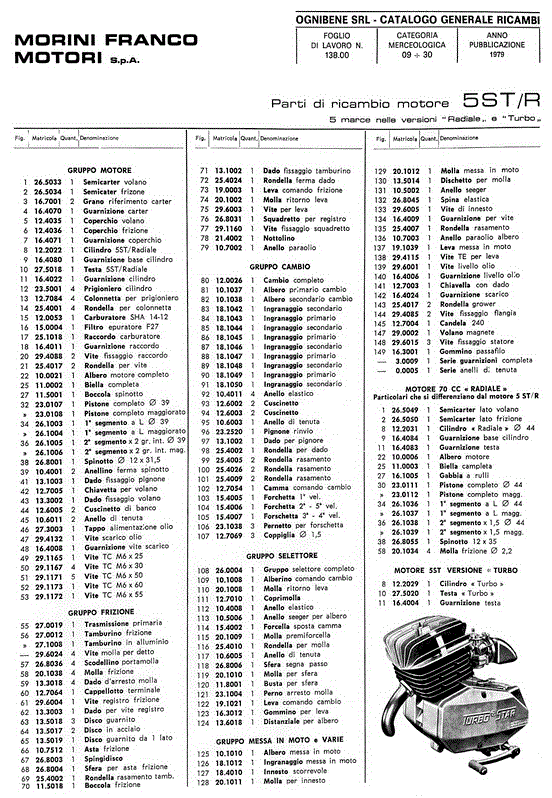

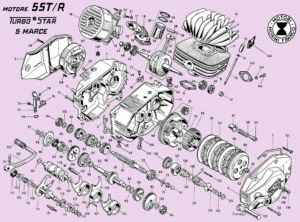

1975? 5ST/R Turbo Star Catalog from mondo50cc.forumfree.it















 1979-83



1-speed

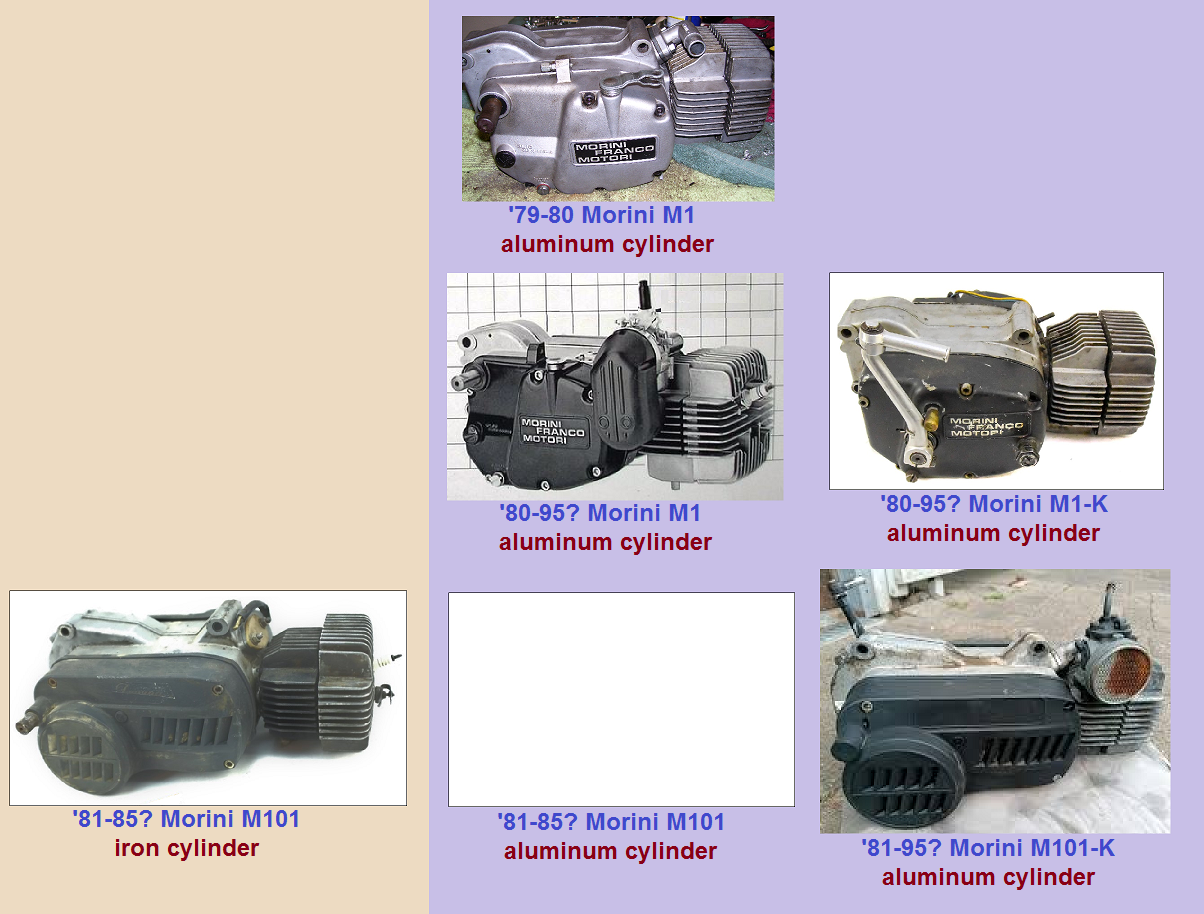

’79-95+ Morini M1 (P) 1-speed automatic with pedals
’79-95+ Morini M1-K   1-speed automatic kick start
aluminum cylinder, case reed valve,
?? hp, Dellorto SHA 14/12 carb,
piston 40.4 x 12-16-17 .
rings 40.4 x 1.5 GI

variable-speed

’79-95+ Morini M101 (P) variator automatic with pedals
’79-95+ Morini M101-K   variator automatic kick start
aluminum cylinder, case reed valve,
?? hp, Dellorto SHA 14/12 carb,
piston 40.4 x 12-16-17 .
rings 40.4 x 1.5 GI



4-speed















 1984-89



From 125stradali.com  Franco Morini and Minarelli engines powered practically every 50cc engine produced in Italy in the 80s and 90s. … We would like to remind the reader that in the early 80’s manufacturers were not allowed to fit more than 4 gears and from 1990 only 3. Fortunately, in 1993 the number of gears became free again, but by then it was the scooters that were in charge.

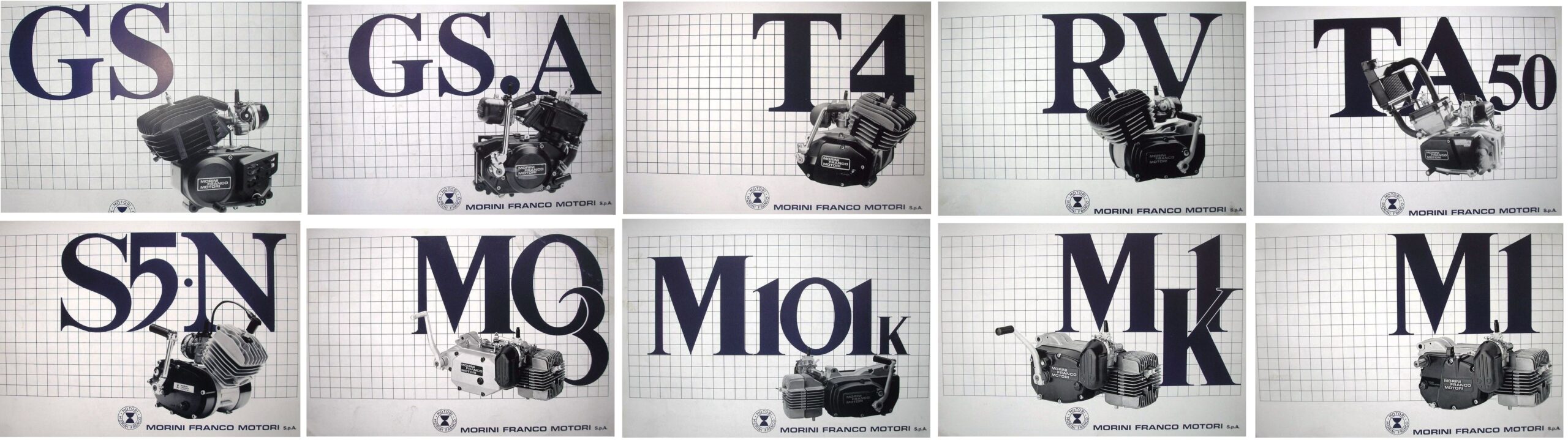

1984 Morini Franco

1-speed

Morini M1

Morini M1.K

Morini GS

Morini GS (MGX)
From 125stradali.com  The air-cooled version of the GS.A, still featuring the large reed valve. Four-speed gearbox and electronic ignition.

Morini GS.A (RGT 2nd series)

From 125stradali.com  The GS.A is the liquid cooled, forced circulation version of the GS. Compared to the T50-A, it has a new cylinder with a significantly larger reed valve than the previous one and electronic ignition. The gearbox remains at 4 speeds as required by law.

Morini S5.N

variable-speed

Morini M101K

Morini RV

3-speed

Morini MO.3

4-speed

Morini T4 (RCW-RCX-RGT 1st series)

Morini TA

From 125stradali.com  The Franco Morini TA-50 and T4 had the same engine block and 4-speed gearbox, although they differed in the thermal system, which on the TA was liquid-cooled with thermosiphon circulation. The intake was reed valve for both, but characterised by a rather small reed valve. Ignition was for both of them with points.









 1990-95

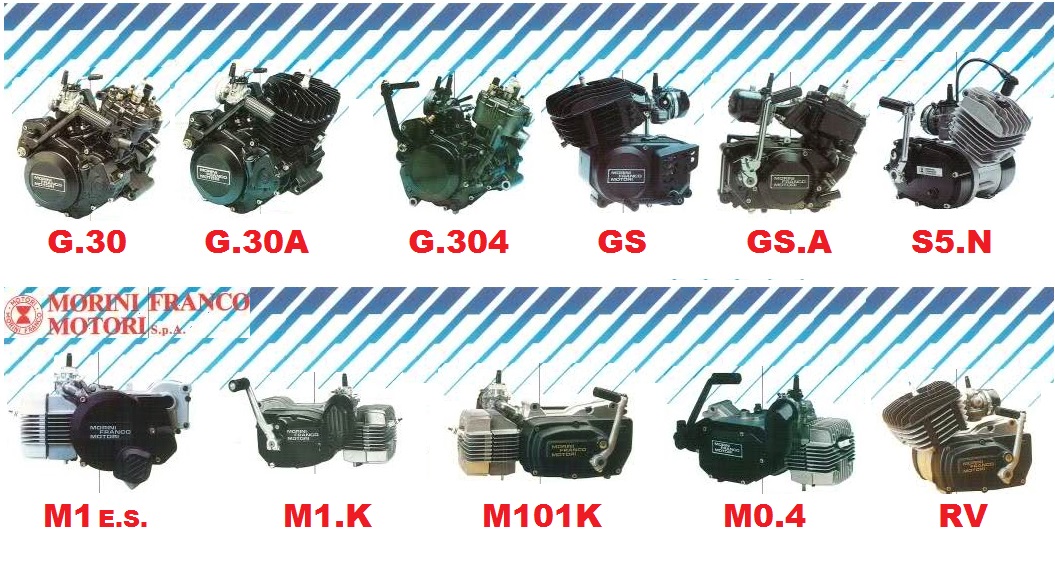

1990 Morini Franco  from amoticos.org

1-speed

Morini M1 e.s.

Morini M1.K

Morini S5.N

Morini GS  (was S5-GS)

Morini GS.A

variable-speed

Morini M101K

Morini RV (like M101 but vert cyl)

3-speed

Morini G.30

Morini G.30A

1990-99 Morini G.303 (RST)

From 125stradali.com The G303 was fitted from 1990 and although it was the same engine, the gearbox only had three ratios due to the law limiting the ratios to a maximum of three. It should be noted that the G303 also changed the internal gear ratio, with the first two gears close together and the third at rest. If a four-speed gearbox were to be fitted, it was advisable to completely replace the gearbox with that of the previous G304 to avoid excessive “gaps” between second and third gears.

4-speed

1990-99 Morini G.304

From 125stradali.com  This is Franco Morini’s top of the range and most advanced engine, practically an evolution of the previous GS.A..
The G304 was a long stroke with a light alloy cylinder with a gilnisil treated barrel, reed valve in the crankcase, electronic ignition, pump for forced circulation of coolant, electric starter (as an option) and automatic mixer. The gearbox remained a 4-speed, as required by the Code.

1990-99 Morini MO.4







1995-05

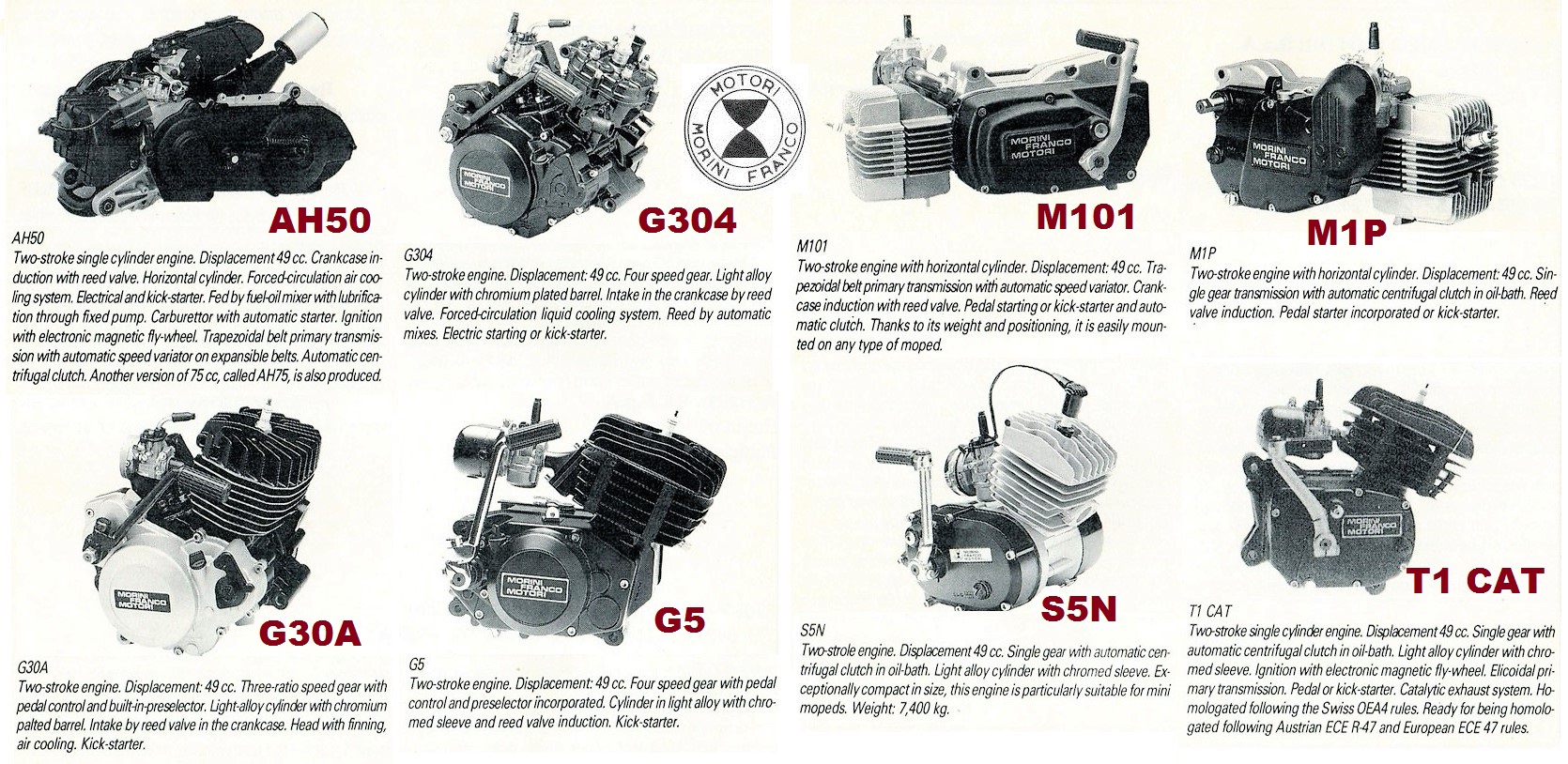

1993? Morini Franco

1-speed

Morini M1P

Morini S5N

Morini T1 CAT

variable-speed

Morini M101

Morini AH50

Morini AH75

3-speed

Morini G30A

4-speed

Morini G304

Morini G5
