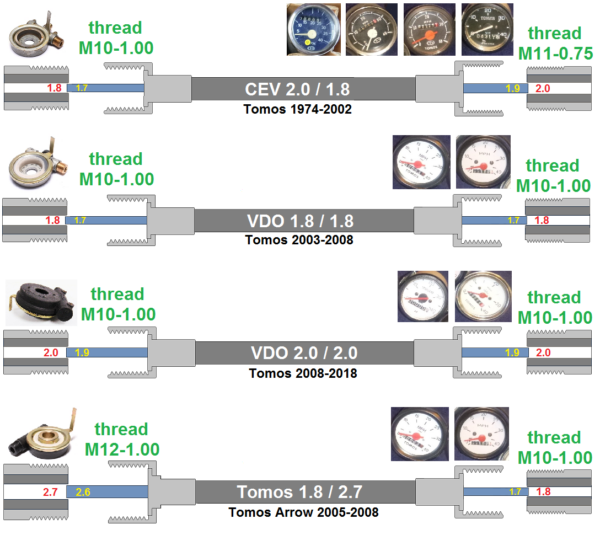

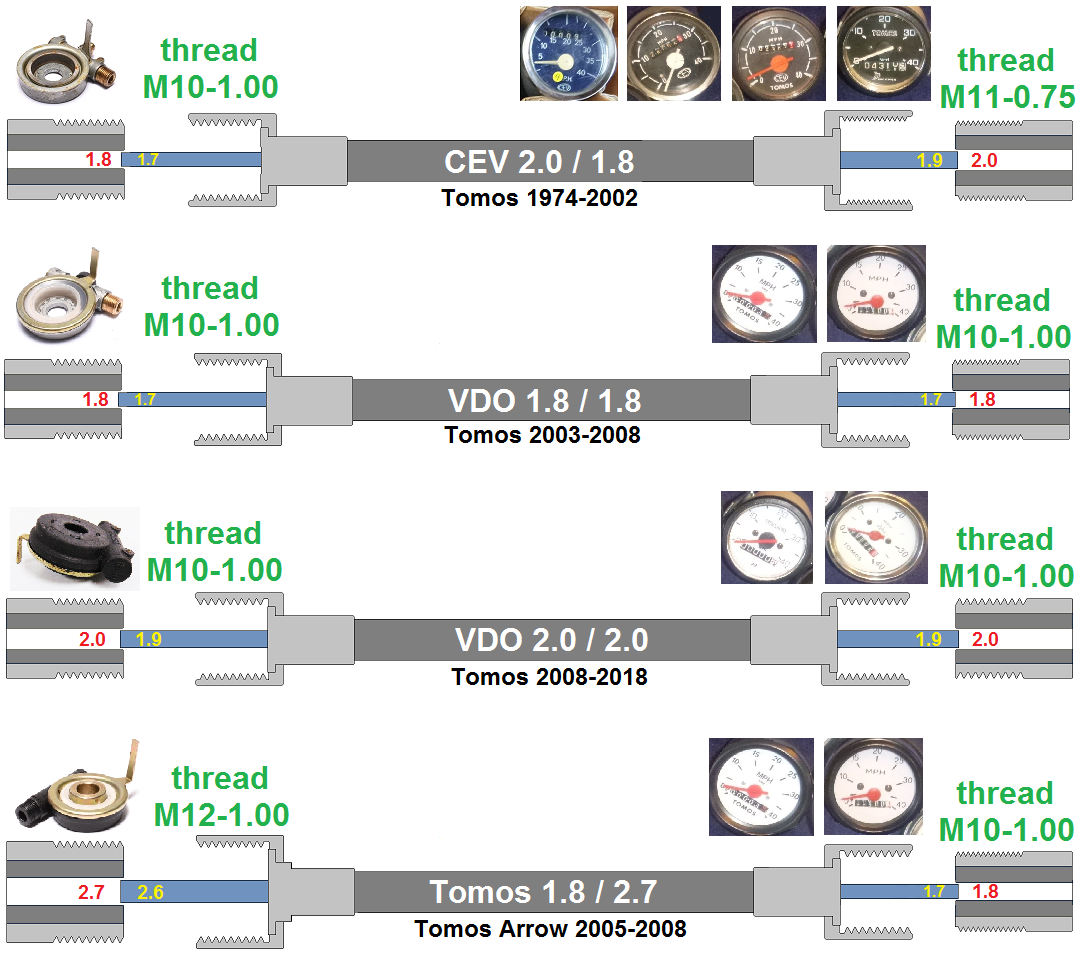

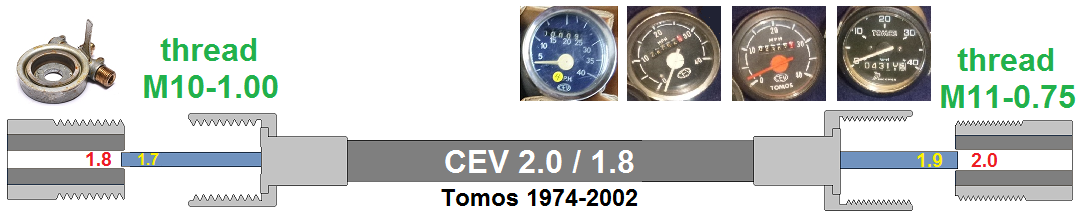

CEV 2.0/1.8 is on 1974 to 2002 US models of Tomos mopeds.

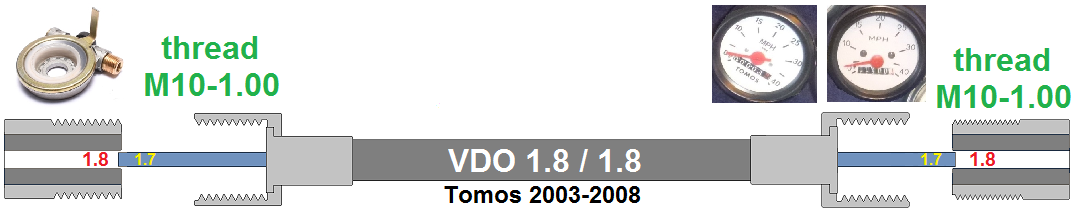

VDO 1.8/1.8 is on 2003 to 2008 US models of Tomos mopeds.
Speedo cables are listed in VDO Speedo Parts.

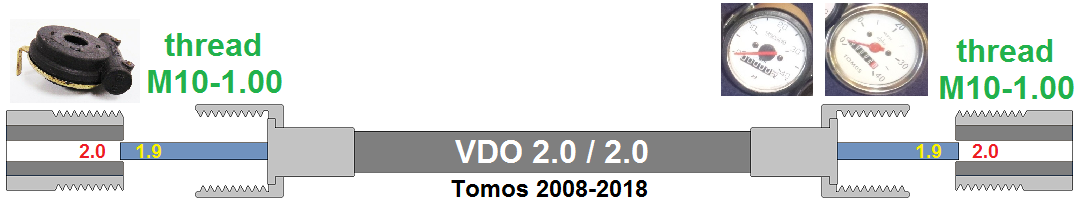

VDO 2.0/2.0 is on 2008 to 2018 US models of Tomos mopeds.
Speedo cables are listed in VDO Speedo Parts.

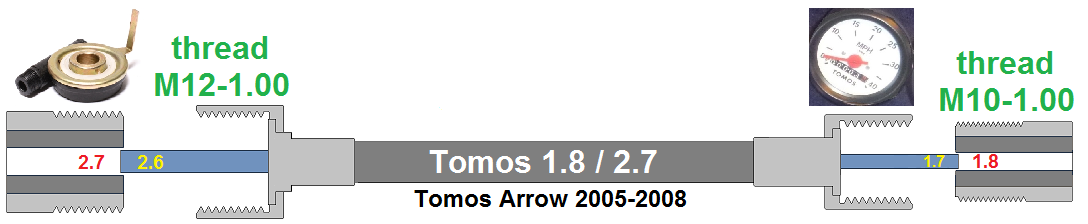

Tomos 2.0/2.7 is on 2005 to 2008 US models of Tomos Arrow.

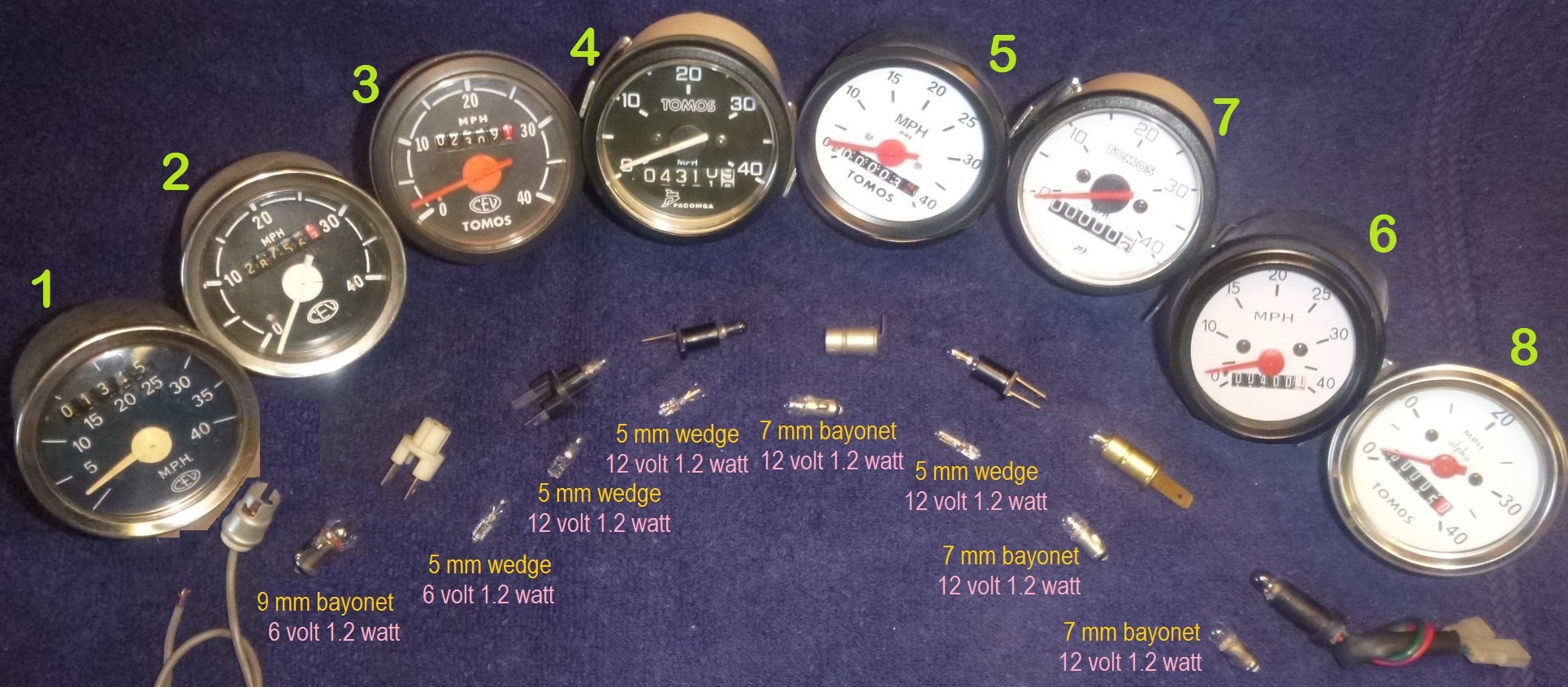

A. Tomos Speedometers
’74-02 CEV-type 40 mph M11-0.75 thread
# Tomos# price years models face hole made by
1. 213233 none 74-79 all dk blu 2.0 CEV see note 1
2. 214838 none 80-87 all black 2.0 CEV see note 1
3. 222006 none 87-91 all black 2.0 CEV-Tomos
4. 227496 none 92-02 all black 2.0 Facomsa
’02-17 VDO-type 40 mph M10-1.00 thread
# Tomos# price years models face hole made by
5. 232803 none 03-05 all white 1.8 MMB
6. 232803 none 05-08 all white 1.8 generic
7. 232803 none 09-10 Rev white 2.0 F- logo see note 2
8. 232803 none 08-17 all white 2.0 Alpha
Note 1: #1 and 2 are listed in the CEV Speedometers section.
Note 2: #7 is on Revival-TS only. The odometer reads in kilometers.
B. Tomos Speedo Drivers

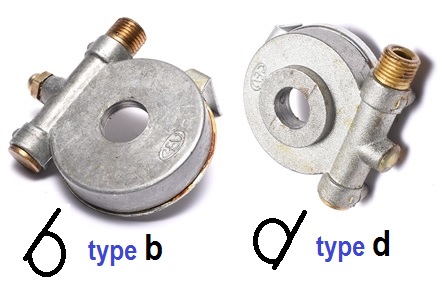

type R b is on right side, looks like a “b”
type L d is on left side, looks like a “d”
# hole ratio mark type hole depth price

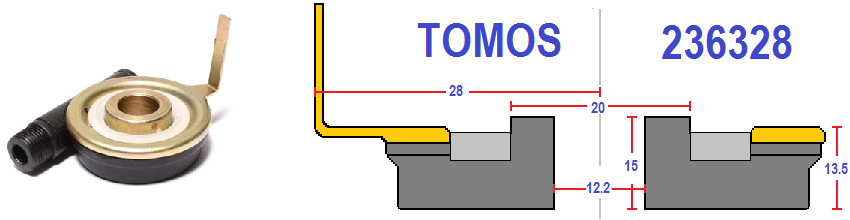

001 12 1.4 14:10 R b 2.7 15.0 none
on ’05 Arrow, ’06-08 Arrow-R

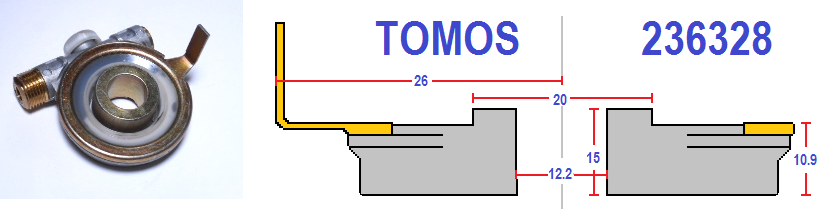

#236328 metal, for 3.00-12, M12 thread
011 0 12 1.4 14:10 R b 2.7 15.0 none
on ’08 Arrow-R, ’17-18 Racing TT
#236328 plastic, for 3.00-12, M12 thread

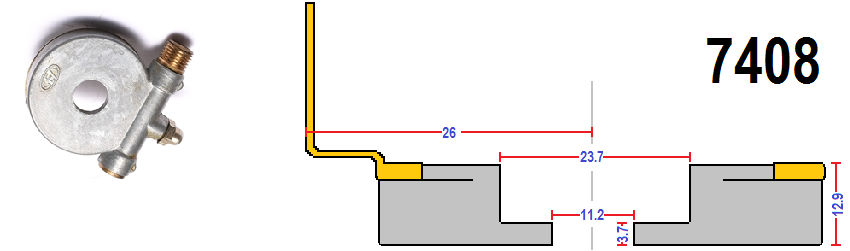

7408 11 1.6 408 L d 1.8 03.7 55-45
on ’74-06 models with 2.25-16 front tire
#209650 for 2.25-16 (11mm axle ends)

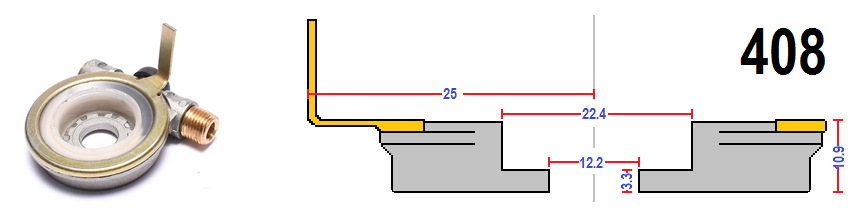

408 12 1.6 16:10 L d 1.8 03.3 $49
on ’07-08 models with 2.25-16 front tire
#230631 for 2.25-16 (12mm axle ends)

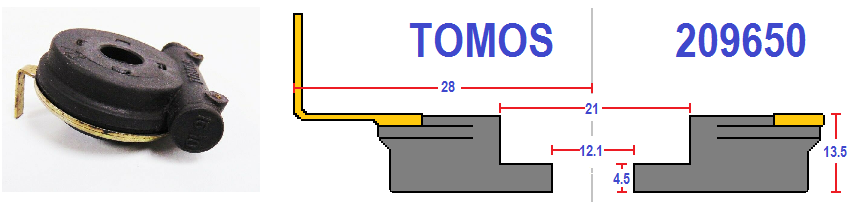

012 0 12 1.6 16:10 L d 2.0 04.5 $29.0
on ’08-18 models with 2.25-16 front tire
#209650 for 2.25-16 (12mm axle ends)

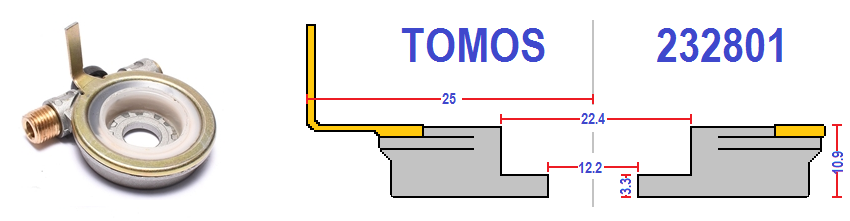

003 12 1.7 17:10 R b 1.8 03.3 55-40
on ’02-08 Revival, Streetmate
#232801 metal, for 2.50 or 2.75-17 tire

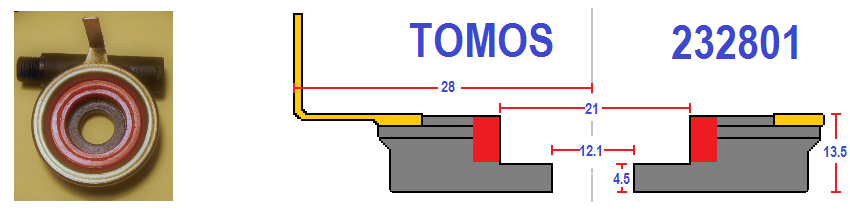

013 0 12 1.7 17:10 R b 2.0 04.5 $27.0
on ’08-13 Revival, Streetmate
#232801 plastic, for 2.50 or 2.75-17 tire

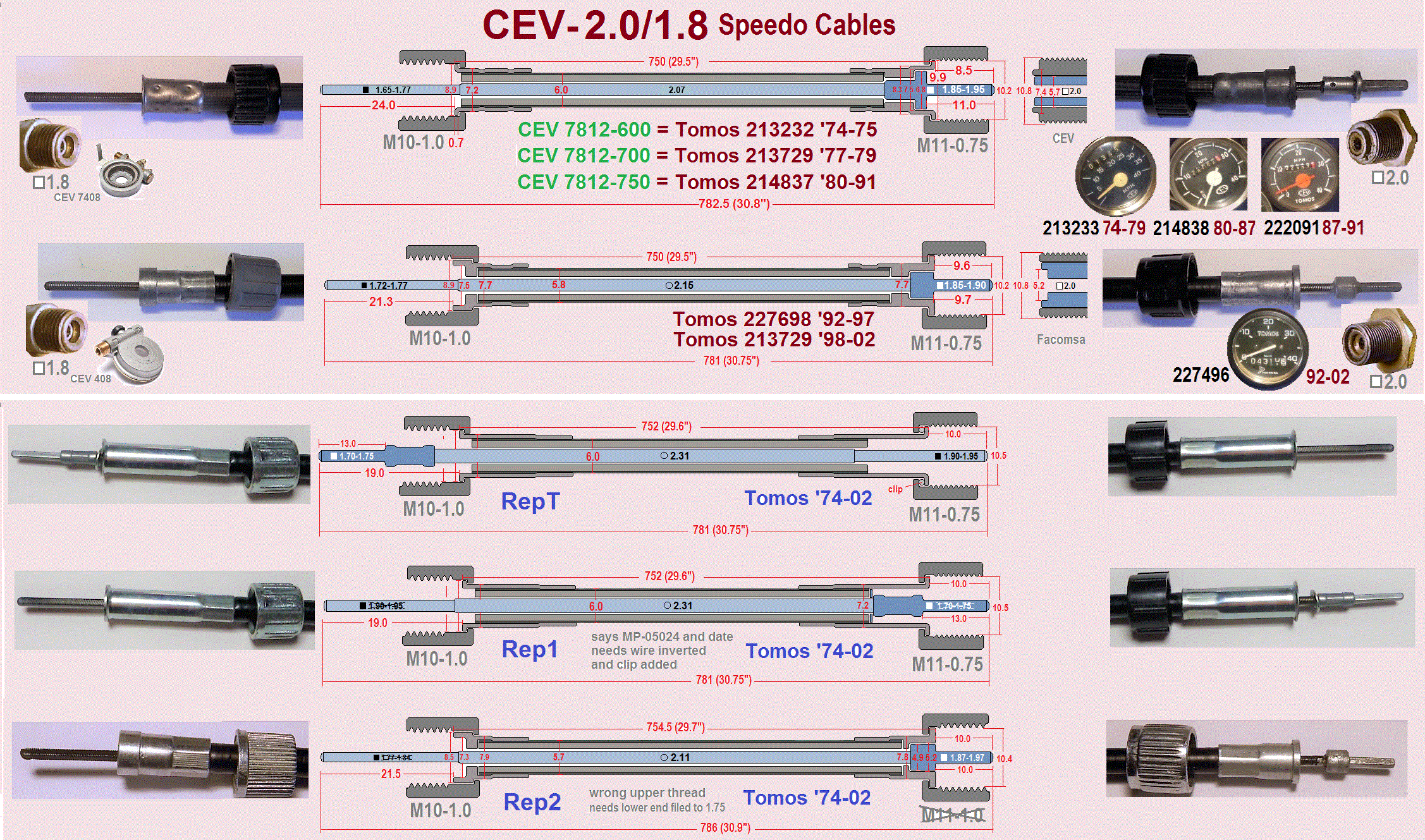

C. Tomos Speedo Cables
This is only for ’74 to ’02 Tomos. Cables for ’03 to ’18 Tomos mopeds (except Arrow) are in VDO Speedo Parts.
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# Tomos# description CEV-2.0/1.8
600 23.6 1.73-1.77 1.88-1.98 none original
600 23.6 7812/600 213.232 ’74-76 Tomos (low speedo)
700 27.6 1.73-1.77 1.88-1.98 none original
700 27.6 7812/700 213.729 ’77-79 Tomos (high speedo)
750 29.5 1.73-1.77 1.88-1.98 $42.0 original
750 29.5 7812/750 214.837 ’80-91 Tomos (more bend)
750 29.5 1.73-1.77 1.88-1.98 none original
750 29.5 7812/750 227.698 ’92-97 Tomos
750 29.5 7812/75 227.698w $15.0 inner wire only
750 29.5 1.75-1.78 1.83-1.85 $44.0 original
750 29.5 7812/750 213.729 ’98-02 Tomos
750 29.5 7812/75 213.729w $15.0 inner wire only
750 29.5 1.94-1.98 1.70-1.75 $18.0 replacement
750 29.5 Rep1/750 213.729 for ’74-02 Tomos
750 29.5 1.70-1.75 1.95-2.00 $26.0 modified replacement
750 29.5 RepT/750 Rep1 modified, see note 1
750 29.5 1.75-1.80 1.88-2.00 $15.0 incorrect replacement
750 29.5 Rep2/750 Wrong upper thread, see note 2
Note 1: RepT is made from Rep1 in 4 steps. 1. Using a tapered punch, vice and hammer, the upper end tube is bent wider at the entrance flare, from 7.2 to 7.5 mm ID, to fit the 7.4 OD lip on the CEV speedometer. 2. A C-clip, made from a section of a paper clip, is added inside the upper plastic screw cap, if it does not screw on far enough to retain the upper end tube solid, straight and centered. 3. The inner wire is inverted. 4. The 2.0+ mm weld bulge at the tip of the upper square end is ground off to make the tip a 1.9 mm square.
Note 2: Rep2 cannot screw onto a CEV speedometer because the upper end cap thread is incorrect. It is M11-1.0 instead of M11-0.75. So the conduit, with the incorrect end cap trapped on it, is useless. But the inner wire has a good use. It can replace a broken inner wire on an Tomos 227.698 cable, original on 1992 to 2002. Some might need grinding of the 1.8+ mm weld bulge on the lower end to make the tip a 1.7 mm square.
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# Tomos# description Tomos-2.0/2.7
000 00.0 2.60-2.60 1.95-1.95 $00.0
000 00.0 0000/750 236.388 ’05-08 Tomos Arrow, Arrow-R
