Huret Speedometer Parts

Huret-2.7/2.7 speedo family is on US models of Arciero, Bianchi (some), Demm (some), Garelli, Gitane, Motobecane, Negrini (some), Pacer, Snark (some), Velomec.
The speedometers in this family have a white face.

Huret-2.0/2.7 speedo family is on some US model mopeds but not many.
The speedometers in this family have a black face.

Jawa-2.2/2.2 speedo family is on ’74-83 Jawa mopeds.






A. Huret Speedometers

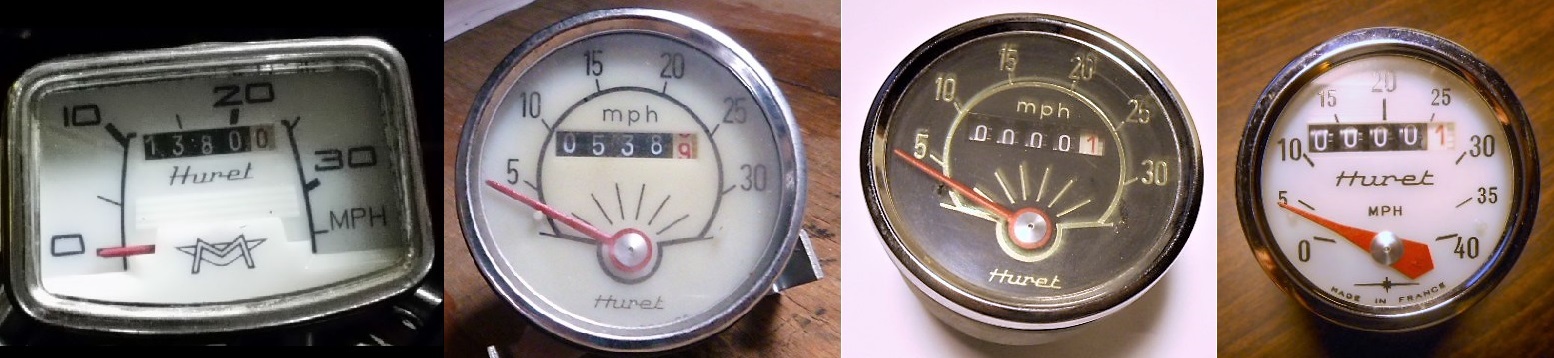

1. Huret-2.7 Motobecane, 2. Huret-2.7 60mm round MMI #H125F for Garelli. 3. Huret-2.0 60mm round, 4. Huret-2.7 48mm round

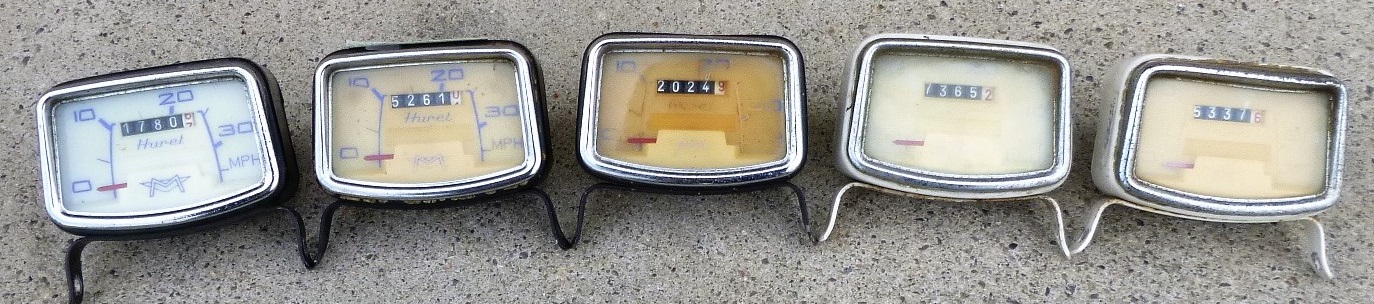

Good-used Huret-2.7 Motobecane speedos, unfrozen, lubed, and tested.

Long term testing: These were unfroze with acetone and re-lubricated with Tri-Flow. Then they sat on a parts shelf for four years in zip-lock bags. After that long, none had become stuck/frozen.

Huret-2.7 Motobecane speedometers: The cover is glass, so it resists scratching. Repeated exposure to sunlight fades the white background to yellow and the blue numbers to white. When the numbers are faded out the needle is still red, so speed can be estimated, like telling time on a clock with no numbers.

# price  miles   all are working normally unless noted
N/A  1780  excellent condition, works good
$55  5261  dark numbers, works good, but returns to 5mph not 0
$45  2024  barely visible numbers, works good

$40  7365  invisible numbers, works good
$35  5337  completely invisible numbers, works good

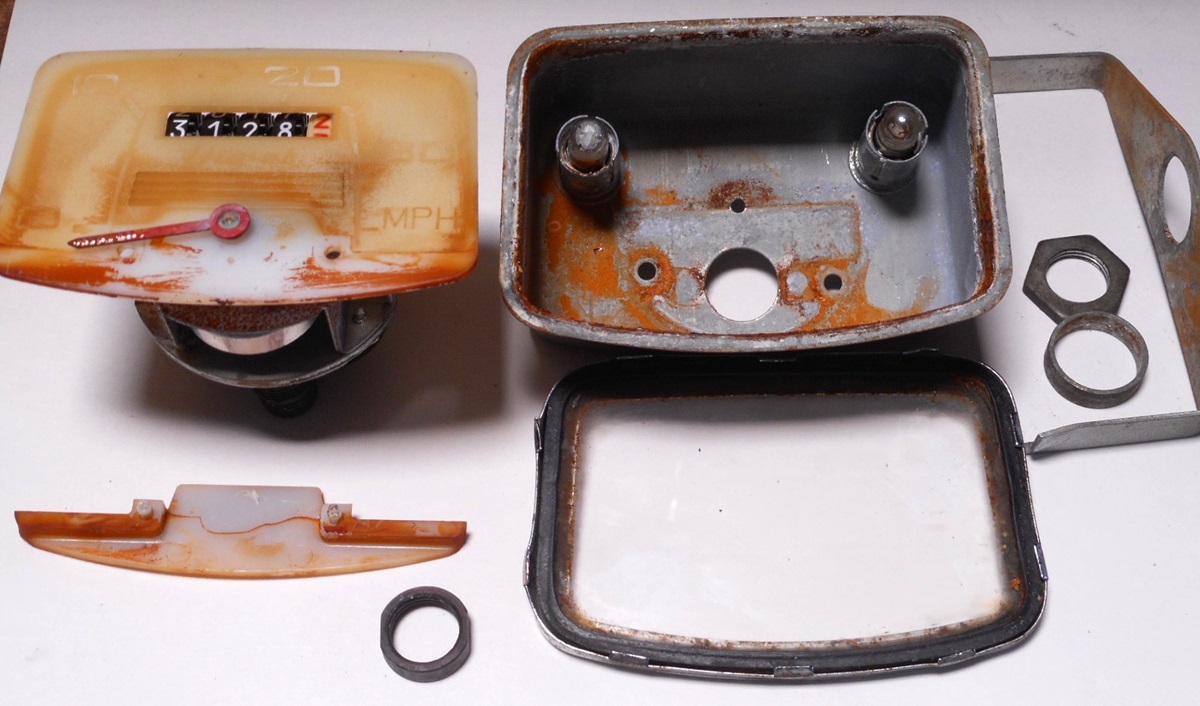

Motobecane speedo service: Accessing the needle requires removing the lower plate that hides the needle. That is done by applying pressure to the two white posts that stick through the face plate.

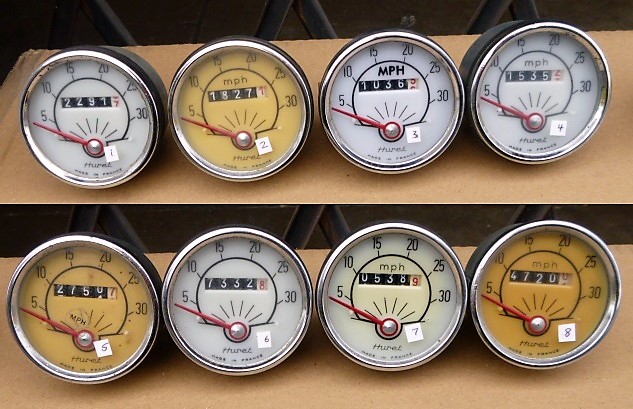

Good-used Huret-2.7 60 mm speedos, unfrozen, lubed, and tested.

Speed Testing: A hand drill was set to spin at a constant speed (by a stop screw in the trigger). Each speedo was spun for 30-50 seconds. The final speed was recorded.

Huret-2.7 60mm round speedometers: The test speeds all agreed quite well. These have great dampening, no jumping unless noted. The clear cover is glass, not plastic. So it does not get dull or scratched.

# price  miles   all are working normally unless noted
none 2291  test speed 21, needle moves nice, not jumpy
$50  1827  test speed 22, needle moves nice, not jumpy
$65  1036  test speed 21, needle moves nice, not jumpy
$25  1535  test speed 21, needle sticks and wiggles
none 2750  test speed 21, needle moves nice, not jumpy
none 7332  test speed 21, needle moves nice, not jumpy
$70  0538  test speed 21, needle moves nice, not jumpy
$45  4720  test speed 20, needle moves nice, not jumpy

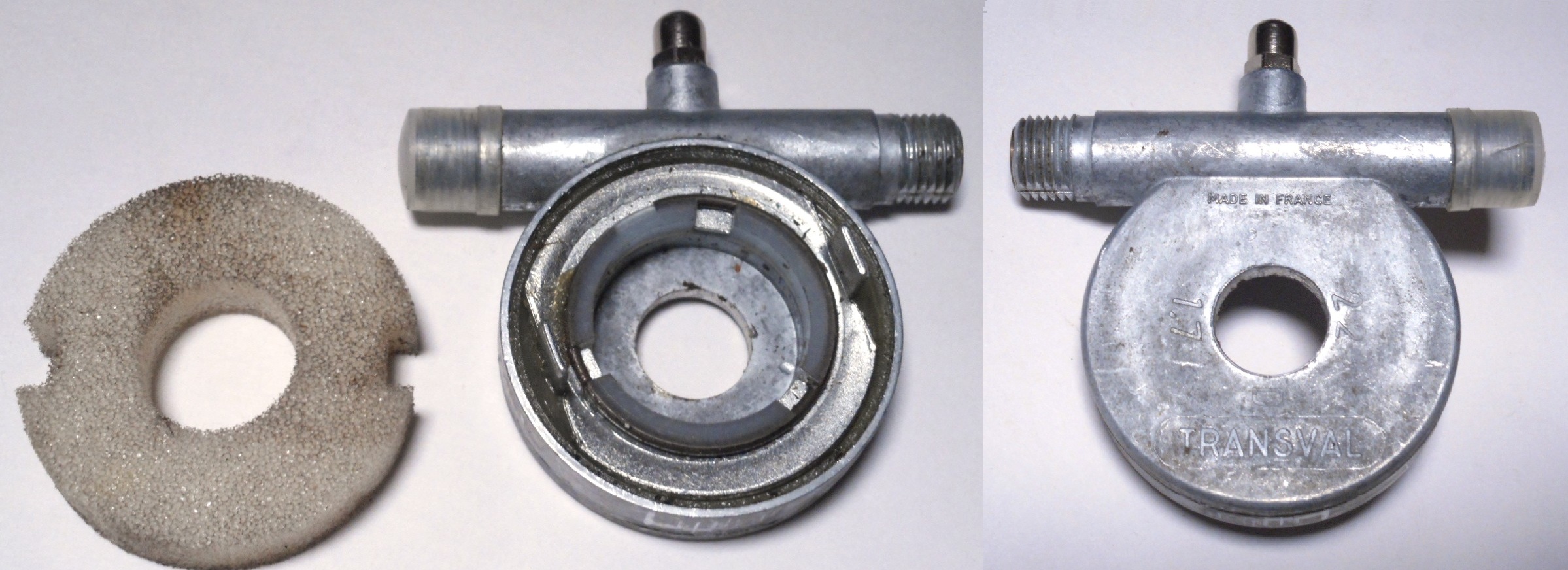

B. Huret Speedo drivers

With 2.7 mm cable hole and M10 x 1 threads.

There are two ratio choices for many tire sizes.

1.6 ratio for 20″ outer diameter  2.25-14 is 18.5″
3.00-13, 2.50-14, 2.00-15 are 19″, 2.25-15 is 19.5″
3.00-14, 2.50-15, 2.00-16 are 20″, 2.25-16 is 20.5″
3.00-15, 2.50-16, 2.00-17 are 21″

1.8 ratio for 23″ outer diameter  2.25-17 is 21.5″
3.00-16, 2.50-17, 2.00-18 are 22″, 2.25-18 is 22.5″
3.00-17, 2.50-18, 2.00-19 are 23″, 2.25-19 is 23.5″
3.00-18, 2.50-19, 2.00-20 are 24″

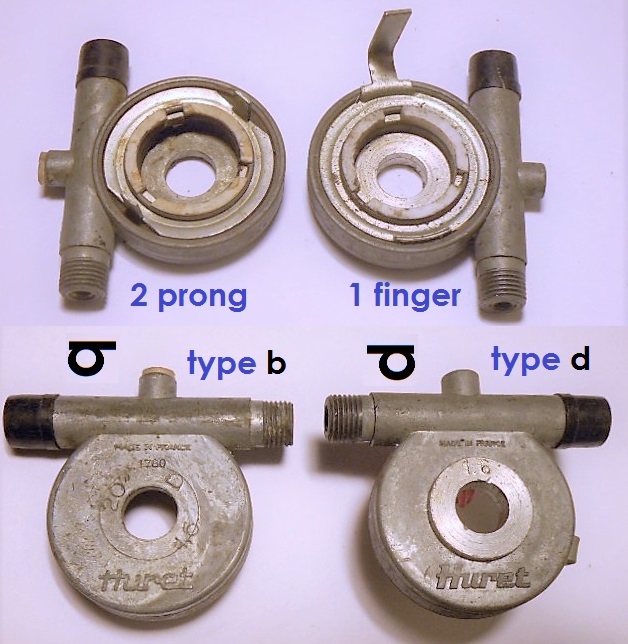

Huret drivers are reversible for left or right side,
because the cable can attach from either end.
The cable must rotate clockwise, viewed from above.



With the cable on, left side ones look like a d.
Right side ones look like a letter b.

The date stamp says the week 01-52 and year 75-80.

The marking says the tire outer diameter and/or the ratio.



axle side o.d. ratio  price  depth  type

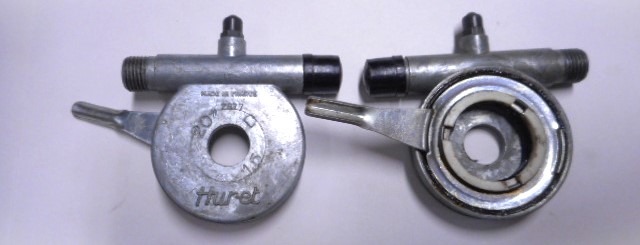

H127-F
∅11  left  20″ D 1.6  $35.0  3.2  1-finger
dates: 2877    for 16-17″ spoke wheels
on Arciero, Gitane, Pacer, Velomec,
and some Bianchi, Demm, Negrini, Snark.
Washers may need to be added or subtracted.

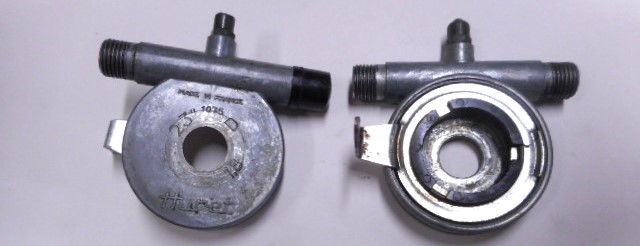

H127-2K
∅11  left  23″ D 1.8
$42.0  3.2   1-finger
dates: 1075, 2178   for 17-19″ spoke wheels
on Negrini KPN and others
Washers may need to be added or subtracted.

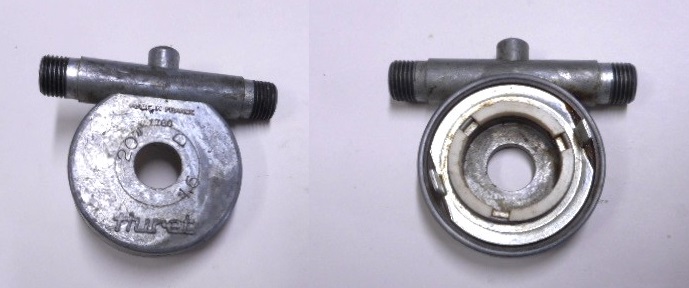

H127-FM
11  left  20″ D 1.6  $59.0  3.2   2-prong
dates: 1780    for 16-17″ mag wheels
Drill a finger hole in the wheel and use H127-F.
Washers may need to be added or subtracted.

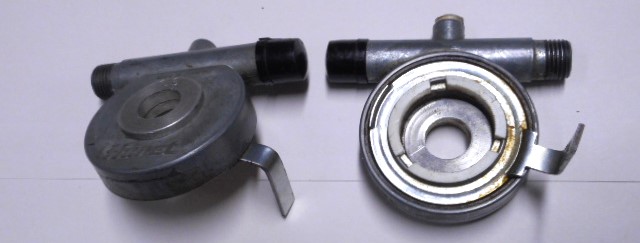

Garelli 506361.7381
∅11  left  20″ D 1.6  $42.0 depth 7.0   1-finger
dates: 1780      with step-spacer  for 2.25-16/17 on
’75-80 Eureka, Gran Sport, Rally Sport, Super Sport
Use H127-F with a 4mm washer behind it.

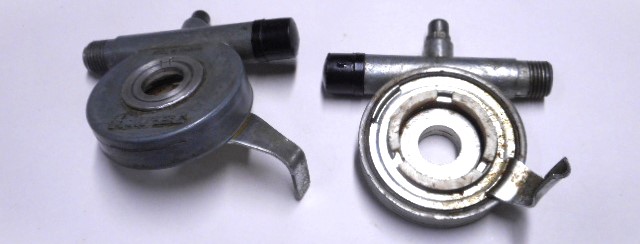

Garelli 507252.7381
∅11  left  20″ D 1.6  $48.0 depth 6.0   1-finger
dates: 2877 0478    with step-spacer for 2.50-17
on ’78-82 VIP, ’83 Monza GT
(83-86 Rally SL, VIP-N, 84-86 Monza GT had CEV)
Use H127-F with a 3mm washer behind it.

Garelli 507501.7381
11  left  20″ D 1.6  none   ???   2-prong
dates: unknown   for 16-17″ mag wheels
on ’77-78 Super/Gran Sport LTD
Drill a finger hole in the wheel and use H127-F.
Washers may need to be added or subtracted.

Garelli 508051.7381
11  left  20″ D 1.6  none   ???   2-prong
dates: unknown   for 16-17″ mag wheels
on ’79-80 Super/Gran/Rally Sport LTD
Drill a finger hole in the wheel and use H127-F.
Washers may need to be added or subtracted.

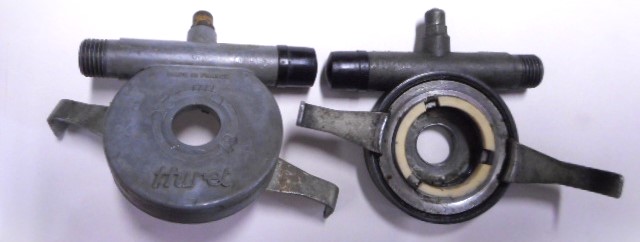

Motobecane 17360
∅11  left  23″ D 1.8  $55.0  depth 4.0   2-finger
dates: 4176 1577 1777 2578 2778  for 2.25/2.50-17
Use H127-F with a 1mm washer behind it.

Motobecane 01494
∅11  left
20″ D 1.6
none  depth 4.0   2-finger
dates: unknown        for 2.00-16 tire on Model 7
Use H127-F with a 1mm washer behind it.

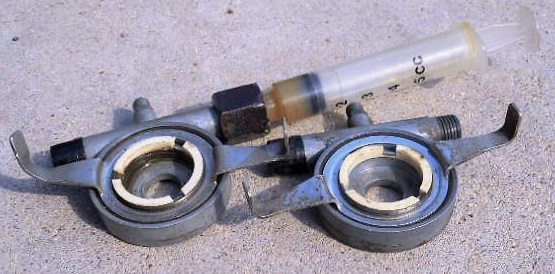

Greasing with a modified syringe

Preparation: All of these Huret drivers were initially frozen, tarry on the inside. Some were also tarry on the outside. Scroll down for the detailed procedure for unfreezing, cleaning and lubing. All of those listed for sale have been serviced and are ready for use.

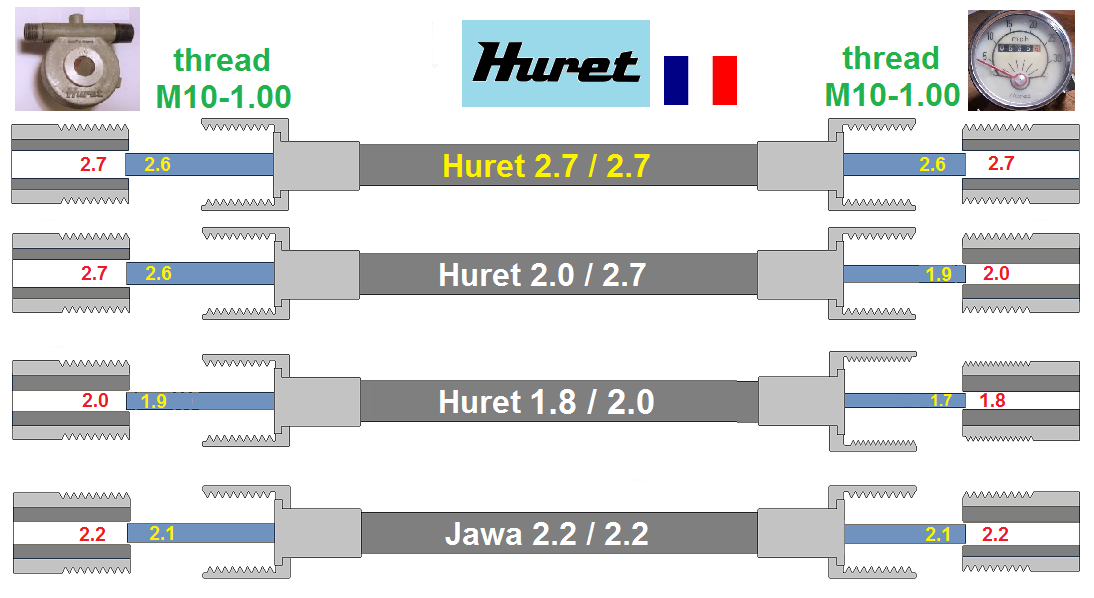

C. Huret Speedo cables

00 head M   driver   head driver head driver
thread M thread    hole  hole   end   end
M10-1.00 M10-1.00  2.0   2.75    1.9   2.6   Huret-2.0/2.7
M10-1.00 M10-1.00 2.75  2.75    2.6   2.6   Huret-2.7/2.7
M10-1.00 M10-1.00 1.80  2.00    1.7   1.9   Huret-1.8/2.0

0 part# 000   conduit   lower end  upper end  price  Huret 2.7/2.7
UN12018 00  570 22.4″ 2.56-2.63  2.56-2.63 none silver modern replacement
502951.7386 570 22.4″ 2.65-2.72  2.65-2.72 none black orig on Garelli early 70’s
18222 00000 570 22.4″ 2.52-2.55  2.52-2.55  $42  silver orig on Motobecane 50, 40, 7
191 0000000 575 22.6″ 2.60-2.65  2.60-2.65  $27  black modern replacement
H-126FB 000 575 23.6″ 2.60-2.65  2.60-2.65 none 80’s Taiwan 600 total
506961.7386 620 24.4″ 2.65-2.72  2.65-2.72  $34  black used orig on Garelli (some)
H-126AF 00   695 27.4″ 2.60-2.65  2.60-2.65  $38  80’s Taiwan 720 total
507607.7386 720 28.4″ 2.65-2.72  2.65-2.72 none black orig on Garelli (most)
446 0000000 730 28.7″ 2.58-2.62  2.58-2.62 $42  black modern replacement
UN12191 00  810 31.9″ 2.55-2.60  2.55-2.60  $49  black original on Avanti
   part# 000   conduit   lower end  upper end  price  Huret-2.0/2.7
31 0460 444  570 22.4″ 2.55-2.60  1.78-1.82  $35  black orig, 1.8-to-2.6 adapter
31 0460 444  570 22.4″ 1.78-1.82  1.78-1.82  $20  same but missing lower adapter
H-126AF 000 695 27.4″ 2.43-2.48  1.80-1.85  $30   80’s Taiwan 720 total, wire inverted
0 part# 000   conduit   lower end  upper end  price  Huret 1.8/2.0
YA12018 00   540 21.3″ 1.80-1.91  1.72-1.78  $20  silver orig on MB (Euro models)



Jawa speedometers are on 1973-83 Jawa 207 (Babetta) mopeds.

4d. Jawa Speedometers

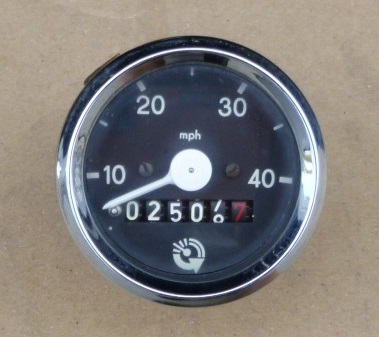

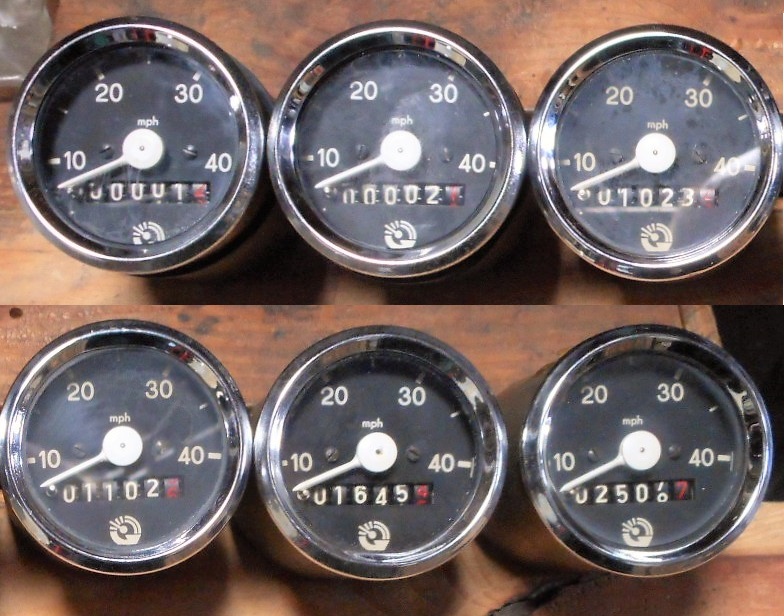

Jawa speedometers #14002, 0-40 mph
48 mm, M10-1.0 threads, 2.2 square hole
all have been cleaned, lubed and tested
# miles   price  tested
# miles   price  speed

1  00001  $65  43.0  new
2  00002  $68  42.5  new
3  01023  $40  42.0  good-used
4  01102  $45  42.5  good-used
5  01645  N/A  46.0  good-used
6  02509  $45  41.5  good-used

#3 and #4 need the glass cleaned on the inside. This can be done with ordinary cotton swabs (Q-tips). They fit in barely through the illumination slot on the side of the can.



4e. Jawa Speedo drivers







4f. Jawa Speedo cables

0 part# 00 conduit 0 lower end  upper end  price  Jawa
07-4780   495=19.5″ 2.05-2.15  2.05-2.15  $18  silver Jawa 207 original
