1. Motoplat
Motoplat magnetos are made in Spain. They are on Derbi (Spain), Casal (Portugal) and some Sachs (Germany) engines. Here are all of the Motoplat magnetos on US-model moped engines.
Table of Contents
# Motoplat# wires rotor stator 0 points
Motoplat# rot abc id od od coils m# on engines
1. 9600 035 ⇐ ♦♦♦ 79 110 94 50 ??? ??
2. 9600 043 ⇐ ♦♦♦ 79 103 80 47 081 ’78-84 Sachs 504/1B (Euro)
3. 9600 089 ⇐ ♦♦♦ 79 103 80 47 081 ’78-84 Sachs 504/1A, D (US)
4. 9600 095 ⇐ ♦♦♦ 79 103 94 47 081 ’78-80 Casal K196 (US)
5. 9600 099 ⇐ ♦♦♦ 79 103 94 47 080 ’77-83 Derbi Variant (US)
6. 0602 007 ⇐ ♦♦♦ 79 103 94 46 081 ’83-86 Derbi Variant (US)
7. 0602 036 ⇒ ♦♦♦ 79 103 94 46 081 ’80’s Derbi Variant (Euro)
8. 0602 062 ⇒ ♦♦♦ 79 103 94 46 081 ’86-89 Derbi Var. Sport (US)
9. 0602 089 ⇐ ♦♦♦ 90 114 90 55 081 ’78-84 Sachs 505/1A, D (US)
10. 0616 023 ⇐ ♦♦♦ 90 114 90 star none ’81-86 Sachs 505/1D (US)
Wires: a is ignition, b is lights power, c is brake light power.
External Ignition Ground: Since 1972 the USA has required mopeds to have a brake light, powered separately from the headlight, so the headlight did not dim when the brakes were applied. Most other countries do not require a brake light. So magnetos for US models are different from magnetos for Euro models. Here they are called Type 5. They have an extra output wire that powers the brake light. That wire is an external ignition ground. It must always be connected to ground in order to have spark. If the brake light or the brake light wires become disconnected the engine will loose spark and not run.
Magneto Types:
Type 1 has an internal spark coil, internal ignition ground, 2 wires.
Type 2 has an external spark coil, internal ignition ground, 2 wires.
Type 3 has an internal spark coil, external ignition ground, 3 wires.
Type 4 has an external spark coil, internal ignition ground, 3 wires.
Type 4e has an external spark coil, electronic CDI no points, 3 wires.
Type 5 has an external spark coil, external ignition ground, 3 wires.

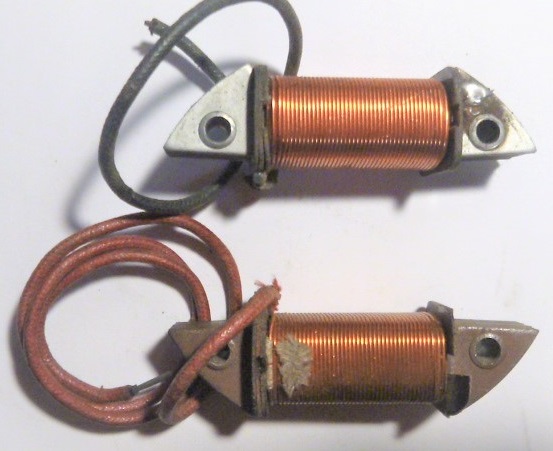

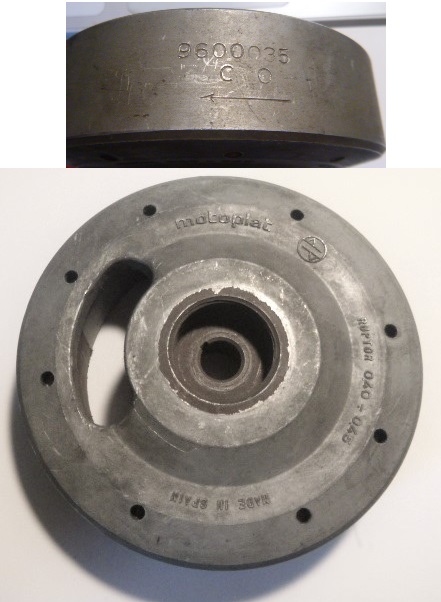

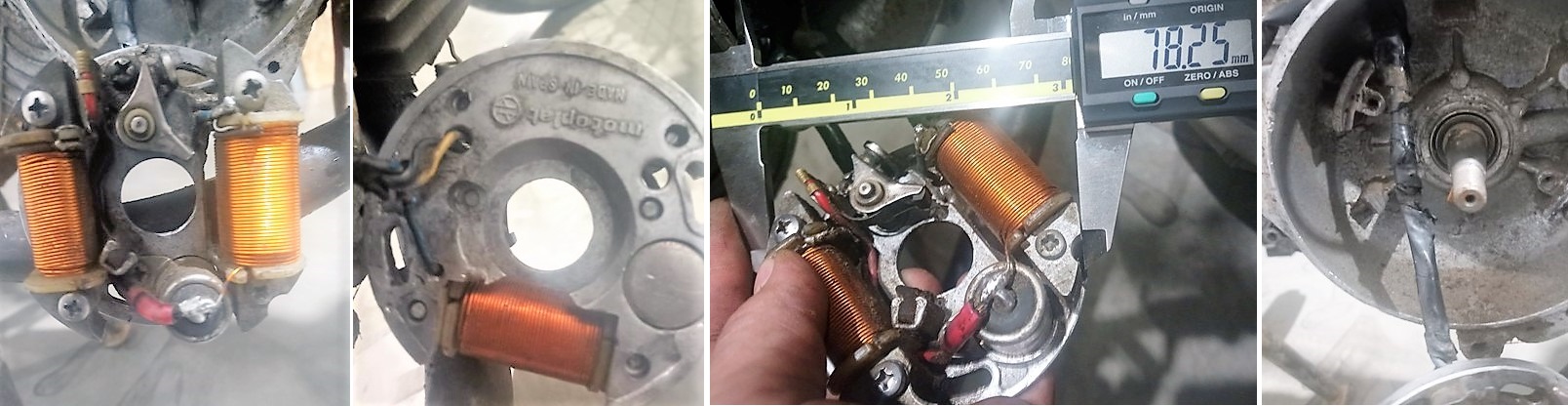

1. 9600 035 ∅79 x 110 aluminum rotor, puller M26-1.0, ⇐rotation
6V 18w?, ∅94? stator, 4 x 50 coil holes, type 2
black is ignition?, red is lights?, external spark coil
’60’s-70’s unknown models
fig# price colors: new, used
03 $00.0 lights coil
07 $00.0 ignition coil
11 $90.0 flywheel (rotor)
2. 9600 043 ∅79 x 103 steel rotor, puller M22-1.5, ⇐rotation
6V 17w, ∅80 2 slot stator, 4 x 47 coil holes, type 1
black is ignition?, red is lights?, internal spark coil
’78-80+ Sachs 504/1B (Euro) from engine# 8239162
fig# 00 Sachs# 00 price colors: new, used
06 0265 173 000 $13.0 condenser M17
08 0265 172 000 $31.0 points 081 .
13 2842 001 000 $2.00 flywheel nut M8-1.00 x 8 hex13

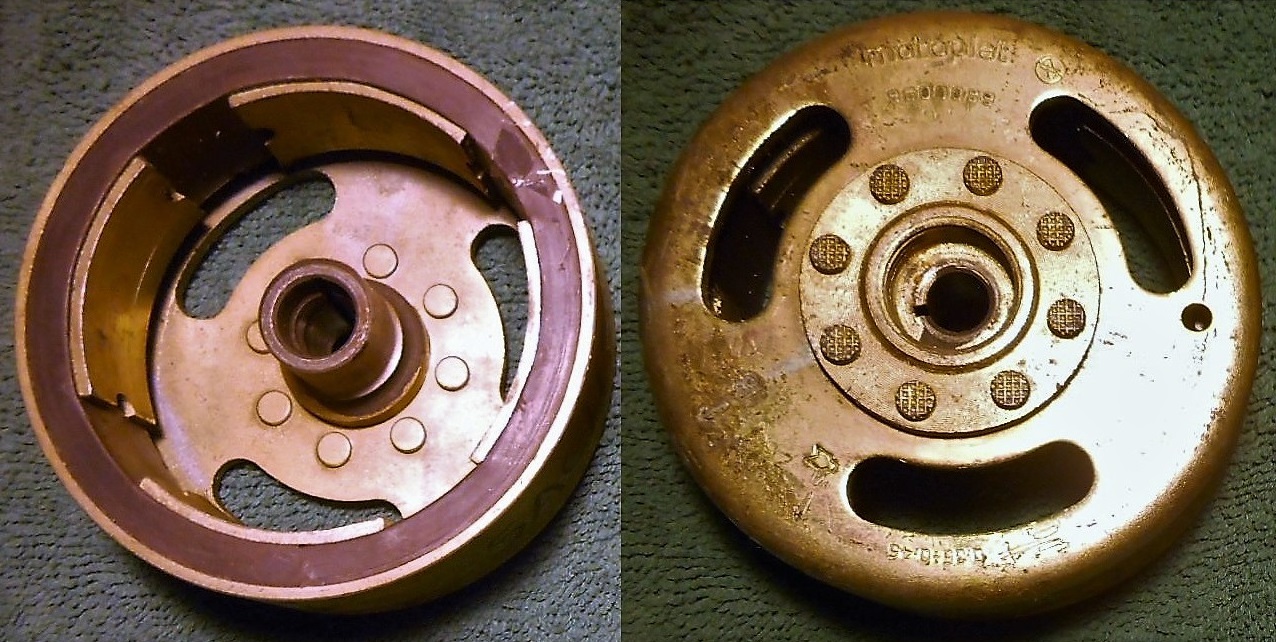

3. 9600 089 ∅79 x 103 steel rotor, puller M22-1.5, ⇐rotation
6V 25/15w, ∅80 2 slot stator, 4 x 47 coil holes, type 5
blue is ignition, black is ignition ground, yellow is lights
’78-80+ Sachs 504/1A, B, C, D engines
fig# 00 Sachs# 00 price colors: new, used
06 0265 173 000 $13.0 condenser M17
08 0265 172 000 $31.0 points 081
11 0265 168 000 $95.0 flywheel (rotor)
13 2842 001 000 $2.00 flywheel nut M8-1.00 x 8 hex13
This Motoplat magneto 9600089 interchanges with Bosch magneto 0212 010 001.

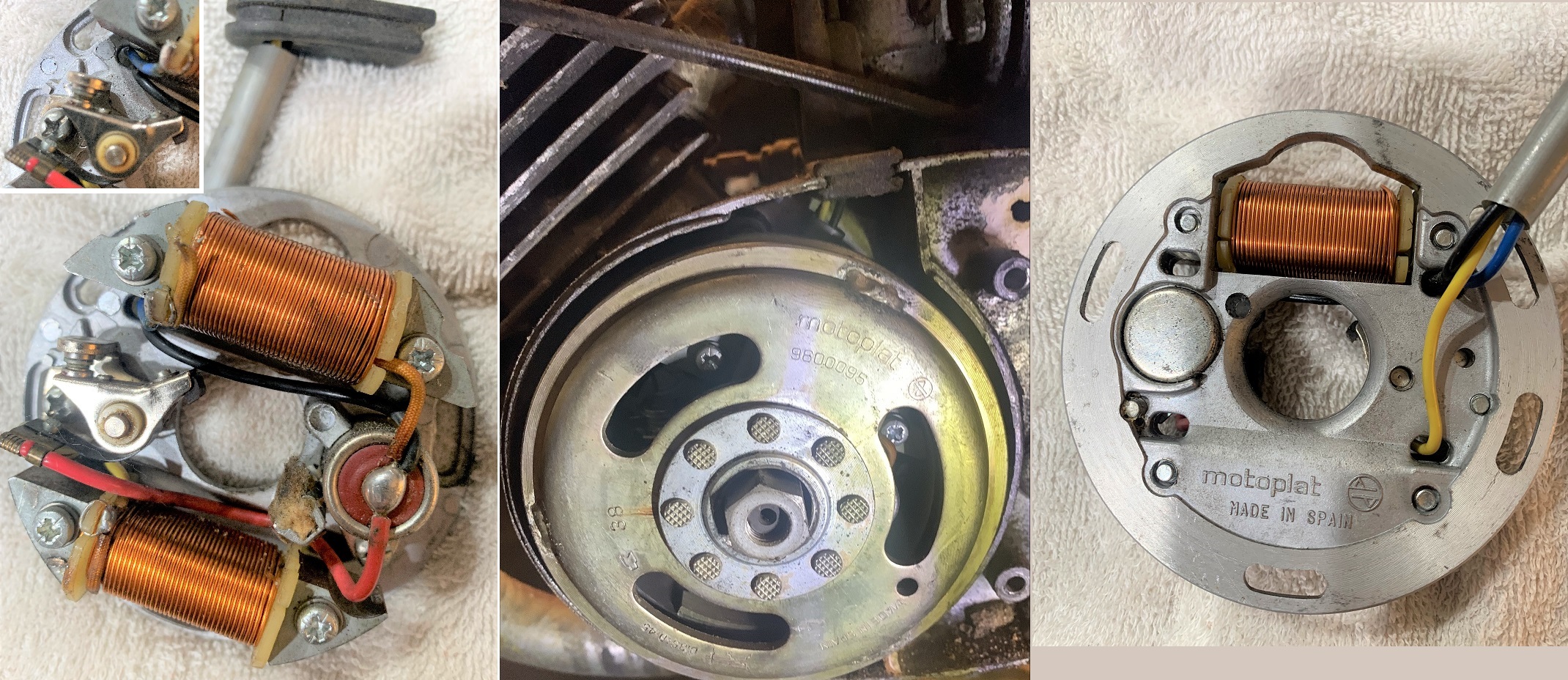

4. 9600 095 ∅79 x 103 with 114 od, puller M22-1.5, ⇐rotation
6V 28/15w15, ∅94 2 slot stator, 4 x 47 coil holes, type 5
black is ignition, blue is ignition ground, yellow is lights
’78-80 Casal K196t
fig# price colors: new, used
06 $13.0 condenser M17
08 $31.0 points 081

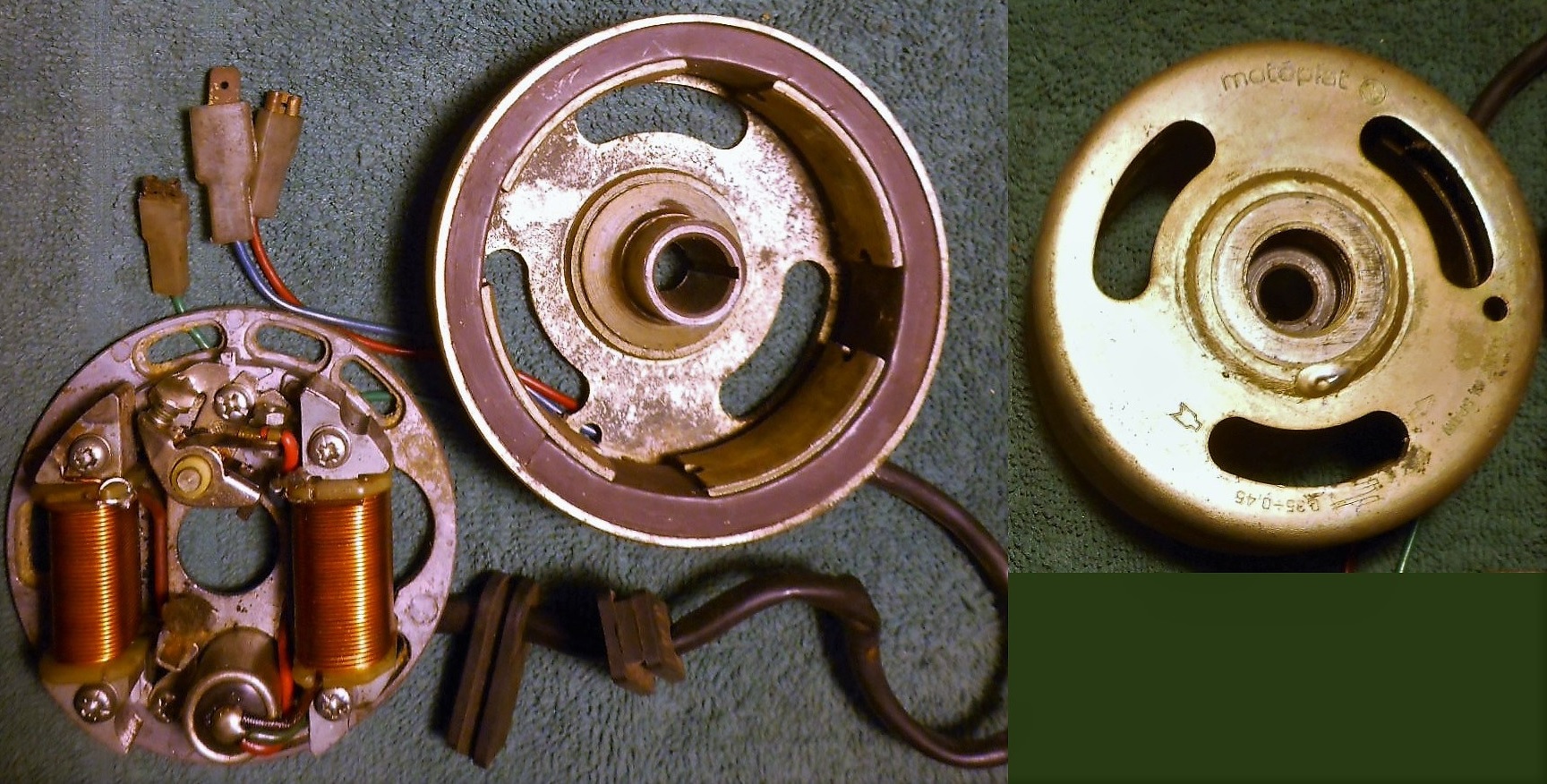

5. 9600 099 ∅79 x 103 steel rotor, puller M22-1.5, ⇐rotation
6V 27/15w, ∅94 3+2 slot stator, 4 x 47 coil holes, type 5
green is ignition, blue is ignition ground, red is lights
’77-84 Derbi Variant SL, SLE, TT (US models)

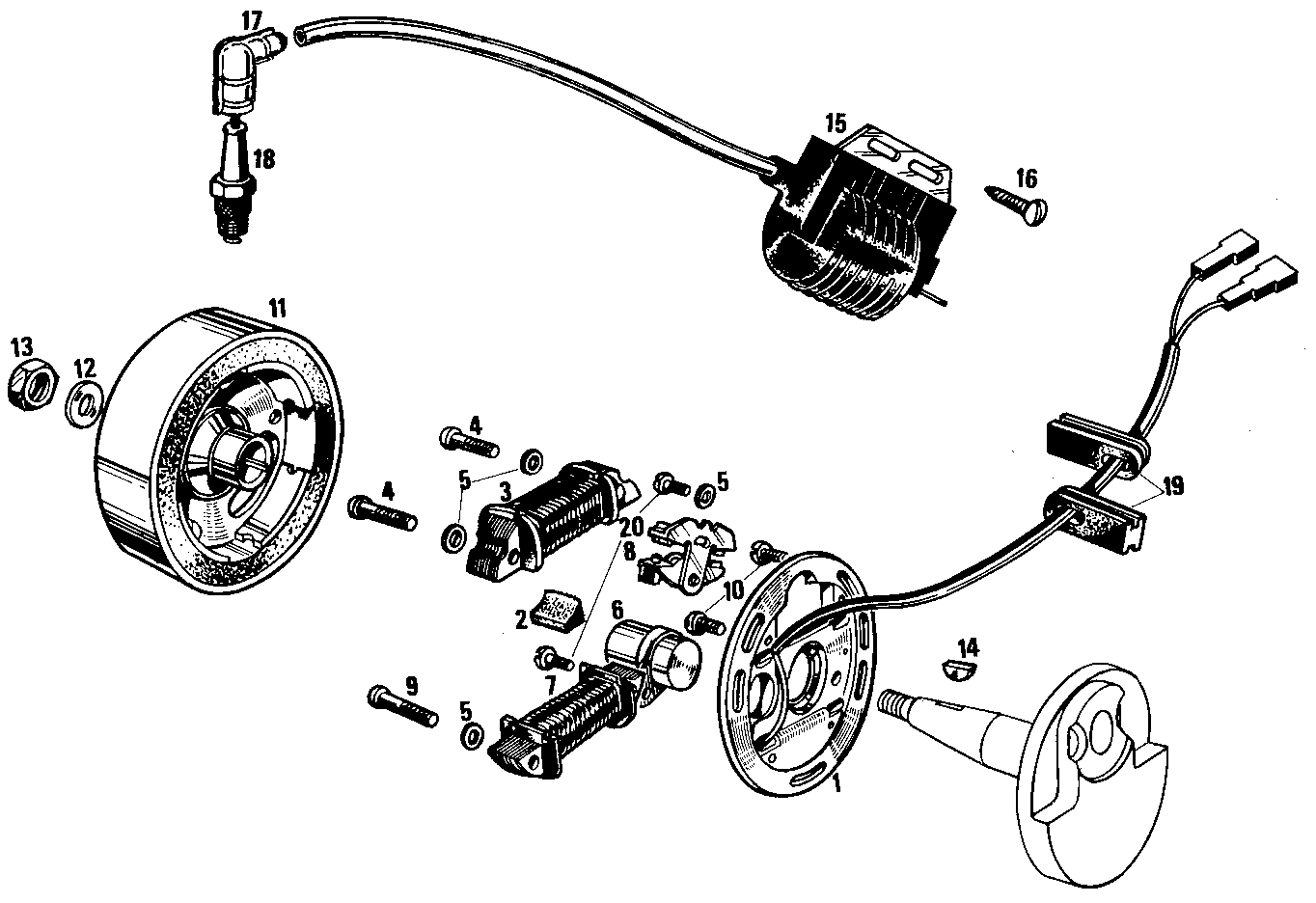

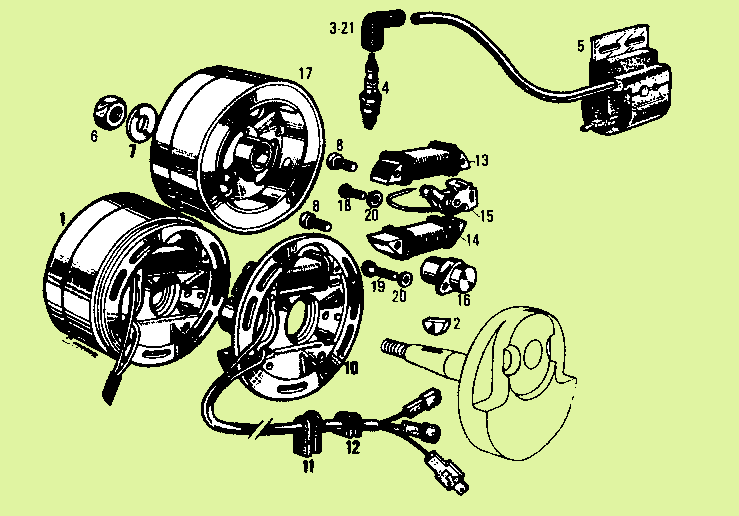

fig# 00 Derbi# 000 price colors: new, used
00 000.50.33.010 $00.0 magneto assy
01 000.31.33.021 $35.0 stator plate bare
02 000.31.33.030 $7.00 felt wiper
03 000.50.33.040 $35.0 lights coil
04 000.50.33.050 $1.00 lights coil screw M4x20? phillips
05 000.00.31.030 $0.20 flat washer M4
06 000.31.33.060 $13.0 condenser M17
07 000.50.33.070 $65.0 ignition source coil
08 000.31.33.081 $22.0 points 080 .
09 000.31.33.090 $1.00 ignition coil screw M4x25? phillips
10 000.31.33.260 $0.60 stator plate screw M5x10
11 000.50.33.120 $85.0 flywheel Motoplat 9600099
12 000.31.33.240 $1.50 flywheel washer M10
13 000.31.33.221 $7.00 flywheel nut M10-1.0 x 18 hex 17
14 000.31.33.230 $2.00 flywheel key #M82 2.5 x 3.6
18 000.52.33.210 $3.00 spark plug NGK B7HS or BR7HS
20 000.50.33.260 $2.50 points screw M4x8 small head
21 00000 P22150 $17.0 flywheel puller tool M22-1.5 thread

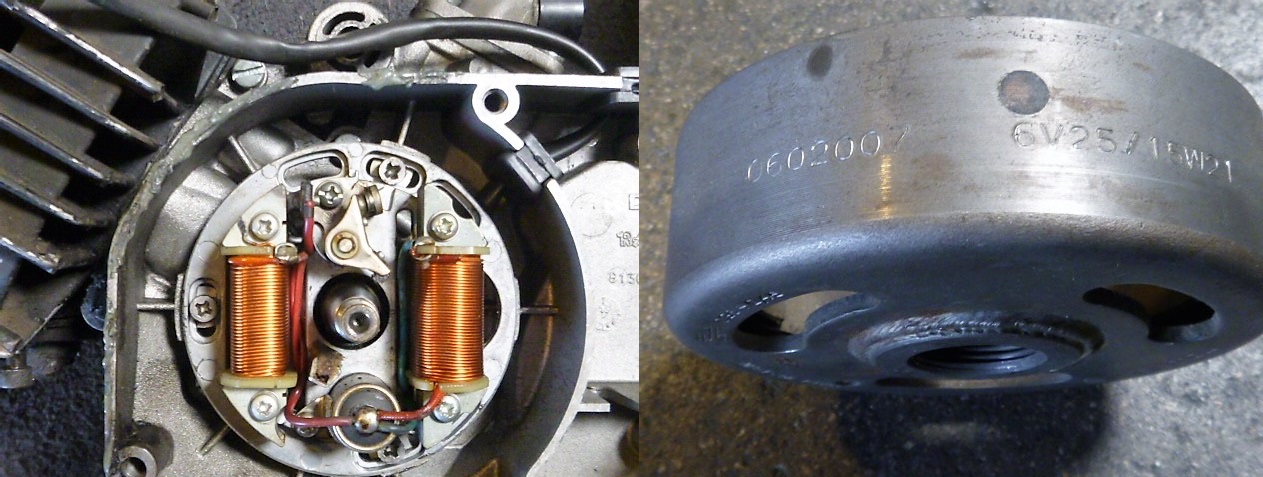

6. 0602 007 ∅79 x 103 steel rotor, puller M22-1.5, ⇐rotation
6V 25/15w, ∅94 3+2 slot stator, 4 x 46 coil holes, type 5
green is ignition, blue is ignition ground, red is lights
’78-86 Derbi Laguna, C5, RD50
’85-86 Derbi Variant SL, SLE, TT (US models)
fig# 00 Derbi# 000 price colors: new, used
00 000.50.33.010 none magneto assy
01 000.31.33.021 $35.0 stator plate bare
02 000.31.33.030 $7.00 felt wiper
03 000.50.33.040 $35.0 lights coil
04 000.00.12.420 $1.00 lights coil screw M4x20
05 000.00.31.040 $0.20 flat washer M4
06 000.31.33.060 $13.0 condenser M17
07 000.50.33.070 $65.0 ignition source coil
08 000.43.33.080 $31.0 points 081 .
09 000.31.33.090 $1.00 ignition coil screw M4x20
10 000.31.33.260 $0.60 stator plate screw M5x10
11 000.50.33.120 none flywheel Motoplat 0602007
12 000.31.33.240 $1.50 flywheel washer M10
13 000.31.33.221 $7.00 flywheel nut M10-1.0 x 18 hex 17
14 000.31.33.230 $2.00 flywheel key #M82 2.5 x 3.6
18 000.52.33.210 $3.00 spark plug NGK B7HS or BR7HS
20 000.50.33.260 $2.50 points screw M4x8 small head
21 00000 P22150 $17.0 flywheel puller tool M22-1.5 thread
7. 0602 036 ∅79 x 103 steel rotor, puller M22-1.5, ⇒rotation
’80’s Derbi Variant Start (Euro model)
# fig# 00 Derbi# 00 Motoplat# price colors: new, used
00 01 0F0.33.00.011 0000 000 none magneto assy
01 10 0F0.33.00.161 0000 000 none stator plate bare
02 00 000.31.33.030 0000 000 $7.00 felt wiper
03 13 0A0.33.30.041 0000 000 none lights coil
04 19 000.00.12.420 0000 000 $1.20 coil screw M4x20 phillips
05 20 000.00.31.040 0000 000 $0.20 flat washer M4
06 16 000.31.33.060 6600 010 $13.0 condenser M17 .
07 14 0A0.33.30.071 0000 000 none ignition source coil
08 15 000.43.33.080 6620 009 $31.0 points 081 .
10 08 000.31.33.260 0000 000 $0.60 stator plate screw M5x10 phillips
11 17 0F0.33.00.121 0000 000 none flywheel Motoplat 0602036
13 00 0F0.26.00.401 0000 000 $12.0 flywheel nut M10-1.00 x 8 hex14 LEFT thread
20 09 000.50.33.260 0000 000 $2.50 points screw M4x8 small head
21 00 00000 P22150 0000 000 $17.0 flywheel puller tool M22-1.5 thread

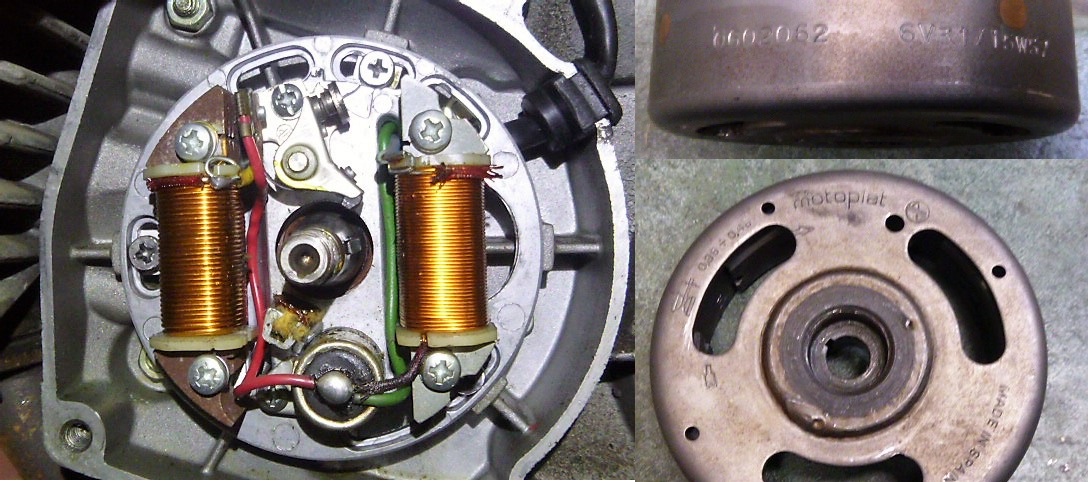

8. 0602 062 ∅79 x 103 steel rotor, puller M22-1.5, ⇒rotation
6V 31/15w, ∅94 3+2 slot stator, 4 x 46 coil holes, type 5
green is ignition, blue is ignition ground, yellow is lights
’86-89 Derbi Variant Sport (US model)
# fig# 00 Derbi# 00 Motoplat# price colors: new, used
00 23 0F0.33.30.011 0602 062 none magneto assy
01 24 0F0.33.20.161 6801 082 none stator plate bare
02 00 000.31.33.030 0000 000 $7.00 felt wiper
03 25 0F0.33.00.041 6607 075 none lights coil
04 29 001.20.42.500 0000 000 $1.20 coil screw M4x25 phillips
05 20 000.00.31.040 0000 000 $0.20 flat washer M4
06 27 0F0.33.00.061 6600 027 $13.0 condenser M17 .
07 26 0F0.33.30.071 6606 030 none ignition source coil
08 15 000.43.33.080 6620 009 $31.0 points 081 .
10 08 000.31.33.260 0000 000 $0.60 stator plate screw M5x10
11 28 0F0.33.20.121 0000 000 none flywheel Motoplat 0602062
13 00 0F0.26.00.401 0000 000 $12.0 flywheel nut M10-1.00 x 8 hex14 LEFT thread
21 00 00000 P22150 0000 000 $17.0 flywheel puller tool M22-1.5 thread

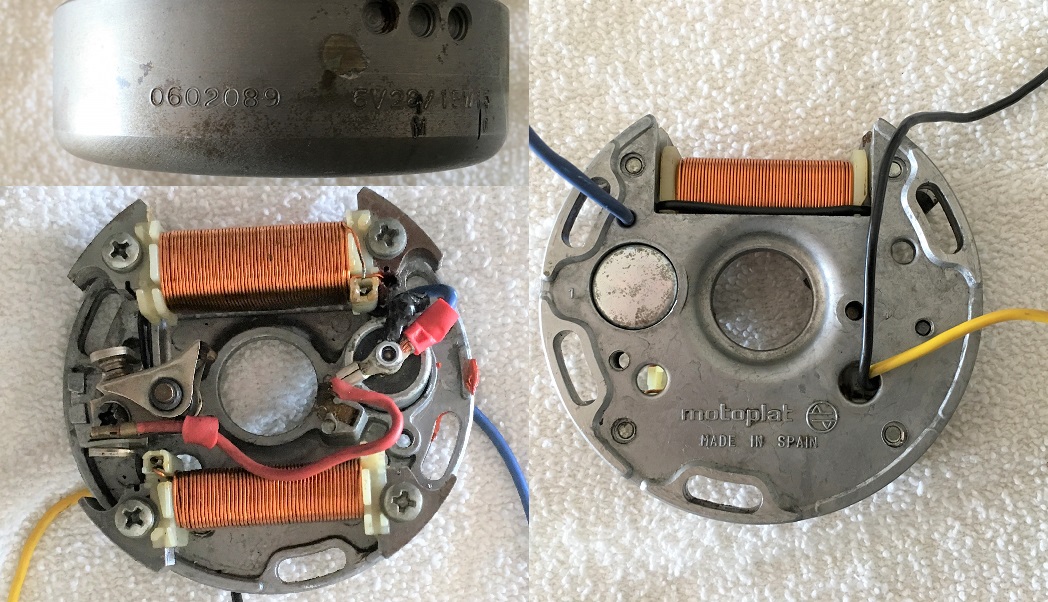

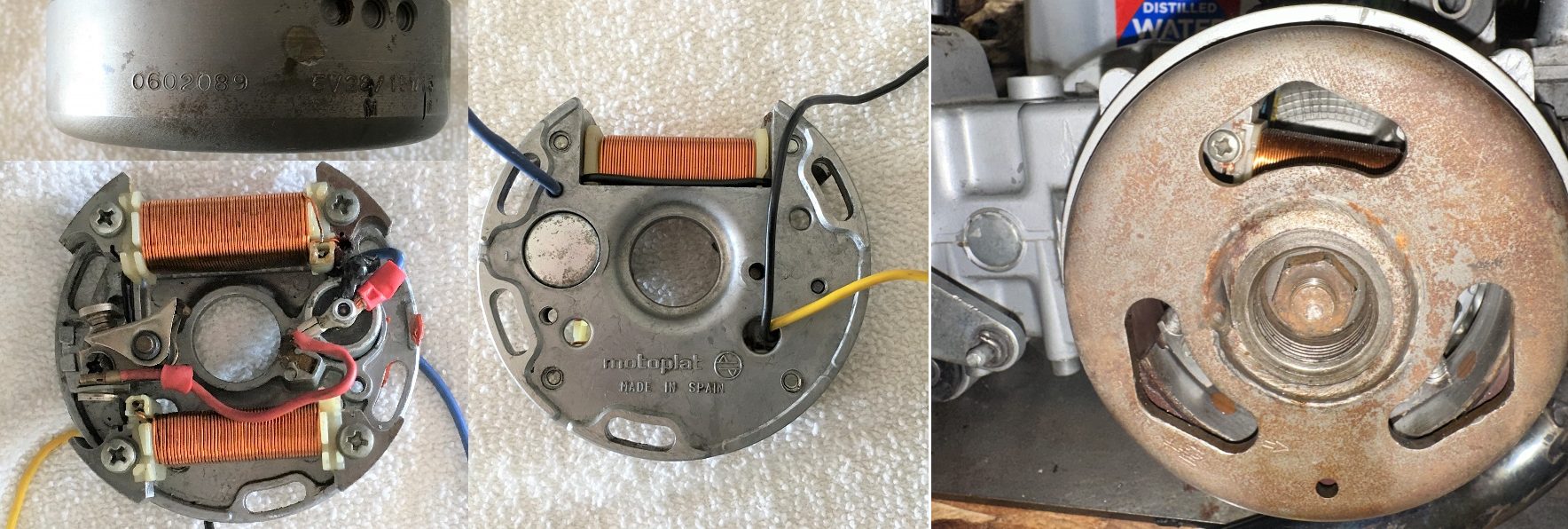

9. 0602 089 ∅90 x 114 steel rotor, puller M26-1.5, ⇐rotation
6V 28/15w15, ∅90 3+2 slot stator, 4 x 55 coil holes, type 5
blue is ignition, black is ignition ground, yellow is lights
’78-80+ Sachs 505/1A, D engines
fig# 00 Sachs# 00 price colors: new, used
06 0265 173 000 $13.0 condenser M17
08 0265 172 000 $31.0 points 081 .
13 2842 016 000 $2.00 flywheel nut M10-1.00 x 9 hex17
21 00000 P26150 $19.0 flywheel puller tool M26-1.5 thread
This Motoplat magneto 0602089 interchanges with Bosch magneto 0212 124 045.
2. WTEMCO
Table of WTEMCO Magnetos and Applications
WTEMCO # rotation applications 000000 link to
WTEMCO # rotation applications 000000 points lights power mag. part #
A. FHA11035 ⇒ on Angel ’77-83 (TYM M48 clone) M19A00 6V 20/15W
A. FHA11035 ⇒ on Indian ’78-83 (PC50K1 clone) M19A00 6V 20/15W D120-00-50
This entire magneto is Bosch compatible, but the flywheel and stator separately are not. Bosch has a 90mm ID flywheel, and WTEMCO has a 82mm ID.
Wtemco FHA 11035 1977-83 Angel and 1978-83 Indian magneto
