Main Switches








1. 70’s-80’s Italian Mopeds

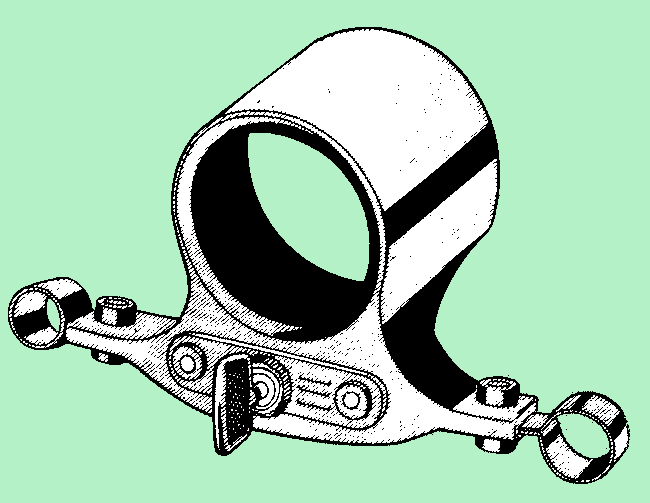

0 9408 none  instrument panel with main switch
blue hi beam, green lights indicators

9408.1 none  instrument panel, no main switch
blue hi beam, green lights indicators

9408.2 $0.00 instrument panel with main switch
no indicator lights

04820  $0.00 instrument panel, no main switch
no indicator lights

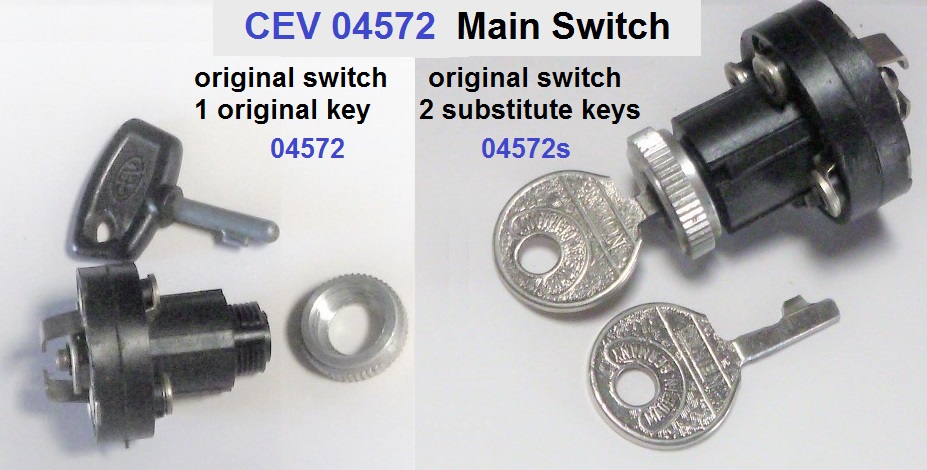

04572      $69 switch with 1 original key

04572s     $49 switch, 2 substitute keys

04572.2   $34 original key

04572.2s $12 substitute key
  may look different than shown

19323      $18 clamp

19324  $1.00 clamp screw M4 allen

3648    $0.50 clamp nut M4








2. Honda Express, Hobbit, others

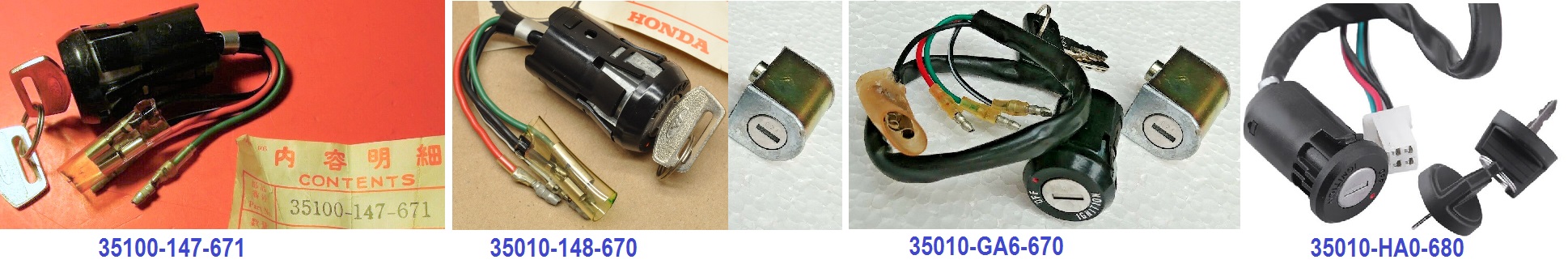

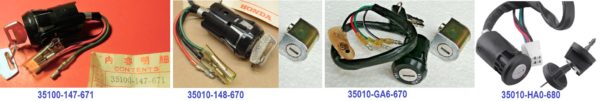

35100-147-471  main switch with two keys    none
bullet connectors: red male,  blk/wht male,
  green male,  black 3-female  wires: short
for 1977 Honda NC50 Express

35100-148-671  main switch with two keys    none
bullet connectors: red male,  blk/wht male,
  green male,  black 3-female  wires: short
for 1977-81 NC50 Express and 1978-83 Honda PA50 Hobbit

35010-148-670  main switch and fork lock    none
bullet connectors: red male,  blk/wht male,
  green male,  black 3-female  wires: short

for 1977-81 Honda NC50 Express and 1978-83 PA50 Hobbit

35010-GA6-670  main switch and fork lock   none
bullet connectors: red male,  blk/wht male,
  green male,  black 3-female  wires: long
for 1982-83 Honda NC50 Express

35010-HA0-880  main switch with two keys
    $19    with 4-mini-blade plug
or $27 with NC50 bullet connectors

for late 1980’s Honda ATV’s

All four of these switches are the same. Just the wires are different.




3. Tomos Revival, Arrow-R, Streetmate

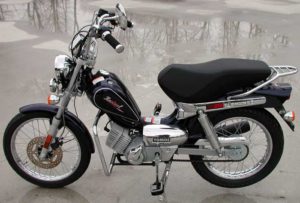

’05 Tomos Revival TS

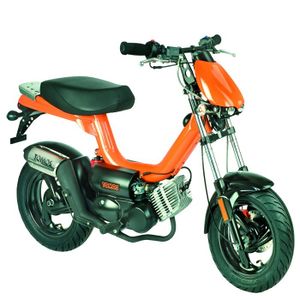

’08 Tomos Arrow R

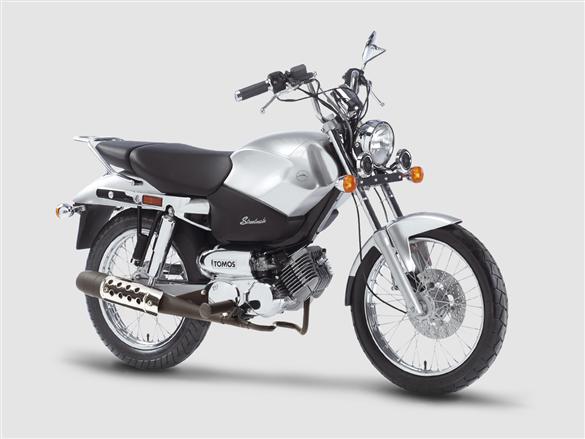

’08 Tomos Streetmate

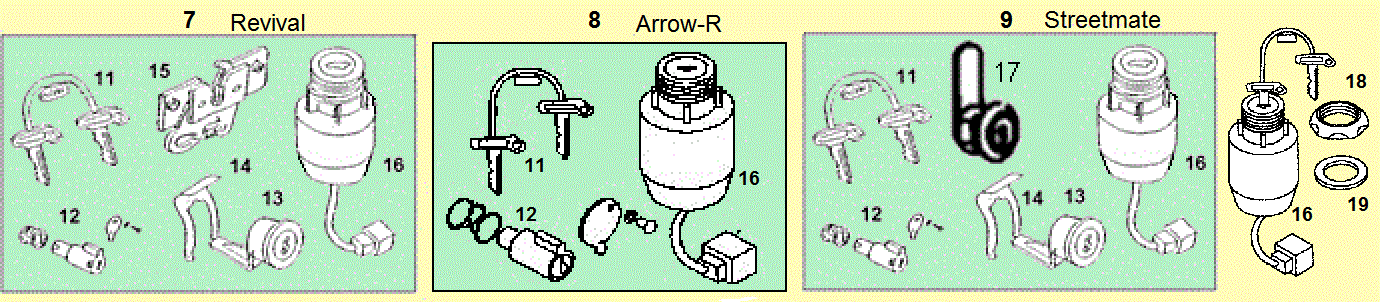

7 = 2005-12 Revival TS
8 = 2006-08 Arrow-R
9 = 2005-13 Streetmate, Streetmate-R
= 2017-18 Racing TT

7890  #  Tomos#  price .
1000 07  232789 $99.0 lock set Revival   11,12,13,14,15,16
0100 08  236470 none  lock set Arrow-R 11,12,00,00,00,16
0010 09  236397 none  lock set Str.mate 11,12,13,14,14,16,17
0001 00  237384 none  lock set Rac. TT  11,12,00,00,14,16,17
0000 10  232891 $4.00 key blank substitute XL7 with notch
1111 11  232891 none  two keys (not sold separate)
1111 12  232892 $30.0 fork lock and keys = 233198
1010 13  232893 none  seat lock and keys
1021 14  232894 none  lock retaining clip
1000 15  232895 none  faux tank latch Revival
1111 16  232896 $75.0 ignition switch and keys
0011 17  236494 none  faux tank lock Streetmate
1111 18  232918 $11.0 ignition switch nut M24-1.0 flat side
1111 19  206489 $1.50 ignition switch washer ∅24 ∅35 x 0.5

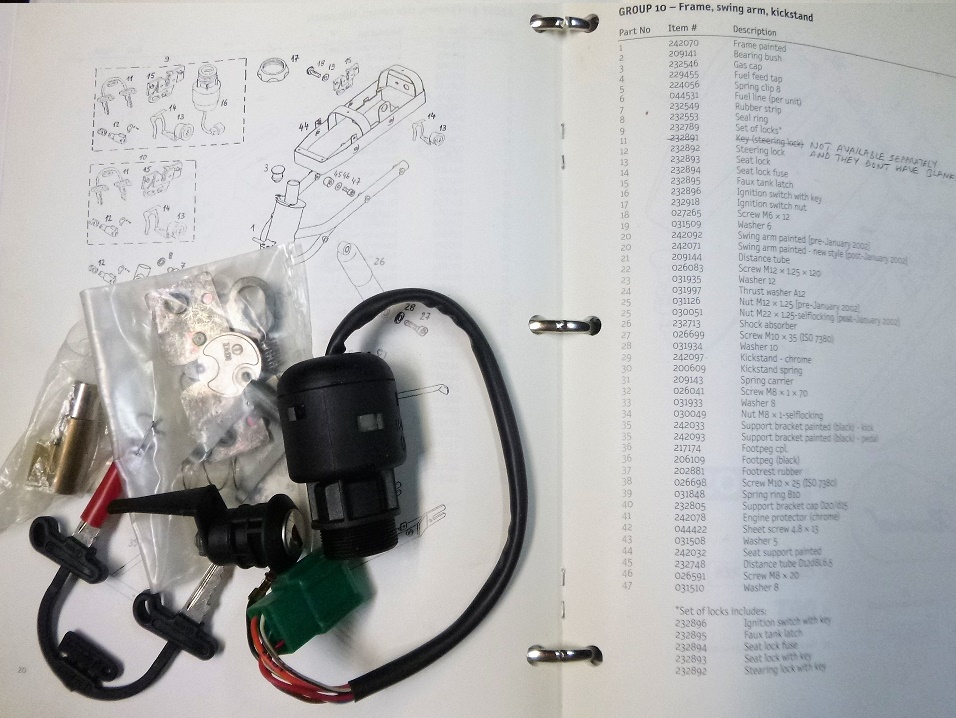

232789 lock set Revival

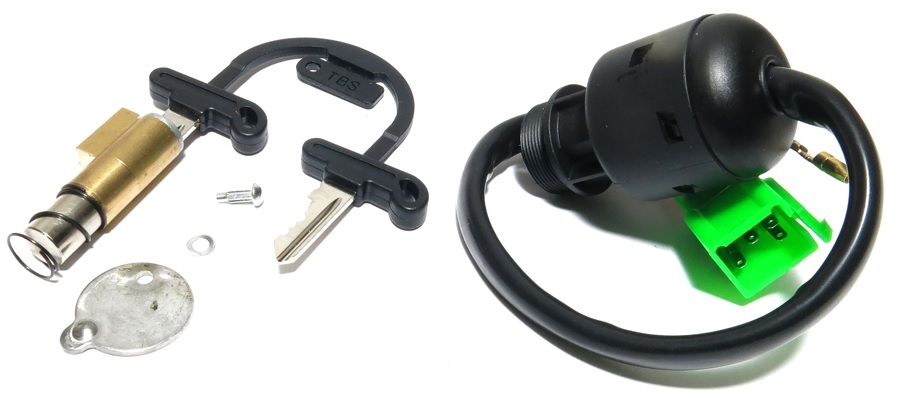

236470 lock set Arrow-R

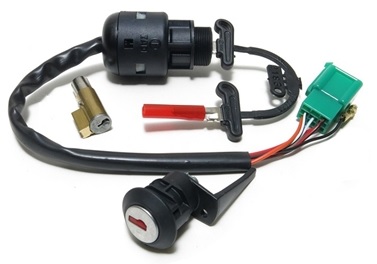

236397 lock set S.mate missing #17, 14, 14

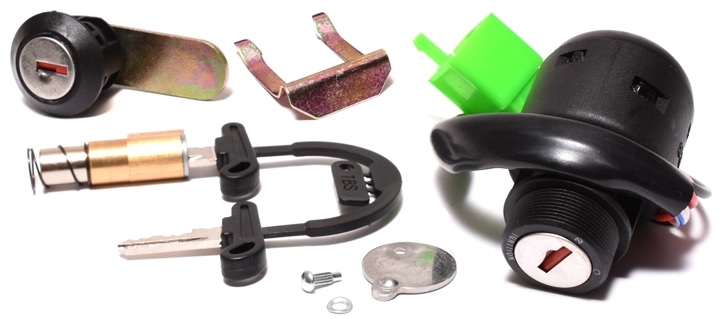

237384 lock set Racing TT





















Lost Keys on Streetmate:  The faux tank lid can bend enough to open without a key. Pull upward on the middle of both sides. Once inside the faux tank lift up the floor mat on the left side. That exposes a lot of wires and connector plugs. Locate the green connector plug. Unplug it. The bike will then kick start and run without a key. Only the headlight will operate normally. The other lights will be dim.
