Handlebar Switches – Integrated

Here are switches that are, or can be, integrated or built into the hand controls.

Contents:

1. 36 mm hole spacing by CEV, Aprilia, Grabor
     for Domino “diamond” controls or direct mount

2. 30 mm hole spacing by CEV
     for Domino “square” controls

3. late ’80’s integrated in English, by CEV, Daelim
     for Domino “80’s black” controls

4. ’91-06 integrated with icons, by HR
    for HR controls on Tomos

5. ’01-07 integrated with icons, by Domino
     for Domino controls on Tomos

6. ’08-17 integrated with icons, by TBS
     for TBS controls on Tomos



Integrated controls means the electrical buttons and switches are part of the twist throttle and hand levers, rather than separate. The purpose of integrated controls is to locate the switches close to the operator’s thumbs, for increased safety and convenience, and to reduce cost and save space on the handlebar. Motorcycles had this first, because they have more buttons, generally. While the European switches below can be replaced separately from the controls, with most Taiwan and Japanese mopeds you had to buy the whole control assembly to get new switches and buttons. More on that will be in the Taiwan Mopeds parts department.







1. 36 mm hole spacing by CEV, Aprilia, Grabor




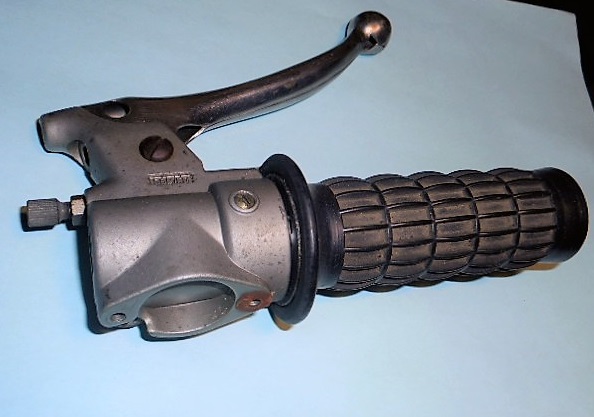

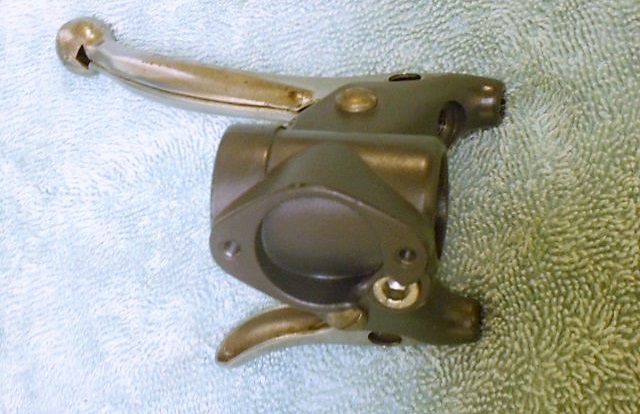

Switches in this section can fit on Domino diamond controls.

CEV or Aprilia Diamond switch mount
They can also be mounted directly to the handlebar by drilling holes and using a diamond direct mount.






CEV switch 8033
1.1
CEV 8033 Turn/Horn Switch – L or R
part#   price    parts list

8033   none   switch, no mount, set screws

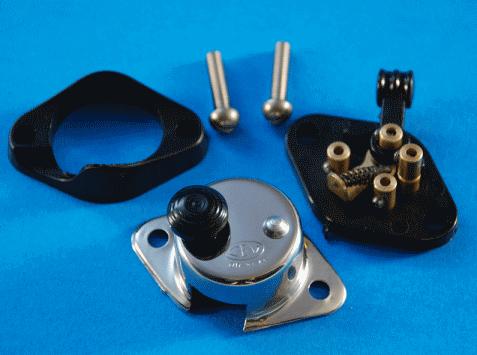

CEV switch 8042
1.2
CEV 8042 Lights/Horn Switch – L or R
part#   price    parts list

8042   none   switch with mount, set screws
M4x16 $0.50 screw M4 x 16 phillips





1.3 CEV 8109 Run/Lights/Horn Switch – L
or R
part#     price    parts list

8109      none  switch, 36mm hole spacing, set screws
Omount none  oval mount, use diamond direct mount
Oscrew  $2.00  M4-0.7 x 28 sunk slot screw




Aprilia switch Garelli engine stop  Domino Chrome Oval
1.4 Garelli 8109GR Run Switch – R or L
says “ENGINE STOP  GARELLI  RUN OFF”
part#     price    parts list

8109GR none  switch only, 36mm hole spacing

photo 2. For ’77-80 Garelli w/Domino “Diamond” controls, Garelli 506961.6.300

The pivot post inside breaks if the rider’s knee hits it. Then the “clicker” escapes. Replace the base with a CEV 8176.

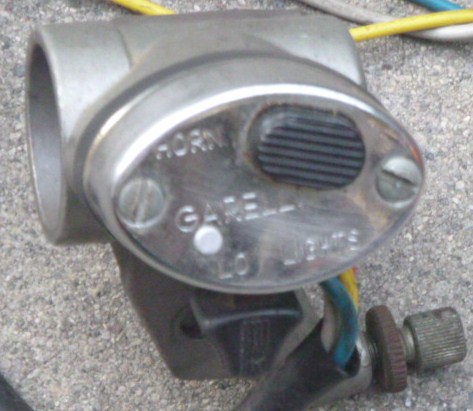

Aprilia switch Garelli light-horn
1.5 Garelli 8109GL Lights/Horn Switch – L
or R
says “LIGHTS   GARELLI   ON  OFF”
part#     price    parts list
8109GL none  switch only, 36mm hole spacing

For ’77-80 Garelli w/Domino “Diamond” controls, Garelli 507991.6.400

The pivot post inside breaks if the rider’s knee hits it. Then the “clicker” escapes. Replace the base with a CEV 8176.




CEV switch 188
1.6
CEV 188? Turn Switch – R or L
says “CEV 188 SAE GB 55″

part#   price    parts list   Piaggio 144474

?????     $13.0 switch, no mount, set screws
Dscrew $0.70 screw M4 x 14 phillips
05020? $5.00 direct mount

Switch can be for lights ON-OFF-ON or LO-OFF-HI.





1.7 CEV 8176 Turn/Horn Switch – L or R
says “horn  L turn R”, normally open horn button

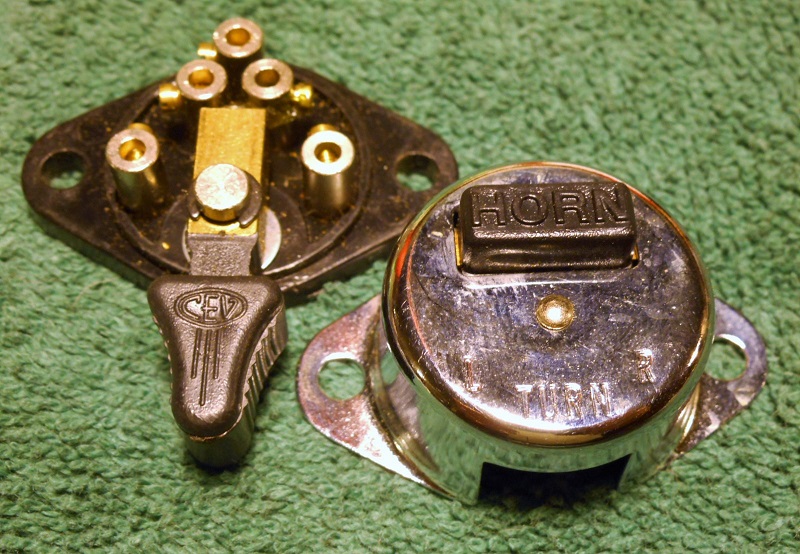

part#    price    parts list   Piaggio 147304

8176    $16.0 switch, no mount, set screws
Dscrew $0.70 screw M4 x 14 phillips
05020? $5.00 direct mount

Switch can be for lights/horn ON-OFF-ON or LO-OFF-HI.
Button can be for engine stop.

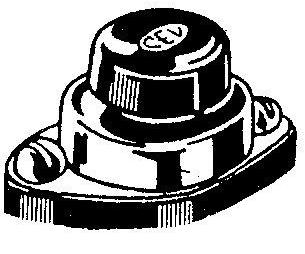

CEV switch 8192
1.8
CEV 8192 Horn or Run Switch – R or L
part#    price    parts list   Piaggio 307264

8192     $25.0 switch, no mount

Original on ’78-79 Vespa Grande with blinkers

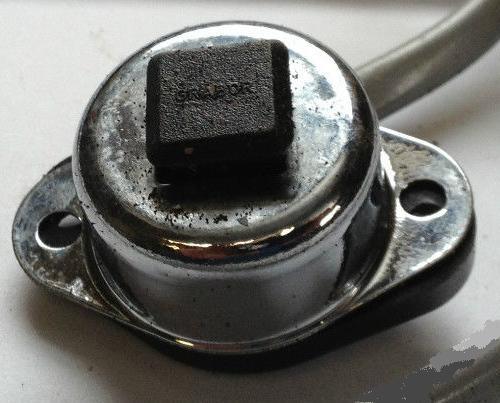

Grabor switch substitute for CEV 8192
1.9
Grabor 8192G Horn Switch – L or R
says “Grabor
part#    price    parts list

8192G  none  switch, without mount
Dscrew $0.70 screw M4 x 14 phillips

Original on ’80-83 Vespa Grande with blinkers.




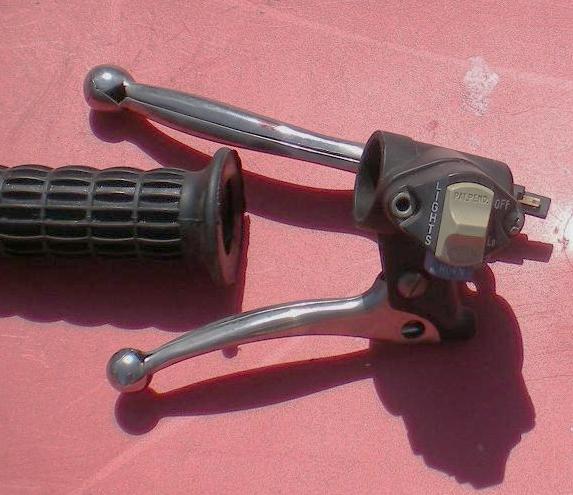

CEV switch 8193CEV switch 8193 installed
1.10
CEV 8193 Lights/Horn Switch
– L or R
says “CEV Lights ON OFF”
part#    price    parts list
8193      N/A  Switch, without mount, with solder connections
M4x14 $0.70 screw M4 x 14 phillips

The wires must to be soldered on skillfully. Use CEV 8176 above as a substitute.




By the end of the 1970’s, the shape of pretty much everything from toasters to automobiles, that used to be rounded, was straight. Many things that were metal became plastic. On Garelli mopeds, the all curved Garelli “Oval Chrome” switch shape was modernized to CEV “Diamond Plastic”, with the same 36mm bolt spacing. The new design was much stronger and more resistant to breaking, because the sliding switch had a large platform that almost touches the base. The newer “knobs” are low and wide, not tall and thin.

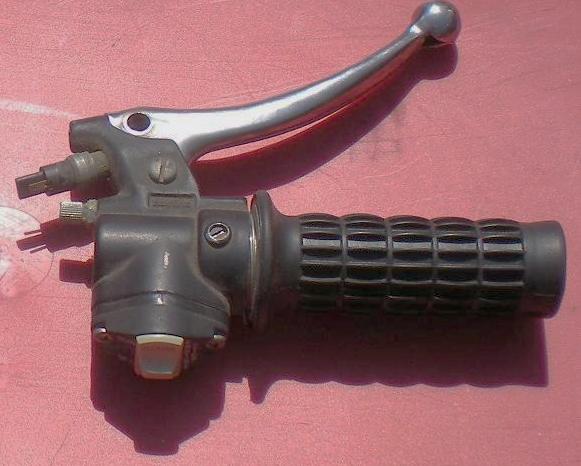

CEV switch 8194CEV switch 8194 installed
1.11
CEV 8194 Engine Stop Switch
– R or L
says “CEV Engine Stop RUN OFF”
part#    price    parts list
8194    none  Switch, without mount, with solder connections
M4x14 Dscrew $0.70 screw M4 x 14 phillips

Was sold new without wires, which had to be soldered on skillfully.

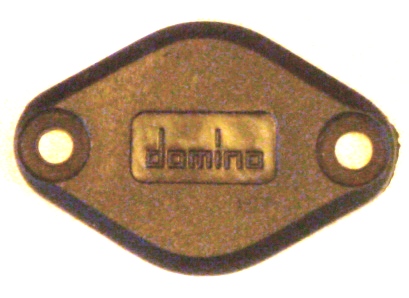

Domino Diamond block off plate black plastic
1.12 Domino D-25 Block-Off Plate – L or R
says “Domino”
part#    price    parts list
D-25    $3.00 plate, 36mm holes, for when there is no switch
M4x10 $1.20 phillips screw M4 x 10, shorter for a plate

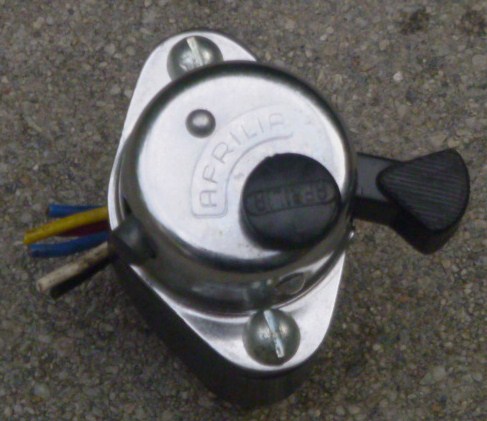

Aprilia Diamond Chrome all in one
1.13
Aprilia Run/Lights/Horn Switch L or R
part#    price    parts list
A-1.13  none  switch with clamp,
M4 screws, 36 mm spacing

Clamps across the handlebar.
Original on ’68 Innocenti Lambretino and others.

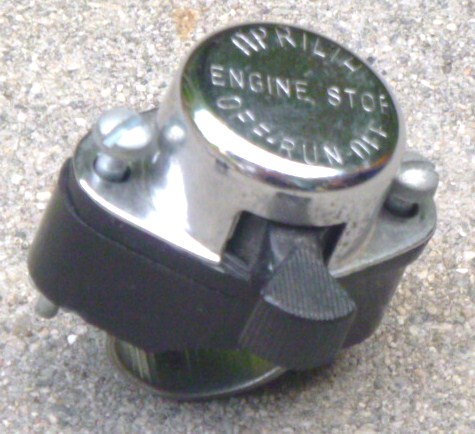

Aprilia Diamond Chrome engine stop

1.14 Aprilia Diamond Chrome – R or L
part#    price    parts list

A-1.14  none  Complete switch with clamp
Aprilia “Diamond Chrome” switches are  mounted at 90 degrees
to the handlebar,
while CEV “Diamond Chrome”
switches are  mounted in line with the handlebar.




CEV 40488
1.15
CEV ????  Diamond Clamp-On Mount – L or R
part#     price    parts list

40488? none   switch mount, clamp-on
For mounting CEV or Aprilia “Diamond”
switches (36 mm M4 holes) onto a 22 mm bar.




CEV or Aprilia Diamond switch mount
1.16
CEV ????  Diamond Direct Mount – L or R
part#    price    parts list

05020? $4.00 switch mount bare, 36 mm hole spacing

For CEV or Aprilia “Diamond” switches
Drill small 1/16″ holes in handlebar 36mm (1 7/16″) apart.
Use sheet metal screws, appropriate size and length.







2. 30 mm hole spacing by CEV, Grabor


Switches in this section can fit on Domino square controls.

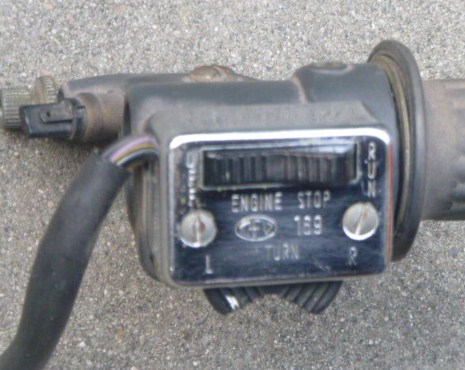

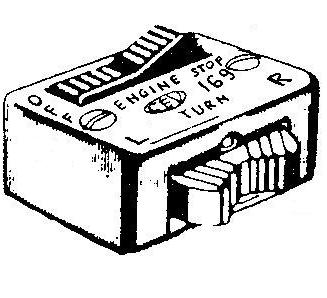

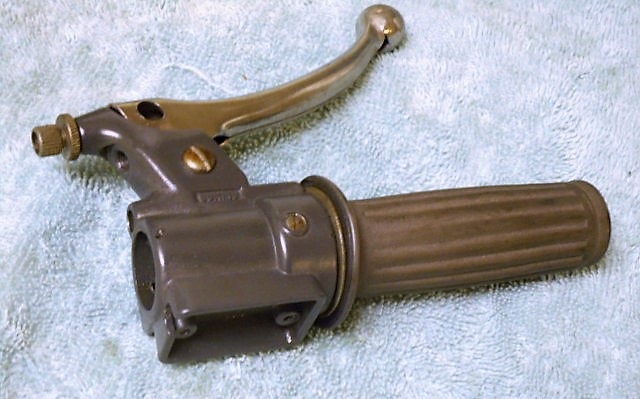

CEV switch 8191CEV switch 8191 on Domino square right control CEV 8191 apart with rubber mount
2.1 CEV 8191 Turn/Run Switch – R or L
says “CEV 169 OFF  ENGINE STOP  L  TURN  R”
part#    price    parts list  Piaggio 307263

8191    $16.0 switch only, 30mm hole spacing
8191m $15.0 rubber mount

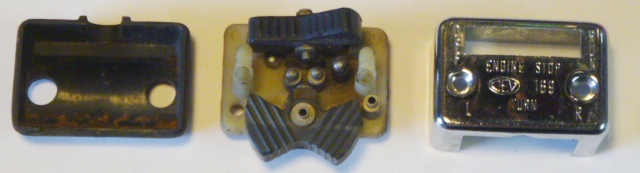

photo 2. CEV 8191 for Vespa Grande, no rubber mount. The wire notch is in the Domino control.

photo 3. CEV 8191 with rubber mount for ’79-83 Tomos Silver Bullet. The wires come out of the notch in the rubber base.

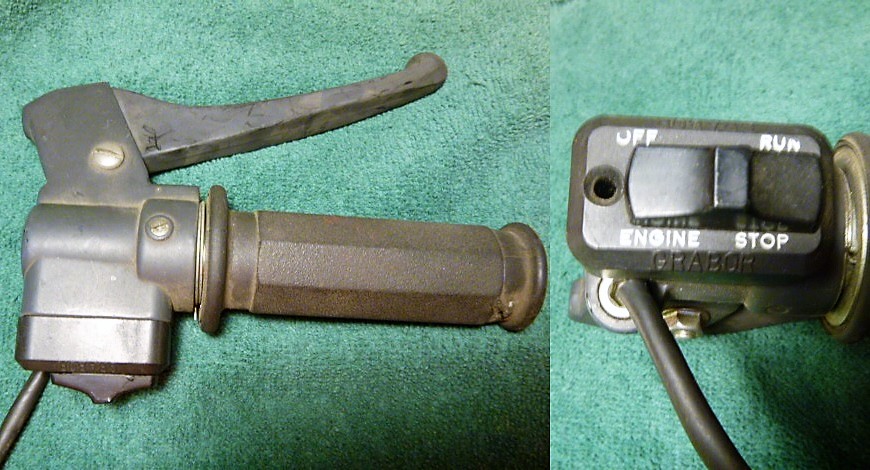

2.2 Grabor Run Switch – R or L
says “Grabor  ENGINE STOP  OFF RUN”
part#    price    parts list  Piaggio 189833

Gr-2.2  none  switch only, 30mm hole spacing











3. late ’80’s plastic in English, by CEV, Daelim
     1980’s with black horn button

There were not many US-model mopeds in the late 1980’s, other than Derbi, Garelli, Jawa, Tomos, Trac (Daelim), pretty much. Except for Jawa, they all used late 1980’s black Domino controls with fully integrated switches.

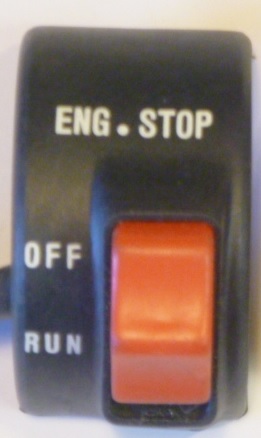

Trac late 1980's right side engine stop switch      Trac late 80's Domino right switch engine stop installed
3.1 Daelim Engine Stop switch – right side

says “ENG. STOP   OFF  RUN”
part#    price    parts list

23232        $35   new, switch only
Comes with wires (black male bullet, green male bullet)

Original on 1985-88 Trac Clipper, Olympic, Hawk (no turn signals, pedals), and 1986-89  Trac Escot,  Liberty,  Image  (turn signals, kickstart)

Fits any “late 1980’s – 90’s Domino” right control.




Trac late 1980's left side lights horn switch

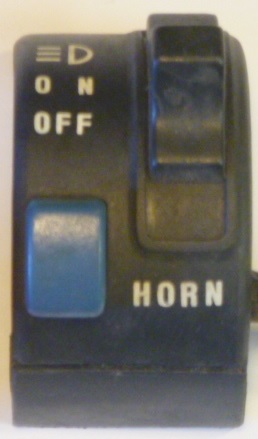

3.2 Daelim Lights/Horn switch – left side

says “⊂≡  ON  OFF   HORN”
part#    price    parts list

23233  $40  used, tested good, switch only
Comes with wires
(red bullet, yellow bullet, grey bullet)

Original on 1985-88 Trac Clipper, Olympic, Hawk (no turn signals, pedals)

Fits any “late 1980’s – 90’s Domino” left control.

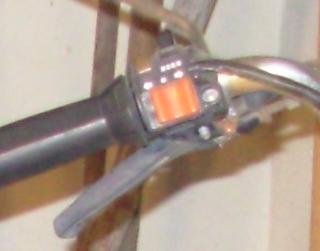

Trac late 1980's Domino left switch lights, turn, horn Trac late 80's Domino left switch lights, turn, horn
3.3 Daelim Lights/Turn/Horn switch – left side

says “⊂≡  ON  OFF    HORN    ⇐  TURN  ⇒”
part#    price    parts list
23234   none  switch only,
Comes with wires (red,yellow,grey,orange,lt blu, lt grn, all male bullet)

Original on 1986-89  Trac Escot,  Liberty,  Image  (turn signals, kickstart) Fits any “late 1980’s – 90’s Domino” left control.

This is the first use of icons on moped switches – 1985.




CEV late 1980s right side lights and engine stop
3.4
CEV 8246.01   lights, engine stop – right side
says “LIGHTS  ON OFF   ENGINE STOP  STOP RUN”
part#    price    parts list
222.427 none   switch only
M3 x 8   $2.00 bottom screw

Original on 1986-91 Tomos Bullet, Bullet TT, Golden Bullet, Golden Bullet TTLX
Original on 1986-89 Derbi Variant Sport, others. Bottom screw $2, size M3 x 8
Was sold new without wires, which had to be soldered on skillfully.

The red switch button breaks, usually from the riders knee hitting it.

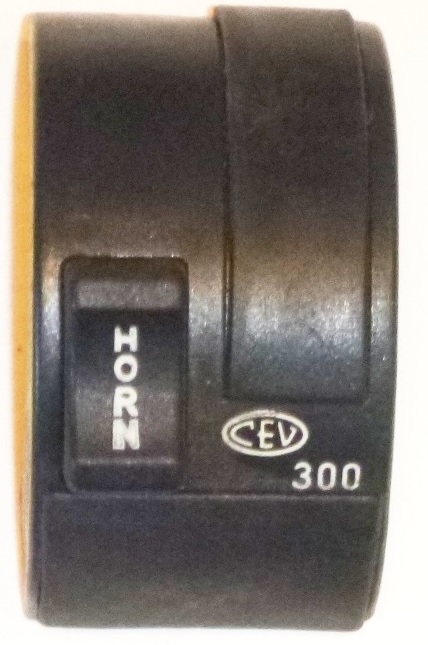

CEV late 1980s left side horn only CEV 1980s left switch horn only installed
3.5 CEV 8230.07  Horn only – left side

says “HORN    “
part#    price    parts list

222.426     N/A   Switch only
M3 x 8   $2.00 bottom screw

Original on 1986-91 Tomos Bullet, Bullet TT (round head light, no turn signals)

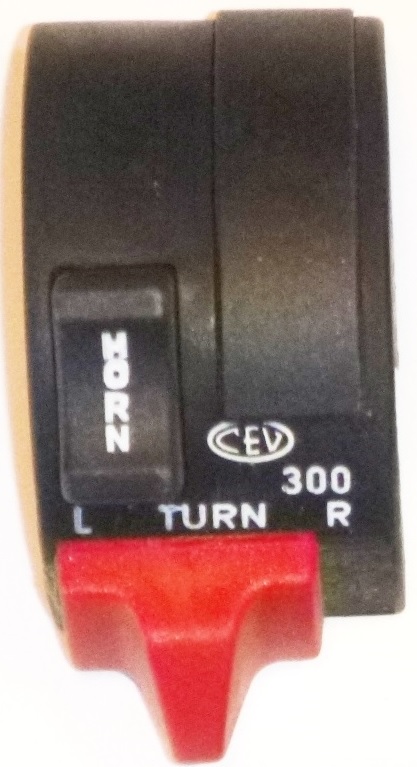

CEV late 1980s left side turn and horn
3.6 CEV 8232.08 Turn/Horn switch – left side
says “HORN   L  TURN  R  CEV 300
part#    price    parts list

222.429      $35   Switch only
M3 x 8   $2.00 bottom screw

Original on 1986-91 Golden Bullet, Golden Bullet TTLX (round head light, turn signals)
At right, it’s European all-icon cousin. Over there they signal by momentarily flashing their high beam, rather than by horn. So their buttons have different functions. By 1984-85 Europe already had all-icon switches, a few years before the USA allowed them.

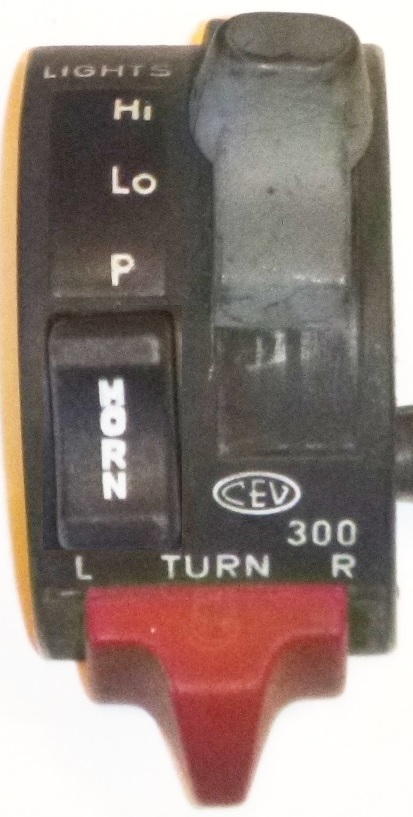

CEV late 1980s left side turn, hi-lo and horn
3.7 CEV 8232 Turn/Hi-Lo/Horn switch – left side
says “HI  LO  P   HORN   L  TURN  R  CEV 300
part#    price    parts list

34040        N/A   Switch only
M3 x 8   $2.00 bottom screw

Original on 1987-90 Trac DH100 Super Hawk
Original on many late 80’s bikes with turn signals and hi-lo head light.
Was sold new without wires, which had to be soldered on skillfully.







4. ’91-06 plastic with icons, by HR
     1990’s with blue horn button

HR and Domino 1990's controls

Top: HR controls, Bottom: “80’s – 90’s Domino”

Icons appeared first on US mopeds in 1985 on Trac/Daelim, then in 1987 on Derbi Variant Sport and DS50. In the 1980’s the world somehow realized it made more economic sense for motorcycle switches to use symbols, with one version for all, rather than using words and having to make many language versions. By the 1990’s the US had switched to icons, at the time when Tomos and Jawa were the only European mopeds remaining. There were several “remakes”: Kinetic (India) is like Vespa/Piaggio, Manet (Slovakia) is like Puch, Hero (India) is like Puch, and others. Some of those copied “80’s – 90’s Domino” controls. These HR (Hidria Rotomatika) switches below do not interchange with Domino. The HR switches are slightly smaller than Domino, and their top peg is smaller. HR switches must go on HR controls, aka “1992-2007 Tomos” controls.

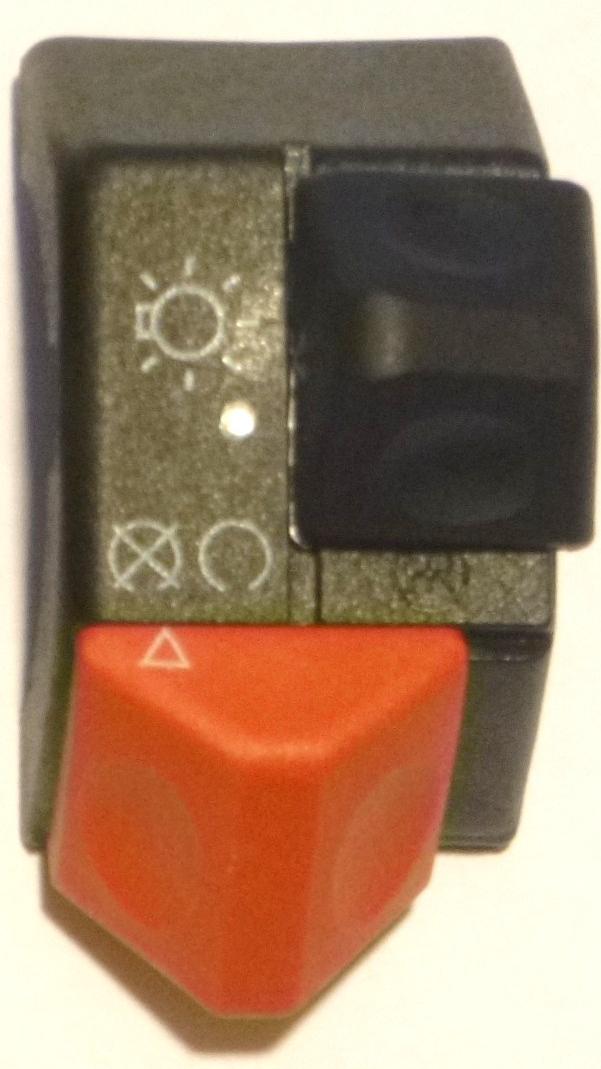

CEV 1990s right switch lights and engine stop HR 1990s right switch lights and engine stop bottom view

4.1 HR   Lights/engine stop switch – right side
227002        $40   Switch only, all icons

Original on 1992-2007 Tomos (A35 and A55) Sprint, Targa, ST, LX
Was sold new without wires, which had to be soldered on skillfully.

Look just below the black light switch to see the circled HR logo (Hidria Rotomatica).




CEV 1990s right switch lights engine stop and start
4.2
HR Hi-Lo/Horn/Engine stop – left side
???        N/A   Switch only, all icons

Not for US models. For countries that allow engine stop to be on the left.
Was sold new without wires, which had to be soldered on skillfully.

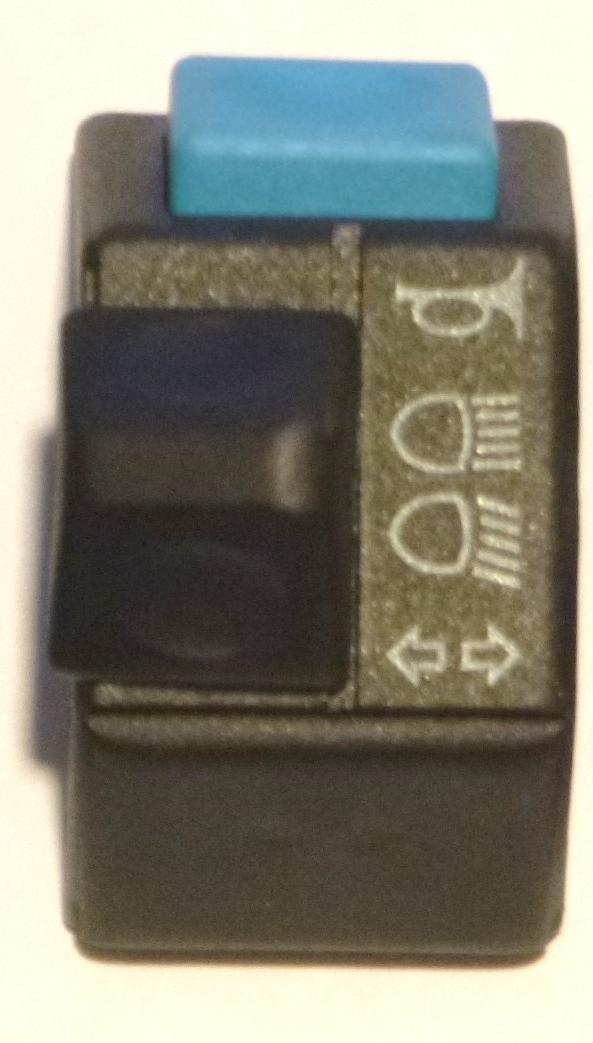

CEV 1990s left switch hi-lo and horn HR 1990s left switch hi-lo and horn bottom view

4.3 HR Hi-Lo, horn switch – left side
227595        $40   Switch only, all icons

Original on 1993-07 Tomos Sprint, 1993-94 Sprint TT (no turn signals)
Was sold new without wires, which had to be soldered on skillfully.

Many switch problems are from “cold” solder joints. The cure is re-solder.

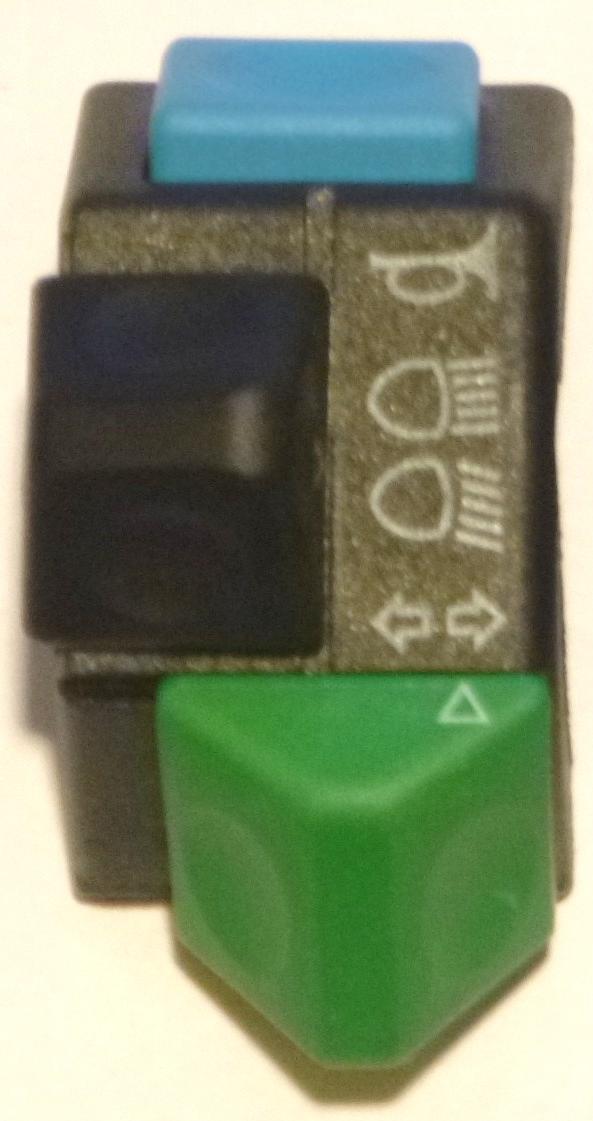

CEV 1990s left switch hi-lo turn horn HR 1990s left switch hi-lo turn horn bottom view

4.4 HR  Hi-Lo/Turn/Horn switch – left side
227001        $30   Switch only, all icons

Original on 1992-07 Tomos A35 Bullet, Targa, ST, LX (all with turn signals)
Was sold new without wires, which had to be soldered on skillfully.

Many switch problems are from “cold” solder joints. The cure is re-solder.







5. ’01-07 plastic with icons, by Domino
     2000’s with yellow horn button

 Put away that soldering iron. The new century brings wires pre-soldered by the factory, with a convenient multi-pin plug.

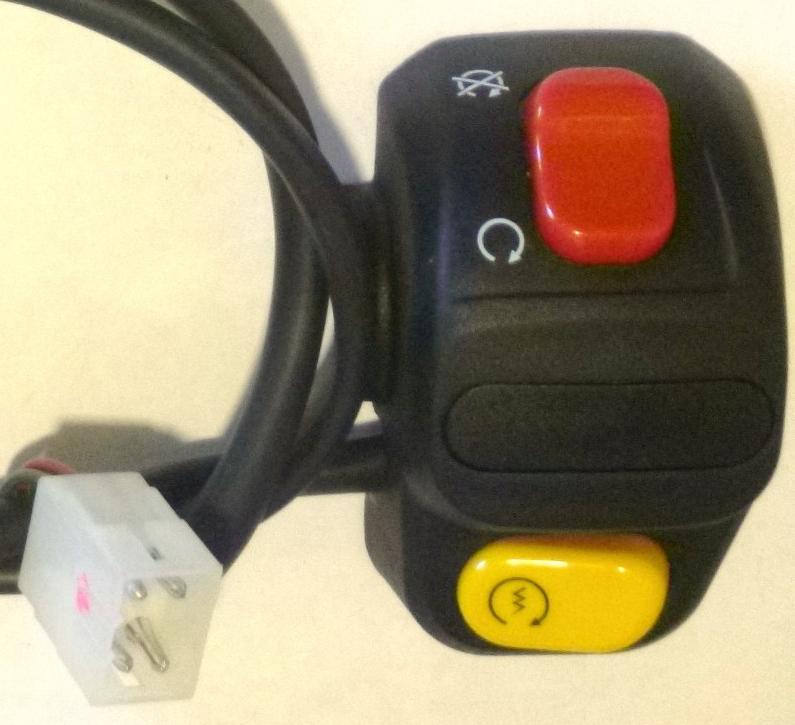

Domino 2000s right side engine stop and start
5.1
Domino Engine stop, start – right side

232987        $50   Switch only, all icons, made in Italy by Domino

Original on Tomos 2002-07 Revival, 2005-07 Streetmate, 2005 Arrow
For mopeds, scooters and motorcycles with electric start.
Was sold new with wires soldered on, with a single multi-pin plug.

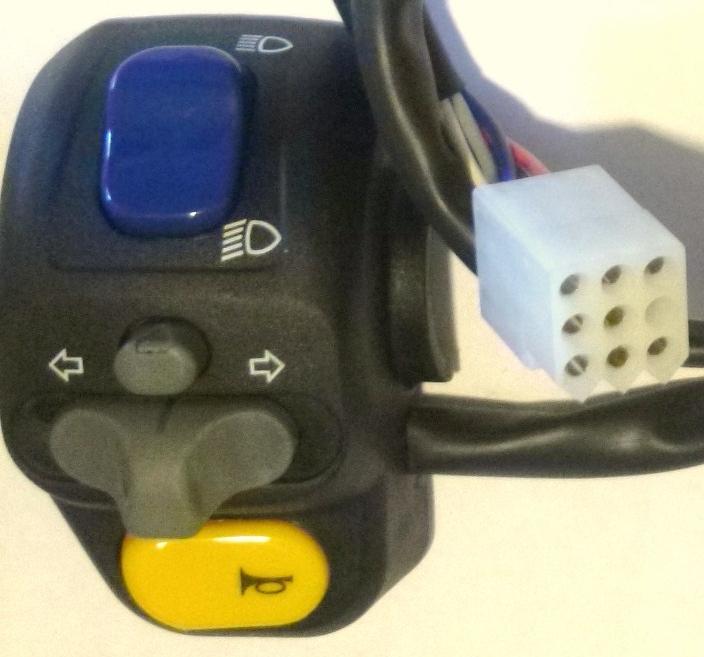

Domino 2000s left side hi-lo turn and horn
5.2 Domino hi/lo, turn, horn – left side
232788        $50   Switch only, all icons, made in Italy by Domino

Original on Tomos 2002-07 Revival, 2005-07 Streetmate, 2005 Arrow
For mopeds, scooters and motorcycles with hi/lo and turn signals.
Was sold new with wires soldered on, with a single multi-pin plug.

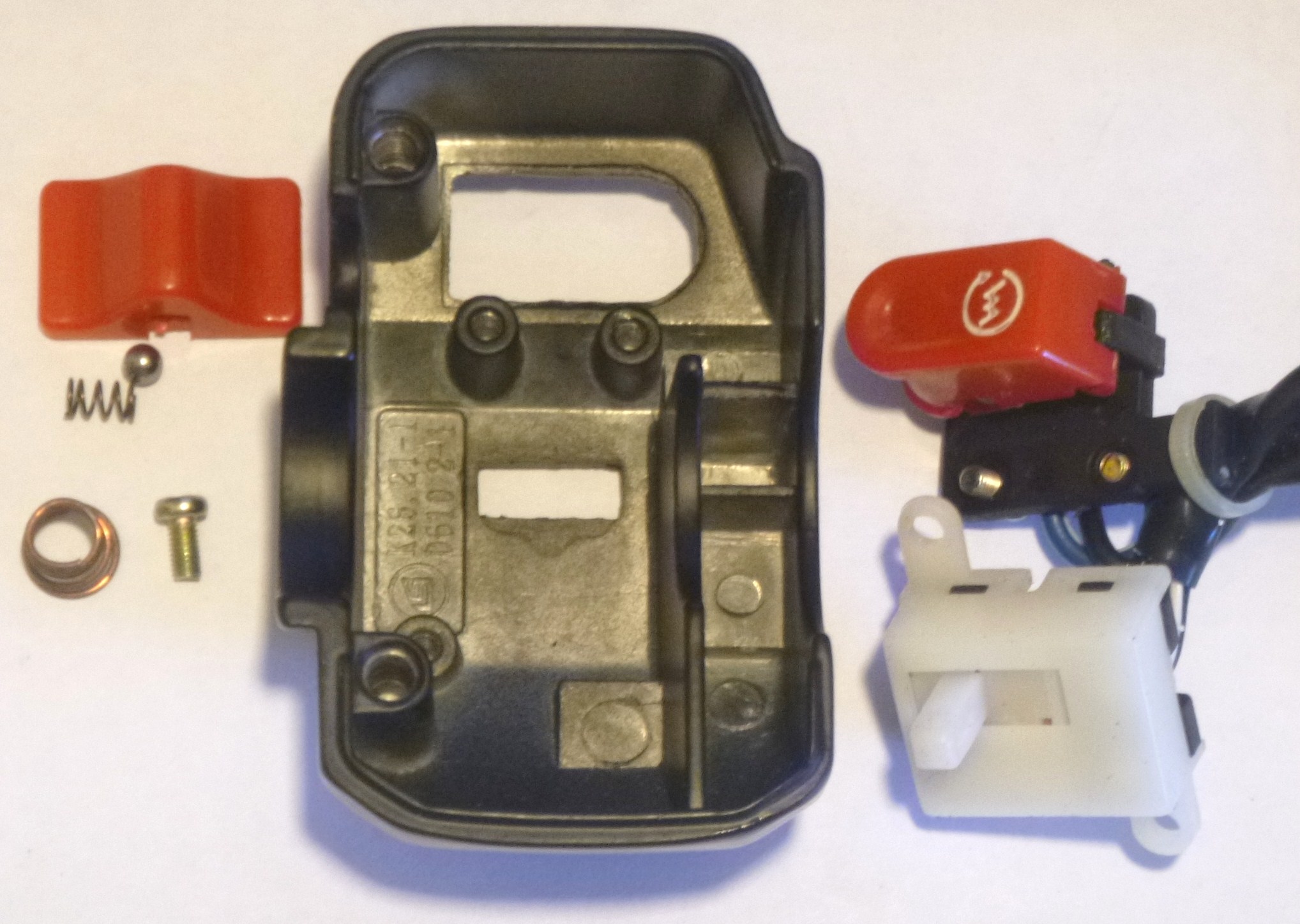

6. ’08-17 plastic with icons, by TBS

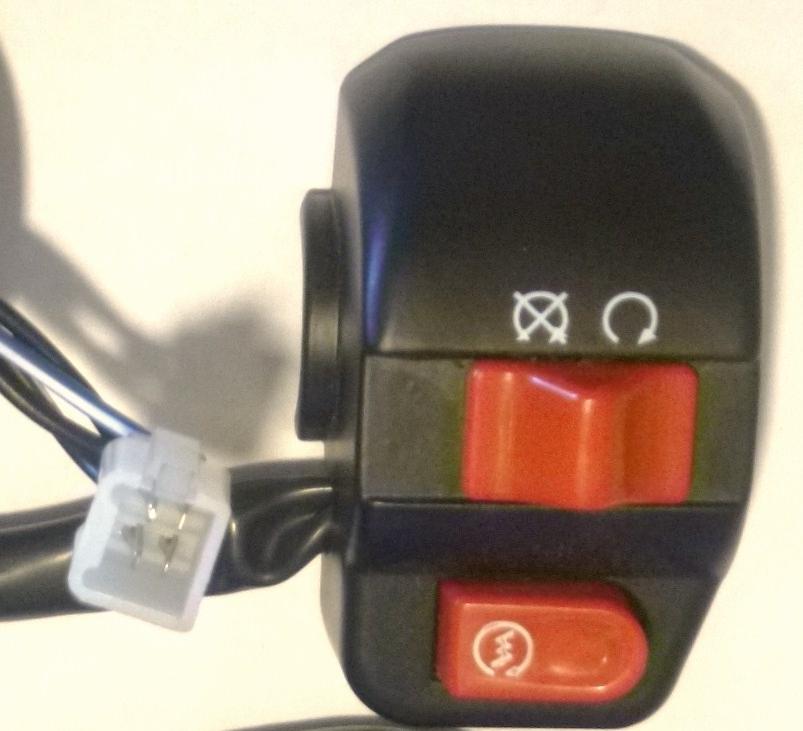

     2010’s with red horn button

 High quality long lasting switches and controls at half the price of Italian. They’re as good, or better.



TBS 2010s right switch engine stop and start TBS 2010s right switch parts

6.1 TBS engine stop, start – right side
237129        $25   Switch only, all icons

Original on Tomos 2008-13 all models.
For mopeds and motorcycles with electric start.
Sold new with wires and a single multi-pin plug.

Fits any “2000’s Domino” right control, or compatible.
The TBS plug is different from Domino. See above and Wirings.




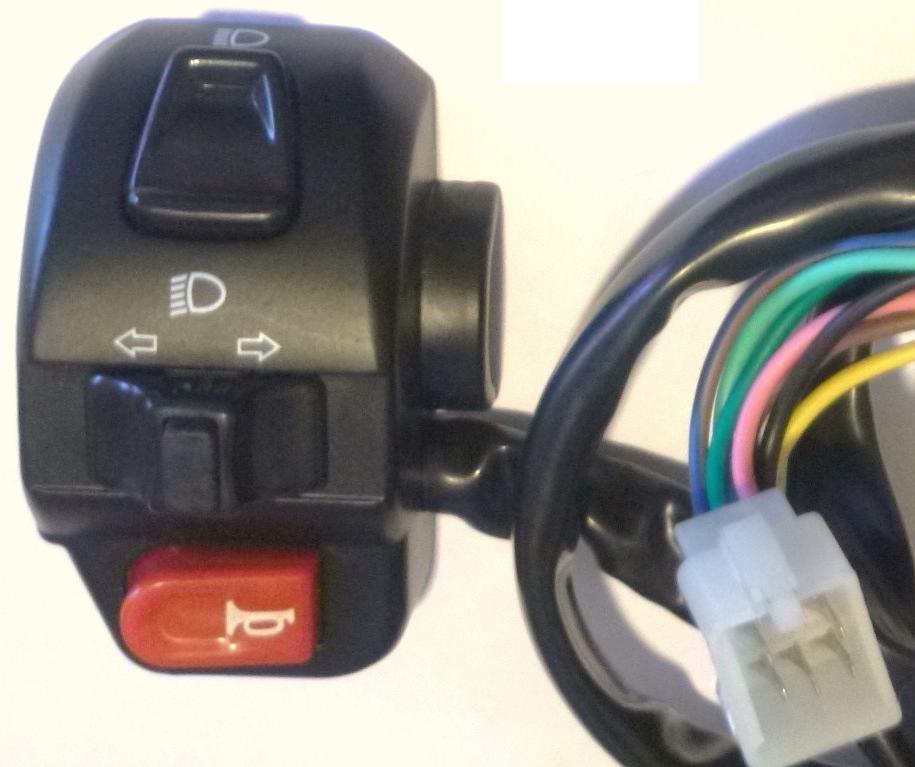

TBS 2010s left switch hi-lo turn and horn aluminum casting number

6.2 TBS  Hi/lo/Turn/Horn – left side
8
37130        $30   Switch only, all icons

Original on Tomos 2008-13 all models.
For mopeds and cycles with hi/lo and turn.
Sold new with wires and a single multi-pin plug.

Fits any “2000’s Domino” left control, or compatible.
The TBS plug is different from Domino. See above and Wirings.
