Motobecane Cady

updated 2022-02

Contents:
1. Identification
2. Parts Catalogs and Service Manuals
3. Engine Parts Comparison



The purpose here is to learn about Cady models, their parts differences, and then to specify or offer replacement parts.





1. Identification

Cady Engines

Most Motobecane moped engines have the pulley-clutch on the left and the magneto-generator on the right. But Motobecane Cady and Moby X have Isodyne (same side) engines have both clutch and magneto on the left.

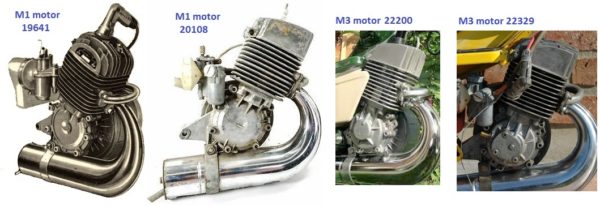

1.  ’66-74 19641 Isodyne M1 motor has rounded head fins,
no bulge on right case (no right bearing).

2. ’74-78 20108 Isodyne M1 motor has angled head fins,
no bulge on right case (no right bearing).

3. ’74-78 22200 Super Isodyne M3 has angled head fins,
with bulge on right case for right bearing.

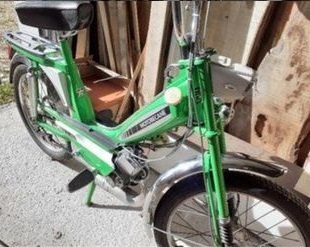

4. ’75-78 22329 Super Isodyne M3 has angled head fins,
with a bearing greaser on the right case.



Look for the buldge

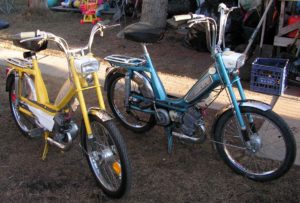

Mid-70’s Cady M1PRTS yellow and M3PRTS blue are identical.
The only visible difference is the bulge in the M3 right engine case.
Only a right side view shows this.



Look for the light

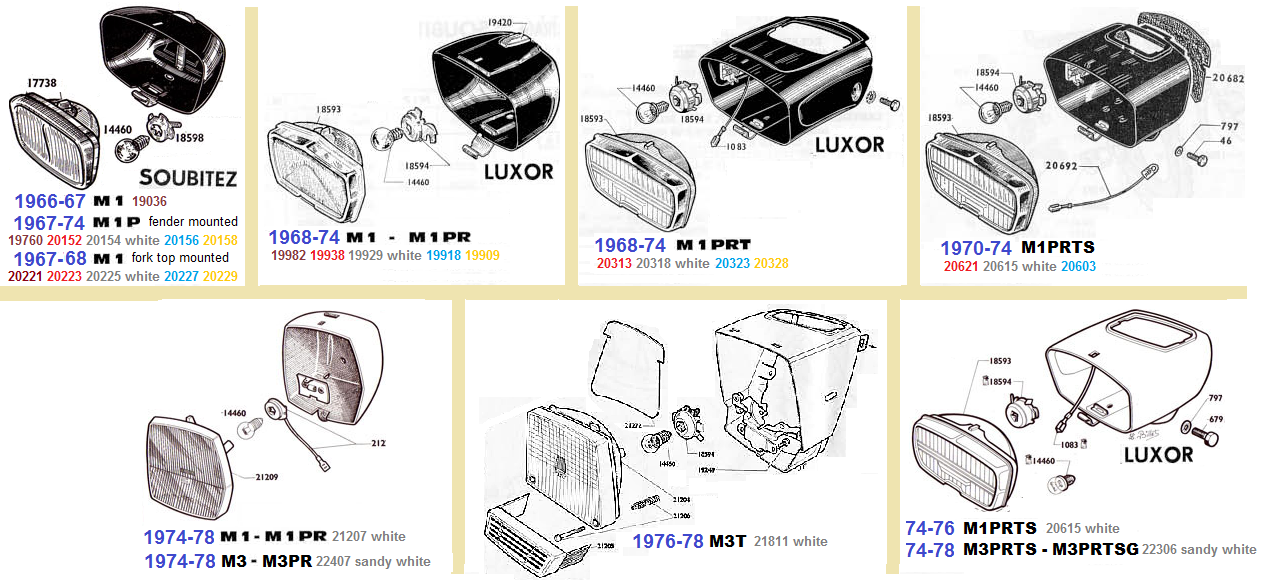

The headlight style and color can narrow down the identity.









Models with Isodyne Engine M1 #19641

M1  1966-68
2.00-19 tires (23 x 2.00)
no suspension
red metallic, 33 km/h = 20.5 mph
AR1-10-674 carb, 19134 19124 controls
33 km/h = 20.5 mph

M1  1968-74
2.00-19 tires (23 x 2.00)
no suspension
red metallic
S10-693 carb, 20069 19725 controls

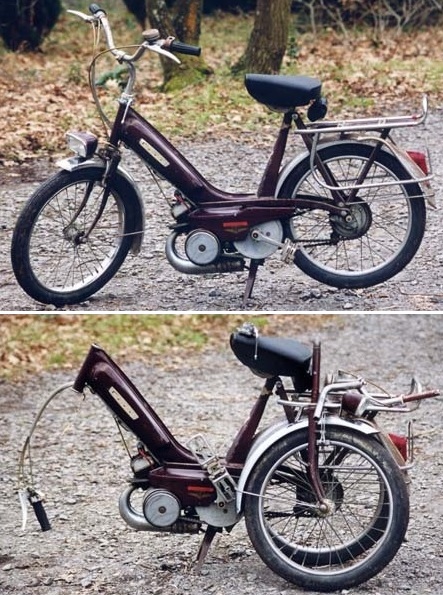

M1 P demontable 1966-68
2.00-16 tires (20 x 2.00)
no suspension, headlight on fender
red metallic  with S10-693 carb

M1 P demontable 1968-74
2.00-16 tires (20 x 2.00)
no suspension, headlight on fender
red metallic, red, blue, white, topaz
AR1-10-691 carb, 20069 19694 controls

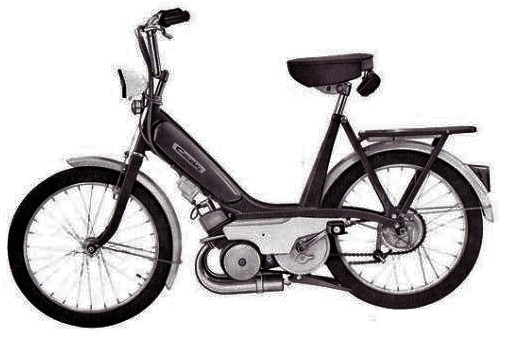

M1 PR 1967-74
2.00-16 tires (20 x 2.00)
no suspension  (PR means 16″ rims)
red, blue, white, topaz
AR1-10-691 carb, 20069 19725 controls
20069 20008 controls after 4/68
.

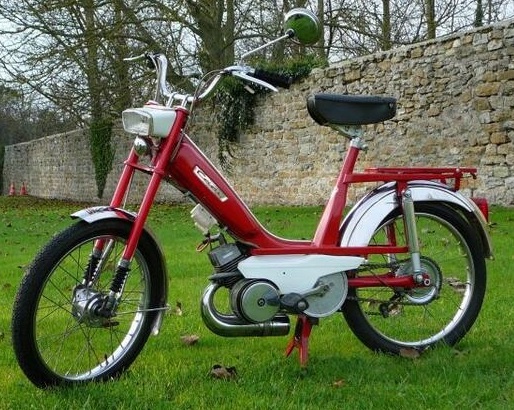

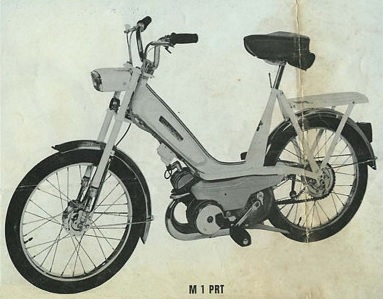

M1 PRT 1968-74
2.00-16 tires (20 x 2.00)
Telescopic fork
red, blue, white, topaz
AR1-10-691 carb, 20069 20008 controls
.

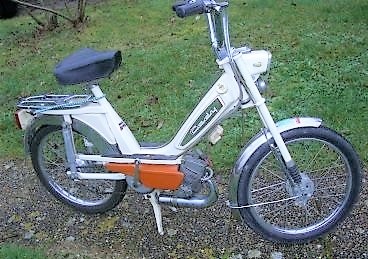

M1 PRTS 1970-74
2.00-16 tires (20 x 2.00)
Telescopic fork, rear Suspension
red, blue, white, topaz
AR1-10-691 carb, 20069 20008 controls
.





Models with Isodyne Engine M1 #20108

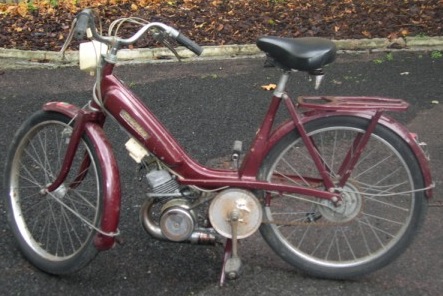

M1  1974-77
2.00-19 tires
no suspension
 metallic red, metallic brown
AR1-10-691 carb, 21675 20957 controls



M1 PR  1974-77
2.25-16 tires (PR means 16″ rims)
no suspension
red, white
AR1-10-691 carb, 21675 21284 controls
.

Cady PR  1974-77
2.00-16 tires PR
no suspension
red, white with AR1-10-691 carb
sold in Canada by Canadian Tire
.

M1 PRTS 1974-78
2.00-16 tires PR
Telescopic fork, rear Suspension
red, blue, white, yellow
AR1-10-691 carb, 21675 21284 controls
.

Cady PRTS 1974-78
2.00-16 tires PR
Telescopic fork, rear Suspension
red, blue, white, yellow
AR1-10-691 carb, 21675 21284 controls
sold in Canada by Canadian Tire



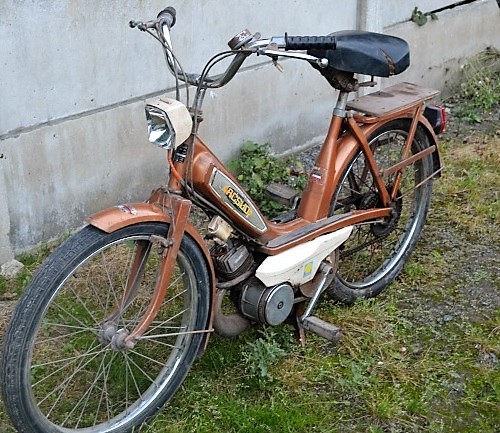

M3: 1976-77
2.00-19 tires
no suspension
metallic brown
this has an M1 engine, not M3

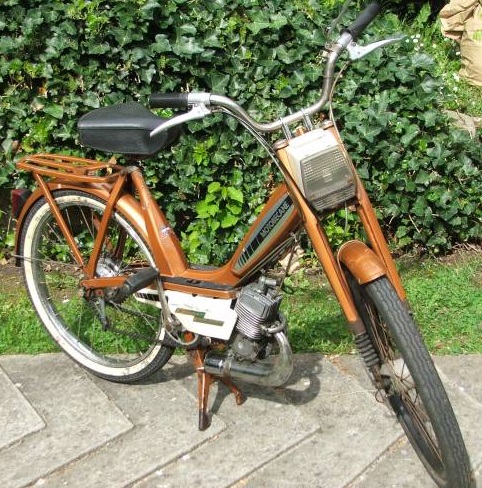

M3T: 1976-77
2.00-19 tires
Telescopic fork
metallic brown
this has an M1 engine, not M3




.



Models with Super Isodyne Engine M3

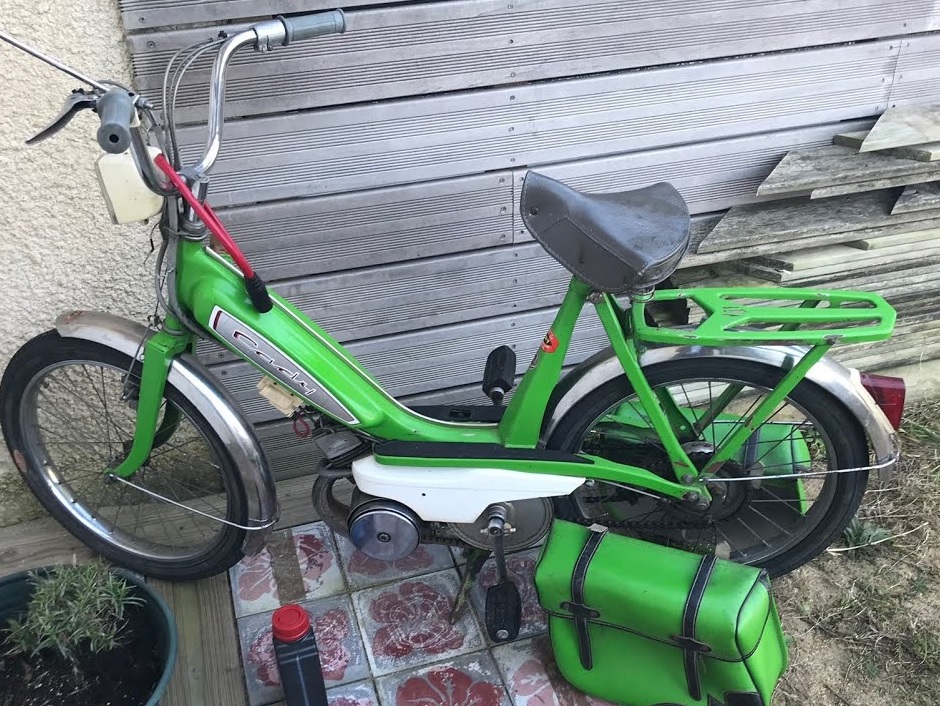

M3 PR  1974-77
2.00-16 tires PR
no suspension
sandy white, green
AR1-11.5-753 carb, 21675 21284 controls
.

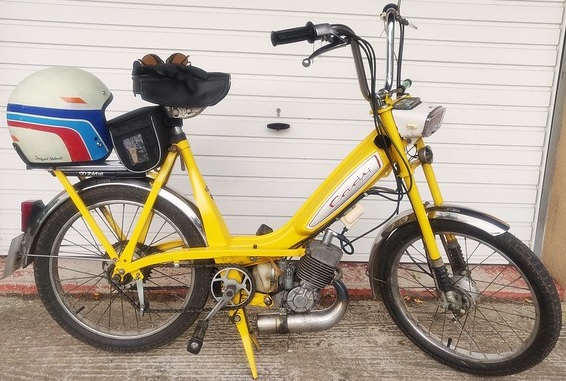

M3 PRT  1974-77
2.00-16 tires PR
Telescopic fork
yellow, sandy white, green
AR1-11.5-753 carb, 21675 20957 controls






.

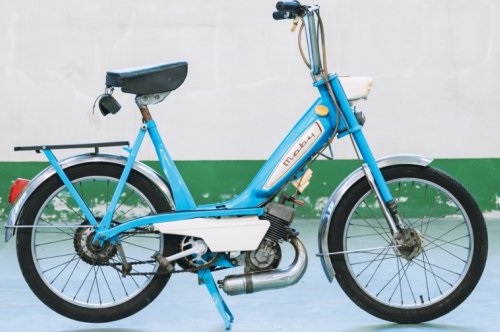

Moby (M3 PRT)  1974-77
2.00-16 tires PR
Telescopic fork
blue, other colors
AR1-11.5-753 carb, 21675 21284 controls
.

M3 PRTS  1974-77
2.00-16 tires PR
Telescopic fork, rear Suspension
yellow, sandy white, green, met blue
AR1-11.5-753 carb, 21675 21284 controls
sold in Canada by Canadian Tire
.

M3 PRTSG: 1975-77
2.00-16 tires PR
separately Greased
Telescopic fork, rear Suspension
yellow, sandy white, green, met blue
AR1-11.5-753 carb, 21675 21284 controls











2. Parts Catalogs and Service Manuals

The Motobecane Club de France has free pdf downloads of all Motobecane manuals. Here are their five Cady Parts Manuals and models covered. Insert sheets in gray text. Model colors are colored diamonds.



https://motobecane-club-de-france.fr/document/telechargement/mpr-cady-m1.pdf
Nov 1966  2.00-19 tires ♦M1
Sep 1966  clutch and magneto service
Sep 1966  early M1 engine bottom-end versions
Jun 1967  front brake and fork changes
Nov 1966  crankshaft service
Nov 1966  bearing and seal info

https://motobecane-club-de-france.fr/document/telechargement/mpr-Cady.pdf
Nov 1968  2.00-19 tires ♦M1
Nov 1968  2.00-16 tires ♦M1P, ♦◊♦♦M1PR, ♦◊♦♦M1PRT

https://motobecane-club-de-france.fr/document/telechargement/mpr-Cadym1-m1prts.pdf
Nov 1968  2.00-19 tires ♦M1
Nov 1968  2.00-16 tires ♦M1P, ♦◊♦♦M1PR, ♦◊♦♦M1PRT, ♦◊♦♦M1PRTS
Nov 1969  (missing M1PRTS addition)
Mar 1970  points cam change

https://motobecane-club-de-france.fr/document/telechargement/mpr-cady-m1pr.pdf
Feb 1975  2.00-19 tires ♦M1
Feb 1975  2.00-16 tires ♦◊♦♦M1PR, ♦◊♦♦M1PRT, ♦◊♦♦M1PRTS

https://motobecane-club-de-france.fr/document/telechargement/mpr-cady-m3.pdf
Apr 1976  2.25-16 tires ♦◊M3PR, ♦◊♦M3PRT, ♦◊♦M3PRTS, ♦◊♦M3PRTSG
Mar 1974  2.25-16 tires ♦M3PRT, ♦M3PRTS yellow (jaunte) parts addition
Jun  1976  2.25-16 tires ♦M3 metallic brown, M1 engine
Jun  1976  2.00-19 tires ♦M3T metallic brown, M1 engine



Cady Timeline

1966-67 ♦M1

1967-68 ♦M1, ♦M1P

1968-70 ♦M1, ♦M1P, ♦◊♦♦M1PR, ♦◊♦♦M1PRT

1970-74 ♦M1, ♦M1P, ♦◊♦♦M1PR, ♦◊♦♦M1PRT, ♦◊♦♦M1PRTS

1974-76 ♦M1, ♦M1P, ♦◊♦♦M1PR, ♦◊♦♦M1PRT, ♦◊♦♦M1PRTS
1974-76 ♦M1, ♦M1P, ♦◊♦◊M3PR, ♦◊♦♦M3PRT, ♦◊♦♦M3PRTS

1976-78 ♦M3, ♦M3T, ♦◊♦◊M3PR,   ♦◊♦M3PRT,  ♦◊♦M3PRTS, ♦◊♦M3PRTSG





3. Engine Parts Comparison

The purpose is to provide replacement parts for Cady, by knowing which parts are the same as on US models. Cady’s were sold in Canada, but not in the US.

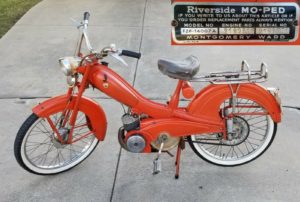

1959 Ward Riverside

1974 Motobecane Cady

1977 Motobecane 50V

















Here ’66-77 Motobecane Cady engine parts are compared with other US-model Motobecane mopeds, ’57-64 Wards Riverside and ’74-80 Motobecane 50V.



Piston rings: In June 1976 Motobecane piston rings changed on all models. Before 6/76 the the 14821 ring gap style was GN (grano normal) where the piston ring stop pin was on one side of the ring groove. After 6/76 the 22148 ring gap style was GI (grano interno) where the piston ring pin was in the center of the ring groove.

Cady pistons have 7 sorts and 2 ring gap styles
Left is 6/76-on, center-pin GI, 22481 to 22487
Right is to-6/76, side-pin GN, 19185 to 19103

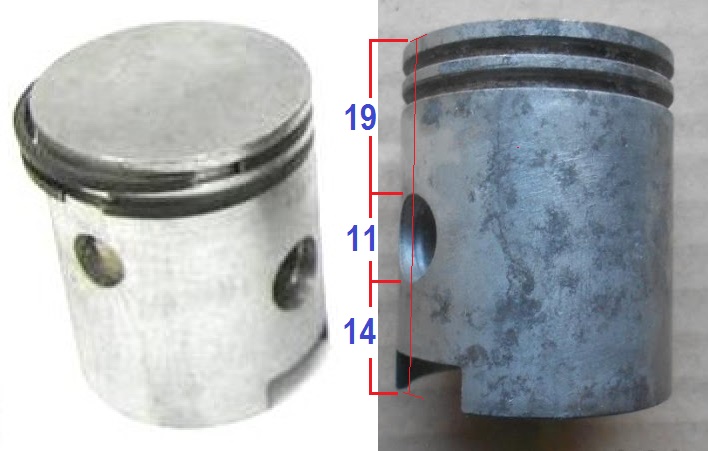

Piston: Pistons for Isodyne engines (on Cady and Moby X) are special. They have a 11 mm wrist pin, unlike most other 50cc pistons, and a total height of 47.5mm. The cylinder bore is 39mm. More precisely,, the bore ranges from 38.98 to 39.04 mm in seven tiny increments of 0.01 mm, called sorts. Cylinders and pistons are stamped with a letter. The replacement piston should be the same sort as the cylinder (unless the cylinder is worn).

After July 1976 Motobecane stopped making pistons with side-pins. From then on they made only ones with center-pins. The seven sorts of pre-6/76 replacement pistons remaining in the late 1970’s were sold until each size ran out. Then only center-pin replacements 22481-22487 were supplied when an older part number 19185-19103 was requested.





Colors: light grey means superseded, blue means same as AV7 Vc



——- Wards Riverside ——–   Cady   Cady   Cady    Motobecane USA
AV7 V  AV7Dbe  —-AV7 V2—- isodyne sup-iso sup-iso AV7 Vb  —-AV7 Vc—- < engine model
1.5 hp  1.5 hp  1.5 hp  2.0 hp  1.5 hp  1.5 hp  2.0 hp  2.0 hp 1.5 hp 2.0 hp < horsepower
’57-59  ’61-62   1960   ’60-64  ’66-70 ’74-77 ’75-77   ’74-75 ’76-77 ’76-77 < year range
14007A 14030 14010A 14010C C1,M1    M3   PRTSG    50V    50V    50V    < bike model

50165  ??????  50294  50298  19093  22200  22329  53745 52341 53745  engine complete
10165  ??????  50294  50298  3 #’s    22201  22313  53745 52341 53745  engine lower assy
14791  14791  14791  16625  19252  22227  22227  19885 19885 19885  cylinder head
14854  14854  14854  14854  19098  19098  19098  14854 14854 14854  head gasket
14816  16618  16618  16618  19081  22202  22202  19478 23460 23460  cylinder with piston
14816  16618  16618  16618  22480  22480  22480  23460 23460 23460  replaced with
14407  16673  16673  16619  19099  22235  00000  16619 16673 16619  intake pipe Ø16
14407  16673  16673  16619  19099  22235  00000  16619 16673 16619  intake pipe Ø17
14407  16673  16673  16619  19099  22235  22235  16619 16673 16619  intake pipe
14815  16620  16620  16620  19100  19100  19100  17073 17073 17073  intake gasket
14819  14819  14819  14819  00000  00000  00000  21240 22275 22275  piston A for 38.97 cylinder
14819  14819  14819  14819  19103c 19185  19185  21242 22276 22276  piston B or C 38.98 cylinder
14819  14819  14819  14819  19103e 19186  19186  21244 22277 22277  piston D or E for 38.99 cylinder
14819  14819  14819  14819  19103g 19187  19187  21246 22278 22278  piston F or G for 39.00 cylinder
14819  14819  14819  14819  19103 j 19188  19188  21248 22279 22279  piston H or J for 39.01 cylinder
14819  14819  14819  14819  19103 l 19189  19189  21250 22280 22280  piston K or L for 39.02 cylinder
14819  14819  14819  14819  19103n 19190  19190  21252 22281 22281  piston M or N for 39.03 cylinder
14819  14819  14819  14819  19103p 19103  19103  21254 22435 22435  piston Q or P for 39.04 cylinder
above is pre-June’76 piston rings, GN gap style (side-pin), below is June’76-on, GI gap style (center-pin)
14819  14819  14819  14819  00000  00000  00000  22275 22275 22275  piston A for 38.97 cylinder
14819  14819  14819  14819  22481  22481  22481  22276 22276 22276  piston B or C for 38.98 cylinder
14819  14819  14819  14819  22482  22482  22482  22277 22277 22277  piston D or E for 38.99 cylinder
14819  14819  14819  14819  22483  22483  22483  22278 22278 22278  piston F or G for 39.00 cylinder
14819  14819  14819  14819  22484  22484  22484  22279 22279 22279  piston H or J for 39.01 cylinder
14819  14819  14819  14819  22485  22485  22485  22280 22280 22280  piston K or L for 39.02 cylinder
14819  14819  14819  14819  22486  22486  22486  22281 22281 22281  piston M or N for 39.03 cylinder
14819  14819  14819  14819  22487  22487  22487  22435 22435 22435  piston Q or P for 39.04 cylinder
14821  14821  14821  14821  14821  14821  14821  14821 14821 14821  piston ring pre-6/’76 39×2 GN
00000  00000  00000  00000  00000  00000  00000  22148 22148 22148  piston ring 6/’76-on 39×2 GI
14895  14895  14895  14895  19097  19097  19097  14895 14895 14895  base gasket
14716  14716  14716  14716  00000  00000  00000  14716 14716 14716  cylinder stud M7-1.00 x 129
14716  14716  14716  14716  19102  19102  19102  14716 14716 14716  cylinder bolt M6-1.00 x 25
14721  14721  14721  14721  19096  19975  19975  14721 14721 14721  decomp valve assembly
15094  15094  15094  15094  19169  00000  00000  15094 15094 15094  piston pin       13 x 30
15094  15094  15094  15094  19169  19169  19169  15094 15094 15094  piston pin       11 x 30
15855  15855  15855  15855  19084  19084  19084  15855 15855 15855  piston bearing 13-16 x 14
15855  15855  15855  15855  19084  19084  19084  15855 15855 15855  piston bearing 11-14 x 14
50230  16903  16903  16903  00000  00000  00000  19609 19609 19609  crankshaft
00518  16906  16906  16906  19175  19645  19645  16906 16906 16906  bearing L 15-42×13 #6302
00518  16906  16906  16906  19175  00000  00000  16906 16906 16906  bearing L 16-42×13 #6302-QR
00518  16906  16906  16906  19175  19645  19645  16906 16906 16906  bearing L 15-42×19 #5302 dbl
00518  16906  16906  16906  19175  19645  19645  16906 16906 16906  bearing L 17-47×14 #6303
00518  16906  16906  16906  19175  00000  00026  16906 16906 16906  bearing R 15-35×11 #6202
00518  16906  16906  16906  19175  00000  00000  16906 16906 16906  bearing R 16-42×13 #6302-QR
00060  00060  00060  00060  00000  000  0000000  19089 19089 19089  crank seal
14814  14814  14814  14814  00000  00000  00000  19608 19608 19608  crankcase
14896  14896  14896  16910  19088  19088  00000  16910 16910 16910  case gasket





1966-73 Motobecane Cady M1 or C1 engine parts illustration

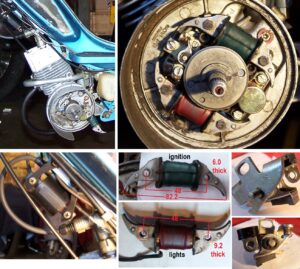

1977 Cady magneto
