Contents:

1.  Photos for Identification and Comparison

2. 1150. 2150 controls for Sachs-with-foot-brake or Minarelli

a. 1977-79 Lazer Sport 50, Sport 50 ST
a. made by Her Chee, 80 mm brakes Minarelli V1 engine, 1150 controls
a. 1978-79 General 5 Star, 5 Star ST
a. made by Jui Li, 80 mm brakes,      Minarelli V1 engine, 1150 controls
b. 1977-78 Jui Li Honey 50
b. 1977-78 Clinton 50-A
b. 1978-79 Grycner moped
b. made by Jui Li, 80 mm Sachs 505/1A foot brake 2150 = 1150 controls

3. 1150-00, 3150, 5150 controls for Minarelli

a. 1979 General 5-Star
a. made by Jui Li, 80 mm brakes, Minarelli V1 engine,     1150-00 controls
b. 1979-81 General 5-Star or C2, 5 Star ST
b. made by Jui Li, 80 mm brakes, Minarelli V1 or C2 engine, 3150 controls
c. 1982-85 General 5-Star or C2, 5 Star ST
c. made by Jui Li, 80 mm brakes, Minarelli V1 or C2 engine, 5150 controls

4. 1150-01, 4150, 5151 controls for Sachs-with-foot-brake

a. 1977-78 AMS Sierra 50
a. 1979-80 Grycner Floozie, Palm Springs
a. made by Jui Li, 80 mm brakes Sachs 505/1A foot brake 1150-01 controls
b. 1979-80 General 5 Star ST
b. 1978-80 Jui Li Honey 50
b. 1978-80 Clinton 50-A
b. made by Jui Li, 80 mm brks, Sachs 505/1A, 1B foot brake, 4150 controls

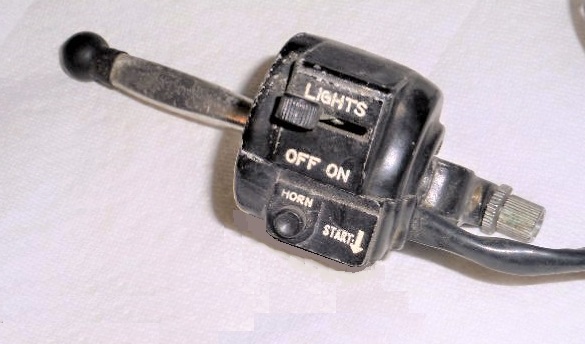

c. 1980-83 General 5 Star ST
c. made by Jui Li, 80 mm brakes, Sachs 505/1A foot brake,    5151 controls

5. 1150-00/1150-01, 3150/4150, 5150/5151 controls for Sachs

a. 1979-79 General 5 Star ST
a. made by Jui Li, 80 mm brakes, Sachs 505/1A,   1150-00/1150-01 controls

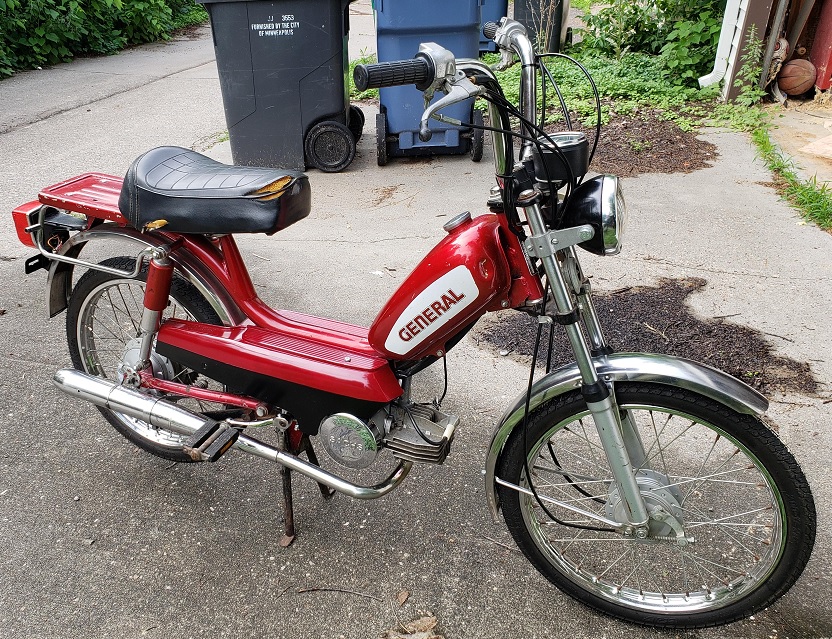

b. 1980-83 General 5 Star, 5 Star ST
b. made by Jui Li,   80 mm brakes, Sachs 505/1A engine, 3150/4150 controls

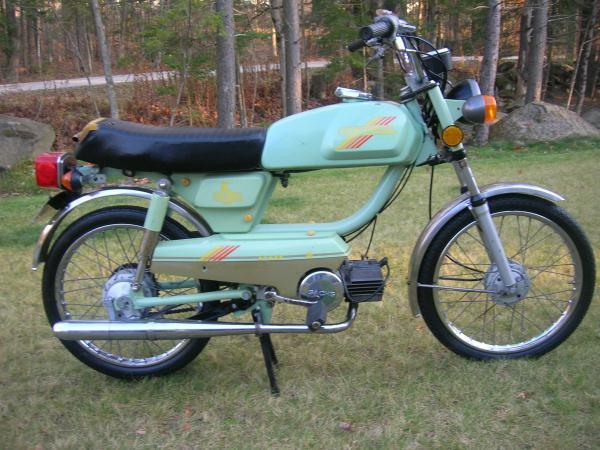

c. 1980-85 General 5 Star
c. 1980-85 AMS Tahoe 50, Tahoe Sport G1

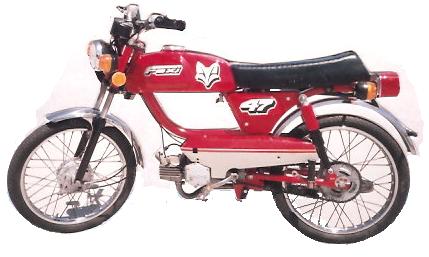

c. 1980-82 Foxi 47
c. 1980-83 General 5 Star ST

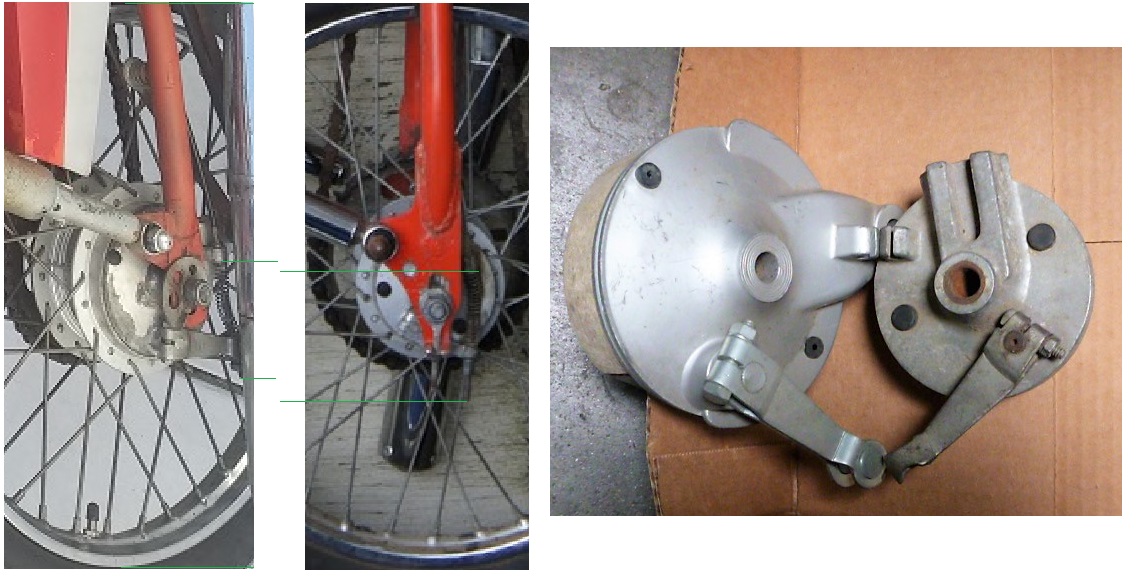

c. made by Her Chee, 110 mm brakes Sachs 505/1A or 1D 5150/5151 controls





---

1. Identification Photos

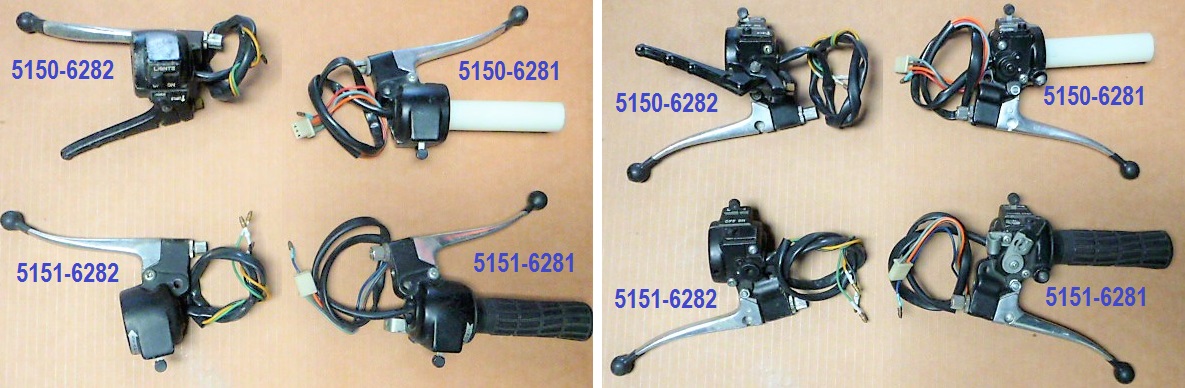

Screwy threads: The 5mm screws in the 5150 and 5151 black controls have regular metric thread M5-0.8. That has been the world standard since 1969. But the 5mm screws on all of the other Taiwan moped controls are pre-1969 JIS (Japan Industry Standard) thread M5-0.9, which is coarser.

1970’s Taiwan controls are remakes of 1960’s Japanese controls, made from 1960’s molds and tooling. 1980’s Taiwan controls are remakes of certain 1970’s Japanese controls, made from 1970’s molds and tooling. That’s why 1150, 3150, 4150 have the special thread and 5150, 5151 have regular thread. This thread confusion is only for the 5mm size screws.







---

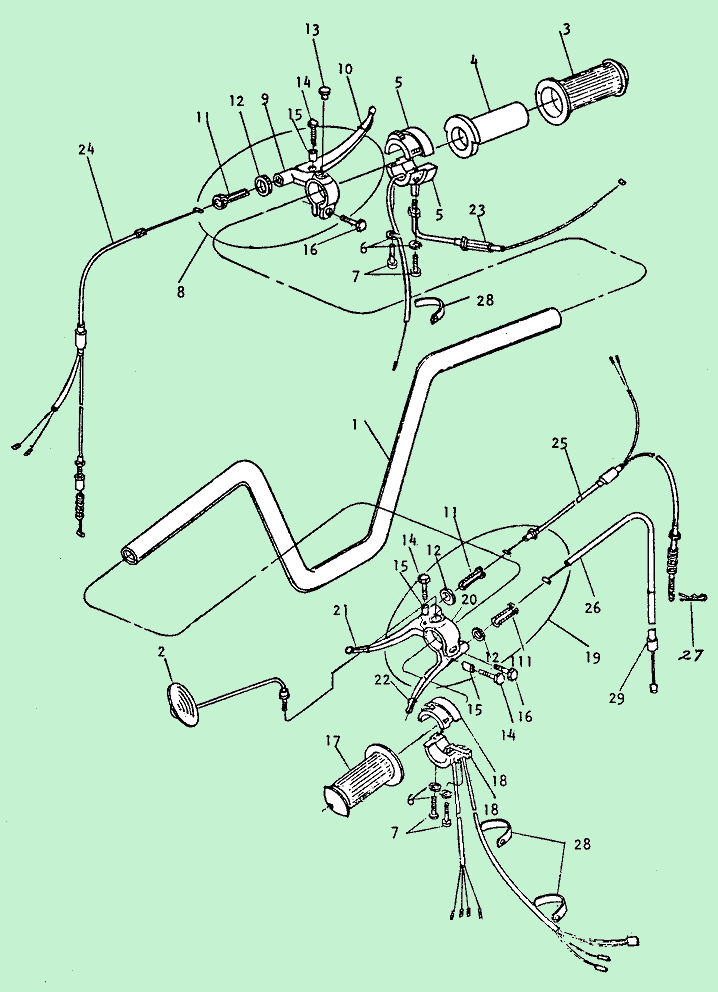

2. 1150 controls for Minarelli or Sachs foot-brake

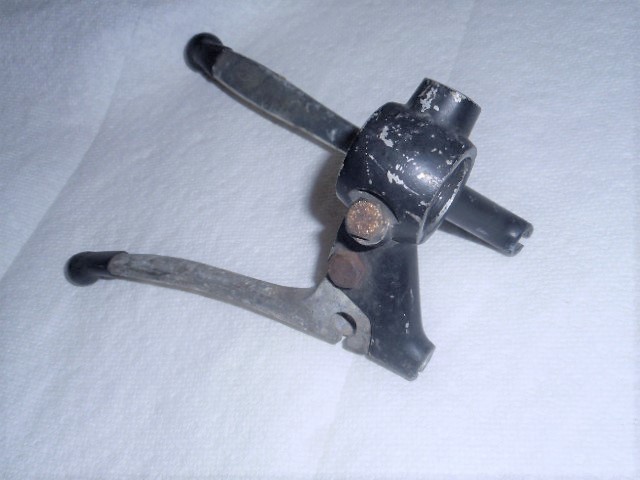

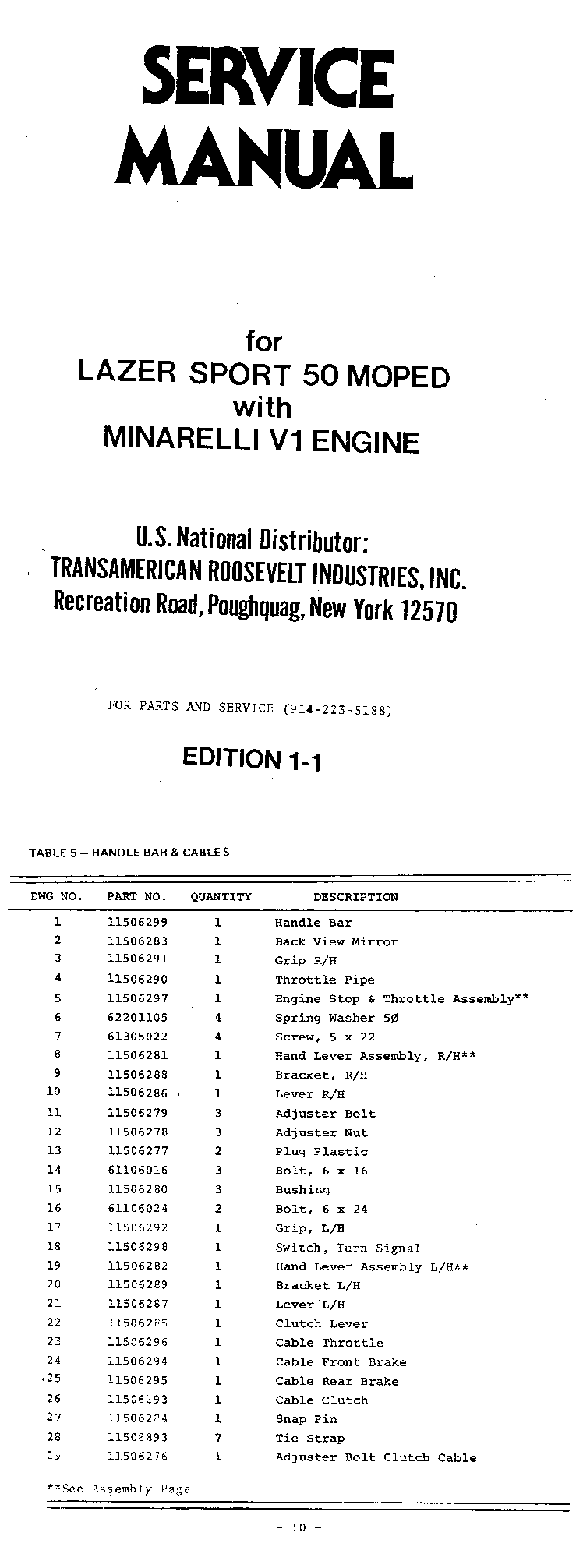

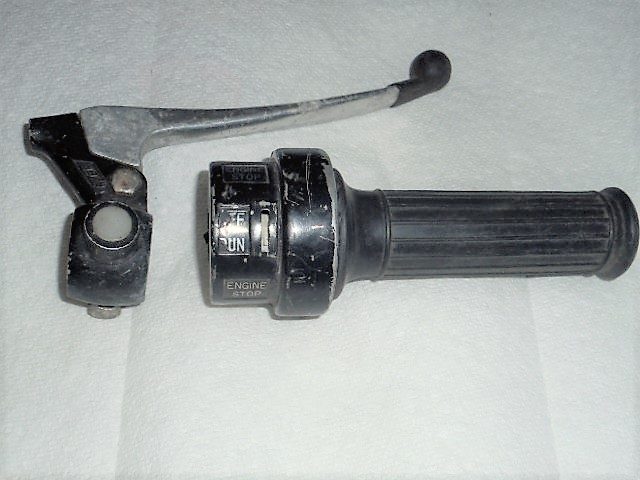

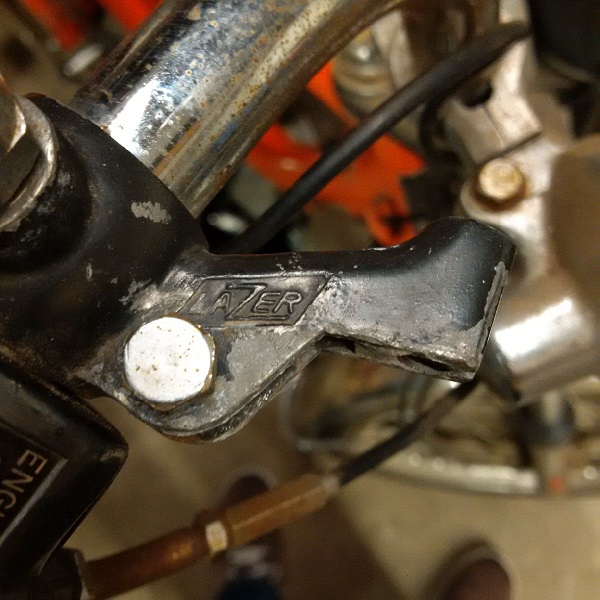

1977-79 Lazer Sport 50, Sport 50 ST
made by Her Chee, 80 mm brakes, Minarelli V1 engine
1978-79 General 5 Star, 5 Star ST
made by Jui Li, 80 mm brakes, Minarelli V1 engine

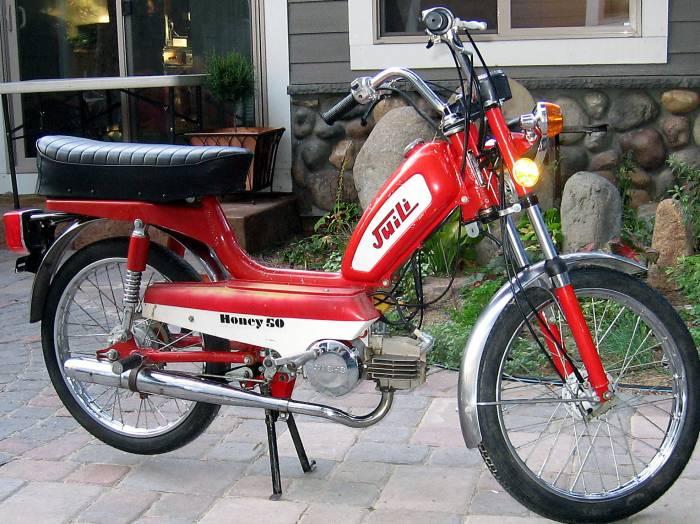

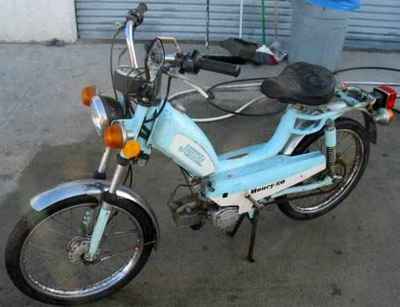

1977-78 Jui Li Honey 50
1977-78 Clinton 50-A

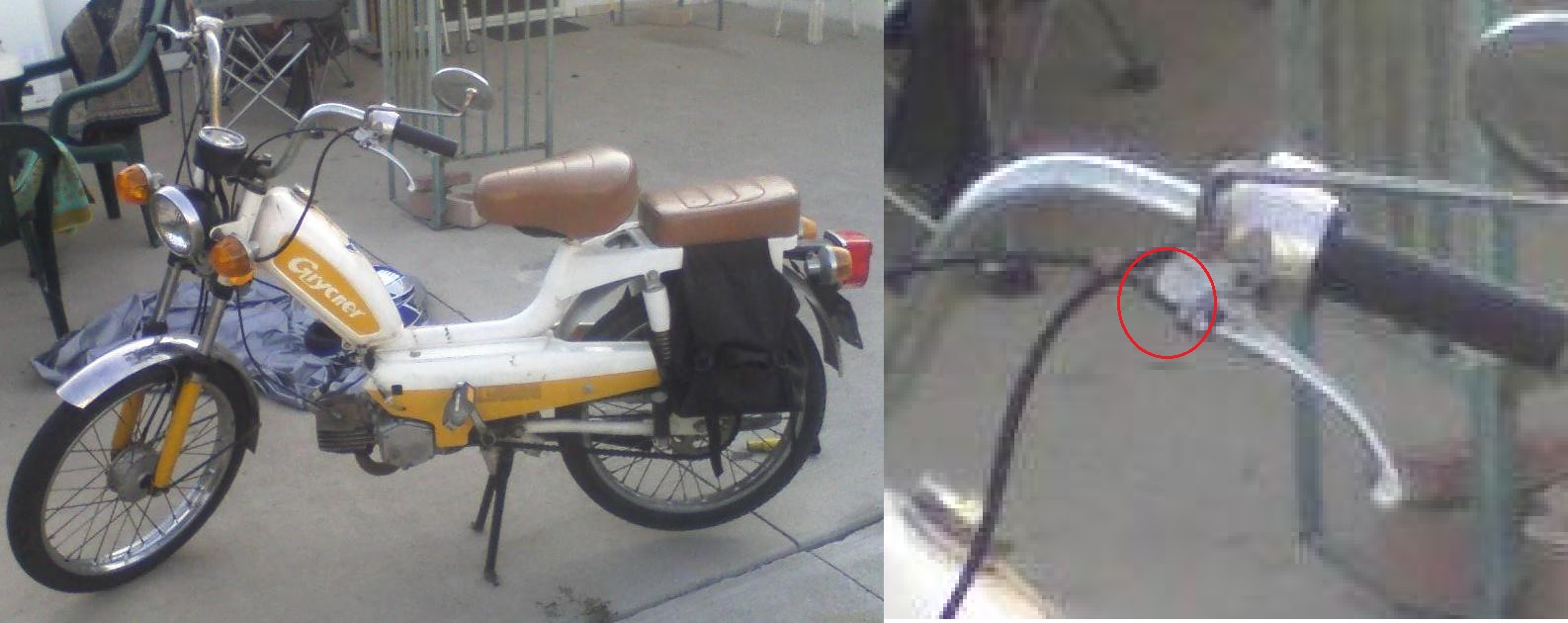

1978-79 Grycner moped
made by Jui Li, 80 mm brakes, Sachs 505/1A engine with foot brake

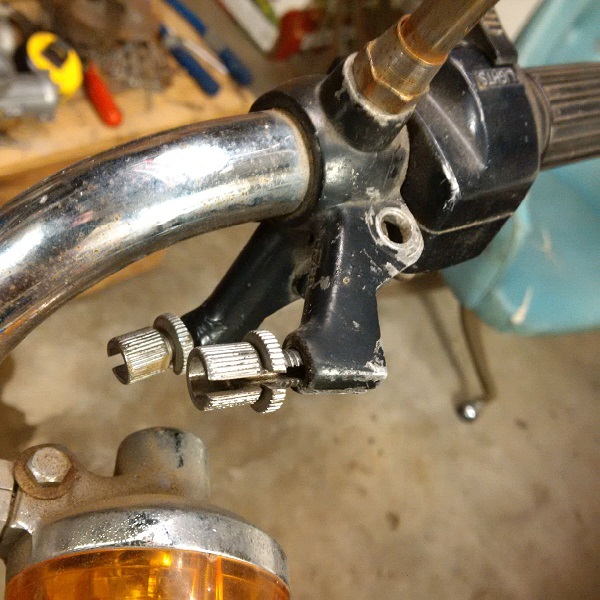

Taiwan 1150 control housings are separate from the electrical switch housing. The electrical buttons are near the riders thumbs. The brake levers are about 1.5 inch longer, because the lever housings (perches) are 1.5 inch further inward on the handlebar.

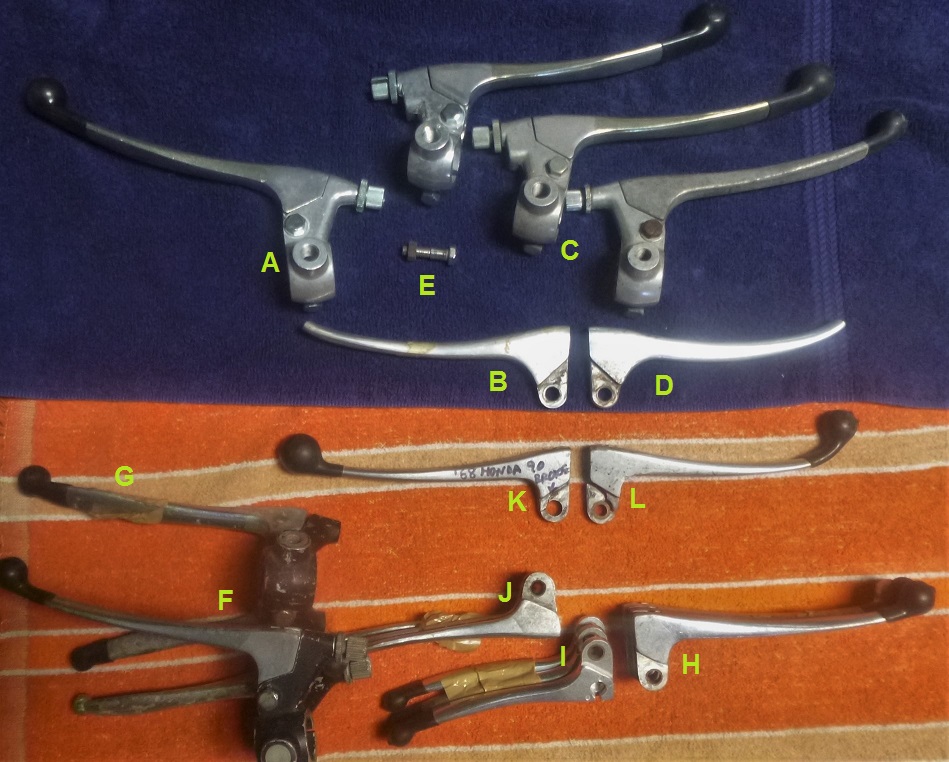

Taiwan 1150 levers break easy, because they are only 6mm wide at the pivot. Most other vintage Japanese small motorcycle hand levers are 8mm wide at the pivot.

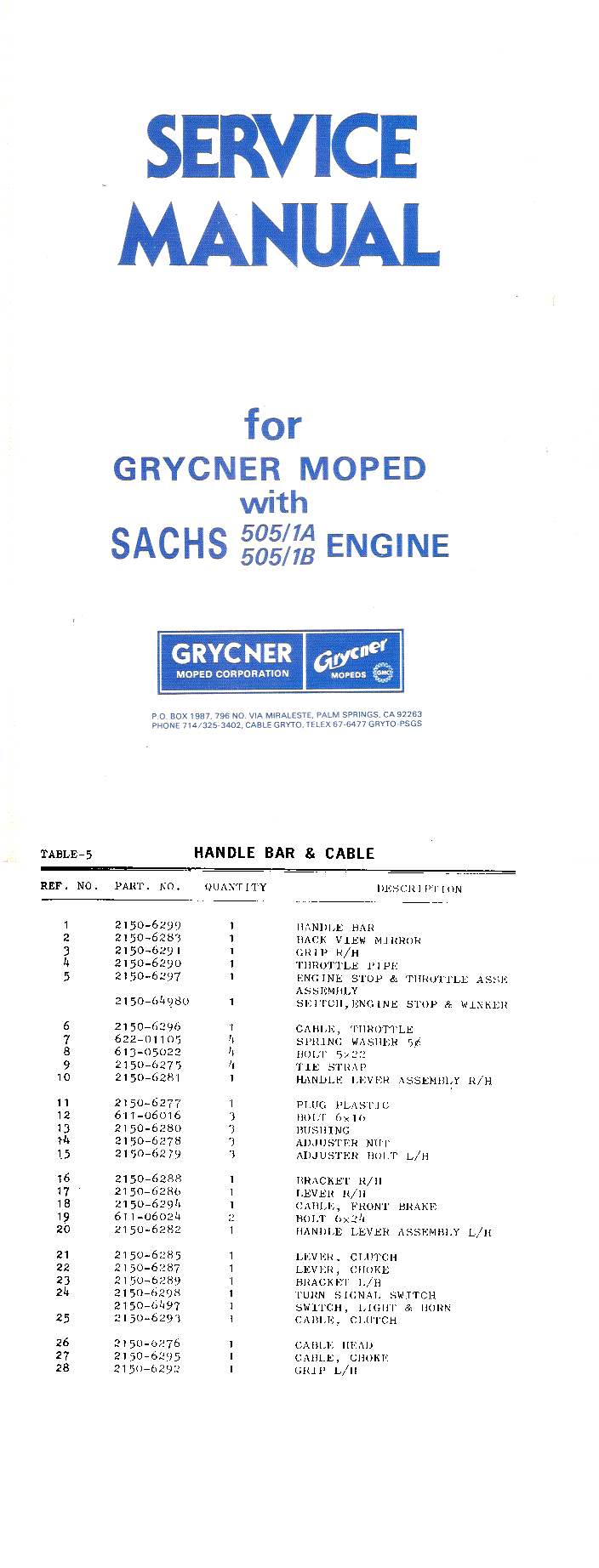

1150 and 2150: The entire Grycner parts list uses 2150 prefix on all parts except hardware. But most parts on a Grycner are the same as on Lazer step-thru. That is evident from photos. What is different is the engine, Minarelli or Sachs, and the parts that are connected to the engine. The 2150 controls are the same as 1150. The 2150 front brake cable is the same as 1150. But the 2150 throttle, start, and choke cables are different from 1150, since they go to different engines.



What the 1150 left control does:

Minarelli engine, rear hand brake:
left lever is rear brake, lower lever is clutch

Sachs 505 engine with rear foot brake:
left lever is clutch, lower lever is choke

































































o#   Taiwan#    qty  price
o#   Taiwan#    qty  price    price color: new, used   font:  original part, replacement part
o#   Taiwan#    ab  price    description     a is 1150 Minarelli, b is 2150 Sachs with foot brake
01  1150-6299  11  none    handlebar, no wires or mount holes

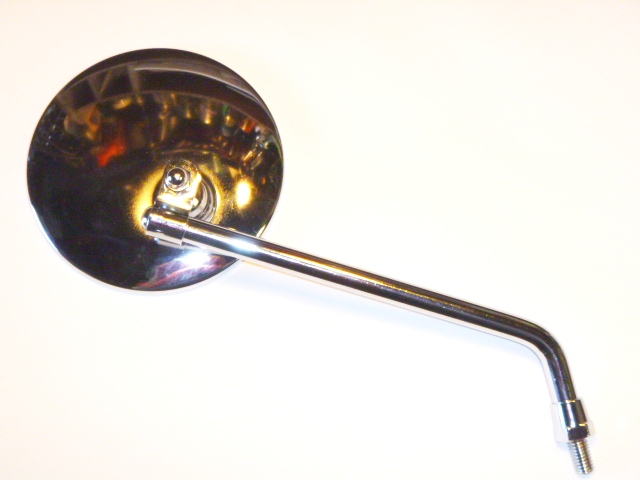

02  1150-6283  11  $15.0  mirror M8 screw-in round chrome
03  1150-6291  11  none    right grip 112 x 25 ribbed
04  1150-6290  11  $12.0  throttle twist tube
05  1150-6297  11  $35.0  throttle/switch assy engine stop
06  6220-1105  44  $0.20  lock washer ∅5
07  6130-5022  44  $1.50  phillips screw M5-0.9 x 22  (60’s JIS thread)
08  1150-6281  11  none    right lever assembly
08  1150-6281  11  $21.0  right lever assembly silver C
09  1150-6288  11  none    right lever bracket (perch)
10  1150-6286  11  $30.0   right brake lever H
10  1150-6286  11  $16.0  right brake lever H  w956-56-6264B
11  1150-6279  33  $3.00  cable adjuster M8 slotted
12  1150-6278  33  $2.00  adjuster nut M8 slotted
13  1150-6277  22  none    plastic plug for mirror hole (optional)
14  6110-6016  33  $1.50  pivot bolt M6 x 16 hex chrome
15  1150-6280  33  $5.00  bushing ∅6 ∅7 x 9
16  6110-6024  22  $1.00  clamp bolt M6 x 24 hex
17  1150-6292  11  none    left grip 112 x 22 ribbed
18  1150-6298  11  $45.0  left switch assembly
19  1150-6282  11  $75.0  left dual lever assembly F
19  1150-6282  11  $23.0  left single lever assembly silver A
20  1150-6289  11  $33‘0  left dual lever bracket (perch)
21  1150-6287  11  $30.0   left brake lever G
21  1150-6287  11  $16.0   left brake lever G  w956-56-6264C
22  1150-6285  11  $20.0  start (clutch or choke) lever, left style I
22  1150-6285  11  $20.0  start (clutch or choke) lever, right style J
23  1150-6296  10  $32.0  throttle cable Minarelli

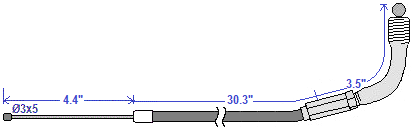

00  2150-6296  01  $28.0  throttle cable Sachs-long-elbow
24  1150-6294  11  $27.0  front brake cable with switch
25  1150-6295  10  $27.0  rear brake cable with switch
26  1150-6293  10  $12.0  start cable Minarelli
00  2150-6293  01  $31.0  start cable Sachs
00  2150-6284  01  $23.0  choke cable Sachs for 1150 control
27  1150-6284  10  $0.00  retaining clip (at rear end of rear brake cable)
28  1150-8893  77  $3.00  rubber tie strap (for electrical wires only)
29  1150-6276  10  $3.00  clutch cable adjuster (at engine) M6



























---

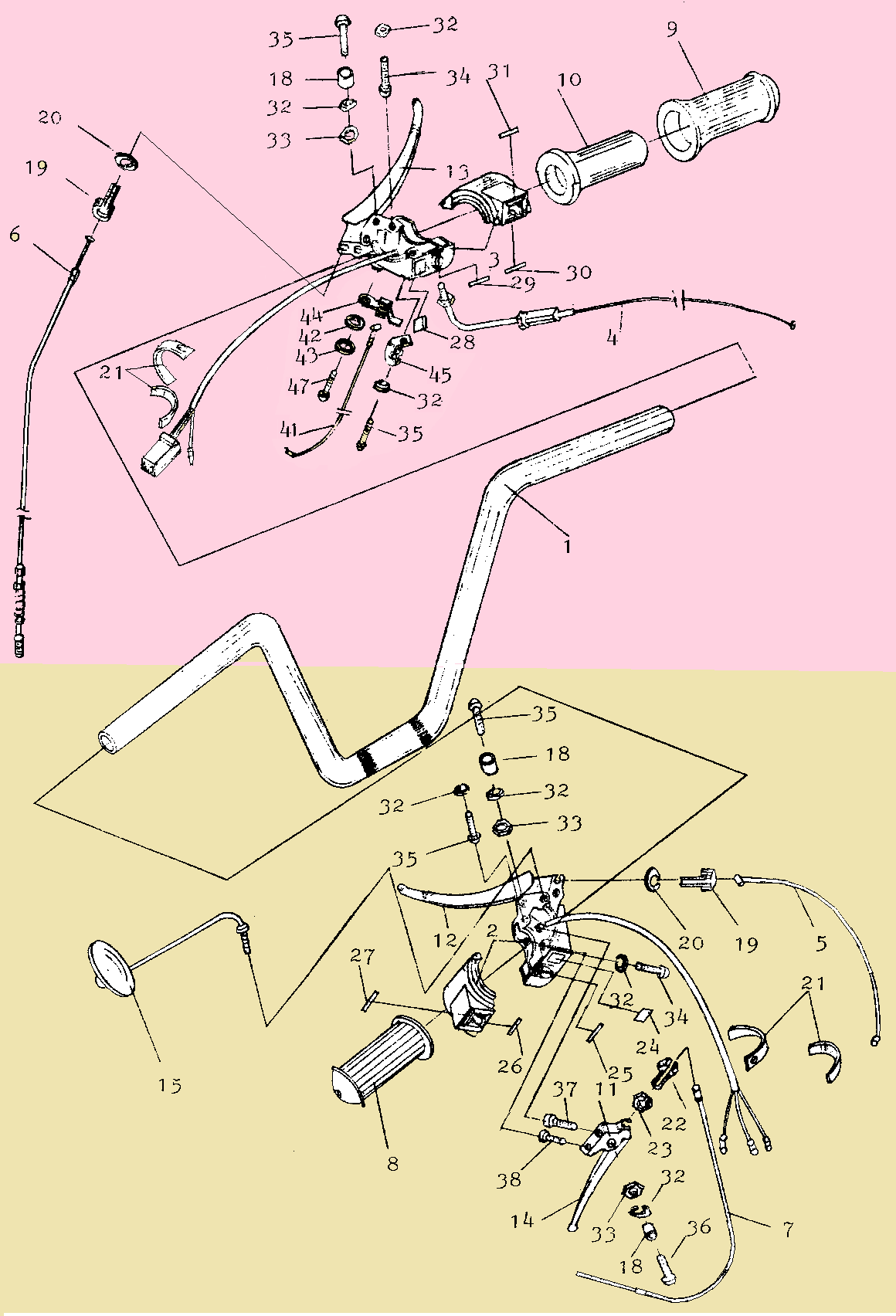

3. 1150-00, 3150 and 5150 controls for Minarelli

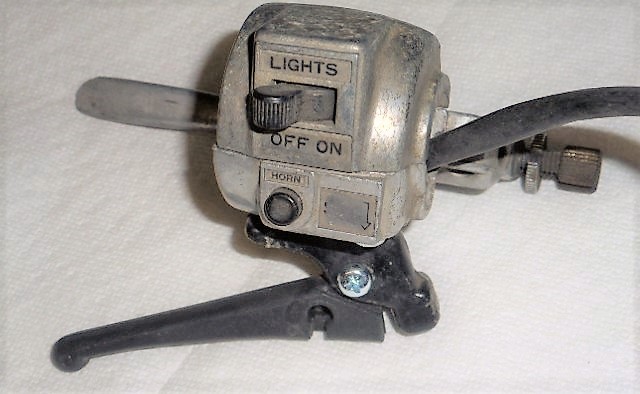

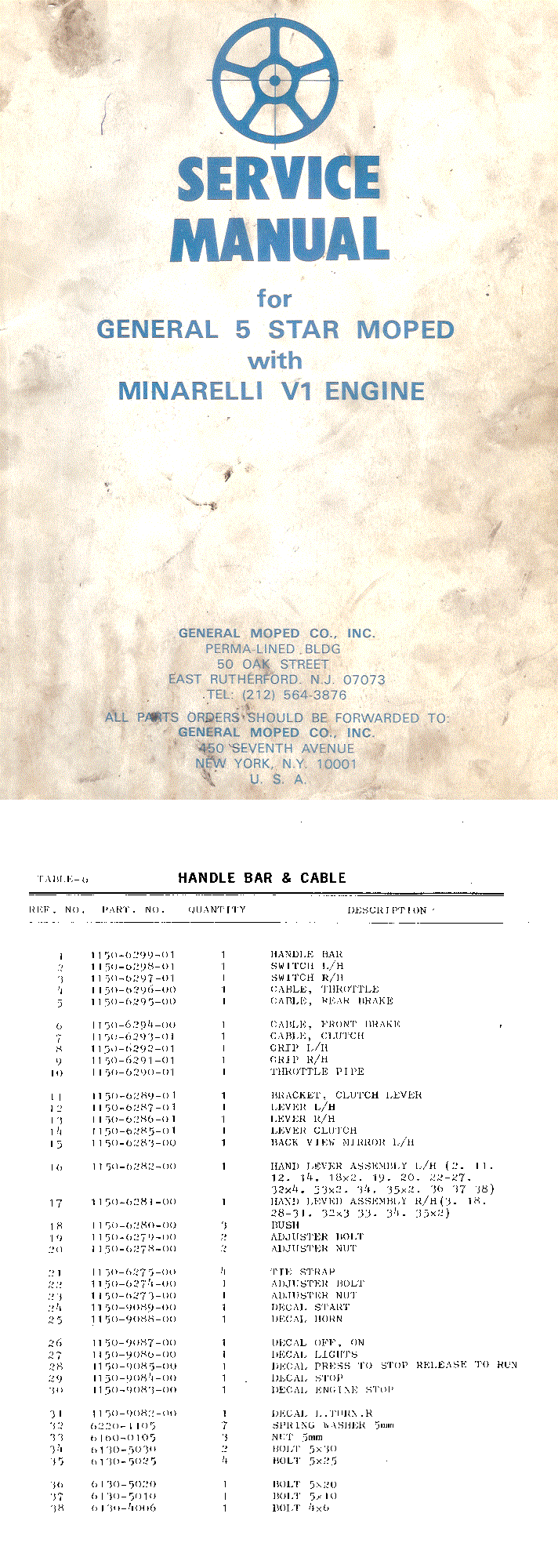

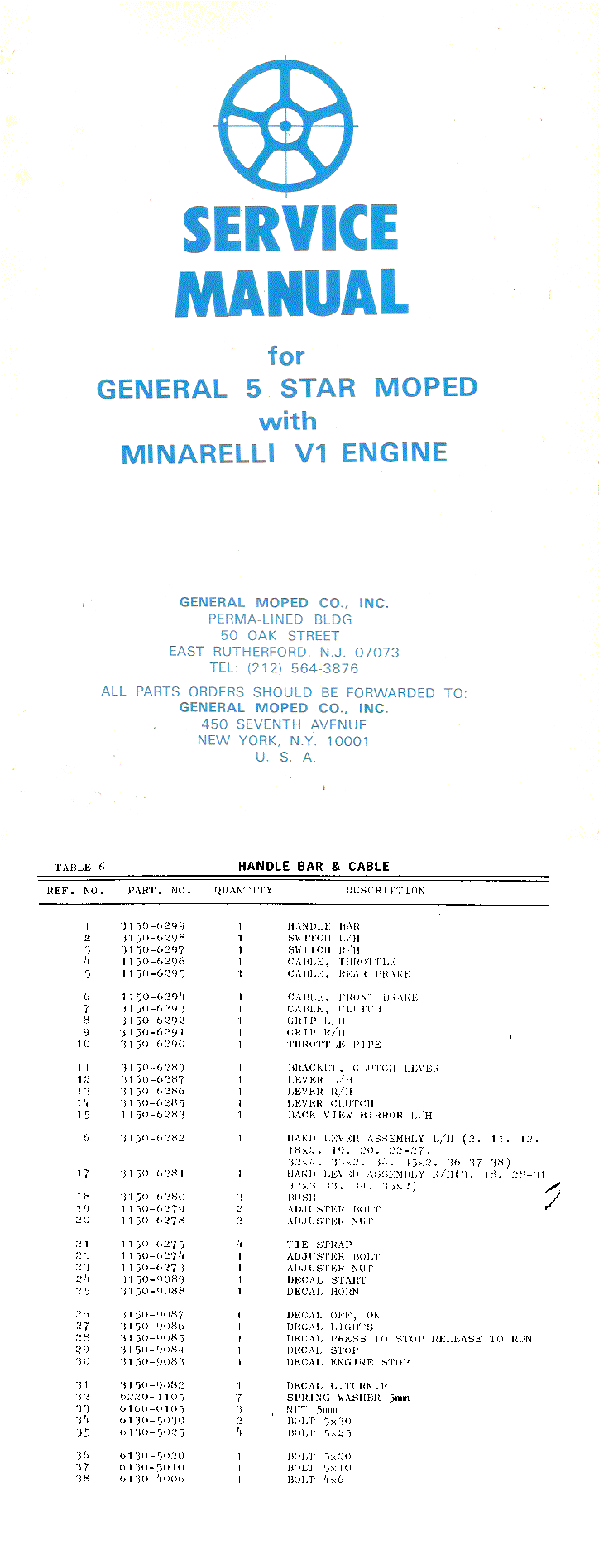

1979 General 5-Star
made by Jui Li, 80 mm brakes, Minarelli V1 engine

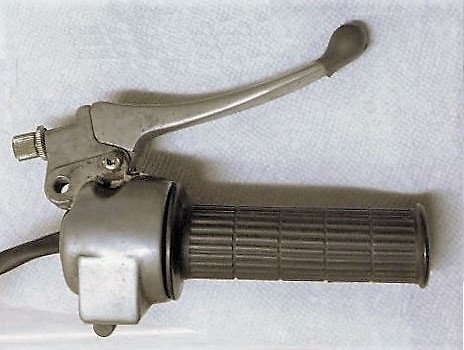

1150-00 does not have threaded holes for brake light switches but 3150 does. The brake levers are shorter than 3150, 4150 ones, and pull the cable less. This design is for smaller hands.

The brake cable inner wire length required by the the 1150-00 controls is 3 mm less than on 3150, 4150, 5150 controls, but 4 to 5 mm more than on 1150 controls.

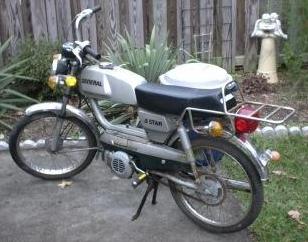

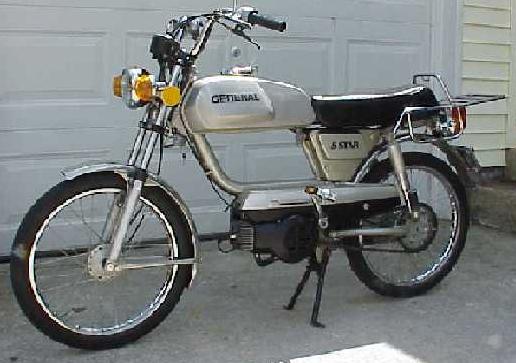

1979-81 General 5-Star or C2, 5 Star ST
made by Jui Li, 80 mm brakes, Minarelli V1 or C2 engine

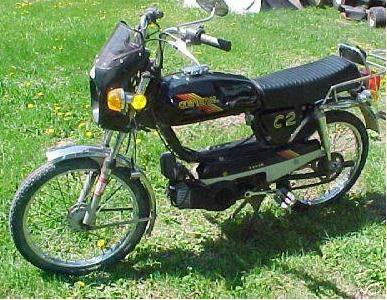

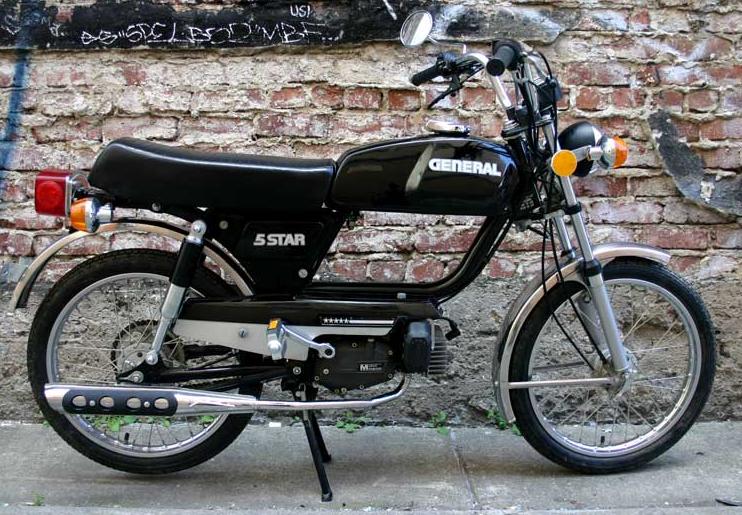

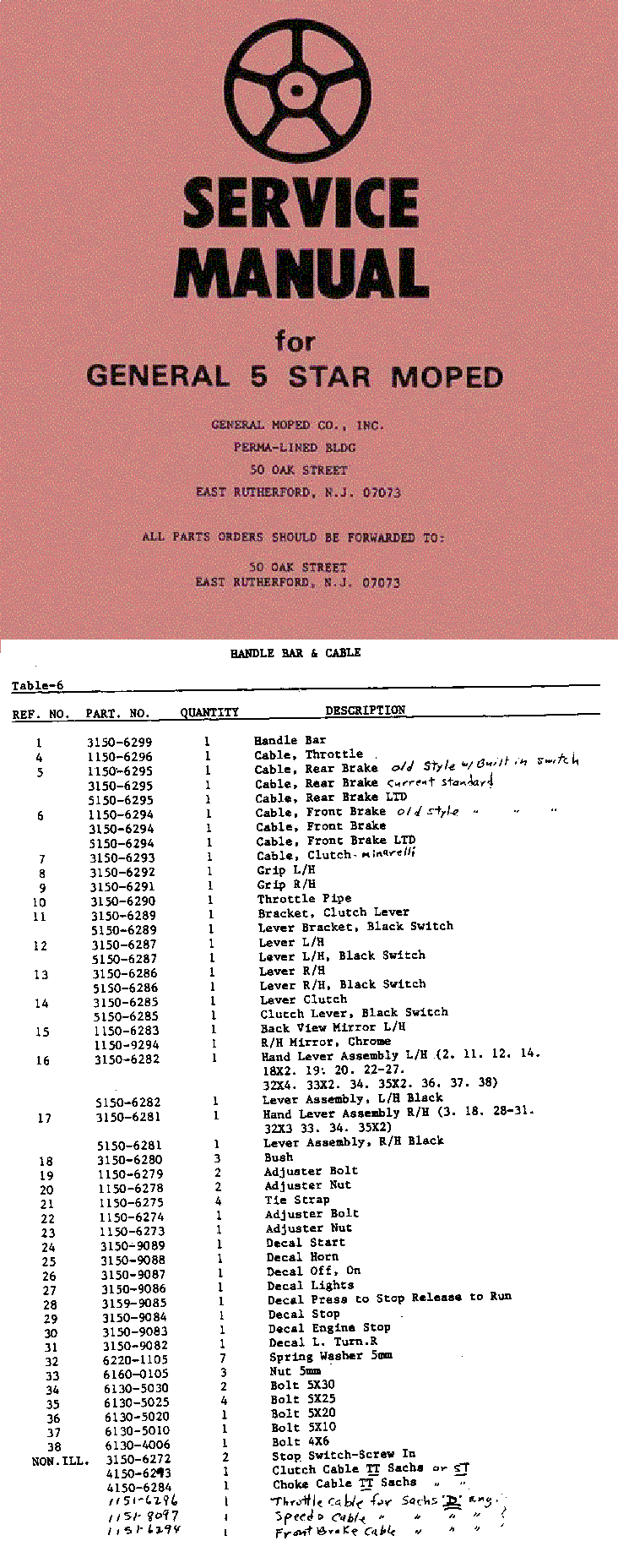

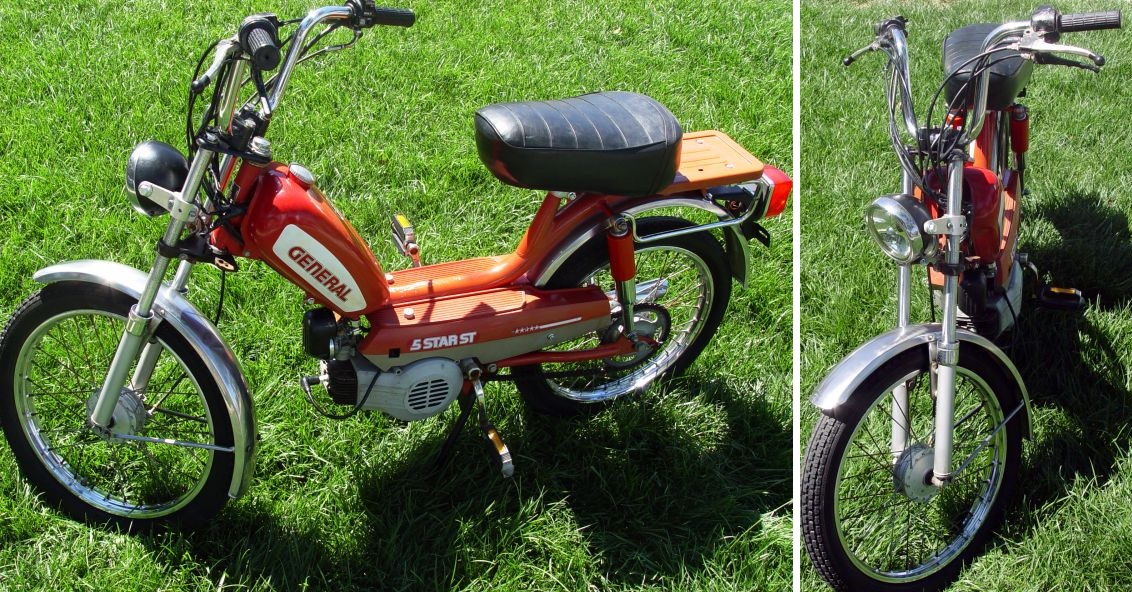

1982-85 General 5-Star or C2, 5 Star ST
made by Jui Li, 80 mm brakes, Minarelli V1 or C2 engine

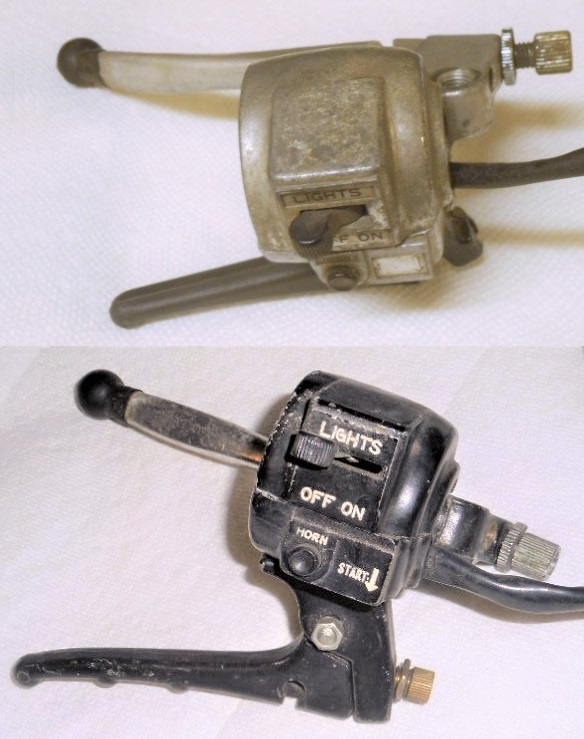

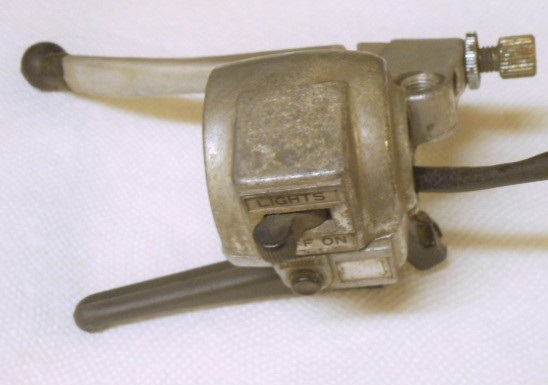

Left control 3150: Left lever 3150-6287. The plastic start lever 3150-6285 with mount 3150-6289 was below the control. Start cable end hole 6.5 mm for a 6.0 diameter barrel end.

Left control 5150: Left lever 5150-6287. The metal start lever 5150-6285 with mount 5150-6289 was below the control. Start cable end hole 6.5 mm for a 6.0 diameter barrel end.

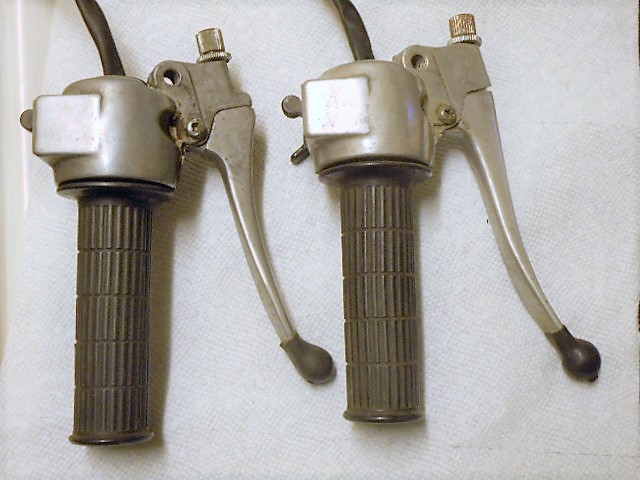

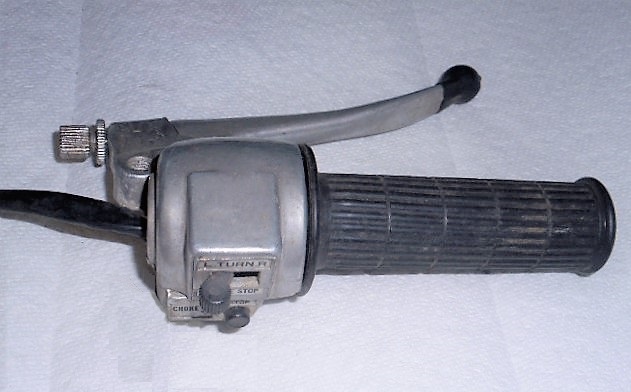

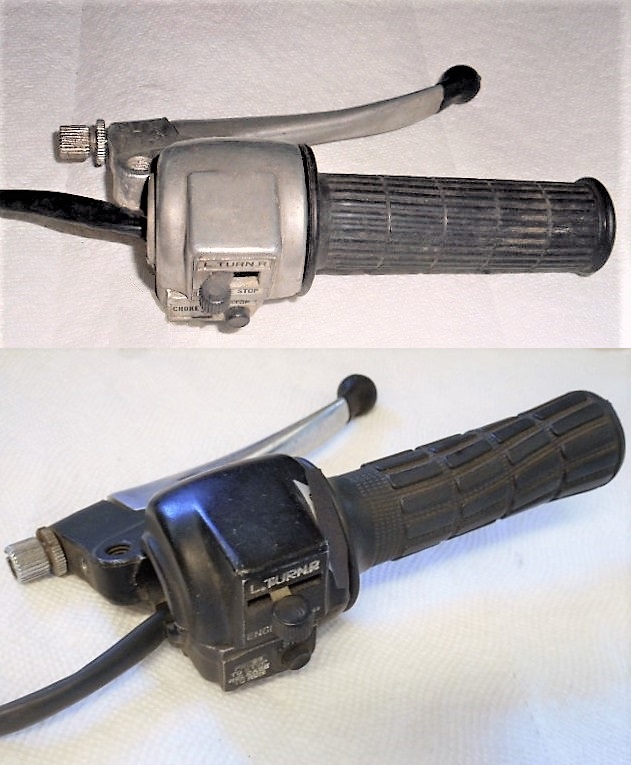

Right control 3150: Right lever 3150-6286. Brake cable hole 8.5.  No choke lever.

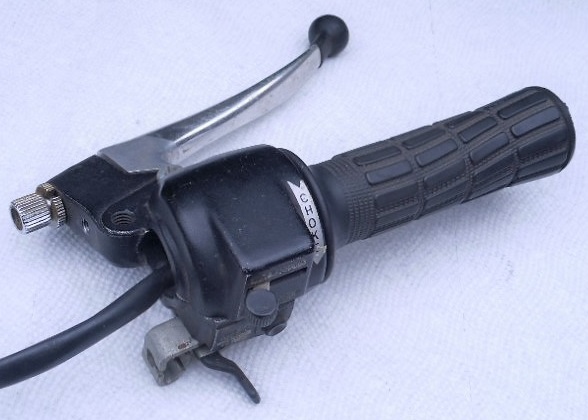

Right control 5150: Right lever 5150-6286. Brake cable hole 8.5.  No choke lever.

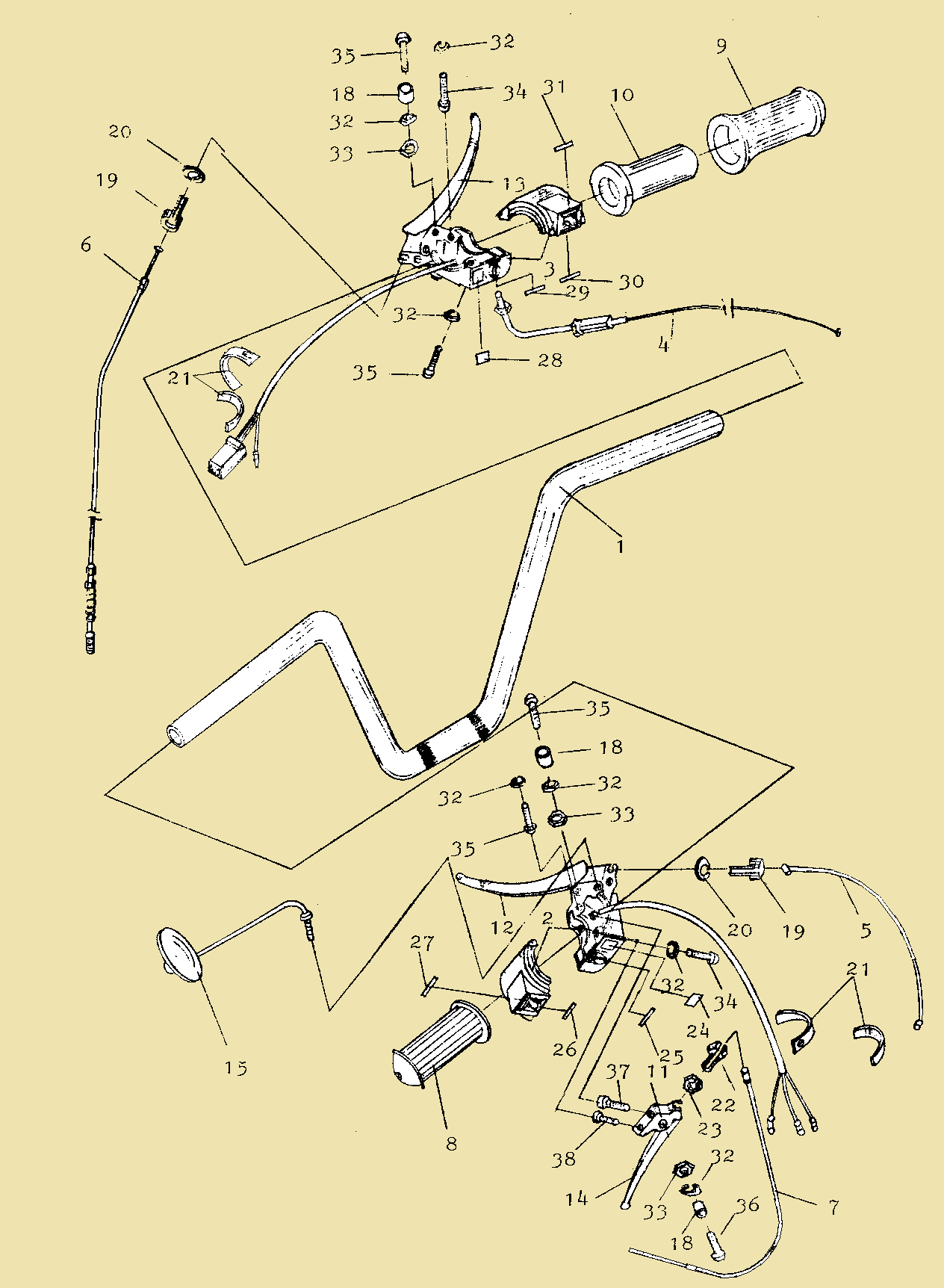

o# 0000-0000-00   qty   price    price color: new, used   font:  original part, replacement part
o#  0000-0000-00  abc   price    description     a is 1150-00, b is 3150, c is 5150
01  3150-6299-00  111   none   handlebar, no wires or mount holes
02  1150-6298-01  100   none   left housing/switch assy small, no brake switch threads
02  3150-6298-00  010   none   left housing/switch assy silver with brake switch threads
02  5150-6298-00  001   none   left housing/switch assy black with brake switch threads
03  1150-6297-01  100   none   right housing/switch assy small, no brake switch threads
03  3150-6297-00  010  $45.0  right housing/switch assy silver, no choke lever threads
03  5150-6297-00  001   none   right housing/switch assy black, no choke lever threads
04  1150-6296-00  111  $32.0  throttle cable original
05  1150-6295-00  100  $27.0  rear brake cable with switch
05  3150-6295-00  011  $31.0  rear brake cable no switch
05  5150-6295-00  010  $15.0  rear brake cable 1-ended for Limited Edition only
06  1150-6294-00  100  $27.0  front brake cable with switch
06  3150-6294-00  011  $34.0  front brake cable no switch
05  5150-6294-00  010  $14.0  front brake cable 1-ended for Limited Edition only
07  3150-6293-00  111  $12.0  start cable
08  3150-6292-00  111  $5.00  left grip original   ∅22 x 105
09  3150-6291-00  111   none   right grip original ∅25 x 105
10  3150-6290-00  111  $20.0  throttle twist tube original for 105 grip
10  3150-6290L-0  111  $19.0  throttle twist tube long for 120 grip
11  3150-6289-00  110  18-12  start lever mount small M5-0.9 and M4 thread
11  5150-6289-00  001  $26.0  start lever mount large M5-0.8 and M4 thread
12  1150-6287-01  100  $14.0  left lever short-pull
12  3150-6287-00  010  $27.0  left lever medium
12  5150-6287-00  001  $36.0  left lever large
13  1150-6286-01  100  $14.0  right lever short, use 3150
13  3150-6286-00  010  $16.0  right lever medium
13  5150-6286-00  001  $29.0  right lever large used
14  1150-6285-01  100  none  start lever black plastic
14  3150-6285-00  010  $26.0  start lever silver metal
14  5150-6285-00  001  $26.0  start lever large black metal
15  1150-6283-00  111  $15.0  mirror M8 screw-in round chrome
16  1150-6282-00  100   none   left control assy small with lower lever
16  3150-6282-00  010  $85.0  left control assy silver with lower lever
16  5150-6282-00  001  95-80  left control assy black with lower lever
17  1150-6281-00  100   none   right control assy small no choke lever
17  3150-6281-00  010  65-40  right control assy silver no choke lever
17  5150-6281-00  001  $82.0  right control assy black no choke lever
17  3150-6281L-0  010  65-40  right control assy silver no choke lever, long for 120 grip
17  5150-6281L-0  001  $82.0  right control assy black no choke lever, long for 120 grip
18  3150-6280-00  330  $6.00  pivot bushing ∅5.0-∅6.0 x 11.8
19  1150-6279-00  111  $3.00  cable adjuster M8 slotted
20  1150-6278-00  222  $2.00  adjuster nut M8 slotted
21  1150-6275-00  444  $3.00  rubber tie strap (for electrical wires only)
22  1150-6274-00  111  $3.50  start cable adjuster
23  1150-6273-00  111  $2.50  start cable adjuster nut
24  3150-9089-00  111   none   sticker START
25  3150-9088-00  111   none   sticker HORN
26  3150-9087-00  111   none   sticker OFF  ON
27  3150-9086-00  111   none   sticker LIGHTS
28  3150-9085-00  111   none   sticker PRESS TO STOP RELEASE TO RUN
29  3150-9084-00  111   none   sticker STOP
30  3150-9083-00  111   none   sticker ENGINE STOP
31  3150-9082-00  111   none   sticker L TURN R
32  6220-1105-00  777  $0.20  lock washer ∅5
33  6160-0105-00  330  $1.00  nut M5-0.9 (60’s JIS thread)
33  6161-0105-00  003  $0.40  nut M5-0.8
34  6130-5030-00  220  $1.50  rear screw M5-0.9 x 30 phillips  (60’s JIS thread)
34  6131-5030-00  002  $0.70  rear screw M5-0.8 x 30 phillips
35  6130-5025-00  440  $1.50  pivot & front screw M5-0.9 x 25 (60’s JIS thread)
35  6131-5025-00  002  $0.60  front screw M5-0.8 x 25
35  5150-6280-00  002  $4.50  pivot screw M5-0.8 x 25 with shoulder ∅6 x 11
36  6130-5020-00  110  $0.60  start pivot screw M5-0.9 x 20 phillips (60’s JIS thread)
37  5150-6281-00  001  $6.00  start pivot screw M5-0.8 x 22 with shoulder ∅6 x 11
37  6130-5010-00  110  $3.00  start mount screw M5-0.9 x 10 phillips (60’s JIS thread)
37  6131-5010-00  001  $0.60  start mount screw M5-0.8 x 10 phillips
38  6130-4006-00  111  $2.50  start mount screw M4-0.7 x 6 phillips





---

4. 1150-01, 4150 and 5151 controls for Sachs foot-brake

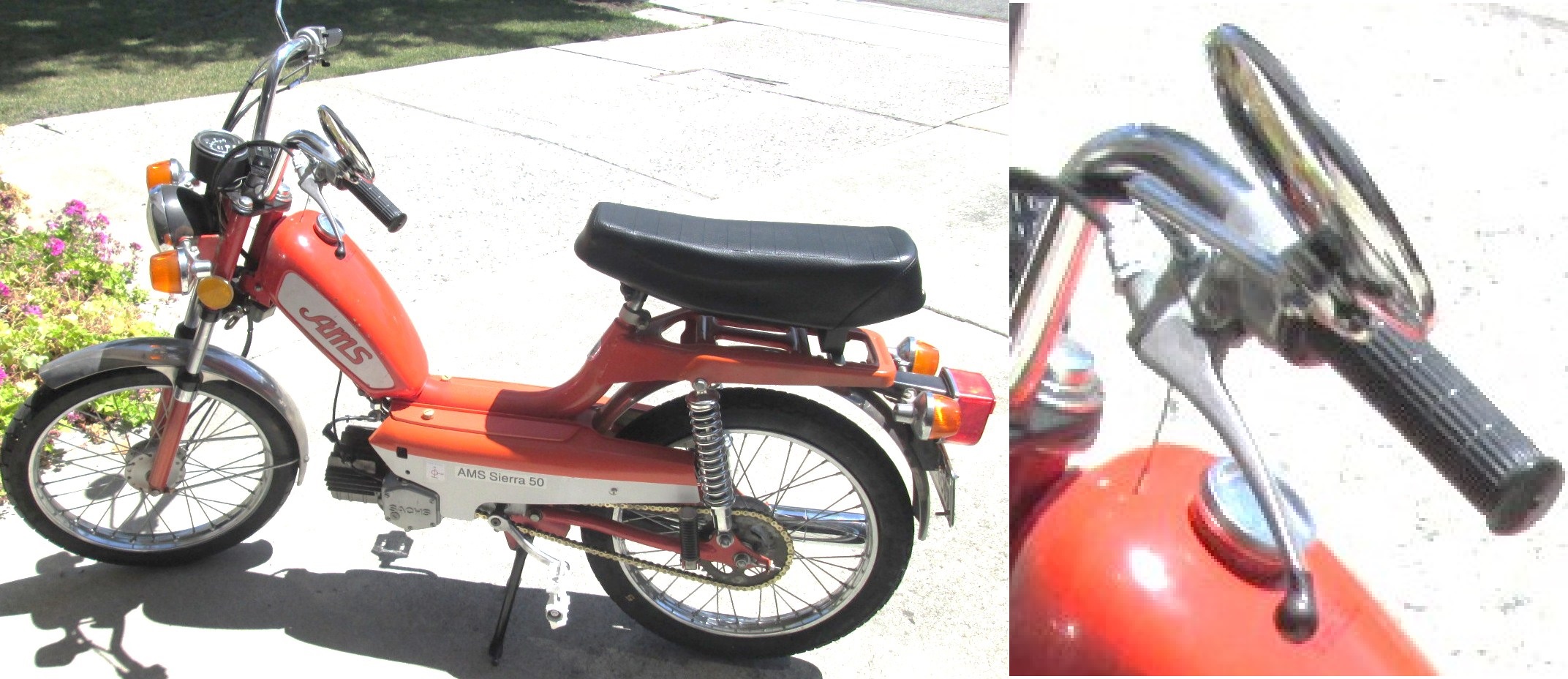

1977-78 AMS Sierra 50
1979-80 Grycner Floozie, Palm Springs
made by Jui Li, 80 mm brakes, Sachs 505/1A engine with foot brake

















1150-01 does not have threaded holes for brake light switches but 4150 does.

1150-01 brake levers are shorter than 3150, 4150 ones, and pull the cable less. This design is for smaller hands.

The brake cable inner wire length required by the the 1150-01 controls is 3 mm less than on 3150, 4150, 5150 controls, but 4 to 5 mm more than on 1150 controls.





1979-80 General 5 Star ST
1978-80 Jui Li Honey 50
1978-80 Clinton 50-A
made by Jui Li, 80 mm brakes, Sachs 505/1A, 1B engine with foot-brake

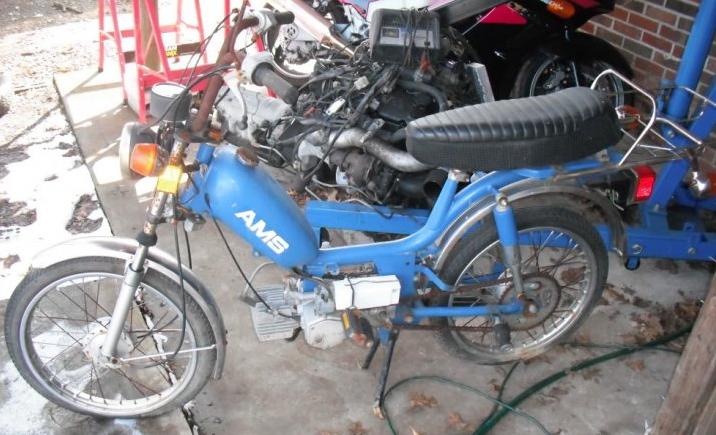

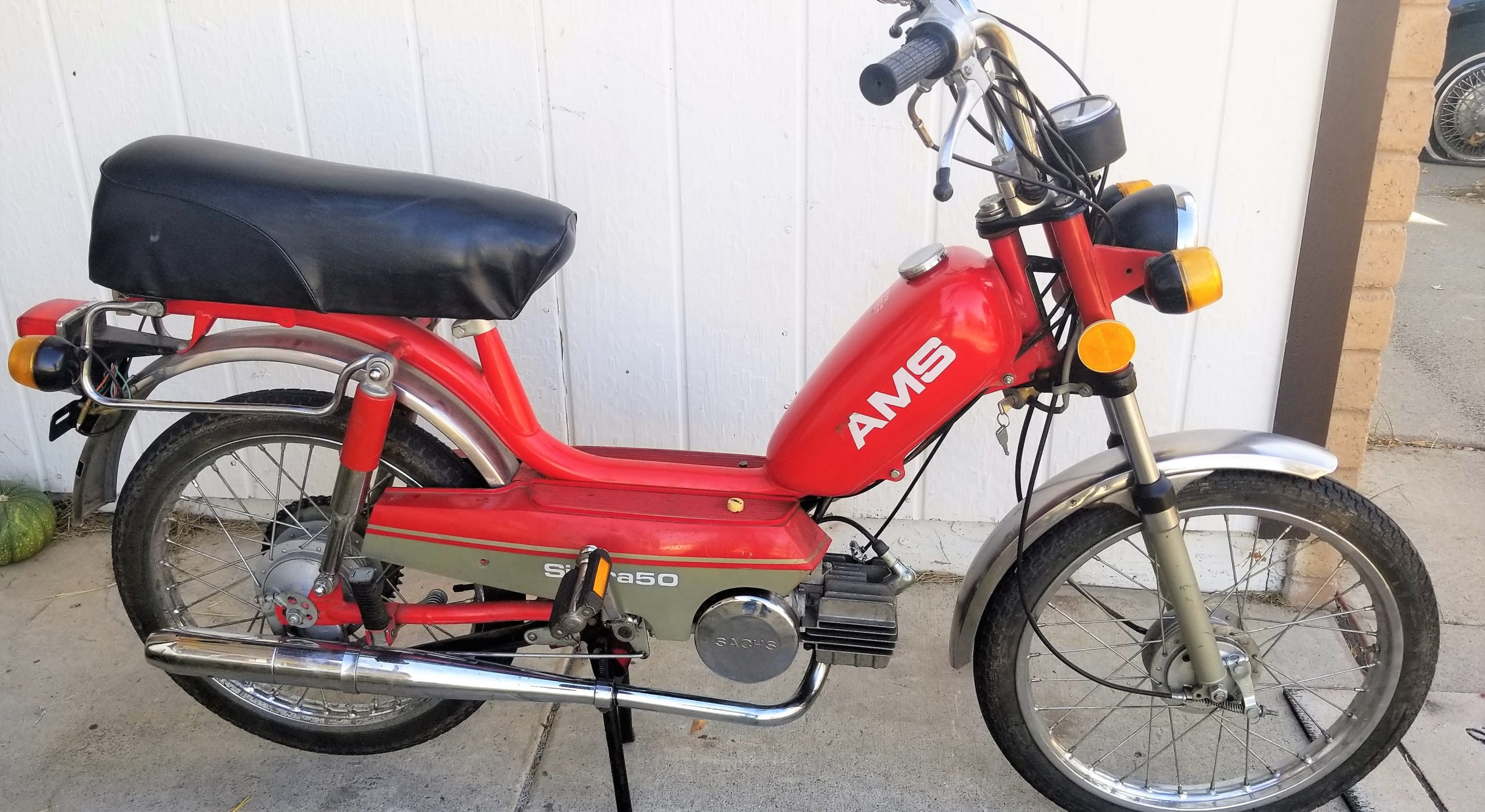

1980-85 AMS Sierra 50

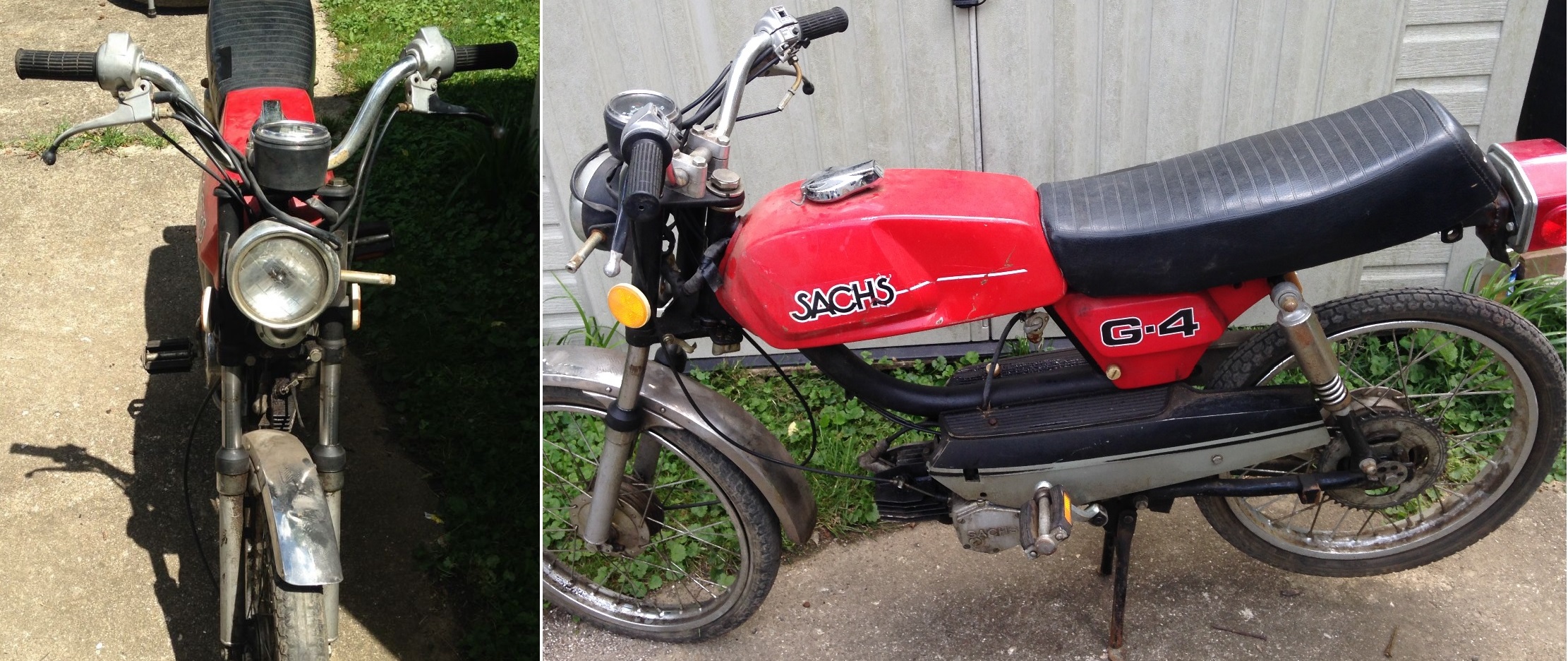

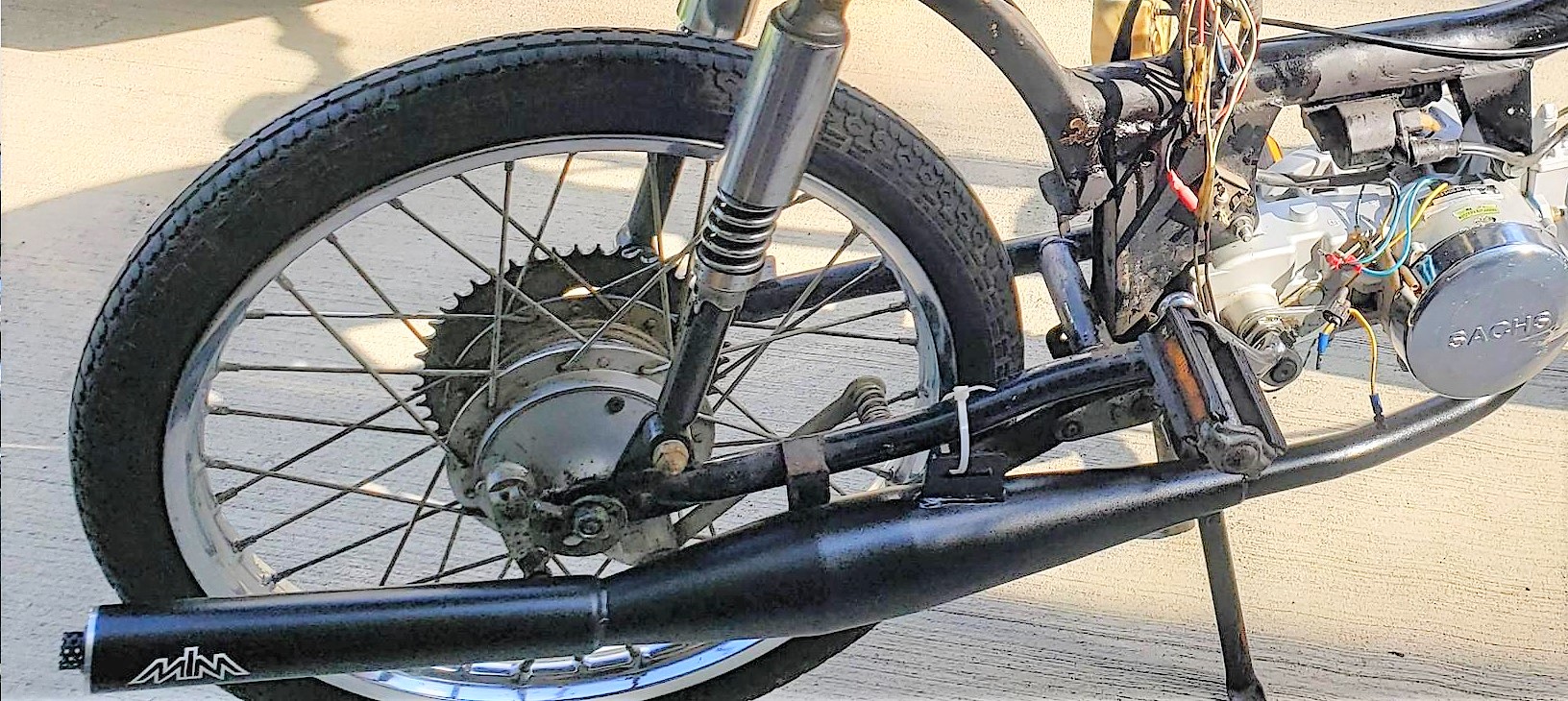

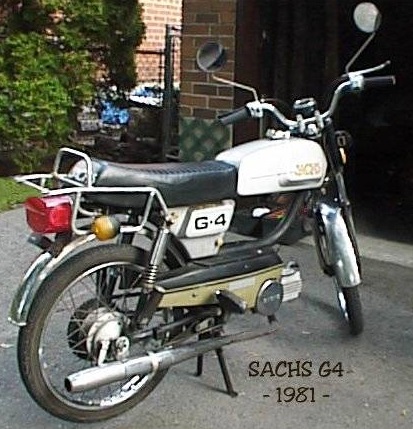

1980-82 Sachs G4
made by Her Chee, with Sachs 505/1A, B or D foot brake engine

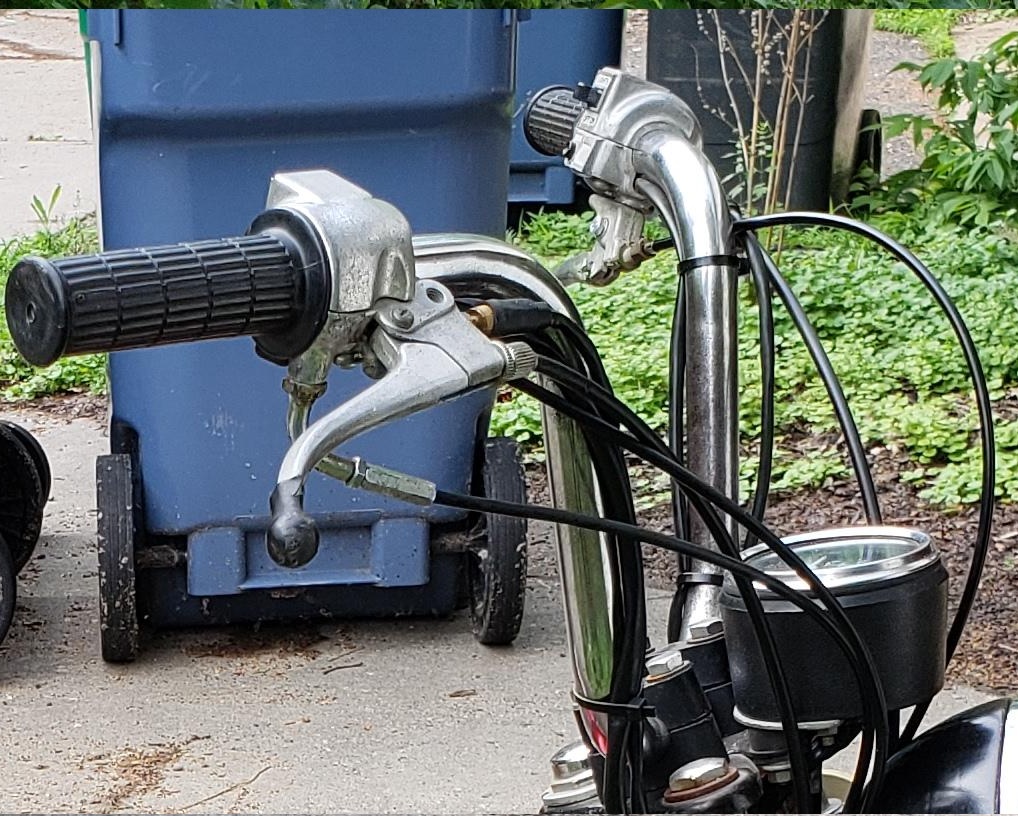

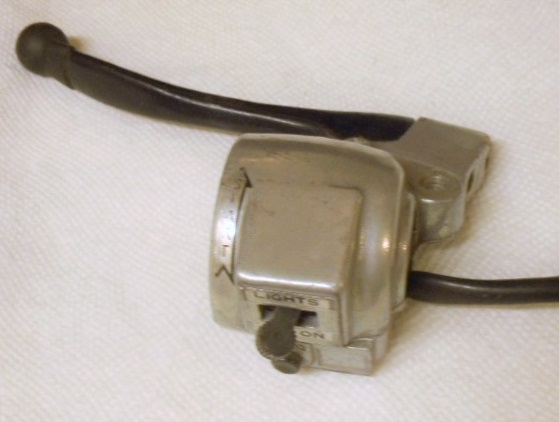

Left control: Has threaded hole for brake light switch. The left lever 4150-6287 was used as the start lever. It was made black to distinguish it from the right brake lever. A sticker says “start” and points to the black lever. Cable hole 8.5 mm for a 8.0 mm diameter barrel end.

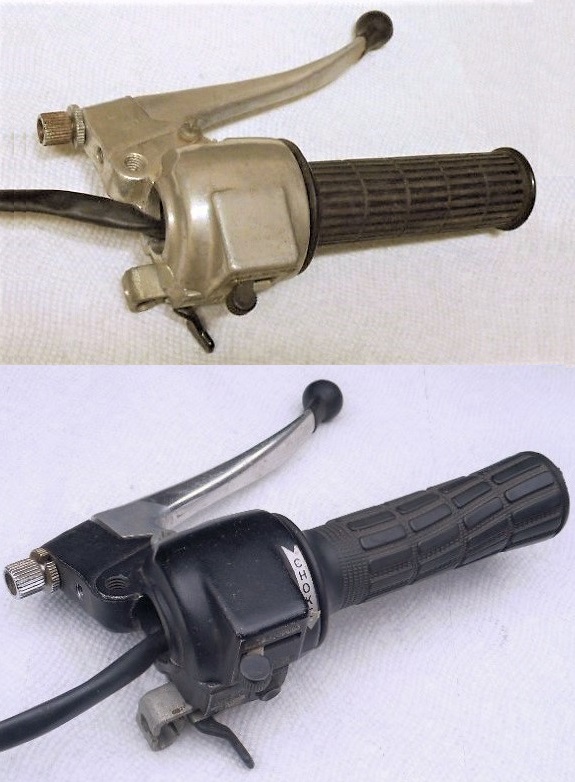

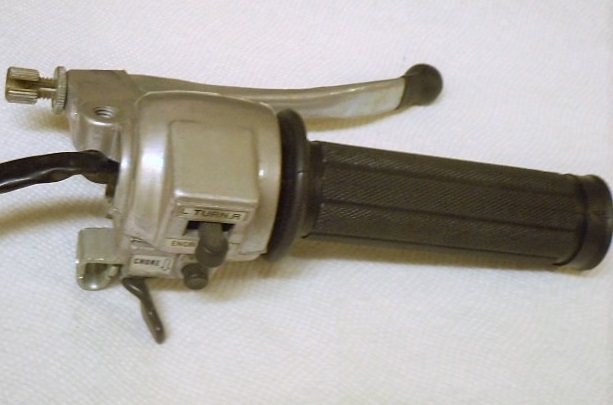

Right control: Has threaded hole for brake light switch. Right lever 3150-6286 had a 8.5 cable hole for 8.0 cable end. Choke lever 4150-6270.

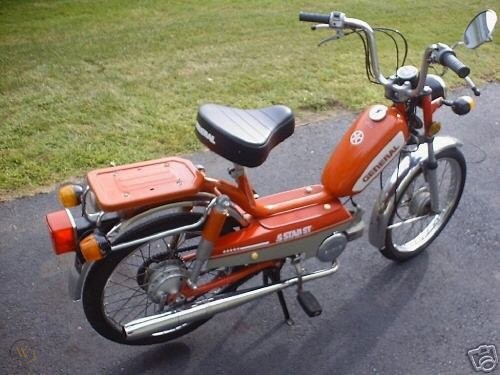

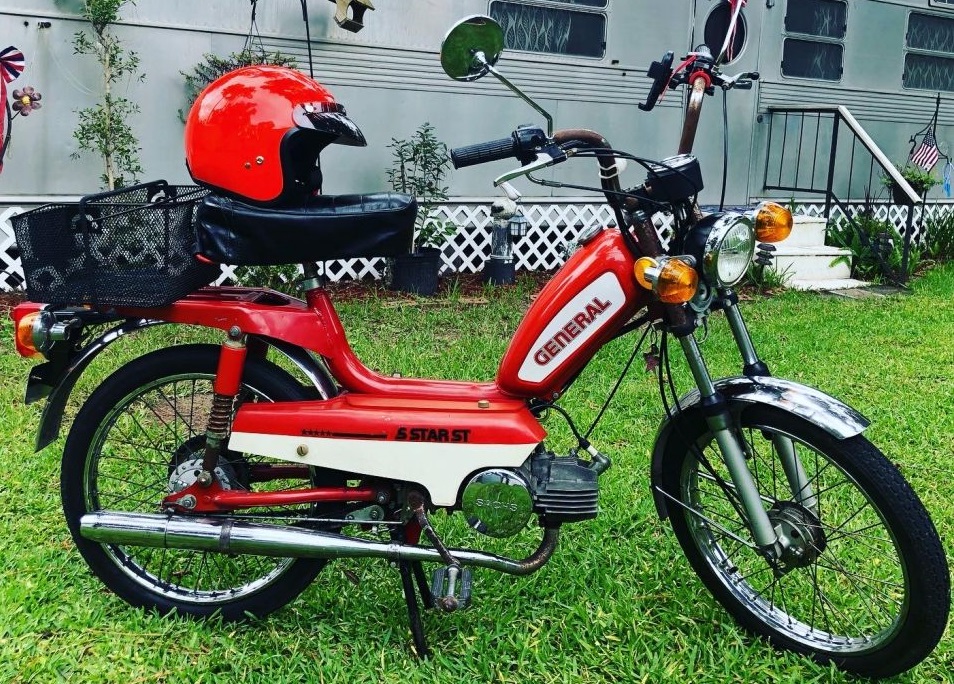

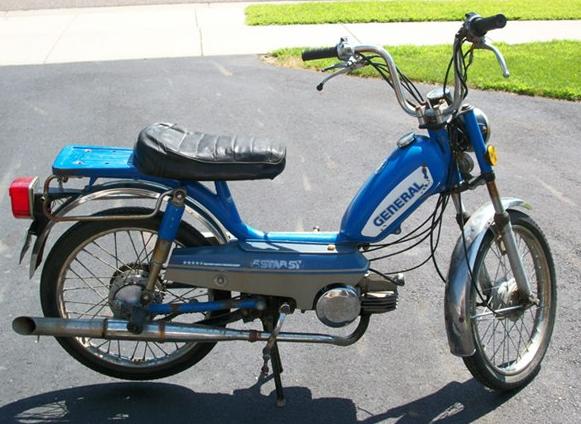

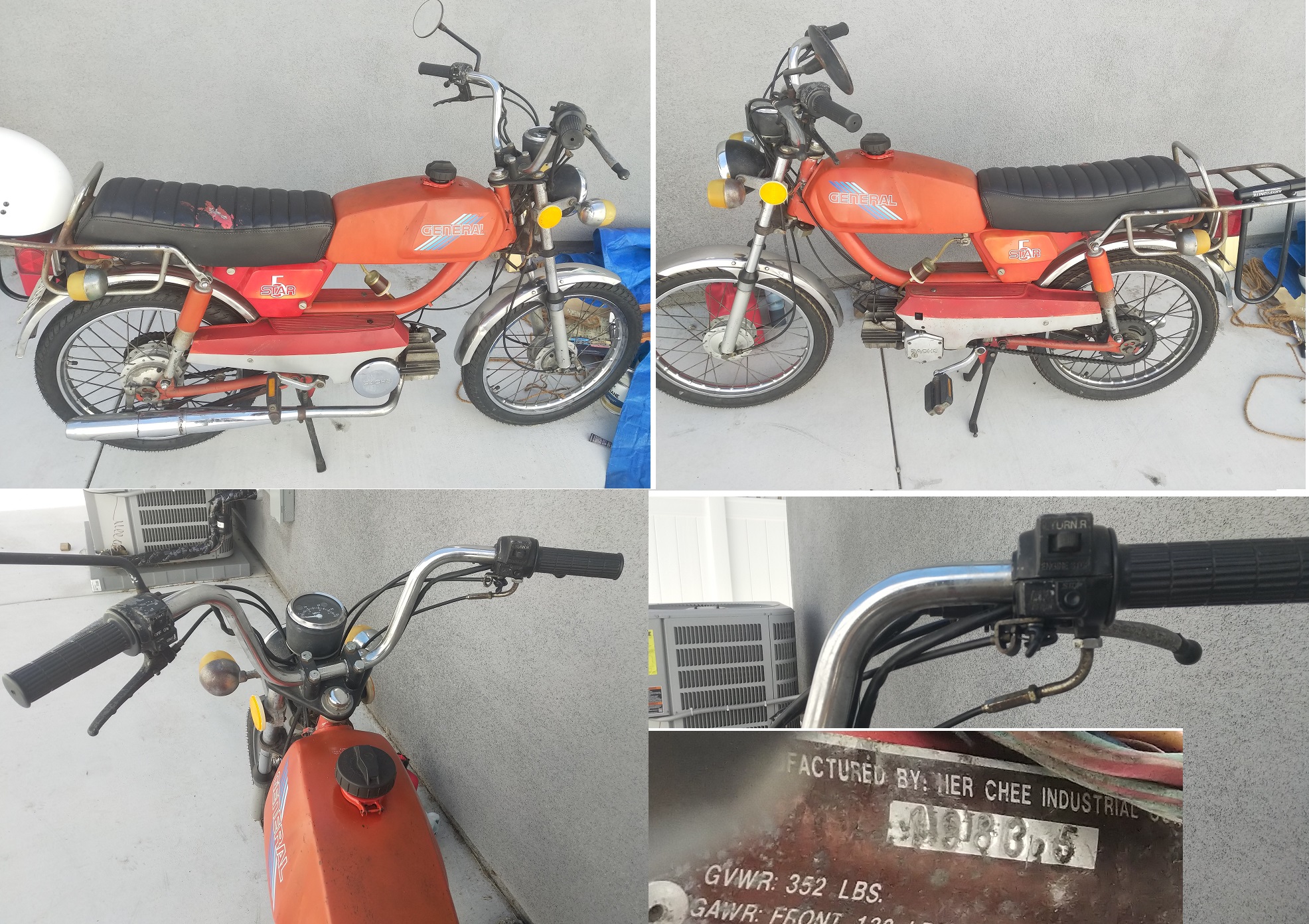

1980-83 General 5 Star ST
made by Jui Li, 80 mm brakes, Sachs 505/1A engine with foot brake

















Left control: The start lever and mount were removed. Brake cable hole 8.5 mm for a 8.0 mm barrel end.

Right control: Brake cable 8.0 barrel end.  Choke lever 2150-6287. Choke lever hole 6.5 mm for a 6.0 diameter barrel end.

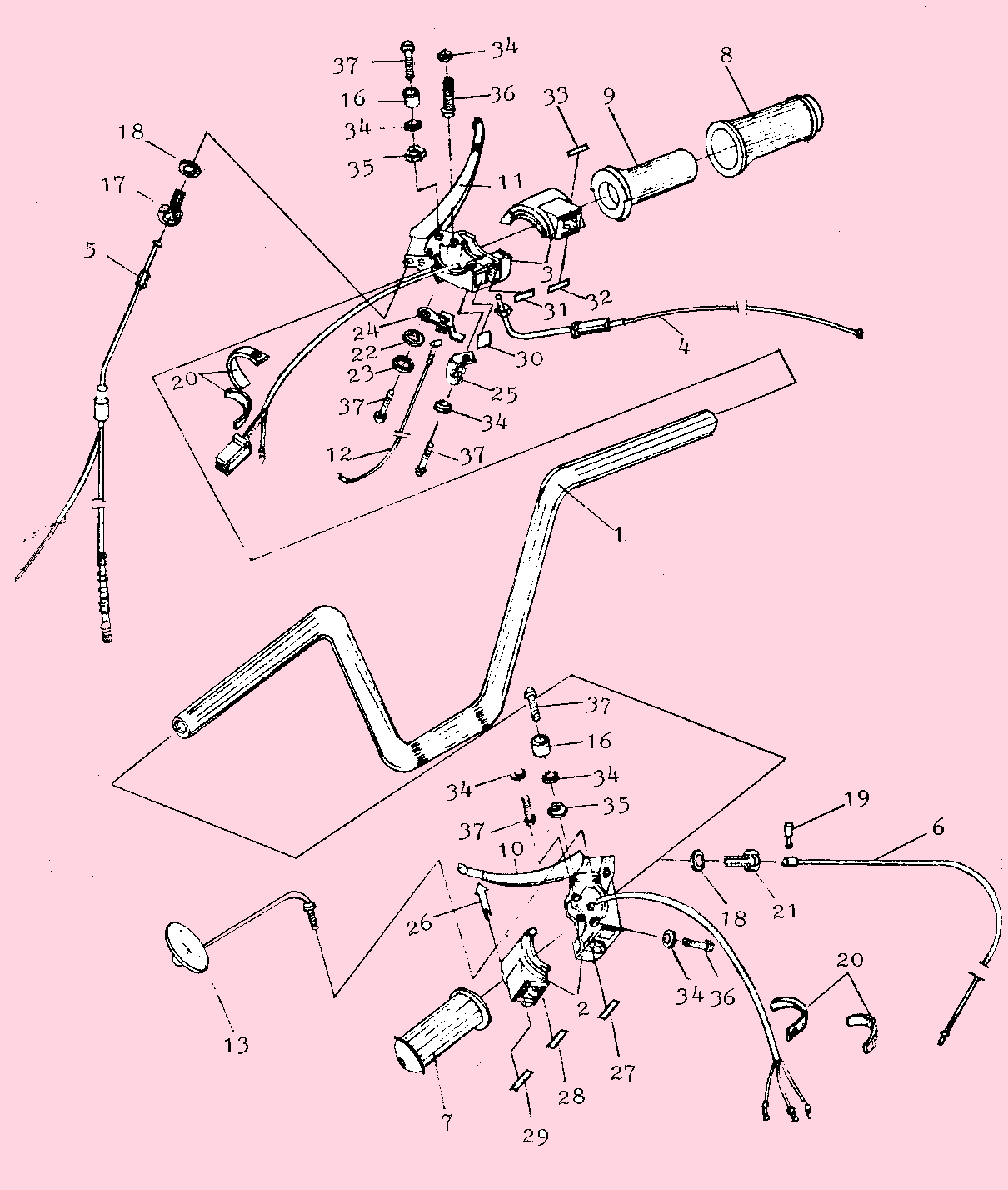

o# 0000-0000-00   qty   price    price color: new, used   font:  original part, replacement part
o#  0000-0000-00  abc   price    description     a is 1150-01, b is 4150, c is 5151
01  3150-6299-00  111   none   handlebar, no wires or mount holes
02  1150-6298-01  100   none   left housing/switch assy, no brake switch threads
02  4150-6298-00  010   none   left housing/switch assy with brk sw threads, no start lever hole
03  1150-6297-01  100   none   right housing/switch assy with choke threads
03  4150-6297-00  010  $48.0  right housing/switch assy with choke & BL switch threads
04  2150-6296-00  110  $28.0  throttle cable for Sachs-Bing long pipe
04  1151-6296-00  001  $27.0  throttle cable for Sachs-Bing short pipe
05  1150-6294-00  100  $27.0  front brake cable with switch
05  3150-6294-00  011  $34.0  front brake cable for ∅80 hub
05  1151-6294-00  011  $27.0  front brake cable for ∅110 hub
06  4150-6293-00  111  $31.0  start cable Sachs replacement
07  3150-6292-00  111  $5.00  left grip original   ∅22 x 105
08  3150-6291-00  111   none   right grip original ∅25 x 105
09  3150-6290-00  111  $20.0  throttle twist tube original for 105 grip
09  3150-6290L-0  111  $19.0  throttle twist tube long for 120 grip
10  1150-6287-01  100  $14.0  left lever short pull (clutch)
10  4150-6287-00  010  $28.0  left lever medium dark, means “not brake”
10  5150-6287-00  001  $36.0  left lever large (clutch)
11  1150-6286-01  100  $14.0  right lever short pull (front brake)
11  3150-6286-00  010  $16.0  right lever medium (front brake)
11  5150-6286-00  001  $29.0  right lever large (front brake) used
12  4150-6284-00  111  $20.0  choke cable Sachs original
13  1150-6283-00  111  $15.0  mirror M8 screw-in round chrome
14  1150-6282-01  100   none   left control assembly no lower lever
14  4150-6282-00  010  $95.0  left control assembly no lower lever
14  5151-6282-00  001   none   left control assembly no lower lever

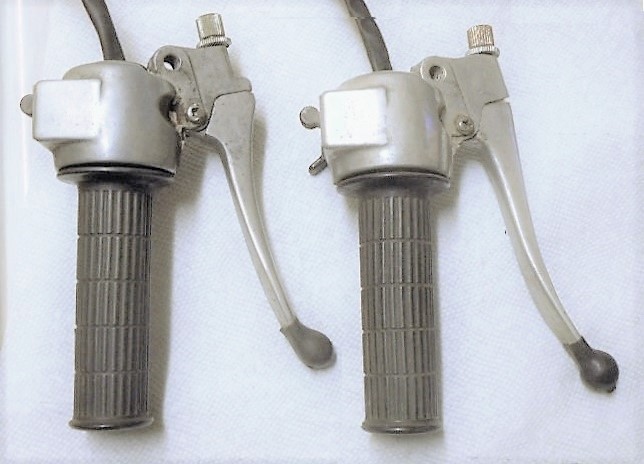

15  1150-6281-01  100  $75.0  right control assy used with choke lever
15  4150-6281-00  010  75-50  right control assembly with choke lever
15  5151-6281-00  001  $105.  right control assembly with choke lever
15  4150-6281L-0  010  75-50  right control assy silver with choke lever, long for 120 grip
15  5151-6281L-0  001  $105.  right control assy black with choke lever, long for 120 grip
16  3150-6280-00  220  $6.00  pivot bushing ∅5.0-∅6.0 x 11.8
17  1150-6279-00  111  $3.00  cable adjuster M8 slotted
18  1150-6278-00  222  $2.00  adjuster nut M8 slotted
19  2150-6276-00  111  $2.50  pinch bolt P7 for start cable
20  1150-6275-00  444  $3.00  rubber tie strap (for electrical wires only)
21  2150-6274-00  111    none   cable adjuster dark, same as 1150-6279
22  4150-6272-00  111  $4.00  choke shim washer ∅9.0-∅15.0 x 0.5
23  4150-6271-00  111  $2.50  choke plain washer ∅5.3-∅15.8 x 1.0
24  4150-6270-00  111  $9.00  choke lever ∅8.5
25  4150-6269-00  111  $6.50  choke lever bracket
26  4150-9089-00  111   none   sticker START
27  3150-9088-00  111   none   sticker HORN
28  3150-9087-00  111   none   sticker OFF  ON
29  3150-9086-00  111   none   sticker LIGHTS
30  4150-9085-00  111   none   sticker CHOKE
31  3150-9084-00  111   none   sticker STOP
32  3150-9083-00  111   none   sticker ENGINE STOP
33  3150-9082-00  111   none   sticker L TURN R
34  6220-1105-00  666  $0.20  lock washer ∅5
35  6160-0105-00  220  $1.00  nut M5-0.9 (60’s JIS thread)
35  6161-0105-00  002  $0.40  nut M5-0.8
36  6130-5030-00  220  $1.50  rear screw M5-0.9 x 30 phillips  (60’s JIS thread)
36  6131-5030-00  002  $0.70  rear screw M5-0.8 x 30 phillips
37  6130-5025-00  220  $1.50  front screw M5-0.9 x 25 phillips  (60’s JIS thread)
37  6131-5025-00  002  $0.60  front screw M5-0.8 x 25 phillips
37  6130-5022-00  220  $1.50  pivot screw M5-0.9 x 22 phillips  (60’s JIS thread)
37  5150-6280-00  002  $4.50  pivot screw M5-0.8 x 25 with shoulder ∅6 x 11
37  6130-5010-00  110  $3.50  choke screw M5-0.9 x 10 phillips  (60’s JIS thread)
37  6131-5008-00  001  $0.60  choke screw M5-0.8 x 8 phillips (or 10)





---

5. 1150-00/01, 3150/4150, 5150/5151 for Sachs hand-brake

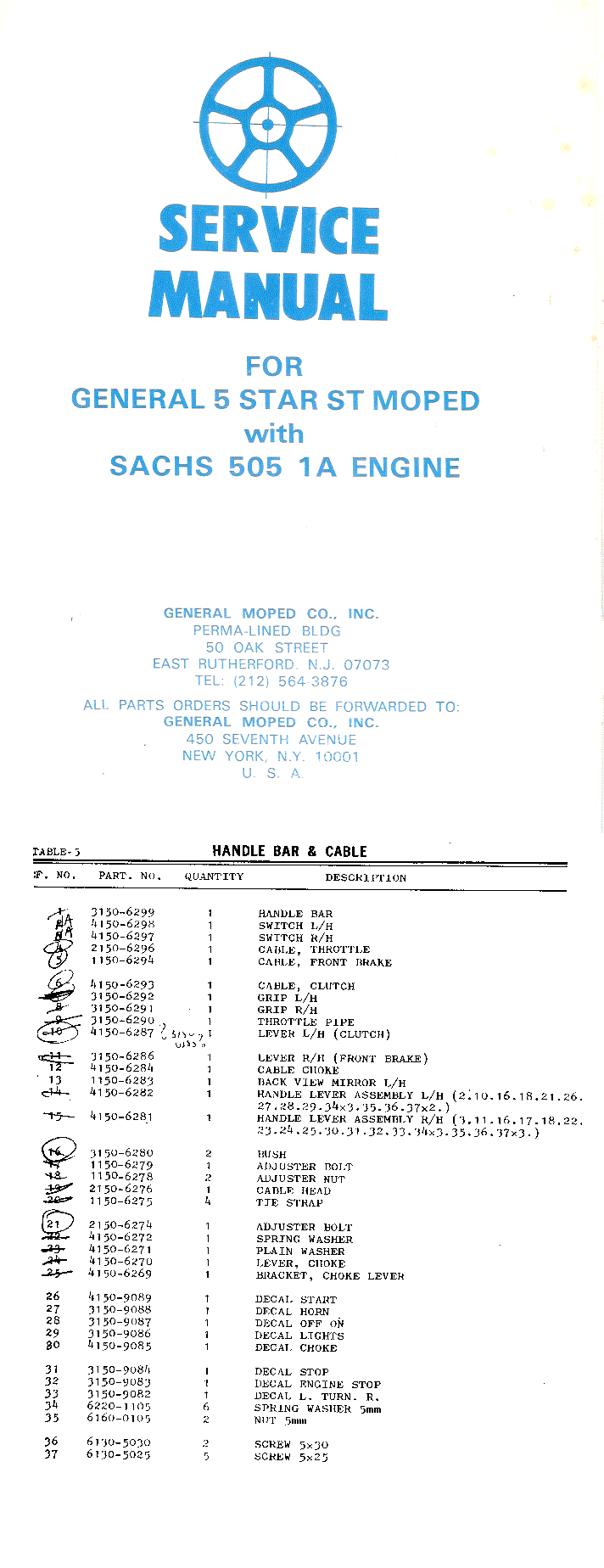

1980-83 General 5 Star, 5 Star ST
made by Jui Li, 80 mm brakes, Sachs 505/1A engine















1980-85 General 5 Star
1980-85 AMS Tahoe 50, Tahoe Sport G1
1980-82 Foxi 47
1980-83 General 5 Star ST
made by Her Chee, 110 mm brakes, Sachs 505/1A or 1D engine



























































Left control: The metal start lever 5150-6287 with mount 5150-6289 was below the control.  Start cable end hole 6.5 mm for a 6.0 diameter barrel end. Brake cable hole 8.5 mm for a 8.0 mm barrel end.

Right control: Brake cable 8.0 barrel end.  Choke lever 2150-6287. Choke lever hole 6.5 mm for a 6.0 diameter barrel end.









o# 0000-0000-00   qty
o# 0000-0000-00   qty   price    price color: new, used   font:  original part, replacement part
o#  0000-0000-00  abc   price    description   a is 1150-00/1150-01, b is 3150/4150, c is 5150/5151
01  3150-6299-00  111   none   handlebar, no wires or mount holes
02  1150-6298-00  100   none   left housing/switch assy silver, no brake switch threads
02  3150-6298-00  010   none   left housing/switch assy silver, with brake switch threads
02  5150-6298-00  001   none   left housing/switch assy black, with brake switch threads
03  1150-6297-01  100   none   right housing/switch assy silver, no brake switch threads
03  4150-6297-00  010  $48.0  right housing/switch assy silver with choke threads
03  5151-6297-00  001   none   right housing/switch assy black with choke and brake switch threads
04  2150-6296-00  110  $28.0  throttle cable for Sachs-Bing long pipe
04  1151-6296-00  001  $27.0  throttle cable for Sachs-Bing short pipe
05  1150-6295-00  100  $27.0  rear brake cable with switch
05  3150-6295-00  011  $31.0  rear brake cable rod type for 80 or 110
06  1150-6294-00  100  $27.0  front brake cable non-rod with switch
06  3150-6294-00  011  $34.0  front brake cable non-rod for ∅80 hub
06  1151-6294-00  011  $27.0  front brake cable rod type for ∅110 hub
07  4150-6293-00  111  $31.0  start cable Sachs
08  3150-6292-00  111  $5.00  left grip original   ∅22 x 105
09  3150-6291-00  111   none   right grip original ∅25 x 105
10  3150-6290-00  111  $20.0  throttle twist tube original for 105 grip
10  3150-6290L-0  111  $19.0  throttle twist tube long for 120 grip
11  3150-6289-00  110  18-12  start lever mount small M5-0.9 and M4 thread
11  5150-6289-00  001  $26.0  start lever mount large M5-0.8 and M4 thread
12  1150-6287-01  100  $14.0  left lever short pull
12  3150-6287-00  010  $27.0  left lever medium
12  5150-6287-00  001  $36.0  left lever large
13  1150-6286-01  100  $14.0  right lever short pull
13  3150-6286-00  010  $16.0  right lever medium
13  5150-6286-00  001  $29.0  right lever large used
14  1150-6285-01  100  $22.0  start lever black plastic
14  3150-6285-00  010  $26.0  start lever silver metal
14  5150-6285-00  001  $26.0  start lever large black metal
15  1150-6283-00  111  $15.0  mirror M8 screw-in round chrome
16  1150-6282-00  100   none   left control assy small with lower lever
16  3150-6282-00  010  $85.0  left control assy silver with lower lever
16  5150-6282-00  001  $95.0  left control assy black with lower lever
17  1150-6281-01  100  $75.0  right control assy used small with choke lever
17  4150-6281-00  010  75-50  right control assy silver with choke lever
17  5151-6281-00  001  $105.  right control assy black with choke lever
17  4150-6281L-0  010  75-50  right control assy silver with choke lever, long for 120 grip
17  5151-6281L-0  001  $105.  right control assy black with choke lever, long for 120 grip
18  3150-6280-00  330  $6.00  pivot bushing
19  1150-6279-00  222  $3.00  cable adjuster M8 slotted
20  1150-6278-00  222  $2.00  adjuster nut M8 slotted
21  1150-6275-00  444  $3.00  rubber tie strap (for electrical wires only)
22  1150-6274-00  111  $3.50  start cable adjuster
23  1150-6273-00  111  $2.50  start cable adjuster nut
24  4150-9089-00  111   none   sticker START
25  3150-9088-00  111   none   sticker HORN
26  3150-9087-00  111   none   sticker OFF  ON
27  3150-9086-00  111   none   sticker LIGHTS
28  4150-9085-00  111   none   sticker CHOKE
29  3150-9084-00  111   none   sticker STOP
30  3150-9083-00  111   none   sticker ENGINE STOP
31  3150-9082-00  111   none   sticker L TURN R
32  6220-1105-00  777  $0.20  lock washer ∅5
33  6160-0105-00  330  $1.00  nut M5-0.9 (60’s JIS thread)
33  6161-0105-00  003  $0.40  nut M5-0.8
34  6130-5030-00  220  $1.50  rear screw M5-0.9 x 30 phillips  (60’s JIS thread)
34  6131-5030-00  002  $0.70  rear screw M5-0.8 x 30 phillips
35  6130-5025-00  440  $1.50  pivot & front screw M5-0.9 x 25 (60’s JIS thread)
35  6131-5025-00  002  $0.60  front screw M5-0.8 x 25
35  5150-6280-00  002  $4.50  pivot screw M5-0.8 x 25 with shoulder ∅6 x 11
36  6130-5020-00  110  $0.60  start pivot screw M5-0.9 x 20 phillips (60’s JIS thread)
36  5150-6281-00  001  $6.00  start pivot screw M5-0.8 x 22 with shoulder ∅6 x 11
37  6130-5010-00  110  $3.00  start mount screw M5-0.9 x 10 phillips (60’s JIS thread)
37  6131-5010-00  001  $0.60  start mount screw M5-0.8 x 10 phillips
38  6130-4006-00  111  $2.50  start mount screw M4-0.7 x 6 phillips
41  4150-6284-00  111  $20.0  choke cable Sachs
42  4150-6272-00  111  $4.00  choke shim washer ∅9.0-∅15.0 x 0.5
43  4150-627 1-00 111  $2.50  choke plain washer ∅5.3-∅15.8 x 1.0
44  4150-6270-00  111  $9.00  choke lever ∅8.5
45  4150-6269-00  111  $6.50  choke lever bracket





This entry was posted on Sunday, June 27th, 2021 at 5:47 am and is filed under Taiwan Controls. You can follow any responses to this entry through the RSS 2.0 feed. Both comments and pings are currently closed.
