Other Tail Lights




4. Peterson Tail Lights

Peterson tail lights, made in Grandview, Missouri USA, were on ’76-80 Jawa and ’76-77 Derbi mopeds.

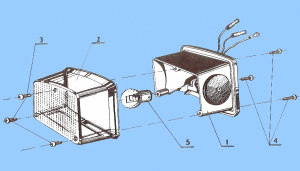

Peterson PM420

Peterson PM-420 1960’s – 70’s trailer tail light
used on 1976-77 Jawa Babetta (USA models)

–   3296-061  N/A  Tail Lamp PM420
1   3296-061  N/A  Lamp housing
2    3296-061 N/A Lens used PM420-15
3  34544-001 50¢ Lens screw ST (2)
4      34213 $1.00 Nut 3/8-24 fine
5      34213    50¢ Lock washer 3/8″
6      60507  $2.00 Bulb 6V 21/5W #1154

.

.

Peterson PM-421 meets 1970’s US safety standards for motorcycle tail lamps (shines to the sides). Also has built-in side reflectors, eliminating the need for separate ones. Used on 1978-80 Jawa, 1976-77 Derbi, and not many others.

–  70106  N/A Tail lamp used PM-421
1  70100  $33 Housing-mirror used PM-421
2  70101  N/A Lens cover new PM-421-15
3  70102  N/A Lens screw ST (3)
4  70103  N/A Mount screw ST (3)
5  60507  $2.00 Bulb 6V 21/5W #1154

Peterson PM-421 tail light

6  422-10  $19 plastic mount PM-422-10
7  422-24  $$6 mount rubber PM-422-24

Jawa metal mount

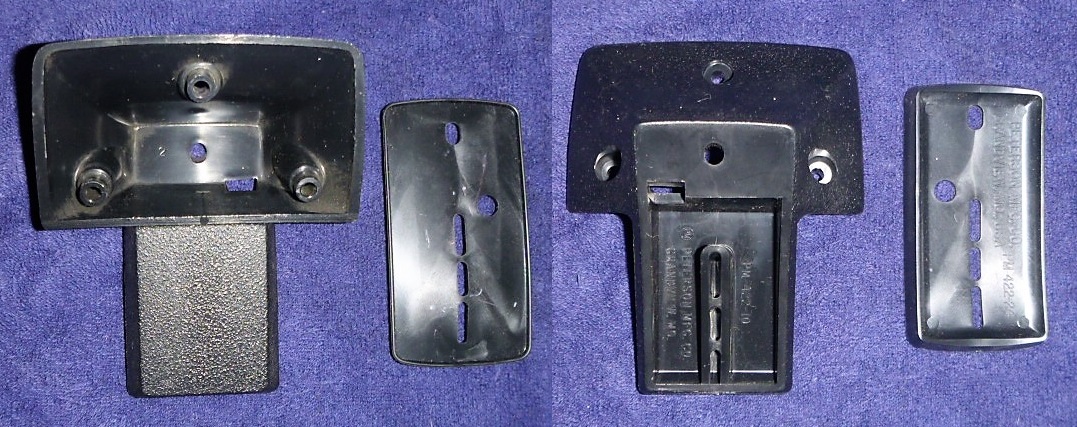

PM-422 plastic mount

.

.

.





 .


5. Stanley Tail Lights

Dozens of different Stanley tail lights, made in Japan, are on most Honda motorcycles and mopeds. Here we focus on those used on mopeds and small motorcycles.

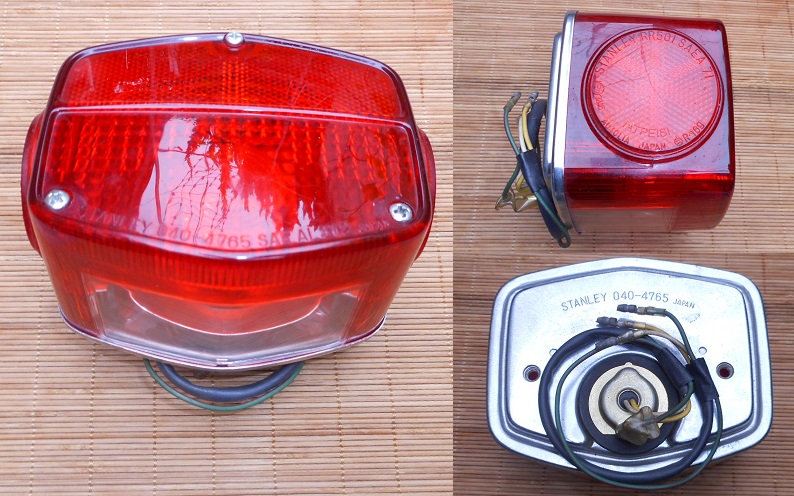

Stanley 040-4765 tail light

.

Stanley 040-4765, used on 1977-85 General (top-tank), Lazer (top-tank) and compatibles, made in Taiwan.

N/A lamp assembly
N/A chrome housing-mirror
2  N/A (2) M6 threaded holes spaced 90mm
N/A mount bracket (not shown)
$2.00 bulb 6V 21/5W
5 $8 lens gasket
6 $1.00 lens screw M4x50 phillips-wide
$33 red lens (new)
$25 red lens new with cracked clear bottom

.

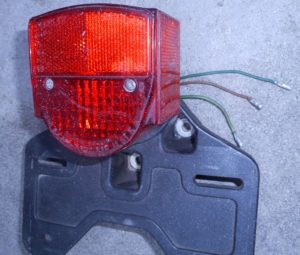

Stanley HM-23RC tail light

.

Stanley HM-23RC, used on 1977-83 Honda Express NC50 and Express II NA50, made in Japan.

1 N/A lamp assembly
2  $45 black housing-mirror-mount with license mount
2  N/A (3) M6 bolt-thru rubber mounts
4  $2.00 bulb 6V 21/5W
5 $$9 lens gasket (used)
6 $$3 lens screws ST (2) 60mm
7    $8 red lens (used, side reflectors broken off)

.

.

.

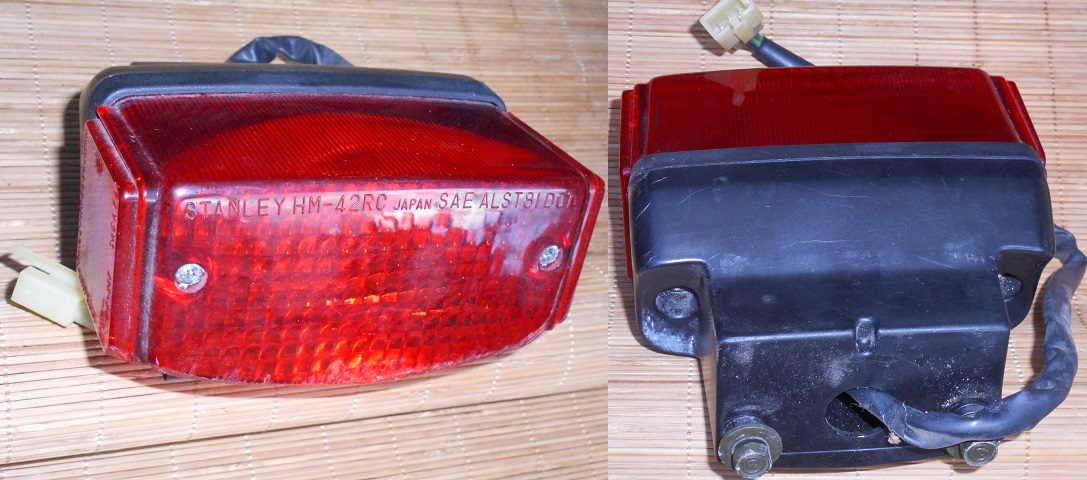

Stanley HM-42RC tail light, with NS50 mount

Stanley HM-42RC, used on 1984-85 Honda Spree NQ50, 1990 Honda NS50, and other late 1980’s Hondas.

$45 lamp assembly, without mount
2  $35 black housing-mirror
$45 (2) M5 threaded holes spaced 100mm
$10 black mount for NS50 (shown)
2  $18 black mount for NQ50 with license mount
$1.20 bulb 12V 21/5W
5 $12 lens gasket (used)
6 $$3 lens screws ST (2) 40mm
$15 red lens (used)

.

.


6. Cat Eye Tail Lights

Cat Eye reflectors, lights, and turn signal kits, for bicycles and mopeds, were made in Japan.

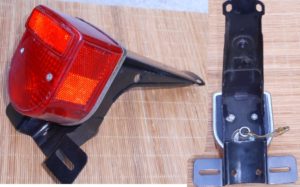

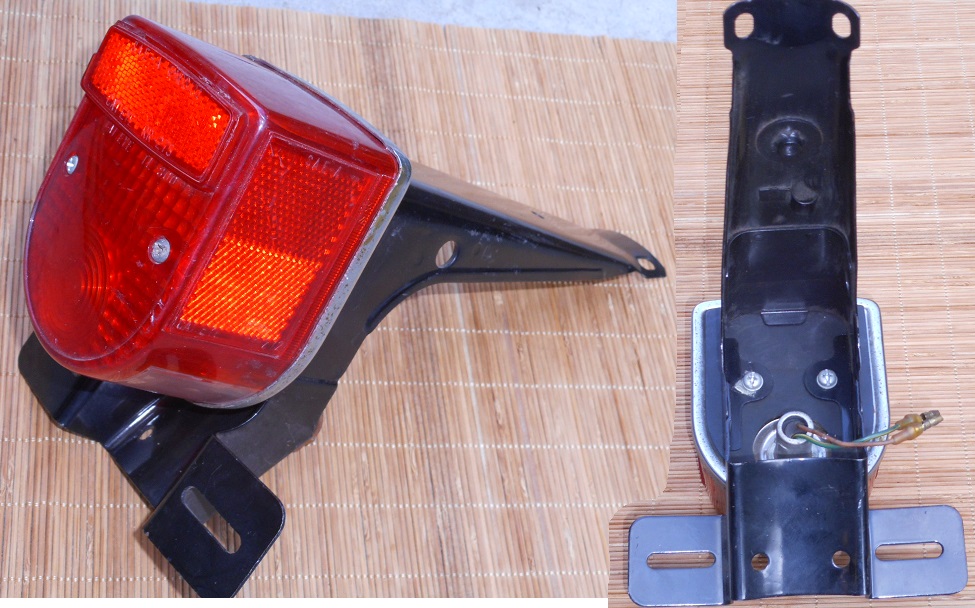

Cat Eye TL-800 tail light with mount

Cat Eye TL-800, used on 1977-85 Taiwan mopeds, Indian, Angel, General (step-thru) and compatibles.

$70.0 lamp assembly, with mount
$42.0 chrome housing-mirror 35mm holes
$35.0 black metal mount for General step-thru (shown)
$2.00 bulb 6V 21/5W #1154
$12.0 lens gasket (used)
6  lens screw M4 x 50 phillips
$32.0 red lens 35mm hole spacing

.

.

.


7. Saturnus Tail Lights

Saturnus tail, turn and head lights were made in Ljubljana, Slovenia. Saturnus tail lights were only on 2012-13 Tomos mopeds (US models), but they have been on European models for decades.

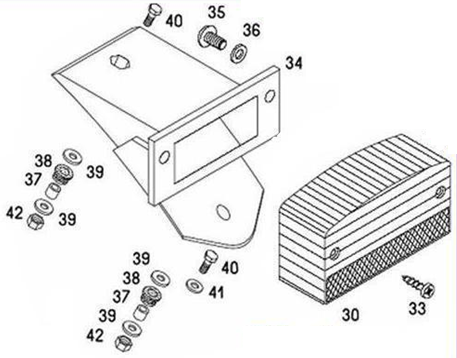

 Saturnus 2-bulb tail lamp parts, from 2012 Tomos USA Parts Manual.

#  part#  price  qty    description
30  223572  N/A   1  Rear lamp 2012-on
31  044698 $1.50 1  bulb 12V/5W  BA15S
32  044689 $1.50 1  bulb 12V/10W BA15S
33  044439  $$1   2  Lens screw ST 3.9×16
34  236963  N/A   1  Rear lamp holder (mount) 2012-on
35  026690 $1.50 2  Screw M6x16 button-head allen
36  031509  20¢   2  Washer 6
37  222187  $$8   2  Distance tube 6x10x7.5 (not 6x9x5.5 like pre-2012)
38  219946  $$5   2  Vibration rubber for taillight xxx (same as pre-2012)
39  031925  20¢   2  Washer 6 xxxxxxxxxx   (lower is same as pre-2012)

Saturnus tail light

40  044284 $1.00 2  hex bolt M6x22 xxxxxx  (not M6x20 like pre-2012)
41  217674  50¢   2  Washer 6.4×16 xxxxxxx (not 8.4×16 like pre-2012)
42  030040  50¢   2  Nut M6 self-locking (not shoulder nut like pre-2012)

The fender mount was made to interchange with CEV 9417. The upper 6mm stud on CEV 9417 was very short. That made the special shoulder nut necessary, on 1978-2012 Tomos with CEV 9417. This Saturnus mount uses separate bolts, which are longer. That eliminates the need for a more costly shoulder nut. So Saturnus mount uses a 2mm shorter nut, 2mm longer bolt, 2mm longer spacer. This makes the bolts/nuts 2mm closer to the rear tire.

.


8. Fiem Tail Lights

Fiem tail and turn lights are made in India. On US models, Fiem rear lamps are on early 2000’s Hero Pacer, Panther, Ankur (Hero Majestic), Cosmo Stinger (Mont) and Avanti Autopower, Mont, Supersport, Kobra (Mont) mopeds.

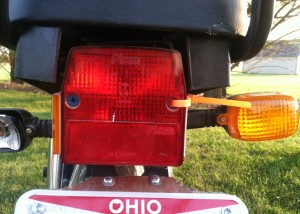

Fiem tail light on Hero Pacer

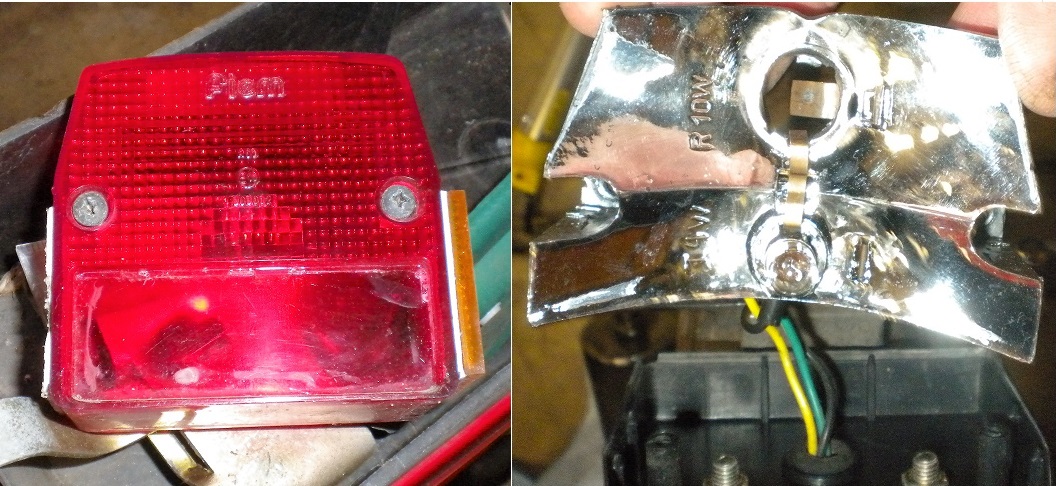

Fiem tail light on Avanti Autopower



















These two lights are the same. The Avanti one is missing the lower red reflector and left side reflector. The Hero one is missing the right side reflector. The top bulb is bigger for the brake light, 12V 10W with base BA15S (bayonet 12 mm single contact). The bottom bulb is smaller for the tail light, 12V 4W with base BA9S (bayonet 9 mm single contact). The tail light also illuminates the license plate through a clear bottom in the red lens.



The Avanti wire colors are yellow = tail, green = brake, black = ground. See wirings for more.
