Trac Cables

Trac cables have been terribly confusing since the 1980’s. You can see why; 3 kinds of part numbers, 4 kinds of brake cables not mentioned in parts manuals, and 8 kinds of incorrectly made replacement brake cables. Finally the clouds have cleared and the sun shines again!




1982-85 Trac Eagle, Clipper, Hawk

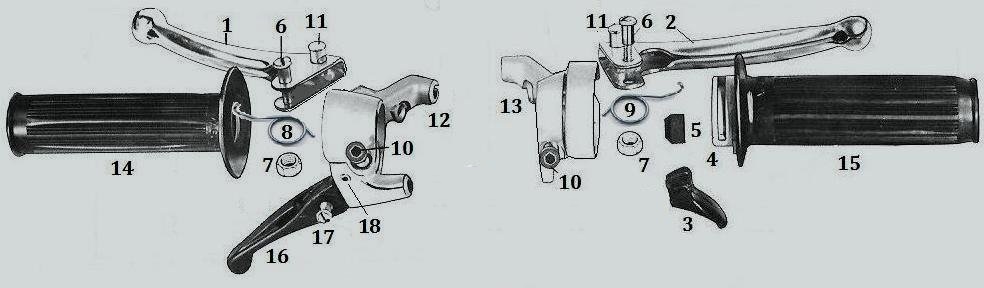

1982-85 Trac, Laura M56 engine, 1970’s Magura controls


F12-30 61.0 x 3.3 ∅1.5 says nothing none   replacement $27



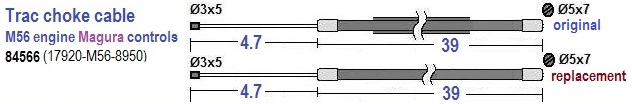

F12-31 38.8 x 4.7 ∅1.2 says nothing $19    replacement $12



F12-32 38.8 x 2.7 ∅1.2 says nothing $27



F12-33 40.2 x 4.5 ∅1.5 says nothing $15    replacement $12



F12-34 39.1 x 3.3 ∅1.5 says nothing $27    replacement $25






1985-86 Trac Eagle, Clipper, Hawk

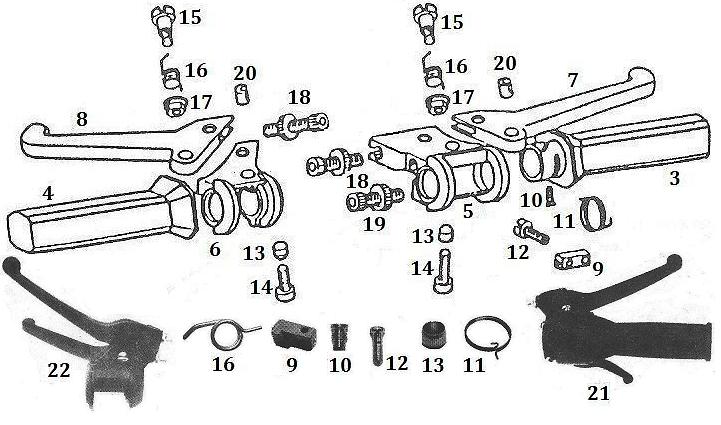

Domino Black

1985-86 Trac, Laura M56 engine, all black Domino controls

F4-01 23210 right control (front brake, throttle)
on ’86 and late ’85 Eagle, Clipper, Hawk
see
Domino 903.03 = DA7K

F4-02 23510 left control (rear brake, starter)
on ’86 and late ’85 Eagle, Clipper, Hawk
see
Domino 908.06 = DB7K

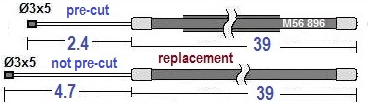

F12-56 84585 17910-M56-8960 throttle cable 41.4+”
38.9 x 2.4 ∅1.2 says M56 896 $12   for Eagle, Clipper, Hawk
38.9 x 4.7 ∅1.2 says nothing   $10   replacement



F12-57 84586 17920-M56-8960 choke cable 43.7+”
38.8 x 4.7 ∅1.2 says nothing $12   for Eagle, Clipper, Hawk
same as F12-31, single-ended with a 5x7pinch bolt

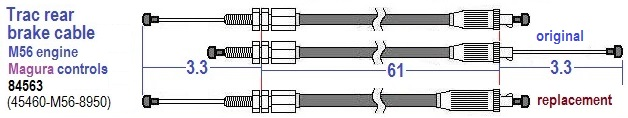

F12-58 84589 45460-M56-895D rear brake cable
61.1 x 3.3 4.1 says M56 895D none  for Eagle deluxe 66.8
59.5 x 3.3 4.1 says MT1 895D none  for Hawk deluxe 65.2
61.0 x 4.1 ∅1.5 says nothing   $27     replacement 66.7″



F12-58 84589 45460-M56-895S rear brake cable
60.8 x 2.8 3.6 says M56 895S none  for Eagle std 66.0
59.5 x 2.8 3.6 says MT1 895S none  for Hawk std 64.7
58.8 x 3.6 ∅1.5 says ESCOT    none  for Clipper 64.0
61.0 x 3.6 ∅1.5 says nothing   $27     replacement 66.2″

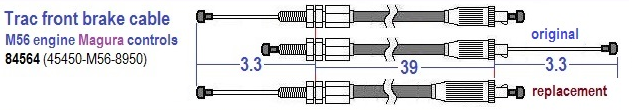

F12-59-1 84588 45450-M56-895D front brake cable
39.1 x 4.1 ∅1.5 says M56 895D none  for Eagle Deluxe 43.2
37.5 x 4.1 ∅1.5 says MT1 895D none  for Hawk Deluxe 41.6
39.0 x 4.1 ∅1.5 says nothing    $27
replacement



F12-59-1 84588 45450-M56-895S front brake cable
39.1 x 3.6 ∅1.5 says M56 895S none  for Eagle std 42.7
37.5 x 3.6 ∅1.5 says MT1 895S none  for Hawk std 40.1
37.1 x 3.6 ∅1.5 says ESCOT      none  for Clipper 40.7
39.0 x 3.6 ∅1.5 says nothing   $27
replacement



F12-60-1 84587 17930-M56-8960 start cable
40.0 x 3.1 ∅1.5 says M56 896 none for Eagle, Clipper, Hawk
40.6 x 2.9 ∅1.5 says M56 896 none F4-39-1 23521

40.0 x 3.1 ∅1.5 says nothing   $27    replacement




D and S brake cables D (Deluxe) is for mag wheels. S (Standard) is for spoke wheels. The D inner wire was 0.5 inch longer than S, because the Grimeca brake (D) on mag wheels is different from the Duck Chang brake (S) on spoke wheels.

Corrections The 1985-86 (M56 engine) Eagle and Hawk front and rear brake cables with codes M56 and MT1, were made incorrectly. The inner wire was 0.8 inch too short. In the listing here the incorrect exposed lengths are crossed out. Trac forgot to include the distance of the removable slotted adjuster 23224.

The 1984-86 (M56 engine) Clipper and 1984-90 (DMC engine) Escot, Sprint, Image with cable codes CL1 and HA1 had correctly-made replacement brake cables. The CL1 or HA1 inner wire was 0.3 inch longer than a M56-895D, or 0.8 inch longer than a M56-895S.

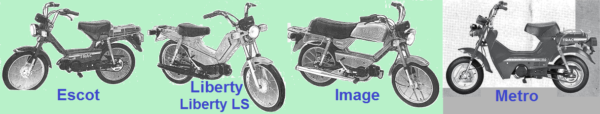

’84-90 Escot, Image, Liberty, Metro (kick start)

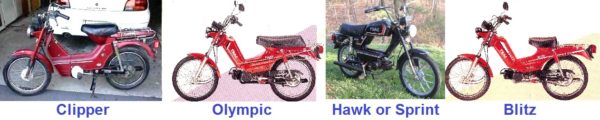

’86-90 Clipper, Hawk, Sprint, Olympic, Blitz (pedals)

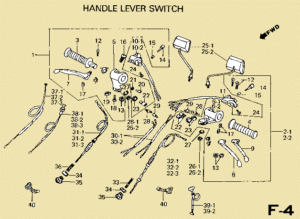

Domino Black

1984-90 Trac, Daelim DP50 or DK50, all black Domino controls
Image, Hawk, Sprint have cast aluminum mag wheels
Clipper, Escot, Liberty, Olympic, Blitz
have spoke wheels

F4-01 23210 right control (front brake, throttle)
on ’84-90 models with DK50, late DP50 engines
see
Domino 903.03 = DA7K

F4-02 23010 left control (rear brake only)
on ’84-90 models with DK50, late DP50 engines
see
Domino 904.04 = DB8K

F4-02 23510 left control (rear brake, starter)
on ’86 and early ’87 Trac Olympic, early DP50 engine
see
Domino 908.06 = DB7K





F4-31-1 23515 45450-CL1-000 front brake cable 42.2″
37.1 x 3.6 ∅2.0 says ESCOT    none  for Clipper, Escot
37.0 x 3.6 ∅1.5 says nothing   $27
replacement



F4-31-2 23516 45450-HA1-000AM fr0nt brake cable 41.7″
35.5 x 4.1 ∅2.0 says IMAGE   none  for Image, Hawk, Sprint
36.0 x 4.1 ∅1.5 says nothing   $27     replacement



F4-31-3 23015 43450-HD2-890AM front brake cable 48.6″
42.9 x 5.7 ∅2.0 says K.C.C.   $27    for Liberty, Olympic, Blitz



F4-32-1 23517 45460-CL1-000 rear brake cable 64.7″
58.6 x 3.6 ∅2.0 says ESCOT    none  for Clipper, Escot
59.0 x 3.6 ∅1.5 says nothing     $27
replacement



F4-32-2 23518 45460-HA1-000AM rear brake cable 64.7″
58?  x 4.1 ∅2.0 says IMAGE   none  for Image, Hawk, Sprint
59.0 x 4.1 ∅1.5 says nothing   $27     replacement



F4-32-3 23016 43460-HD2-890AM rear brake cable 61.8″
46.5 x 15.3 ∅2.0 says K.C.C.   $32   for Liberty, Olympic, Blitz
61.8 is the length of 3 actual cables, but it seems too short.



F4-37-1 23021 17910-HD2-890AM throttle cable 44.5?
39.8 x 4.7 ∅1.2 says K.C.C.   none  for Liberty, Olympic, Blitz
40.0 x 4.7 ∅1.2 says nothing $10    replacement



F4-37-2 23022 17910-HA1-000 throttle cable 42.5″
37.8 x 4.7 ∅1.2 says HA1-CL1  $13   for Escot, Image

F4-37-3 23519 17910-HA1-010 throttle cable 42.5″
37.8 x 4.7 ∅1.2 says HA1-CL1  none  for Clipper, Hawk, Sprint



F4-38-1 23023 17950-HD2-892AM choke cable+knob
29.2 x 3.0 ∅1.2 says K.C.C.  $28   for Liberty, Olympic, Blitz

F4-38-3 23520 17950-HA1-010     choke cable+knob
29.2 x 3.0 ∅1.2 says HA1-CL1  $28    for Clipper, Hawk, Sprint

F4-38-2 23024 17950-HA1-000    choke cable+knob
29? x 3.0 ∅1.2 says HA1-CL1  none  for Escot, Image
same as 23520 but with a cover sleeve




F4-39-2 23522 17930-DKM-890AM start cable
42? x 2.9 ∅2.0 says K.C.C.  none  for 86 and early ’87 Olympic






DK50 and DP50 choke: These 1984-90 Trac models with Daelim engines and Domino controls, have a Honda type push-pull choke knob, located to the lower left of the speedometer. Other 1985-86 Trac models with Laura M56 engines and Domino controls, listed above, have a right thumb lever for the choke.
