4. B I N G S O L O
8 or 10 mm, clamp size 16 mm

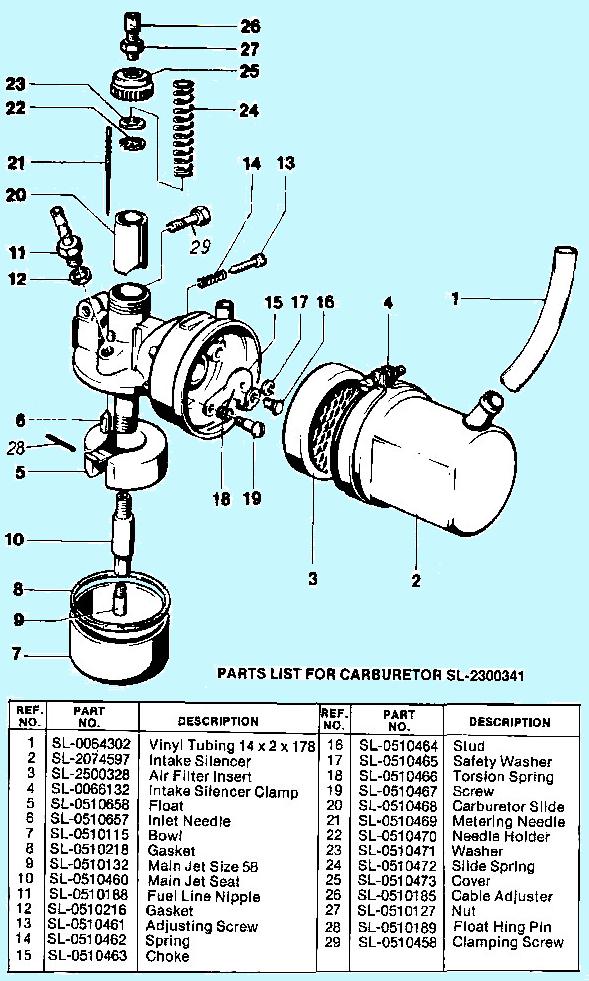

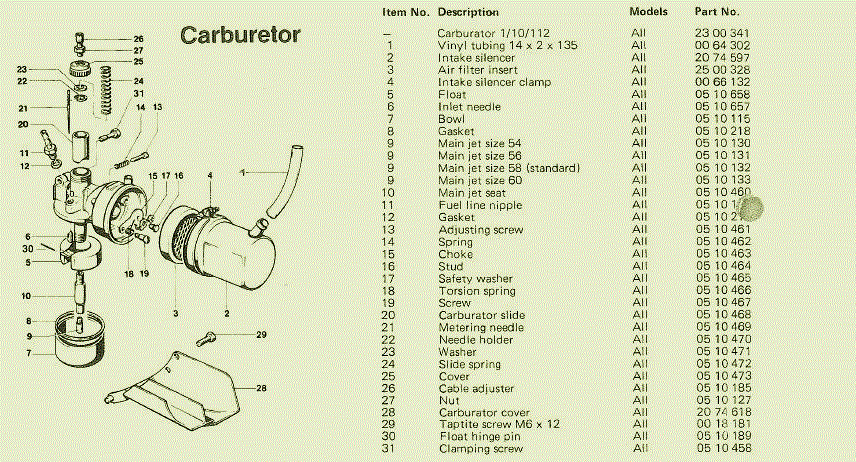

Left is Columbia parts list 1 to 29. Right is Odyssey parts list 1 to 31.
fig price Odyssey# description
00 N/A 23 00 341 carburetor Bing 1/10/112
01 N/A 00 04 302 vinyl tubing 14 x 2 x 178
02 N/A 20 74 597 intake silencer
03 none 25 00 326 air filter insert
04 N/A 00 66 132 intake silencer clamp
05 $15.0 05 10 658 float slotted type
06 $15.0 05 10 657 float needle for slotted
07 $8.00 05 10 115 float bowl
08 $3.50 05 10 218 bowl gasket
09 $10.0 05 10 132 main jet 58
10 $15.0 05 10 460 needle jet 2.12
11 $12.0 05 10 100 fuel line nipple M8 x 0.75
00 $20.0 00 00 000 inlet swivel type assy
12 $1.00 05 10 210 seal washer 8
13 $3.00 05 10 461 idle screw M5-0.8
14 $3.00 05 10 462 screw spring
15 none 05 10 463 choke plate
16 none 05 10 464 stud
17 none 05 10 465 safety washer
18 none 05 10 466 torsion spring
19 none 05 10 467 pivot screw
20 $33.0 05 10 468 throttle slide Ø14.5 “16” see photo above
21 none 05 10 469 jet needle 31mm 1-mark
22 $3.00 05 10 470 needle holder
23 $3.00 05 10 471 washer
24 $10.0 05 10 472 slide spring Ø11 x 36
25 $28.0 05 10 473 top cover M18 x 1.0, M6 x 0.75
26 $5.00 05 10 185 cable adjuster M6 x 0.75
27 $2.50 05 10 127 adjuster nut M6 x 0.75
00 $1.00 00 18 181 #28 screw M6 x 12 hex?
00 none 20 74 618 #29 carburetor cover
28 $4.00 05 10 189 #30 float hinge pin
29 $6.00 05 10 456 #31 clamp screw M5 x 15

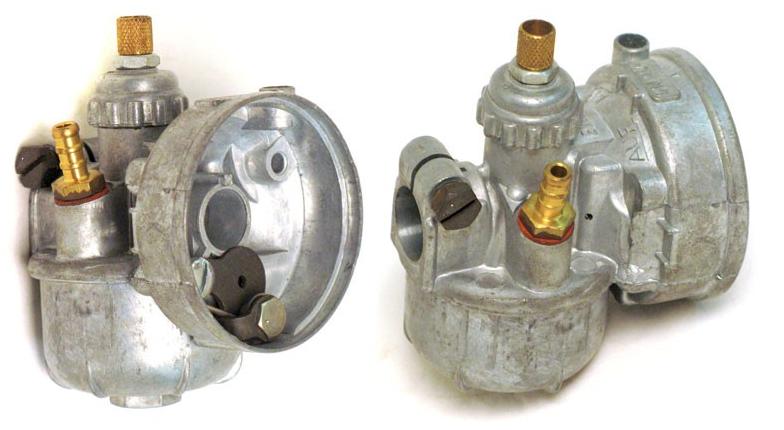

Bing 1/10/112 for Solo/Colombia 40kmh (26mph)

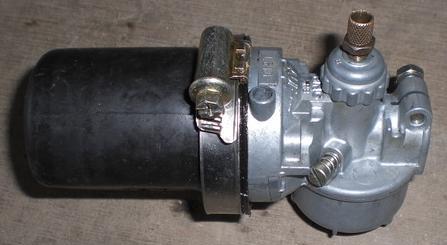

Bing 1-8-102 with air box, for Solo 25kmh (16mph)

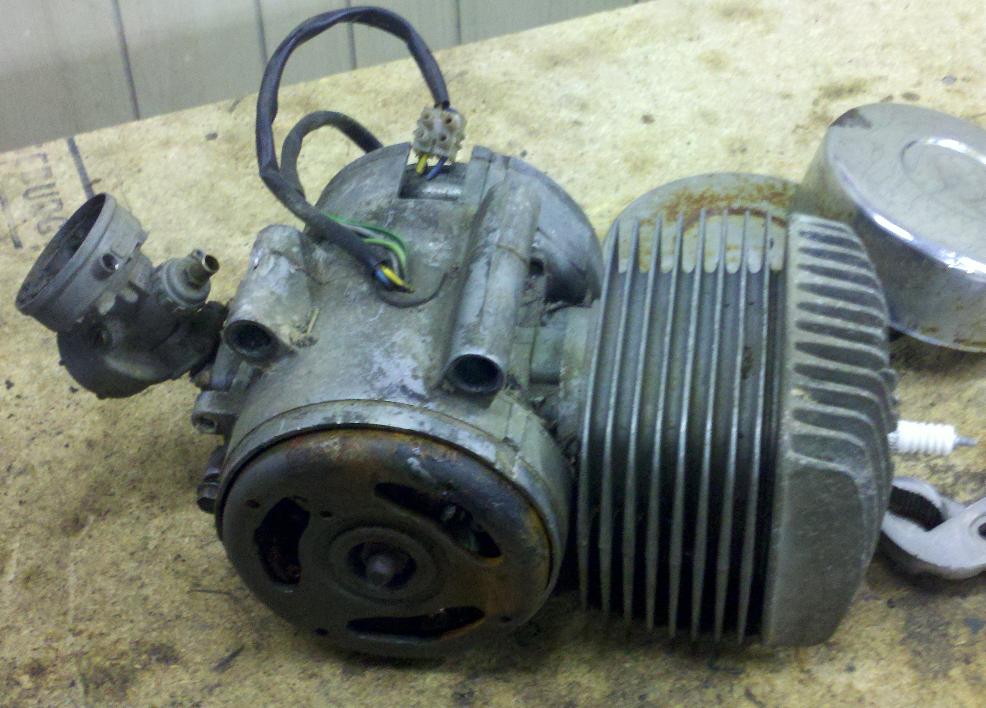

Bing 1/10/112 carb on Solo 255 motor
This carburetor is for low powered mopeds (mofas), case-reed-valve engines, that position the carburetor way down almost below the engine. The choke is remote, by cable. There is no primer (because you could not reach it if there was). Otherwise it is very close to the Kreidler Bing, with the same size Ø16 mount, Ø14.5 slide (but a different slot position), same float, float needle, float bowl, M5 idle screw, needle, needle jet, and M3.5 main jet (but different numbers).
