Kreidler redbing crown3.  B I N G   K R E I D L E R   C A R B S
    10 or 12mm     clamp size 16mm

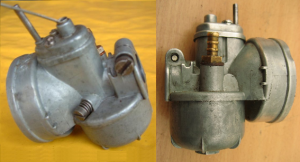

Kreidler Flory carb 1-10-126, identical to 1/12/260

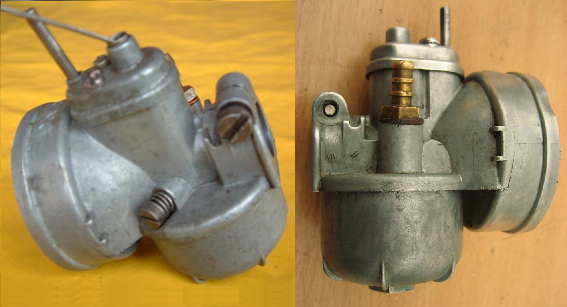

Kreidler Flory carb 1-10-126, identical to 1/12/260



Late 1970’s Kreidler Flory MP-9 and MP-19 mopeds are US models, 30mph (2.0hp), with Bing 1/12/260 (12mm) carbs. Other Flory models in Europe are 25kmh (17mph) with Bing 1/10/126 (10mm) carbs. The “bell” outer diameter is 54mm, same as the Solo Bing below.

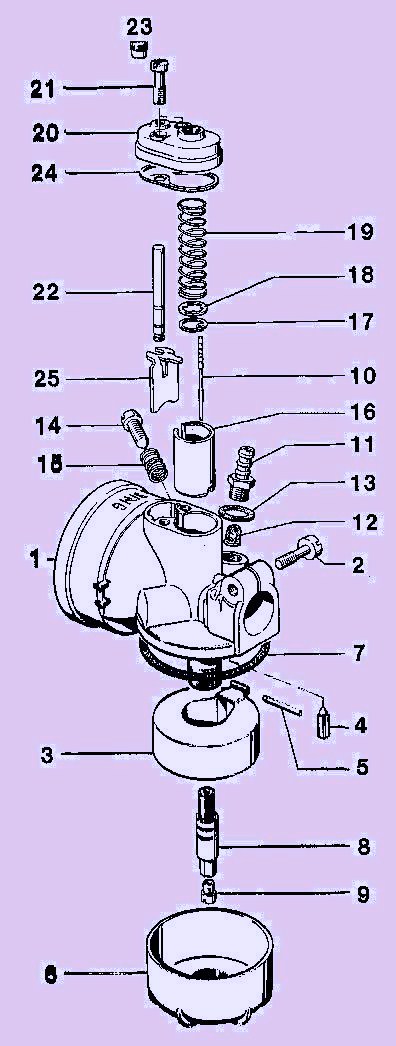

# qty Kreidler#  price  description
1a 1 215.19.99a  N/A   carburetor 1/12/260 has metal-tip needle, no-slot float
1b 1 215.19.99b  N/A   carburetor 1/12/268 has rubber-tip needle, slotted float
2a 1  07.15.08   $6.00 clamp screw M5 x 15  thin shank (clamp size 16)
3a 1  07.16.06    N/A    float no slot   substitute slotted float & rubber needle
3b 1  07.16.06b $15.0 float with slot for rubber tip needle
4a 1  07.15.44   $39.0 float needle metal for no slot float
4b 1  07.15.44b $15.0 float needle rubber for slotted float
5
   1  607.15.1  $4.00 hinge pin (Bing Puch 19)
6   1  07.15.05  $8.00 float bowl (Bing Puch 21)
7   1  07.15.32  $3.50 ring seal (Bing Puch 22)
8   1  07.16.20  $15.0 needle jet 2.17  (Bing Puch 2b)
9   1  07.15.41   none  3.5mm main jet #68
10 1  07.15.12  $18.0 needle 2-mark 36mm (Bing Puch 4a)
11 1  07.15.15  $12.0 fuel inlet vertical type M8x0.75
11 1  07.15.15s $20.0 fuel inlet swivel type Puch 24+25+26
12 1  07.15.21  $15.0 fuel strainer (Bing Puch 27)
13 2  07.15.25  $1.00 fuel inlet seal washer M8
14 1  07.15.14  $3.00 idle screw M5-0.8 (Bing Puch 16)
15 1  07.15.22  $3.00 idle screw spring  (Bing Puch 17)
16 1  07.15.99  $35.0 slide Ø14.5 #10  says “10  B”
17 1  07.15.18  $3.00 clip for needle  (Bing-Sachs 6)
18 1  07.15.55  $3.00 disk washer  (Bing-Sachs 7)
19 1  07.15.23   N/A    slide spring Ø11 x 42
20 1  07.16.25   N/A    carb top cover    smaller than Puch
21 2  07.16.23  $1.50 carb top screw (Bing Puch 10)
22 1  07.16.12   N/A    choke rod 35mm (use 38mm Bing-Puch 33)
22 1  07.16.12s $4.00 choke rod substitute 38mm
23 1  07.16.13   N/A    push button  goes on top of choke rod, not needed
24 1  07.15.27   N/A    top gasket   smaller than Puch
25 1  07.15.20  $20.0 choke slide 14 wide,  can grind down a Puch one
