6. B I N G A L L S T A T E C A R B S
There are 3 Bing 12mm carburetors on Sears Allstate mopeds.
1. 050.1.1500.2/58 ∅12 jet 58, cable choke (1-ended cable)
for M1 engine with intake silencer (air box) Puch MS50
on ’56-58 Mo-Ped 810.94000, 810.94001
on ’63-64 Econo Mo-Ped 810.94011, 810.94018
3. 364.1.15.001.0/62 ∅12 jet 62, cable choke (2-ended cable)
for M3 engine with no intake silencer Puch MS50V
on ’58-61 Mo-Ped 810.94010, 810.94019
on ’59-61 Mo-Ped 810.94020
on ’62-63 Mo-Ped 810.94030, 810.94039
on ’64-65 Mo-Ped 810.94040, 810.94049
6. 360.1.15.500.0/62 ∅12 jet 62, lever choke (no choke cable)
for M6 engine with no intake silencer Puch MS50VDK
on ’64-65 Campus 50 810.94090, 810.94099

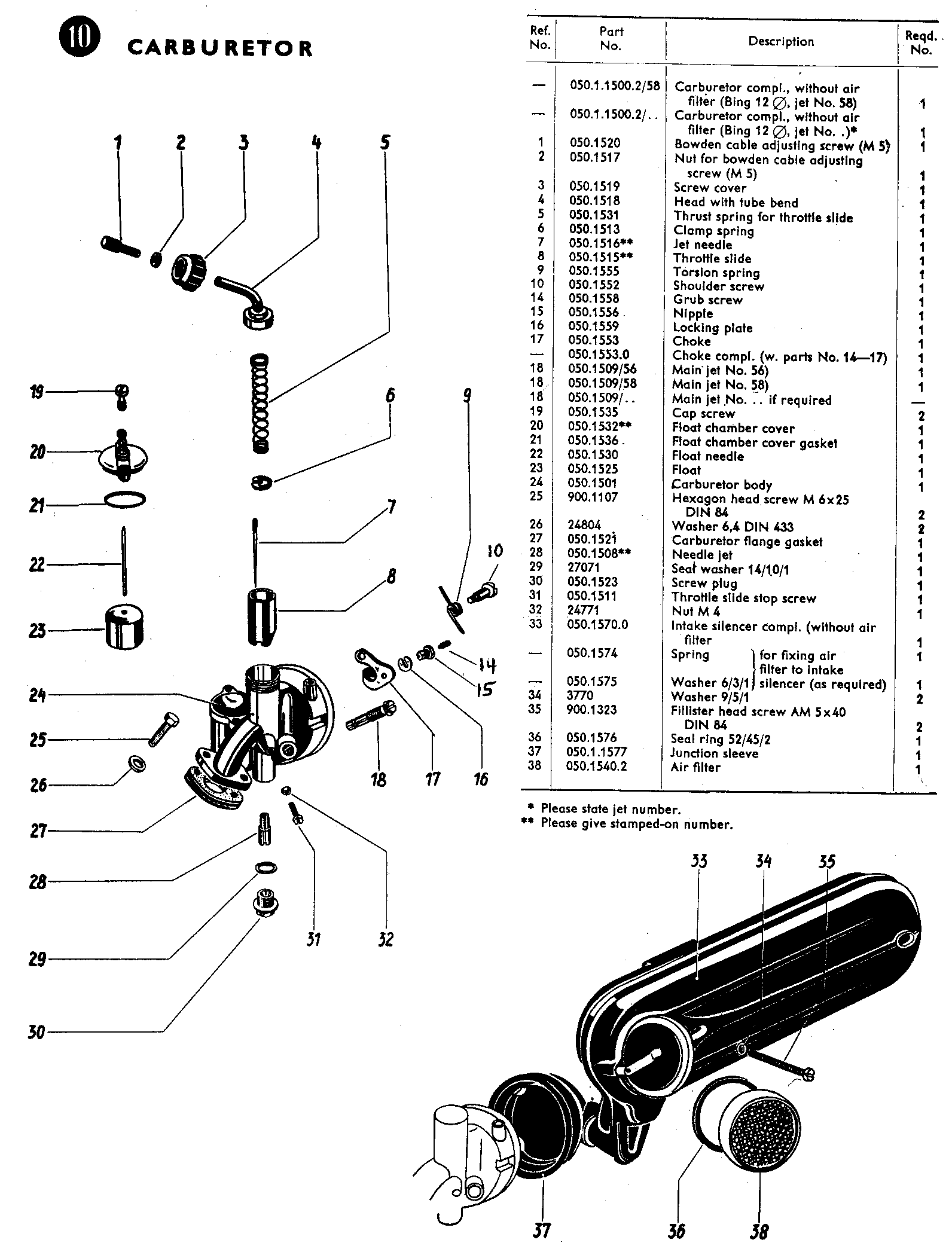

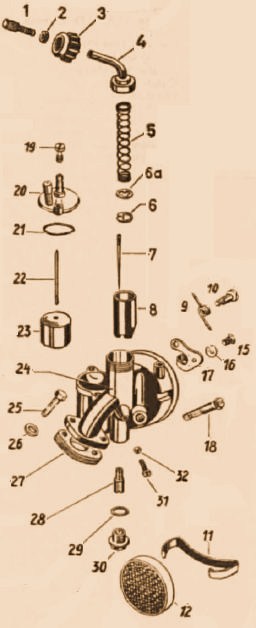

136 fig 00.00.000.0/00 price
100 050.1.1500.2/58 0 none M1 carb ∅12 jet 58, cable choke
010 364.1.15.001.0/62 none M3 carb ∅12 jet 62, cable choke
001 360.1.15.500.0/62 none M6 carb ∅12 jet 62, lever choke
111 01 050.1520 000 $4.00 cable adjuster A1b M5-0.80
111 02 900.2115 000 $0.40 adjuster nut M5-0.80 =050.1517
111 03 050.1519 000 none top cover outer M18-1.0
111 04 050.1518 000 none top inner with tube bend M6-0.75
111 05 050.1531 0000 $10.0 throttle spring
111 06 050.1513 0000 $3.00 throttle needle clip
011 6a 350.1.15.014.1 none throttle disc ∅11 x 0.5
111 07 050.1516 000 none throttle needle (state 1 or 2 marks)
111 07 050.0516 000 none throttle needle 31mm 1-mark
111 08 050.1515 000 none throttle slide (state #)
111 08 050.1515 000 $33.0 throttle slide #16
111 09 050.1555 000 none choke spring
111 10 050.1552 000 none choke shoulder screw
011 11 050.1529 000 none air filter clip
011 12 050.1540.2 00 none air filter screen
100 14 050.1558 000 none choke pinch screw
010 15 350.4.15.056.1 none choke cable nipple
110 16 050.1559 000 none choke locking plate
110 17 050.1553 000 none choke slide
100 18 050.1509/58 none main jet size 58
011 18 050.1509/62 none main jet size 62
222 19 050.1535 000 $1.30 float top screw M4 x 10 slot
100 20 050.1532 000 none float top with seat
011 20 364.1.15.032.2 none float top with seat and tickler
111 21 050.1536 000 none float chamber gasket
111 22 050.1530 000 none float needle (no bulb)
111 23 050.1525 000 none float bulb (no needle)
110 24 050.10.1501 0 none carburetor body bare
222 25 900.1107 000 $1.00 hex bolt M6 x 25
222 26 24804 000000 $0.20 plain washer M6
111 27 050.1521 0000 $9.00 intake gasket/heat block
111 28 050.1508 000 none needle jet (state #) Bing Jawa 14,15
111 29 27071 00000 $1.50 seal washer 10 x 14mm
111 30 050.1523 000 none screw plug M10-1.0
111 31 050.1511 000 $7.00 idle screw M4-0.7
111 32 24771 00000 $0.40 idle screw nut M4-0.7
100 33 050.1570.0 00 none intake silencer complete
100 00 050.1574 000 none spring for air filter
100 00 050.1575 000 $0.80 washer ∅3 ∅6 x 1
200 34 3770 000000 $0.80 washer ∅5 ∅9 x 1
200 35 900.1323 000 $0.80 screw M5 x 40 slot
100 36 050.1576 000 none seal ring ∅52 ∅45 x 2
100 37 050.1.1577 00 none junction sleeve
100 38 050.1540.2 00 none air filter screen

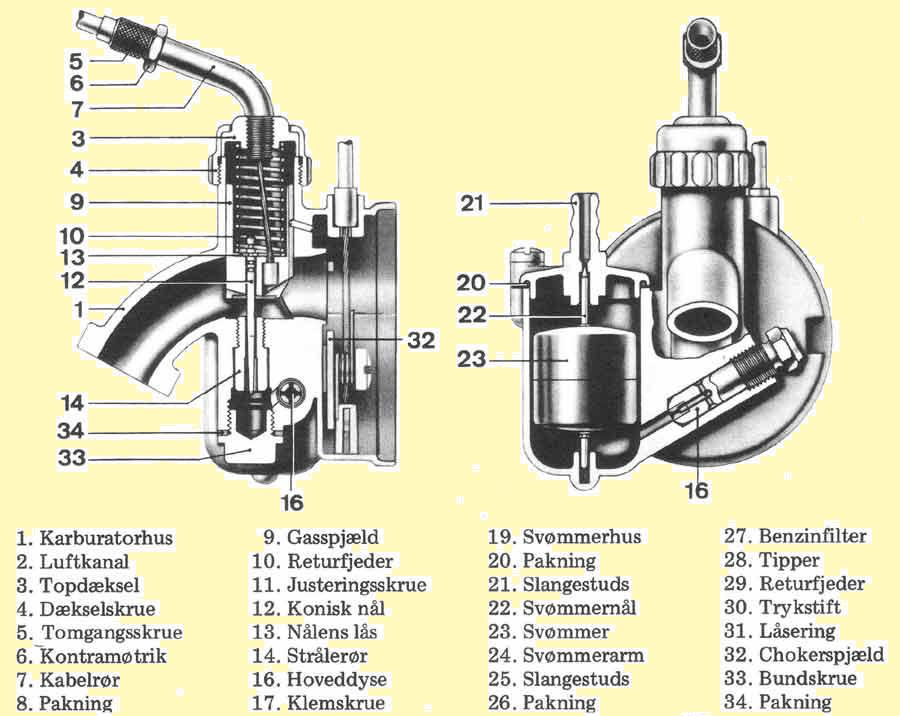

Here is a beautiful cut-away illustration from the Danish website veteranknallertklub.dk. The venturi is 12mm diameter. The curved pipe is about 13mm. The jet and jet holder are a single piece, like the Bing “early Sachs”. The choke cable and plate are the same as Bing “Solo”, with a “carb” end on the choke cable. The screw-on top cap is M18x1.0 thread and M6x0.75 cable elbow/stop, Ø14.5 slide with slot facing the intake (like other early Bings), and jet needle, are interchangeable with Bing “Solo” and Bing “Jawa or early Sachs”.
From the left drawing, sliced vertically front to back, you can see the little pin that locates the throttle slide, near where the choke cable comes in at. Like the other early Bings “Solo” and “Jawa”, the slot in the throttle slide faces the intake, so the throttle slides interchange (but not with “1970’s Sachs” and “Kreidler”).
Puch used this Bing “Allstate” 12mm carburetor on the MS50 (Moped Stahlblech – steel sheet) series from the 1950’s to the 1970’s. In 1969 Puch indroduced the Maxi moped, with an all new carburetor design. That carburetor, called Bing “Puch” or “round Bing” was in use from 1969 to 1986. It is way more familiar to Americans because of the moped buying frenzy in the late 1970’s. In the early 1980’s Puch developed their advanced technology future moped. But sales were down, and something like internal fraud contributed to Puch going out of business after over a century. If they had kept going, we would have an abundance of parts for the Bing “Austro Daimler” carburetor.
