Bing 15, 17 and 18



Austro Daimlerbing crown7.  B I N G    T Y P E  1 8,  1 7,  and  1 5
12 or 14mm     clamp size 23mm

Steyr-Daimler-Puch was so proud of the replacement for the Maxi, that they named it after their hand crafted performance bicycle line, and their 1899-1934 Austrian automobile name, Austro-Daimler. Not much on the 1984-86 Puch A-D was the same as the elderly Maxi. These Bing “Type 18” 12mm carburetors (18/12/206 and 18/12/207) are 1990’s technology. Notice the light throttle spring, possible with modern nylon lined cables and low friction throttle parts.

A Bing “Type 18” 14mm carb (18/14/180) was also on the 1995-96 Manet-Puch Korado.

A Bing “Type 17” is like a Type 18, but the float needle is different.

A Bing “Type 15” is the same as “Type 18”, except it has a 55mm bell in front, for an air box.

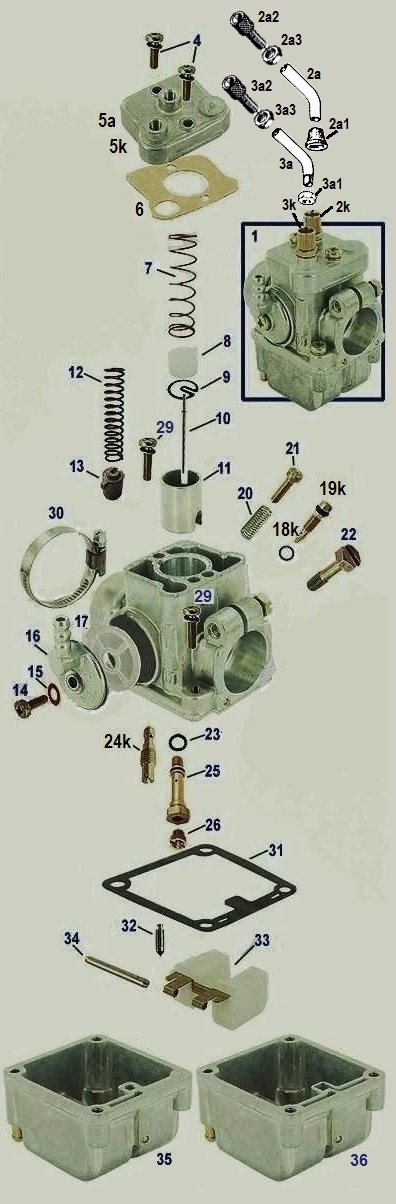

# qty  Puch part #   price   description   a is A-D  k is Korado
0    1 000.000.0000   N/A   carb 15/12/100S

1a  1 345.415.6000   N/A   carb 18/12/107 Puch A-D 2.0hp
1a  1 345.315.6000   N/A   carb 18/12/106 Puch A-D 1.5hp
1    1 000.000.0000   N/A   carb 18/12/118
1    1 000.000.0000   N/A   carb 18/14/104 Zundapp CS,CX
1k  1 0000.000.01k   N/A   carb 18/14/180 Manet Korado 2.0hp
2k  1
0000.000.02k   N/A   choke cable adjuster M7-0.75
2a  1 321.215.4181 $12.0 choke elbow M7-0.75 Bing Sachs 12
2a1 1 321.115.4211   N/A   rubber boot
2a2 1 000.000.0000 $5.00 cable adjuster M6-0.75
2a3 1 000.000.0000 $2.50 adjuster nut M6-0.75
3
k  1 0000.000.03k    N/A   throttle cable adjuster M7-0.75
3a1 1 321.115.4181 $8.00 throttle cable pipe elbow smooth
3a1 1 321.115.4171 $2.00 pipe elbow nut M7-0.75
3a2 1 000.000.0000 $5.00 cable adjuster M6-0.75
3a3 1 000.000.0000 $2.50 adjuster nut M6-0.75

4    2 000.900.9114 $1.00 top screw M4 x 12 phillips
5k  1 0000.000.05k   N/A   top cover, both threaded M7-0.75
5a  1 321.115.4191   N/A   top cover, choke threaded M7-0.75
6    1 321.115.4291   N/A   top gasket
7    1 321.115.4061   N/A   throttle spring Ø13 x ??
8    1 321.115.4141   N/A   spring cup  has nylon slide tab
9    1 362.115.0131 $2.00 jet needle clip Bing Puch 5
10  1 330.115.0161 $18.0 jet needle 36mm Bing Puch 4a
11  1 ..115.4151/13   N/A   throttle slide Ø16.5 diff. slot angle
12  1 321.115.4641   N/A   choke spring
13  1 321.115.4652   N/A   choke slide
14  1 000.900.9114 $0.70 inlet screw M4-0.7 x 16
15  1 321.115.4391   N/A   seal washer 4 x 8 x 0.5
16  1 321.115.4381   N/A   inlet banjo (bigger)
17  1 321.115.4371   N/A   fuel filter
18k1 0000.000.18k    N/A   idle mixture screw o-ring
19k1 0000.000.19k    N/A   idle mixture screw
20  1 321.115.4121   N/A   idle speed screw spring
21
  1 321.115.4111   N/A   idle speed screw
22  1 345.115.5291 $3.00 clamp screw M6 Bing Puch 28
23  1 321.115.4071   N/A   o-ring for needle jet

24k  0000.000.24k    N/A   pilot jet
25  1 ..115.4081/26   N/A   needle jet 2.26
26  1 ..315/0091/54   none 4.0 main jet #54 (2.0hp)
26  1 ..315.0091/52   none 4.0 main jet #52 (1.5hp)
29  3 D07.985.0212 $0.50 bowl screw M4 x 16 phillips
30  1 000.900.9886   N/A   air filter hose clamp
31  1 321.215.4281 $12.0 float bowl gasket
32  1 362.215.0262 $15.0 float needle Bing Puch 20
33  1 321.115.4252  N/A   float 35 x 26 x 15.5
34  1 321.115.4271 $3.00 hinge pin Ø2.5 x 25
35  1 321.115.4242   N/A   float bowl 3-screw for Puch A-D, Korado
36  1 000.000.0000   N/A   float bowl 3-screw with choke jet

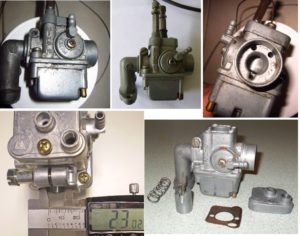

Bing 18/14/180 on Manet-Puch Korado

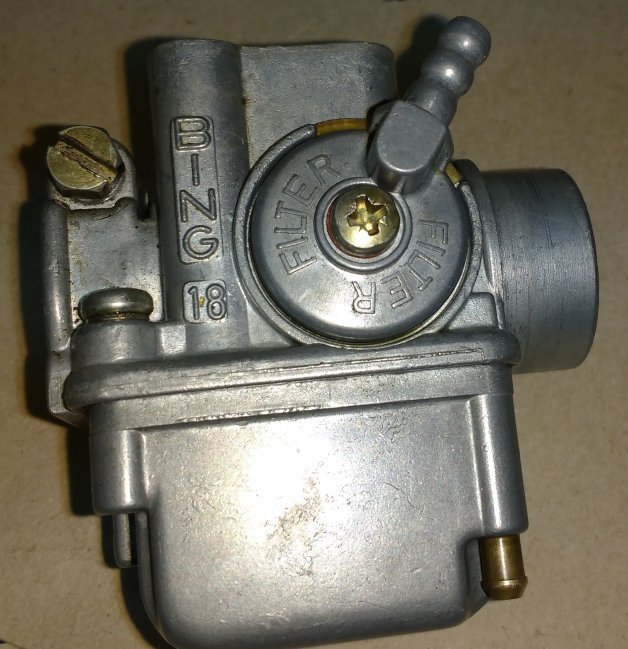

Bing 18-12-118 carb

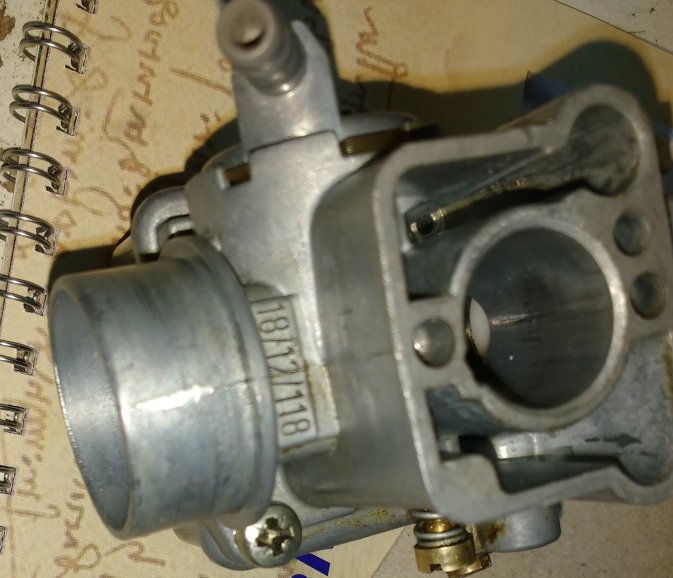

Bing 18/12/118 carb

Bing 18-12-118 carb

Bing 18/12/118 carb

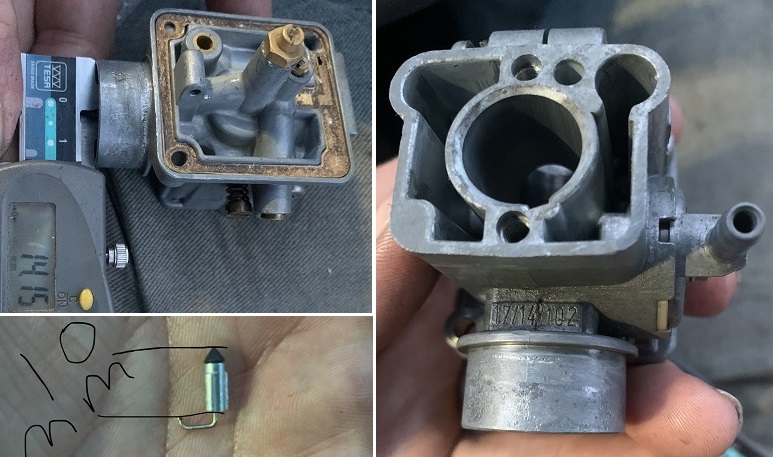

Bing 17/14/122 on 1979 KTM (Canada model)



This Bing type 17 from a 1979 KTM has a float needle with a wire “tail” that hooks onto the float. Later Bing type 18 had a regular float needle like on most 1970’s Bings, with a “flat top” that the float both pushes and pulls. The Bing 17 and 18 floats are the same. The Bing 18 float needle works fine on a Bing 17. Bing 18 is a later version from the mid-1980’s.
