Peugeot 1970’s controls are made in Germany by Magura. They have threaded-bottomless brake cable holes. All others have bottomed-threadless brake cable holes.

Peugeot 102 and 103 cables are all single-ended. So the inner wires can slide out and be replaced separately. The sleeves/housings are all black, 2.0mm ID by 5.0mm OD, for both 1.6mm brake wires, and 1.2mm throttle, choke, decomp wires. The original housing 53409 for all cables was sold by the foot. The right and left side cables ran through a black outer housings or sheaths, 11mm ID by 13mm OD, part no. 69774, also sold by the foot.

FRONT BRAKE
sleeve x wire
upper end
lower end
REAR BRAKE
sleeve x wire
upper end
lower end
THROTTLE
sleeve x wire
upper end
lower end
START CABLE
sleeve x wire
upper end
lower end
CHOKE CABLE
sleeve x wire
upper end
lower end
1976-83 Peugeot 103 LVS
with original Gurtner carb
35 x 41" Ø1.5
6mm pear
no end
black $10
55 x 64" Ø1.5
6mm pear
no end
black $10
37 x 41" Ø1.2
5x7 barrel
no end
black $12
34 x 37" Ø1.3
5x7 barrel
no end
black $12
42 x 46" Ø1.2
5x7 barrel
no end
black $12
1978-80 Peugeot 103 SP
1980-82 Peugeot 102 SP
with original Gurtner carb
37 x 43" Ø1.5
6mm pear
no end
black $10
same as above same as above same as above same as above

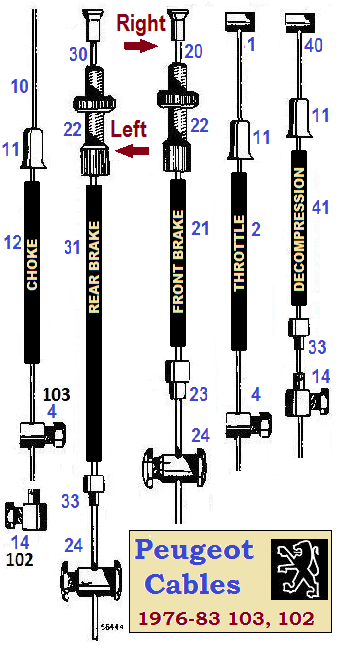

Original Peugeot moped cables are shown below. They do not have crimped-on end caps at the conduit ends. This is how most vintage bicycle cables are. The “ferrule” #11 looks like an “end cap”, but it fits loose and slides on and off easily. A true end cap is permanently attached to the conduit.

Replacement Peugeot moped cables do have end caps on both ends. This is how motorcycle cables are. They are black, 5mm thick, and lined for low friction. Modern lined cables are way better than vintage non-lined.

left CHOKE CABLE
10
58176  choke inner wire 48″ (46 min. no ends) xx $3
11 44526  ferrule Ø6 fits loose  N/A  use F6 Ø5 xxx  50¢
12 53409-42 cable conduit Ø5 x 42″ xxx xxxxx xxxx  $6
04 40802  pinch bolt Ø6 x 8 xx N/A  use P5 Ø5.5 x 8 $2
14 37817  (for 102) pinch bolt  N/A use P20a Ø4-7?  $8
15 replacement for 10,11,12 42 x 48″ xxxxxxx xxx $10

left REAR BRAKE CABLE
30
58570-65 inner wire 65″ (62 min. 1-end Ø6 pear) $5
31
53409-55 pre-1978 cable conduit Ø5 x 55″ xxx xx $6
32
53409-57 1978-on cable conduit Ø5 x 53″ xxxxxx $6
22 42778  adjuster no slot A3  $5 xx  or can use A2  $2
33 00242 (pre-1978 only) ferrule use F3 Ø4-7 x 10  50¢
24 38583  pinch bolt Ø7 x 13  N/A  use P7b Ø7 x 11  $4
35 replacement for 30, 32  1978-on   53 x 65″ xxxx $10
36 replacement for 30,31,33 pre-78  55 x 65″ xxxx $10
37 replacement for 30,31,33 ’80 102 57 x 65″ xxxx $10

right FRONT BRAKE CABLE
20
 58570-48 inner wire 48″ (?? min. 1-end Ø6 pear) $5
21
53409-35 102/103 cable conduit Ø5 x 35″ xxxxxx $6
19 53409-38 103 SP cable conduit Ø5 x 38″ xxxxxxx $6
22 42778  adjuster no slot A3  $5 xx  or can use A2  $2
23 43678  step ferrule Ø6-to-8 x 10  use F1 Ø6-8×10 $3
24 38583  pinch bolt Ø7 x 13  N/A  use P7b Ø7 x 11  $4
25 replacement for 20, 21 102/103 35 x 48″ xxxxx $10
26 replacement for 20, 19  103 SP  38 x 48″ xxxxx $10

right THROTTLE  CABLE
01 57372  inner wire 47″ (41 min. 1-end Ø5.5 x 7) x $7
02
 53409-37 throttle cable conduit Ø5 x 37″ xxxxxx  $6
04
 40802 pinch bolt Ø6 x 8 xx N/A  use P5 Ø5.5 x 8  $2
11 44526  ferrule Ø6 fits loose N/A  use F6 Ø5 xxxx   $2
12 replacement for 1, 2, 11  102/103 37 x 47″ xxx  $12

right DECOMPRESSOR CABLE
40
57185 inner wire 40″ (37 min. 1-end Ø5.5 x 7) xx $7
41
 53409-37 decomp cable conduit Ø5 x 34″ xxxxxx  $6
33 00242  step ferrule xxxxxx N/A use F3 Ø4-7 x 10 50¢
11 44526  ferrule Ø6 fits loose N/A  use F6 Ø5 xxxx   $2
14 37817  special pinch bolt xxx use P20 Ø3.8 – 7.0  $3
42
 replacement for 40,41,33,11 102/103 34 x 40″  $12

69774 cable sleeves ½ x 22″ black B20 $4 each

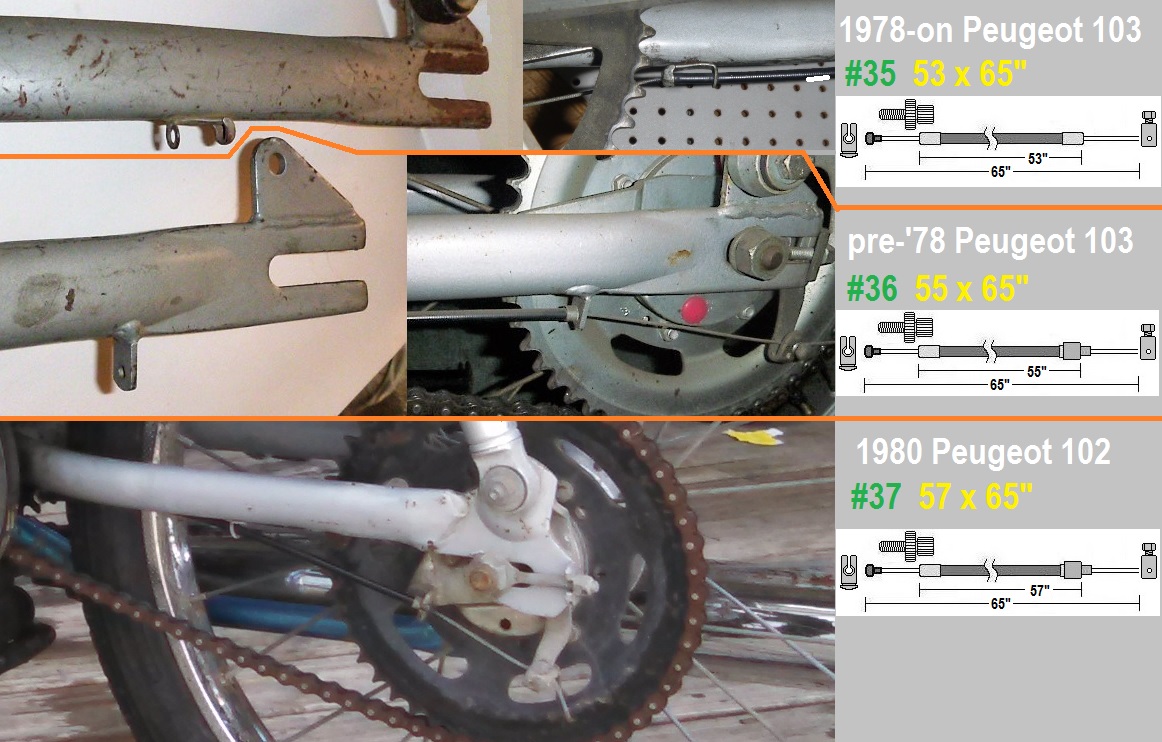

Peugeot rear brake cables #35, 36, 37
