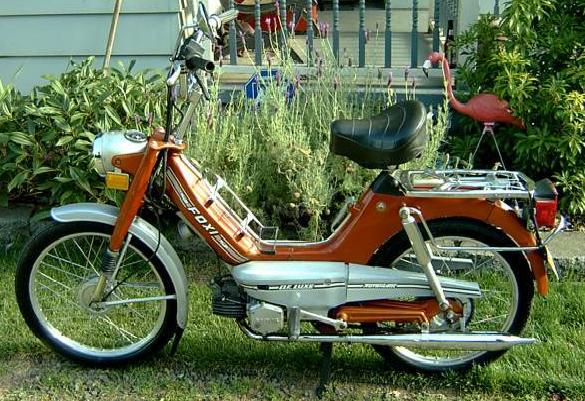

KTM Foxi Deluxe

KTM Foxi Deluxe

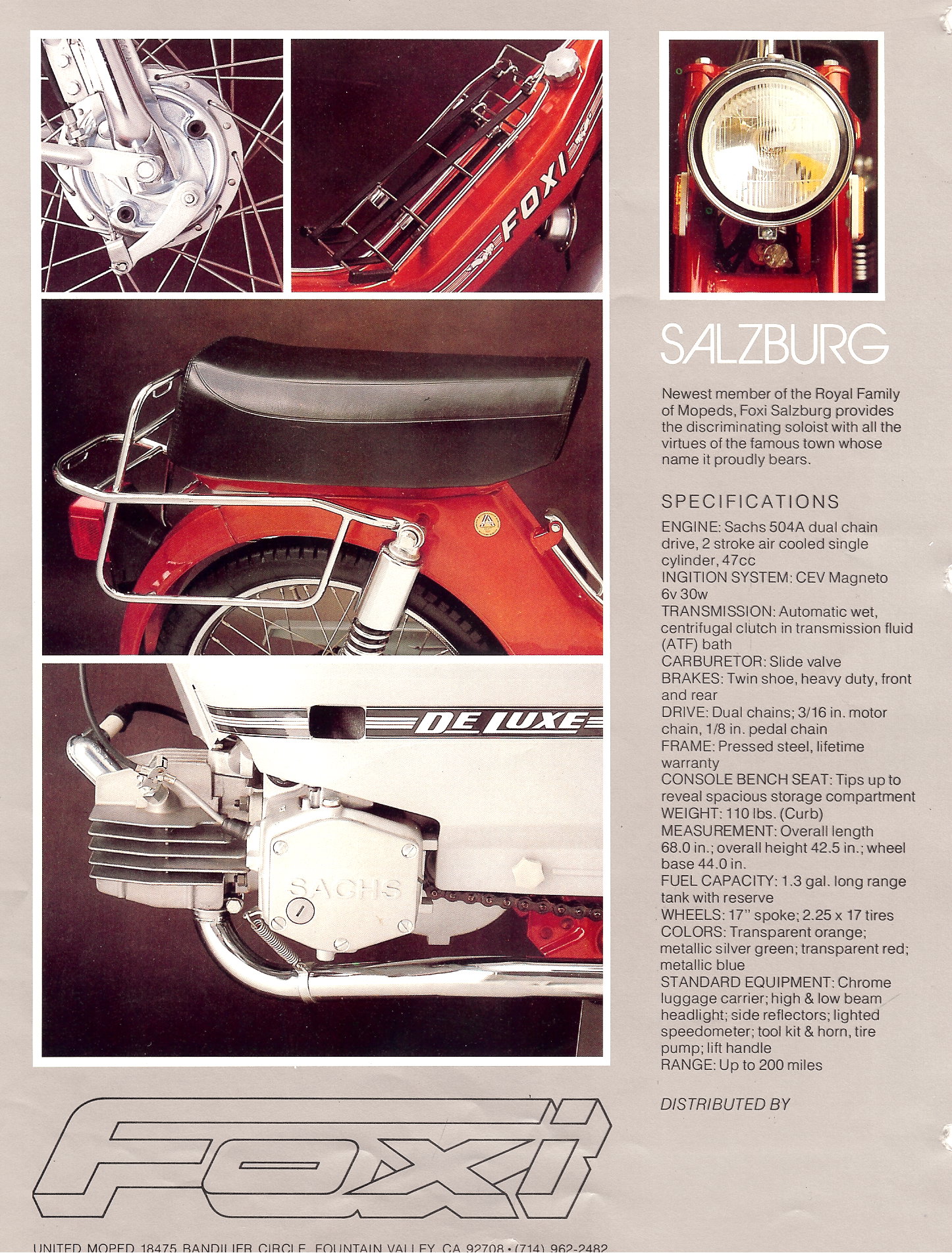

Foxi Salzburg

Foxi Salzburg

















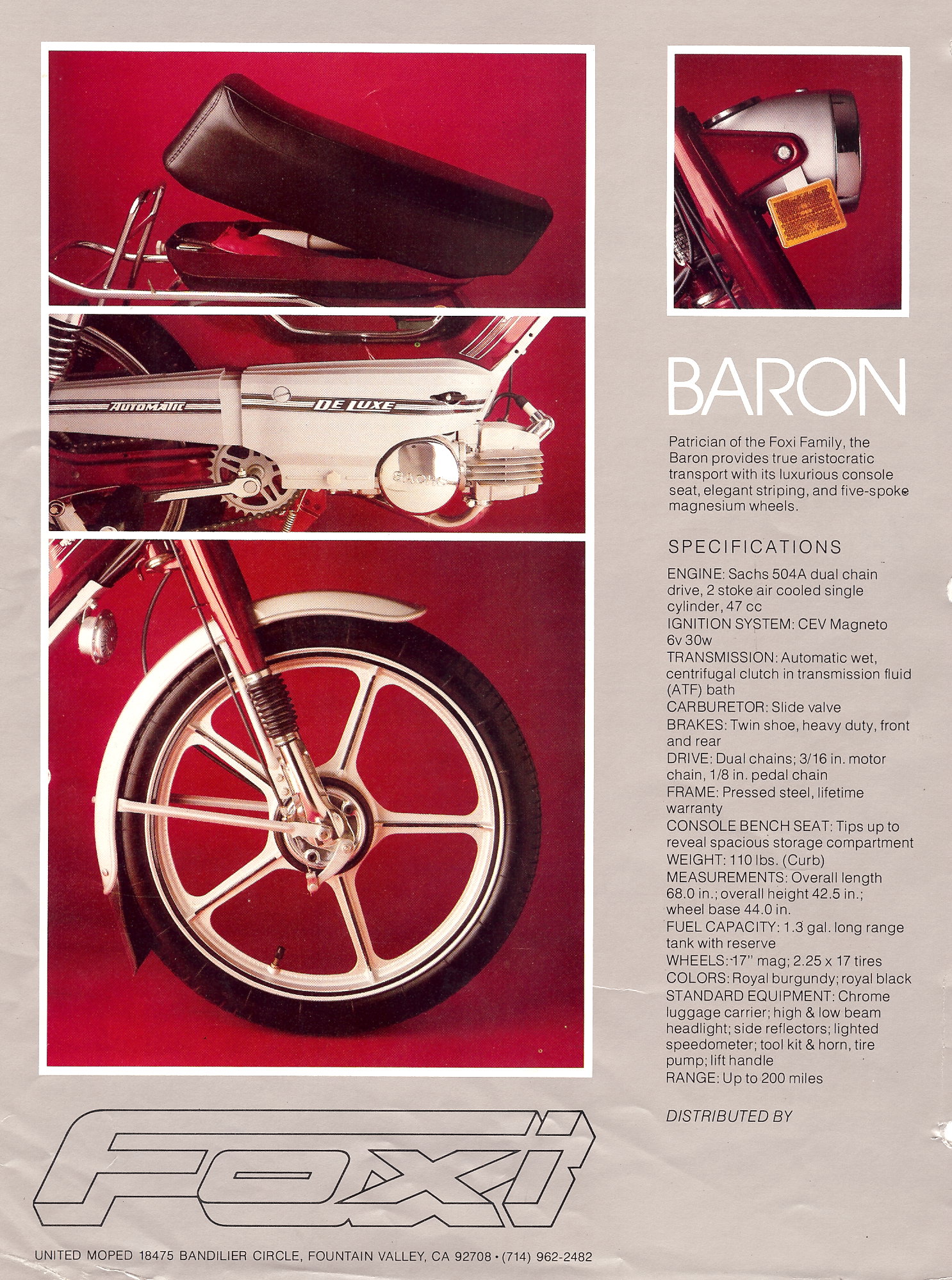

KTM Foxi Baron

KTM Foxi Baron
stem handlebars

1977 KTM Foxi Baron
clamp on handlebars
takes short type cables

’77 KTM Foxi Salzburg
stem-type handlebars
takes long type cables



















KTM Foxi mopeds are very Sachs-ish. They have a Sachs engine, same controls and similar cables and wheels as Hercules.



KTM choke cable 1-ended 12.11.097
1977-80 KTM Foxi (Austria) with Sachs 504
39.6+ = 38.0 + 1.6+ with pinch bolt

12.11.097r   1-ended replacement  $12



KTM throttle cable 2-end
some ’77-80 KTM Foxi with Sachs 504
41.0 = 36.5 + 4.5 for short cable pipe
10.11.191rs 2-ended replacement
 $19



KTM throttle cable 2-end 10.11.191 $28
most ’77-80 KTM Foxi with Sachs 504
41.0 = 36.0 + 5.0 for long cable pipe
10.11.191r 2-ended replacement
    $19



KTM start cable 1-ended 12.11.195
1977-80 KTM Foxi with Sachs 504
40.9″ = 1.1+2.8+0.3+34.5+1.2+1.0
12.11.195r   1-ended replacement
  $29

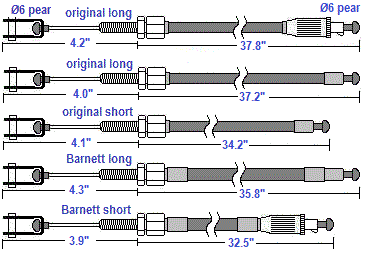

KTM front brake 2-ended clevis type
1977-80 KTM Foxi with Sachs 504
42.0=37.8+4.2 with Magura adjuster
12.11.092      original long xxxxx
$32
41.3=37.2+4.0  NO Magura adjuster
12.11.092      original long xxxxx
$29

38.3=34.2+4.1  NO Magura adjuster
12.11.092s    original short xxxx
$28

40.0=35.8+4.2  NO Magura adjuster
12.11.092rB  80’s Barnett long x
$12
36.4=32.5+3.9 with Magura adjuster
12.11.092rBs  80’s Barnett short  $14
65.2=61.3+3.9  NO Magura adjuster
12.11.092r     replacement long
none

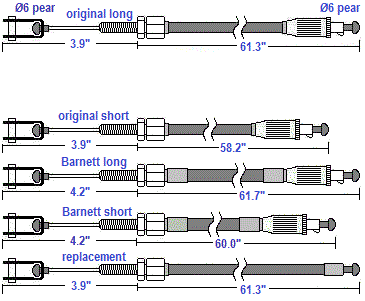

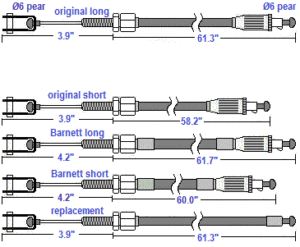

KTM rear brake 2-ended clevis type
1977-80 KTM Foxi with Sachs 504
65.2=61.3+3.9 with Magura adjuster
12.11.096      original long xxxxx
$39
65.2=61.3+3.9  NO Magura adjuster
apparently was never made xxx
 none
62.1=58.2+3.9 with Magura adjuster
12.11.096s    original short xxxx
none
65.9=61.7+4.2 with Magura adjuster
12.11.096rB  80’s Barnett long none
64.2=60.0+4.2 with Magura adjuster
12.11.096rBs 80’s Barnett short   $24
65.2=61.3+3.9  NO Magura adjuster
12.11.096r     replacement long     $29

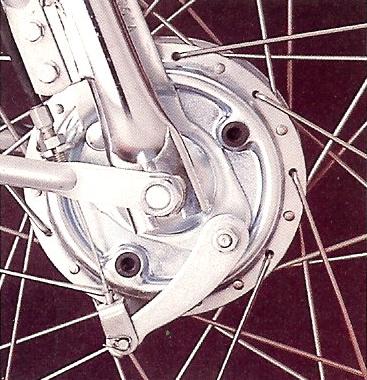

KTM clevis end
not riveted

KTM clevis end
not riveted to arm

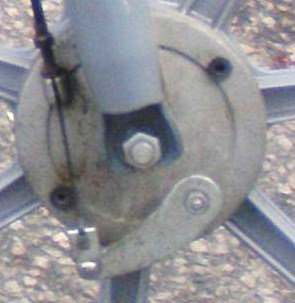

Hercules cable end clevis type

Hercules clevis end
is riveted to arm



KTM brake cables have the clevis piece trapped on the cable. Hercules brake cables have the clevis piece trapped on the brake arm. When installed, both clevis end cable types almost look the same.









KTM Foxi with short and long elbow



KTM uses the long Bing Sachs carb elbow. The 5.0″ exposed length is for a long elbow (4.45″ is for short elbow). But here on the left is a 1977 KTM with a short elbow and a 1979 carburetor. It must be from another bike.
