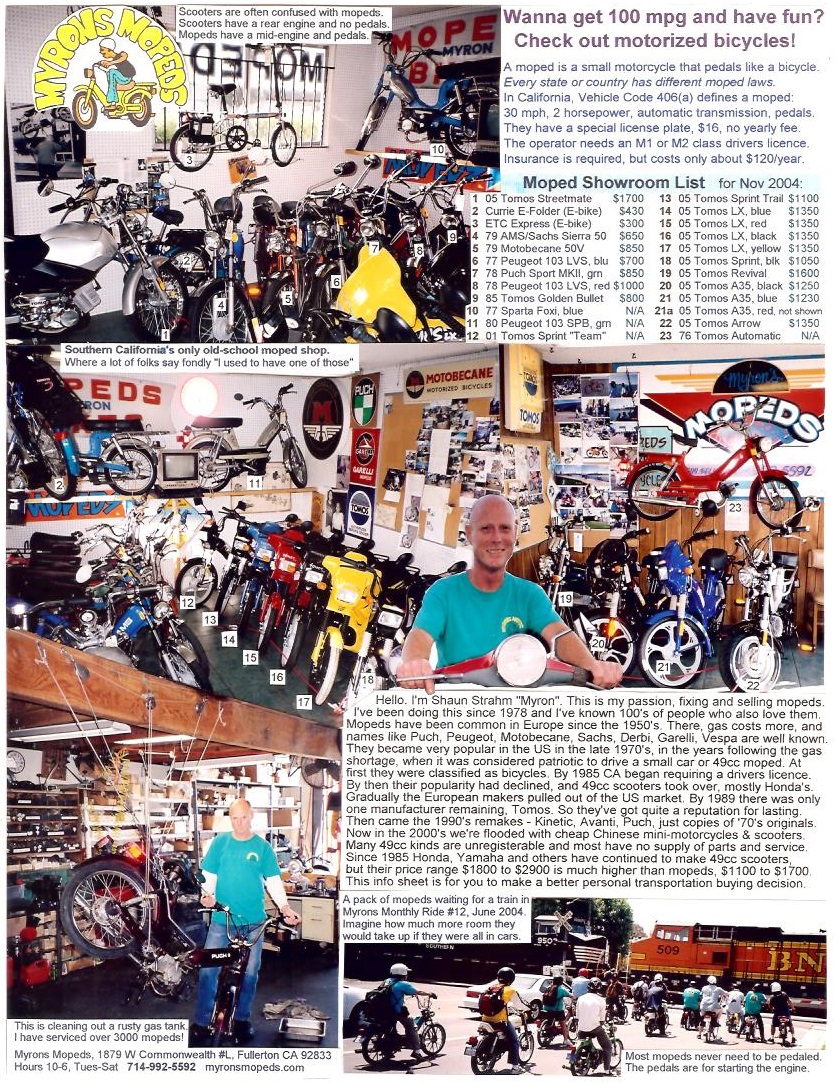

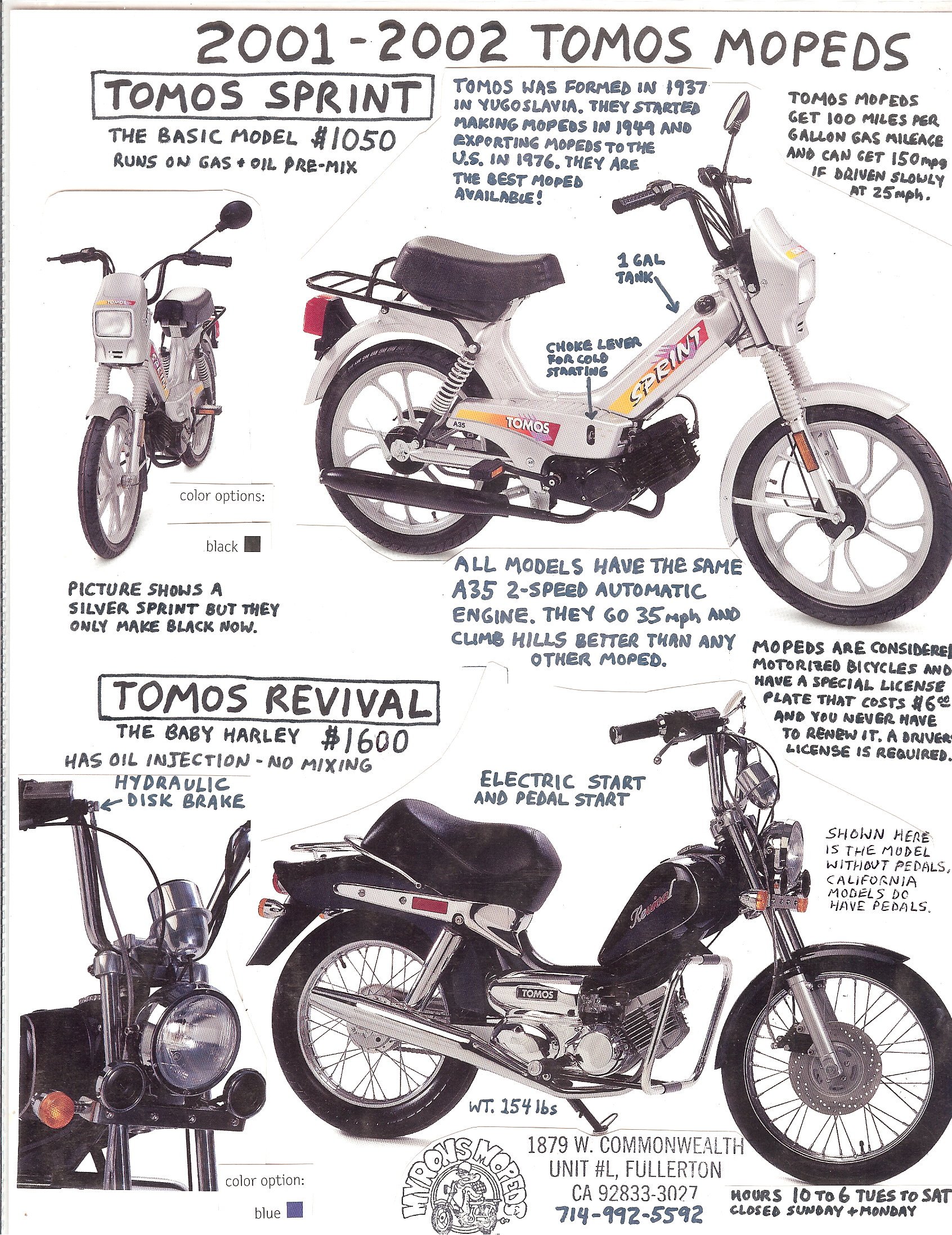

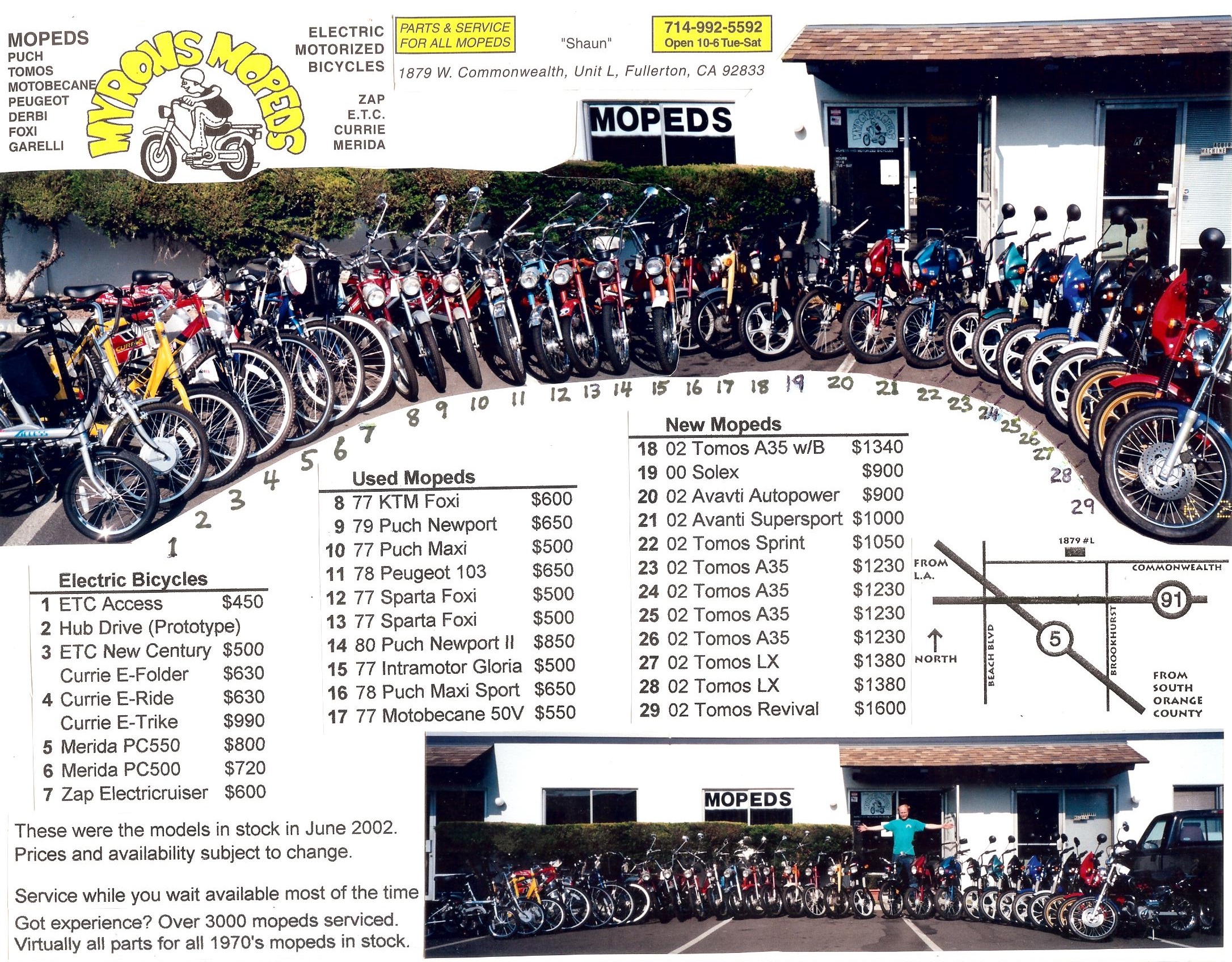

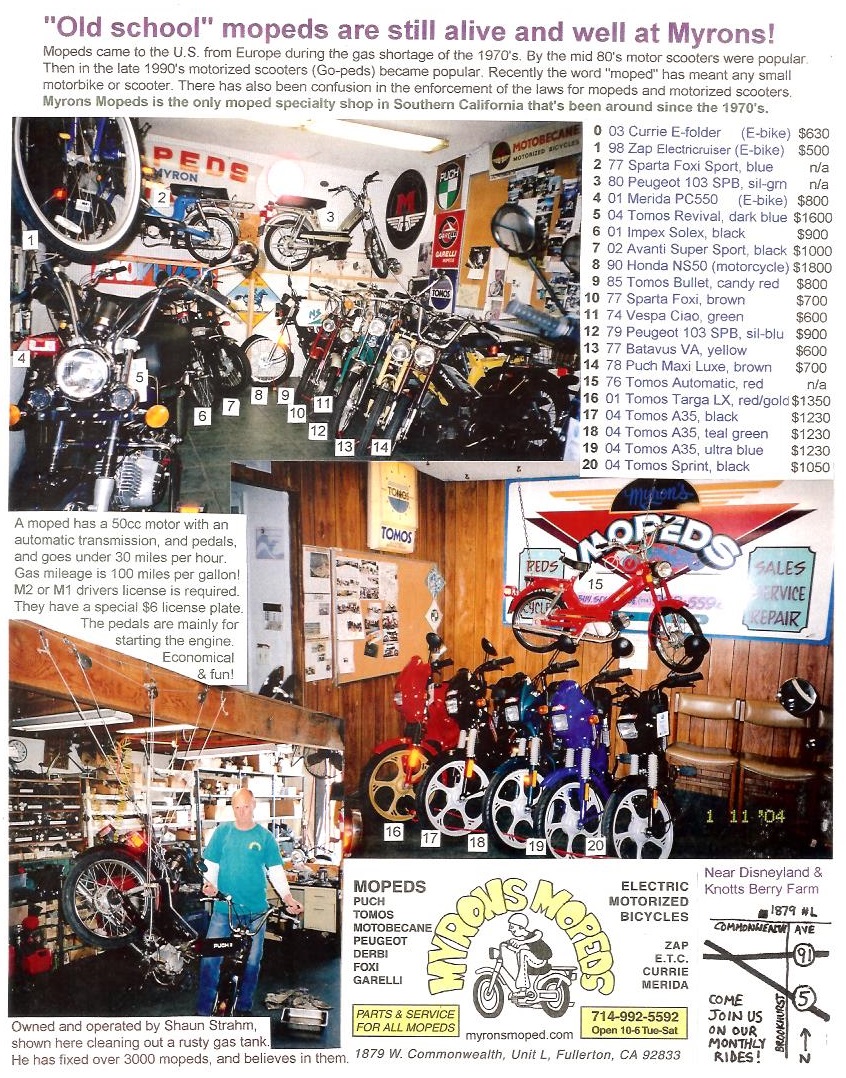

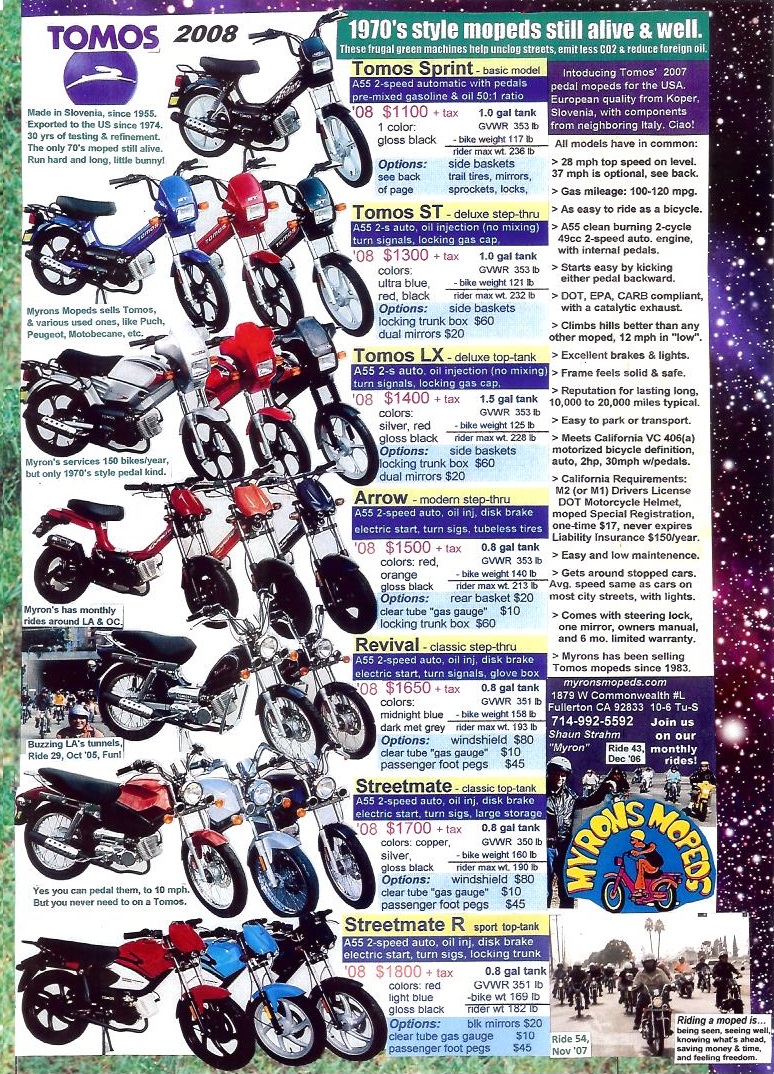

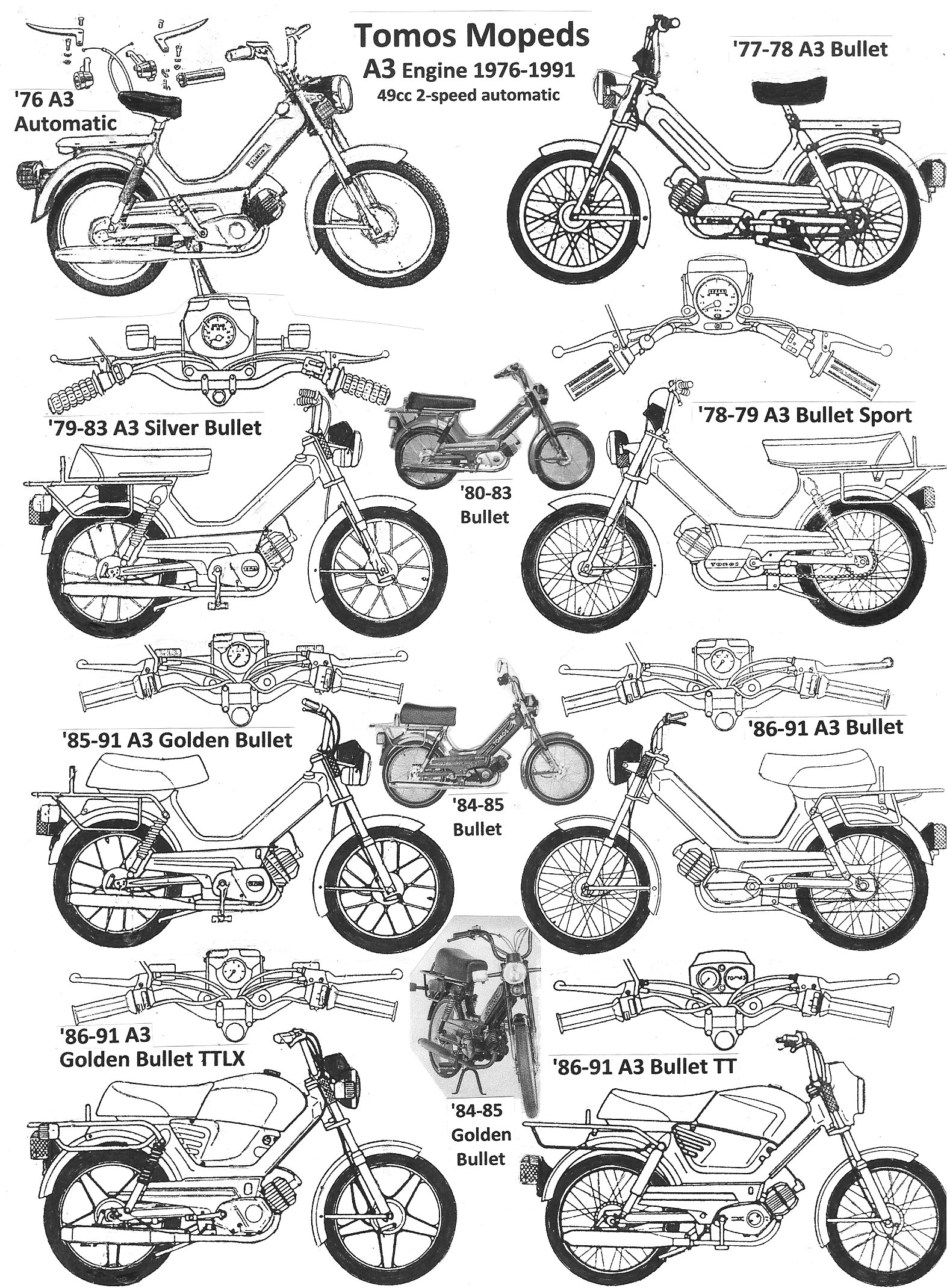

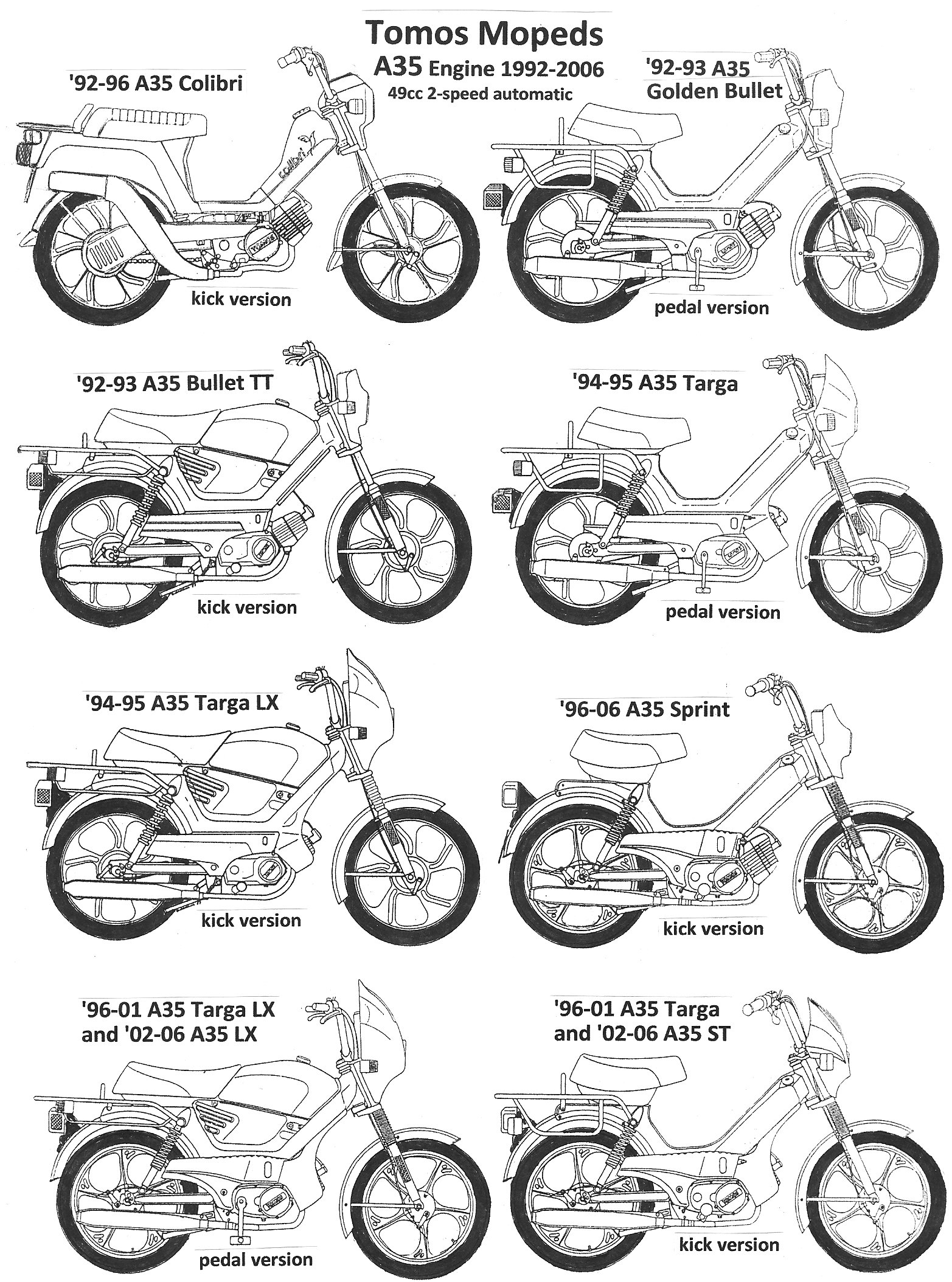

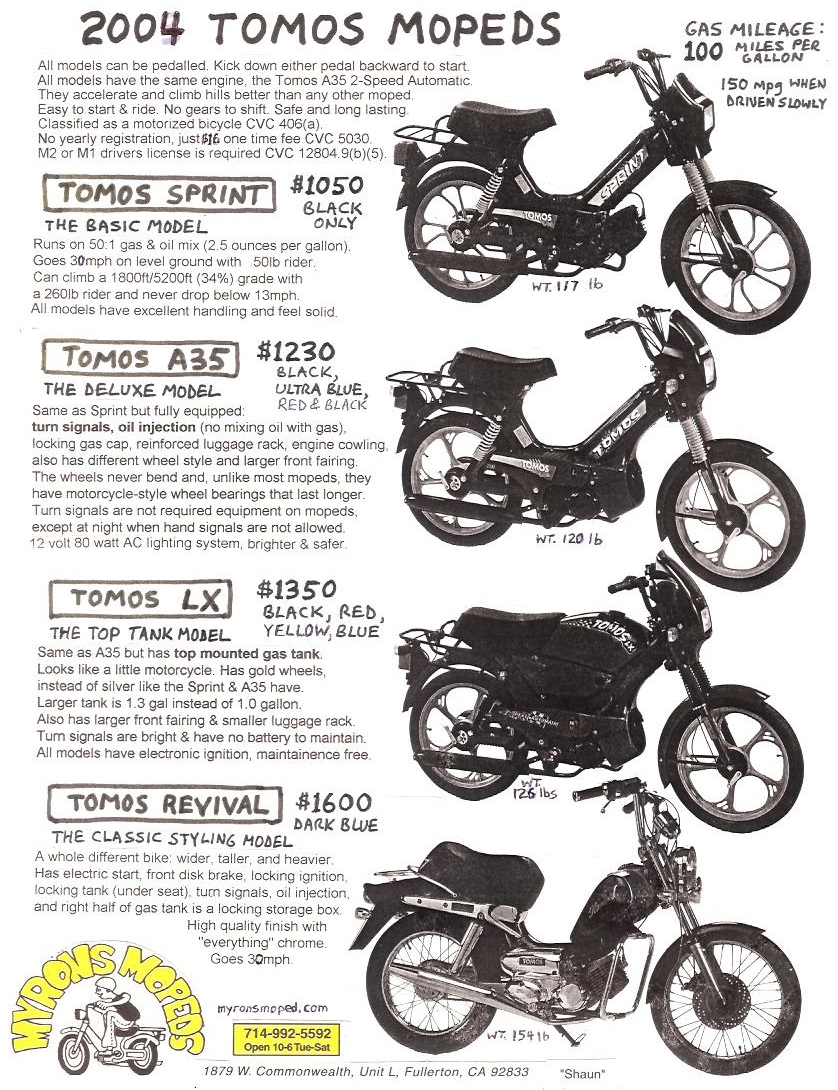

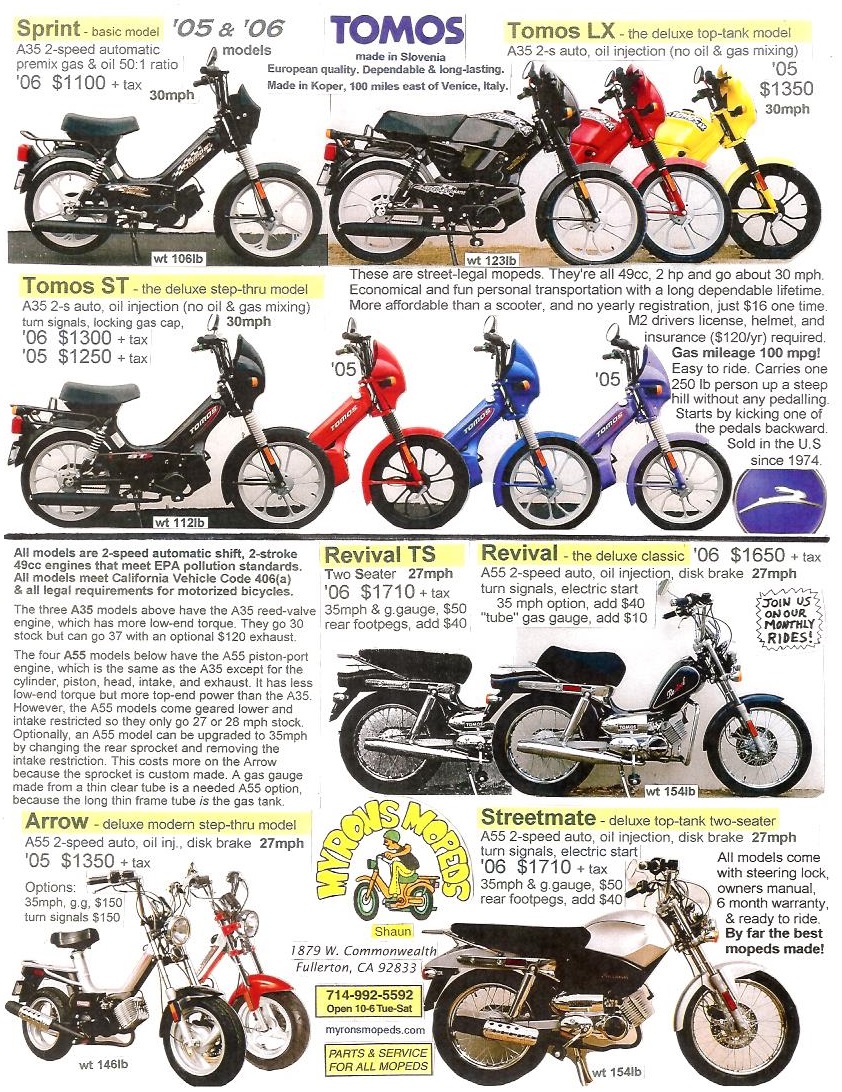

      3. Line Drawings   4. Myrons Tomos Flyers

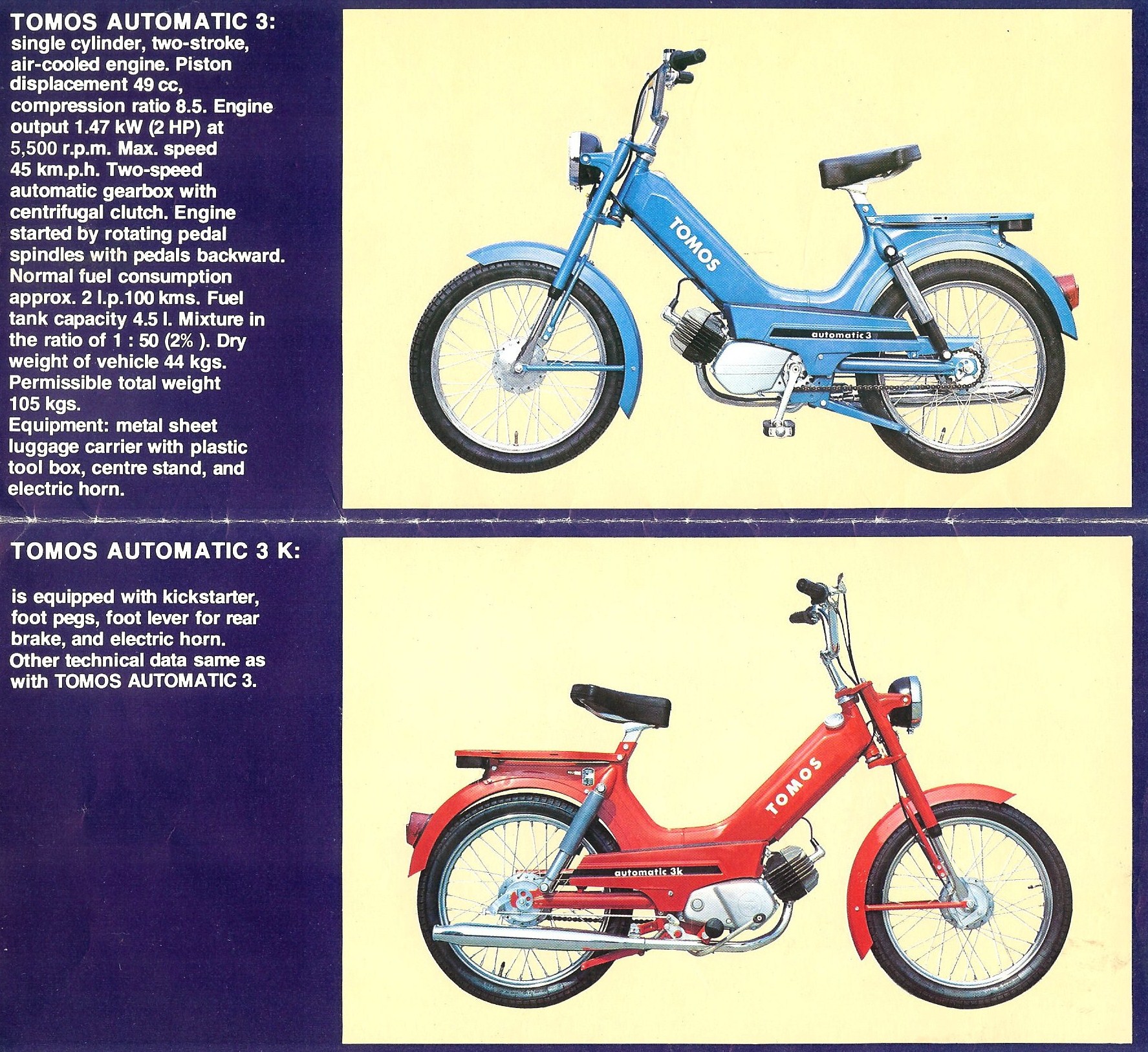

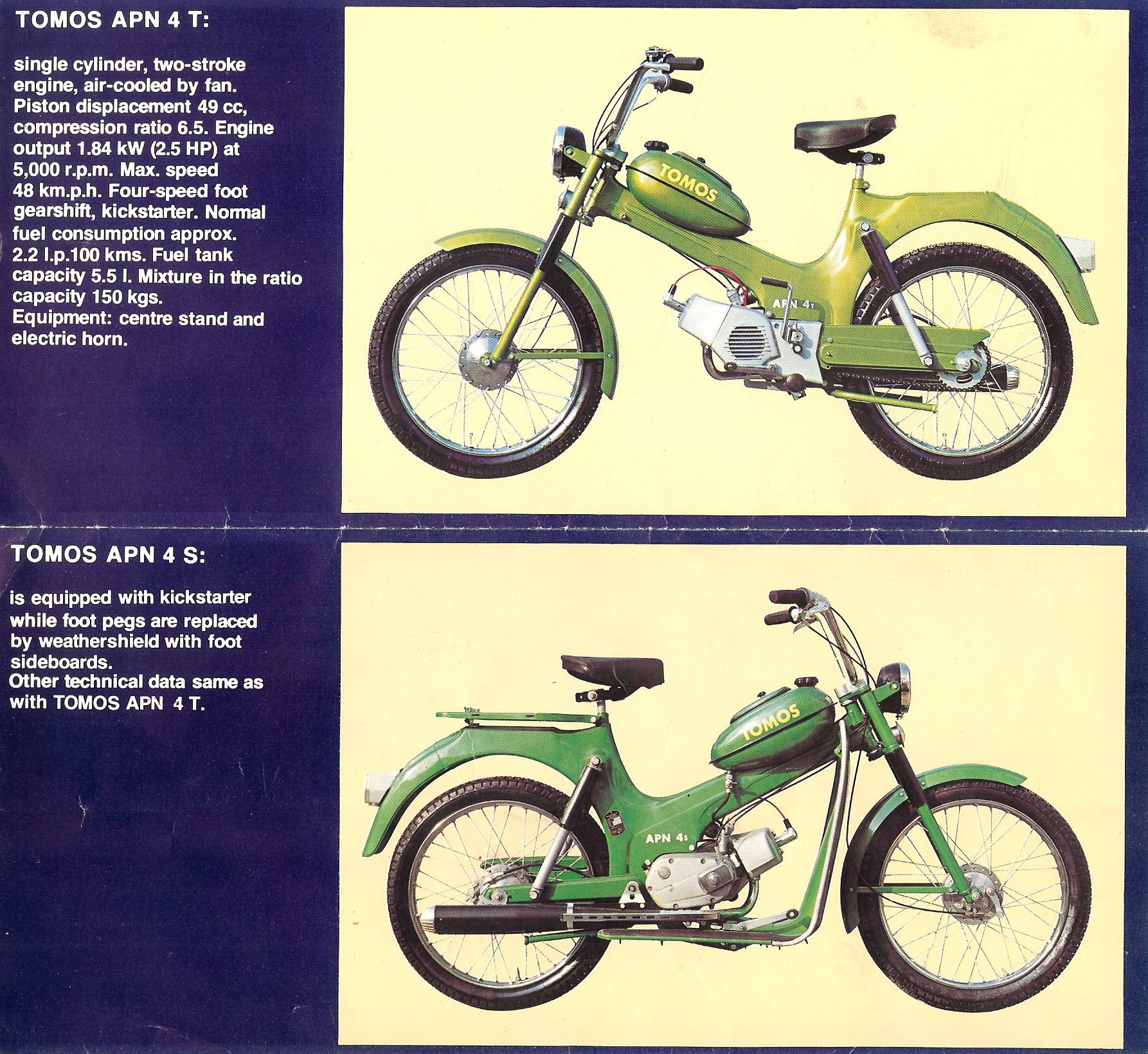

      5. Tomos   6. Euro models   7. A55 Review






1. USA modelsFlag 1

Tomos began in the US in 1976, but their new A3 moped came out in 1974 in Europe. Before that Tomos made Puchs, under license. 2013 was the last year Tomos USA sold mopeds, until 2017 when Tomos returned with a new importer.

Engine Names (all are under two horsepower, two speed automatic with pedals, some with kick start):
A3”   was 1974-1991
“Top end” is cast iron cylinder with piston controlled intake, two transfer ports, aluminum head.
A35” was 1992-2006
“Top end” is cast iron cylinder with reed valve intake, bigger fins, aluminum head says TOMOS.
“Bottom end” has wider gears and clutches, bigger roller clutch, more solid cases.
A55” was 2004 and later

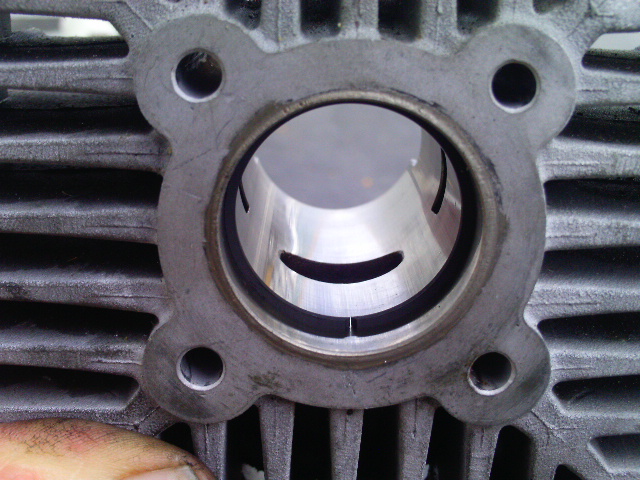

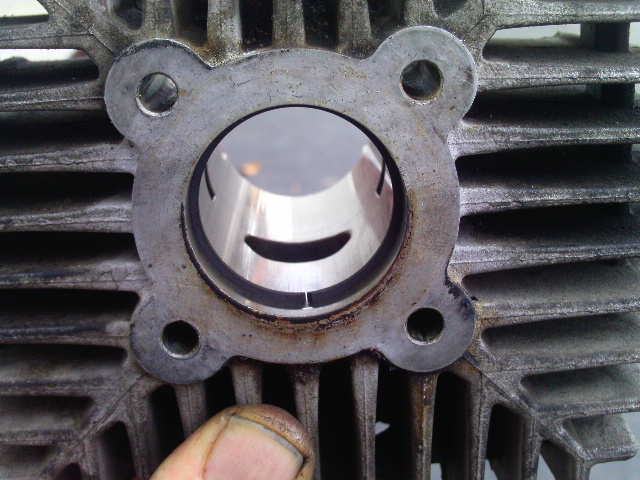

“Top end” is all-aluminum cylinder with piston controlled intake, four transfer ports, aluminum head.
“Bottom end” is the same as A35.



Speed Versions: Starting in late 1976, to satisfy different US state laws, Tomos made three speed versions, A3SL 20mph, A3GM 25mph, and A3SP 30mph. Fortunately, everything is the same on the three speed versions except the piston and the rear chain sprocket. The 30mph 2hp has a piston 50mm tall, and a 22 tooth rear sprocket. The 25mph 1.5hp has a piston 52mm tall, and a 24 tooth rear sprocket. The 20mph 1.0hp has a piston 55mm tall, and a 26 tooth rear sprocket. The longer pistons, below the wrist pin, restrict the intake port opening. Cut the intake side of the piston bottom skirt, to make the total length 50mm, which is 47mm at the edge. See Pistons 10mm Pin. Then change the rear sprocket to 22 tooth, to go the normal speed of 28 to 30 mph.

Pedal or Kick: Before 1989 all models had pedals. They were “true” mopeds. From 1989 on, Tomos also made most models with a kick starter and foot pegs. Here the versions are called “pedal” or “kick” for short.




1976 Tomos Automatic

1976 Tomos Automatic

1975 Tomos Automatic

1975-1976

In 1975 Tomos introduced the two speed automatic moped to the US, simply called “Automatic”. The engine was called an “A3”.

1975 to early 1976 colors were salmon red or pink orange.

1975-1976 stickers



1975 to early 1976 stickers: black with yellow outline TOMOS, white stripes, chrome background






late 1976-77 A3SP  (30)
late 1976-77 A3GM (25)
late 1976-77 A3SL  (20)

1976-1977

The meaning of “Sport”: In 1977-78, models with long seats were called Sport.

late 1976 to early 1979 colors were metallic red, metallic blue, metallic brown, and metallic lime.

1976-1977 stickers



late 1976 to early 1977 stickers: white with black outline TOMOS, white or black swirls, 2 speed automatic in lower case, all on clear background

1977 stickers



1977 stickers: similar to “late 1976” but with silver background and all capitals.There were 6 different “1977” style sticker sets: 2 seat versions (solo or long “Sport”) times 3 speed versions (20, 25 or 30mph).



1977 clown stickers



1977 “clown” stickers: These were not on many bikes.





1977 Tomos A3SP Sport

1977 A3SP Sport  (30)
1977 A3GM Sport (25)
1977 A3SL Sport  (20)

late 1977 A3SP (30)
has “1978” style stickers
It does not say Sport on the side panels because it has a solo seat.






















1978 Tomos Ad The greatest sidekick since Tonto

1978 A3SP Sport 30mph
1978 A3GM Sport 25mph
1978 A3SL Sport 20mph

1978-1979

1978 new logo: circle with 3 shades of blue stripes above black TOMOS, dark blue below

1978 stickers (late 1977 to early 1979) came in three flavors













late 1977 to early 1979 stickers: with similar shaded stripes. There were 18 different “1978” style sticker sets: 3 color versions (blue, green, or red/brown) times 2 seat versions (solo or long “Sport”) times 3 speed versions (20, 25 or 30mph).

1978 A3GM Sport
long seat

1978 Tomos A3GM Sport V

1978 A3GM Sport
long seat

1978 Tomos A3

’78 A3SP w/bent fork solo seat (not “Sport”)





The 1978 A3SP Sport was nicknamed “the wheelie king” because the first speed torque along with the long seat and no luggage rack, allowed for easy and massive wheelies.



1978 A3SP Sport

1978 A3SP Sport





The “wheelie king” did not last long. By late 1979 the long seat was made shorter and one-rider-only warning stickers were added.

The 1980’s were the beginning of warning stickers, on mopeds in general. Over the years more and longer warning labels appeared, on mopeds and all consumer products.








1979-1980

Bullet and Silver Bullet: In late 1979 the Bullet and Silver Bullet model names were introduced.

Bullet was standard. Silver Bullet was deluxe, with “mag” wheels, turn signals, and oil injection.

late 1979-80 Bullet

1979-80 Silver Bullet

late 1979 to 1980 stickers: white TOMOS against white and black stripes that point forward at top. The stickers changed style and stopped saying Sport, or A3SP, or A3GM, or A3SL. Instead there were two sticker sets, white and black that said “Bullet”, or black and red that said “Silver Bullet”. The engine had either Tomos SP (30mph) or Tomos GM (25mph) sticker on the right side.

late 1979 to 1980 colors: In late 1979 the met lime and met brown colors were discontinued. Silver was introduced.

Silver Bullet: The Silver Bullet had more features than the Bullet: oil injection, turn signals, mag type wheels, luggage rack, a lift-up seat (to get to the two stroke engine oil tank) and chrome fenders. Oil injection means you don’t have to mix the oil and gasoline.

Racks and seats: Before 1979, the long seat Tomos models did not have luggage racks. In 1979 Tomos made the “pommel horse” style seat, which is shorter. It had a zipper on the side leading to a tool compartment. The “pommel horse” was too short for two people, intentionally. But it left some room for a luggage rack. Some 1979-80 Bullets had the 1977-78 two-person seat with no luggage rack. They did not all change to “pommel horse” at once.

early 1979 A3GM Sport
this 1979 has 1978 stickers

1980 Tomos Bullet SP

1979 Bullet with a bent fork

1980 Tomos Bullet

1980 Bullet faded met red
seat is re-covered, pleated

















79-80 Bullet (30 mph)
79-80 Bullet (25 mph)
79-80 Bullet (20 mph)

1979-81 Silver Bullet SP (2.0hp 30mph)
1979-81 Silver Bullet GM (1.5hp 25mph)
1979-81 Silver Bullet SL (1.0hp 20mph)



Met red fade: Many metallic red Tomos mopeds are faded, to appear orange, from sun exposure. Above left is original red, right is faded red. Even new parts painted red will be faded if they were exposed to light. Only bikes that have been kept in the dark most of the time, or under a blanket, are not faded.








1981-1985

1981-85 colors: metallic red, metallic blue, silver, black

1981-85 stickers

1981-85 stickers: white TOMOS against black and red stripes that turn upward at top

Not shown are the lower side BULLET and SILVER BULLET stripes and KICK START.

Model Codes: 1981 was the start of mandatory, 17-digit, encoded Vehicle Identification Numbers for motor vehicles worldwide.

V.I.N. digits 5 and 6 are the two-digit model code. Here the model codes are bold purple. They are from Tomos parts and owners manuals, up to 2002, and actual bikes after that.



01 81-85 Tomos Bullet (30)
02 81-85 Tomos Bullet (25)
03 81-85 Tomos Bullet (20)
1981 list $549, oil injection,
ZEM/Ducati 6V40W mag, points

04 1981 Silver Bullet (30)
05 1981 Silver Bullet (25)
06 1981 Silver Bullet (20)
oil injection, snowflake mag wheels, 1979-80 stickers

1981 Tomos Silver Bullet no oil injection spoke wheels

07 1981-83 Silver Bullet 30
no oil injection, spoke whls
1981 list $589
ZEM/Ducati mag, points
6V40W AC lights, DC sigs























1984 Tomos Silver Bullet V

08 1981-85 Silver Bullet (30)
09 1981-85 Silver Bullet (25)
10 1981-85 Silver Bullet (20)
oil injection, 5-star mag wheels
1981 list $649, oil injection,
Ducati magneto, points ignition
6V 40W AC lights, DC turn signals

11 85-86 Golden Bullet 30
1985 list $679, oil inject



Early Golden Bullet (model code 11):The late 1985 to early 1986 Golden Bullet had the older seat, Magura controls, wiring and electrical equipment, like a 1985 Silver Bullet.





Golden Bullet (model code 13): The late 1986 to 1988 Golden Bullet had the newer seat, more powerful magneto, Domino “80s black” controls, and electrical wiring and switches, like a 1987 Golden Bullet.










1986-1991

1986-91 colors: metallic red, metallic blue, black

Side covers: Bullet had matching blue or red, but Bullet TT had black.

1986-91 Bullet stickers

1986-91 Golden Bullet

1987-91 Bullet TT stickers

1986-91 stickers: same as 1981-85 except BULLET and GOLDEN BULLET side stripes are curved

1987-88 Bullet TT stickers are slightly different from 1989-91. 1989-91 Bullet TT has longer and more color stripes, and is the same as 1992-93 Bullet TT.

First top tank: Tomos introduced it’s first “top tank” moped in 1987, the Bullet TT. It was a Bullet with the “look” of a motorcycle.

First kick model: The 1987 Bullet TT was the first “kick” model offered in the US.

6V to 12V: The lighting system (magneto, light bulbs, and horn) changed in 1986, from 6 volt to 12 volt, still alternating current (AC). The wires became thinner. The switches changed, because the controls changed. The 1986-91 switches are integrated into the Domino controls. Before they were clamped onto the handlebar separately. All of the lighting equipment is still made by CEV.

All black engines: All of the 1986-91 Tomos “late” A3 engines were black. Before 1986, the basic Bullet models had natural aluminum engine cases.

Cases: The 1986-91 crank cases were cut wider for modern one-piece bearings, 17x40x12 6302. Before 1986 they had 17x40x10 L17 three-piece bearings, obsolete and hard to get.

Carb: The carb is a Dellorto SHA14/12P, not an Encarwi A83, but still 12mm.

Controls; The controls are Domino “1980’s black”, not Magura. The throttle cable is single ended (universal), not double ended and specific.

Wheels: The wheels are still Grimeca cast aluminum alloy, “5-star” style with sealed bearings, not “snowflake” style with loose balls and cones.



12 1986-88 Bullet pedal (30)
1987 list $599, 50:1 gas/oil mix,
CEV 6418 magneto, points ign.
12V 28W AC lights

13 86-88 Golden Bullet pedal (30)
1987 list $699, oil injection,
CEV 6436 magneto, points ign.
12V 75W AC lights

14 87-88 Bullet TT pedal (30)
1987 list $699, oil inject.
CEV 6418 mag, points
12V 28W AC lights























19 87-88 Golden Bullet TTLX 30 pedal
1987 list $799, oil injection,
CEV 6436 magneto, points ign,
12V 75W AC lights

1988 Tomos A3 Bullet Z

20 86-89 Bullet A3-01 (20) pedal
same as Bullet (25), except for
restricted exhaust

















1990 Tomos Bullet TT kick

28 89-91 Bullet TT (30) kick
31 89-91 Bullet TT (30) pedal
1990 list $799, oil injection,
Iskra 1215 magneto, points
12V 50W AC lights







1990 Tomos Golden Bullet TTLX

27 89-91 Golden Bullet TTLX (30) kick
30 89-91 Golden Bullet TTLX (30) pedal
1990 list $899, oil injection,
Iskra 1215 magneto, points ign.
12V 50W AC lights





1989 Tomos A3 Bullet

26 89-91 Tomos Bullet (30) kick
29 89-91 Tomos Bullet (30) pedal
1990 list $649, 50:1 gas/oil mix,
Iskra 1221 magneto, points ign,
12V 28W AC lights





















30 89-91 Golden Bullet pedal (30)
1990 list $799, oil injection,
Iskra 1215 magneto, points ign.
12V 50W AC lights

1990 Tomos Bullet TT

31 1989 Bullet TT (30) pedal

1990 Tomos Bullet TS turn signals, premix gas/oil VY2A3312#K######

33 89-91 Tomos Bullet TS (30)
pedal metallic blue
turn signals, no oil injection





















First square headlights: were on 1989-91 Bullet TT models. From 1992 to 1997 square headlights were on all models, and most models from 1998 to 2013.

The first A35 engines were on the last batch of 1991 models. The next year 1992 the A3 engine was discontinued, replaced by the beefier A35.

1988 Pryer/Tomos trike



Pryer/Tomos Trikes: Late 1980’s Tomos 3-wheel mopeds were made by Pryer Motorcraft, in Ada, Ohio USA. The front “bike part” is made by Tomos, and the rear “trike part” is made by Pryer. In the early 1980’s, Pryer made trike rear end kits for Gadabout and Motomarina Tri-Power 3-wheel mopeds, with Minarelli engines. By the late 1980’s only Tomos was making new mopeds for sale in the US. The same trike kits fit any single left side chain drive moped, pretty much.

For 1992-later Pryer had different choices for the cargo box. Hot food, cold food, flat bed, or a small frame version with either a basket or a locking box. Because a Tomos automatic moped starts easy, with a backwards kick, even stationary with the rear tires on the ground, they make the best choice for a heavy-cargo trike. Other moped trikes with Puch or Minarelli engines must first get the trike moving forward above 7mph to start the engine. See Brands/America/others scroll down to Pryer, for more info.

1992 Tomos A35 Bullet pizza trike

1992 Pryer hot food vendor

1993 Tomos pizza trike

’93 Pryer pizza trike

1992 Tomos Ice Cream Trike

’92 Pryer ice cream trike

1994 Pryer police trike

















Birth of a Nation: After the civil war, in 1992 Yugoslavia’s republics became separate nations. Tomos VIN digits 1,2,3 changed from Yugoslavia Two (VY2) to Slovenia One (ZZ1), after the former Yugoslavian Republic of Slovenia became a separate nation.




1992 shirt with same day glow colors

1992-1995

1992-95 colors: white, dark blue, dark green, emerald green, sky blue, red, black, dark gray, silver

stickers: 1992-93 A35 Bullet TT (white) has the same stickers as 1989-91 A3 Bullet TT (red or blue)

A35 Engine: New A35 reed-valve engine with wider gears and clutches, and 32% more torque.

After 1991, there are no more speed versions. All models are 30mph 2hp.

Controls: New HR (Hidria Rotomatika) controls/levers that say TOMOS, not Domino

Same Dellorto SHA14/12P carburetor center mounted

Same CEV or Saturnus square headlight, CEV electrics

Wheels: New style, nicknamed “web”, cast aluminum alloy, made by Tomos. New Grimeca-compatible cast aluminum brake plates, 90 x 20mm Grimeca-compatible “V-spring” brake shoes.

34 1992-93 Tomos A35 Bullet
pedal white
1992 list $899,  oil injection,
Iskra magneto, points ignition
12V 80W AC lights, turn signals

35 1992-93 Tomos A35 Bullet TT
pedal white
1992 list $1049,  oil injection,
Iskra magneto, points ignition
12V 80W AC lights, turn signals

36 1991-93 Tomos A35 Colibri
pedal red
1992 list $1099,  oil injection,
Iskra magneto, points ignition
12V 80W AC lights, turn signals























38 1992 Tomos A35 Golden Bullet
pedal midnight blue sparkle (dark blue)
1992 list $949, oil injection
Iskra magneto, points ignition
12V 80W AC lights, turn signals

38 93 Golden Bullet
pedal black

39 1992 A35 Golden Bullet TTLX
pedal dark green, dark blue
1992 list $1099, oil injection,
Iskra magneto, points ignition
12V80W AC lights, turn signals











1993 Tomos A35 Golden Bullet TTLX green

39 93 Gold.Bullet TTLX
pedal emerald green





















39 93 Gold. Bullet TTLX
pedal black
41 kick black not shown

39 93 Gold.Bullet TTLX
pedal emerald green

40 1992-93 Bullet TT
kick white

1992 Tomos A35 Golden Bullet TTLX Z

41 1992 Gold.Bullet TTLX
kick midnight (dark) blue

















1993-1995 Tomos Sprint

42 1993-94 Tomos Sprint pedal
43 1993-94 Tomos Sprint kick
red, black, sky blue
1994 list $899, 50:1 gas/oil mix,
1993: IDM magneto, points ignition
1994: IDM or Iskra, CDI electronic
1995: Iskra magneto, CDI electronic
12V 50W AC lights

1993 Tomos Sprint

43 1993 Tomos Sprint
kick sky blue



In 1993-94 new model names were introduced.

Sprint: The late 1993 Sprint and 1994 Sprint TT replaced the 1993 Bullet and Bullet TT.

Targa: The 1994 Targa and Targa LX replaced the 1993 Golden Bullet and Golden Bullet TTLX.





1994 Tomos Targa Z

44 1994-95 Tomos Targa (white with dark green) pedal
45 1994-95 Tomos Targa (white w/burgundy red) pedal
47 1994-95 Tomos Targa (white with dark green) kick
49 1994-95 Tomos Targa (white w/burgundy red) kick
1994 list price $1029, oil injection
1994: IDM or Iskra, CDI electronic
1995: Iskra magneto, CDI electronic
12V 80W AC lights, turn signals







45 1994-95 Targa (white/red) pedal























1994 Tomos Targa white and green side panels say M-class cycle

44, 47 1994-95 Tomos Targa white and green
All 1994-95 Tomos models had side
panels that said “M-CLASS CYCLE”

1994 Tomos Sprint TT side cover says M-CLASS CYCLE

56 1993-95 Sprint TT
says M-CLASS CYCLE

1994 Tomos Sprint says M-CLASS CYCLE

42, 43 1993-95 Sprint
says M-CLASS CYCLE









1995 Tomos Targa LX

46, 48 1994-96 Targa LX
says M-CLASS CYCLE

1995 Tomos Targa LX

46 95 Targa LX pedal
another bent fork

















1994 Tomos Targa LX

46 1994-95 Tomos Targa LX pedal
black, redhunter (dark) green, sky blue
48 1994-95 Tomos Targa LX kick
black, red
1994 list price $1199, oil injection
1994: IDM or Iskra, CDI electronic
1995: Iskra magneto, CDI electronic
12V 80W AC lights, turn signals

46 1994 Targa LX
pedal dark green

1995 Tomos Targa LX

46 1994-95 Targa LX
pedal red













46 1995 Targa LX
pedal black

46 1995 Targa LX
pedal sky blue











56 94-95 Tomos Sprint TT (oil injection) pedal
charcoal (dark) gray, royal (ultra) blue, silver
58 94-95 Tomos Sprint TT (oil injection) kick
black, red  (not shown)
1994 list $1049, oil injection, 12V50W AC lights
1994: IDM or Iskra, CDI electronic
1995: Iskra magneto, CDI electronic







56 1994 Tomos Sprint TT
pedal dark gray sparkle

1994 Tomos Sprint TT

56 1994 Tomos Sprint TT
pedal silver

















1995 Tomos Colibri

59 1995 Tomos Colibri
pedal dark gray sparkle




















1997-2005 Tomos Off Road

2001 Super Tom

Tomos Super Tom Flyer

1997 Tomos TX50













Welcome, parents of 5 to 10 year old motorcycle riders. Watch out for Superman’s cousin, Super Tom. Wring, wrang. Tomos A35 two stroke, two speed power. You can’t hold it back, it’s too strong!



’03 MC50 Senior Pro

2003 MC50 Senior

2003 MC50 Junior

2003 Tomos MC36











’05 MC50 Senior Pro

2005 MC50 Senior

2005 MC50 Junior

2005 Tomos MC36















2005 Tomos MC80



Welcome, race fans. The Tomos MC80 is a 79cc 3-speed semi-automatic (foot shift but no clutch).It has a Bing 14mm carburetor, 7.0 compression ratio, 5.1″ travel fork, and 105mm brake drums.Tires 2.50-16 front, 2.75-14 rear. Weight 190 lbs……












Tomos Wheels



Spoke style wheel

Spoke wheel
made by Tomos
for 2.25-16 tire
90 x 20mm brakes
LH speedo driver
1974-1991 chrome

"Snowflake" wheel made by Grimeca for 2.25-16 tire 90 x 20mm brakes left side sp. driver 1979-1983 black

“Snowflake” wheel
made by Grimeca
for 2.25-16 tire
90 x 20mm brakes
left speedo driver
1979-1983 black

1986-90 Tomos Golden Bullet

“Five Star” wheel made by Grimeca
for 2.25-16 tire
90 x 20mm brakes
left speedo driver
1983-1985 black
1985-1991 gold

Web style wheel

“Web” wheel
made by Tomos
for 2.25-16 tire
90 x 20mm brakes
LH speedo driver
1992-1996 white
1993-1996 gray

























Slot style wheel

“Slot” wheel
made by Tomos
for 2.25-16 tire
105 x 20mm brakes
LH speedo driver
1996-2006 gray
1998-2002 gold
2006-2008 black

10 ray wheel

“Ten Ray” wheel
made by Tomos
for 2.25-16 tire
105 x 20mm brakes
LH speedo driver
1997-2006 gray
1998-2006 black

Zong Chen wheel

Zong Chen wheel
made by Z.C.W
for 2.25-16 tire
105 x 20mm brakes
LH speedo driver
2008-2013 silver
2008-2013 black

Zong Chen wheel

Zong Chen wheel
made by Z.C.W
for 2.75-16 tire
LH disk brake
RH speedo driver
2008-2013 silver
2008-2013 black




























1996-2006

Carburetor Location: In 1996 the carburetor location changed from center mounted to right side mounted. To the rider, the difference is not noticeable, but to the mechanic, the side mount carburetor is ten times easier to work on. Before 1996, you had to remove or at least lower the engine away from the frame to gain access to the carburetor. Changing a jet takes 50 minutes on a 1995, but only 5 minutes on a 1996.

Bigger Brakes: From 1974 to 1995 the brake drums were always 90mm diameter. From 1996 to 2013 the brake drums were 105mm diameter. So a 1996 Tomos can stop faster than a 1995 can.

Wheels: The 1996-2007 wheels, cast aluminum alloy, made by Tomos, had two styles, “Slot” or “Ten Ray”, both with 105mm brake drums and motorcycle type sealed wheel bearings. During most of the years from 1996 to 2007, Tomos would alternate wheel styles, “Slot” one year, “10 Ray” the next. The wheel styles changed at different times of the year for different models. Color also changed. See above.



61 1996-99 Sprint pedal
64 1996-99 Sprint kick
black, silver
1998 list $1029
50:1 gas/oil mix,
Iskra magneto, CDI
12V 50W AC lights

62 96-99 Targa LX pedal
65 96-99 Targa LX kick
blackredmet blue,
99 yellow
, white

1998 list $1349
oil injection,
Iskra magneto, CDI
12V 80W AC lights

63 1996-99 Targa pedal
66 1996-99 Targa kick
black, silver, teal,
burgundy

1998 list $1199
oil injection,
Iskra magneto, CDI
12V 80W AC lights

1996-97 Targa LX white

























1996-99 Sprint stickers

2000-05 Sprint stickers



In 2000 the Sprint and Targa stickers changed slightly. There were no replacement Targa stickers sold by Tomos, because the name Targa was owned by Porsche. So Targa and Targa LX stickers have always been scarce.









2000 Tomos Sprint

61 2000-01 Tomos Sprint pedal
64 2000-01 Tomos Sprint kick
black, silver
2001 list $1049, 50:1 gas/oil,
Iskra magneto, CDI electronic
12V 50W AC lights

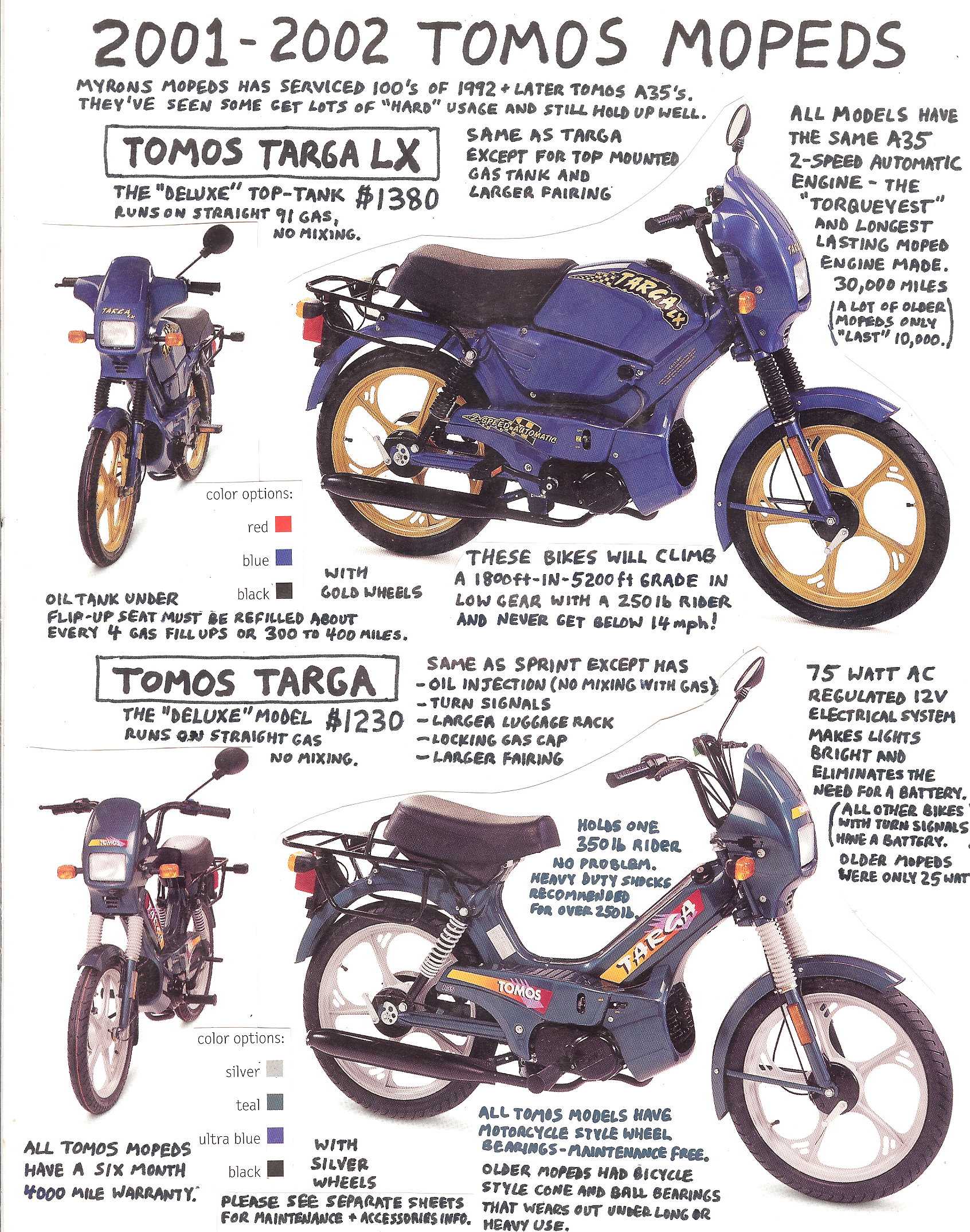

2001 Tomos Targa LX

62 2000-01 Tomos Targa LX pedal
65 2000-01 Tomos Targa LX kick
black, red, met blue, 99 yellow
2001 list $1379, oil injection,
Iskra magneto, CDI electronic
12V 80W AC lights

2000 Tomos Targa

63 2000-01 Tomos Targa pedal
66 2000-01 Tomos Targa kick
black, silver, teal, ultra blue
2001 list $1229, oil injection,
Iskra magneto, CDI electronic
12V 80W AC lights



























2003 Tomos Sprint

61 2002-05 Tomos Sprint pedal
64 2002-05 Tomos Sprint kick
black

62 2002-04 Tomos LX pedal
65 2002-04 Tomos LX kick
black, red, met blue

63 2002-04 Tomos Tomos pedal
66 2002-04 Tomos Tomos kick
black, redteal, ultra blue





















2006 Tomos Sprint

61 05-06 A35 Sprint pedal
64 05-06 A35 Sprint kick
black, silver

62 05-06 A35 LX pedal
65 05-06 A35 LX kick
black, red, 05 yellow

63 05-06 A35 ST pedal
66 05-06 A35 ST kick
black, red, ultra blue, purple

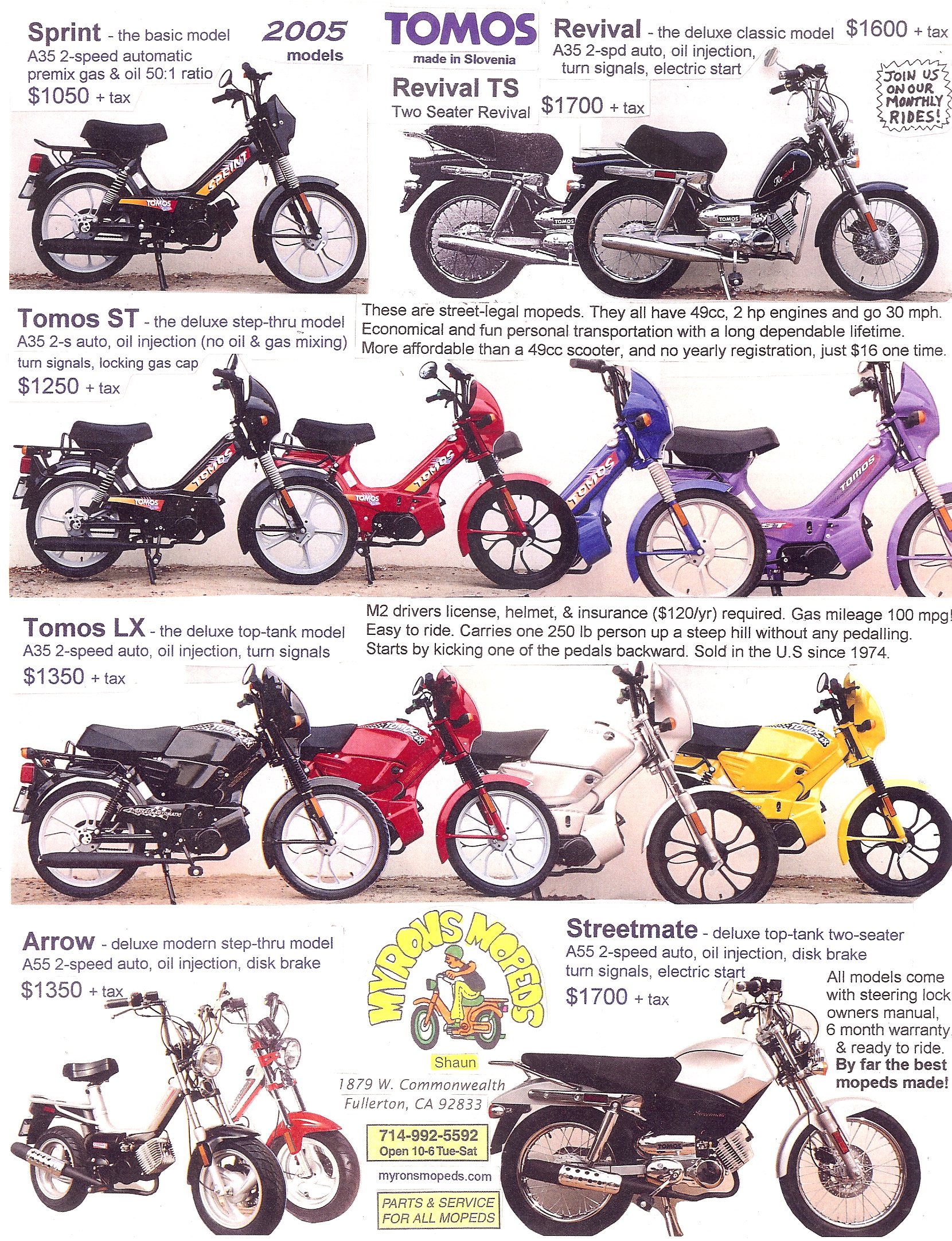

2005 Tomos ST



















62 2005 LX Limited pedal
65 2005 LX Limited kick
silver 1955-2005

69 1998 TT Classic pedal
black

72 2002 Revival pedal
75 2002 Revival kick
dark blue
2002 list $1649, oil inj
Iskra magneto, CDI ign
12V 80W AC main lights,
12V DC turn, horn, brake
electric start, disk brake

72 03-04 Revival pedal
75 0304 Revival kick
dark blue, burgundy


























2004-2013

Low Emission High Efficiency A55 Engine: 2004 was the first year of the new A55 engine, but only on the Revival TS. In 2005 the new A55 “top end” was on Revival, Streetmate and Arrow models. The other models continued using the older A35 engine through early 2006. Through most of 2006 there was no supply, as US EPA laws for on-road under-250cc vehicles took effect. It became illegal to sell under-250cc new street motorcycles in the US, made after Jan 2006, unless they were compliant with EPA air pollution testing standards and labeling requirements. Those requirements were so strict that only a handful of two-stroke scooters and mopeds were able to comply. Tomos developed the A55 clean burning moped engine to meet these US clean air standards, as well as other countries like Switzerland.

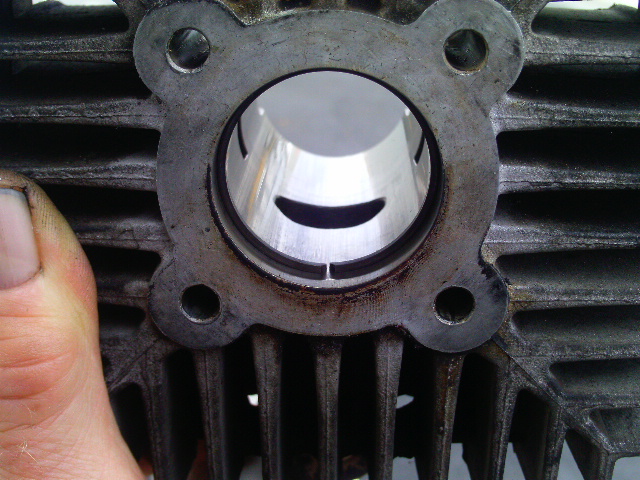

Early A55 Idling Problem – Stumbles after a long red light:  It took awhile to get some idling problems solved. During early 2005, Tomos sent free replacement intake manifolds and other things as a kit to dealers for each A55 bike that needed it. The new rubber and steel intake pipes had a constant diameter, while the old ones had two steps where the diameter changed suddenly. Even with that, the A55 often does still stumble if it’s idle mixture is adjusted too rich.

While there were a few 2006 Sprints, made at the end of 2005, there may not have been any 2006 ST or LX made at all.

By 2007 all Tomos mopeds had the A55 engine.



76 2006-08 Arrow-R kick
77 2006-08 Arrow-R pedal
2006-07: matte black
2008: black (gloss)

76 ’06-08 Arrow-R kick
77 06-08 Arrow-R pedal
orange

76 ’06-07 Arrow-R kick
77 06-07 Arrow-R pedal
99 yellow

76 2008 Arrow-R kick
77 2008 Arrow-R pedal
red























2005 Tomos Arrow ZZ1A7812#5K###### (pedal) ZZ1A??12#5K###### (kick)

78 2005 Arrow pedal
?? 2005 Arrow kick
silver/black

78 2005 Arrow pedal
?? 2005 Arrow kick
silver/red























79 2005-11 Streetmate kick
80 2005-11 Streetmate pedal
silver

79 2007-08 Streetmate kick
80 2007-08 Streetmate pedal
copper

79 2007-08 Streetmate kick
80 2007-08 Streetmate pedal
2007: matte black
2008: black (gloss)























2007 Revival TS

81 2004-11 Revival TS kick
82 2004-11 Revival TS pedal
midnight blue sparkle

81 2004-05 Revival TS kick
82 2004-05 Revival TS pedal
burgundy red

81 2006-08 Revival TS kick
82 2006-08 Revival TS pedal
dark gray sparkle

























2007 Tomos Sprint

87 2007-08 Sprint kick
88 2007-08 Sprint pedal
black (silver wheels)

2009 Tomos Sprint black

87 2008-09 Sprint kick
88 2008-09 Sprint pedal
black (silver wheels)
silver (silver wheels)

2008 Tomos Sprint

87 2010-13 Sprint kick
88 2010-13 Sprint pedal
black (silver wheels)
silver (black wheels)





















2007 Tomos ST

89 2007-08 ST kick
90 2007-08 ST pedal
black (silver wheels)
red, ultra blue (blk whls)

2008 Tomos ST

89 2008 ST kick
90 2008 ST pedal
black (black wheels)
red, ult blue (silver whls)

89 2009-11 ST kick
90 2009-11 ST pedal
black (silver wheels)
redultra blue (blk whls)

89 2012 ST kick
90 2012 ST pedal
black (silver wheels)
red (black wheels)





















91 2007-08 LX kick
92 2007-08 LX pedal
black (silver wheels)
red, silver (black whls)

91 2008-09 LX kick
92 2008-09 LX pedal
black (silver wheels)
red, silver (silver whls)

91 2010-11 LX kick
92 2010-11 LX pedal
black (silver wheels)
red,silver,ublue (blk whls)

91 2012-13 LX kick
92 2012-13 LX pedal
black (silver wheels)
silver (black wheels)





















2012 Tomos Streetmate-R

79 2008 Streetmate-R pedal
black, sky blue (silver wheels)
red (black wheels)

93 2009-10 Streetmate-R kick
94 2009-10 Streetmate-R pedal
sky blue (silver wheels)























2012 Tomos Streetmate-R Z

93 2009-11 Streetmate-R kick
94 2009-11 Streetmate-R pedal
red (black wheels)

93 2011-13 Streetmate-R kick
94 2011-13 Streetmate-R pedal
silver (black wheels)


























 2017-2018





B1 2017-18 Tomos Sprint pedal, black (black aluminum wheels)

















B1 2017-18 Tomos Sprint Classic pedal, ivory (chrome spoke wheels)

















B1 2017-18 Tomos Racing TT pedal or kick, light green



















Tomos VIN numbers (US models):

From 2000 to 2013, the US importer was Tomos USA, a division of Hidria (Tomos).

From 2014 to 2016, there was no US importer. No US models were made or sold.

From 2017 on, the US importer was PGI Moto (Tomos America). The VINs changed.

2013 Streetmate R    kick: ZZ1A9312xDKxxxxxx
2013 Streetmate R  pedal: ZZ1A9412xDKxxxxxx

2017 Sprint xxxxxx pedal: ZZ1MB1BExHSxxxxxx     MSRP $1750 (plus assembly, freight, tax)
2017 Sprint Classic pedal: ZZ1MB1BExHSxxxxxx     MSRP $1825 (plus assembly, freight, tax)
2017 Racing TT xx  pedal: ZZ1MB1BExHSxxxxxx     MSRP $2250 (plus assembly, freight, tax)
2017 Racing TT xx    kick: ZZ1MB1BExHSxxxxxx     MSRP $2250 (plus assembly, freight, tax)

The 2017-18 Tomos models all have the same model code.

So a 1981-2013 Tomos can be identified by the VIN code, but a 2017-18 cannot.




2. VIN model codes

Motor vehicles worldwide since 1981 (and USA-made since 1954) have a 17-digit Vehicle Identification Number.

VIN digits 1, 2, 3 are the world manufacturer identifier.
Tomos VIN digits 1, 2, 3 are VY2 (Yugoslavia 2) up to 1992, ZZ1 (Slovenia 1) from 1992 on

VIN digits 4, 5, 6, 7, 8 are the vehicle attributes.
Tomos VIN digit 4 is “A” up to 2013, “M” after 2013.
Tomos VIN digits 5, 6 are the 2-digit model code. See table below.
Tomos VIN digits 7, 8 is “11” up to 1992, “12” in 1992-2013, “BE” after 2013.

VIN digit 9 is a security or error check digit
VIN digit 10 is the year A=1980, B=1981, C=1982, D=1983, E=1984, F=1985, G=1986, H=1987, J=1988, K=1989
VIN digit 10 is the year L=1990, M=1991, N=1992, P=1993, R=1994, S=1995, T=1996, V=1997, W=1998, X=1999
VIN digit 10 is the year Y=2000, 1=2001, 2=2002, 3=2003, 4=2004, 5=2005, 6=2006, 7=2007, 8=2008, 9=2009
VIN digit 10 is the year A=2010, B=2011, C=2012, D=2013, E=2014, F=2015, G=2016, H=2017, J=2018, K=2019
VIN digit 10 is the year L=2020, M=2021, N=2022, P=2023, R=2024, S=2025, T=2026, V=2027, W=2028, X=2029

VIN digit 11 is the plant code.
Tomos VIN digit 11 is “K” (Koper) up to 2013, and “S” after 2013.

VIN digits 12, 13, 14, 15, 16, 17 are the 6-digit serial number.



model  year ngine model name x vspxed (mph)  grid xxx tire size xxxxxxx controls xxarburetor xxx  brake size
code  range engine model name xxxx version  column  front xx rear xx controls xxx carburetor xxx   front rear

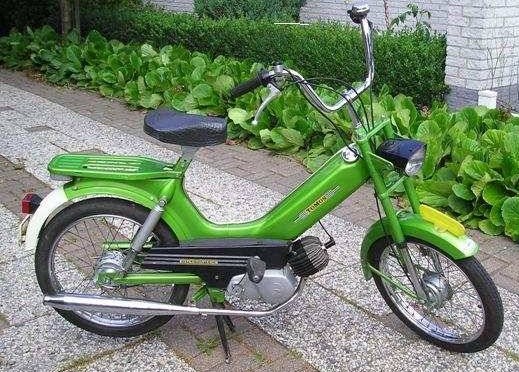

00 1975-76 A3 Automatic xxxxxxx    pedal (30) 03  2.25-16 2.25-16  Magura   Encarwi A83 xxx x      90     90
00
 1976-78 A3 A3SP xxxxxxxxxxx    pedal (30) 04  2.25-16 2.25-16  Magura   Encarwi A83 xxx x      90     90
00
 1976-78 A3 A3GM xxxxxxxxxx     pedal (25) 0 2.25-16 2.25-16  Magura   Encarwi A83 xxx x      90     90
00
 1976-78 A3 A3SL xxxxxxxxxxx    pedal (20) 04  2.25-16 2.25-16  Magura   Encarwi A83 xxxxx      90     90
00
 1979-80 A3 Bullet SP xxxxxxxxx  pedal (30) 04  2.25-16 2.25-16  Magura   Encarwi A83 xxxxx      90     90
00
 1979-80 A3 Bullet GM xxxxxxxx   pedal (25) 04  2.25-16 2.25-16  Magura   Encarwi A83 xxxxx      90     90
00
 1979-80 A3 Bullet SL xxxxxxxxx  pedal (20) 04  2.25-16 2.25-16  Magura   Encarwi A83 xxxxx      90     90
01
 1981-85 A3 Bullet SP xxxxxxxxx  pedal (30) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/102     90     90
02 1981-85 A3 Bullet GM xxxxxxxx   pedal (25) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/102     90     90
03 1981-85 A3 Bullet SL xxxxxxxxx  pedal (20) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/102     90     90
04 1981-83 A3 Silver Bullet SP xxxx pedal (30) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/102     90     90
05 1981-83 A3 Silver Bullet GM xxx  pedal (25) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/102     90     90
06 1981-83 A3 Silver Bullet SL xxxx pedal (20) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/102     90     90
07 1984-85 A3 Silver Bullet (spoke)xpedal (30) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/103     90     90
08 1984-85 A3 Silver Bullet SP xxxx pedal (30) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/103     90     90
09 1984-85 A3 Silver Bullet GMxxxx pedal (25) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/103     90     90
10 1984-85 A3 Silver Bullet SLxxxxx pedal (20) 04  2.25-16 2.25-16  Magura   Encarwi 88A85/103     90     90
11 1985-86 A3 Golden Bullet xxxxxx pedal (30) 05  2.25-16 2.25-16  Magura   Encarwi 88A85/103     90     90
11 1985-86 A3 Golden Bullet xxxxxx pedal (25) 05  2.25-16 2.25-16  Magura   Encarwi 88A85/103     90     90

12 1986-88 A3 Bullet xxxxxxxxxxxx  pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
12 1986-88 A3 Bullet xxxxxxxxxxxx
pedal (25) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
13 1986-88 A3 Golden Bullet xxxxxx pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
13 1986-87 A3 Golden Bullet xxxxxx pedal (25) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90

14
 1986-88 A3 Bullet TT xxxxxxxxxx pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
14
 1986-87 A3 Bullet TT xxxxxxxxxx pedal (25) 0 2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90

15

16
17
18
19 1986-88 A3 Golden Bullet TTLX x  pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
19 1986-87 A3 Golden Bullet TTLX x  pedal (25) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
20
 1986-89 A3 Bullet A3-01 (1hp)xxxpedal (20) 0same as Bullet (25) except for restricted exhaust      90     90
21
22
23
24
25
26 1989-91 A3E Bullet xxxxxxxxxxxxx kick (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
27 1989-91 A3E Golden Bullet TTLX x  kick (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
28 1989-91 A3E Bullet TT xxxxxxxxXx kick (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
29 1989-91 A3E Bullet  xxxxxxxxxxx pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
29 1989-91 A3E Bullet  xxxxxxxxxxx pedal (25) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90

30 1989-91 A3E Golden Bullet TTLX   pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
30 1989-91 A3E Golden Bullet TTLX   pedal (25) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
30 1989-91 A3E Golden Bullet TTLX   pedal (30) 0 2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
30 1989-91 A3E Golden Bullet TTLX   pedal (25) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90

31 1989-91 A3E Bullet TT xxxxxxxxx pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
31 1989-91 A3E Bullet TT xxxxxxxxx pedal (25) 0 2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90

32
33 1989-91 A3E Bullet TS (turn sigs) pedal (30) 05  2.25-16 2.25-16  Domino  Dellorto SHA14/12P     90     90
34 1991-93 A35 Bullet xxxxxxxxxxxx pedal (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
35 1991-93 A35 Bullet TT xxxxxxxxx  pedal (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
36 1991-93 A35 Colibri xxxxxxxxxxx  pedal (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
37
38 1992-93 A35 Golden Bullet xxxxx  pedal (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
39 1992-93 A35 Golden Bullet TTLX x pedal (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
40 1992-93 A35 Bullet TT xxxxxxxxxx  kick (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
41 1992-93 A35 Golden Bullet TTLX xx kick (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
42 1993-95 A35 Sprint xxxxxxxxxxxx pedal (30) 07  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
43
1993-95 A35 Sprint xxxxxxxxxxxxx kick (30) 07  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
44 1994-95 A35 Targa (white/grn) xx pedal (30) 08  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
45 1994-95 A35 Targa (white/red) xx pedal (30) 08  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
46 1994-95 A35 Targa LX xxxxxxxxxx pedal (30) 08  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
47 1994-95 A35 Targa (white/grn) xxx  kick (30) 08  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
48 1994-95 A35 Targa LX xxxxxxxxxxx kick (30) 08  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
49 1994-95 A35 Targa (white/red) xxx  kick (30) 08  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
50 1993-93 A35 Bulletxxxxxxxxxxxxx pedal (30)   no oil injection
51
52
53
54
55
56 1994-95 A35 Sprint TT (oil inject)  pedal (30) 0 2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
57
58 1994-95 A35 Sprint TT (oil inject) x  kick (30) 0 2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
59 1994-95 A35 Colibri xxxxxxxxxxxx pedal (30) 06  2.25-16 2.25-16  HR xxxx Dellorto SHA14/12P     90     90
60
61 1996-02 A35 Sprint xxxxxxxxxx x   pedal (30) 10  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
61 2003-06 A35 Sprint xxxxxxxxxx x
pedal (30) 12  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
62 1996-02 A35 Targa LX xxxxxxxxx x pedal (30) 0 2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
62 2003-06 A35 Tomos LX, LX xx xxxx
pedal (30) 12  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
62 2005-06 A35 Tomos LX Limitedx xx
pedal (30) 11  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
63 1996-02 A35 Targa xxxxxxxxxXx     pedal (30) 0 2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
63 2003-06 A35 Tomos, ST xxxxx xx
  pedal (30) 12  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
64 1996-02 A35 Sprint xxxxxxxxx xxxx  kick (30) 10  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
64 2003-06 A35 Sprint xxxxxxxxxxxxx
   kick (30) 12  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
65 1996-02 A35 Targa LX xxxxxxxxxxxx kick (30) 0 2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
65 2003-06 A35 Tomos LX, LX xxxxxxxx
kick (30) 12  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
65 2005-06 A35 Tomos LX Limitedxxxxx
 kick (30) 11  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
66 1996-02 A35 Targa xxxxxxxxxxxxxx  kick (30) 09  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
66 2003-06 A35 Tomos, ST xxxxxxxxxx
  kick (30) 12  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side   105   105
67
68
69 1998-99 A35 TT Classic xxxxxx xxx pedal (30) 11  2.25-16 2.25-16  HR xxxx Del.SHA14/12P side     90    90
70
71
72 2002-04 A35 Revival xxxxxxxxxxxx pedal (30) 15  2.50-17 3.25-16  Domino  Del.SHA14/12P side   disk  118
73
74

75 2002-04 A35 Revival xxxxxxxxxxxxx kick (30) 15  2.50-17 3.25-16  Domino  Del.SHA14/12P side   disk  118
76 2006-08 A55 Arrow R xxxxxxxxxxxx kick (30) 17  both 120/70-12   Domino  Dellorto PHVA14 xx    disk  110
77 2006-08 A55 Arrow R xxxxxxxxxxx pedal (30) 17  both 120/70-12   Domino  Dellorto PHVA14 x0   disk  110
78 2005-06 A55 Arrow xxxxxxxxxxxxx pedal (30) 16  both 120/70-12   Domino  Dellorto PHVA14 x0   disk  110
78 2005-06 A55 Arrow xxxxxxxx xxxxx  kick (30) 16  both 120/70-12   Domino  Dellorto PHVA14 x0   disk  110
79 2005-07 A55 Streetmate xxxxxx xxx kick (30) 20  2.75-17 3.25-16  Domino  Dellorto PHVA14 x0   disk  105
79 2008-09 A55 Streetmate xxxxx xxxx kick (30) 21  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
79 2010-11 A55 Streetmate xxxxx xxxx kick (30) 22  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
80 2005-07 A55 Streetmate xxxx xxx  pedal (30) 20  2.75-17 3.25-16  Domino  Dellorto PHVA14 x0   disk  105
80 2008-09 A55 Streetmate xxxx xxx  pedal (30) 21  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
80 2010-11 A55 Streetmate xxxxx xx  pedal (30) 22  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
81 2004-07 A55 Revival TS xxxxxxxxxx kick (30) 23  2.50-17 3.25-16  Domino  Dellorto PHVA14 x0   disk  105
81 2008-09 A55 Revival TS xxxxxxxxxx kick (30) 24  2.50-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
81
 2010-11 A55 Revival TS xxxxxxxxxx kick (30) 25  2.50-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
82
2004-07 A55 Revival TS xxxxxxxxx pedal (30) 23  2.50-17 3.25-16  Domino  Dellorto PHVA14 x0   disk  105
82
2008-09 A55 Revival TS xxxxxxxxx pedal (30) 24  2.50-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
82
2010-11 A55 Revival TS xxxxxxxxx pedal (30) 25  2.50-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
83
84
85
86
87 2007-08 A55 Sprint xxxxxxxxxxxxxx kick (30) 32  2.25-16 2.25-16  HR xxxx Dellorto PHVA14 x0   105  105
87 2008-09 A55 Sprint xxxxxxxxxxxxxx kick (30) 33  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
87 2010-13 A55 Sprint xxxxxxxxxxxxxx kick (30) 34  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
88 2007-08 A55 Sprint xxxxxxxxxxxxx pedal (30) 32  2.25-16 2.25-16  HR xxxx Dellorto PHVA14 x0   105  105
88 2008-09 A55 Sprint xxxxxxxxxxxxx pedal (30) 33  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
88 2010-13 A55 Sprint xxxxxxxxxxxxx pedal (30) 34  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
89 2007-08 A55 ST xxxxxxxxxxxxxxxxx kick (30) 29  2.25-16 2.25-16  HR xxxx Dellorto PHVA14 x0   105  105
89 2008-09 A55 ST xxxxxxxxxxxxxxxxx kick (30) 30  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
89 2010-13 A55 ST xxxxxxxxxxxxxxxxx kick (30) 31  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
90 2007-08 A55 ST xxxxxxxxxxxxxxxx pedal (30) 29  2.25-16 2.25-16  HR xxxx Dellorto PHVA14 x0   105  105
90 2008-09 A55 ST xxxxxxxxxxxxxxxx pedal (30) 30  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
90 2010-13 A55 ST xxxxxxxxxxxxxxxx pedal (30) 31  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
91 2007-08 A55 LX xxxxxxxxxxxxxxxxx kick (30) 26  2.25-16 2.25-16  HR xxxx Dellorto PHVA14 x0   105  105
91 2008-09 A55 LX xxxxxxxxxxxxxxxxx kick (30) 27  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
91 2010-13 A55 LX xxxxxxxxxxxxxxxxx kick (30) 28  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
9
2 2007-08 A55 LX xxxxxxxxxxxxxxxx pedal (30) 26  2.25-16 2.25-16  HR xxxx Dellorto PHVA14 x0   105  105
9
2 2008-09 A55 LX xxxxxxxxxxxxxxxx pedal (30) 27  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
9
2 2010-13 A55 LX xxxxxxxxxxxxxxxx pedal (30) 28  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
93 2008-09 A55 Streetmate R xxxxxxxx kick (30) 18  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
93 2010-13 A55 Streetmate R xxxxxxxx kick (30) 19  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
94 2008-09 A55 Streetmate R xxxxxxx pedal (30) 18  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
94 2010-13 A55 Streetmate R xxxxxxx pedal (30) 19  2.75-17 3.25-16  TBS xxx Dellorto PHVA14 x0   disk  105
95
96
97
98
99
B1 2017-18 A55 Sprint xxxxxxxxxxxxx pedal (30) 35  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
B1 2017-18 A55 Sprint Classic xxxxxx  pedal (30) 36  2.25-16 2.25-16  TBS xxx Dellorto PHVA14 x0   105  105
B1 2017-18 A55 Racing TT xxxxxxxxxx pedal (30) 37  both 120/70-12   TBS xxx Dellorto PHVA14 x0   disk  110
B1 2017-18 A55 Racing TT xxxxx0xxxxx kick (30) 37  both 120/70-12   TBS xxx Dellorto PHVA14 x0   disk  110



Sources

  1. Tomos Parts Manuals: From 1981-2002 model codes and versions were listed on the inside cover.
  2. Tomos Owners Manuals: Most appear in the consumer information about braking and passing ability.
  3. Tomos Sales Flyers: They do not show model codes, but show everything else, versions and colors.
  4. Dealer Price Lists: They show exactly what models and colors were offered at that date.
  5. Actual Bikes: Myrons has photographed and documented the specs and model code of every new Tomos model since 2000, and many other older models whenever the VIN number was known.




3. Line Drawings

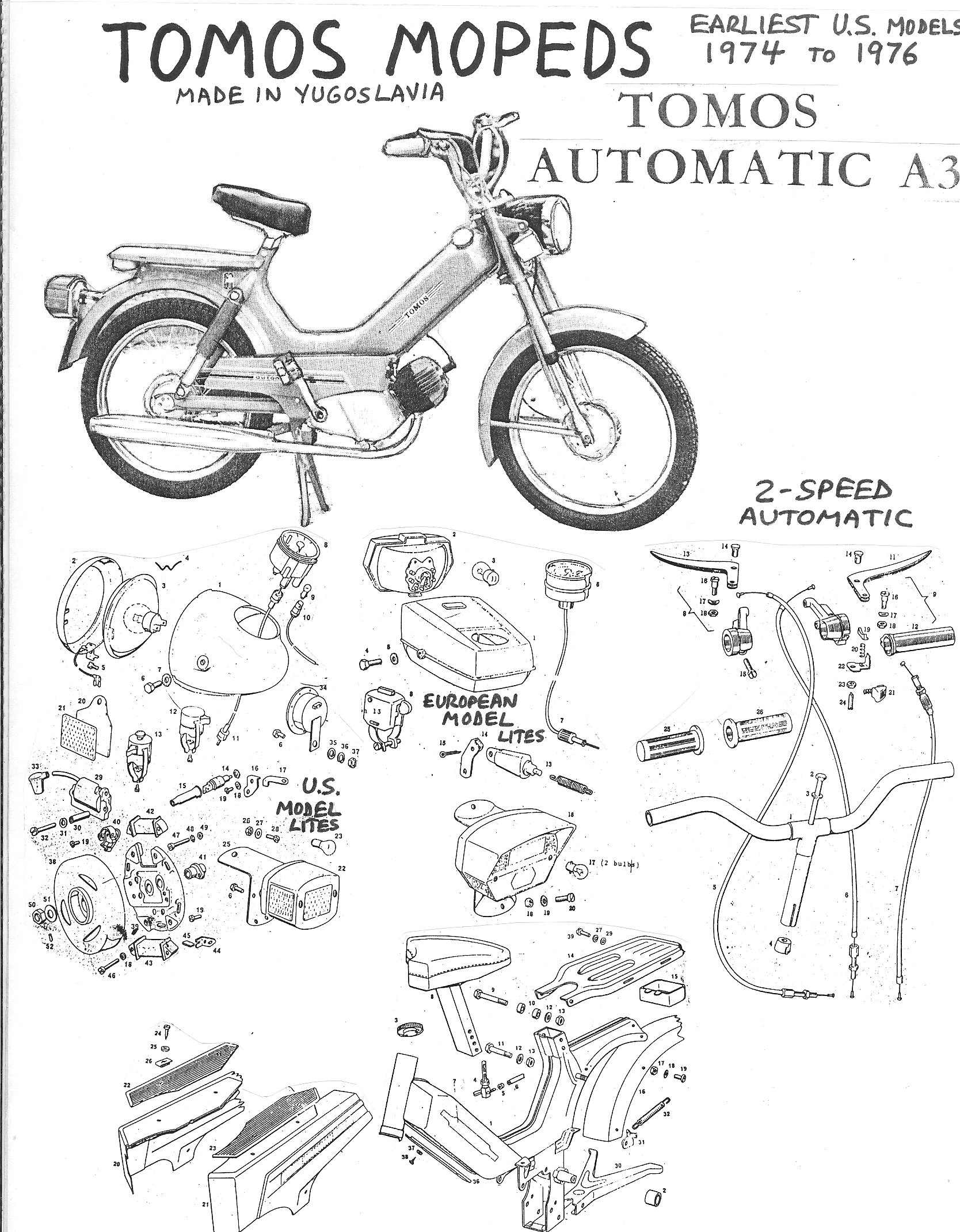

These are Tomos-made illustrations from parts manuals and owners manuals.



















Tomos A3

Tomos A35






































4. Myrons Flyers



Tomos 2001-02 A

Tomos 2001-02 B



















2002 Myrons Mopeds Flyer

2003-04 Tomos

2004 Myrons

2005 Myrons





















2005 Tomos

2006 Tomos

2007 Tomos

2008 Tomos

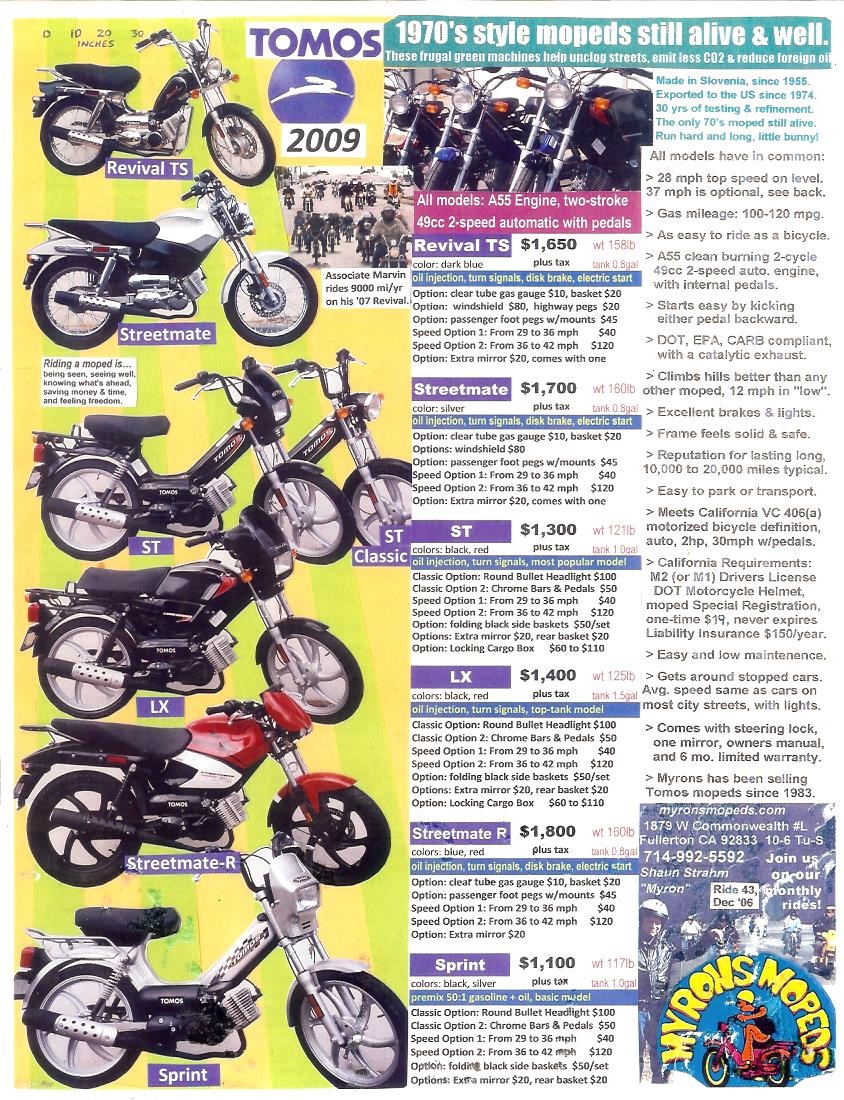

2009 Tomos
























5. Tomos

The name TOMOS is from varna (factory) tornih koles (motorcycles) Sezana (city in western Slovenia).
























6. Tomos European Models

1955: TOMOS began

1956 to 1981+ Puch remakes: From 1956 to 1981 Tomos made, under license, mopeds and motorcycles that were exact copies of Puch models. Until 1973 the Puch remakes were called Colibri 1,2,3, up to 15. After 1973 most were called APN. They had 2, 3, and 4-speed manual transmission. Pedal models had left-hand grip-shift. Kick models had foot shift.

1973 to 1974 Tomos A3: In 1973 Tomos introduced their own stamped steel frame, engine, and wheels, the 1973 Automatic 1, a one speed. A two speed version soon followed, the 1973 Automatic 3, and the 1974 Automatic 3K. These went 28mph, made 2.0 horsepower, and weighed 97 lbs. The A3 pedaled forward like a bicycle, yet started the engine by kicking backwards. There is no start lever on a Tomos.



1976 Tomos Automatic 3K (European model)

1976 Automatic 3K
(Euro) metallic lime

1974 Tomos Ad for Europe

1974 Automatic 3
(Euro) salmon red

1969-72 Colibri 14V
(Euro) “pink” orange



The European mopeds shown have the same colors as the 1975-76 US models did. They had smaller lights, no brake light, no electric horn, and no side reflectors. Other than the lighting equipment, the rest of the bike is the same.







1978:

1978 Automatic 3
1978 Automatic 3K

1978 APN 4T
1978 APN 4S

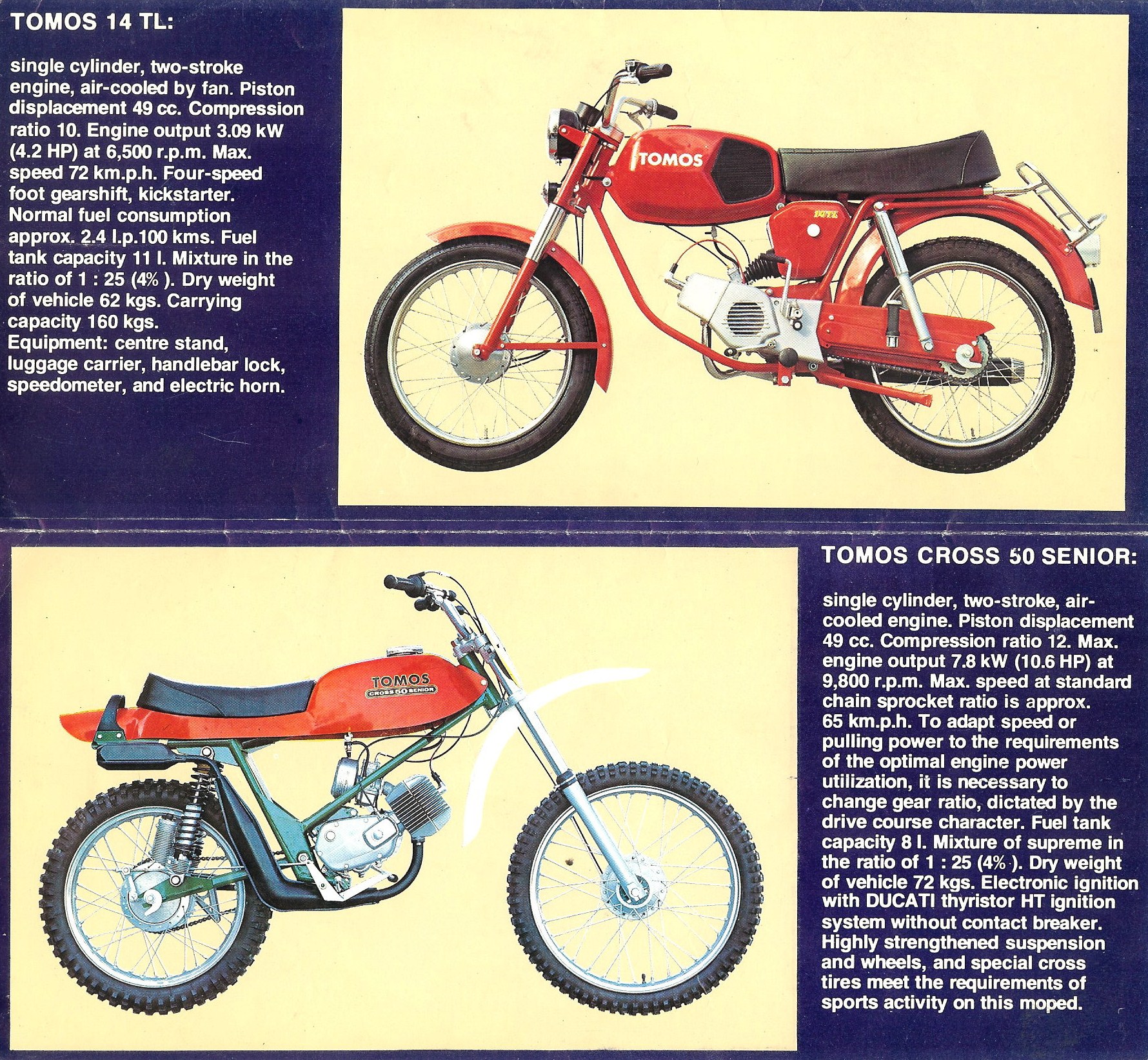

1978 14 TL
1978 Cross 50 Senior

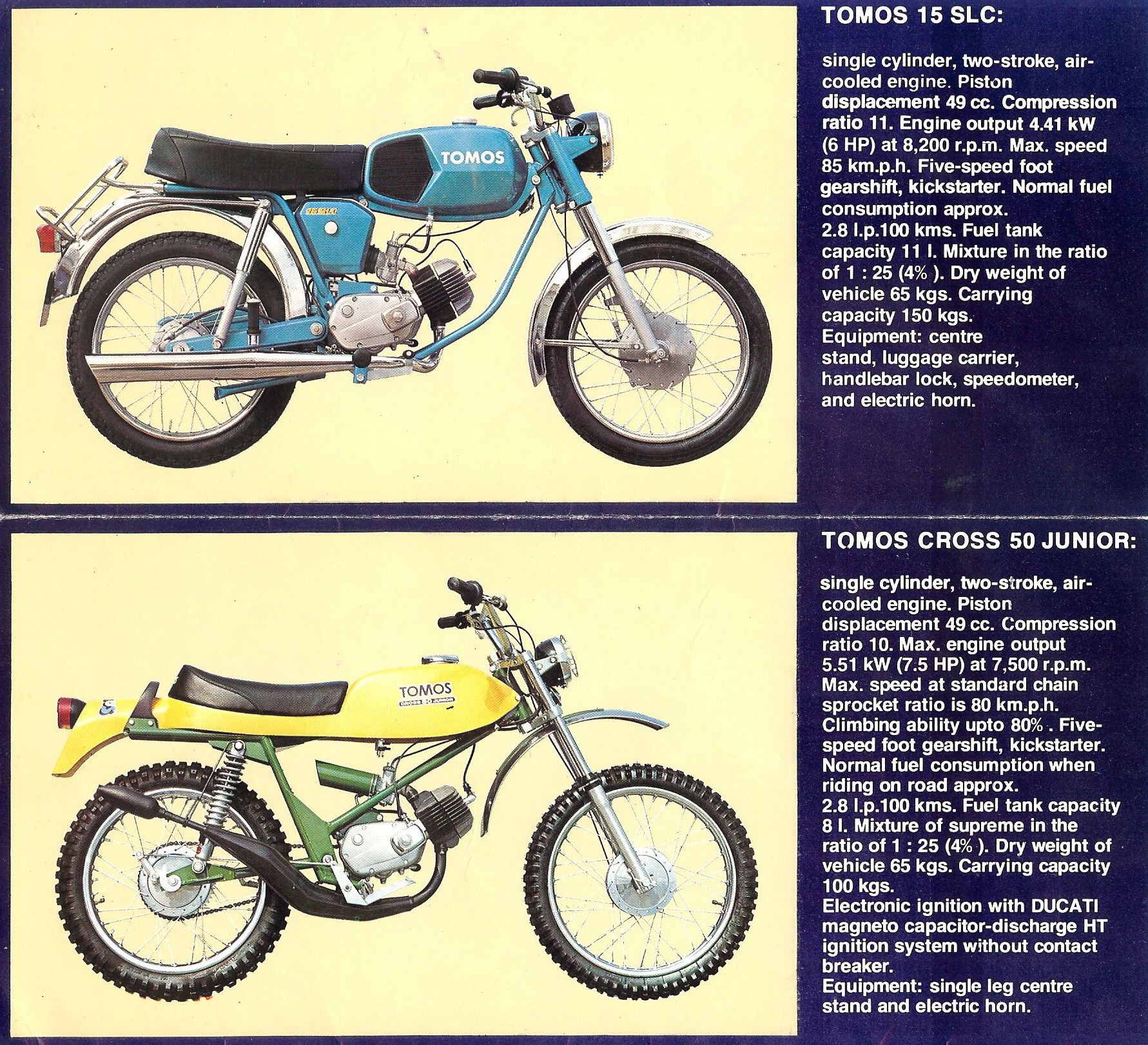

1978 15 SLC
1978 Cross 50 Junior

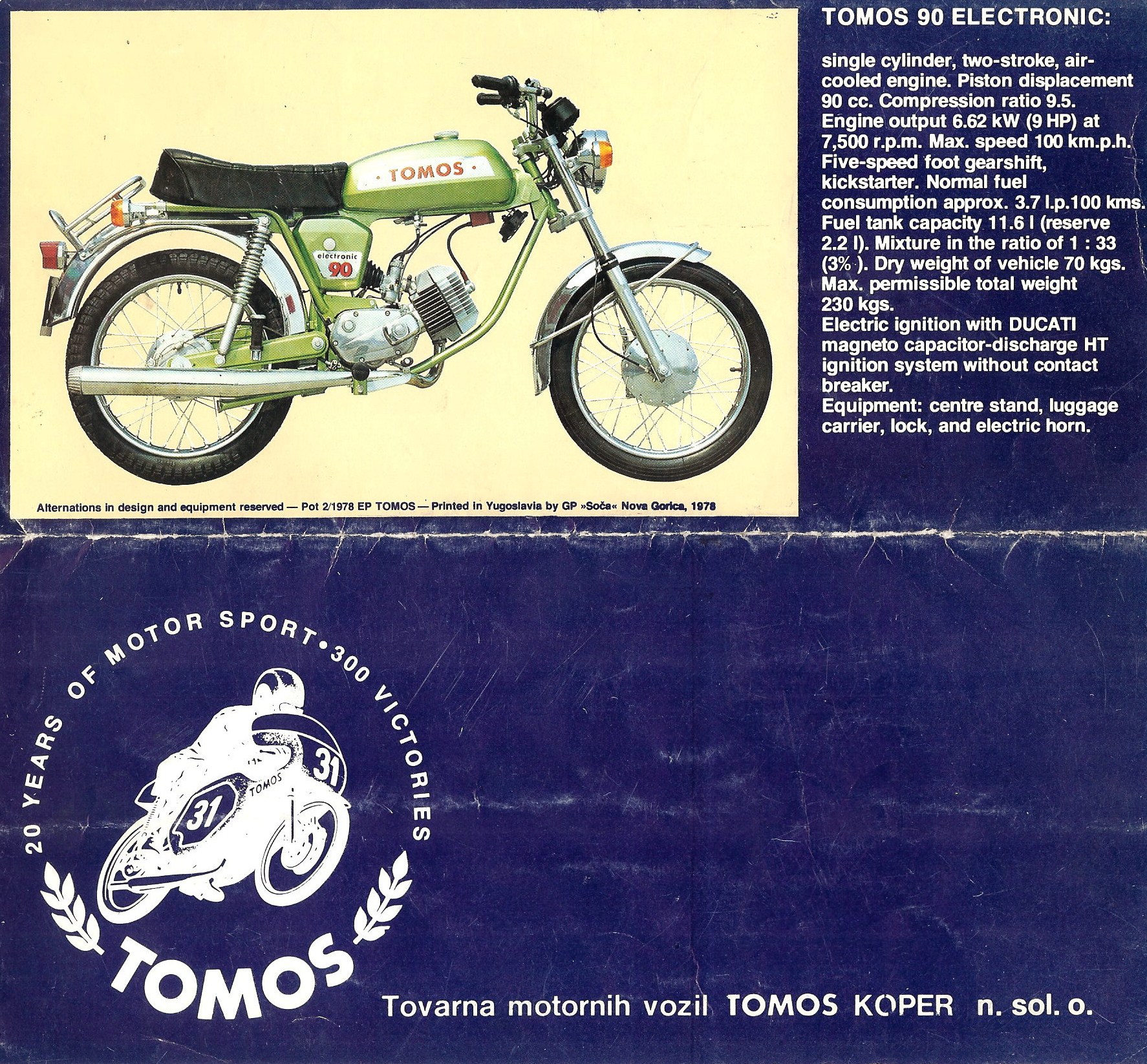

1978 90 Electronic
























7. Tomos A55 Review

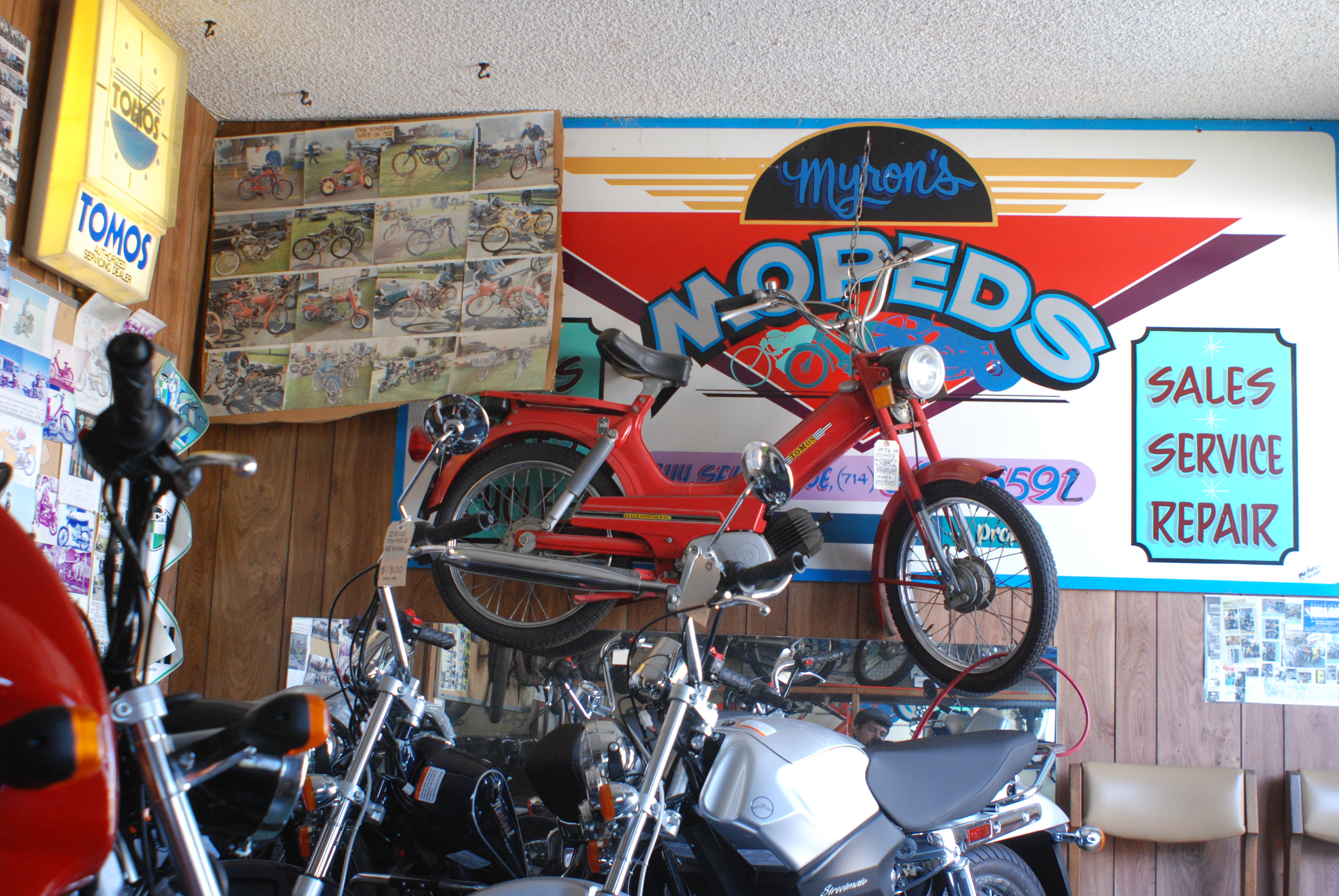

Myrons showroom 2011 south wall, with 1976 Tomos Automatic hanging, the first US-model Tomos. 2011 Streetmate and 2010 Revival-TS succeeding it by 35 years. The new models way outperform the older ones, in acceleration, speed, braking, handling, lights, comfort, safety, reliability. It’s many mopeders dream to have a 35 year old bike with the performance and reliability of a brand new one.







Shaun’s 2005 Tomos Streetmate piston and cylinder at 13,500 miles. The exhaust side of the piston shows many vertical lines, but the exhaust side of the piston rings shows no vertical lines. The rings are free in the ring grooves, not gummed and sticking, and functioning very close to new. The piston has no black carbon buildup, thanks to using Champion two cycle oil. The underside of the piston and the bottom of the cylinder are dripping wet with green oil, from the oil injection.



A new Tomos A55 cylinder with a new piston ring has a 0.005″ ring gap. The cylinder is thick, solid aluminum with a nickasil plated cylinder wall. The nickasil is extremely hard, and has a very high melting point. So it stays smooth and fresh for much longer than a cast iron sleeve would. The big cooling fins give it better performance (the fuel and air is denser when it’s cooler) and longer life (less thermal expansion and contraction) by radiating more heat. The thick aluminum with precision locating sleeves keep the cylinder perfectly centered and aligned, even in extremely hot conditions.



Shaun’s 13,500 mile cylinder with a new ring has a 0.007″ ring gap. The cylinder wall has very little wear, as evidenced by the small ring gap, the lack of vertical lines on the hot exhaust side, the lack of a top lip (where the top ring stops), and the reflections that show the mirror smooth surface. This cylinder will be good for another 13,500 miles. That’s a lot for a 50cc bike.





Shaun’s A55 cylinder with 13,500 miles, and upper ring with 13,500 miles, with a ring gap of 0.025″. Although the ring gap has become much wider, the bike still runs strong, within 1/2 mile per hour of it’s original speed, thanks to the smooth cylinder wall, ring surface, and lack of vertical lines. Comparing these three pictures shows that most of the wear was on the 13,500 mile rings and not the cylinder. That’s pretty amazing.

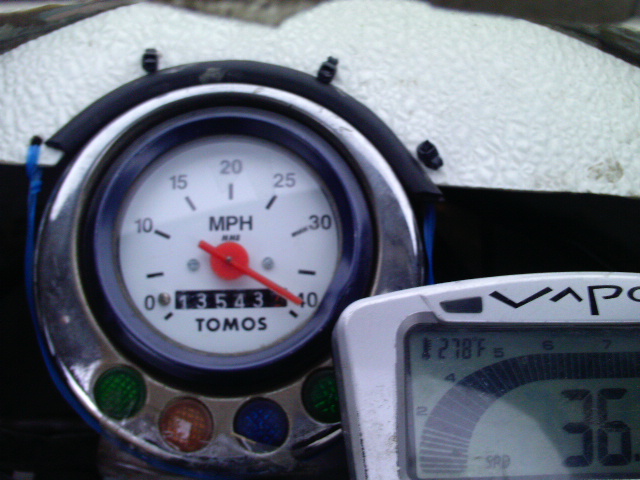

Above, Shaun’s instruments right after the rings were measured, photographed, and then replaced, at 13,540 miles. The indicated speed is 38mph, true speed is 36mph, cylinder head temperature is a cool 278 degrees farenheit, after running long and hard. Most kitted bikes run at 350 degrees or more, much hotter.
