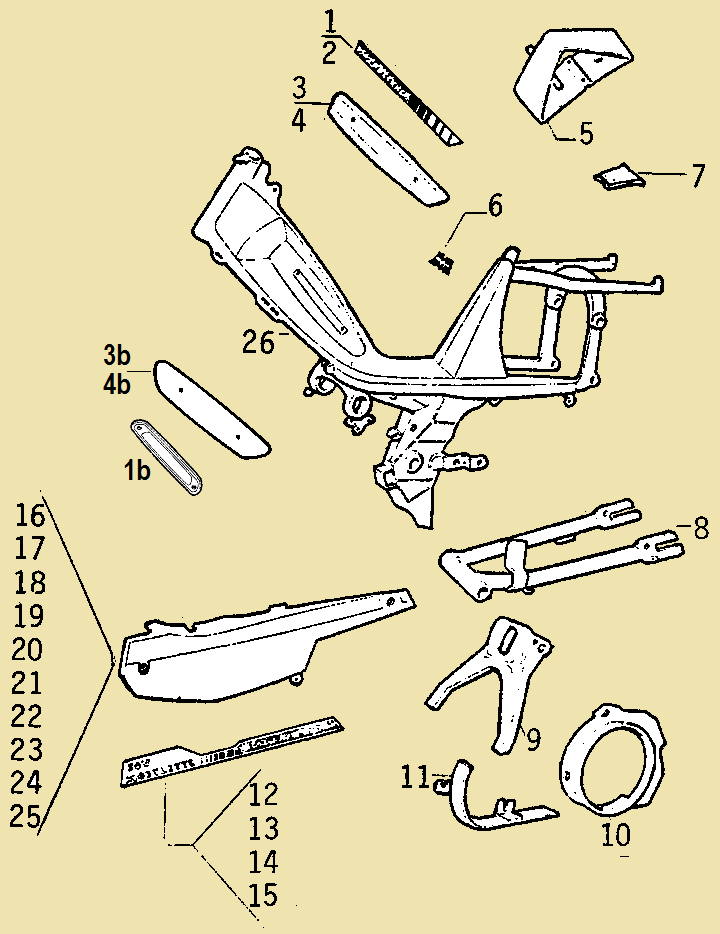

| 14-15-16-17. Magneto | 28. Frame parts 40 | 41. Headlight |
| 18. Dimoby clutch | 29. Frame parts 50 | 42-43. Tail light |
| 19. Variator clutch | 30-31. Front fork | 44-45. Electrical |
| 20. Pulley | 32. Right control | 46. Mirror |

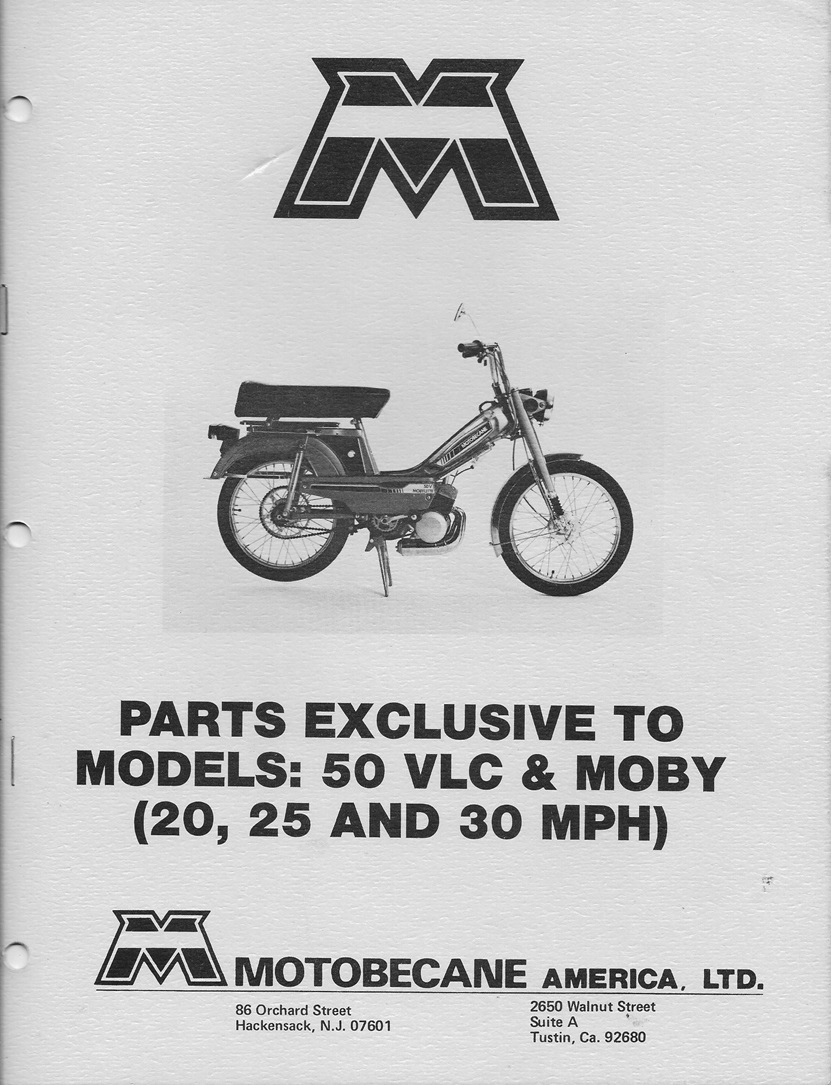

| D. Parts exclusive to ‘77-79 50VLC, ‘79-82 Moby | ||

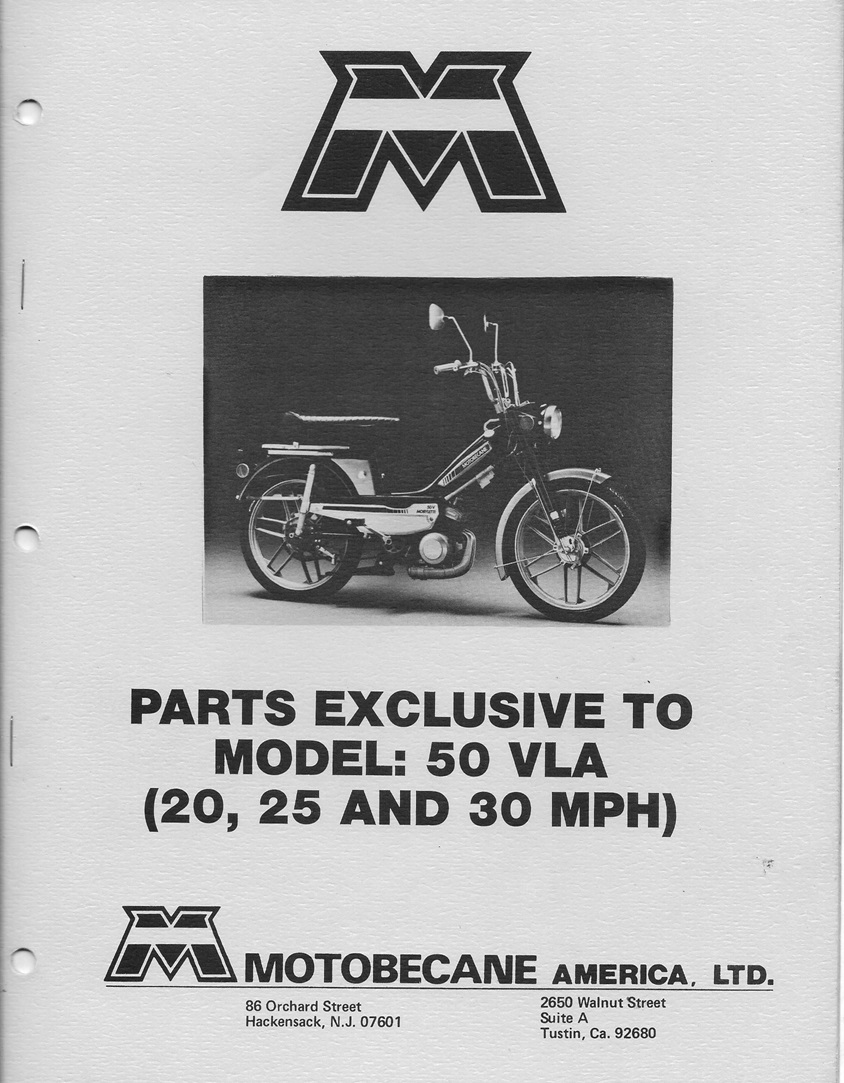

| E. Parts exclusive to ‘77-79 50VLA | ||
| F. Parts exclusive to ‘78-79 50VLX | ||

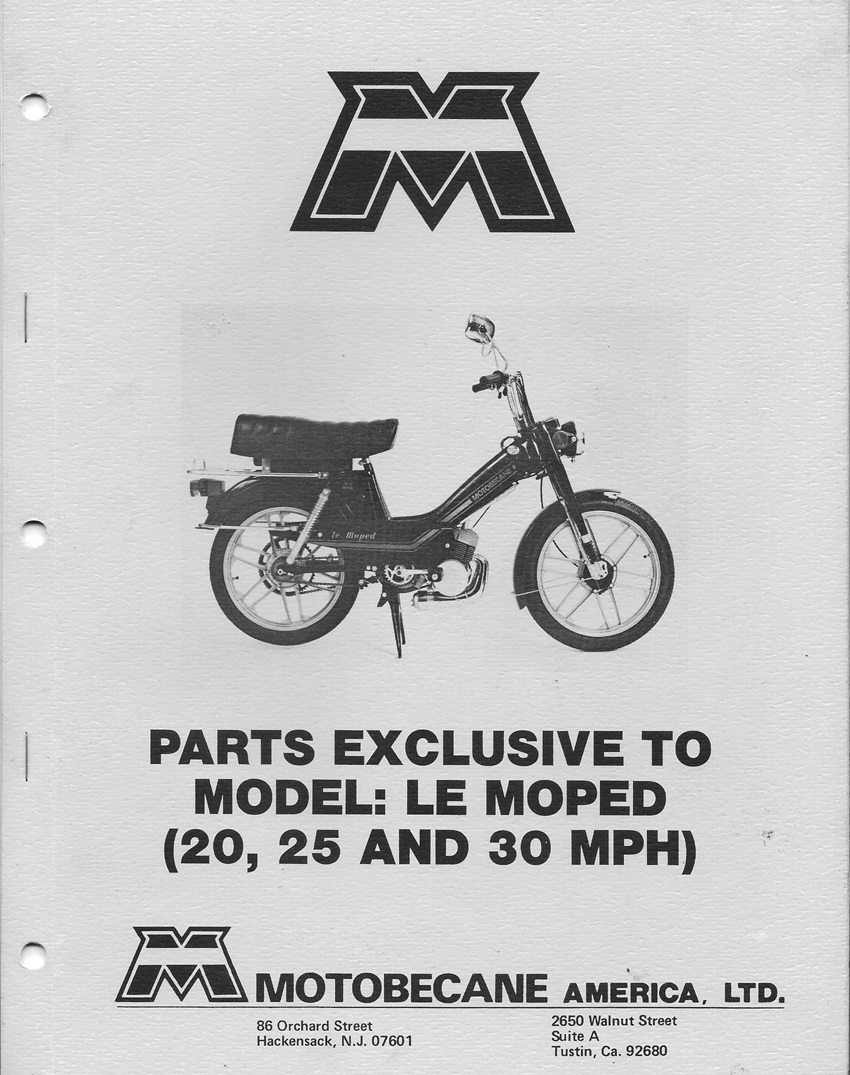

| G. Parts exclusive to ‘79-82 Le Moped | ||

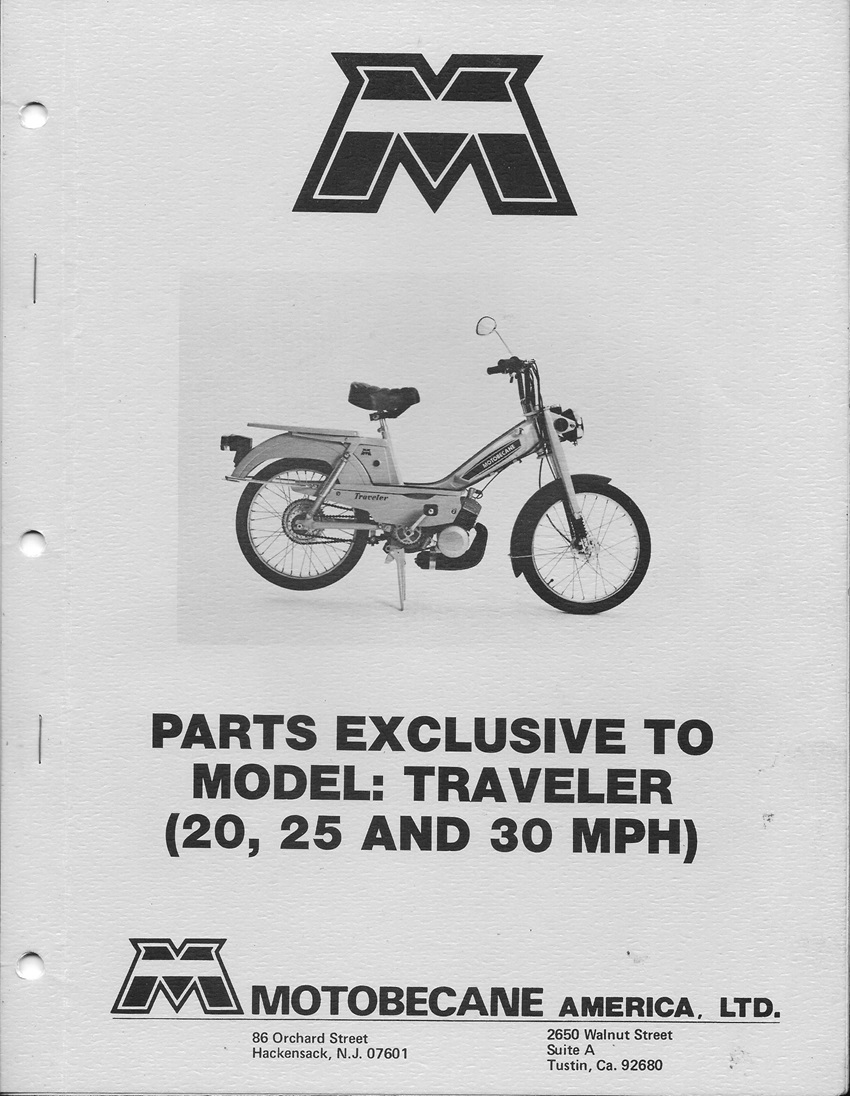

| H. Parts exclusive to ‘79-82 Traveler | ||
A. Identification
Model names: S is standard, L is deluxe, T is telescopic fork, V is variator. At first the Model 40 was made with a rigid or a telescopic fork. Then later it was only made with telescopic fork. Motobecane eliminated the unnecessary letter T, so 40TL became 40L and 40TS became 40S.

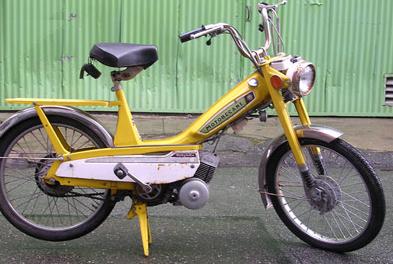

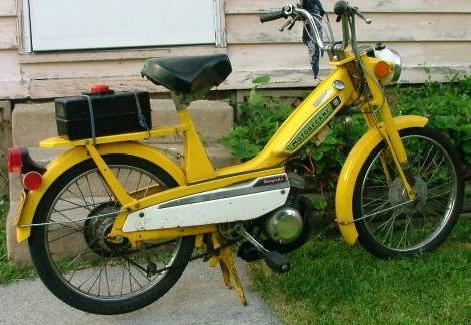

1. ’74-76 40L (US), 2. ’71-74 40L (Euro)
These have the Dimoby transmission.

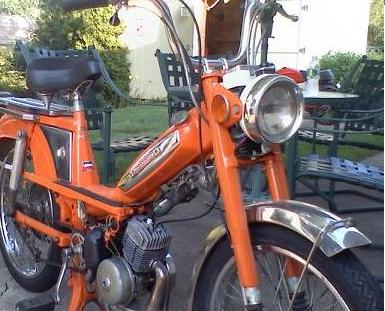

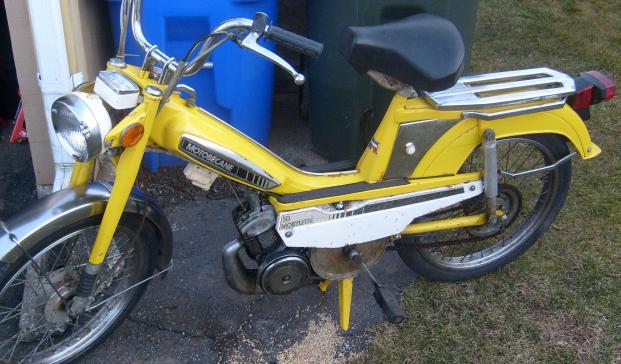

1. ’76-77 50L (US), 2. ’74-76 50S (US)
These have the Dimoby transmission.
1. ’76-77 50VL (US), 2. ’71-74 50VL (Euro)
These have the Variator transmission.

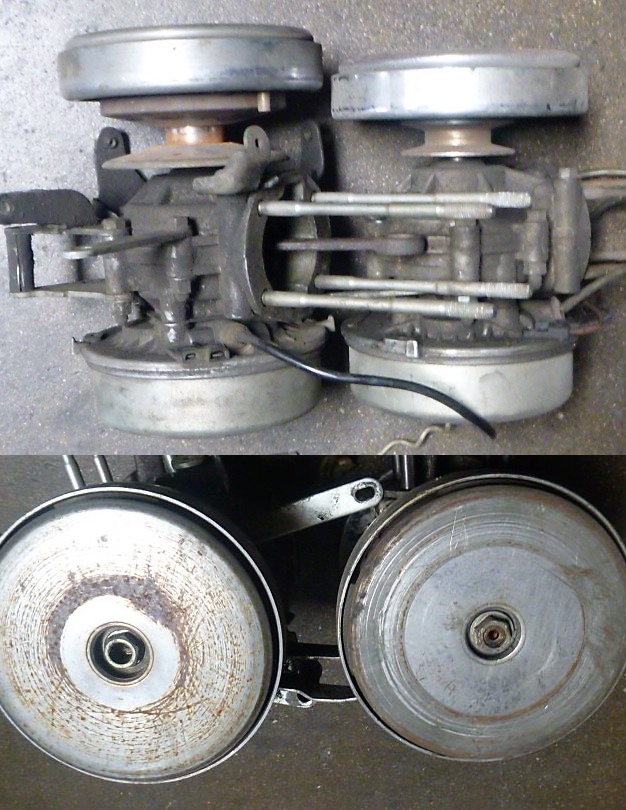

Dimoby and Variator: Left is an AV7 Dc Dimoby engine (fixed pulley). Right is an AV7 Vc Variator engine (variable pulley). Both types have dual automatic centrifugal clutches, one for starting and one for running. They are the same except for the pulley-clutch system. They have the same crankcase and crankshaft.
From the right side the Dimoby and Variator engines are indistinguishable. From the left they are distinguished by the belt cover, belt cover mounts and clutch nut depth. The Variator clutch wheel sticks out about 10 mm more than Dimoby, so it has a 10 mm deeper clutch nut.

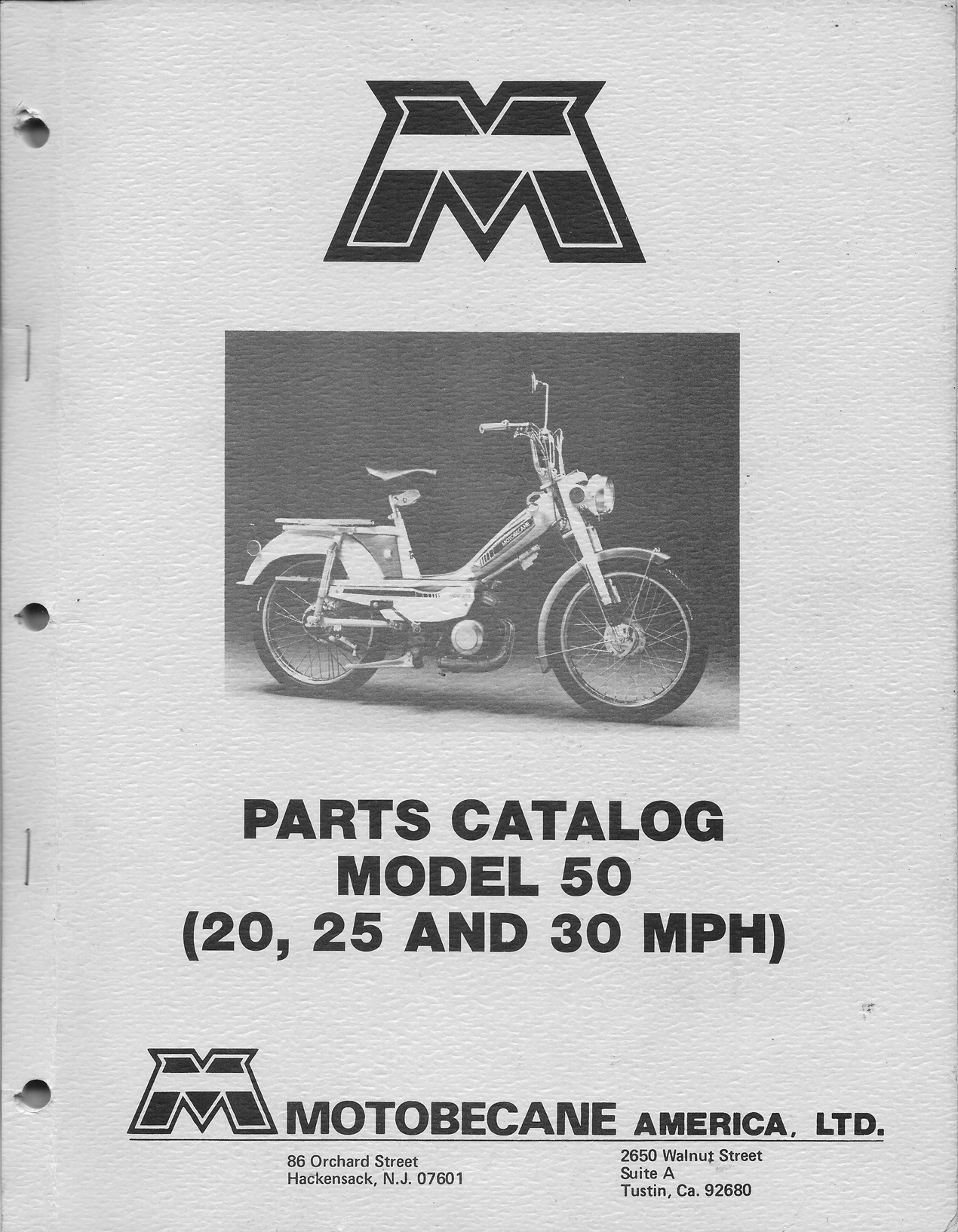

B. Parts Manuals
Sources: The parts info below is from these manuals.

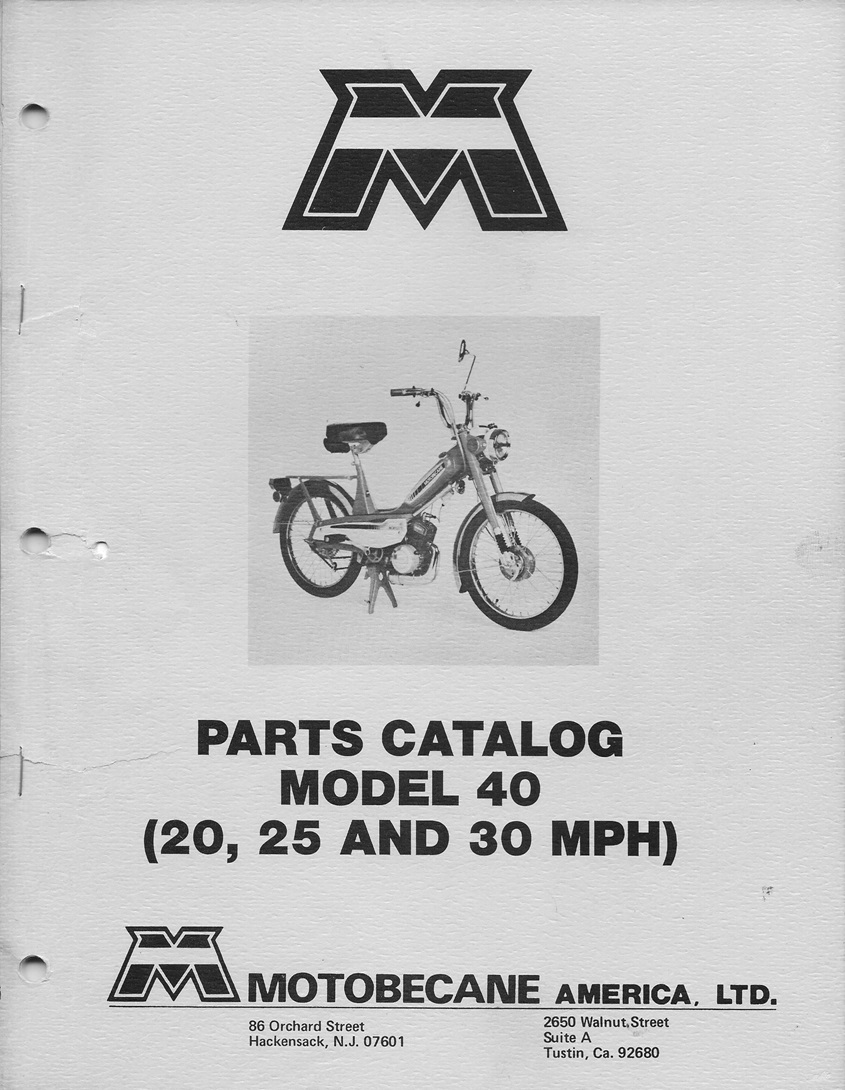

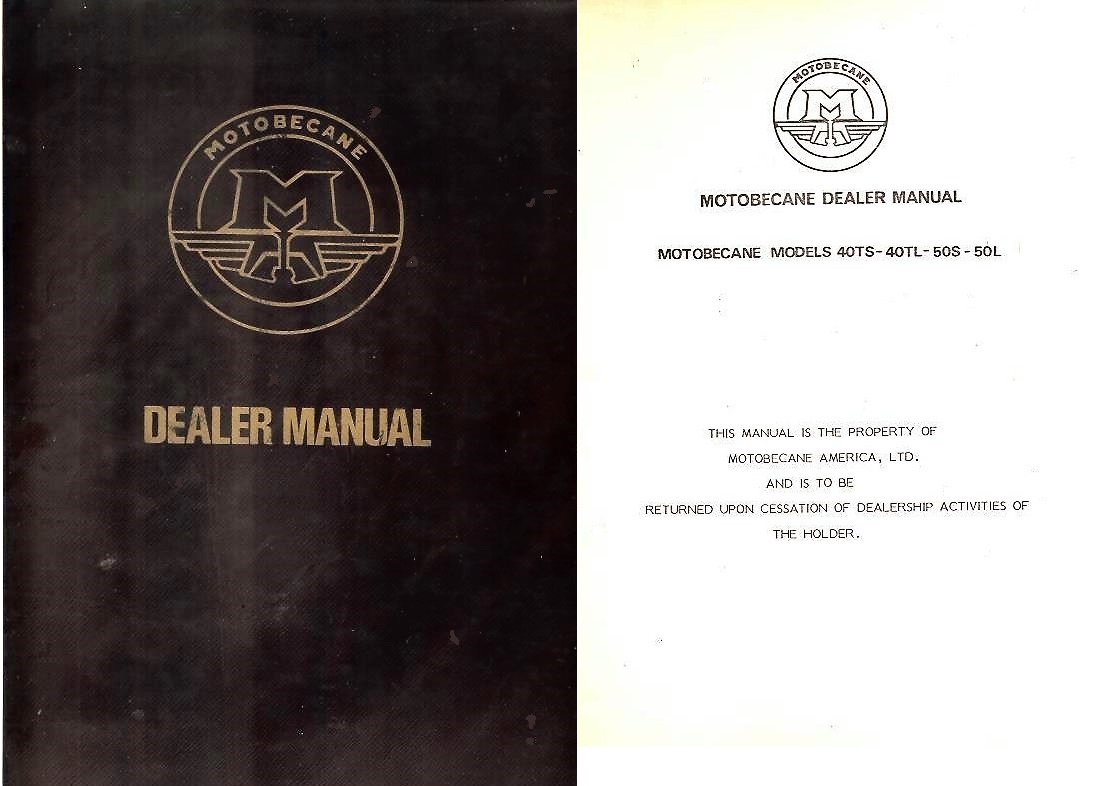

1974-75 Motobecane America Dealer Manual
contains these parts manuals for 25 mph versions:
1. ’74-75 40TS, 40TL solo seat, Dimoby, no rear susp, thin rims
1. ’74-75 50S, 50L 00 solo seat, Dimoby (no variator)
1. ’74-75 50VL 0000 solo seat, variator
1976-82 Motobecane America Dealer Manual
contains these 7 parts manuals for 20, 25, 30 mph versions:
1. ’76-77 40TS, 40TL solo seat, Dimoby, no rear susp, thin rims
2. ’76-79 50S, 50L solo seat, Dimoby (no variator)
2. ’76-79 50VL solo seat, variator
3. ’77-79 50VLC long seat, variator
3. ’79-82 Moby long seat, variator
4. ’77-79 50VLA long seat, variator, aluminum wheels

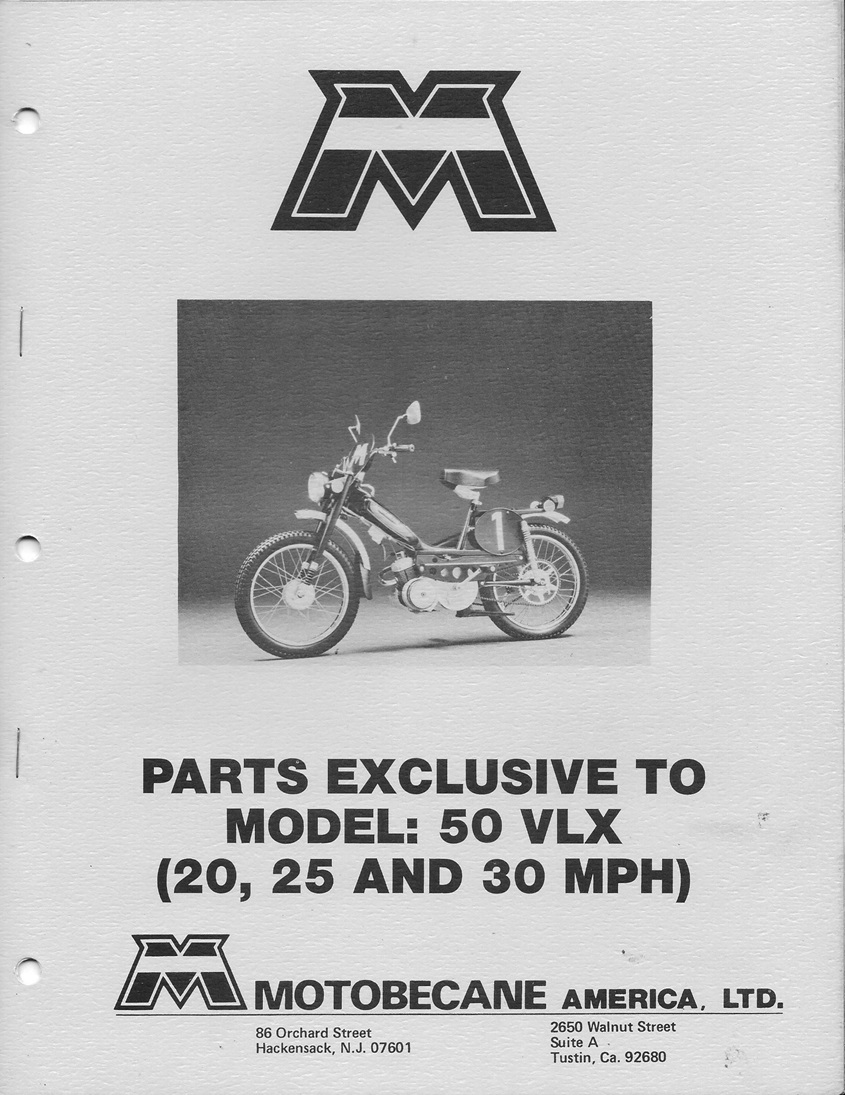

5. ’78-79 50VLX solo seat, variator, trail model
6. ’79-82 Le Moped long seat, variator, aluminum wheels, deluxe
7. ’79-82 Traveler solo seat, Dimoby (no variator), thin rims
Sep 1983 MMI Price List came out after Motobecane America sold their parts inventory to Marina Mobili Inc (MMI), some time in late ’82 to early ’83. MMI computerized the parts list and added most hardware specifications. The MMI Price List and direct measurement are the sources of most hardware specifications. Direct measurement exposed many errors. Sometimes an original bike was partialy disassembled to learn the true bolt lengths and other specs.
C. Parts for 40S, 40L, 50S, 50L, 50VL
Price: The price is for each item unless noted.
Bright green is new, dark green is good used.
Quantity: The quantity is how many are on the bike,
within that parts group. ‘x’ means as needed.
45V: These are quantity columns. 4 is 40, 5 is 50, V is 50V

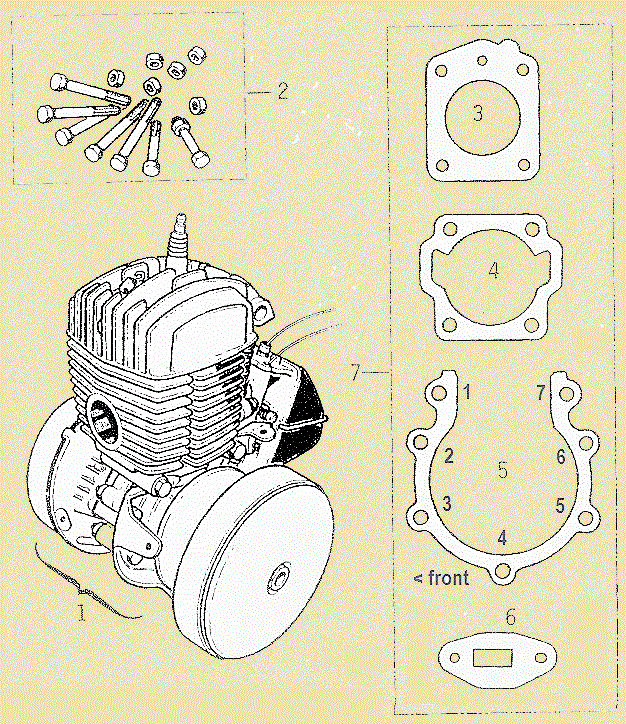

# 45V part# price 1. Gaskets, bolts
1 001 52341 none engine ’74-75 variator 25 mph
1.1 110 53444 none engine ’76-77 Dimoby 20 mph
1.2 110 53949 none engine ’76-77 Dimoby 25 mph
1.3 110 53744 none engine ’76-77 Dimoby 30 mph
1 001 52341 none engine ’76-77 variator 25 mph
1.4 001 53745 none engine ’76-77 variator 30 mph
1.5 110 54146 none engine ’78-81 Dimoby 20 mph
1.6 110 54147 none engine ’78-81 Dimoby 25 mph
1.7 110 54149 none engine ’78-81 Dimoby 30 mph
1.8 001 54148 none engine ’78-81 variator 25 mph
1.9 001 54844 none engine ’78-81 variator 30 mph
2 111 18568 $15.0 case bolt set 2×2.1, 2×2.2, 3×2.3
2.1 111 15276 $1.50 bolt M7-1.25 x 45 flange (10 hex)
2.2 111 14936 $1.00 bolt M7-1.00 x 33 (10 hex)
2.3 111 00366 $1.40 bolt M7-1.00 x 48 (10 hex)
2.4 111 366b $1.50 bolt M7-1.00 x 40 (set has 48)
2.5 111 00366 $1.40 bolt M7-1.00 x 48 (10 hex)
2.6 111 14936 $1.00 bolt M7-1.00 x 33 (10 hex)
2.7 111 15276 $1.50 bolt M7-1.25 x 45 flange (10 hex)
2.8 555 00011 $0.50 nut M7-1.00 (10 hex)
3 111 14854 $7.00 gasket cylinder head
4 111 14895 $6.00 gasket cylinder base
5 111 16910 $3.00 gasket crankcase
6 111 52646 N/A gasket intake restricted (20mph)
6 111 17073 $3.00 gasket intake (25 and 30mph)
7 111 16912 $15.0 gasket kit 3, 4, 5, 6

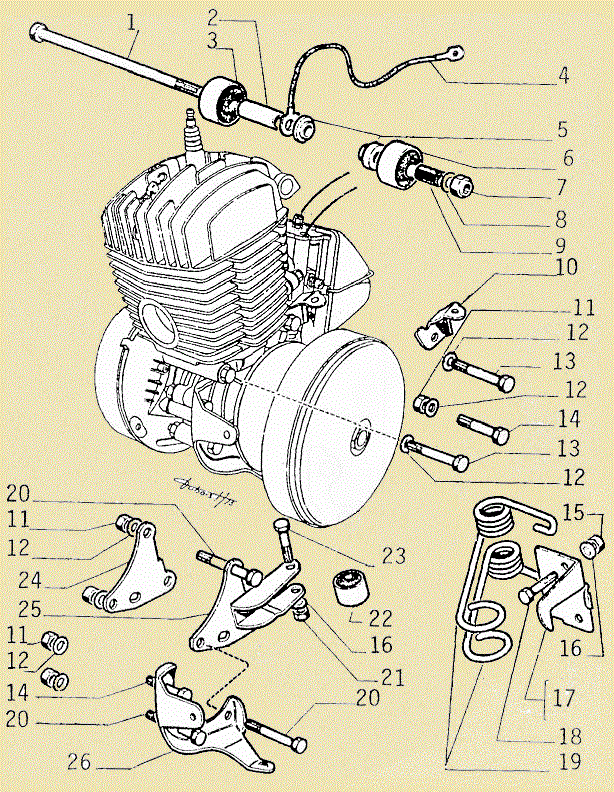

# 45V part# price 2. Engine mounts
1 111 19886 $6.00 bolt engine mount M8-1.00 x 140
1 001 20453 none bolt for up-exhaust M8-1.00 x 145?
2 111 20534 $4.00 spacer tube 8-12 x 18
3 111 17994 $11.0 R Flexibloc ∅8.0 ∅32.0 x 23
3a 111 17994a$8.00 R red rubber ∅9.7 ∅28.8 x 18
3b 111 17994b$8.00 R center tube ∅11.3 ∅8.0 x 23
4 111 19888 $3.00 ground cable, engine-to-frame
5 222 21014 $3.00 step spacer ∅8 x ∅12-17 x 10.5
6 111 20789 $11.0 L Flexibloc ∅11.0 ∅32.0 x 23
6a 111 20789a$8.00 L red rubber ∅12.4 ∅28.8 x 18
6b 111 20789b$8.00 L center tube ∅14.0 ∅11.0 x 23
7 111 17523 $2.50 nut locking M8-1.00
8 111 16541 $0.20 washer ∅8
9 111 20790 $6.00 plastic tube 8-11 x 23
10 001 17661 $3.00 bracket for variator cover
11 444 00011 $0.50 nut M7 (10 hex)
12 777 01527 $0.50 lock washer ∅7
13 222 15276 $1.50 bolt M7-1.25 x 45 flange (10 hex)
14 222 14936 $1.00 case bolt M7-1.0 x 33 hex10
15 222 01526 $1.00 flange nut M6
16 222 01172 $0.50 lock washer Ø6 inner teeth
17 111 17120 $5.00 bracket spring retainer variator
17 111 21282 $6.00 bracket spring retainer 1-speed
18 222 00968 $1.00 bolt M6-1.0 x 20 hex10
19 222 15933 $7.00 belt tension springs (each)
20 222 00366 $1.40 case bolt M7-1.00 x 48 (10 hex)
21 222 00010 $0.30 nut M6
22 111 15934 $9.00 Flexibloc lower Ø6 x Ø?? x ??
23 111 00050 $0.70 bolt M6 x 25?
24 111 21709 $4.00 lower engine mount plate right
25 111 21710 $5.00 lower engine mount plate left
26 001 17354 $3.00 bracket variator cover

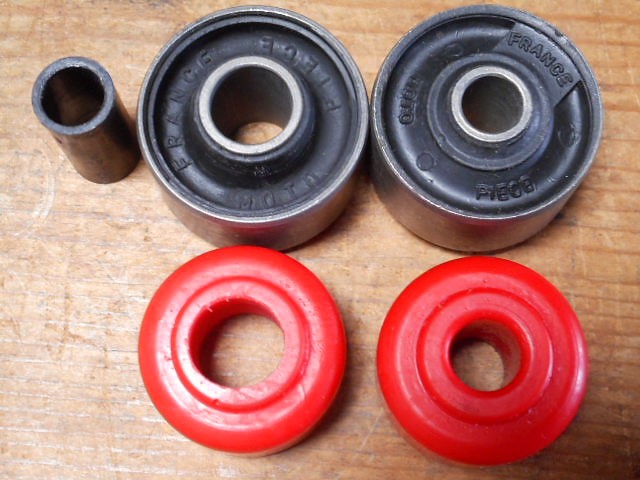

Motor Mount Bushings (Flexiblocs)
top: #2 tube, #6 left Flexibloc, #3 right Flexibloc
bottom: #6a red rubber, #3a red rubber
The red rubbers replace just the old black rubber part. The old bushing metal shell and metal center tube are re-used. The shell is not removed from the frame so no special press tool is needed. Instead the black rubber is removed with a knife.
But the red rubber holes 9.7 and 12.4 are too small for the center tubes 11.3 and 14.0. The small hole must be widened by drilling. The large hole is a very tight fit without drilling. Drilling is recommended for both.

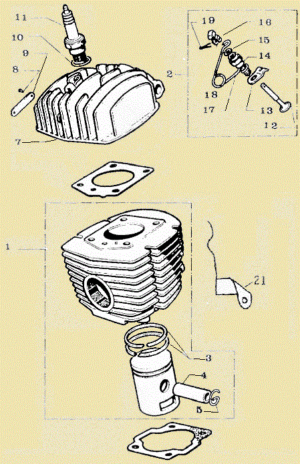

# qty part# price 3. Cylinder and head
1 1 53505 $140. cylinder E with piston J (20 mph)
1 1 53505 $140. higher top deck, lower compression
1 1 23460 $180. cylinder AA w/piston AA (25 & 30)
1 1 23460 $180. cylinder AA w/piston AA (25 & 30)
1 1 23460 $180. cylinder C with piston C (25 & 30)
1 1 23460 $180. cylinder C with piston C (25 & 30)
1 1 23460 $180. cylinder C with piston C (25 & 30)
1 1 23460 $180. cylinder E with piston E (25 & 30)
1 1 23460 $140. cylinder C with piston C good-used
1 1 23460 $140. cylinder C with piston E good-used

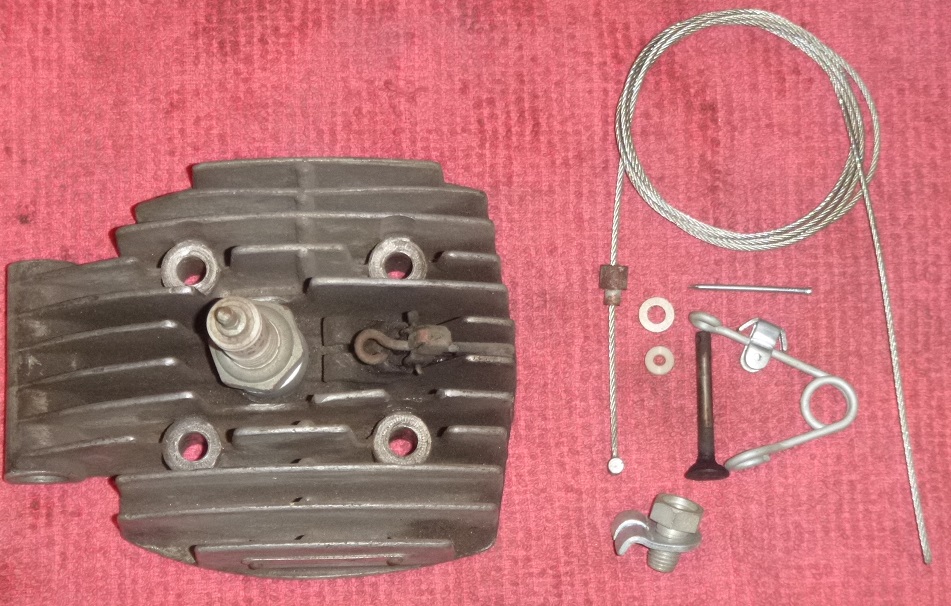

2 1 14721 $12.0 decomp valve kit
3 2 14821 $10.0 piston ring (pre-6/76) Ø39 x 2.0 FG
3 2 22148 $12.0 piston ring (6/76-on) Ø39 x 2.0 GI
4 1 15094 $12.0 piston pin Ø13 x 30
5 2 00658 $2.00 piston pin clip Ø13
7 1 19885 $35.0 cylinder head complete
8 2 00053 $1.50 rivet for ID plate
9 1 21294 none engine ID plate
10 1 00059 $1.00 spark plug gasket ring
11 1 01547 $5.00 spark plug NGK BR6HS
12 1 15025 $8.00 decomp valve bare
13 1 14919 $7.00 mounting lug
14 1 14855 $7.00 guide
15 1 14897 $7.00 gasket
16 1 14987 $4.00 decomp washer
17 1 15007 $4.00 spring
18 1 15099 $6.00 valve link
19 1 00018 none cottor pin, use small bent nail
21 1 22156 $3.00 wire guide
Piston (at skirt) to cylinder clearance: new is 0.005 to 0.01 mm (0.0002 to 0.0004″), max is 0.05 mm (0.002″).
This is a very small clearance, measured at the bottom of the piston, allowed by the all-aluminum cylinder.
Usually pistons are measured at the bottom skirt, called “lower” below, because when cold, that is the widest part.
The bottom is slightly wider than the top, because there is less material, and therefore less thermal expansion.
When the piston is hot, the bottom and top are the same. The whole piston expands, as does the cylinder.
Motobecane measures just below the rings, called “upper” below. On these pistons lower is 0.02 mm bigger.
Motobecane original pistons have no marks on top, listed below as “(M)”. Inside has the M logo (some also AJ3).
< Some original replacement pistons have this logo stamped on top, listed as “(Θ)”. Inside says FRANCE.
They also have a size letter stamped on top. These were original replacements from Motobecane USA.
Other vintage aftermarket have no logo on top, listed below as “(O)”.

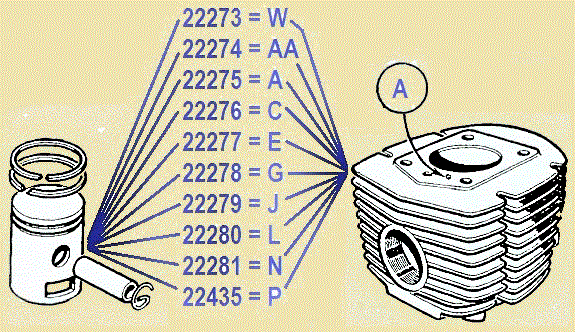

# qty part# price description skirt 4. Piston
1 1 22273 $70 piston W 38.92 for 38.93 cyl
2 1 22274 $70 piston AA 38.93 for 38.94 cyl
3 1 22275 $70 piston A 38.94 for 38.95 cyl
4 1 22276 n.a. piston C 38.95 for 38.96 cyl
5 1 22277 $75 piston E 38.96 for 38.97 cyl
6 1 22278 n.a. piston G 38.97 for 38.98 cyl
7 1 22279 n.a. piston J 38.98 for 38.99 cyl
8 1 22280 n.a. piston L 38.99 for 39.00 cyl
9 1 22281 $75 piston N 39.00 for 39.01 cyl
10 1 22435 $75 piston P 39.01 for 39.02 cyl
11 1 22435 $75 piston O 39.11 for very worn

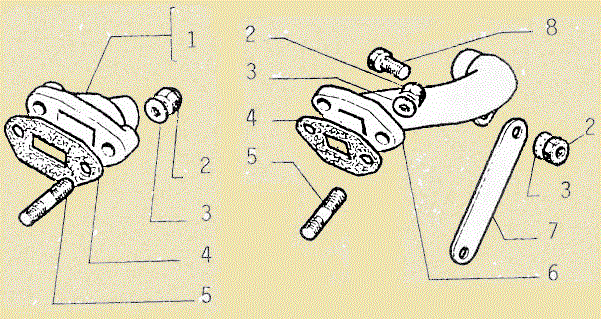

# qty part# price 5. Intake pipe
1 1 16673 none intake (variator 25mph) Ø16 x 10
1 1 16619 $33.0 intake (var 30 pre-3/77) Ø17 x 12
1 1 00000 $21.0 intake Malossi 022066B Ø19 x 15
2 3 01176 $0.90 nylock nut M6
3 3 01172 $0.20 plain washer Ø6
4 1 52646 none intake gasket restricted (20mph)
4 1 17073 $7.00 intake gasket (25 & 30 mph)
5 2 00796 $2.50 stud M6 x 31
6 1 53496 none intake pipe thin long (1-sp 20mph) Ø19
6 1 21201 $13.0 intake pipe long (1sp 25&30mph) Ø19
6 1 22899 $16.0 intake pipe long (var. 30 3/77-on) Ø19
7 1 21202 $6.00 support bracket
8 1 00679 $1.00 74-76 hex bolt M6-1.0 x 15
8 1 23018 $1.50 76-81 carriage bolt M6
# qty part# price 6. Crank and case
1 1 19608 none case set with seals (25 & 30)
1.1 1 19608l $15.0 left case bare (25 & 30)
1.2 1 19608r $15.0 right case bare (25 & 30)
1.3 1 19608 none case set w/seals (20mph) see note 1
2 4 00011 $0.50 head nut M7-1.0 thick, 10hex
3 4 18921 $0.30 washer M7
4 4 14716 $4.00 cylinder stud
5 2 19089 $7.00 crank seal Ø15 x Ø21 x 4
6 2 54977 $14.0 special crank bearing 6302QR
7 1 15855 $19.0 needle bearing Ø13 x Ø16 x 14(13.6)
8 1 19609 $150 crankshaft Ø16 Ø15 pre-’80 see note 2
8.1 1 19609 $150 crankshaft Ø16 Ø15 ’80-on see note 3
8.2 1 19609r $150 crankshaft Ø15 Ø15 ’80-on see note 4
9 1 16910 $3.00 case gasket x = as needed
10 x 01285 $4.00 crank shim 19 x 24 x 0.1
11 x 01286 $4.00 crank shim 19 x 24 x 0.2
12 x 01287 $4.00 crank shim 19 x 24 x 0.3
13 x 01288 $4.00 crank shim 19 x 24 x 0.5
Note 1. The 19608 20mph case set has a ridge that only allows a 53505 20mph cylinder to fit.
Note 2. At top, the 19609 pre-80 crankshaft has less threads for the 17429 pre-80 domed square-hole flywheel nut.
Note 3. Not shown, the 19609 80-on crankshaft has more threads for the 143195 large hex flywheel nut.
Note 4. At bottom, the 19609r 80-on crankshaft is machined to take regular 6302 15 x 42 x 13 bearings instead of 6302QR 16 x 42 x 13. The press fit is precise and correct. The piston pin and needle bearing are new, included, and factory sealed in wax, that peels off.

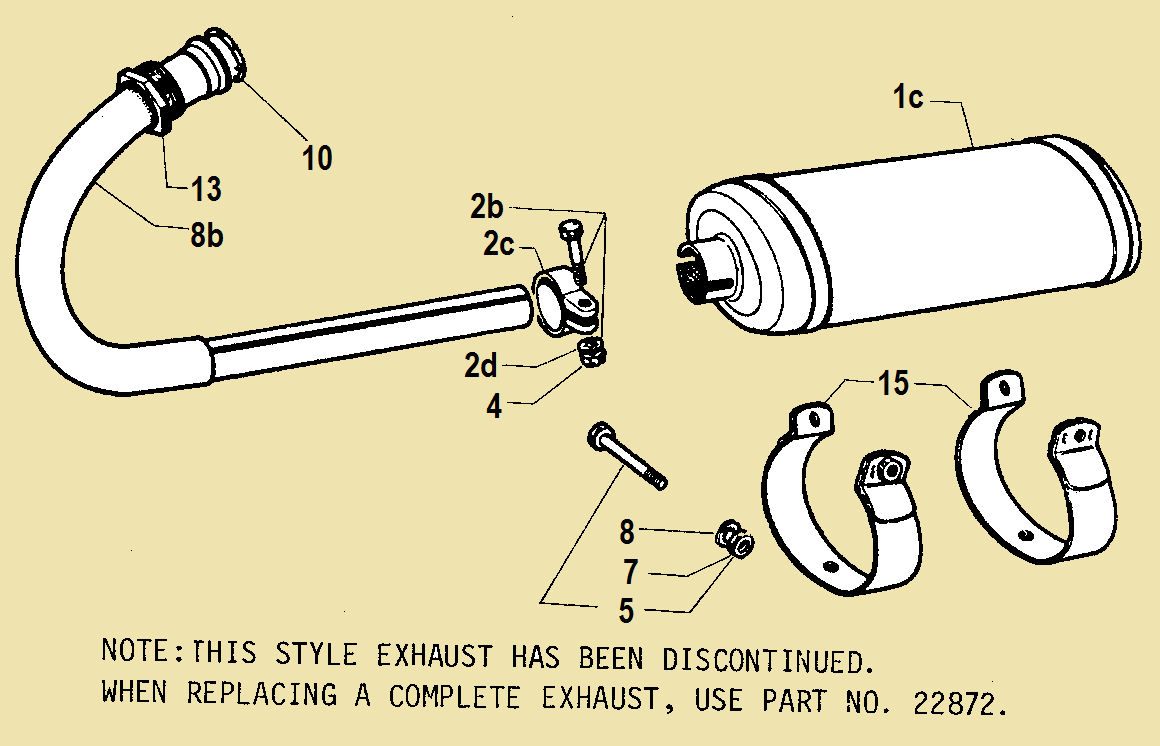

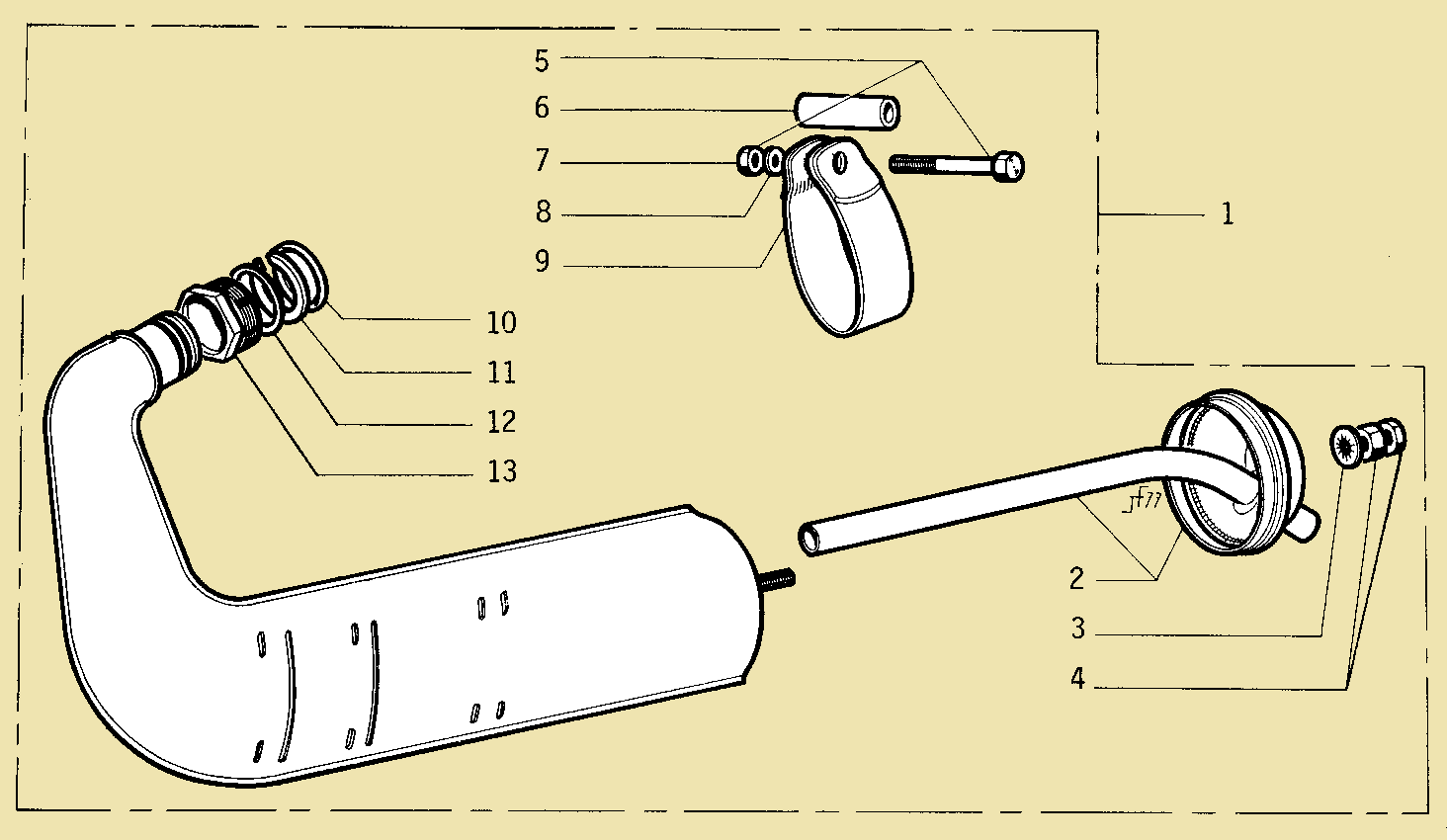

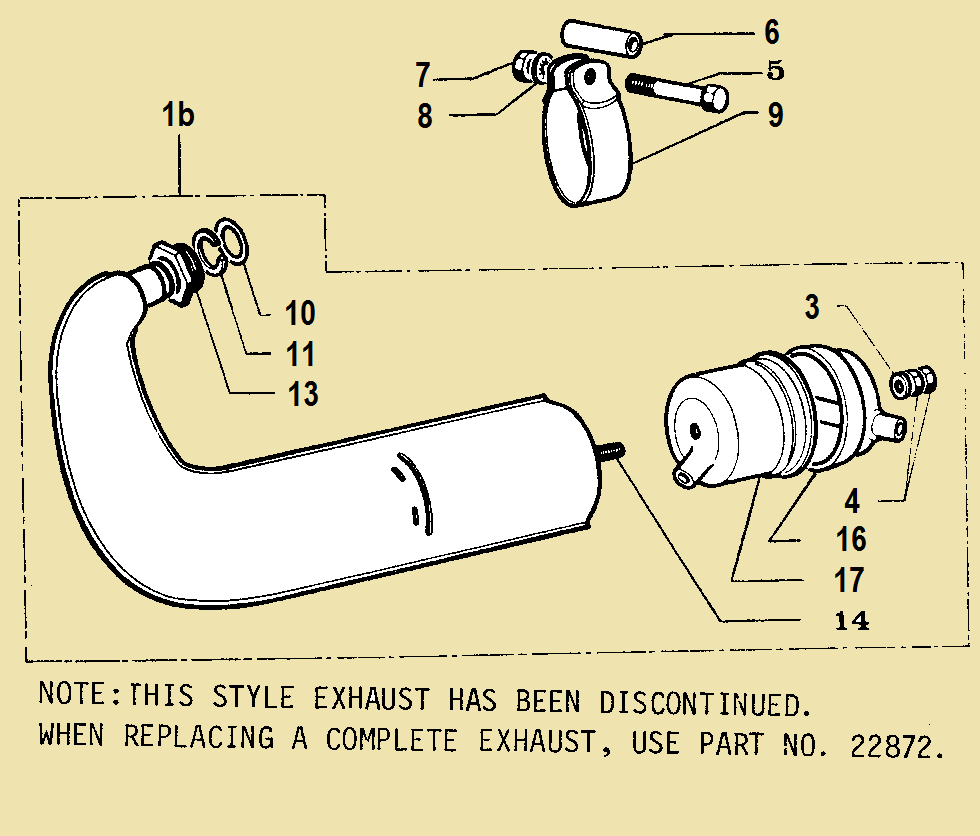

# 45V part# price 7. 8. 9. Exhaust
1 111 22872 none #9 exhaust complete ’77-81
1b 111 19869 none #8 exhaust complete ’74-76
1c 111 00000 none #7 exhaust muffler ’70-73?
2 111 22874 $18.0 #9 outlet tube cap new note 1
2 111 22874 $12.0 #9 outlet tube cap used cut short
2b 111 00687 none #7 pipe clamp bolt-nut M6
2c 111 14390 none #7 pipe clamp
2d 111 01525 $0.30 #8-9 washer M6
3 111 01545 $0.70 #8-9 end cap washer M6-14 x 1
4 111 00010 $0.50 #8-9 nut M6
5 111 01189 $1.90 #8-9 clamp bolt-nut M7 x 53
6 111 19891 $8.00 #8-9 clamp spacer 7-12 x 30
7 111 00011 $0.60 #8-9 clamp nut M7 hex10
8 111 01113 $0.30 #8-9 clamp washer M7
8b 111 52791 none #7 header pipe
9 111 19890 $15-8 #8-9 round clamp
10 111 00675 $4.00 #7-8-9 gasket ring
11 111 14786 $6.00 #8-9 nut stop ring
12 111 23780 $8.00 #9 aluminum washer 30-33 x 1
13 111 18500 $12-6 #7-8-9 exhaust nut M32-1.5
13 000 18500b$12.0 #7-8-9 oversize M33-1.5 note 2
14 111 20212 $6-$4 #8 exhaust stud M6 x 130
15 111 21712 $15.0 #7 oval clamp
16 111 19871 $15-8 #8 outer baffle end cap
17 111 19870 $12.0 #8 inner baffle
00 111 24339 $6.00 #9 ex. nut lock clip (not shown)
Note 1. Cut off all of the straight section of the outlet tube to improve power without much increase in noise.
Note 2. The oversize nut is for cylinders with exhaust threads that have been damaged and then cut bigger with a special bottoming tap.
10. Carburetor Dimoby 20-25-30 side mount, see Gurtner
11. Carburetor variator 25 mph center mount, see Gurtner
12. Carburetor variator 30 mph side mount, see Gurtner
13. Fuel Tap (aka gas valve or petcock) see Gas Valves
14. Flywheel magneto (6 volt) see MB magneto
15. Flywheel magneto (6 volt) see MB magneto
16. Flywheel magneto (12 volt) see MB magneto
17. Flywheel magneto (12 volt) see MB magneto

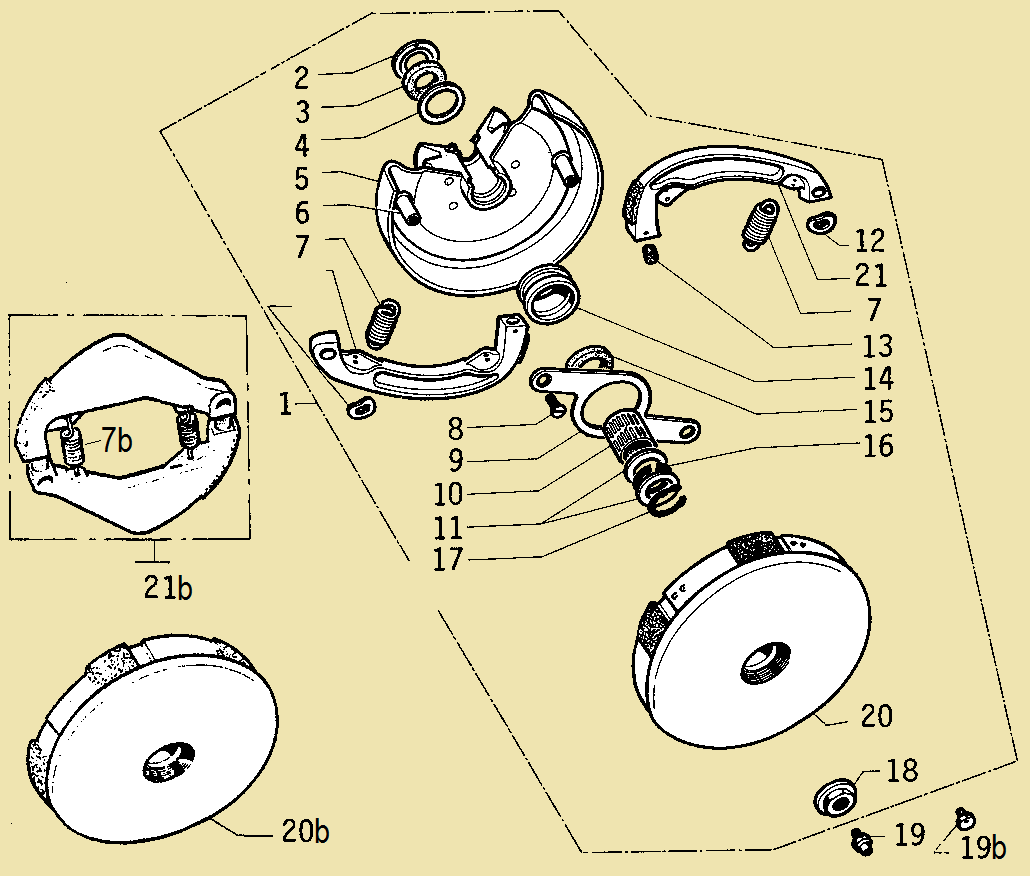

# 45V part# price years 18. Dimoby clutch
1 110 21680 $85.0 74-76 D-clutch assy 3-shoe good-used
1b 110 22914 $75.0 77-81 D-clutch assy 4-shoe good-used
2 110 14750 none 74-81 washer ∅15
3 110 14567 none 74-81 felt seal inner ∅15
4 110 14588 $7.00 74-81 washer 15.5-31 x 0.85
5 110 19228 none 74-81 pulley with running drum
6 222 20456 none 74-81 start clutch pivot (riveted on)
7 220 15383 $2.00 74-76 start clutch spring 13 x 34
7b 222 22402 $5.00 76-81 start clutch spring 10 x 29.5
8 222 15356 $3.50 74-81 start clutch screw
9 111 21682 $6.00 74-81 start clutch cover
10 111 14712 $18.0 74-81 needle bearing 15-19 x 21.5
11 222 14562 $6.00 74-76 washer 15-21.7 x 0.5 use 14562
11 111 14562 $7.00 77-81 washer 15-21.7 x 0.8
11a xxx 14931 $5.00 77-81 shim 15-21 x 0.1 mm
11a xxx 14932 $5.00 77-81 shim 15-21 x 0.25
11a xxx 14933 $5.00 77-81 shim 15-21 x 0.45
12 222 21946 none 74-81 start shoe wave washer
13 220 16540 none 74-76 start shoe bumper
13b222 22401 $5.00 77-81 start shoe bumper
14 110 17252 none 74-81 oil deflector pressed-on
15 110 17253 $1.50 74-81 felt seal ring outer 30-36 x 4
16 111 14561 $2.50 74-81 inverted external circlip 15 x 1 photo
17 111 14563 $2.50 74-81 internal circlip 22 x 1.0 photo
18 110 17454 $4-2 74-81 Dimoby clutch nut M10-1.0 x 8
19 111 14587 none 74-76 grease zerk nipple type
19b111 22896 $8-5 77-81 grease zerk flat type (shown)
20 110 21683 none 74-76 D-clutch wheel 3-shoe good-used
20 110 21683 none 74-76 starting drum and running clutch
20b110 22898 $45.0 77-81 D-clutch wheel 4-shoe good-used
20b110 22898 none 77-81 starting drum and running clutch
21 110 22147 none 74-76 start set, 2 of 21,13,7 use 22400
21b110 22400 $45.0 76-81 start set, 2 of 21b,13b,7b

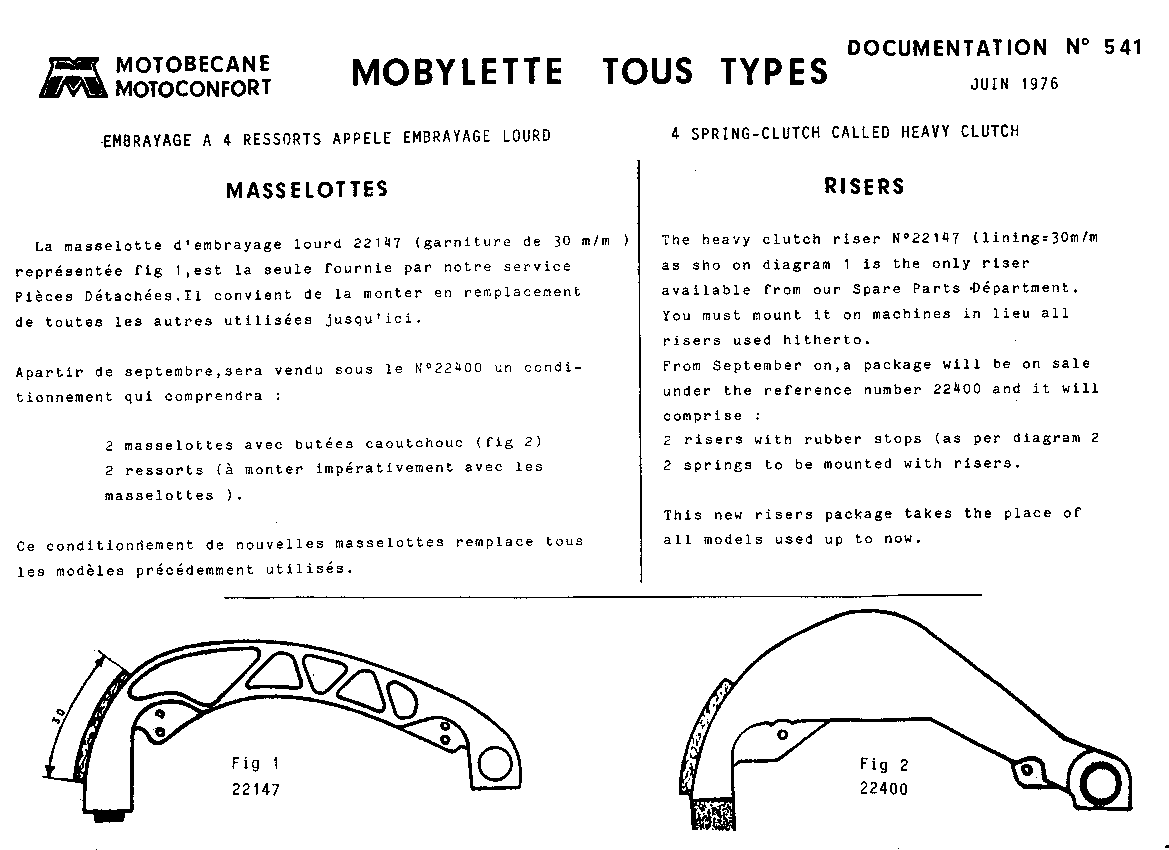

In June ’76 the start shoe set changed to 22400 on both Dimoby and variator clutch versions.

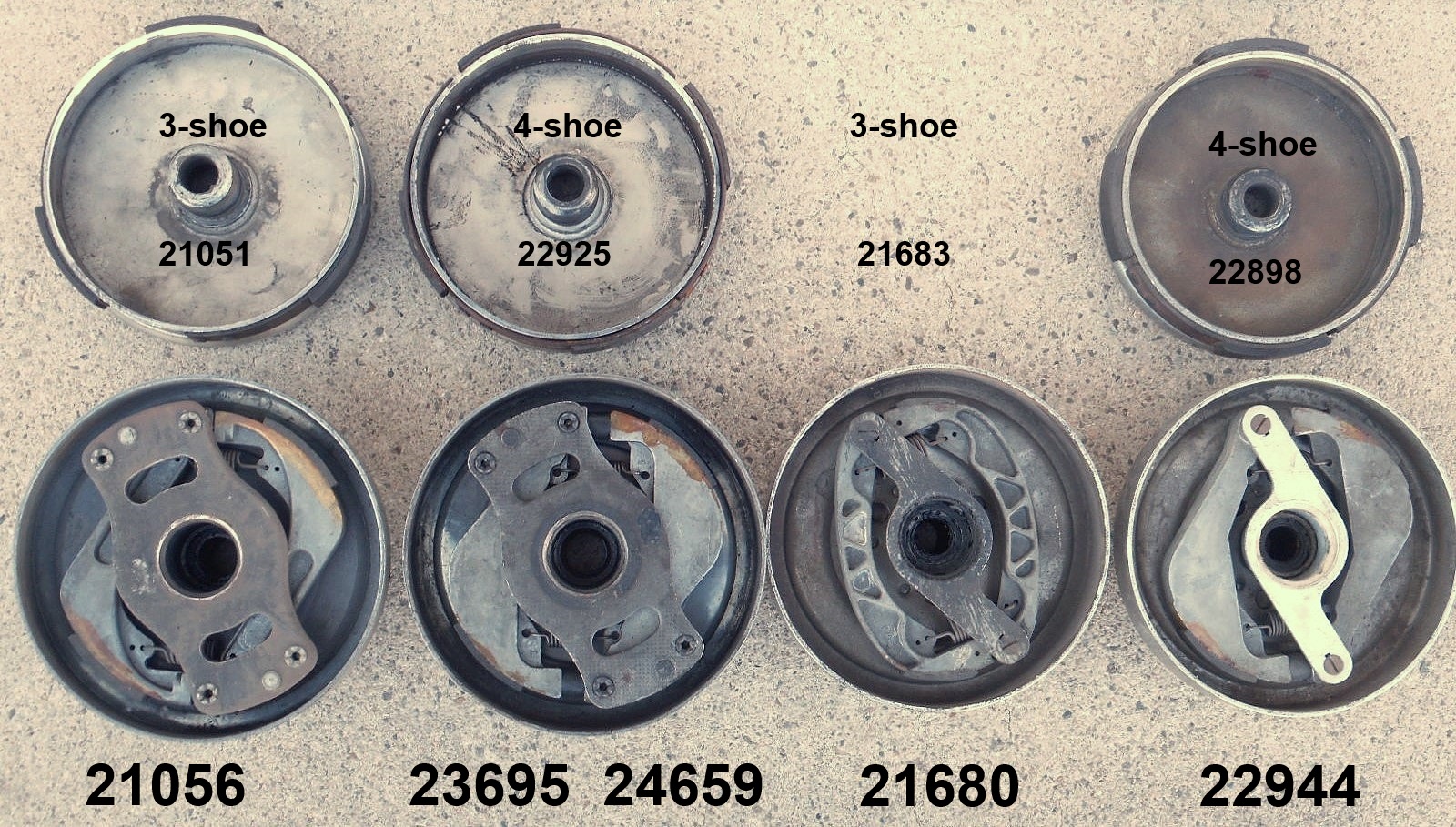

Dimoby clutch wheels: to 3-shoe 1, ’77 4-shoe
Variator clutch wheels: to-’76 21051, ’77-on 22925
Dimoby clutch wheels: to-’76 21683, ’77-on 22898
Variator pulley-clutches: to-’76 21056, ’77-79? 23695, ’80?-on 24659
Dimoby pulley-clutches: to-’76 21680, ’77-on 22944
The Variator clutch wheel sticks out 18mm more than the Dimoby wheel. So it’s that much closer to hitting the left pedal arm.

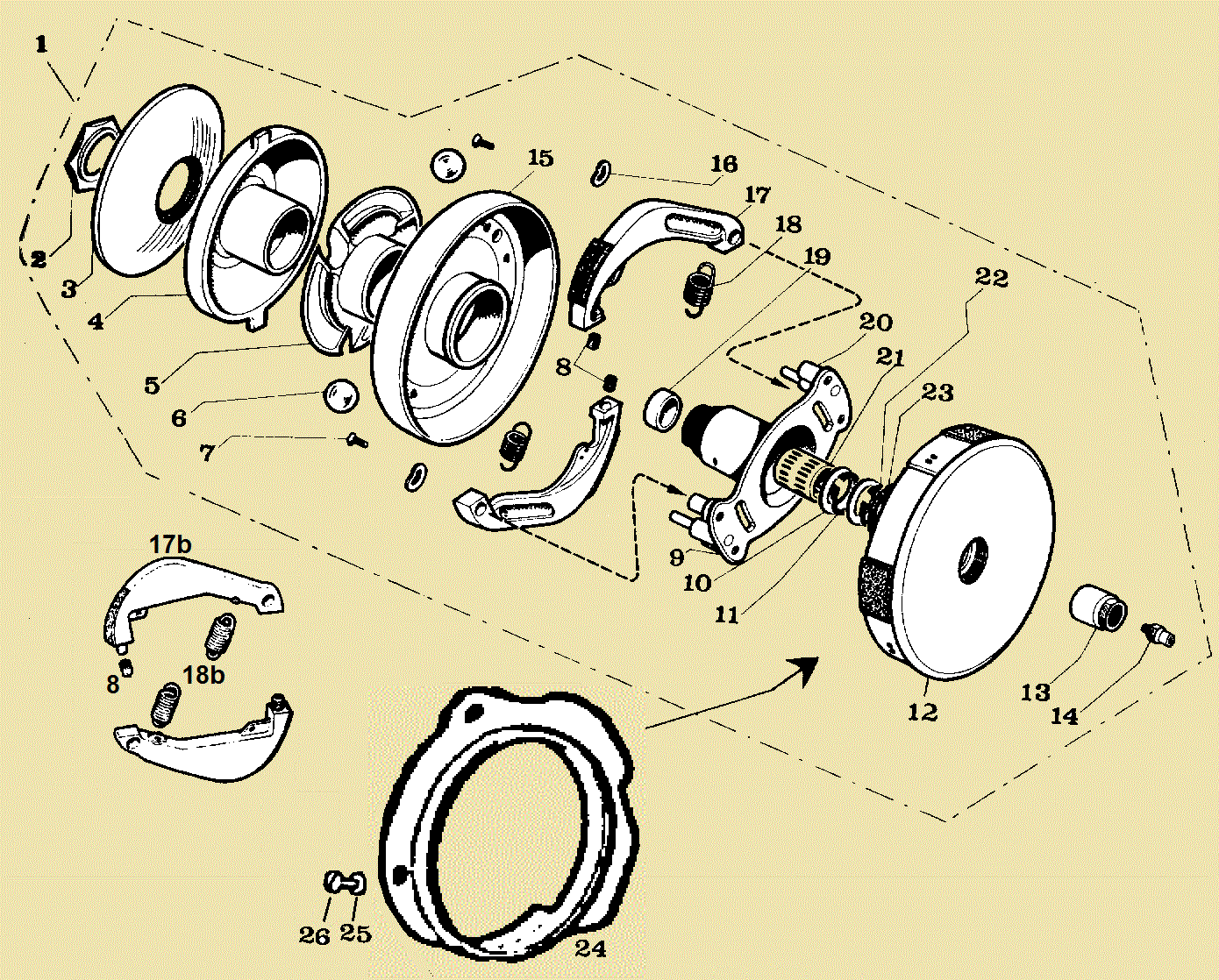

# 45V part# price years 19. Variator clutch
1 001 21056 none 74-76 V-clutch assy 3-ball 3-shoe new
1 001 23695 none 77-79 V-clutch assy 3-ball 4-shoe new
1 001 23695u$90.0 77-79 V-clutch incomplete good-used
1 001 23695u none 77-79 without 10, 11, 13, 14, 19, 21, 22
1 001 23695u none 77-79 with rusty or scratched clutch wheel
1 001 24659 none 80-81 V-clutch assy 4-ball 4-shoe new
2 001 16845 $5.00 74-81 pulley nut M25-1.0 left thread hex 35
3 001 17797 none 74-81 fixed pulley cheek M27-1.0 thread
4 001 19262 $18.0 74-81 movable pulley cheek
5 001 20638 none 74-79 ball retainer 3-ball
5 001 23398 $14.0 80?81 ball retainer 4-ball
6 003 16723 none 74-81 ball for variator 13.5 mm
7 222 15356 $3.50 74-81 start clutch screw
8 222 22401 $5.00 74-81 start clutch bumper
9 001 16842 $48.0 74-81 variator hub
10 222 14562 $6.00 74-76 washer 15-21.7 x 0.5 use 14562
10 111 14562 $7.00 77-81 washer 15-21.7 x 0.8
10a xxx 14931 $5.00 77-81 shim 15-21 x 0.1 mm
10a xxx 14932 $5.00 77-81 shim 15-21 x 0.25
10a xxx 14933 $5.00 77-81 shim 15-21 x 0.45
11 111 14561 $2.50 74-81 inverted external circlip 15 x 1 photo
12 001 21051 none 74-76 V-clutch wheel 3-shoe new
12 001 21051 none 74-76 starting drum and running clutch
12 001 22925 none 77-81 V-clutch wheel 4-shoe new
12 001 22925 none 77-81 starting drum and running clutch
12 001 22925u$80.0 77-81 V-clutch wheel 4-shoe good-used
12 001 22925u none 77-81 original, rusty and/or scratched
13 001 17455 $9-6 74-81 variator clutch nut M10-1.0 x 21
14 111 14587 none 74-76 grease zerk nipple type (shown)
14b111 22896 $8-5 77-81 grease zerk flat type
15 001 20683 $30.0 74-81 running clutch drum
16 222 16542 none 74-76 start wave washer
16b222 21946 none 77-81 start wave washer
17 002 16539 none 74-76 start shoe bare
17 001 22924 none 74-76 start shoe set use 22400
17b001 22400 $45.0 76-81 start shoe set
18 002 16721 none 74-76 start shoe spring
18b002 22402 $5.00 77-81 start shoe spring 10 x 29.5
19 001 15187 $12.0 74-81 shield ring inner
20 222 20456 none 74-81 start clutch pivot pin
21 111 14712 $18.0 74-81 needle bearing 15-19 x 21.5
22 111 14563 $2.50 74-81 internal circlip 22 x 1.0 photo
23 001 15349 none 74-81 o-ring seal 2.5 x 20 (25od)
23 001 15349s $0.70 74-81 substitute 3/32 x 3/4″ note 1
24 001 19851 35–20 74-81 variator belt cover
25 003 17426 $3.00 74-81 plastic washer
26 003 17425 $6.00 74-81 belt cover screw
26 003 17425u $3.00 74-81 belt cover screw used
Note 1: The substitute o-ring is 3/32 x 3/4″ (15/16 od) which is 2.39 x 19.05 (23.83 od). But it is actually 2.65 x 19.0 (24.3 od) with an oval cross section. The o-ring groove bottom has a 21.5 mm diameter. That stretches the o-ring enough to make the OD 26.2 mm. That is slightly more than the 26.0 ID of the clutch housing where it seals at.

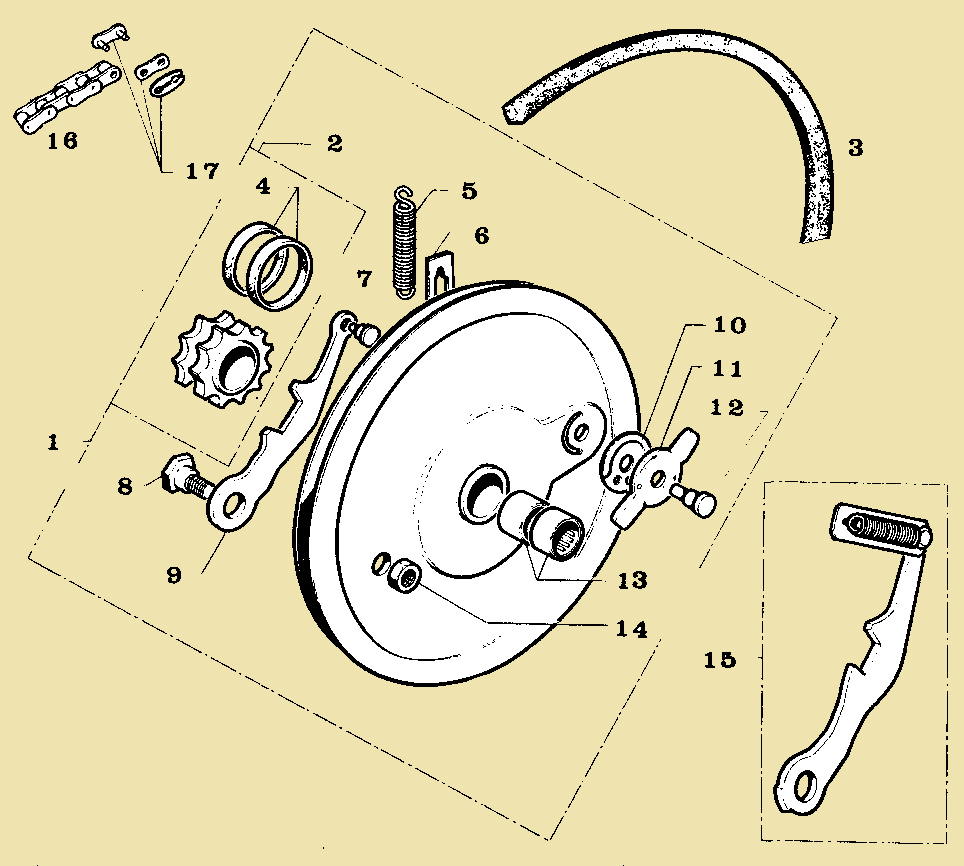

# 45V part# price 20. Pulley see note 1
1 110 18940 none pulley 12T Dimoby 20 mph
1 111 16653 none pulley 11T Dimoby 25, variator 25-30
1 110 20731 none pulley 13T Dimoby 30 mph
2 110 18939 $15.0 sprocket 12T Dimoby 20 mph
2 111 17352 $15-9 sprocket 11T Dimoby 25, variator 25-30
2 110 20732 $15.0 sprocket 13T Dimoby 30 mph
3 111 14756 none belt 14-9.0-830 Optibelt original
3 111 14756r $21.0 belt 14-7.9-828 Ventico D24 repl.
4 222 17353 $4.00 rubber ring 25-33 x 3 see note 2
5 111 15219 $3.00 extension spring
6 111 16960 $2.00 spring limiter
7 111 15220 none spring rivet
8 111 18275 $6-$4 shoulder bolt M8-1.0 x 9, ∅12 x 5
9 110 17517 $26.0 lock lever bare for 12 tooth
9 111 17515 $23.0 lock lever bare for 11 tooth
9 110 20735 none lock lever bare for 13 tooth
10 111 15217 $2.00 washer
11 111 15216 $2.00 selector knob
12 111 15218 $2.00 pivot pin
13 222 14330 $18.0 needle bearing HK1612 16-22 x 12
14 111 14147 $2-$1 pivot nut M8-1.0 rounded
15 110 17518 $29.0 lock lever set for 12 tooth
15 111 17516 $26.0 lock lever set for 11 tooth
15 110 20736 none lock lever set for 13 tooth
16 100 18429 none motor chain 415 93+1L for 40 (20)
16 100 18429r $20.0 motor chain 415H 94L see note 2
16 100 20766 none motor chain 415 90+1L for 40 (25)
16 100 20766r $24.0 motor chain 415H 91L see note 2
16 100 53874 none motor chain 415 91+1L for 40 (30)
16 100 53874r $20.0 motor chain 415H 92L see note 2
16 010 18368 none motor chain 415 99+1L for 50 (20)
16 010 18368r $22.0 motor chain 415H 100L see note 2
16 010 17693 none motor chain 415 96+1L for 50 (25)
16 010 17693r $24.0 motor chain 415H 97L see note 2
16 010 18427 none motor chain 415 97+1L for 50 (30)
16 010 18427r $20.0 motor chain 415H 98L see note 2
16 001 18370 none motor chain 415 102+1L var. 25-30
16 001 18370r $25.0 motor chain 415H 103L see note 2
17 111 17695 $5.00 master link 415 original
17 111 17695r $3.00 master link 415H (not for 415)
Note 1. There are three different sprocket sizes 11, 12 and 13 tooth. Each sprocket has a specific lock lever. The lock lever and sprocket are part of the pulley complete. So there are three pulley completes.
Note 2. The two rubber rings #4 must be removed for the replacement chain 415H because the taller link plates cause the chain to not fit the sprocket correctly. That causes grinding and skipping.

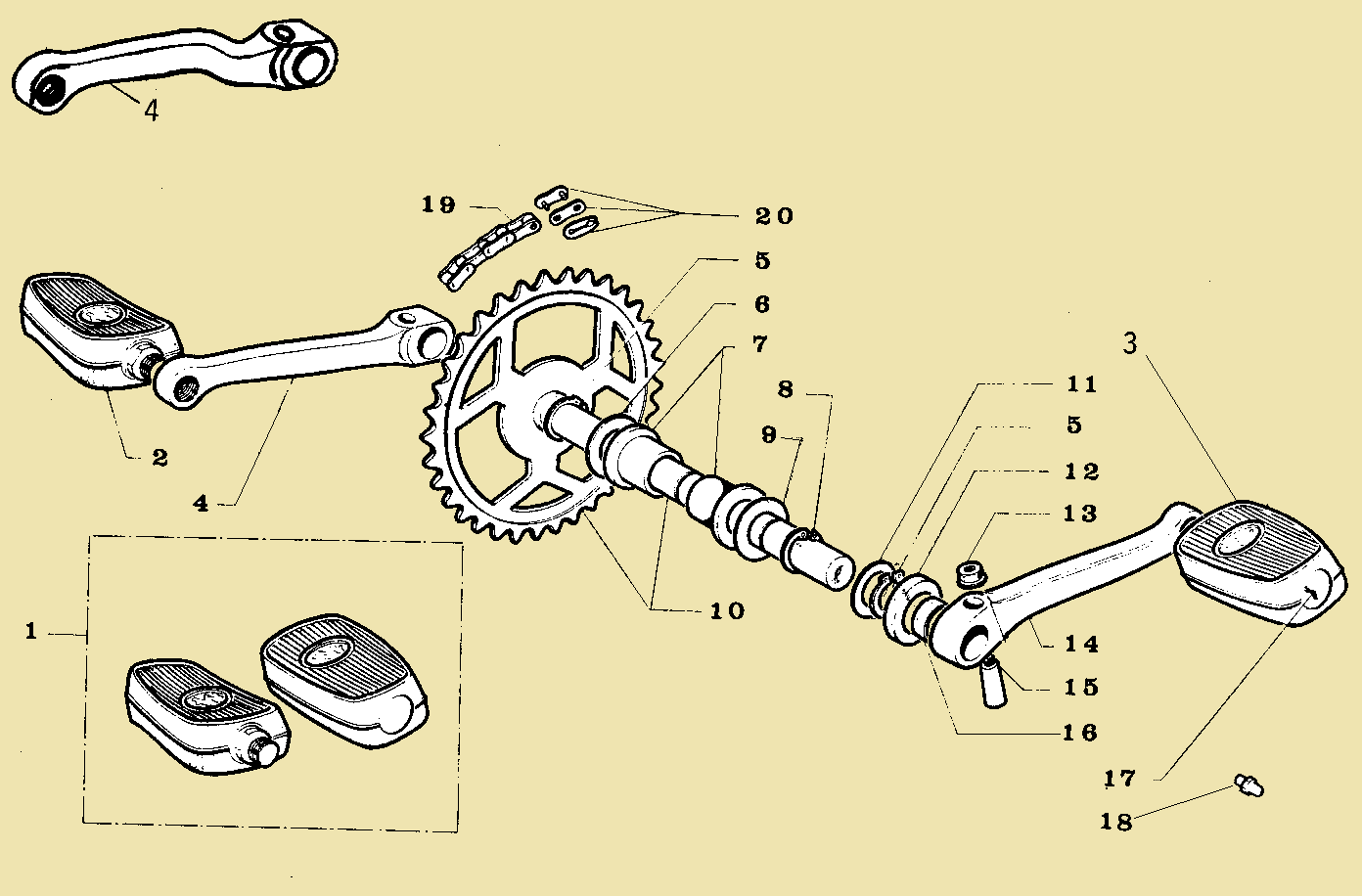

# 45V part# price 21. Pedal crank
1 111 20056 none pedal set M14-1.25 thread original
1 111 20056r $20.0 pedal set M14-1.25 replacement
2 111 20057 none right pedal M14-1.25 thread original
3 111 20058 none left pedal M14-1.25 thread original
4 111 20733 22-15 right pedal arm M14-1.25
4 001 22925 none right pedal arm for 50VLX (more offset)
5 111 14158 $1.50 circlip external 16 x 1
6 111 15998 $7.00 washer 16-26 x 1.0
7 222 14179 $7.00 pedal shaft bushing 16-24 x 19
8 111 16566 $2.50 circlip inverted external 16 x 1
9 xxx 14863 none shim washer 16-30 x 0.1
9 xxx 14865 $7.00 shim washer 16-30 x 0.3
9 xxx 15001 $7.00 shim washer 16-30 x 0.75
10 111 20737 $45.0 pedal shaft
11 111 14153 $7.00 washer 16-27 x 2.0
12 111 16568 $3.00 shield ring (oil deflector)
13 111 20441 none wedge pin nut orig.
14 111 20734 $45.0 left pedal arm M14-1.25
15 222 00006 $2.00 wedge pin w/nut 9.0 replacement
16 111 20738 $8.00 spacer 16-20 x 13
17 222 20697 none pedal cap for original pedal
18 111 22868 $4.00 grease fitting brass press-in
19 100 20765 $11.0 pedal chain 87+1L for 40 (18T)
19 011 21142 $11.0 pedal chain 93+1L 50, 50V (18T)
20 111 14368 $2.00 master link 1/2 x 1/8
22. Cables see Motobecane Cables

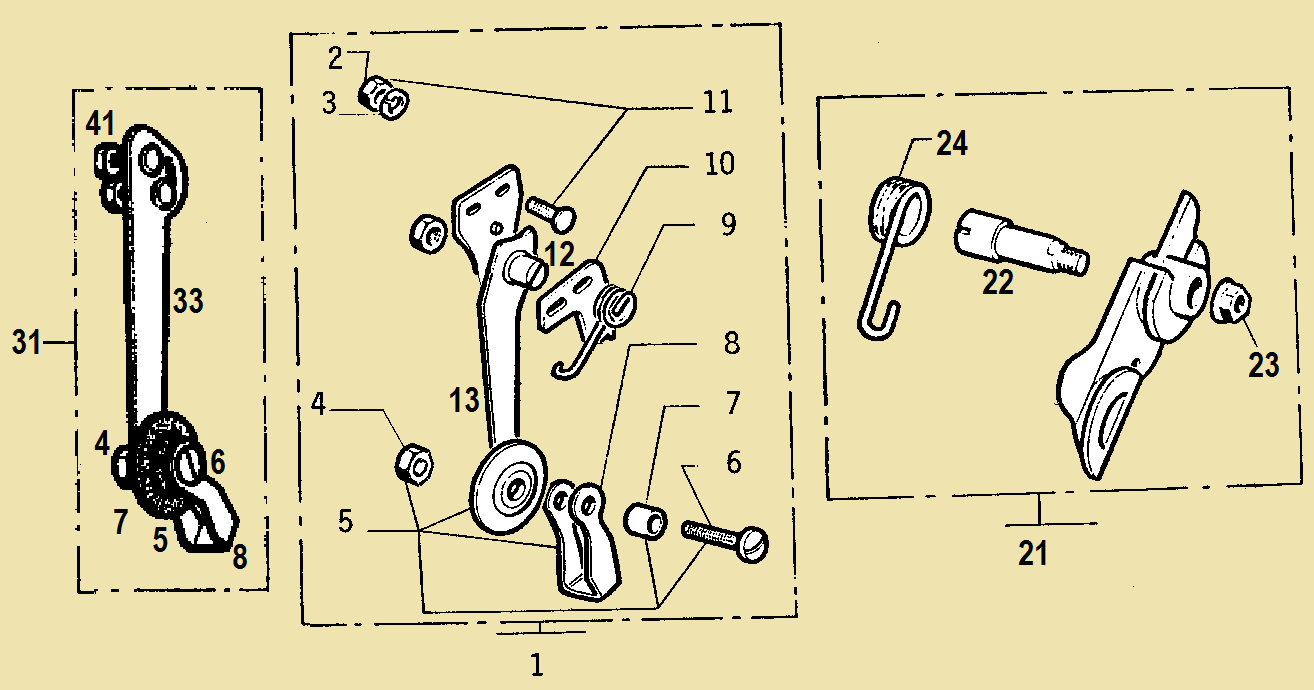

# 45V part# price 23. Pedal chain tensioner
1 011 16891 $39.0 tensioner complete for 50
2 022 01815 $0.50 mount nut M5
3 022 00874 $0.20 mount washer M5
4 011 00004 $1.50 thin washer+nut M6
5 011 16688 none roller complete
6 011 14356 $1.00 roller screw+nut M6 x 19
7 011 16689 none roller spacer ∅6-8 x 11.5
8 011 14354 none bridge
9 011 15623 none spring
9a 011 15623a none pivot-anchor w/M7 nut
10 011 15767 $1.50 spring plate
11 022 15629 $2.50 mount bolt+nut M5 x 19 special
12 011 15624 none tensioner pivot
13 011 15625 $8.00 tensioner arm
21 100 22943 29-22 tensioner complete for 7, late 40
22 100 22943a none pivot-anchor w/M6 nut
23 100 01526 $1.50 nut M6 flange
24 100 22944 $5.00 spring
31 100 16111 $45.0 tensioner complete for early 40
33 100 16111a $8.00 tensioner arm
41 200 00968 $1.00 mount bolt+nut M6 x 20
24. F. hub Motobecane see Leleu wheel parts
24A Front hub Leleu xxxsee Leleu wheel parts
25. R. hub Motobecane see Leleu wheel parts
25A Rear hub Leleu xxxxsee Leleu wheel parts

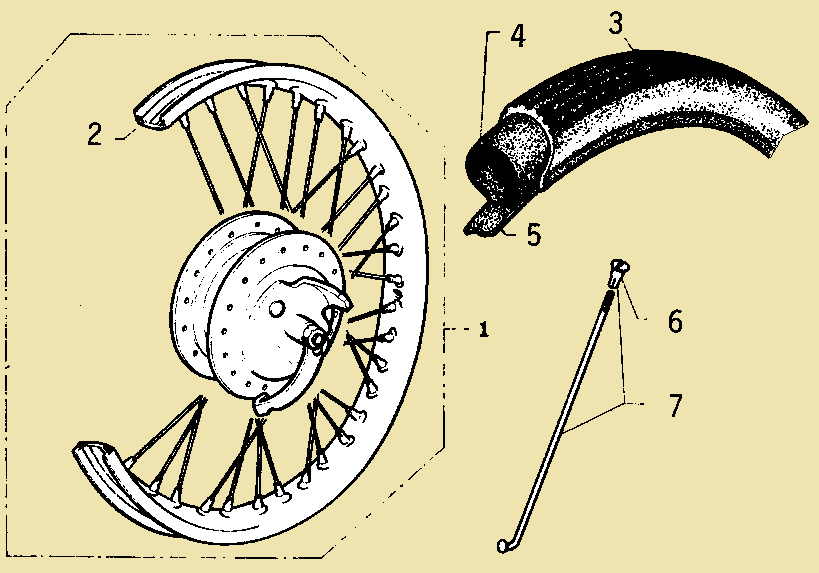

# 45V part# price 26. Front spoke wheel
1 100 53421 $00.0 front wheel thin complete
1 011 53470 $00.0 front wheel wide complete
2 100 20742 $00.0 rim 17 x 1.2? 36 hole
2 011 19634 $00.0 rim 17 x 1.5 36 hole
3 100 53571 $35.0 tire 2.00-17 Vee Rubber 126
3 011 53572 $36.0 tire 2.25-17 Shinko
4 111 52219 $10.0 tube 2.25-17 fits 2.00
5 111 17851 $1.50 rim strip
6 (36) 17859 $1.00 spoke nut 0.60 thread
7 (36) 19625 $2.00 spoke 168 x 3.0-0.60

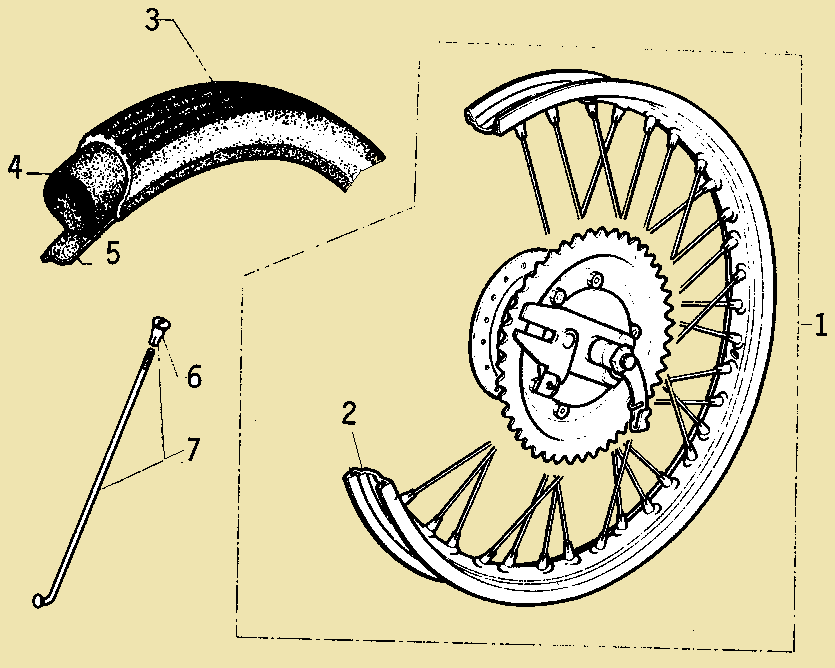

# 45V part# price 27. Rear spoke wheel
1 100 53424 $00.0 rear wheel thin 44T Dimoby 25-30
1 100 53424a none rear wheel thin 48T Dimoby 20
1 010 53470 $00.0 rear wheel wide 44T Dimoby 25-30
1 010 53871 none rear wheel wide 48T Dimoby 20
1 001 53753 $00.0 rear wheel wide 54T variator 25-30
2 100 20742 $00.0 rim 17 x 1.2? 36 hole
2 011 19634 $00.0 rim 17 x 1.5 36 hole
3 100 53571 $35.0 tire 2.00-17 Vee Rubber 126
3 011 53572 $36.0 tire 2.25-17 Shinko SR704
4 111 52219 $10.0 tube 2.25-17 fits 2.00
5 111 17851 $1.50 rim strip
6 (36) 17859 $1.00 spoke nut 0.60 thread
7 (36) 21195 $1.80 spoke 174 x 3.0 x 0.60

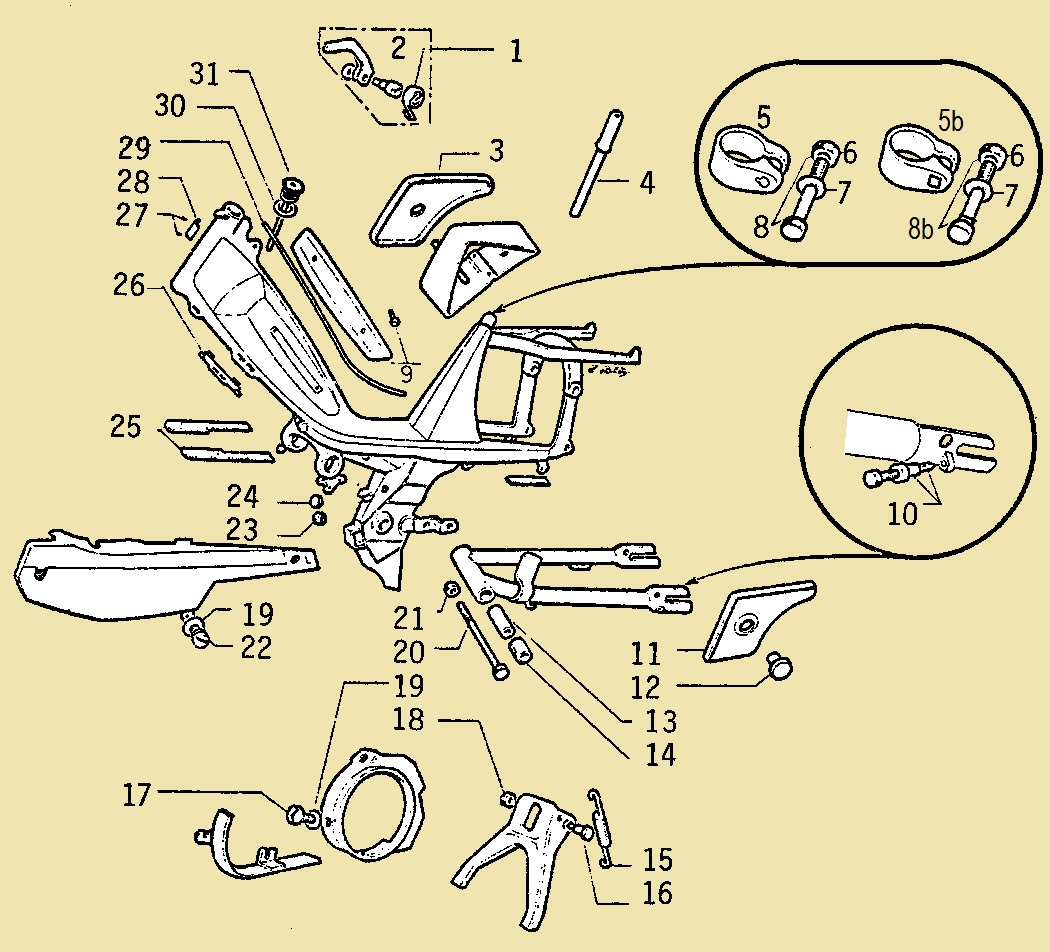

# 45V part# price 28. Model 40 frame parts
1 100 53405 none 74-79 frame yellow
1 100 53756 none 74-79 frame orange
2 100 22185 none 74-76 tank set 23164+23165
2 100 23164 none 74-76 tank sticker R gold
2 100 23165 none 74-76 tank sticker L gold

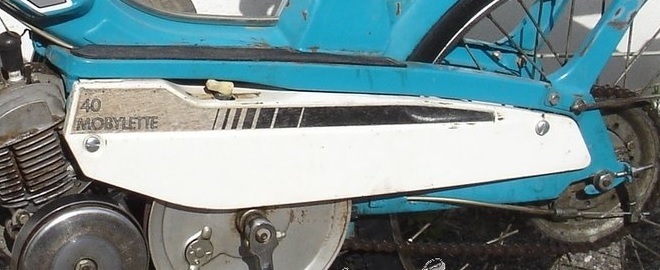

2 110 23111 none 77-79 tank sticker R sil/blk
2 110 23112 none 77-79 tank sticker L sil/blk
3 111 53429 $21.0 74-76 gas cap new w/vent switch
3 111 53429u $15.0 53429 used with no dip stick
3 111 54444 $32.0 77-79 gas cap chrome M logo
3 111 54444u none 54444 used with no dip stick
3 111 52225 $28.0 77-79 gas cap plastic off-white
3 111 52225u $19.0 52225 used with no dip stick
4 111 20460 none gas cap gasket
5 111 17202 none tank moulding chrome
6 111 53515 none ID plate
7 222 16949 none ID plate rivet
8 111 21783 $8.00 cable holder bracket
9 111 20106 none tire pump
10 111 19163 $7.00 seat post clamp w/10,11,12
10 111 19163 $7.00 seat post clamp w/10,11,12
11 111 14991 $2.00 carriage bolt+nut M8-1.0 x 45
11 111 14991 none carriage bolt+nut M8-1.0 x 45
12 111 14147 $0.80 clamp nut M8-1.0 x 6.5
13 111 18738 $1.00 washer lock ∅8-?? inner teeth
14 111 22187 none 74-76 M sticker
14 111 22376 $2.00 77-81 M sticker = 23376?
15 100 21777 none rear triangle cover
16 111 20389 $2.00 rear wires grommet 5-12 x 5
17 100 20769 $4.00 chain adjuster eyelet type
18 100 01545 $0.20 washer plain ∅6
19 100 01176 $0.80 adjuster lock nut M6-1.0

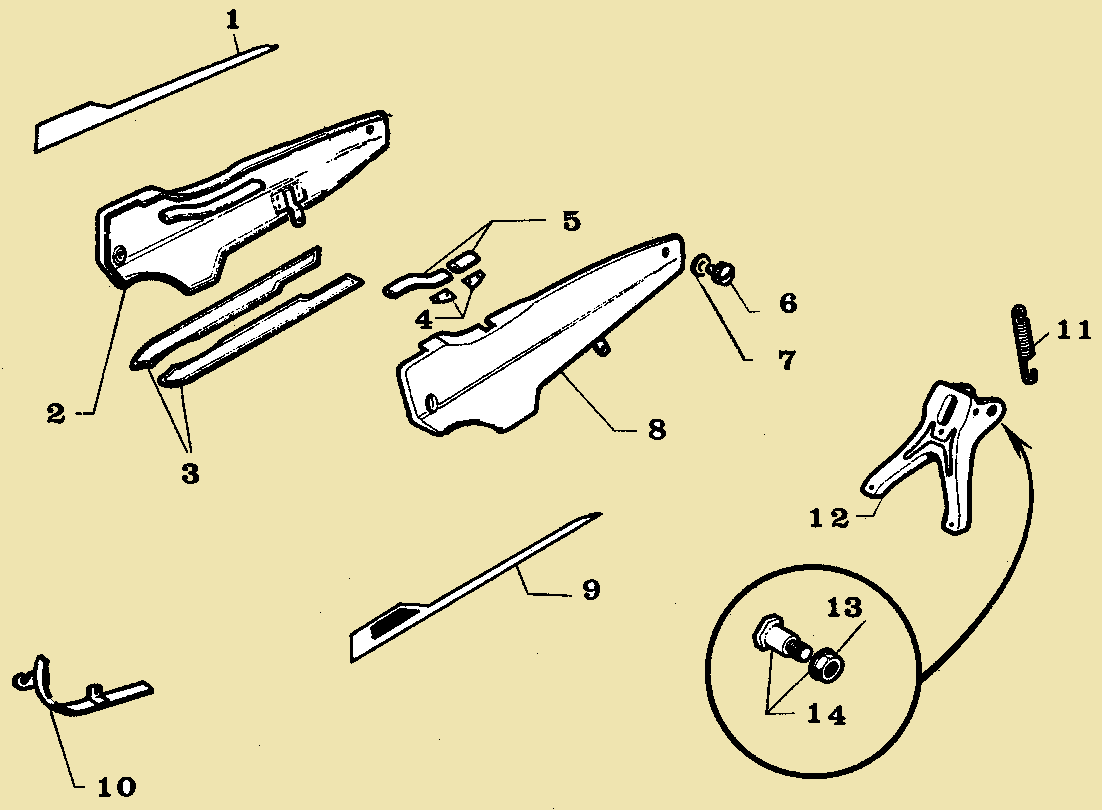

# 45V part# price Model 40 frame continued
1 100 22239 none 74-76 side sticker R
1 100 23166 none 77-79 side sticker R “40”
2 100 22247 none side cover R
2-8 100 22247n $85.0 side cover set new white
2-8 100 22247u $70.0 side cover set used off-white
3 111 21779 $35.0 floor mat set
3 111 21779r 20-10 floor mat right
3 111 21779l $15.0 floor mat left
4 111 53428 none 74-76 gas valve sticker black?
4 111 54313 none 77-79 gas valve sticker white?
5 100 21969 $4.00 cover moulding
6 666 17424 $5.00 A side screw M5-0.9 x 12 w/washer
6 666 17424s $2.00 substitute M5-0.9 x 16 philips
7 669 17426 $3.00 I plastic washer off-white
7 009 17426s $3.00 J plastic washer black
8 100 22248 none side cover L
9 100 22240 $15.0 74-76 side sticker L
9 100 23167 none 77-79 side sticker L “40”
10 110 18376 $15.0 74-81 Dimoby belt guard
11 100 20349 $12.0 stand spring Model 40 ∅14.5 x 119
12 100 21024 none center stand short (primed)
13 200 20637 $2.00 stand nut M8-1.0 flange-lock
14 200 20586 $9-$6 shoulder bolt M8-1.0 x 19, ∅11 x 7

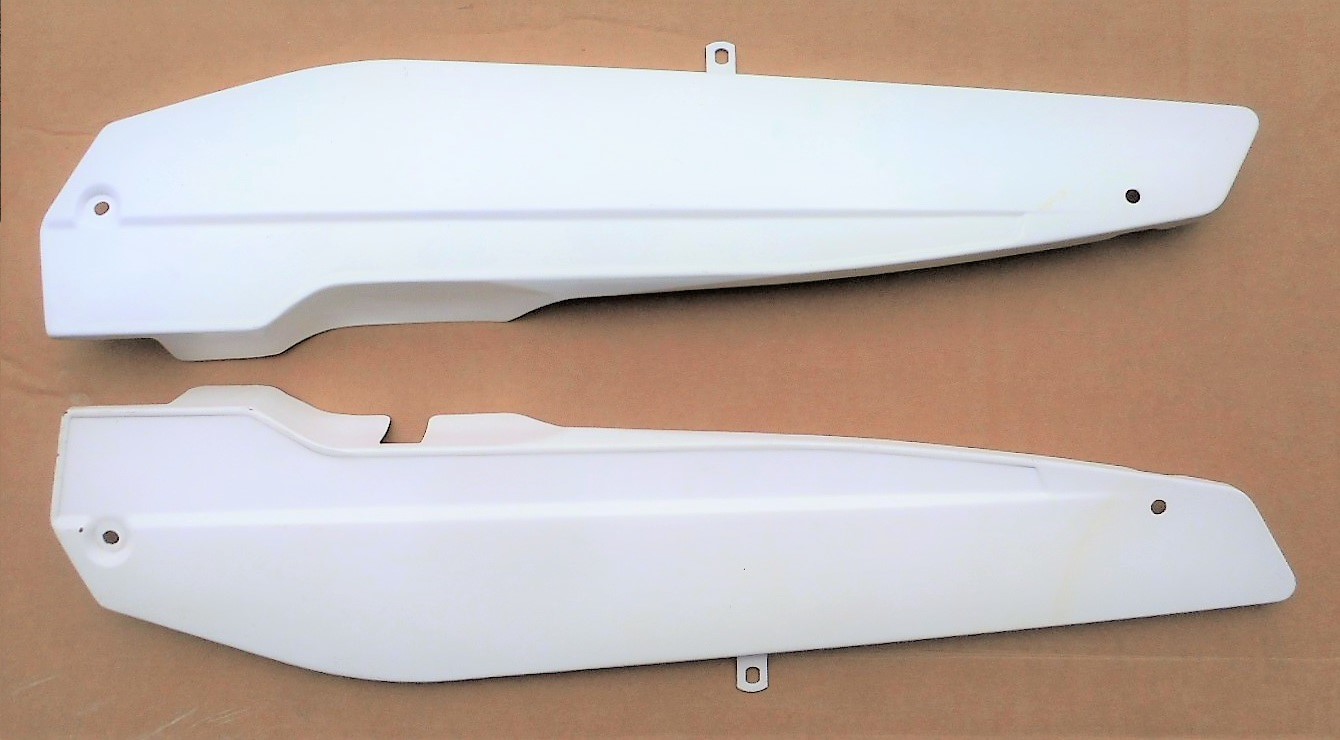

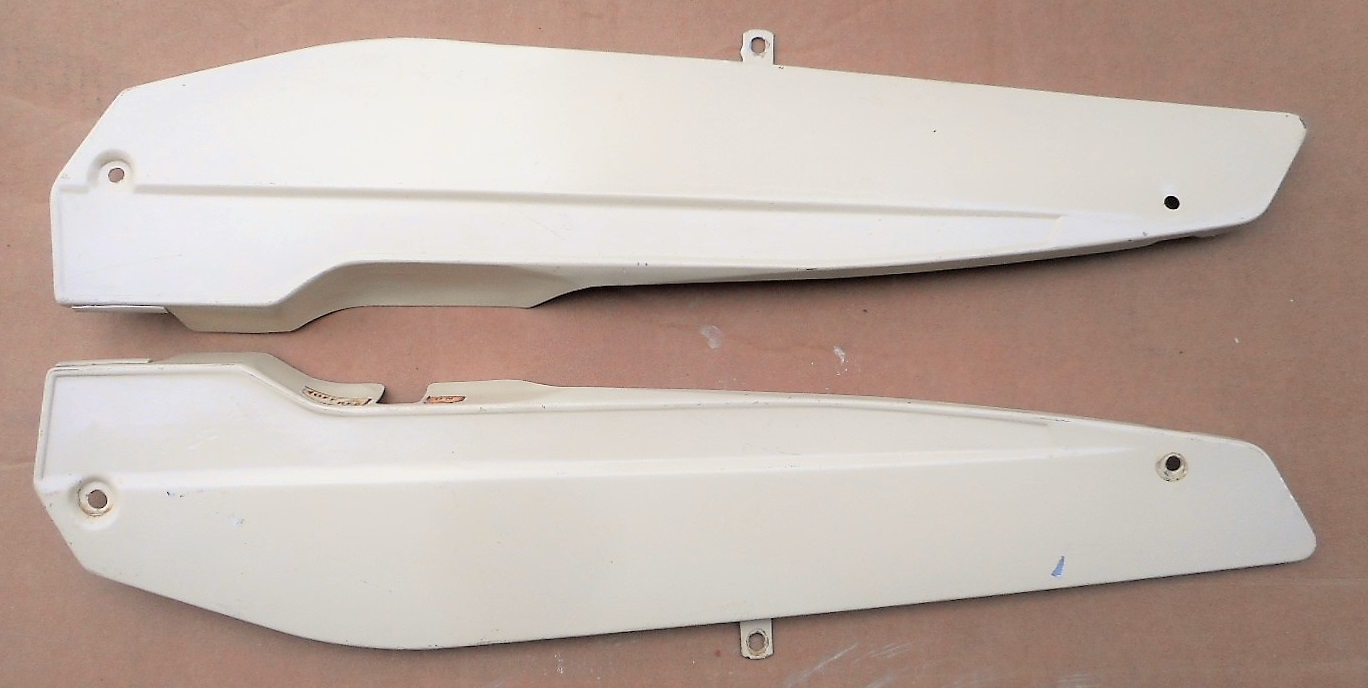

1. Model 40 side covers new, 2. used off white
# 45V part# price 29. Model 50 frame parts
1 010 20757 none 74-77 tank sticker R white 50S
1 111 23111 none 77-81 tank sticker R sil/blk
2 010 20758 none 74-77 tank sticker L white 50S
2 111 23112 $12.0 77-81 tank sticker L sil/blk
3 011 23109 30-20 74-77 tank plate R smooth 50L/VL
3 111 21128 30-20 77-81 tank plate R slotted
4 011 21127 30-20 74-77 tank plate L smooth 50L/VL
4 111 23110 35-25 77-81 tank plate L slotted
4b 222 13237 $23.0 74-77 emblem R or L 50L,VL
4c 444 21093 $2.00 74-77 emblem screw M3 x 11
5 011 21787 $10.0 74-81 tool box body
6 111 22187 none 74-76 M sticker
6 111 22376 $2.00 77-81 M sticker = 23376?
0 111 53428 none 74-76 gas valve sticker black?
0 111 54313 none 77-79 gas valve sticker white?
7 011 21793 none 74-77 frame cover orange
7 011 21794 none 74-77 frame cover yellow
7 011 54326 none 78-81 frame cover black
7 011 54289 none 78-81 frame cover met blue
7 011 54290 none 78-81 frame cover met red
7 011 54456 none 78-81 frame cover dark blue
7 011 54697 none 78-81 frame cover copper
8 011 21854 $45.0 74-77 swing arm orange
8 011 21981 none 74-77 swing arm yellow
8 011 54334 none 78-81 swing arm black
8 011 54286 none 78-81 swing arm met blue
8 011 54287 none 78-81 swing arm met red
8 011 54312 none 78-81 swing arm dark blue
8 011 54696 none 78-81 swing arm copper
9 011 21176 none 74-81 center stand long
10 001 19851 $13.0 74-81 variator belt guard
11 110 18376 $15.0 74-81 Dimoby belt guard
12 011 22243 none 74-76 side sticker R
12 010 23170 none 77-79 side sticker R “50”
13 010 23171 none 77-79 side sticker L “50”
14 001 23172 none 77-79 side sticker R “50V”
14 001 54866 $15.0 79-81 side sticker R “Moby”
12 011 22244 none 74-76 side sticker L
15 001 23173 none 77-79 side sticker L “50V”
15 001 54867 $15.0 79-81 side sticker L “Moby”
16 010 22249 35-45 74-77 side cover R white
17 010 22251 none 74-77 side cover L white
18 011 54318 none 78-79 side cover R wht/gold
19 011 54319 none 78-79 side cover L wht/gold
20 011 54304 none 78-81 side cover R met red
21 011 54305 none 78-81 side cover L met red
22 011 54302 35-40 78-81 side cover R met blue
23 011 54303 none 78-81 side cover L met blue
24 011 54698 none 79-80 side cover R copper
25 011 54699 none 79-80 side cover L copper
25 011 00000 $80.0 side set MLM polished stainless
26 011 54315 none frame black
26 011 54869 none frame met red
26 011 54868 none frame met blue
26 011 53491 none frame yellow
26 011 53757 none frame orange
26 011 54691 none frame copper
26 011 54244 none frame dark blue
# 45V part# price Model 50 frame continued
1 011 22911 none helmet lock (parcel holder)
2 011 22871 none helmet lock spring
3 011 21788 35-25 tool box cover right
4 111 20106 none tire pump
5 111 19163 $7.00 seat post clamp
5b 111 19163 $7.00 seat post clamp
6 111 14147 $0.80 clamp nut M8-1.0 x 6.5
7 111 01422 $1.00 clamp washer ∅8
8 111 14991 $2.00 clamp bolt+nut M8-1.0 x 45
8b 111 14991 none clamp bolt+nut M8-1.0 x 45
9 044 21126 none tank plate screw
10 022 17780 none 74-78 chain adj+nut M5-0.9 x 35
10 022 23468 none 78-81 chain adj+nut M7-1.0 x 35
11 011 21789 35-25 tool box cover left
12 011 20031 $4-$2 cover knob ivory
12 011 23981 $6.00 cover knob black
13 011 15871 none swingarm bushing R 10-?? x 47
14 011 15870 none silentbloc bushing L 10-?? x ??
15 011 19834 $10.0 stand spring Model 50 ∅16 x 115-120
16 222 20586 $9-$6 shoulder bolt M8-1.0 x 19, ∅11 x 7
17 003 17425 $6.00 G belt screw M5-0.9 x 10 new
17 003 17425u $3.00 D belt screw M5-0.9 x 10 w/washer
18 222 20349 $2.00 stand nut M8-1.0 flange-lock
19 669 17426 $3.00 I plastic washer ivory
19 009 17426s $3.00 J plastic washer black
20 011 15872 $10-7 swingarm bolt M10-1.0 x 135
21 011 16555 $3.50 swingarm nut M10-1.0 nylock
22 666 17424 $7.00 C side screw M5-0.9 x 12 new
22 666 17424u $5.00 A side screw M5-0.9 x 12 w/washer
22 666 17424s $2.00 substitute M5-0.9 x 16 philips
23 011 10533 none grommet
24 111 20389 $2.00 rear wires grommet 5-11 x 5
25 111 21779 $35.0 floor mat set
25 111 21779r 20-10 floor mat right
25 111 21779l $15.0 floor mat left
26 111 21783 $8.00 cables holder bracket
27 222 16949 $2.00 ID plate rivet
28 111 53415 none certification (ID) plate
29 111 17202 none tank moulding chrome
30 111 20460 none 74-79 gas cap gasket
31 111 53429 $21.0 74-76 gas cap new w/vent switch
31 111 53429u $15.0 53429 used with no dip stick
31 111 54444 $32.0 77-79 gas cap chrome M logo
31 111 54444u none 54444 used with no dip stick
31 111 52225 $28.0 77-79 gas cap plastic off-white
31 111 52225u $19.0 52225 used with no dip stick

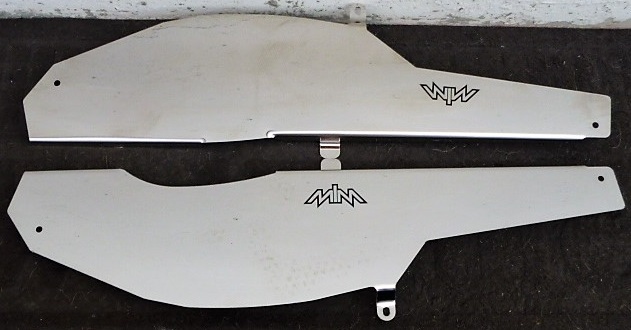

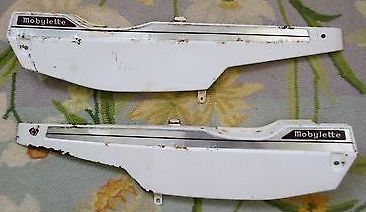

1. Model 50 ’74-76 side covers used, 2. MLM replacements

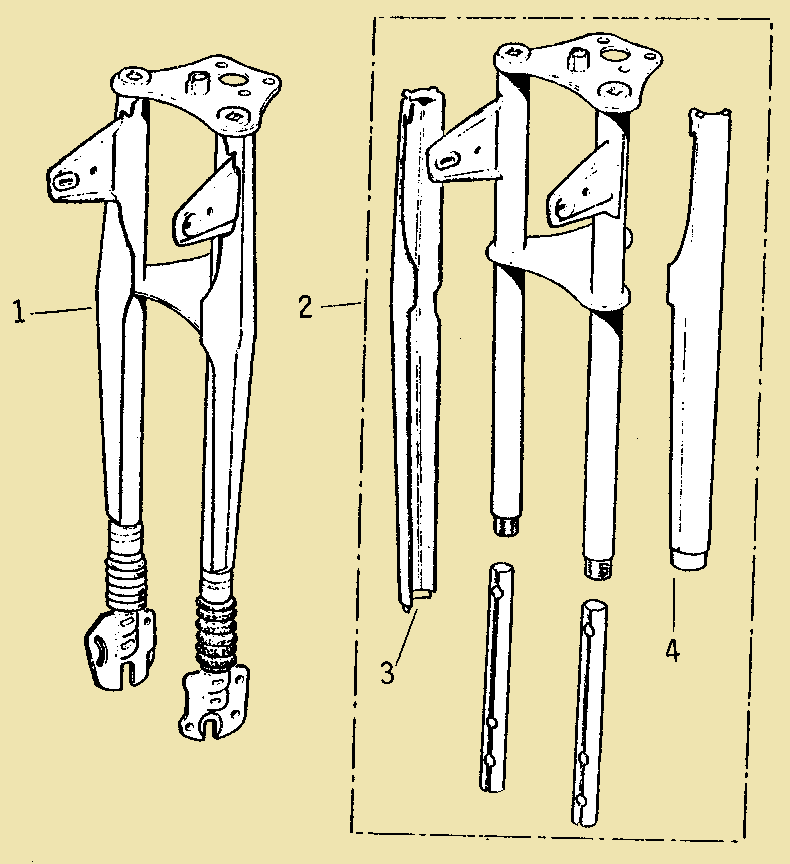

# 45V part# price 30. Fork parts painted
1 111 53406 $100 fork complete yellow 40, 50
2 111 53407 none fork stripped yellow 40, 50
3 111 54097 none fork cover R yellow 40, 50
4 111 54098 none fork cover L yellow 40, 50
1 111 53762 $100 fork complete orange 40, 50
2 111 53763 none fork stripped orange 40, 50
3 111 54099 none fork cover R orange 40
3 111 53682 none fork cover R orange 50
4 111 54100 none fork cover L orange 40, 50
1 011 54254 none fork complete dark blue
2 011 54255 $80.0 fork stripped dark blue
3 011 54256 none fork cover R dark blue
4 011 54257 none fork cover L dark blue
1 011 54296 $100 fork complete met red
2 011 54297 none fork stripped met red
3 011 54298 none fork cover R met red
4 011 54299 none fork cover L met red
1 011 54292 none fork complete met blue
2 011 54293 none fork stripped met blue
3 011 54294 none fork cover R met blue
4 011 54295 none fork cover L met blue
1 011 54692 none fork complete copper
2 011 54693 none fork stripped copper
3 011 54694 none fork cover R copper
4 011 54695 none fork cover L copper
1 011 54823 $100 fork complete black
2 011 54824 none fork stripped black
3 011 54825 none fork cover R black
4 011 54826 none fork cover L black

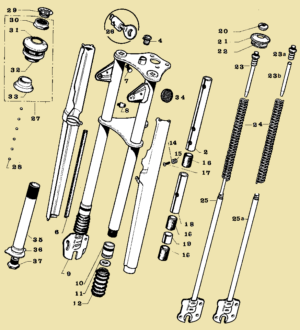

# 45V part# price 31. Front fork
1 100 16940 none fork leg right ∅15.5
1 011 22476 none fork leg right ∅15.5
2 222 19857 $8.00 fork leg nut
3 222 19858 $6.50 fork seal ∅15-23 x 3
4 222 19856 none fork boot
5 222 21105 $3.00 spring anchor nut
6 222 21103 $5.00 chrome cover
7 222 21104 $2.50 rubber washer
8 200 14601 none spring anchor long
8 022 22478 none spring anchor short
9 022 22479 $15.0 rubber bumper L=125
10 222 16895 none fork spring
11 222 23581 none upper spacer L=?
12 666 14591 $4.00 nylon bushing ∅15.8-20.5 x 30
13 100 16941 none fork leg left ∅15.5
13 011 22477 none fork leg left ∅15.5
14 222 16789 $15.0 middle spacer L=113
15 222 16790 $8.00 lower spacer L=20
16 111 19798 $44.0 lock with keys & hardware
16 111 22311 none fork lock hardware
17 111 15528 18-12 #2 top nut cap
18 111 15526 $6.00 #3 top nut M25-1.0 oct32
18 111 15526a $6.00 #4 top washer 25-35 x 1
19 111 15515 $12-8 #5 upper cone M25-1.0
19 111 23016 $7.00 #6 upper cup ∅30.2
20 111 14208 $7.00 #9 lower cup ∅30.2
21 222 00005 $2.00 #7 set of 26 balls 5/32″
22 111 23312 $24.0 head set 18+19+20
23 111 19859 none #10 steering tube w/cone note 1
24 111 14606 $4.00 #11 bottom lock plate
25 111 14605 $15.0 #12 bottom bolt M20-1.0
Note 1: The 19859 steering tube is M25-1.0 thread and 190 mm long. It is part# PIV0520353 and the same as on ’64-71 AV85 and AV88 models.
32. Right control see Motobecane controls
33. Left Control see Motobecane controls
# <77 78>

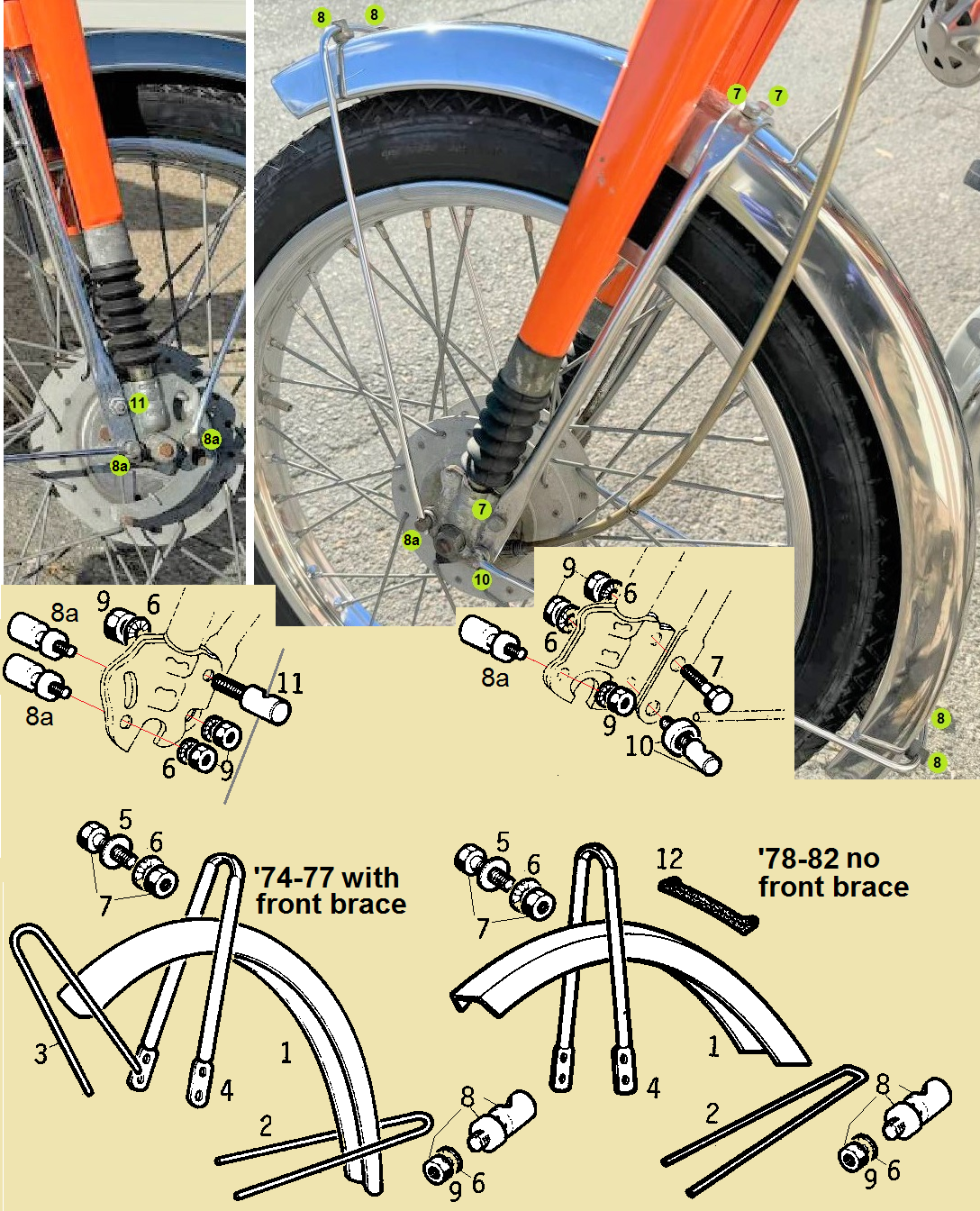

# 45V 45V part# price 34. Model 50 front fender
1 010 000 53499 none front fender wide yellow 50S
1 010 000 21863 none front fender wide orange 50S
1 011 011 21123 $20.0 front fender wide stainless 50L, VL
2 011 011 21111 $9.00 rear brace ∅6 chrome 312 x 84
3 011 011 21112 $9.00 front brace ∅6 chrome 307 x 84
4 011 011 21124 20-12 main brace chr 315 x 84 50L, VL
4 010 000 53123 none main brace yel 315 x 84 50S
4 010 000 21865 none main brace org 315 x 84 50S
4 000 010 54828 $25.0 main brace blk 315 x 84 Traveler
5 022 000 00020 $0.30 washer flat ∅6-12
6 066 022 00797 $0.70 washer lock ∅6-11 outer teeth
6 066 022 01172 $0.50 washer lock ∅6-14 inner teeth
7 022 022 00679 $1.00 top bolt+nut M6 x 15 hex
8 266 222 21167l $8-4 brace bolt M6 x 14 (23 total) note 1 or
8 266 222 21167 $7-5 brace bolt M6 x 11 (20 total) note 2
9 488 488 00010 $0.30 nut M6 x 4.5 hex10 (5.0)
9 488 488 00679a $2-1 nut thin M6-1.0 x 4.0 hex10
10 222 222 20100 $7-4 brace bolt M6 x 17 (26 total) note 3
11 111 111 20059 $6-3 cable stop bolt M6 x 17 (27 total) note 4
12 000 011 23660 none fender protector
Note 1. 21167l (6 x 14) brace bolt had cup and nut 00010. Washer 00797 was sold separately. This what came on all models. Under the fender the threaded part sticks out 3mm past the nut.
Note 2. 21167 (6 x 11) brace bolt had cup and nut 00010. Washer 00797 was sold separately. Under the fender the threaded part ends at the nut.
Note 3. 20100 (6 x 17) main brace bolt had cup and nut 00679a. Washer 01172 was sold separately. Originals had nut 00010. It is 3mm longer for the main brace. It also holds the rear brace.
Note 4. 20059 (6 x 17) cable stop bolt had cup, washer 00020, and nut 00679a. Originals had washer 01172, nut 00010. It is 3mm longer for the main brace. It also holds the front brake cable.

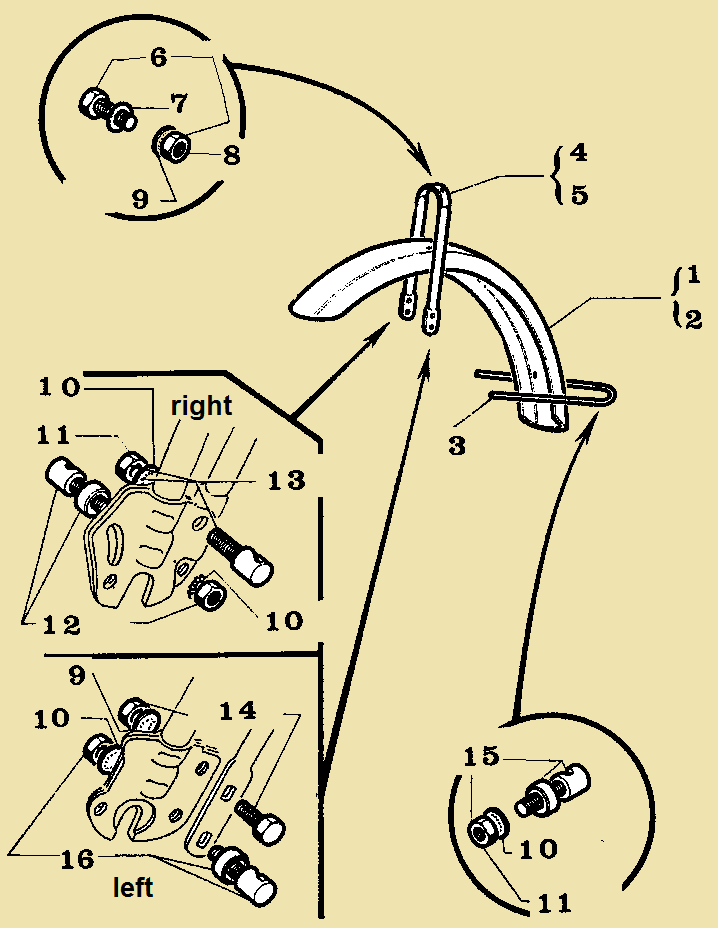

# 45V part# price 34b. Model 40 front fender
1 100 53497 none front fender thin yellow 40S
1 100 53758 none front fender thin orange 40S
2 100 20782 none front fender thin chrome 40L
3 100 20761 $18.0 rear brace chrome 300 x 73
4 100 53498 $20.0 main brace yellow 308 x 70 40S
4 100 53759 $20.0 main brace orange 308 x 70 40S
5 100 20783 none main brace chrome 308 x 70 40L
6 200 14267 $0.00 bolt M5-0.9 x 10 hex8
7 200 00052 $0.20 washer plain ∅5
8 200 00079 $1.00 nut M5-0.9 x 4.0 hex8
9 200 01171 $0.50 washer lock ∅5 inner teeth
10 488 01172 $0.50 washer lock ∅6-14 inner teeth
11 444 00010 $0.30 nut M6-1.0 x 4.5 hex10 (5.0)
11 000 00679a $2-1 nut thin M6-1.0 x 4.0 hex10
12 222 20100 $7-4 brace bolt M6 x 17 (21 total) note 3
13 111 20059 $6-3 cable stop bolt M6 x 17 (27 total) note 4
14 222 00679 $1.00 top bolt+nut M6 x 15 hex10
15 222 21167l $8-4 brace bolt M6 x 14 (23 total) note 1 or
15 222 21167 $7-5 brace bolt M6 x 11 (20 total) note 2
Note 1 to 4. See above group 34.

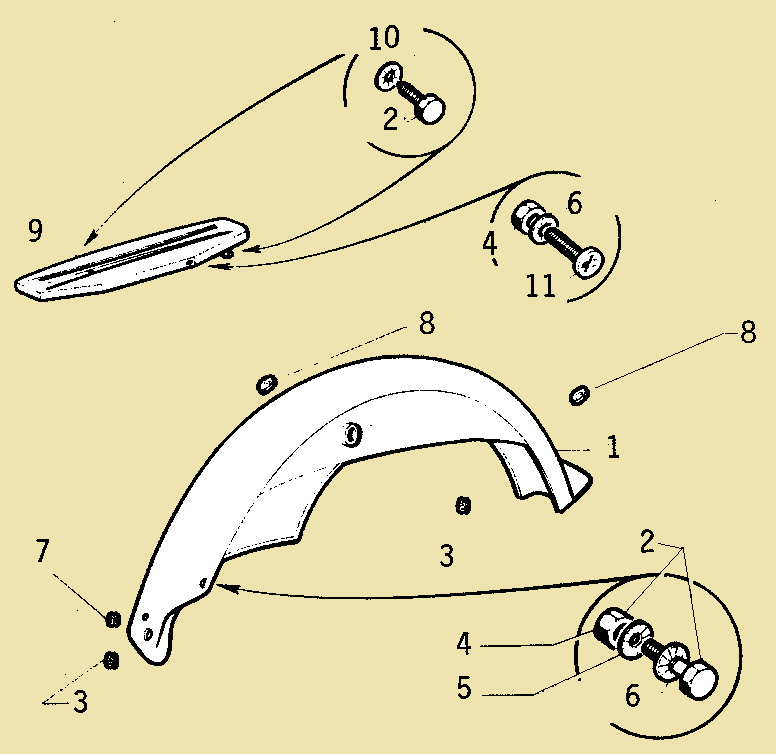

# 45V part# price 35. Model 50 rear fender
1 011 53476 none rear fender yellow
1 011 53761 none rear fender orange
1 011 54311 none rear fender black
1 011 54301 none rear fender met red
1 011 54300 none rear fender met blue
1 011 54700 none rear fender copper
2 022 00679 $0.80 bolt+nut M6-1.0 x 15 hex10 (16)
3 022 17160 none grommet
4 022 00679 $0.80 nut M6-1.0
5 022 00797 $0.50 washer lock ∅6-11 outer teeth
6 044 01172 $0.50 washer lock ∅6-14 inner teeth
7 011 16948 none grommet
8 022 20094 none grommet
9 011 21974 none carrier stainless
10 022 01545 $0.20 washer plain ∅6
11 022 20105 $6-4 screw M6-1.0 x 15 phil-wide

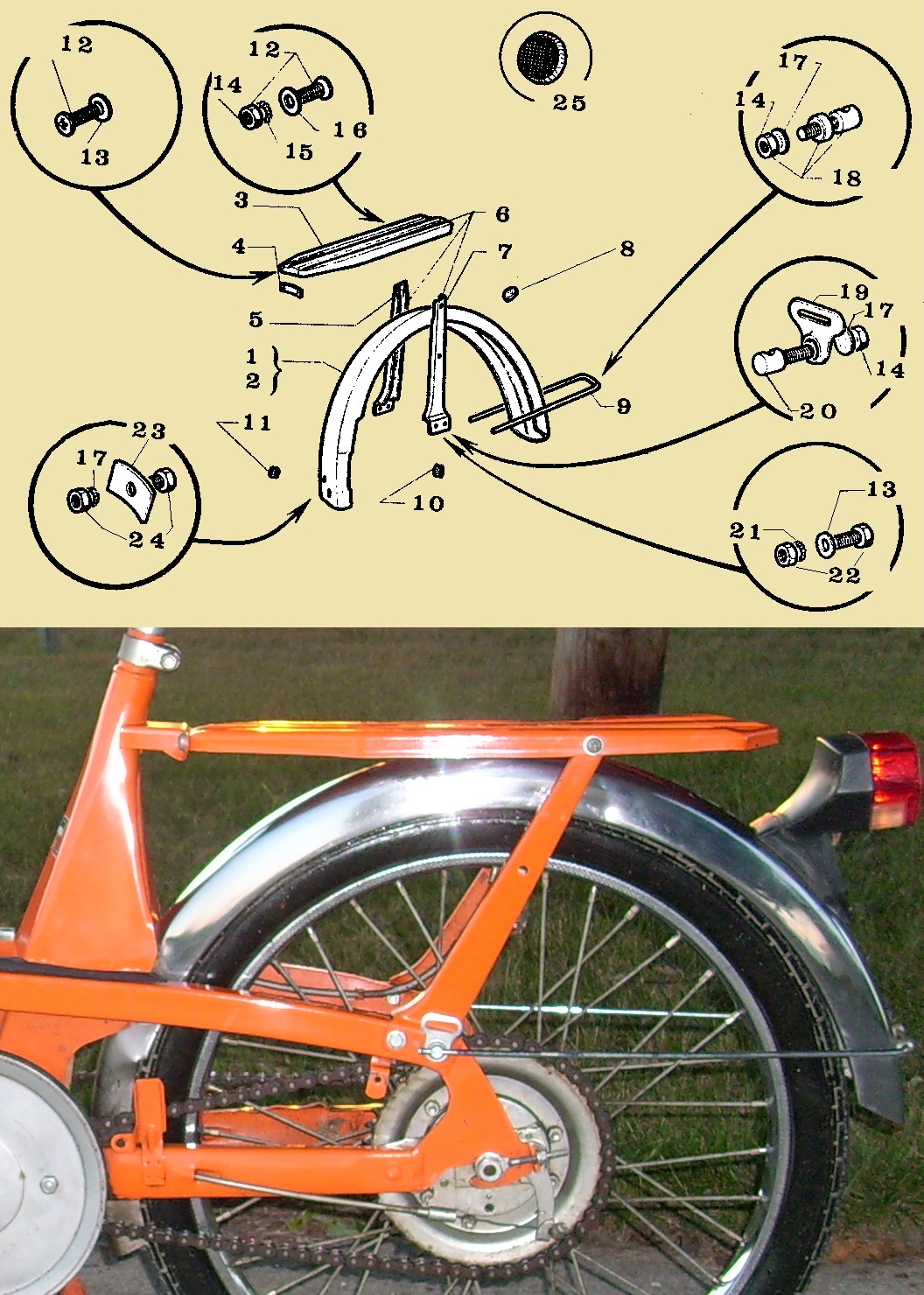

# 45V part# price 35b. Model 40 rear fender
1 100 53490 none rear fender yellow 40S
1 100 53760 none rear fender orange 40S
2 100 53411 none rear fender chrome 40L
3 100 21971 $35.0 luggage carrier bare yellow
3 100 21762 $48.0 luggage carrier bare orange
4 100 22198 $8.00 reinforcing plate
5 100 21972 $9.00 right bracket yellow
5 100 21987 none right bracket orange
6 100 21970 none luggage carrier assy yellow
6 100 21761 none luggage carrier assy orange
7 100 21973 $9.00 left bracket yellow
7 100 21826 none left bracket orange
8 200 20094 none fender rubber ∅6-14? x 5? note 1
8a 100 00968 $1.00 fender bolt M6-1.0 x 20 hex10
8b 100 01545 $0.70 fender washer ∅6-14 x 1
9 100 53500 $19.0 rear brace zinc 353 x 73
10 100 17160 none grommet
11 100 16948 none grommet
12 200 20105 $5-3 screw M6-1.0 x 11 phil-wide
13 200 00052 $0.20 washer plain ∅5-10
14 600 00010 $0.30 nut M6-1.0 x 5.0 hex10
15 200 00797 $0.50 washer lock ∅6-11 outer teeth
16 200 01545 $0.20 washer plain ∅6
17 500 01172 $0.50 washer lock ∅6-14 inner teeth
18 200 21167l $8-4 brace bolt M6 x 14 (23 total) or
18 200 21167 $7-5 brace bolt M6 x 11 (20 total)
19 100 20019 $3.00 bracket with fender brace cup
20 200 20100 $7-4 brace bolt M6 x 17 (26 total)
21 200 01171 $0.50 washer lock ∅5 inner teeth
22 200 14267 none bolt M5-0.9 x 10 hex8
23 100 20107 $3.00 support plate
24 100 00046 $1.00 bolt+nut M6-1.0 x 12 hex10
25 200 53440 none side reflector ∅57 x 8 Lucas RER14
25 200 53440 28-18 side reflector ∅56×10 Seima 2022T
26 100 20021 none bracket and cable end?
Note 1. The model 40 rear fender is mounted to the bottom of the carrier (luggage rack). There are two #8 mount rubbers, one above and one below the fender. The #8a and #8b fender bolt and washer are not shown.

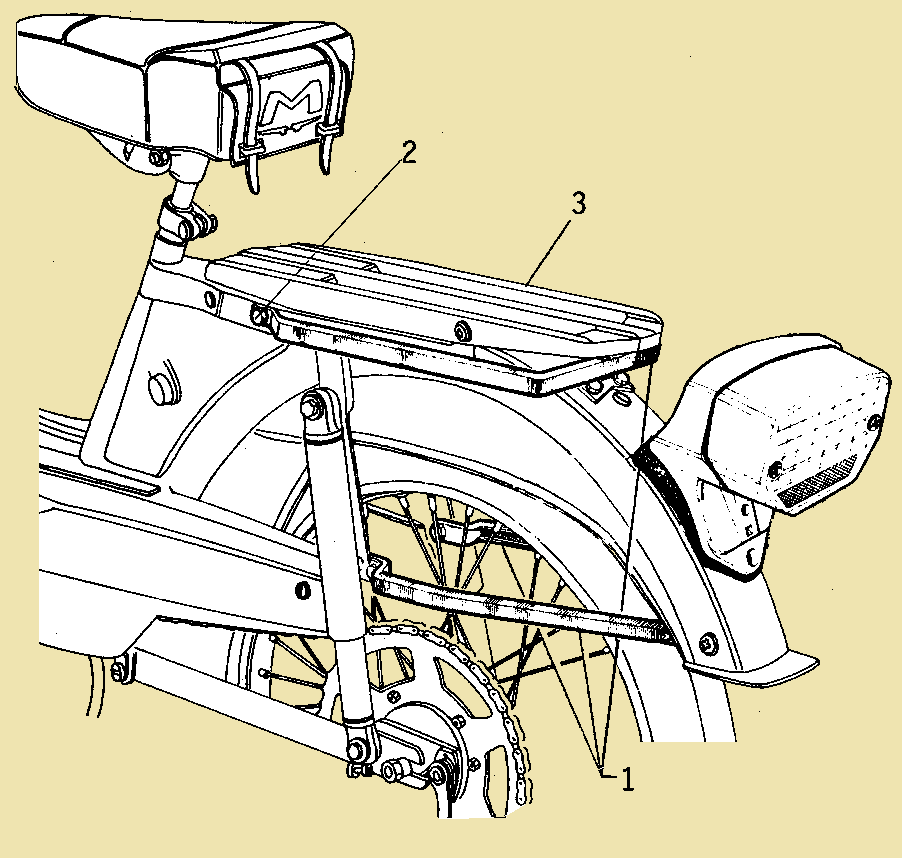

# 45V part# price 36. Model 50 side bag brackets
1 011 22167 $75.0 side bag brackets kit 1.1 to 2
1.1 011 22167t 25-15 top bracket
1.2 011 22167l $20.0 left bracket
1.3 011 22167r $20.0 right bracket
1.4 044 20105 $5-3 lower screw M6-1.0 x 11 phil-wide
1.5 066 01545 $0.70 washer flat ∅6-14 x 1
2 022 00046 $0.50 lower front bolt M6-1.0 x 12 hex10
3 011 21974 $45.0 carrier stainless
Note 1: 22167 came with two #2 M6 x 12 hex bolts, four #1.4 M6 x 11 wide-phil screws, six #1.5 6-14 x 1 washers.

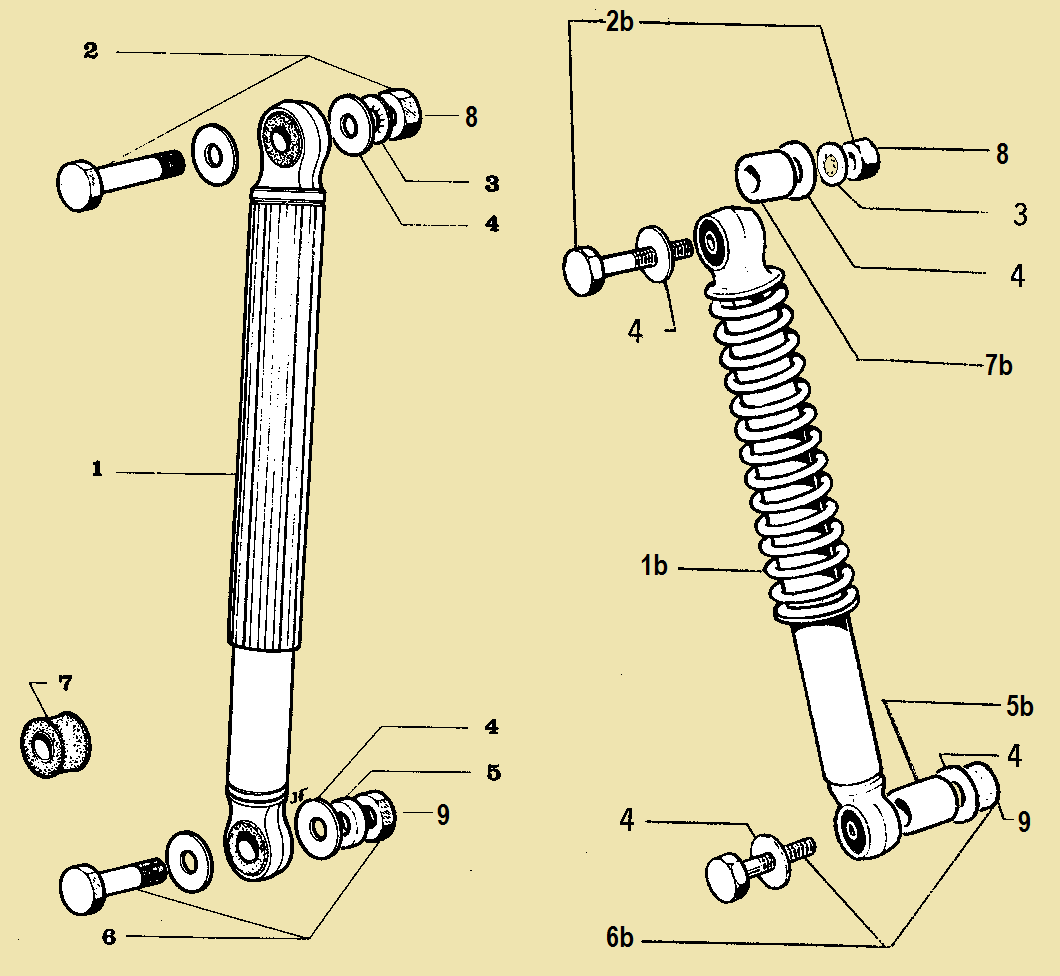

# 45V part# price 37. Model 50 rear shocks
1 022 16720 60-15 covered spring shock 8 x 280
2 022 20369 $2.00 upper bolt+nut M8-1.0 x 45
3 022 01422 $1.00 lock washer ∅8-16? inner teeth
4 088 16947 $0.50 wide washer ∅8-22 x 1.5
5 022 17024 $3.00 lower spacer ∅8-16 x 5
6 022 15874 $3.00 lower bolt+nut M8-1.0 x 37
7 044 15990 none rubber bushing
8 044 14147 $0.70 upper nut thick M8-1.0 x 8
9 044 00198 $2.50 lower nut thin M8-1.0 x 4.5
# 45V part# price for 50 VLX and Le Moped
1b 002 54842 60-35 exposed spring shock 8 x 280
2b 002 17023 none up+lo bolt+nut M8-1.0 x 39
3 022 01422 $1.00 lock washer ∅8-16? inner teeth
4 088 16947 $0.50 wide washer ∅8-22 x 1.5
5b 002 22674 $2.00 lower spacer ∅8-16 x 7.5
6b 002 17023 $3.00 up+lo bolt+nut M8-1.0 x 39
7b 002 20690 $2.50 upper spacer ∅8-16 x 3.5
8 044 14147 $0.70 upper nut M8-1.0
9 044 00198 $2.50 lower nut M8-1.0 thin
Note 1: The lower left shock bolt and nut are near the moving chain. They cannot stick out any more than original. Washers can be added or subtracted to adjust the space between the bolt end and the chain.
Note 2: The exposed spring shock is 6 mm wider, 40 mm instead of 34. That’s 3mm more on each side.

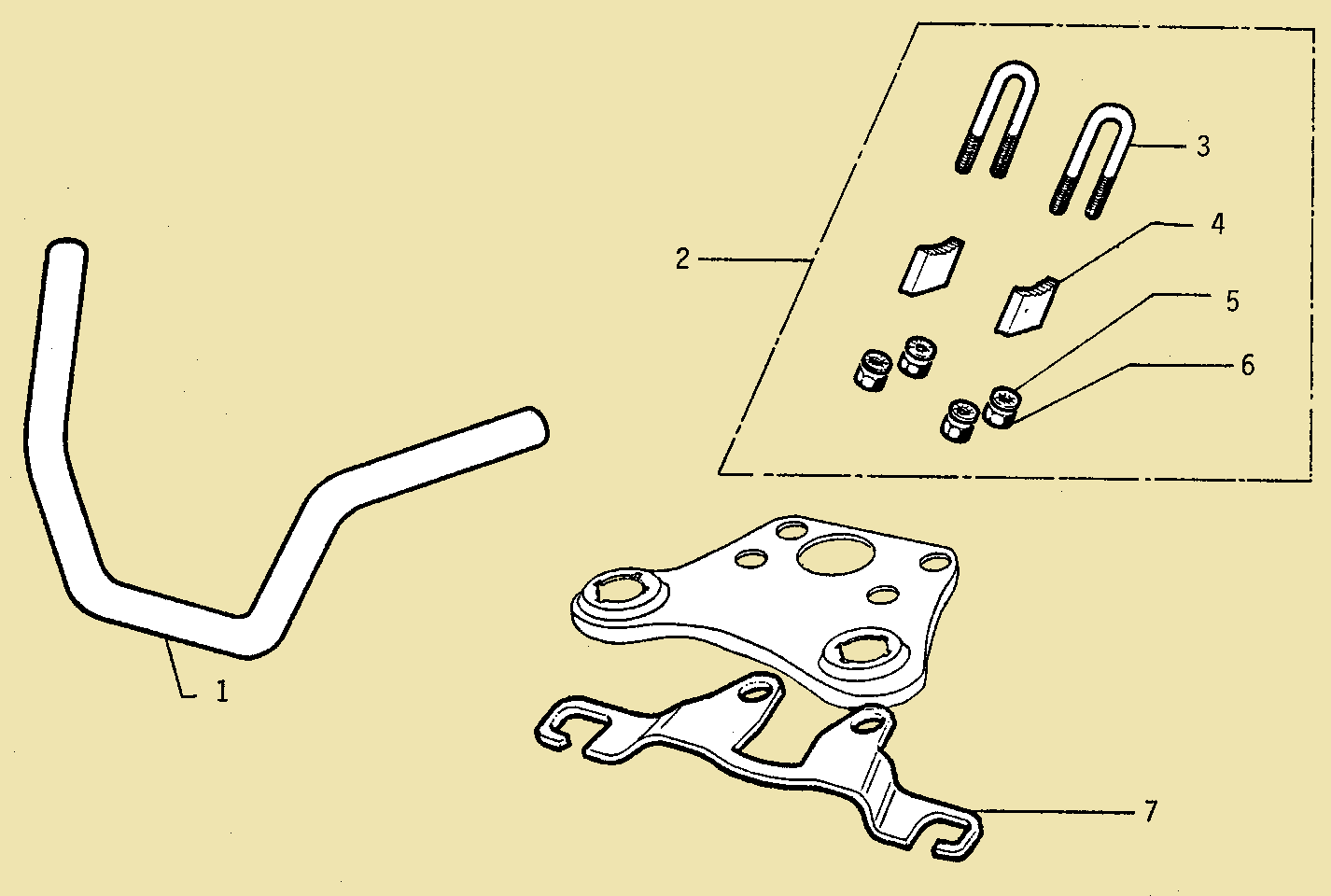

# 45V part# price 38. Handlebar
1 111 21143 none handlebar
2 100 20971 none 74-76 clamp set short
2 111 22403 none 77-81 clamp set long
3 200 20822 none 74-76 clamp u-bolt short
3 222 22404 none 77-81 clamp u-bolt long
4 200 20006 none 74-76 clamp bottom short
4 222 15523 none 77-81 clamp bottom long
5 444 01113 none clamp washer ∅7 inner teeth
6 444 00011 $0.50 clamp nut M7-1.0 hex10
7 111 21269 $7.00 cable guide

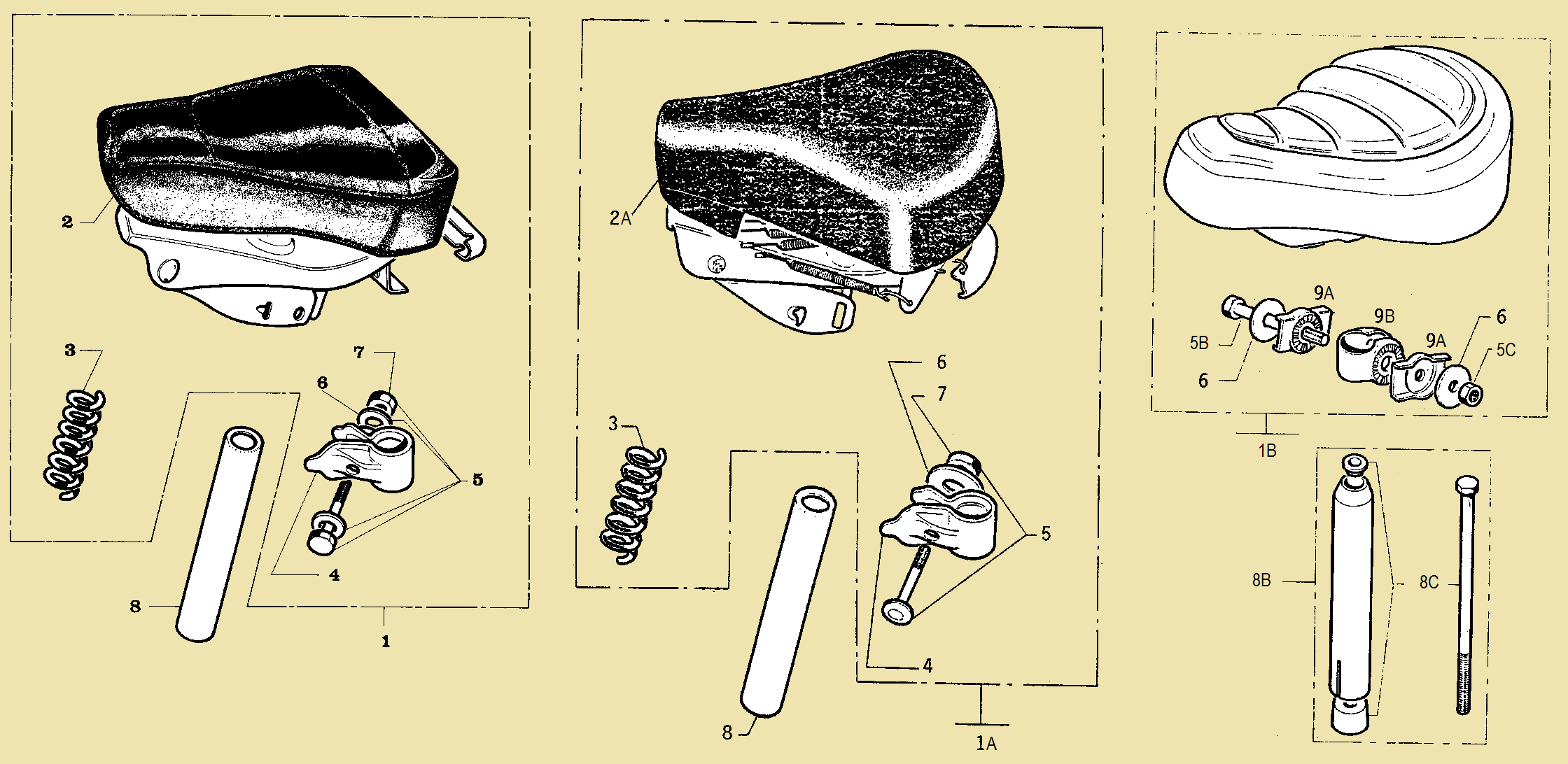

# 45V part# price 39. Seat
1 111 20705 none ’74-76 solo seat with tool pouch
1A 101 22338 none ’76-79 solo seat for 40, 50V
1B 010 24179 none ’76-81 solo seat for 50, Traveler
2 111 20708 none ’74-76 solo seat cover
2A 111 22354 none ’76-79 solo seat cover
3 111 18988 $15.0 seat spring
4 111 18987 $15.0 seat clamp with 5,6,7
5 111 00000 none carriage bolt M8-1.25 x 50
5 111 00000 $1.00 substitute hex bolt M8 x 50
5B 010 15875 $1.70 clamp bolt+nut M8-1.0 x 57
5C 010 13258 $0.60 clamp nut M8-1.25 x 6.5
6 111 16947 none clamp washer 8-26 x 2
7 111 13258 $0.80 clamp nut M8-1.25 x 6.5
8 111 14417 $16.0 plain seat post ∅25.5
8B 010 24180 none expander seat post
8C 010 24181 none expander bolt
9A 020 18987a none seat clamp plate
9B 010 18987b none seat clamp
10 111 18417 none tool kit
11 111 19171 none ’77-81 tool pouch
40. Speedometer see Huret speedos
41. Headlight see Luxor headlights

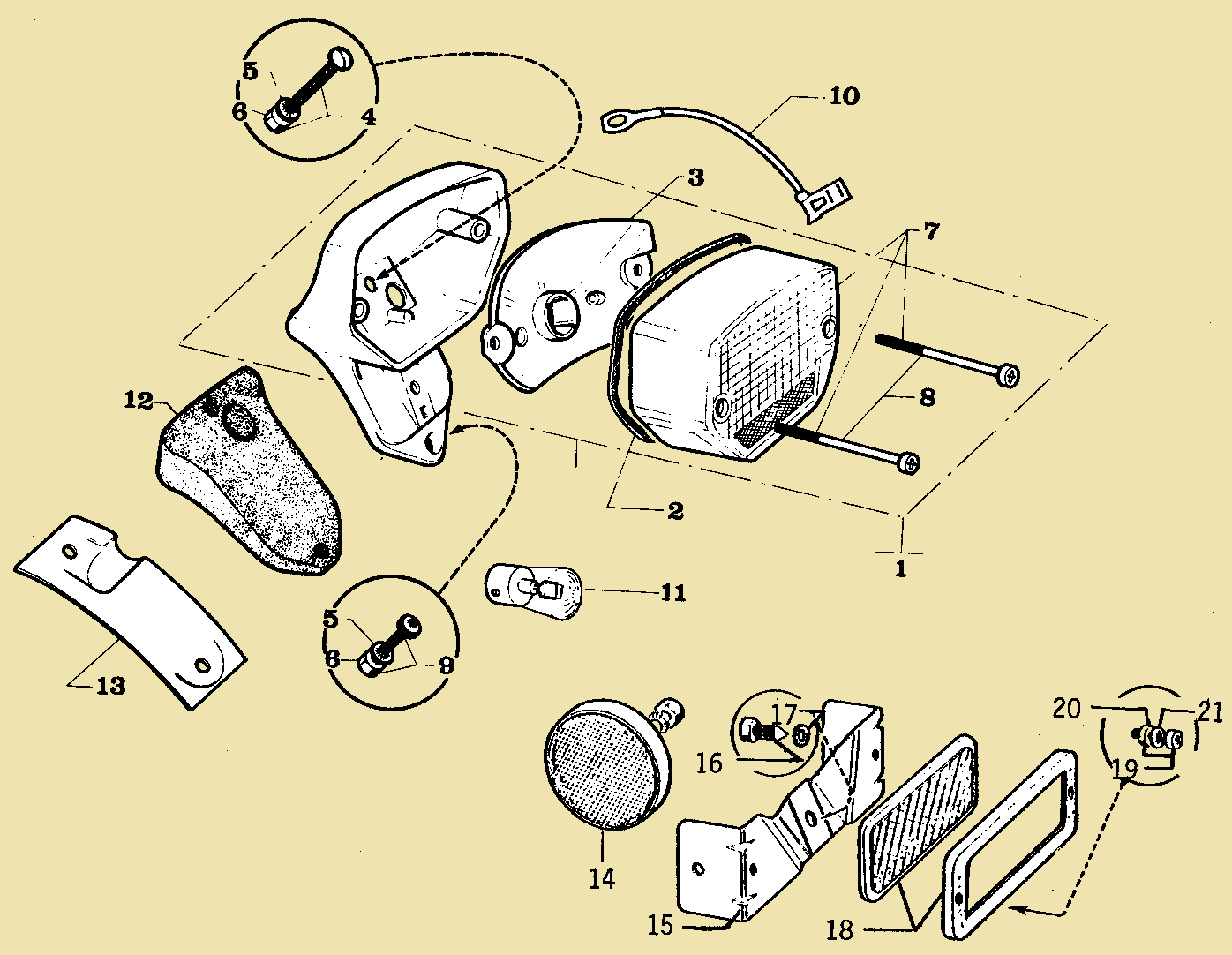

# 45V part# price 42. ’74-77 Tail light
1 111 53511 none tail lamp complete ULO 250
2 111 21478 $7.00 lens gasket
3 222 52418 $20.0 bulb socket-mirror
4 111 53435 none upper screw M6 x 30? phil-wide
5 222 01172 $0.50 washer lock ∅6-14 inner teeth
6 222 00010 $0.30 nut M6-1.0 x 4.5 hex10 (5.0)
7 111 53307 none red lens ULO 250-0015
8 222 21481 $1.50 lens screw ST x 55
9 111 22588 $6-4 lower screw M6-1.0 x 15 phil-wide
10 111 21370 $4.00 ground wire
11 111 53469 $2.00 bulb 6V 21/5 watt
12 111 53434 $9.00 rubber pad thick on top
13 111 53436 $5-3 backing plate
14 022 53440 none side reflector ∅57 x 8 Lucas RER14
14 022 53440 28-18 side reflector ∅56×10 Seima 2022T
15 011 53489 $3.00 reflector mount
16 011 16714 $1.20 mount bolt M6-1.0 x 9 hex10
17 011 00797 $0.50 washer lock ∅6-11 outer teeth
18 011 53438 26-17 rear reflector+frame Lucas RER22
19 022 20550 $1.00 reflector screw+nut M4-0.7 x 10? phil
20 022 01430 $0.60 nut M4-0.7 x 3.0 hex7
21 022 01088 $0.30 washer flat ∅4
Tail Light Parts: See more photos and listings of Motobecane tail light parts in the ULO Tail Lights department.
Reflectors. Model 50 had the red round side reflectors under the tail light. Model 40 had them on the luggage rack supports. See more photos and listings of Motobecane reflectors in the Reflectors department.

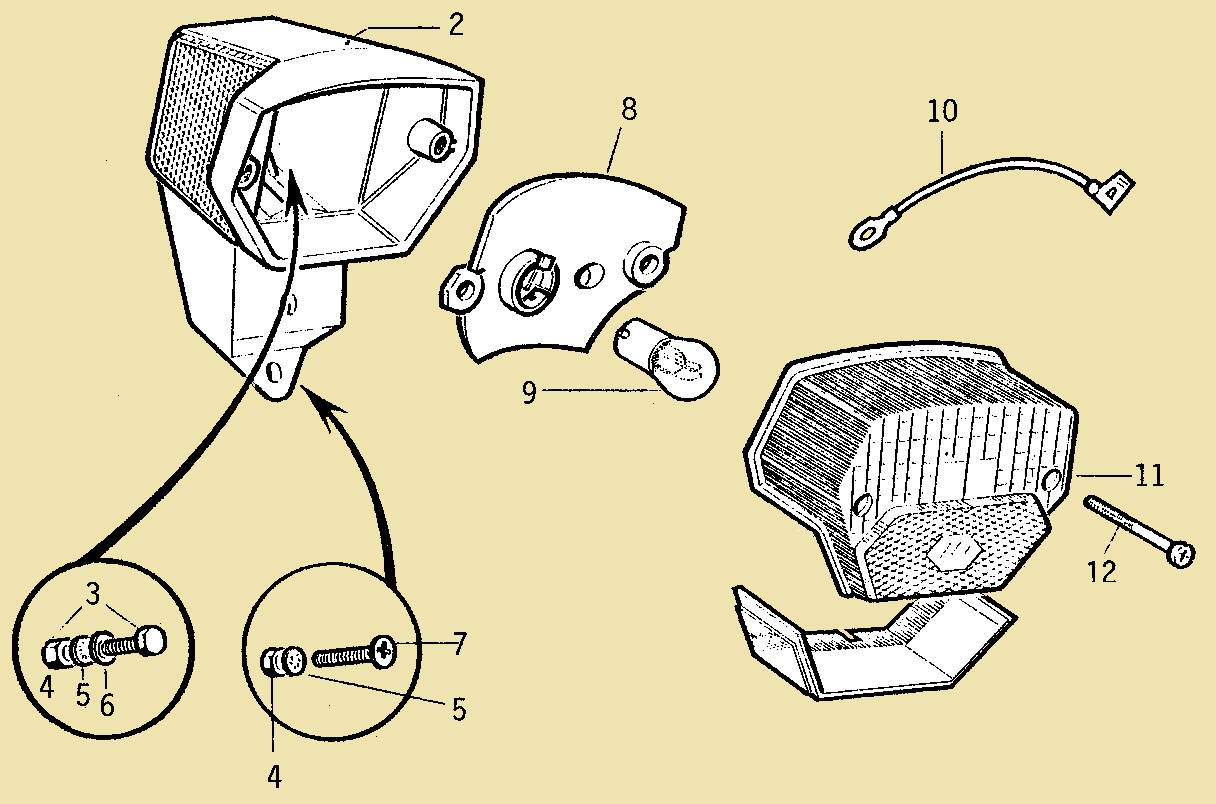

# 45V part# price 43. ’78-81 Model 50 Tail light
1 011 54207 none tail lamp complete ULO 248
2 011 54208 none tail lamp housing ULO 248-6017
3 011 00050 $0.80 bolt only M6-1.0 x 32 or 25?
4 022 00010 $0.30 nut M6-1.0 x 4.5 hex10 (5.0)
5 022 00797 $0.50 washer lock ∅6-11 outer teeth
6 011 00004 $1.00 washer flat ∅6 thin
7 011 20105 $5-3 screw M6-1.0 x 11 phil-wide
8 011 54210 $20.0 bulb socket-mirror
9 011 54134 $1.20 bulb 12V 21/5 watt
10 011 21370 $4.00 ground wire
11 011 54209 none red lens ULO 248-0015
12 022 21611 $0.70 lens screw M4-0.7 x 45 phil-wide
This light has built-in side reflectors. Eliminating the round rear side reflectors gives the bike a cleaner look.
# 45V part# price 44. ’74-77 Electrical 6 volt
1 111 22398 $17.0 6V regulator bare (dual zener diode)
1a 001 53443 $27.0 6V regulator w/black heat sink
1a 111 54704 $20.0 6V regulator w/silver heat sink
1b 111 53556 $5.00 regulator mount bracket
2 111 20330 44-28 74-77 horn small for tank note 1
2a 111 53557 $5.00 74-77 horn mount for under tank
2b 222 20672 $1.00 horn connector female mini-blade
3 111 20674 $0.80 horn bolt M5-0.8 x 8 hex8 horn
4 111 00874 $0.30 horn washer M5
5 111 13609 none 74-76 branch for add-on kill switch
6 222 14762 none cable sheath ∅13 x 430 orig silver
6 222 14762 $2.00 cable sheath ∅13 x 430 repl black
7 111 53418 65-45 horn and run switch (left side)
8 222 21468 $2.00 switch screw M3-0.5 x 21
8 222 01556 $0.50 switch nut M3-0.5
9 111 53441 29-18 brake light switch (right)
10 111 53442 29-18 brake light switch (left)
11 222 21467 $2.00 rubber washer
12 222 21466 $1.50 brake switch nut
13 111 53446 69-48 main wiring harness
14 111 53534 42-25 lights switch rotary type
15 111 53579 $8.00 speedo lights wire
16 111 53580 $9.00 switch ground wire
17 100 53577 $35.0 rear harness 40″ for 40
17 011 53576 none rear harness 43″ for 50 note 2
18 111 53578 45-25 wiring harness magneto
19 111 19888 $9-6 frame-to-engine ground strap
20 111 21370 $5.00 tail light and zener ground wire
21 111 54196 $8.00 76-81 ignition wire with branch
22 111 00000 none 74-76 ignition wire no branch
00 111 21866 $3.00 magneto terminal kit
Note 1: See notes 3 to 5 about horns in the next section.
Note 2: Use the #2 rear harness 54830 below. It’s the same as 53576 except for wire color.
Note 3: Here is the Myrons wiring diagam with notes.
# 45V part# price 45. ’78-81 Electrical 12 volt.
1 011 54138 75-50 main harness grey sheath
1 011 54821 $50.0 main harness black sheath
2 011 54830 $45.0 rear harness
3 001 54266 none rear harness VLX
4 011 21370 $5.00 tail light ground wire
5 011 54140 45-25 magneto harness
6 011 54136 28-18 R brake switch 27″ grey
6 011 54166 32-22 R brake switch 27″ black
6 001 54251 28-18 R brake switch 29″ grey VLX
7 222 21466 $1.50 brake switch nut
8 222 21467 $2.00 rubber washer
9 011 54137 30-20 L brake switch 27″ grey
9 011 54165 32-22 L brake switch 27″ black
9 001 54252 30-20 L brake switch 29″ grey VLX
10 011 54135 $45.0 horn-run switch 22″ grey
10 011 54167 65-45 horn-run switch 22″ black
10 001 54250 none horn-run switch 24″ black VLX
11 222 21468 $2.00 switch screw M3-0.5 x 21
12 011 54196 $8.00 ignition wire
13 111 19888 $9-6 frame-to-engine ground strap
14 011 00000 $7.00 speedo lights wire
15 011 21439 55-40 headlight switch slide type note 1
16 011 00000 $8.00 headlight ground wire
17 011 20330 49-30 78-81 horn large for fork notes 2-5
18 011 20331 $5.00 78-81 horn mount L-type for fork
19 111 20674 $0.80 horn bolt M5-0.8 x 8 hex8 horn
20 111 00874 $0.30 horn washer M5
00 111 21866 $3.00 magneto terminal kit note 6
Note 1: The 21439 slide type light switch breaks easily. Because so many have been replaced, the supply has ran out. Fortunately there is an easy way to bypass the broken switch. Simply connect all three white wires together and wrap with tape. Then the lights are always on.
Note 2: In 1978 the voltage regulator under the headlight was eliminated. The horn was relocated from under the gas tank to the fork where the regulator was.
Note 3: The parts catalogs don’t show the horn mounts and they have only one horn part number 20330. So the horns and mounts are identified by actual samples and photos. 17 Motobecane horns came from stripped out bikes in the greater Los Angeles area. 8 were large with fork mount (L shape) brackets. They must be 12 volt ’78-81 because before that the regulator was in that location. 9 were small with under tank mount (twisted) brackets. They are 6 volt ’74-77. This was verified with photos from Motobecane US Models.
Note 4: 20330 horns were sold complete with mount screw, washer and a clamp-on horn button with long wire. This was an add-on option for Euro models. US models already have a built-in horn button. So here the horn is sold with the screw but without the button switch.
Note 5: Batches of used horns are tested on a running bike. They are compared and rated by loudness. Some horns get weaker with age, from corrosion on the aluminum sound plate. Any that are less loud than the others are rejected.
Note 6: Here is the Myrons wiring diagam with notes.

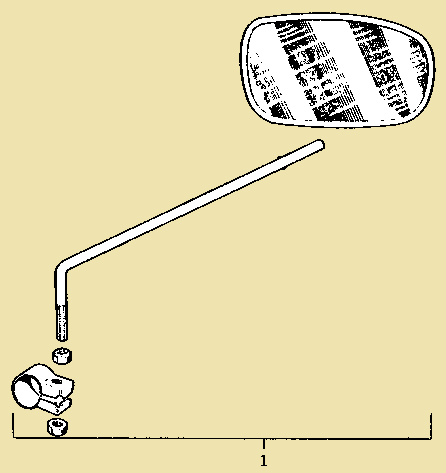

# 45V part# price 46. Mirror
1 111 24403 none mirror left on all except 40S, 50S
1 001 24403 none mirror right on VLA, VLX, Le Moped
D. Parts exclusive to 50VLC and Moby
The seat is long for two people.
On Moby the side cover stickers say Moby.

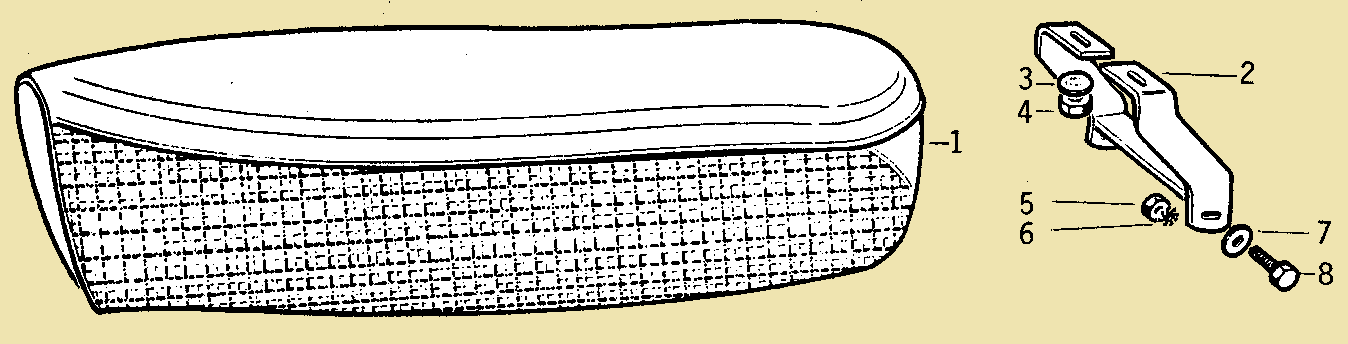

# 45V part# price 50VLC & Moby 1. Seat
1 001 53567 none long seat VLC
2 001 53568 $20.0 rear mount VLC
3 002 01113 $0.50 washer ∅7-20 x 1
4 002 00011 $0.60 nut M7-1.0 x 6 hex10
5 002 00010 $0.30 nut M6-1.0 x 5
6 002 01172 $0.50 toothed lock washer ∅6-10
7 002 00057 $1.00 wide washer ∅6-14 x 0.8
8 002 22588 $6-4 screw M6-1.0 x 15 phil-wide

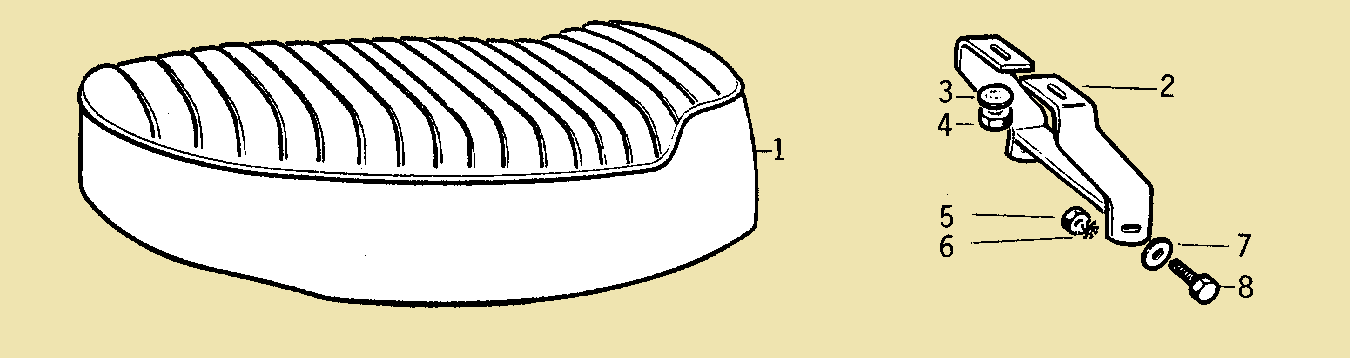

E. Parts exclusive to 50VLA
The seat is semi-long for one person.
The Motobecane-made mag wheels are different.
# 45V part# price 50VLA 1. Seat
1 001 54320 none long seat VLA
2 001 54327 $20.0 rear mount VLA
3 002 01113 $0.50 washer ∅7-20 x 1
4 002 00011 $0.60 nut M7-1.0 x 6 hex10
5 002 00010 $0.30 nut M6-1.0 x 5
6 002 01172 $0.50 toothed lock washer ∅6-10
7 002 00057 $1.00 wide washer ∅6-14 x 0.8
8 002 22588 $6-4 screw M6-1.0 x 15 phil-wide
F. Parts exclusive to 50VLX
The handlebars are 4 inches wider.
So the cables and wires that go to each side are 2 inches longer.
The shocks are stiffer with exposed chrome springs.
The exhaust is a special upswept long type.
The rear fender and rear harness are different.
The front fender is different, higher and mounted to the upper fork.
G. Parts exclusive to Le Moped
The shocks are stiffer with exposed chrome springs.
The seat is long for two people and lifts up with storage tray underneath.
The sides of the gas tank have covers to make it look bigger and better.
The Motobecane-made mag wheels are different.
The cables, wirings and switch wirings are black instead of grey.
H. Parts exclusive to Traveler
The front fender is painted black instead of polished stainless.
The side cover stickers say Traveler.
The tank sides have no chrome covers.
The tank stickers are different.
The cables, wirings and switch wirings are black instead of grey.
The exhaust and handlebar are black instead of chrome.
Motobecane Hardware
Here the nuts, bolts, and other hardware items from the parts lists are listed together, in order of increasing size. This helps with identification and error detection.
sect part# price Nuts .
00 01556 $0.00 nut M3-0.5 x 3.0 hex6
31 01430 $0.60 nut M4-0.7 x 3.0 hex7
12 13339 $1.00 nut M5-0.8 x 3.5 round knurled
15 01485 $0.40 nut M5-0.8 x 4.0 hex8
10 00878 $3.00 nut M5-0.8 x 12 hex8
32 01511 $1.50 nut M5-0.8 x ?? flange-lock
15 01436 $0.55 nut M5-0.8 x 6.0 tall nylock
34 00079 $1.00 nut M5-0.9 x 4.0 hex8
35 00679a $2-1 nut M6-1.0 x 4.0 hex 10
02 00010 $0.30 nut M6-1.0 x 4.5 hex10 (5.0)
05 01176 $0.90 nut M6-1.0 x 5.5 nylock
02 01526 $1.20 nut M6-1.0 x 6.0 flange
00 00378 $0.00 nut M7-1.0 x 3.0 hex14
02 00011 $0.50 nut M7-1.0 x 6.0 hex10
37 00198 $2.50 nut M8-1.0 x 4.5 hex13
20 14147 $2-$1 nut M8-1.0 x 6.5 rounded? pulley
02 17523 $2.50 nut M8-1.0 x 7 nylock motor mount
00 13258 $0.80 nut M8-1.25×6.5 hex13
29 16555 $3.50 nut M10-1.0 nylock swingarm
00 15179 $0.00 nut M10-?? x ?
00 13217 $0.00 nut M38-1.5 x ?
sect part# price Bolts .
44 20674 $0.80 bolt only M5-0.8 x 8 hex8 horn
34b 14267 $0.00 bolt only M5-0.9 x 10 hex8
42 16714 $1.20 bolt only M6-1.0 x 9 hex10 pointed
35b 00046 $1.00 bolt+nut M6-1.0 x 12 hex10
34 00679 $1.00 bolt+nut M6-1.0 x 15 hex10 (16)
23 00968 $1.00 bolt only M6-1.0 x 20 hex10
?? 00687 $0.00 bolt only M6-1.0 x 27 hex10 from price list
02 00050 $0.80 bolt only M6-1.0 x 32 or 25?
01 14936 $1.00 bolt only M7-1.0 x 33 hex10
01 00366b$1.50 bolt only M7-1.0 x 40 hex10
01 15276 $1.50 bolt+nut M7-1.25×45 hex10 flange-head
01 00366 $1.40 bolt only M7-1.0 x 48 hex10
09 01189 $1.90 bolt+nut M7-1.0 x 53 hex10 exhaust
37 15874 $3.00 bolt+nut M8-1.0 x 37 hex13
37 20369 $2.00 bolt+nut M8-1.0 x 45 hex13
37 17023 $0.00 bolt+nut M8-1.0 x 39 hex13
39 15875 $1.70 bolt+nut M8-1.0 x 57 hex17
02 19886 $6.00 bolt only M8-1.0×140 engine mount
02 20453 none bolt only M8-1.0×145? for up-exhaust
39 22710 $0.00 bolt only M8-1.25x? Traveler seat clamp
29 15872 $10-7 bolt+nut M10-1×135 swing arm
sect part# price Carriage Bolts .
23 15629 $2.50 bolt+nut M5-0.9 x 19 hex8
05 23018 $1.50 bolt only M6-1.0 x 15
28 14991 $2.00 bolt+nut M8-1.0 x 45 hex13
28 14991 none bolt+nut M8-1.0 x 45 hex13
sect part# price Fender brace Bolts .
34 21167 $7-5 brace bolt M6 x 11 (20 total)
34 21167l $8-4 brace bolt M6 x 14 (23 total)
34 20100 $7-4 brace bolt M6 x 17 (26 total)
sect part# price Screws .
29 21126 none screw only M3? for tank plate
29 21093 $2.00 screw only M3-0.5 x 11 for emblem
42 20550 $1.00 screw+nut M4-0.7 x 10? phil
29 20060 none screw only M4-0.75×10? slot fork cover
31 15356 $3.50 screw only M4-0.75×14 sunk slot
00 13245 $0.00 screw only M5-0.8 x 12
29 17424 $7.00 screw only M5-0.9 x 12 wide slot
19 17425 $6.00 screw only M5-0.9 x 10 wide slot
00 14311 $0.00 screw only M5?
36 20105 $5-3 screw only M6-1.0 x 11 phil-wide
42 22588 $6-4 screw only M6-1.0 x 15 phil-wide
42 53435 none screw only M6-1.0 x 30? phil-wide
sect part# price Washers .
03 14987 $4.00 washer flat ∅4? for decomp
31 01088 $0.30 washer flat ∅4
34b 00052 $0.20 washer flat ∅5-10
23 00874 $0.40 washer lock ∅5 spring
34b 01171 $0.50 washer lock ∅5 inner teeth
07 01545 $0.70 washer flat ∅6-14 x 1
34 00020 $0.20 washer flat ∅6-12
35 00797 $0.50 washer lock ∅6-11 outer teeth
02 01172 $0.50 washer lock ∅6-14 inner teeth
23 00004 $1.00 washer flat ∅6 thin
07 01525 $0.30 washer ??? ∅6
07 01113 $0.70 washer flat ∅7-20 x 1
02 16541 $0.20 washer flat ∅8
29 01422 $1.00 washer ??? ∅8
28 18738 $1.00 washer lock ∅8-?? inner teeth
02 01527 $0.50 washer lock ∅7-16 inner teeth
18 14750 none washer shim ∅15-?? x ??
18 14931 $5.00 washer shim ∅15-21 x 0.1 mm
18 14932 $5.00 washer shim ∅15-21 x 0.25
18 14933 $5.00 washer shim ∅15-21 x 0.45
18 14562 $6.00 washer shim ∅15-21.7 x 0.5 use 14562
18 14562 $7.00 washer shim ∅15-21.7 x 0.8
18 14588 $7.00 washer shim ∅15.5-31 x 0.85
21 15998 $7.00 washer shim ∅16-26 x 1.0
21 14863 none washer shim ∅16-30 x 0.1
21 14865 $7.00 washer shim ∅16-30 x 0.3
21 15001 $7.00 washer shim ∅16-30 x 0.75
21 14153 $7.00 washer shim ∅16-27 x 2.0
06 01285 $4.00 washer shim ∅19-24 x 0.1
06 01286 $4.00 washer shim ∅19-24 x 0.2
06 01287 $4.00 washer shim ∅19-24 x 0.3
06 01288 $4.00 washer shim ∅19-24 x 0.5
07 23780 $8.00 washer alum ∅30-33 x 1
19 16542 none washer wave for start shoe
18 21946 none washer wave for start shoe
sect part# price Spacers
23 16689 none spacer 6-8 x 11.5
08 19891 $8.00 spacer 7-12 x 30
37 20690 $2.50 spacer 8-16 x 3.5
37 17024 $3.00 spacer 8-16 x 5
37 22674 $2.00 spacer 8-16 x 7.5
00 23024 $3.00 spacer 8-12 x 10 Model 7
02 21014 $3.00 step s. 8-12-17 x 10.5
02 20534 $4.00 spacer 8-12 x 18
02 20534 $4.00 spacer 8-14 x 18
02 20790 $6.00 plastic 8-11 x 23
21 20738 $8.00 spacer 16-20 x 13
sect part# price Grommets
35 16948 none grommet 40,50
35 20094 none grommet 50
35b 17160 none grommet 40
