Contents:
A. ’76-82 N Non Reed Engine
A. ’83-86 P Pyramid Reed Engine
B. ’85-89 F Flat Reed Engine
Derbi Engines on US models N, P and F
Speed Versions
N and P 1976-86 had three speed versions:
30mph (2.0hp) 12mm intake, no restrictor,
one 1.5 mm variator limiting washer (gas mileage 117 mpg),
25mph (1.5hp) 10mm intake restrictor,
one 4 mm variator limiting washer (gas mileage 130 mpg),
20mph (1.0hp) 10mm intake restrictor,
two 4 mm variator limiting washers.
F 1985-89 had one speed version:
30mph (2.0hp) 10mm intake restrictor,
one 1.5 mm variator limiting washer,
43 mph actual when de-restricted!
Sources
DMCA is Derbi Motor Corporation of America, MMI is Marina Mobili Inc
1. 1977 Parts List Variant x DMCA
2. 1979 Parts List Variant x DMCA
3. 1980 Parts List C5 Diablo DMCA
4. 1982 Parts List Laguna x DMCA
5. 1984 Price List xxxxxxxx DMCA
6. 1989 Price List xxxxxxxx MMI
A.
’76-82 N Non-Reed and
’83-87 P Pyramid Reed
Four engine versions are in this group:
1. N non-reed for Variant frame ’76-82 SL, SLE
black cylinder with ∅7 cylinder stud holes
1a. same but with silver cylinder ’76-82 TT
2. N non-reed for Cradle frame ’76-82 C5, Laguna
black cylinder with ∅10 top holes for sleeve nuts
case has front studs for cradle frame
2e. same but with electric start option
3. P pyramid reed Variant frame ’83-86 SL, SLE, TT
black cylinder with ∅7 cylinder stud holes
3e. same but with electric start option
4. P pyramid reed for Cradle frame ’83-87 RD50
black cylinder with ∅10 top holes for sleeve nuts
case has front studs for cradle frame
4e. same but with electric start option
A1. Cylinder, Piston, Crank
# NNPP ’70’s # ’89 price list # price .
1 1000 82.25.030 000.82.25.030 $150 N cylinder kit silver
1 1000 81.25.030 0A0.50.10.121 $150 N cylinder kit black
1 0100 00.00.000 0A0.50.30.121 $150 N cylinder kit black
1b 0010 00.00.000 0A1.25.00.031?$0.00 P cylinder kit black
1b 0001 00.00.000 0A0.50.40.121 none P cylinder kit black
2 1000 81.25.010 000.81.25.010 $45.0 N,P head bare ∅7 silver
2 1010 82.25.010 0F0.50.00.171 $45.0 N,P head bare ∅7 black
2 0101 00.00.000 0A0.25.00.011 $60.0 N,P head bare ∅10 black
3 1010 82.25.020 000.82.25.020 $8.00 N,P head gasket ∅7 holes
3 0101 00.00.000 0A0.25.00.021 $12.0 N,P head gasket ∅10 holes
4 2200 82.25.040 000.82.25.040 $3.00 N,N cylinder gasket 0.2mm
4b 0022 00.00.000 0A0.25.10.571 $3.00 P,P cylinder gasket 0.2mm
5 1100 82.25.570 000.82.25.570 $8.00 N,N cylinder spacer 2.0mm
5b 0011 00.00.000 0A0.25.00.041 $16.0 P,P cylinder spacer 2.0mm
6 1110 82.25.141 000.82.25.141 $130 N,N,P crank circle type note 1
6b 0001 00.00.000 0A0.25.00.141 none P crankshaft full circle RD50
7 4000 31.25.290 000.31.25.290 $1.20 N head nut M7 x 7 hex11
7b 0040 82.02.730 000.82.02.730 $4.00 P head nut M7 x 10 hex12
7c 0404 00.00.000 0A0.25.00.291 none N,P head nut M7 ∅10 x 70? sleeve
8 4040 31.25.280 000.31.25.280 $0.20 N,P head washer ∅7
8 0404 00.00.000 0C0.25.00.538 $0.30 N,P head washer ∅10
10 1111 80.25.090 000.80.25.090 none piston 37.94 x 12-17-20.5 orig
10 1111 80.25.090 000.80.25.090 $65.0 piston 37.94 x 12-17-20.5 note 2
11 1111 80.25.100 000.80.25.100 none piston bare original
12 1111 80.25.110 000.80.25.110 $10.0 upper ring 38 x 2 L-type
13 1111 67.25.110 000.67.25.110 $9.00 lower ring 38 x 1.5 GN
13 1111 00.00.000 0A0.25.00.118 $18.0 ring set 38 x 2 L and 38 x 1.5 GN
14 1111 31.25.120 000.31.25.120 $10.0 piston pin ∅12 x 30
15 2222 31.25.130 000.31.25.130 $1.50 piston clip ∅12
16 1111 21.25.170 000.21.25.170 $9.00 piston bearing 12-15 x 15
18 1111 31.25.180 000.31.25.180 $10.0 rod bearing 16-22 x 12
19 1111 03.25.190 000.03.25.190 none crank pin
21 1111 00.57.203 005.71.20.300 $16.0 L crank bearing 6203-C3
22 1111 00.57.303 000.00.57.303 $10.0 R crank bearing 6303
23 2222 61.25.230 000.61.25.230 $8.00 L & R crank seal
24 1111 82.31.010 000.82.31.010 $40.0 decomp assy
25 1111 04.73.040 000.04.73.040 $2.50 decomp E-clip 4mm
26 1111 82.31.050 000.82.31.050 $5.00 decomp lever
27 1111 82.31.110 000.82.31.110 $6.00 decomp bracket
28 1111 82.31.120 000.82.31.120 $7.00 decomp roll pin ∅2.5 x 16
29 1111 00.04.510 000.00.04.510 $2.00 decomp screw M5 x 10 allen
30 1111 82.31.020 000.82.31.020 $20.0 decomp valve
31 1111 82.31.090 000.82.31.090 $2.50 decomp o-ring 2.0 x 4 (8 od)
32 2222 82.31.100 000.82.31.100 $5.00 decomp spring guide
33 1111 82.31.040 000.82.31.040 $9.00 decomp spring ∅10×20
34 2200 00.04.615 000.00.04.615 $0.70 N intake bolt M6 x 15 (16) allen
35 2200 00.34.060 000.00.34.060 $1.00 N intake washer M6 inner teeth
36 1100 82.25.050 000.82.25.050 $7.00 N intake gasket
37 1100 82.25.060 000.80.25.060 $35.0 N intake pipe
38 1100 50.25.580 000.50.25.580 $3.00 N intake reducer ∅12-10 (some)
00 1111 82.34.040 000.82.34.040 $14.0 exhaust gasket
Note 1. The price of a good used crankshaft depends mostly on how much wear is where the right bearing contacts the crank.
Note 2. The replacement piston is GOL 0037A-C with the skirt shortened from 23 to 20.5 mm. It has the same dimensions. Both rings are the normal type (rectangular cross-section).
A2. Case and Covers
# NNPP ’70’s # ’89 price list # price .
1 1000 82.30.002 000.82.30.002 none N case set SL, SLE, TT
1 0100 79.30.630 0A0.30.00.631 none N case set C5, Laguna
1 0010 00.00.000 0A0.30.20.631 none P case set SL, SLE, TT
1 0001 00.00.000 0A0.30.30.631 none P case set RD50
2 1000 82.30.010 000.82.30.010 none N right case half
2 0222 31.30.020 000.31.30.020 $7.00 N,P centering pin ∅7 x 20
3 1000 82.30.031 000.82.30.040 none N left case half
3 0202 79.30.730 000.79.30.730 none N,P rubber plug note 1
4 3000 82.30.021 000.82.30.021 $9.00 N rubber tube ∅14-22 x 50

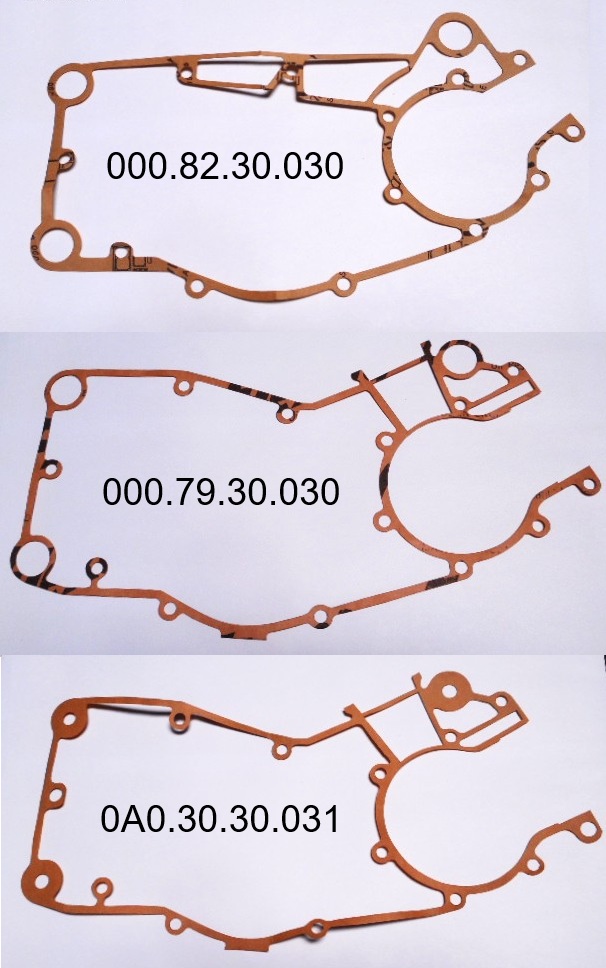

5 1000 82.30.030 000.82.30.030 $10.0 N case gasket
5 0100 79.30.030 000.79.30.030 $15.0 N case gasket
5 0011 00.00.000 0A0.30.10.031 none P,P case gasket for elec. start
5 0011 81.30.030 0A0.30.30.031 $15.0 P,P case gasket
6 3000 82.30.070 000.82.30.070 $9.00 N steel tube ∅9-14 x 48
7 4040 31.30.050 000.31.30.050 $4.50 N cylinder stud M7 x 117
7 0404 79.30.050 000.79.30.050 none N cylinder stud M7 x 50?
8 1111 31.30.080 000.31.30.080 $6.00 filler plug M14-1.25 with vent
9 1100 56.30.120 000.56.30.120 $4.00 drain plug gasket ∅14-20
9 0011 00.00.000 0A0.30.00.121 $0.00 drain plug gasket
10 1000 82.30.150 000.82.30.150 $80.0 N right cover grey (SL) #9
10 1000 87.30.150 000.87.30.150 none N right cover gold (SLE)
10 1000 85.30.150 000.85.30.150 $80.0 N right cover black (TT) #12 used
10 0111 85.30.150 000.85.30.150 $80.0 N,P,P right cover black #12 used
11 1000 82.30.200 000.82.30.200 $70.0 N left cover grey (SL) #10
11 1000 87.30.200 000.87.30.200 $50.0 N left cover gold (SLE) #11 used
11 1000 85.30.200 000.85.30.200 $60.0 N left cover black (TT) #13 used
11 0101 80.30.201 000.80.30.201 none N,P left cover black metal
11 0010 00.00.000 0A0.30.20.201 $50.0 P left cover black #14 used
12 60 31.25.260 000.31.25.260 $12.0 N rubber-steel tube ∅8.7-19 x 17
13 3030 00.04.655 000.00.04.655 $1.20 N screw M6 x 55 allen
13 0505 82.30.110 000.82.30.110 $0.80 N screw M6 x 55 slot
14 5050 00.04.650 000.00.04.650 $1.00 N screw M6 x 50 allen
14 0303 31.30.090 000.31.30.090 1 -.70 N screw M6 x 50 slot
15 1010 00.04.645 000.00.04.645 $1.00 N screw M6 x 45 allen
15 0202 31.30.190 000.31.30.190 1 -.80 N screw M6 x 45 slot
16 x0x0 00.04.635 000.00.04.635 $0.80 N screw M6 x 35 allen x=13
16 0y0y 31.30.110 000.31.30.110 $1.00 N screw M6 x 35 slot y=12
17 1100 56.30.130 000.56.30.130 $12.0 drain plug M14-1.25 metal
17 0011 00.00.000 0A0.30.00.421 $0.00 drain plug
18 1111 00.04.615 000.00.04.615 $0.70 check plug M6 x 16 allen
19 1111 31.02.280 000.31.02.280 $1.50 check plug gasket ∅6
20 1000 82.33.280 000.82.33.280 $7.00 N wires grommet
20 0111 79.33.280 000.79.33.280 $0.00 N,P,P wires grommet
21 0202 25.30.680 000.25.30.680 $0.00 N,P mount stud
28 0011 00.00.000 0A0.25.00.711 none P,P intake pipe for pyramid reed
27 0022 20.25.050 000.20.25.050 none P,P intake gasket for pyr. reed
29 0044 00.04.620 000.00.04.620 $0.70 P,P intake bolt M6 x 20
30 0044 00.34.060 000.00.34.030 $0.70 P,P intake washer ∅6 inner teeth
31 0033 00.00.000 000.40.30.600 none P,P reed petal screw M3 x 6
32 0033 00.34.030 000.00.34.030 none P,P reed petal washer ∅3 star
33 0033 20.25.630 000.20.25.630 none P,P reed petal stop
34 0033 20.25.650 000.20.25.650 none P,P reed petal
35 0011 00.00.000 0D0.25.10.641 none P,P reed valve assy
36 1111 50.25.580 000.50.25.580 $3.00 intake reducer ∅12-10 (some)
Note 1. On the cradle frame engine versions N, P, the two #3 rubber plugs go in the unused front-top motor mount holes.

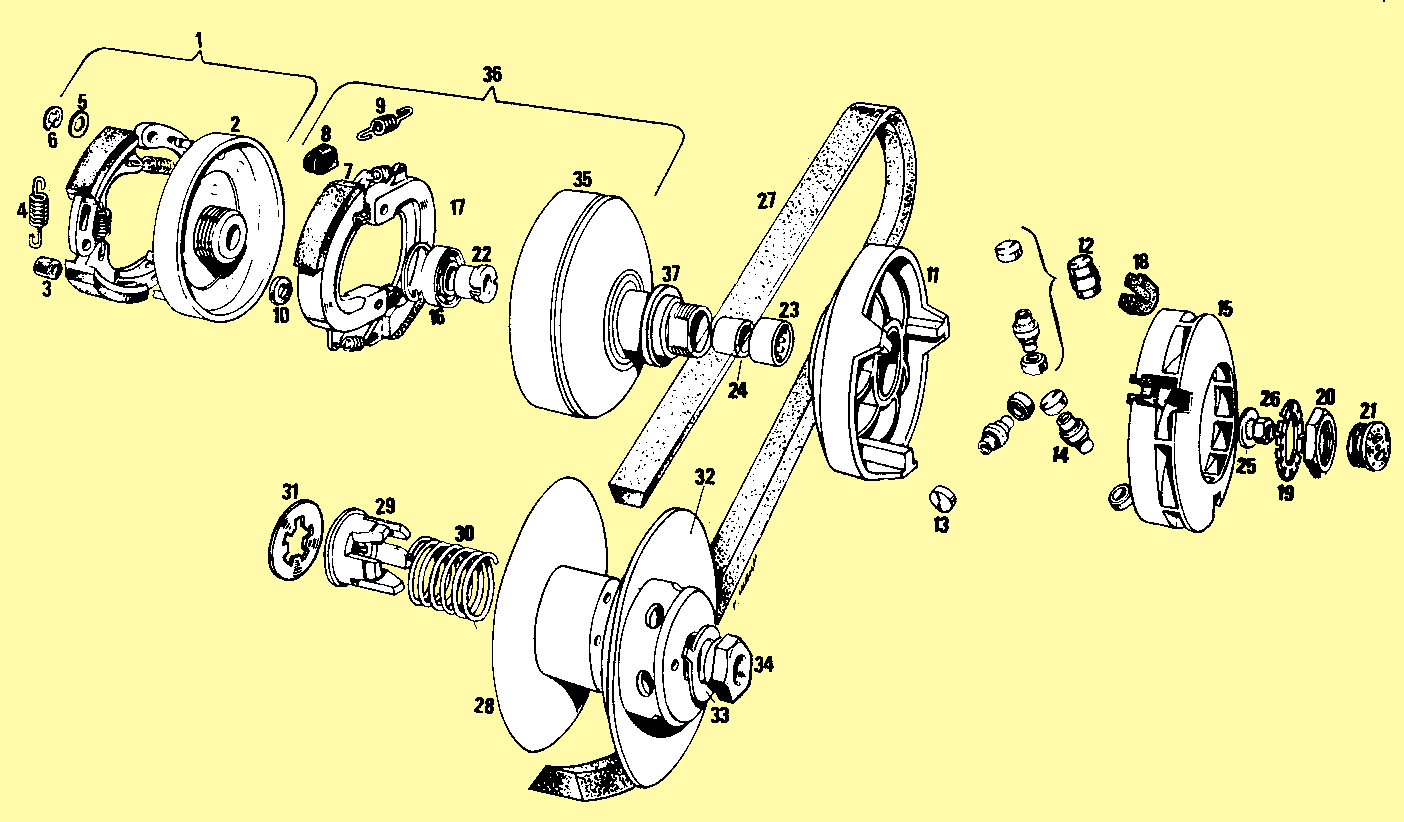

A3. Variator Clutch
# qty ’70’s # ’89 price list # price .
1 1 82.26.820 000.82.26.820 $140 clutch sub-assy
2 1 82.26.170 000.82.26.170 $0.00 starting drum
2a 1 82.26.160 000.82.26.160 $0.00 clutch shoe set
3 3 82.26.440 000.82.26.440 $0.00 clutch cushion
4 3 82.26.810 000.82.26.810 $7.00 clutch spring
5 3 82.26.410 000.82.26.410 $0.00 clutch washer ∅8
6 3 00.47.308 000.00.47.308 $0.00 external ret. ring ∅8
7 1 82.26.150 000.82.26.150 $75.0 start shoe set
8 2 82.26.070 000.82.26.070 $7.00 start cushion
9 2 82.26.770 000.82.26.770 $6.00 start spring
10 2 82.26.330 000.82.26.330 $7.00 start washer ∅7-12 x 2.5
11 1 82.26.460 000.82.26.460 $70.0 pulley weight plate
12 3 82.36.110 000.82.36.110 $15.0 weight with 2 end caps
13 6 82.26.420 000.82.26.420 $7-$4 weight end cap
14 3 82.26.760 000.82.26.760 $3.00 weight bare
15 1 82.26.190 000.82.26.190 $0.00 weight cover-fan
16 1 00.57.201 000.00.57.201 $7.00 clutch bearing 6201Z 12-32 x 10
17 1 00.47.232 000.00.47.232 $5.00 internal ret. ring ∅32
18 3 82.36.090 000.82.36.090 $7.00 weight cover guide
19 1 82.26.241 000.82.26.241 $9-$6 variator washer ∅28-44 x 0.5
20 1 82.26.261 000.82.26.261 $3.00 variator cap nut M28-1.0 x 13 hex35
20 1 82.26.261 000.82.26.261 $12-8 variator thin nut M28-1.0 x 5 hex35
21 1 82.26.380 000.82.26.380 $4-$2 cover plug
22 1 82.26.730 000.82.26.730 $0.00 bearing cap?
23 1 82.26.720 000.82.26.720 $18.0 needle bearing ∅16-22 x 12
24 1 82.26.480 000.82.26.480 $16.0 bearing race tube ∅10-16 x 15
25 1 65.25.530 000.65.25.530 $3-$1 clutch washer ∅10 x 20
26 1 31.13.150 000.31.13.150 $8.00 clutch nut M10-1.0 x 6 hex14
27 1 82.26.370 000.82.26.370 $0.00 variator belt
28 1 80.26.120 000.80.26.120 $0.00 rear pulley inner
29 1 82.26.130 000.82.26.130 $16.0 variator guide
30 1 82.26.210 000.82.26.210 $0.00 variator spring
31 1 82.26.020 000.82.26.020 $6.00 splined washer
32 1 80.36.160 000.80.36.160 $0.00 rear pulley outer
33 1 82.26.232 000.82.26.232 $3.00 rear pulley tab washer ∅14
34 1 80.26.510 000.80.26.510 $8.00 rear pulley nut M14-1.5 x 5 hex19
35 1 82.26.740 000.82.26.740 $0.00 drive pulley
36 1 82.26.040 000.82.26.040 $0.00 drive pulley assy
37 1 50.36.191 000.50.36.191 $5.00 limiting washer ∅30-40 x 4.0
37 1 50.36.190 000.50.36.190 $5.00 limiting washer ∅30-40 x 1.5
Note 1. 30mph (2.0hp) had one 1.5 mm limiting washer.
25mph (1.5hp) had one 4 mm variator limiting washer.
20mph (1.0hp) had two 4 mm variator limiting washers.

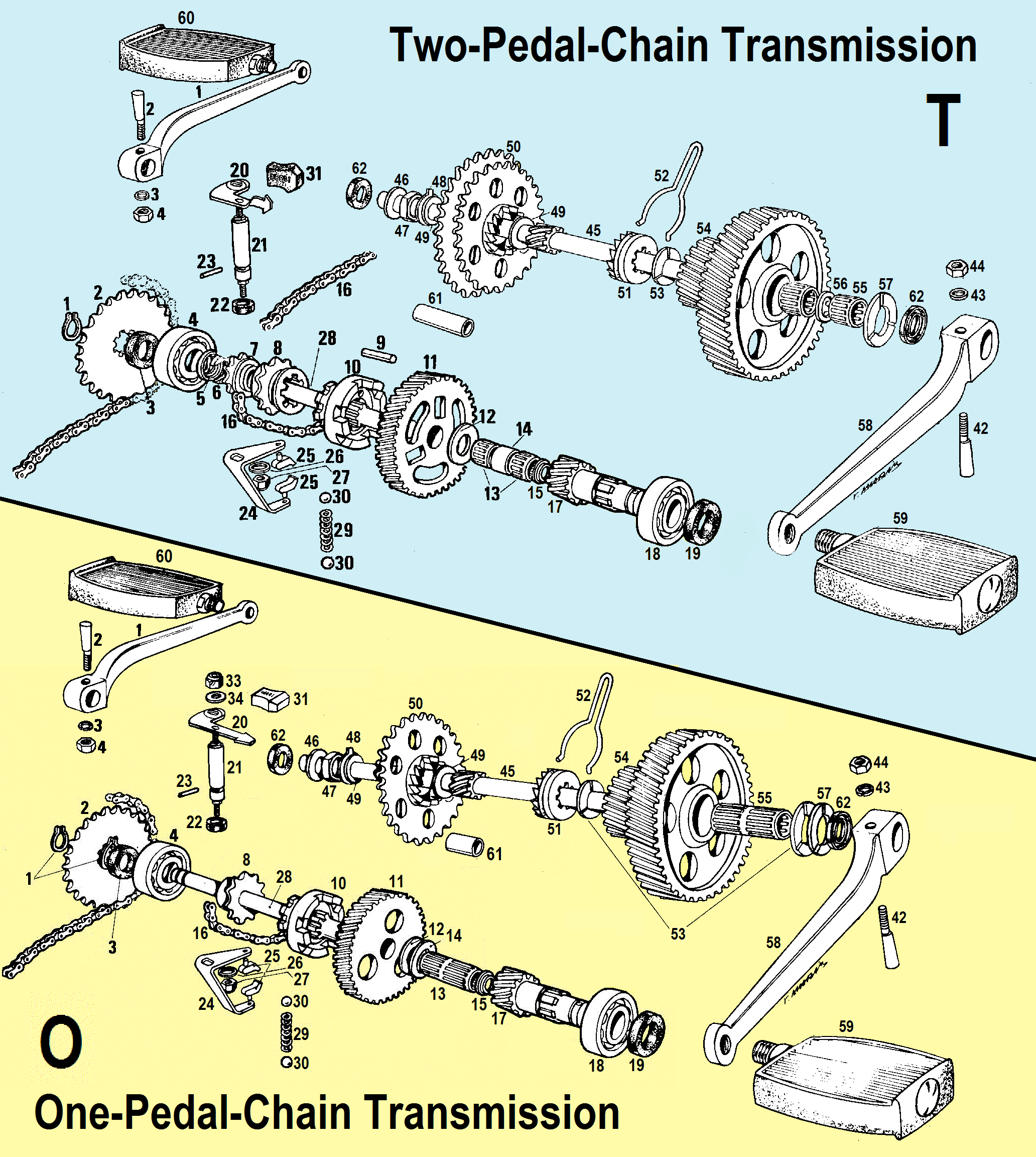

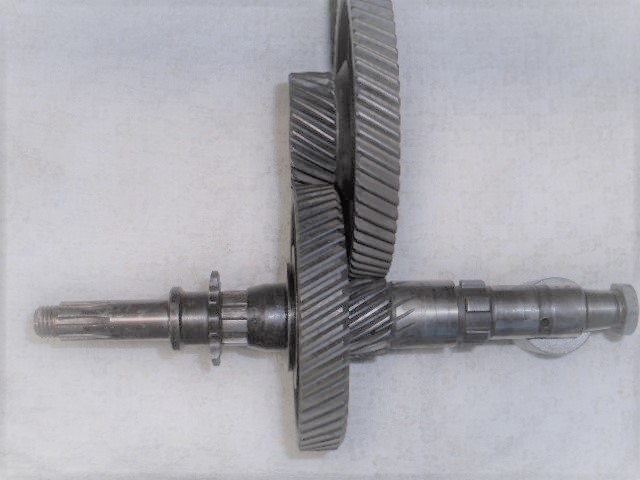

A4. Transmission
The T two-pedal-chain transmission is from the 1977 parts catalog (in Spanish) with 32 items listed. This early parts catalog is stamped Derbi Motor Corporation of America. It must have been the first parts catalog. The Variant model is about 85% the same as a US model. The transmission, trim and electrical equipment are the main differences.
Notice that none of the T-only parts have 1989 price list part numbers. That means that Derbi USA did not carry T-only parts. It’s unlikely that they once had all of them but sold all of them. The first few US-model bikes may have had the two-pedal-chain transmission.
The O one-pedal-chain transmission is from the 1979 USA parts catalog (in English) with 27 items. This was on most, if not all, US models.
# TO ’70’s # 0 ’89 price list # price T is Two-chain, O is One-chain
1 22 00.471.15 000.00.47.115 $1.50 external clip ring 15
2 11 82.28.372 000.82.28.372 $15.0 sprocket 19 tooth
3 11 82.28.400 000.82.28.400 $7.00 left drive seal 15-30-7
4 11 00.57.302 000.00.57.302 $10.0 L drive bearing 6302
5 10 82.35.440 000.00.00.000 none T retaining cup washer
6 10 82.35.430 000.00.00.000 none T pinion securing piece
7 10 82.35.421 000.00.00.000 none T left pedal pinion 10T
8 10 82.35.411 000.00.00.000 none T right pedal pinion 15T
8 01 50.35.410 000.50.35.410 $15.0 O pedal pinion 15T
9 30 82.35.271 000.00.00.000 none T pinion stop pin
10 10 82.28.641 000.00.00.000 none T gear shifter
10 01 50.28.640 000.50.28.640 none O shifter dog
11 10 82.28.220 000.00.00.000 none T gear wheel 52T
11 01 82.28.221 000.82.28.221 $80.0 O gear wheel 55T (list says 54)
12 11 82.28.560 000.82.28.560 $4.00 washer ∅16-25 x 1
13 20 82.28.450 000.00.00.000 none T needle bearing ∅16-20 x 16?
13 01 82.28.492 000.82.28.492 $15.0 dual needle bearing ∅16-20 x 50
14 10 82.28.260 000.00.00.000 none spacer tube ∅16-19 x 17.5
14 0a 82.28.561 000.82.28.561 none washer 16-25 x 0.45
14 0a 82.28.562 000.82.28.562 $5.00 washer 16-25 x 0.60
14 0a 82.28.563 000.82.28.563 none washer 16-25 x 0.70
14 0a 82.28.564 000.82.28.564 $5.00 washer 16-25 x 0.80
15 11 82.28.280 000.82.28.280 $7.00 ring with lip 15.5-17.7-19.5 x 3
16 21 82.35.140 000.82.35.140 $20.0 pedal chain #35 37 links
17 11 82.28.300 000.00.00.000 $80.0 pulley shaft-gear 16T tapered
18 11 00.57.205 000.00.57.205 $17.0 R drive bearing 6205 25-52-15
19 11 82.30.460 000.82.30.461 $9.00 R drive seal 25-40-7
20 11 82.28.050 0A0.28.20.051 15-$9 shifter lever SL, SLE
20 01 85.28.050 000.00.00.000 $15.0 shifter lever TT longer
21 11 82.28.060 000.82.28.060 $12.0 shifter shaft
22 11 82.28.360 000.82.28.360 $8.00 shifter seal 12-18-3
23 11 82.28.080 000.82.28.080 $5.00 shifter roll pin 3.5 x 18
24 11 82.28.090 000.82.28.090 $12.0 shifter fork
25 22 82.28.100 000.82.28.100 $7.00 shifter pawl
26 22 00.31.060 000.00.31.060 $0.20 washer M6
27 22 00.23.060 000.00.23.060 $0.90 nut M6 nylock
28 11 82.28.160 000.82.28.160 none N,N drive shaft bare
28 01 50.28.130 000.50.28.130 none N,N drive shaft assy 15T note 1
28 01 00.00.000 0A0.28.00.131 none P,P drive shaft assy 15T note 2
28 01 00.00.000 0A0.28.20.071 none P,P drive shaft assy 10T longer
29 11 82.28.970 000.31.27.200 $6.00 shifter spring ∅4.5 x 17 11-coils
30 22 00.61.040 000.00.61.040 $0.20 shifter ball 3/16″ note 3
31 11 82.28.930 000.82.28.930 none shifter lever cover
41 11 82.35.030 000.82.35.030 22-15 left pedal crank
42 22 82.35.040 000.82.35.040 $2.00 wedge pin ∅9 with 2, 3
43 22 00.33.070 000.00.33.070 $0.50 lock washer ∅7
44 22 00.21.070 000.00.21.070 $0.60 nut M7
45 10 82.35.090 000.00.00.000 none T pedal shaft
45 01 82.35.092 000.82.35.093 none O pedal shaft
46 11 82.28.560 000.82.26.560 none washer ∅16
47 11 82.35.390 000.82.35.390 $14.0 nut M19-1.0 x 6 hex 25
48 11 82.35.380 000.82.35.380 $5.00 washer ∅19 inner teeth
49 22 82.35.240 000.82.35.240 $5.00 washer ∅19-25 x 1.0
50 10 82.35.050 000.00.00.000 none T pedal sprocket assy
50 01 50.35.050 000.50.35.050 none O pedal sprocket 29T
51 11 82.35.260 000.82.35.260 $9.00 pedal driver
52 11 82.35.320 000.82.35.320 $8.00 friction spring
53 10 82.35.400 000.00.00.000 none T washer ∅16
53 02 82.28.310 000.82.28.310 $8.00 washer ∅16-32 x 3.0
54 11 82.28.960 000.82.28.962 $130 dual gear 22T x 62T note 4
55 20 82.28.490 000.00.00.000 none T needle bearing ∅16-20 x 14
55 01 82.28.492 000.82.28.492 $15.0 O dual needle bearing ∅16-20 x 30
56 10 82.28.260 000.00.00.000 none T spacer ∅16-20 x 2 note 5
56 10 82.28.700 000.00.00.000 none T washer
57 10 82.28.310 000.00.00.000 none T shim washer ∅16-32 x 2.0?
57 0a 82.28.990 000.82.28.565 none shim washer ∅16-32 x 2.0
57 0a 82.28.311 000.82.28.311 $8.00 shim washer ∅16-32 x 1.8
57 0a 82.28.312 000.82.28.312 none shim washer ∅16-32 x 1.6
58 11 82.35.130 000.82.35.130 $32.0 right pedal crank
59 11 82.35.121 000.82.35.121 none rt pedal blk M14-1.5 French
60 11 82.35.021 000.82.35.021 none lf pedal blk M14-1.5 French
61 11 82.35.070 000.82.35.070 none sprocket spacer
62 22 82.35.300 000.82.35.300 $5.00 pedal shaft seal 16-24-4
Note 1. The #28 drive shaft assembly includes #8, #10, #29, #30. The N type drive shaft for non-reed models has a 15 tooth pedal sprocket and two clip grooves for holding the the motor sprocket. The early P type for pyramid-reed models is the same but has M12-1.5 threads for holding the motor sprocket. The late P type for pyramid-reed models is the same but has a 10 tooth pedal sprocket.
Note 2. The sprocket shaft end on a ’83-86 pyramid reed engine sticks out more than on a ’76-82 non-reed engine. So the non-reed left cover with the dimple over the sprocket won’t fit unless the dimple is cut away leaving a hole. The reason it sticks out more is because the end has a short threaded post for a sprocket nut M12-1.5 thread, instead of a clip. It may also stick out more if Derbi moved the sprocket outward to make room for a possible wider rear tire.
Note 3. The #29 shifter spring and two #30 balls go in a hole through the #28 drive shaft, under the #10 shifter dog. Notches in the shifter dog keep it in either the in-gear or out-of-gear positions. Be careful, when the shifter dog is slid all the way out, the spring and balls shoot out and fly away forever.
Note 4. The right gear set tooth total is 62 + 16 = 77. The left gear set tooth total is 55 + 22 = 77. The gear set tooth totals must be equal because the drive shaft and pedal shaft are parallel.
Note 5. The width of the dual gear is 30.5 mm. The two #55 14mm bearings and #56 2 mm spacer totals 30 mm, the same as the #55 dual bearing.
B.
Flat Reed Engine ’85-89
Two engine versions are in this group:
1. F flat-reed ’85-86 SL-X, SLE-X, ’87-89 Variant Sport .
silver all-aluminum cylinder with ∅7 stud holes
2. Fe flat-reed ’86-89 Derbi DS50 .
silver all-aluminum cylinder with ∅7 stud holes
retractable left pedal, CDI ignition, electric start
Sources
MMI is Marina Mobili Inc
1. 1987 Parts List Variant x National Motor
2. 1987 Parts List DS50 xxx MMI
3. 1989 Price List xxxxxxxx MMI
B1. Cylinder, Piston, Crankshaft ’85-89
# qty 0 old# 000 Derbi# 0000 price .
1 1 00.00.000 0F0.50.00.121 none cylinder-piston
2 4 82.00.730 000.82.00.730 none head nut
3 4 31.25.280 000.31.25.280 none head washer
4 1 82.25.110 0F0.50.00.171 $45.0 head bare
5 1 00.00.000 0F0.25.00.021 none head gasket
6 2 00.00.000 0F0.25.00.041 $4.00 base gasket
7 2 00.00.000 0F0.25.00.111 $10.0 piston ring 40 x 1.5 GI
8 1 00.00.000 0F0.25.00.091 none piston
9 1 31.25.120 000.31.25.120 none piston pin
10 2 31.25.130 000.31.25.130 none piston clip
11 1 00.00.000 0F0.50.00.011 none rod assy
12 1 21.25.170 000.21.25.170 $9.00 piston bearing 12-15 x 15
13 1 00.00.000 005.90.20.400 none R crank bearing 6204 C4
14 1 00.00.000 005.91.20.300 none L crank bearing 6203 C4
15 1 00.00.000 0F0.25.00.141 none crankshaft
16 1 31.25.180 000.31.25.180 none rod bearing
17 1 00.00.000 0F0.25.00.191 none crank pin
18 2 00.00.000 0F0.25.00.231 $8.00 L & R crank seal 17-30-7
B2. Variator Clutch ’85-89
B3. Case Group Pedal Start ’85-89
B4. Case Group Electric Start ’85-89
B5. Transmission Group 1 ’85-89
B6. Transmission Group 2 ’85-89
B7. Transmission Group 3 ’85-89
B8. Electric Start ’85-89
B9. Exhaust ’85-89
B10. Carburetor ’85-89
B11. Magneto Points ’85-89
B12. Magneto CDI ’85-89
